Fuse Locations
If any electrical devices are not working, turn off the vehicle and check to see if any applicable fuse is blown. Fuse locations are shown on the fuse box cover. Locate the fuse by the fuse number and box cover number.
Driver's Side Interior Fuse Boxes
Box A, located under the dashboard.
Fuse box
Fuse label

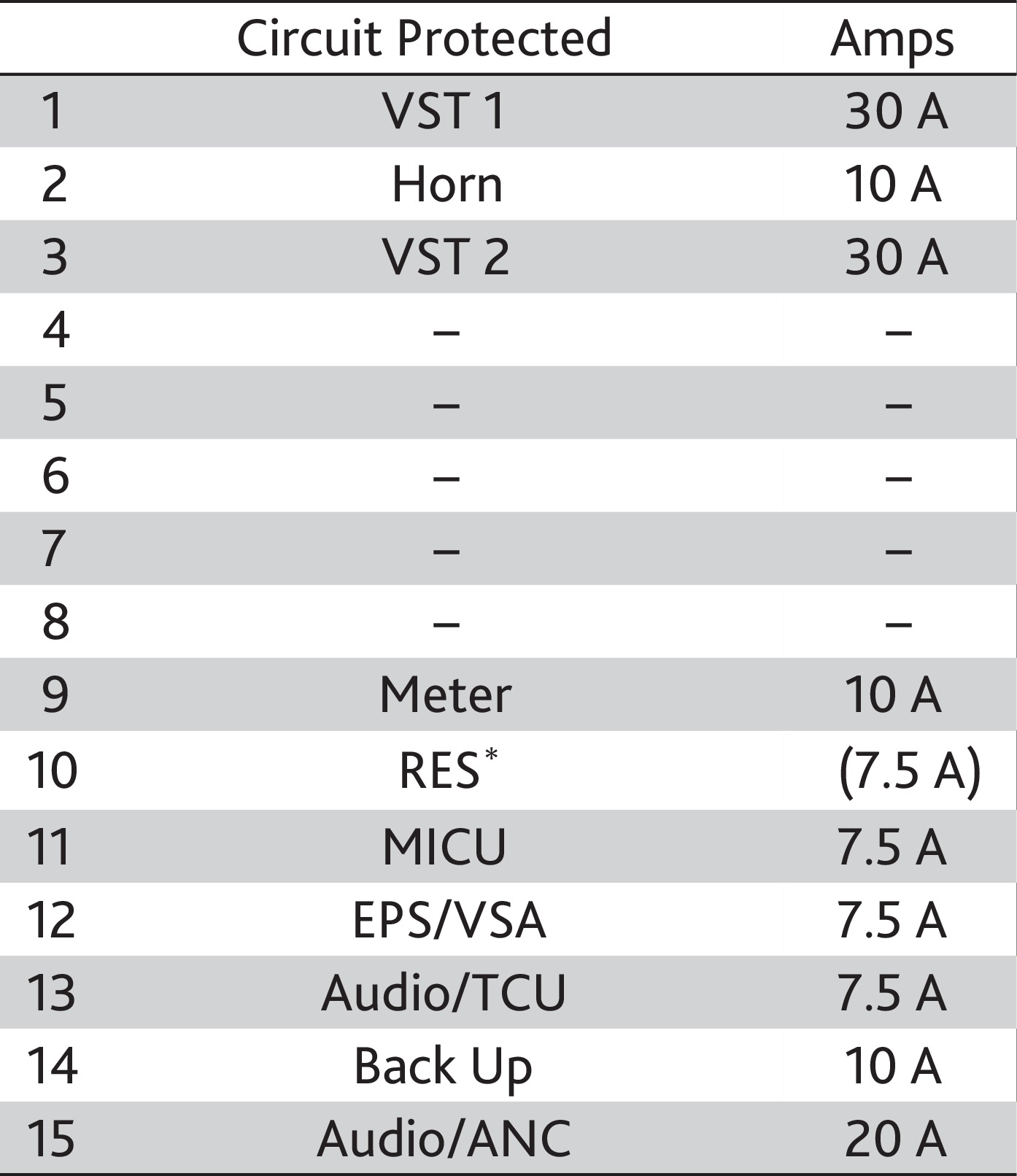

Box B, located under the dashboard. Take off the cover to open.
Fuse box
Side panel cover
Fuse label

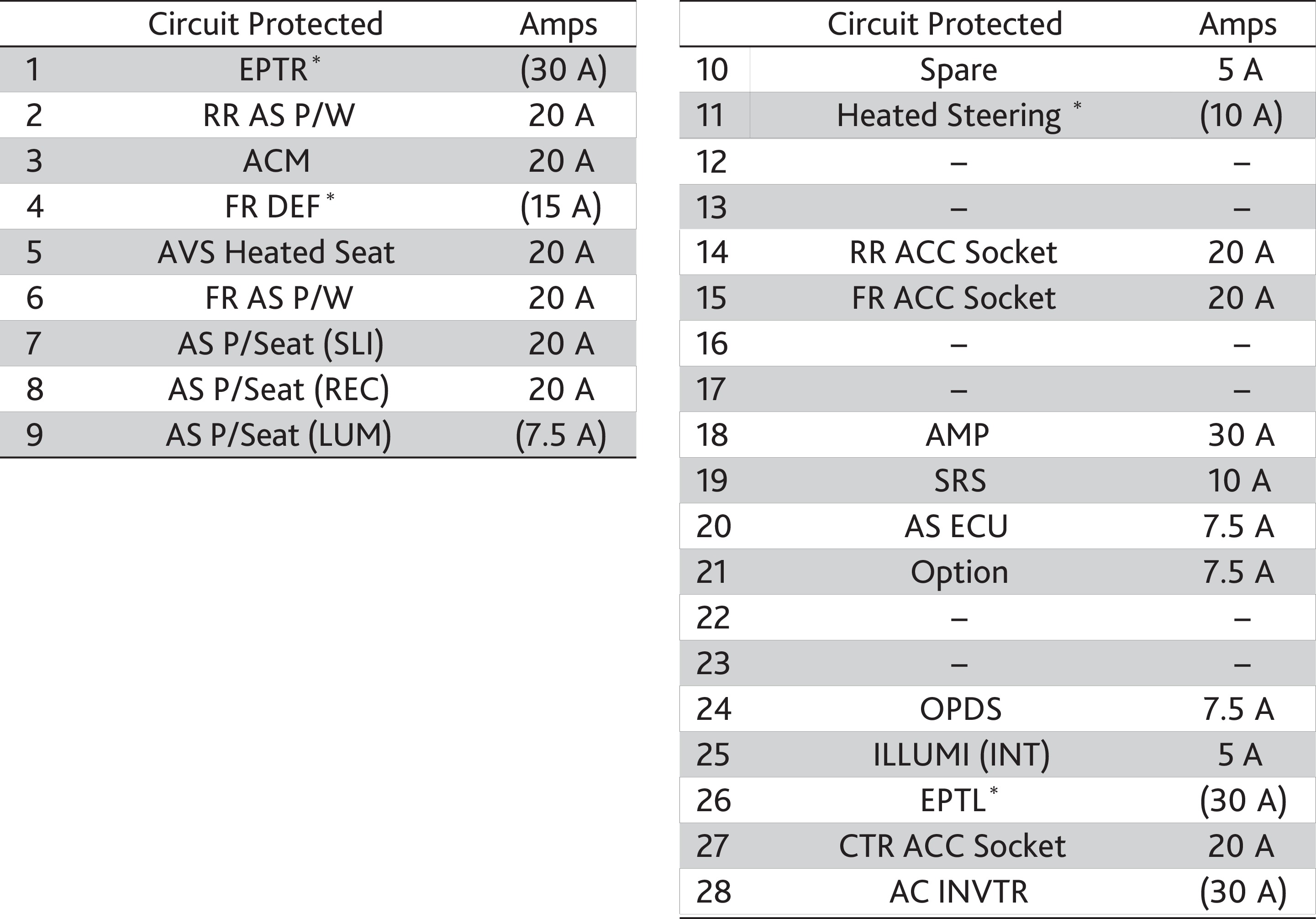

Passenger's Side Interior Fuse Box

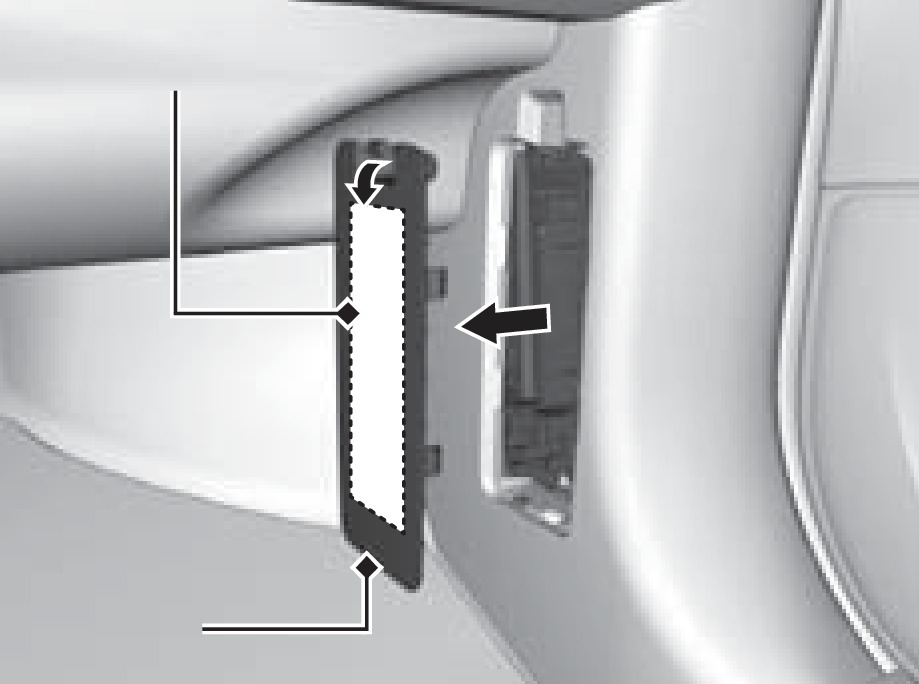

Located on the lower side panel. Remove the cover to access.
Fuse label
Cover
Engine Compartment Fuse Boxes

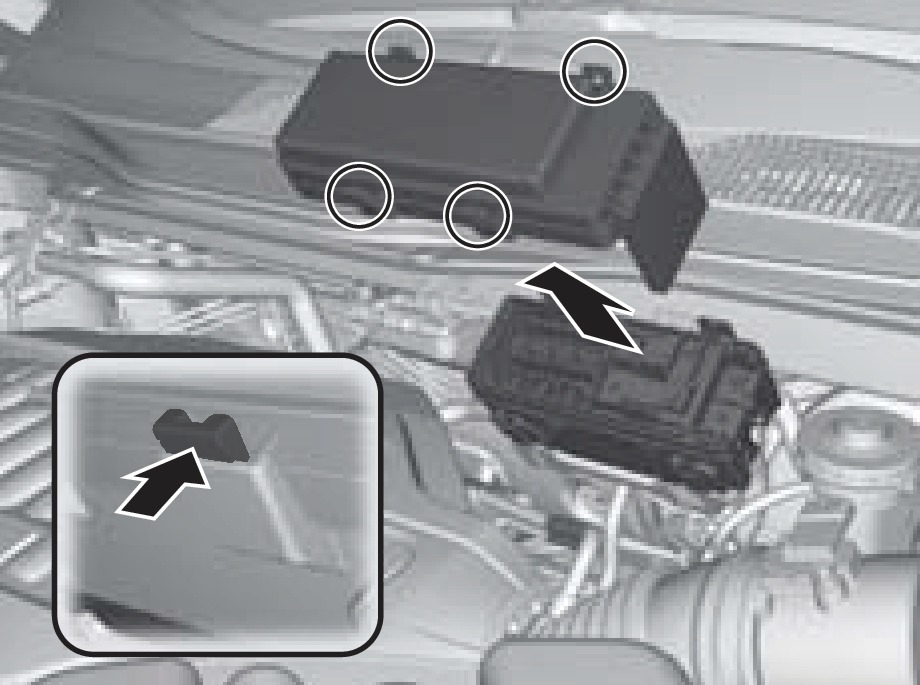

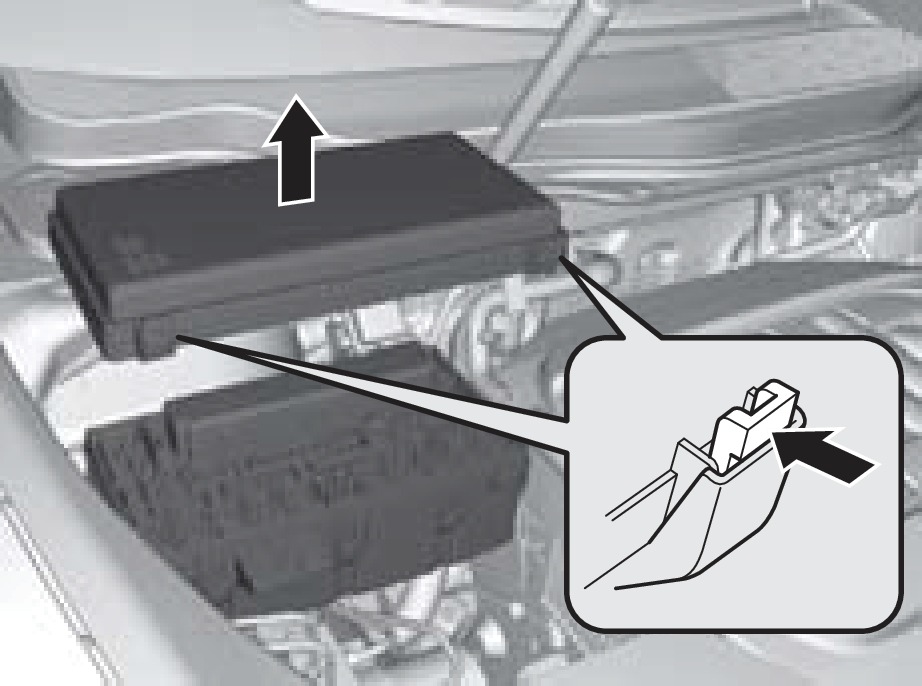

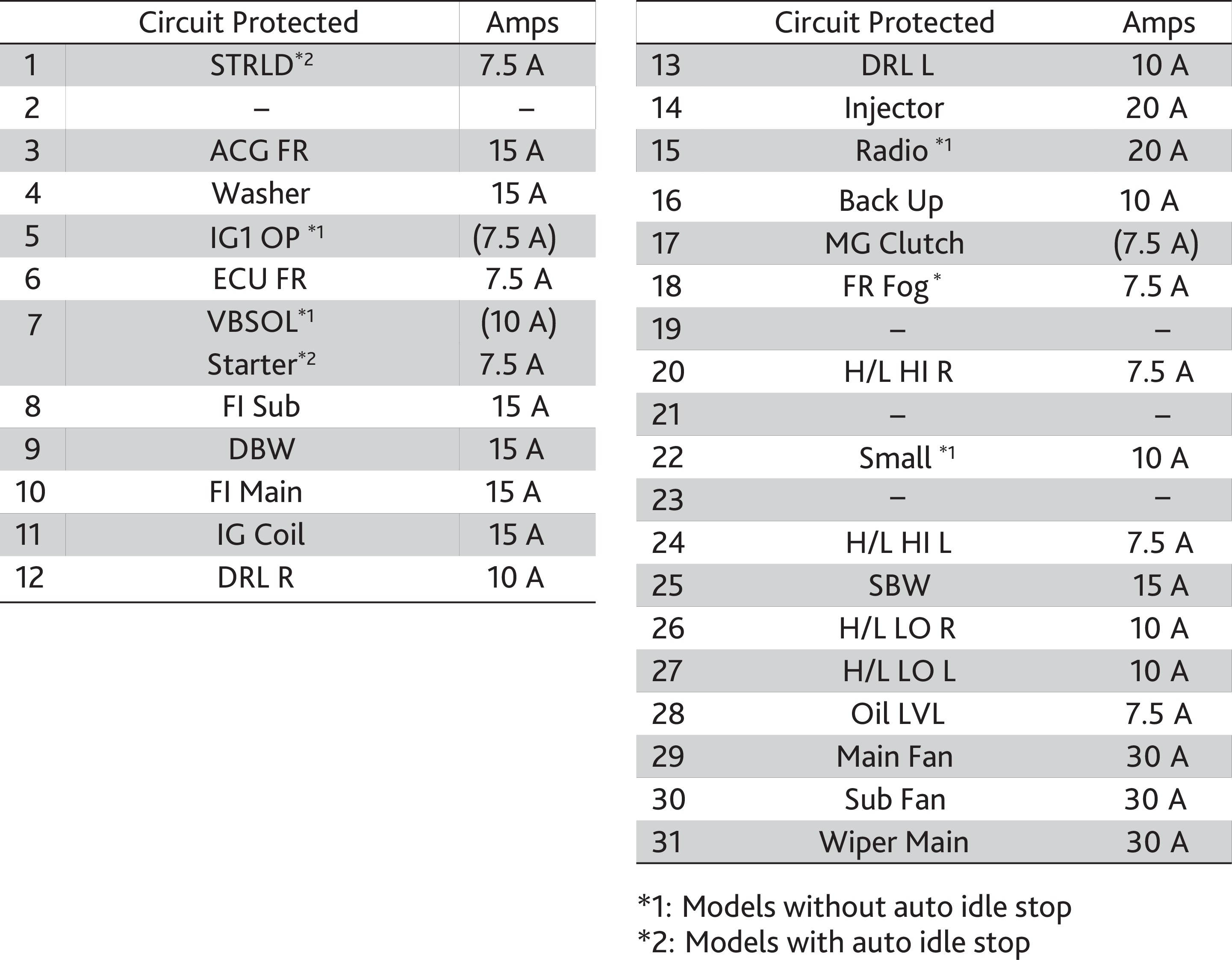

Located near the brake fluid reservoir. Push the tabs to open the box.

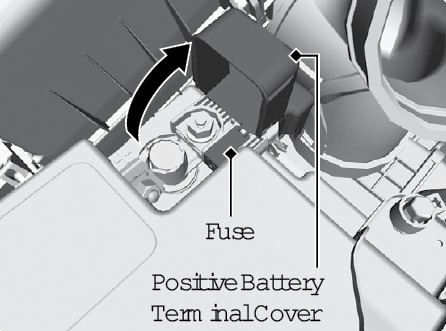

Located near the (+) battery terminal. Pull up to remove the cover.
This contains only the 60-amp fan fuse. Have your dealer replace this fuse.
Located near the battery. Push the tabs to open the box.

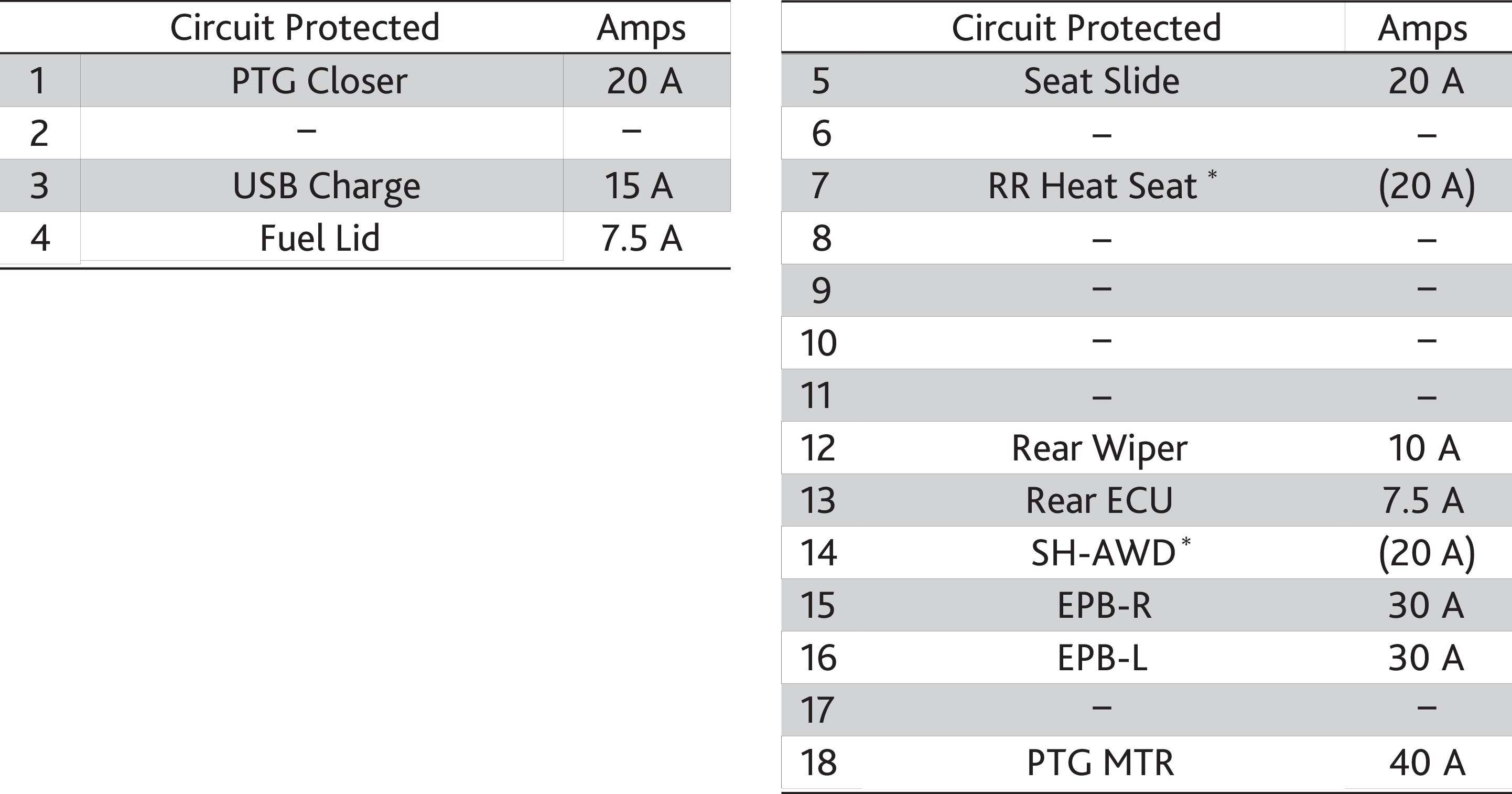

Rear Fuse Box

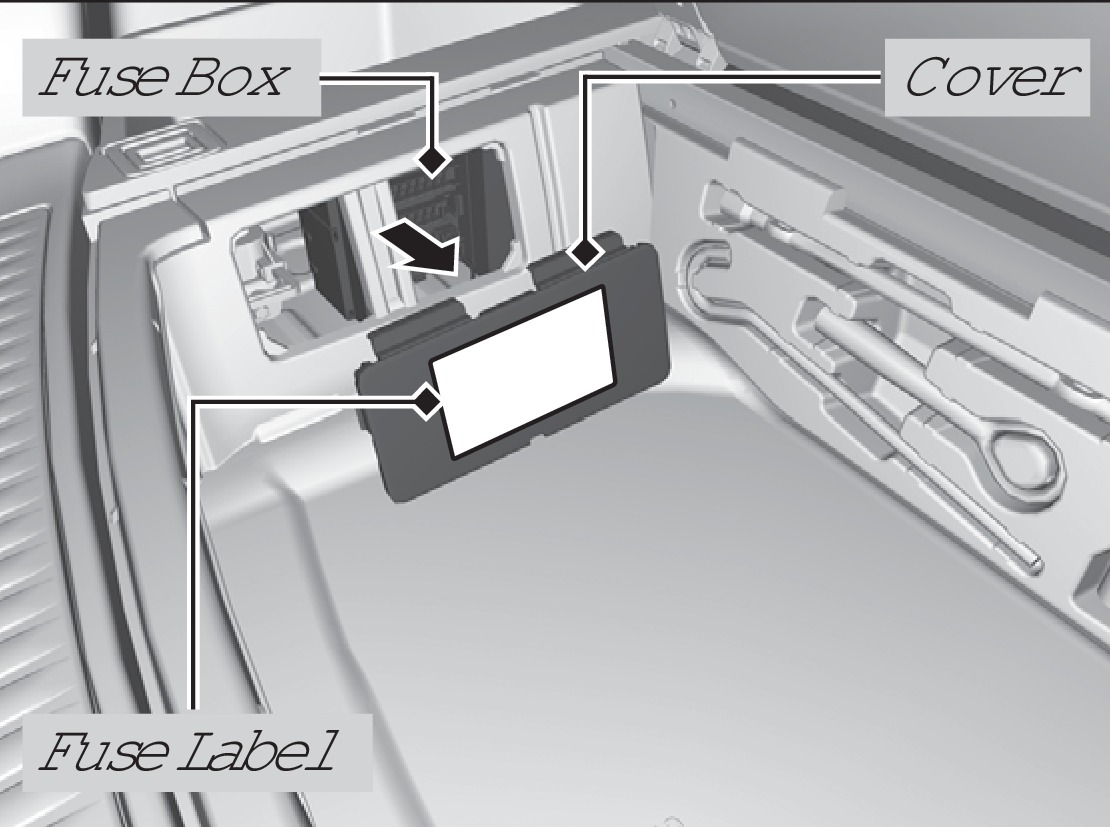

Located on the left side of the cargo area. Remove the cover using a cloth-wrapped flat-tip screwdriver to access.
Inspecting and Changing Fuses
- Turn off the vehicle, including headlights and all accessories.
- Remove the fuse box cover.
- Check the large fuse inside the engine compartment. If the fuse is blown, use a Phillips-head screwdriver to remove the screws and replace the fuse with a new one. Reinstall the screws.

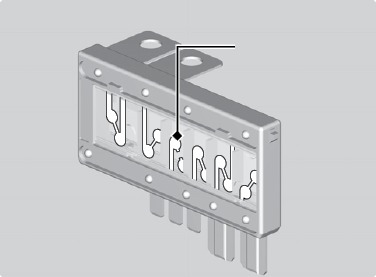

Blown fuse
Combined fuse
- Inspect the small fuses in the engine compartment and the vehicle interior. If there is a blown fuse, remove it with the fuse puller and replace it with a new one.

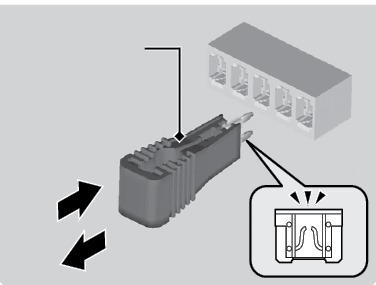

Fuse puller
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system.
*if equipped
