Jump Starting
Turn off the power to all electric devices, including audio and lights. Turn off the engine, then open the hood (see "Under the Hood").
- Remove the engine cover (see "Under the Hood").
Engine cover
Pin
- Connect the first jumper cable to your vehicle's battery (+) terminal.
- Connect the other end of the first jumper cable to the booster battery (+) terminal. Use a 12-volt booster battery only.
Booster battery
- Connect the second jumper cable to the booster battery (-) terminal.

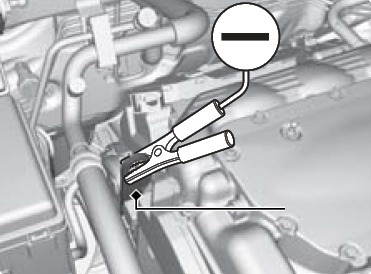

- Connect the other end of the second jumper cable to the engine hanger (as shown). Do not connect this jumper cable to any other part.
Engine hanger
- If your vehicle is connected to another vehicle, start the assisting vehicle's engine and increase its rpm slightly.
- Attempt to start your vehicle's engine. If it turns over slowly, make sure that the jumper cables have good metal-to-metal contact.
WARNING: Battery posts, terminals, and related accessories contain lead and lead compounds. Wash your hands after handling.
WARNING
A battery can explode if you do not follow the correct procedure, seriously injuring anyone nearby.
Keep all sparks, open flames, and smoking materials away from the battery.
After the Engine Starts
Once your vehicle's engine has started, remove the jumper cables in the following order:
- Disconnect the jumper cable from your vehicle's ground.
- Disconnect the other end of the jumper cable from the booster battery (-) terminal.
- Disconnect the jumper cable from your vehicle's battery (+) terminal.
- Disconnect the other end of the jumper cable from the booster battery (+) terminal.
- Have your vehicle inspected by a nearby service station or a dealer.
