REFUELING THE VEHICLE

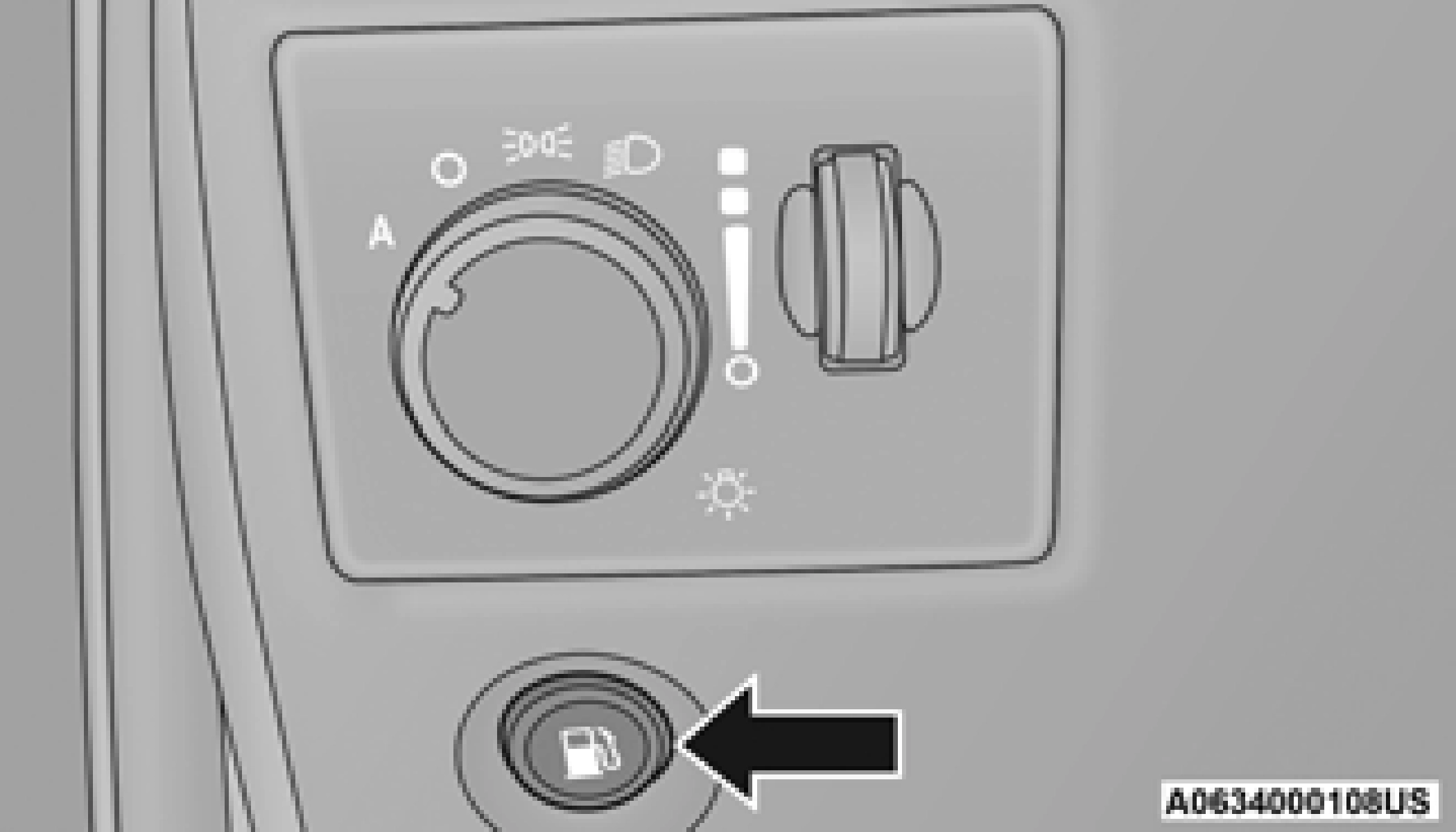

Push the fuel filler door release switch (located under the headlamp switch).
Open the fuel filler door.
NOTE:
In certain cold conditions, ice may prevent the fuel door from opening. If this occurs, lightly push on the fuel door to break the ice buildup and re-release the fuel door using the inside release button. Do not pry on the door.

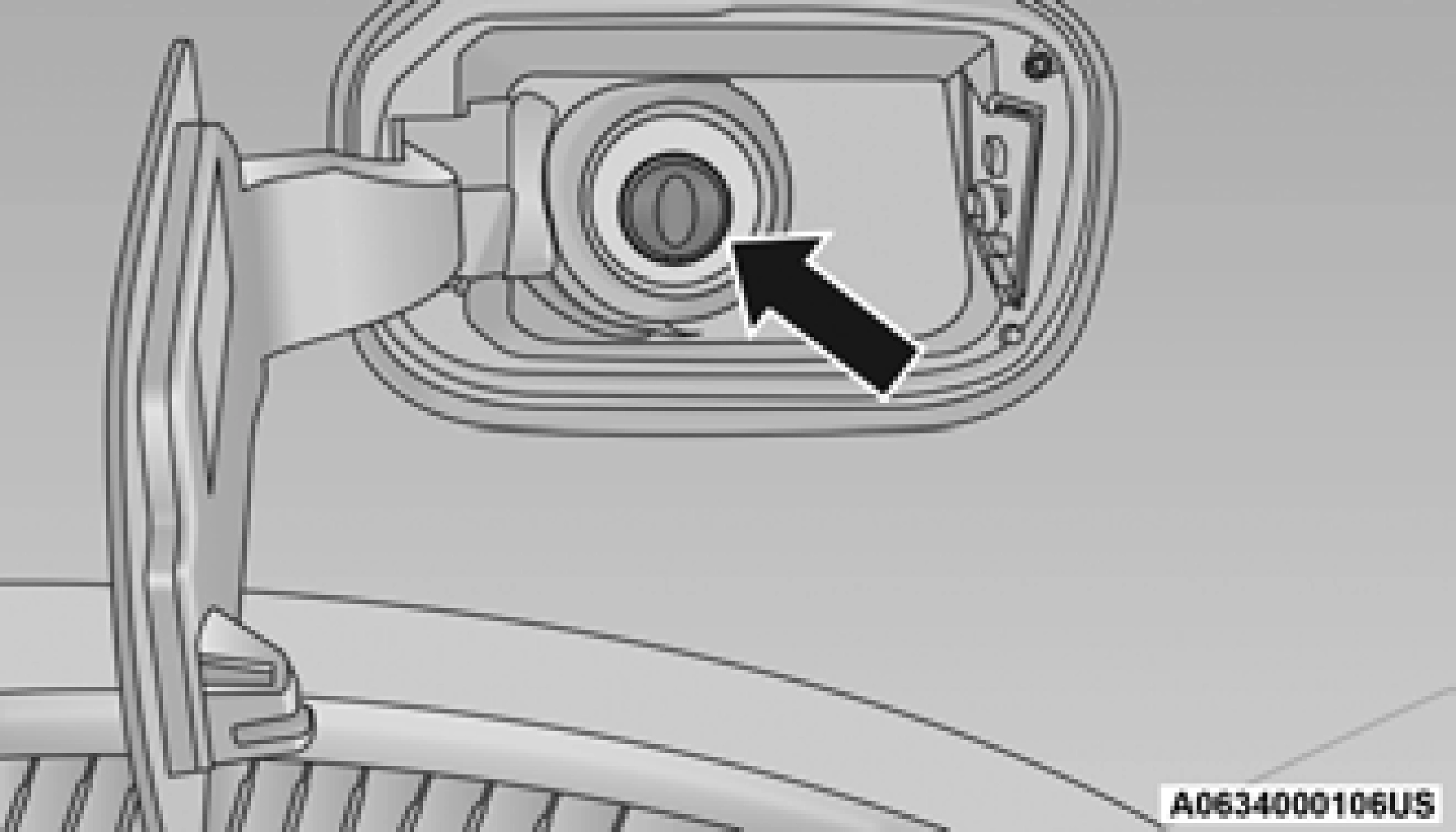

There is no fuel filler cap. Two flapper doors inside the pipe seal the system.
Insert the fuel nozzle fully into the filler pipe, the nozzle opens and holds the flapper doors while refueling.
Fill the vehicle with fuel, when the fuel nozzle “clicks” or shuts off, the fuel tank is full.
Wait five seconds before removing the fuel nozzle to allow fuel to drain from nozzle.
Remove the fuel nozzle and close the fuel door.
(Continued)
4
EMERGENCY FUEL FILLER DOOR RELEASE
If you are unable to open the fuel filler door, use the fuel filler door emergency release.
Open the liftgate.
Push the inboard edge of the left storage bin to the center, this will pop up the outboard edge.
Grab popped up outboard edge with other hand to disengage snaps.
Remove the storage bin.

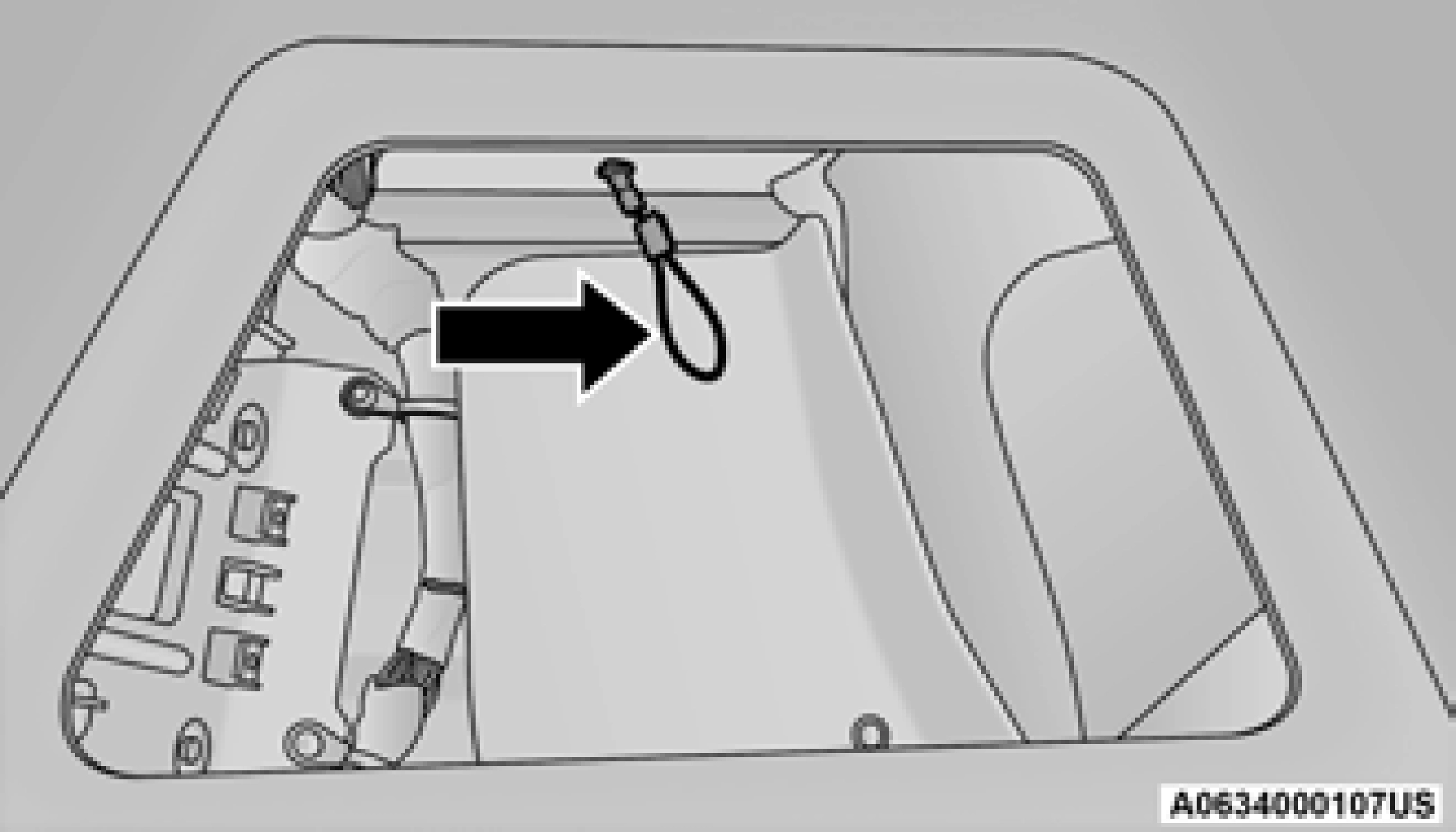

Pull the release cable to open the fuel door, push the release cable back to the home position to re-seat the fuel door latch to the closed position.
NOTE:
If the fuel door does not latch after the use of the manual release cable, the actuator latch should be manually returned to the closed posi- tion.
