Your vehicle is equipped with an instrument cluster display, which offers useful information to the driver. With the ignition in the OFF mode, opening/closing of a door will activate the display for viewing, and display the total miles or kilometers in the odometer. The steering wheel mounted controls allow you to scroll through the main menus and submenus. You can access the specific information you want and make selections and adjustments

INSTRUMENT CLUSTER DISPLAY LOCATION AND CONTROLS

The instrument cluster display is located in the center of the instrument cluster.

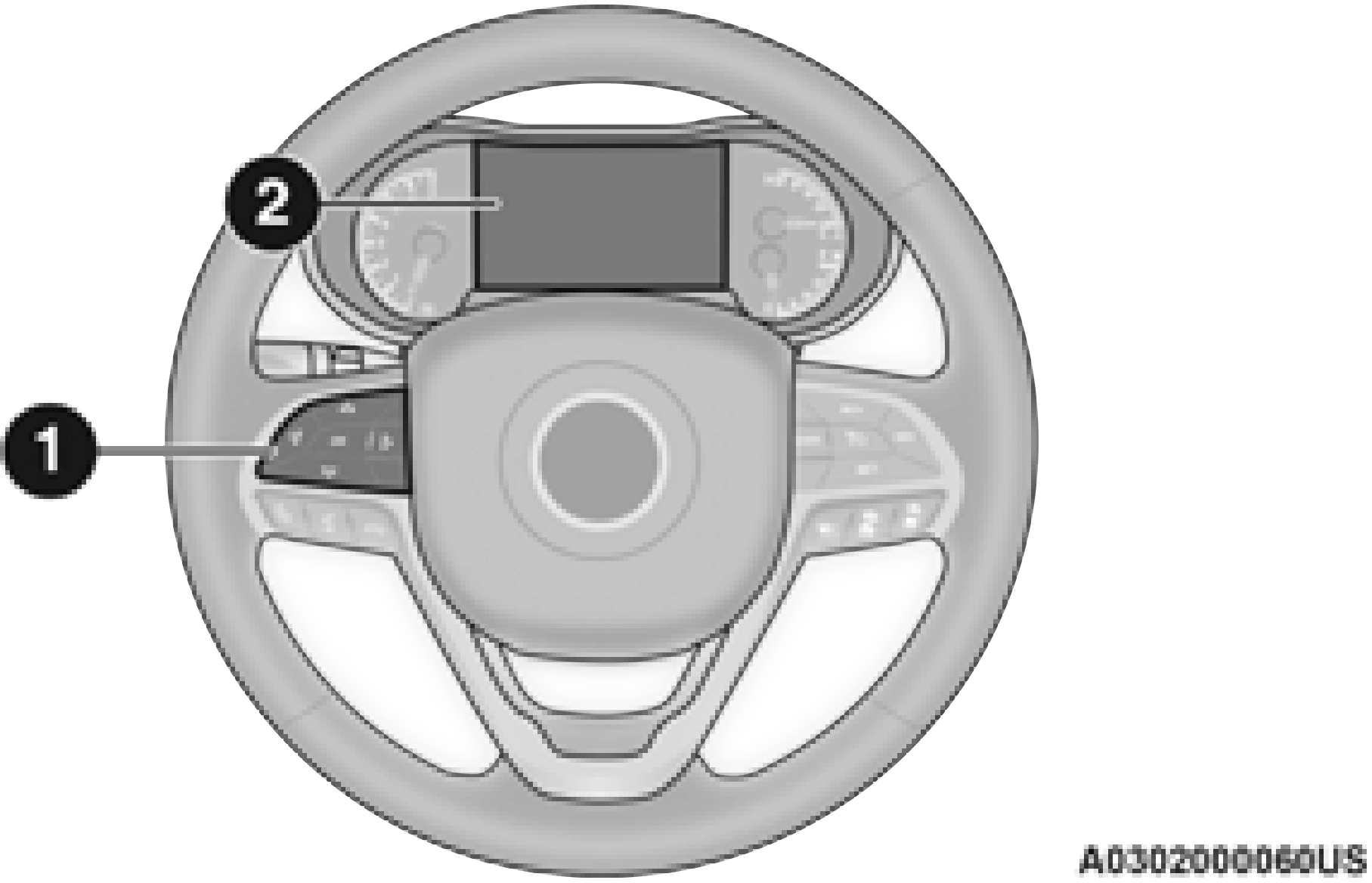

1 — Instrument Cluster Display Controls 2 — Instrument Cluster Display Screen

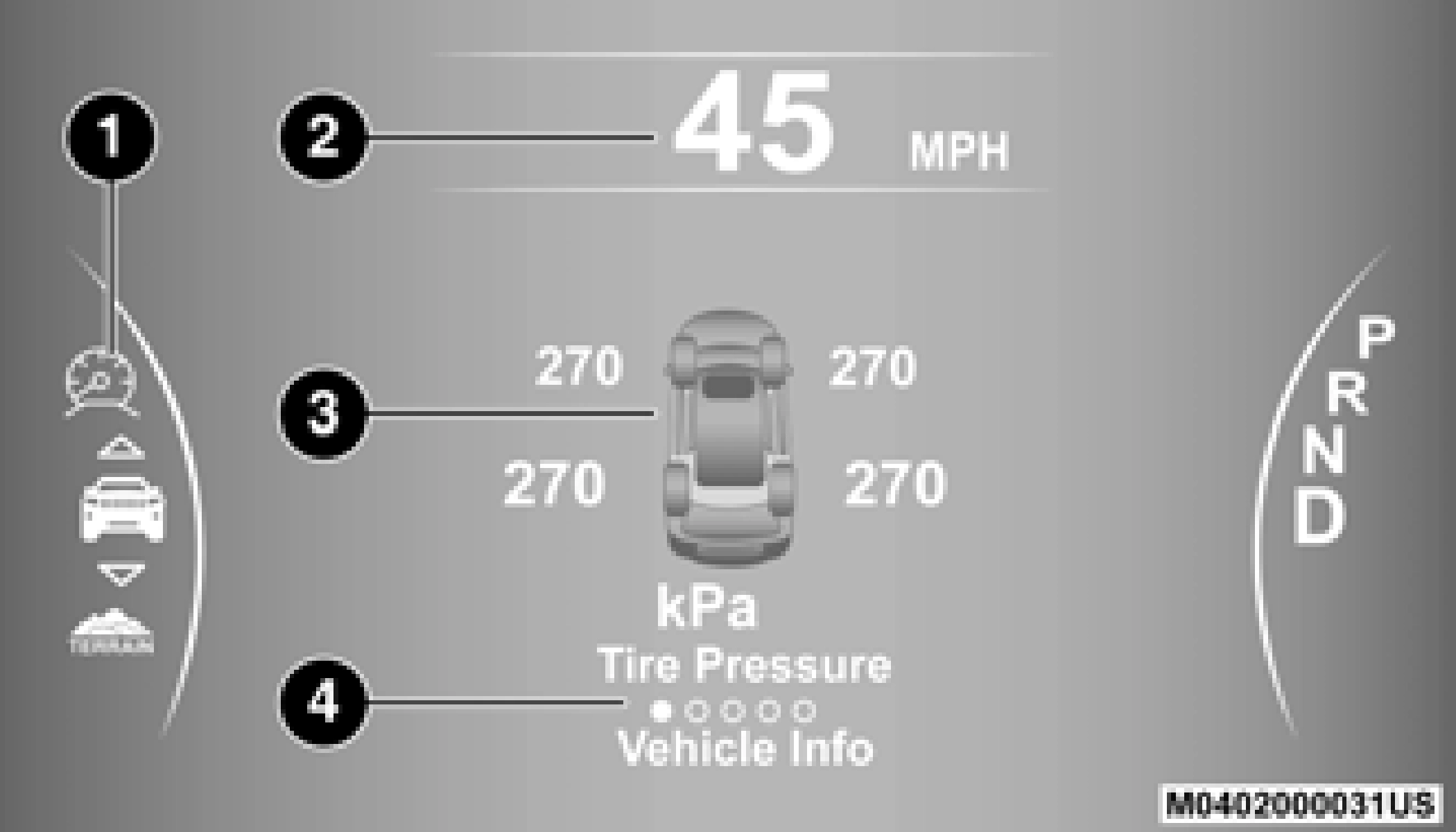

1 — Driver Interactive Display 2 — Speedometer Display

— Main Display

— Menu Name And Menu Page

The interactive display area to the left side of the screen depicts which menus are being accessed in the main display area.

The top line where reconfigurable telltales, compass direction, outside temperature, Time, Range MPG or Trip are displayed. This also displays the speedometer when other menu pages are displayed.

The main display area where the menus and pop up messages are displayed.

The lower line where reconfigurable telltales, menu name and menu page are displayed.

The Main Menu items selectable in the driver interactive display consist of the following:

Speedometer

Vehicle Info

Terrain — If Equipped

Driver Assist — If Equipped

Fuel Economy

Trip

Stop/Start — If Equipped

Audio

Stored Messages

Screen Setup

Speed Warning

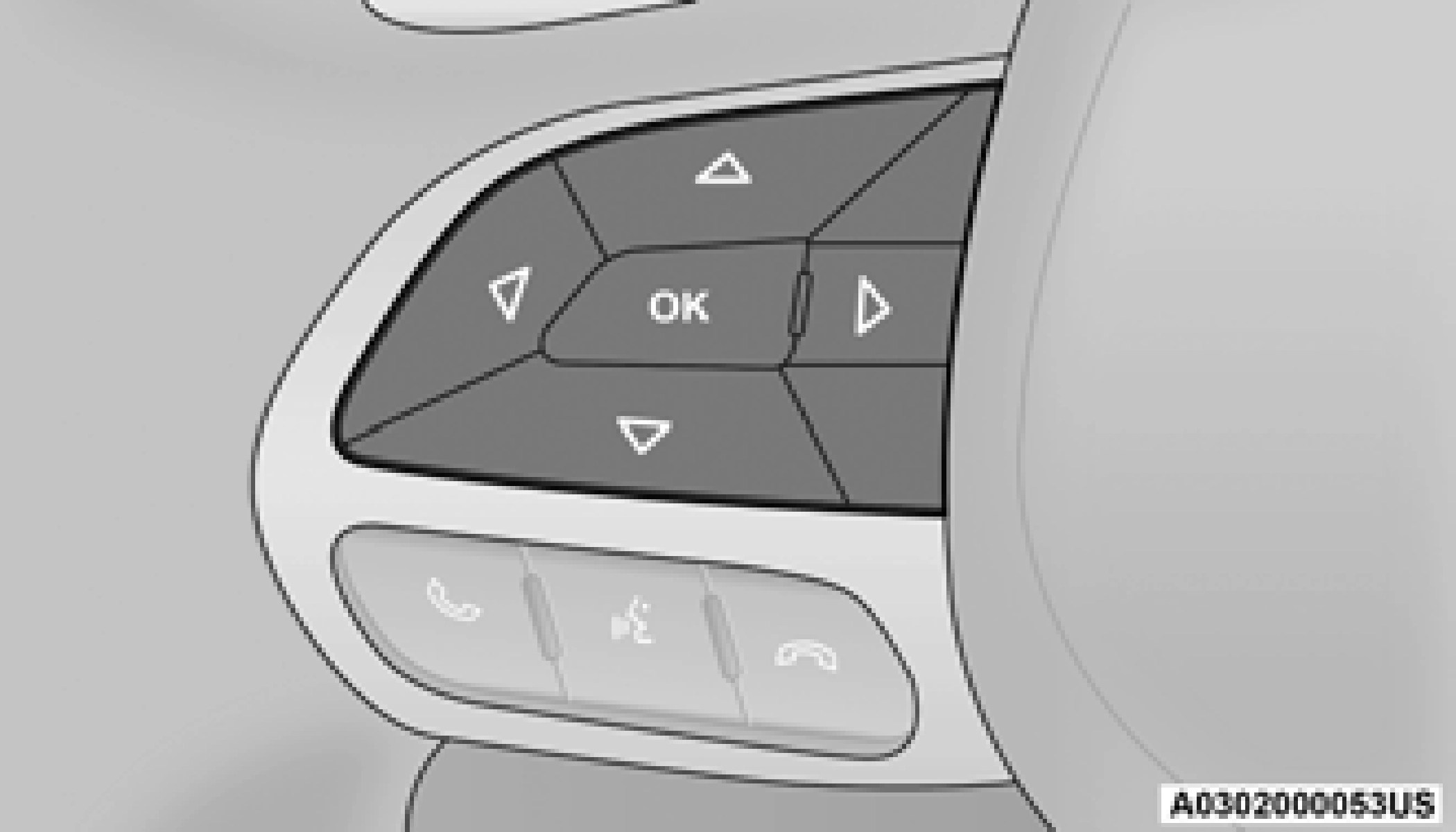

The system allows the driver to select information by pushing the following buttons mounted on the steering wheel:

Up And Down Arrow Buttons:

Using the up or down arrow buttons allows you to cycle through the Main Menu Items.

Changes the Main Screen area and Menu Title area.

Left And Right Arrow Buttons:

Using the left or right arrow button allows you to cycle through the submenu items of the Main menu item.

Holding the up / down or left / right arrow button will loop the user through

the currently selected menu or options presented on the screen.

Upon returning to a main menu, the last submenu screen viewed within that main menu will be displayed.

OK Button

Push the OK button to access/select the information screens or submenu screens of a main menu item. To reset displayed/selected features push and hold the OK button for two seconds.

OIL CHANGE RESET — IF EQUIPPED

Your vehicle may be equipped with an engine oil change indicator system. The “Oil Change Required” message will display in the instrument cluster display for five seconds after a single chime has sounded to indicate the next

scheduled oil change interval. The engine oil change indicator system is duty cycle based, which means the engine oil change interval may fluctuate, dependent upon your personal driving style.

Unless reset, this message will continue to display each time you place the ignition in the ON/RUN position. To turn off the message temporarily, push and release the OK button. To reset the oil change indicator system (after performing the scheduled maintenance), refer to the following procedure.

Without pushing the brake pedal, place the ignition in the ON/RUN mode (do not start the engine).

Navigate to “Oil Life” submenu in “Vehicle Info” in the instrument cluster display.

Push and hold the OK button until the gauge resets to 100%.

Without pushing the brake pedal, place the ignition in the ON/RUN position (do not start the engine).

Fully press the accelerator pedal, slowly, three times within ten seconds.

Without pushing the brake pedal, place the ignition in the OFF/LOCK position.

If the indicator message illuminates when you start the vehicle, the oil change indicator system did not reset. If necessary, repeat this procedure.

INSTRUMENT CLUSTER DISPLAY MENU ITEMS

The instrument cluster display can be used to view the main menu items for several features. Use the up and down arrow buttons to scroll through the driver interactive display menu options until the desired menu is reached.

Depending on the vehicle’s options, feature settings may vary.

Main Gauge

Push and release the up or down arrow button until the main gauge menu icon is displayed in the instrument cluster display.

Push and release the left or right arrow button to select the analog or digital type speedometer display. Push and release the OK button to toggle units (mph or km/h) of the speedometer.

Push and release the up or down arrow button until the Vehicle Info menu icon is displayed in the instrument cluster display.

Push and release the left or right arrow button to scroll through the information submenus and push and release the OK button to select or reset the submenus.

NON — SRT
Tire Pressure	Oil Pressure
Transmission Temperature	Oil Life
Oil Temperature	Battery Voltage

Push and release the up or down arrow button until the Terrain icon/title is highlighted in the instrument cluster display. Push and release the right or left arrow button to display the Selec-Track or Drivetrain.

Selec-Terrain: Displays messages concerning Selec-Terrain status.

Air Suspension — If Equipped: Displays messages concerning Air Suspension status.

Drivetrain: Displays information on drivetrain status of Front Wheel Angle, T-Case, and Axle Lock.

Wheel Articulation: Displays current wheel articulation.

Push and release the up or down arrow button until the Driver Assist menu title is highlighted in the instrument cluster display.

The instrument cluster display displays the current ACC and LaneSense system settings. The information displayed depends on the status of ACC and LaneSense.

Push the ACC on/off button (located on the steering wheel) until one of the following displays in the instrument cluster display:

When ACC is deactivated, the display will read “Adaptive Cruise Control Off.”

When ACC is activated but the vehicle speed setting has not been selected, the display will read “Adaptive Cruise Control Ready.”

Push and release the SET + or the SET- button (located on the steering wheel) and the following will display in the instrument cluster display:

When ACC is set, the set speed will display in the instrument cluster.

The ACC screen may display once again if any ACC activity occurs, which may include any of the following:

System Cancel

Driver Override

System Off

ACC Proximity Warning

ACC Unavailable Warning

The instrument cluster display will return to the last display selected after five seconds of no ACC display activity page 124.

The instrument cluster display displays the current LaneSense system settings. The information displayed depends on LaneSense system status and the conditions that need to be met page 144.

Push and release the up or down arrow button until the Fuel Economy Icon is highlighted in the instrument cluster display. Push and hold the OK button to reset average fuel economy feature.

Toggle left or right to select a display with or without Current Fuel Economy Information.

Range — The display shows the estimated distance (mi or km) that can be traveled with the fuel remaining in the tank. When the Range value is less than 30 miles (48 km) estimated driving distance, the Range display will change to a “RANGE LOW”

message. Adding a significant amount of fuel to the vehicle will turn off the “RANGE LOW” message and a new Range value will display. Range cannot be reset through the OK button.

Significant changes in driving style or vehicle loading will greatly affect the actual drivable distance of the vehicle, regardless of the Range displayed value.

Average — The display shows the average fuel economy (MPG, L/100 km, or km/L) since the last reset.

Current — This display shows the current fuel economy (MPG, L/100 km, km/L) while driving.

Push and release the up or down arrow button until the Trip menu title is displayed in the instrument cluster display. Toggle the

left or right arrow button to select Trip A or Trip B. The Trip information will display the following:

Distance — Shows the total distance (mi or km) traveled for Trip A or Trip B since the last reset.

Average Fuel Economy — Shows the average fuel economy (MPG or L/100 km or km/L) of Trip A or Trip B since the last reset.

Elapsed Time — Shows the total elapsed time of travel since Trip A or Trip B has been reset.

Hold the OK button to reset feature information.

Push and release the up or down arrow button on the steering wheel to scroll to the Stop/Start menu in the driver interactive display page 120.

Push and release the up or down arrow button until the Audio menu title is displayed in the instrument cluster display.

Push and release the up or down arrow button until the Messages Menu Icon is highlighted in the instrument cluster display. This feature shows the number of stored warning messages. Pushing the left or right arrow button will allow you to scroll through the stored messages.

Push and release the up or down arrow button until the Screen Setup Menu Icon/Title is highlighted in the instrument cluster display. Push and release the OK button to enter the submenus and follow the prompts on the screen as needed. The Screen Setup feature

allows you to change what information is 3

displayed in the instrument cluster as well as the location that information is displayed.

The menu with (show/hide) means user can press OK button to choose show or hide this menu on the instrument cluster display.

BATTERY SAVER ON/BATTERY SAVER MODE MESSAGE — ELECTRICAL LOAD REDUCTION ACTIONS (IF EQUIPPED)

This vehicle is equipped with an Intelligent Battery Sensor (IBS) to perform additional monitoring of the electrical system and status of the vehicle battery.

In cases when the IBS detects charging system failure, or the vehicle battery conditions are deteriorating, electrical load reduction actions will take place to extend the driving time and distance of the vehicle. This is done by reducing power to or turning off non-essential electrical loads.

Load reduction is only active when the engine is running. It will display a message if there is a risk of battery depletion to the point where the vehicle may stall due to lack of electrical supply, or will not restart after the current drive cycle.

When load reduction is activated, the message “Battery Saver On” or “Battery Saver Mode” will appear in the instrument cluster display.

These messages indicate the vehicle battery has a low state of charge and continues to lose electrical charge at a rate that the charging system cannot sustain.

The charging system is independent from load reduction. The charging system performs a diagnostic on the charging system continuously.

If the Battery Charge Warning Light is on it may indicate a problem with the charging system page 89.

The electrical loads that may be switched off (if equipped), and vehicle functions which can be effected by load reduction:

Heated Seat/Vented Seats/Heated Wheel

Rear Defroster And Heated Mirrors

HVAC System

150W Power Inverter System

Audio and Telematics System

Loss of the battery charge may indicate one or more of the following conditions:

The charging system cannot deliver enough electrical power to the vehicle system because the electrical loads are larger than the capability of charging system. The charging system is still functioning properly.

Turning on all possible vehicle electrical loads (e.g. HVAC to max settings, exterior and interior lights, overloaded power outlets

+12 Volts, 150W, USB ports) during certain driving conditions (city driving, towing, frequent stopping).

Installing options like additional lights, upfitter electrical accessories, audio systems, alarms and similar devices.

Unusual driving cycles (short trips separated by long parking periods).

The vehicle was parked for an extended period of time (weeks, months).

The battery was recently replaced and was not charged completely.

The battery was discharged by an electrical load left on when the vehicle was parked.

The battery was used for an extended period with the engine not running to supply radio, lights, chargers, +12 Volt portable appli- ances like vacuum cleaner’s, game consoles and similar devices.

During a trip:

Reduce power to unnecessary loads if possible:

Turn off redundant lights (interior or exte- 3

rior)

Check what may be plugged in to power outlets +12 Volts, 150W, USB ports

Check HVAC settings (blower, temperature)

Check the audio settings (volume) After a trip:

Check if any aftermarket equipment was

installed (additional lights, upfitter electrical accessories, audio systems, alarms) and review specifications if any (load and Ignition Off Draw currents).

Evaluate the latest driving cycles (distance, driving time and parking time).

The vehicle should have service performed if the message is still present during consecu- tive trips and the evaluation of the vehicle and driving pattern did not help to identify the cause.
