MIRRORS
INSIDE REARVIEW MIRROR
The rearview mirror can be adjusted up, down, left, and right. The mirror should be adjusted to center on the view through the rear window.

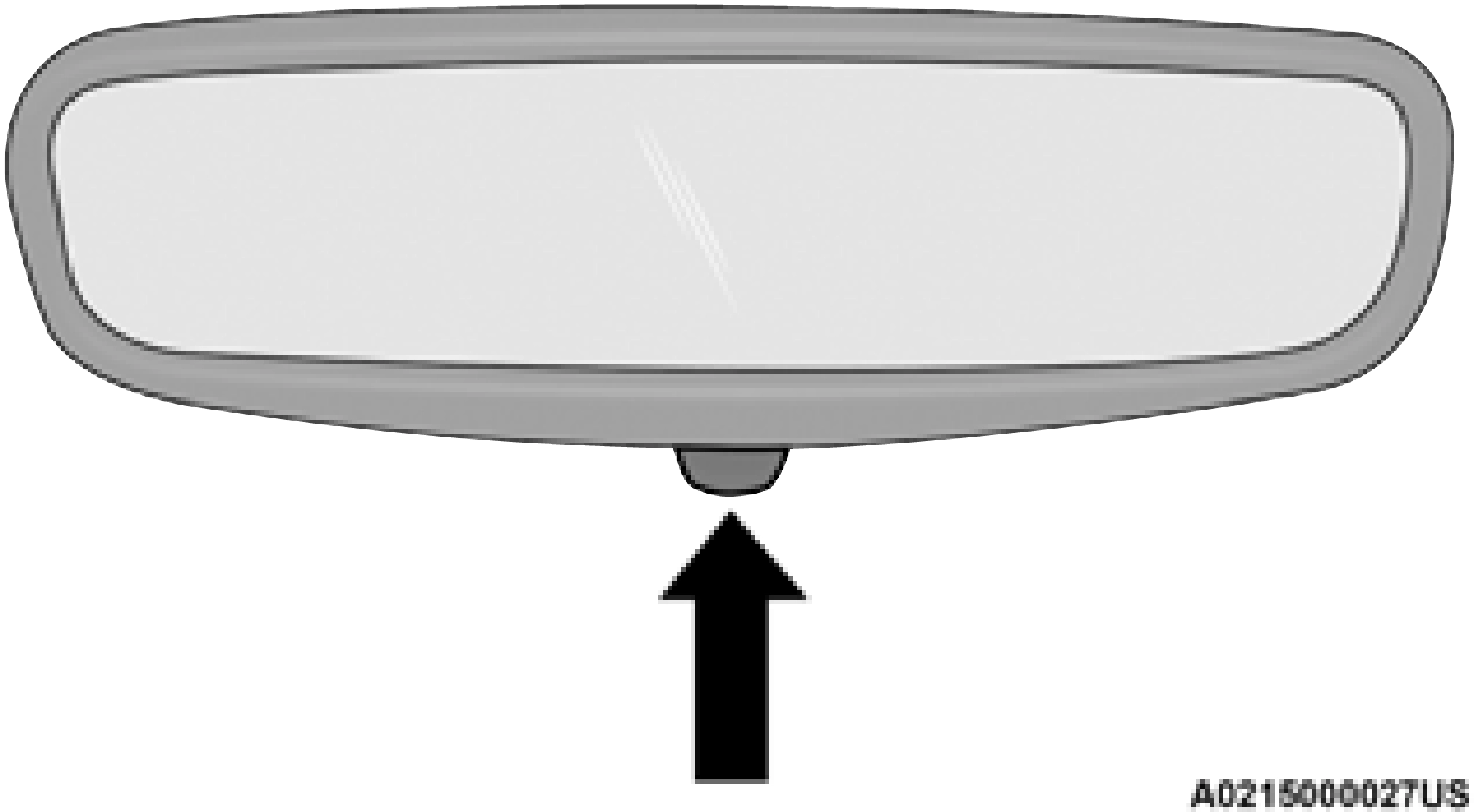

Headlight glare from vehicles behind you can be reduced by moving the small control under the mirror to the night position (toward the rear of the vehicle). The mirror should be adjusted while set in the day position (toward the windshield).
Automatic Dimming Mirror — If Equipped The rearview mirror can be adjusted up, down, left, and right. The mirror should be adjusted to
center on the view through the rear window.
This mirror automatically adjusts for headlight glare from vehicles behind you.
The Automatic Dimming Mirror feature is disabled when the vehicle is in REVERSE to improve the driver’s rear view.

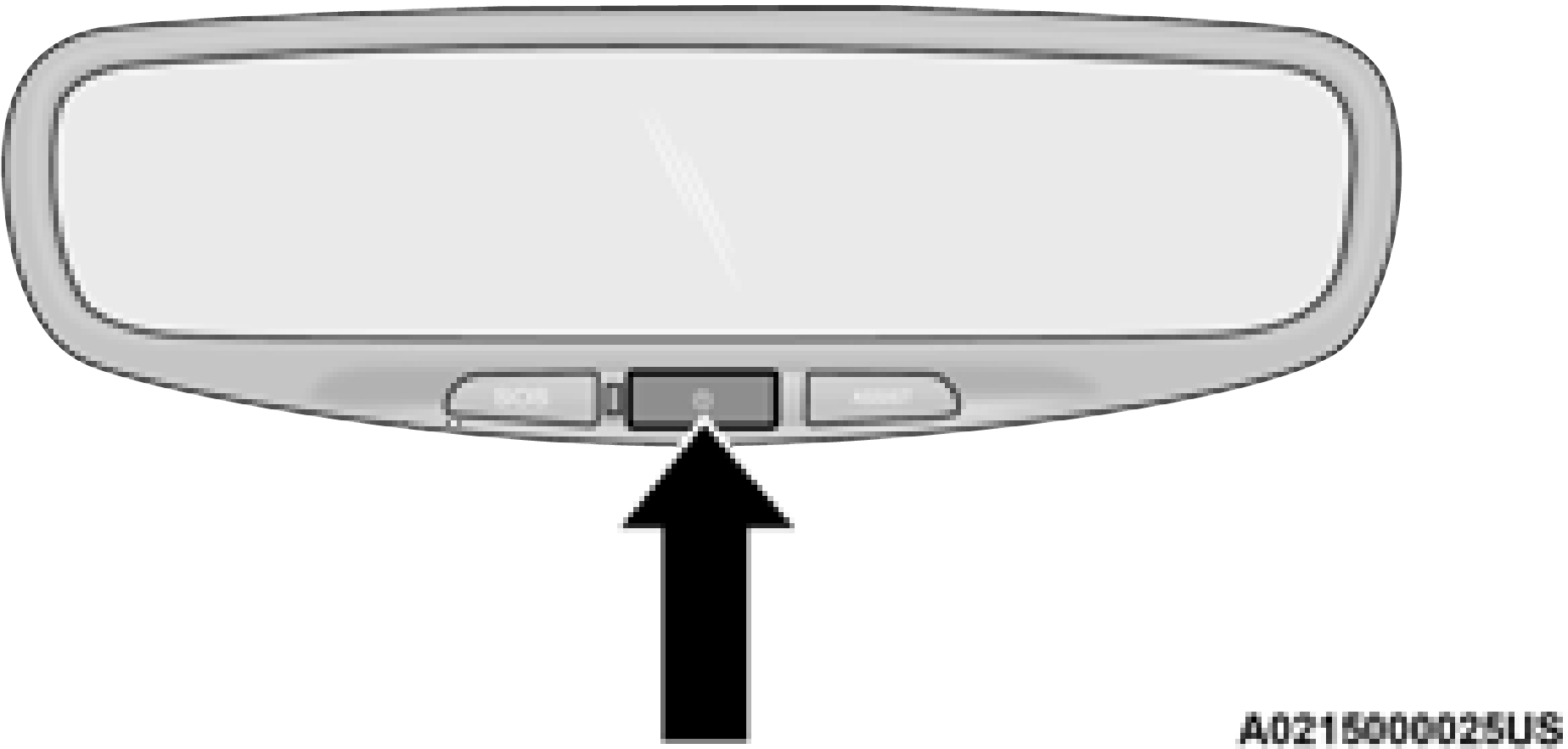

You can turn the Automatic Dimming Mirror feature on or off by pushing the button at the base of the mirror. A light in the button will illuminate to indicate when the dimming feature is activated.

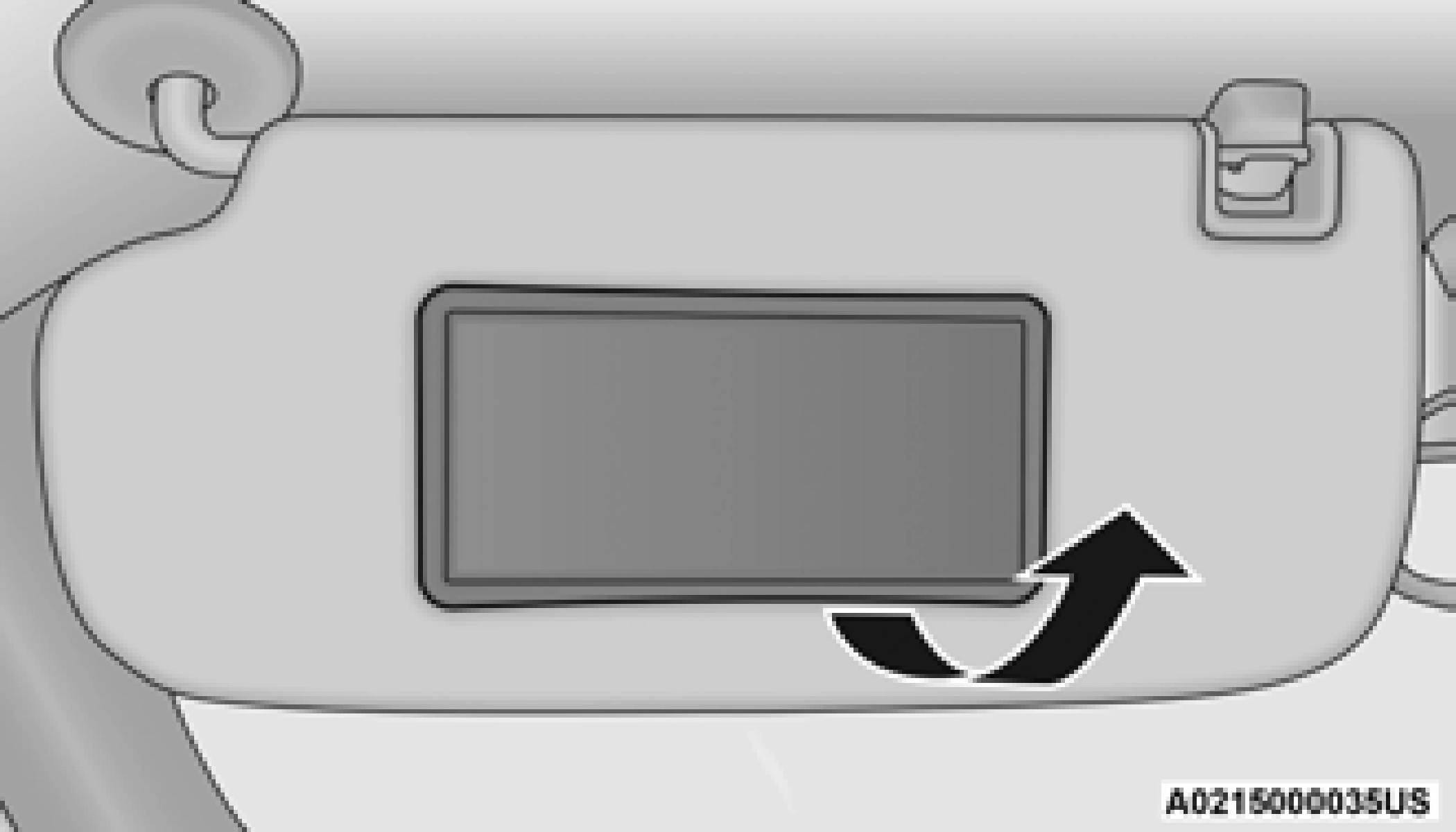

ILLUMINATED VANITY MIRRORS
To access an illuminated vanity mirror, flip down one of the visors and lift the cover.
Sun Visor “Slide-On-Rod” Feature — If Equipped
The sun visor “Slide-On-Rod” feature allows for additional flexibility in positioning the sun visor to block out the sun.
The sun visor can also be extended while the sun visor is against the windshield for additional sun blockage through the front of the vehicle.
OUTSIDE MIRRORS
The outside mirror(s) can be adjusted to the center of the adjacent lane of traffic to achieve the optimal view.
All outside mirrors are hinged and may be moved either forward or rearward to resist damage. The hinges have three detent positions:
OUTSIDE AUTOMATIC DIMMING MIRRORS — IF EQUIPPED
The outside mirrors will automatically dim for glare from vehicles behind you. This feature is controlled by the inside automatic dimming mirror. The mirrors will automatically adjust for headlight glare when the inside mirror adjusts.
POWER MIRRORS

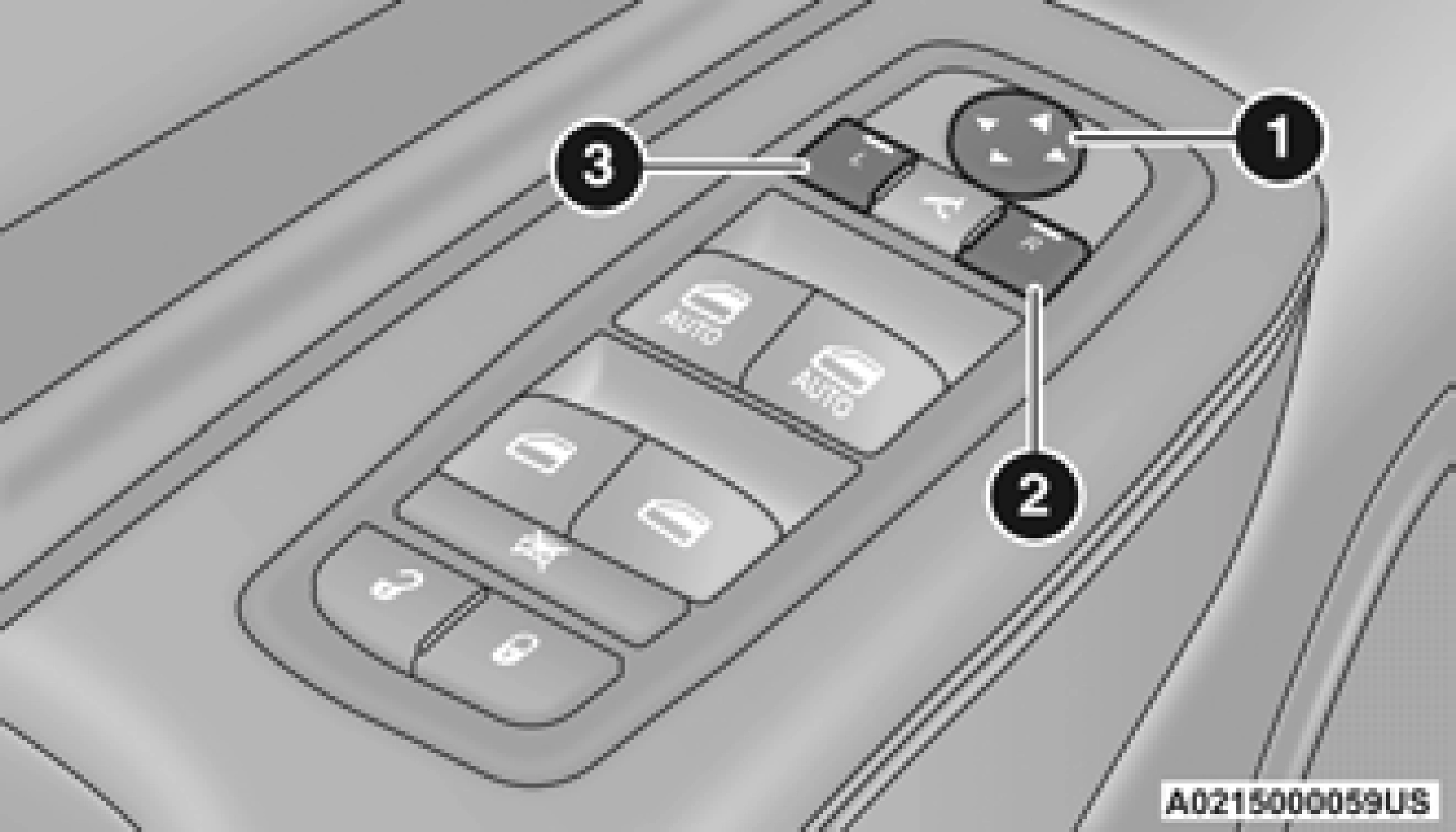

The power mirror switch is located on the driver's side door trim panel.
The power mirror controls consist of mirror
select buttons and a four-way mirror control 2
switch. To adjust a mirror, push the mirror select button for the mirror that you want to adjust. Using the mirror control switch, push on any of the four arrows for the direction that you want the mirror to move.
1 — Mirror Direction Control 2 — Right Mirror Selection 3 — Left Mirror Selection
Power mirror preselected positions can be controlled by the optional Driver Memory Settings Feature page 30.
POWER FOLDING OUTSIDE MIRRORS — IF EQUIPPED
The power folding mirrors can be folded rearward and unfolded into the normal driving position.

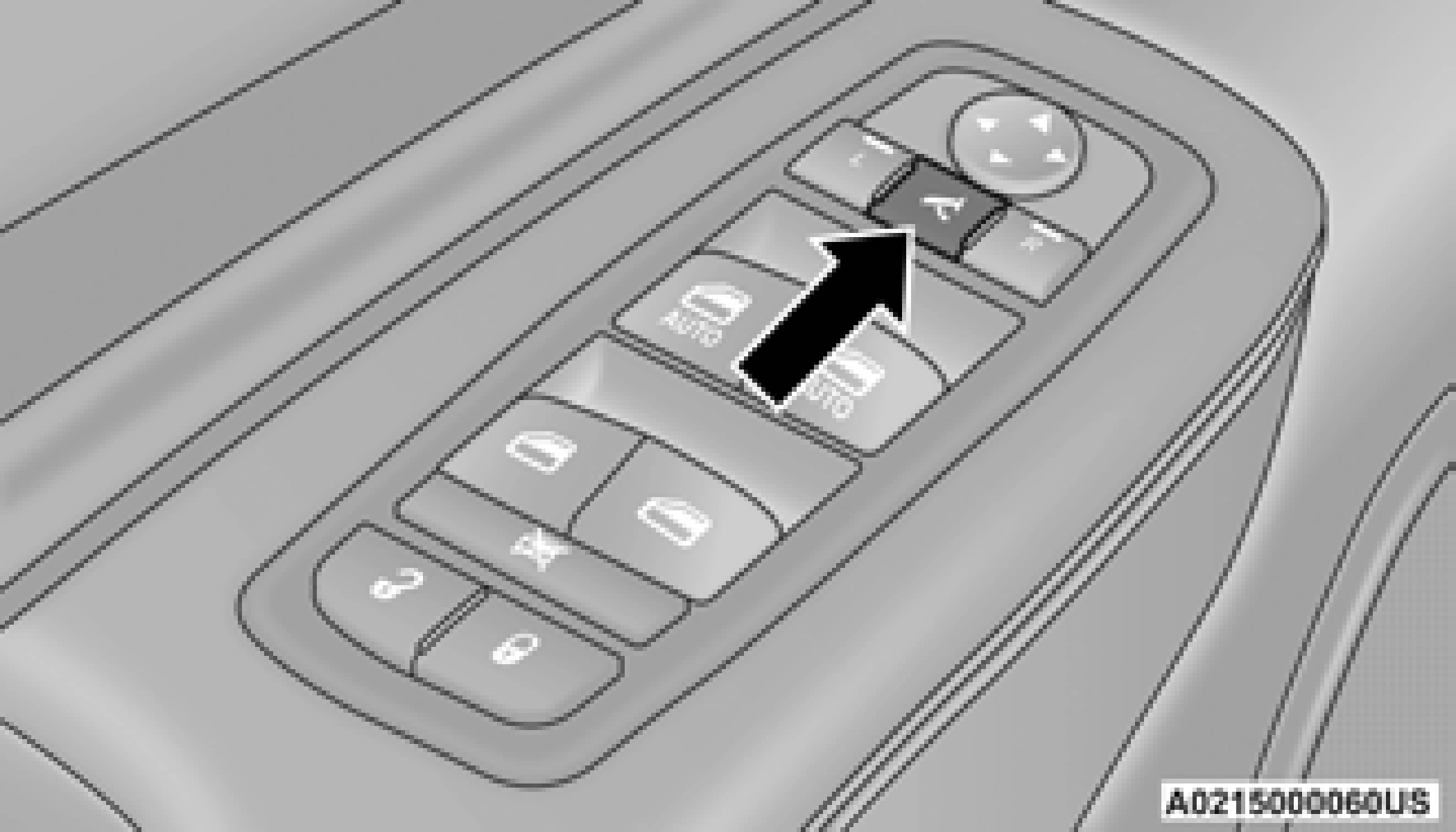

The switch for the power folding mirrors is located between the power mirror switches
L (left) and R (right). Push the switch once and the mirrors will fold in, push the switch a second time and the mirrors will return to the normal driving position.
If the mirror is manually folded after a powered cycle, a potential extra button push is required to get the mirrors back to the normal driving position. If the mirror does not fold automatically, check for ice or dirt build up at the pivot area, which can cause excessive drag.
Automatic Power Folding Mirrors
When the Automatic Fold Mirrors feature is enabled, the exterior mirrors will fold in when exiting the vehicle (the ignition is OFF, all doors are closed, and the doors are locked).
The Automatic Fold/Unfold Mirrors feature can be turned on and off using the Uconnect system page 171.
You may need to reset the power folding mirrors if the following occurs:
To reset the power folding mirrors: Fold and unfold them by pushing the button (this may require multiple attempts). This resets them to their normal driving position.
HEATED MIRRORS — IF EQUIPPED
These mirrors are heated to melt frost or ice. This feature will be activated whenever you turn on the rear window defroster (if equipped) page 56.
TILT SIDE MIRRORS IN REVERSE — IF EQUIPPED
This feature provides automatic outside mirror positioning which will assist with the driver’s ground visibility. The outside mirrors will move slightly downward from the present position when the vehicle is shifted into REVERSE. The outside mirrors will then return to the original position when the vehicle is shifted out of
REVERSE. If the vehicle is equipped with memory settings, this feature will be linked to the programmable settings.
The Tilt Side Mirrors In Reverse feature can be turned on and off using the Uconnect system page 171.
