INSTRUMENT CLUSTER — GASOLINE
3

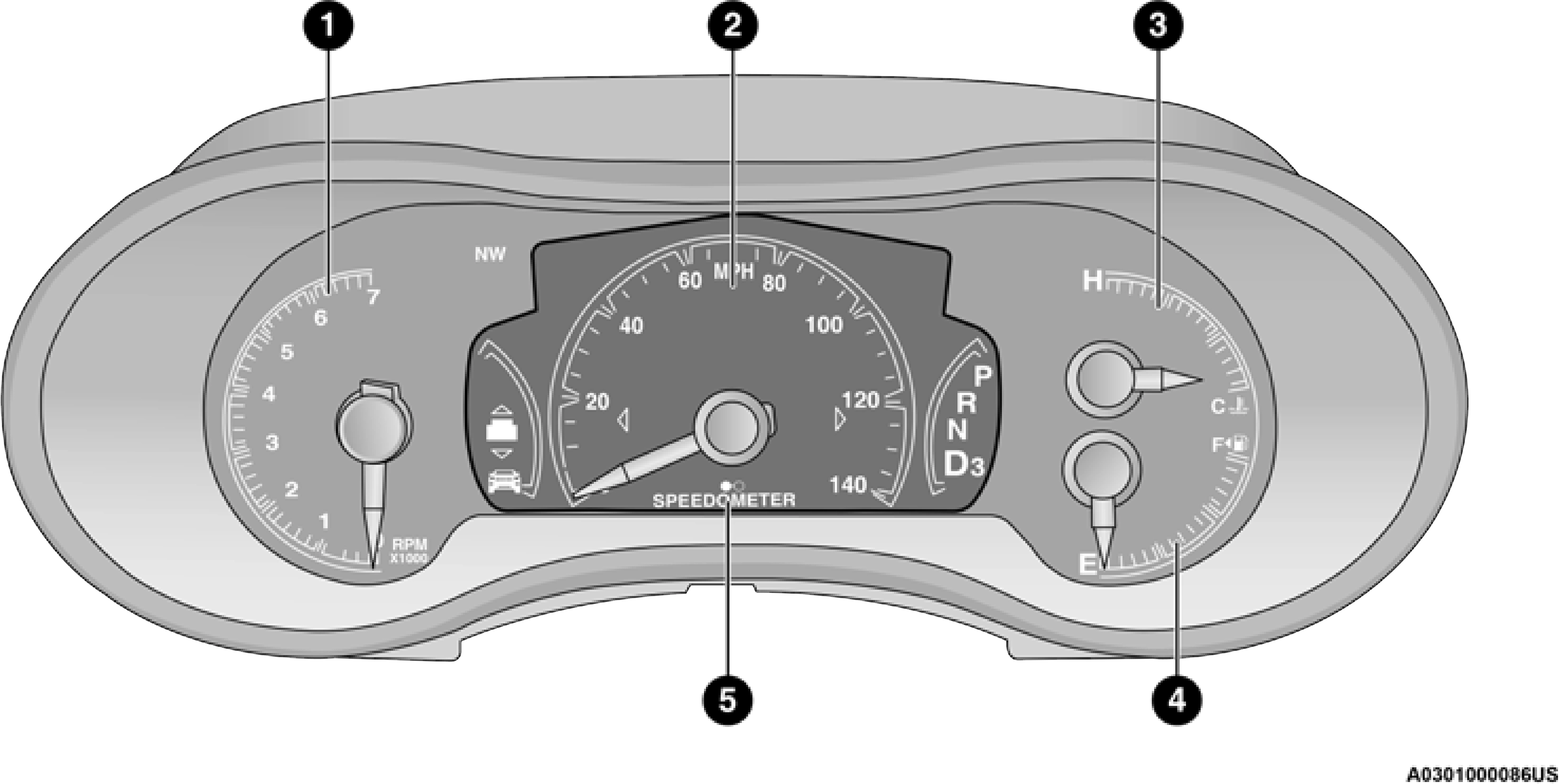

INSTRUMENT CLUSTER DESCRIPTIONS
Tachometer
Indicates the engine speed in revolutions per minute (RPM x 1000).
Speedometer
Indicates vehicle speed.
Temperature Gauge
The temperature gauge shows engine coolant temperature. Any reading within the normal range indicates that the engine cooling system is operating satis- factorily.
The pointer will likely indicate a higher temperature when driving in hot weather or up mountain grades. It should not be allowed to exceed the upper limits of the normal operating range.
Fuel Gauge
The pointer shows the level of fuel in the fuel tank when the ignition is in the ON/ RUN position.
The fuel pump symbol points to the side of the vehicle where the fuel door is located page 149.Instrument Cluster Display
The instrument cluster display features a driver interactive display page 81.

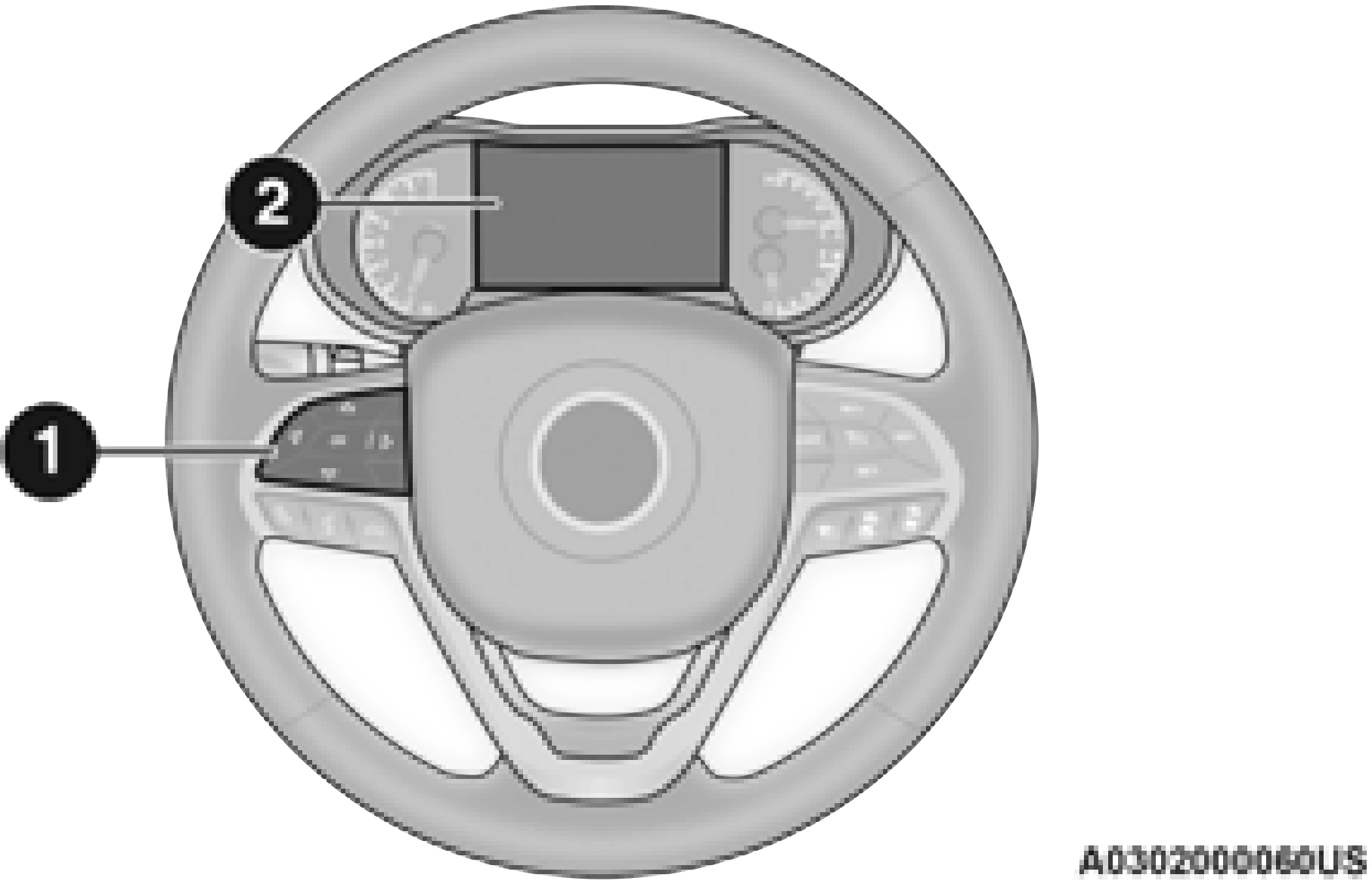

1 — Instrument Cluster Display Controls 2 — Instrument Cluster Display Screen
The hard telltales will illuminate for a bulb check when the ignition is first cycled.
