Wiper blades

Service position

In the service position, the wiper arms can be lifted off of the windshield.

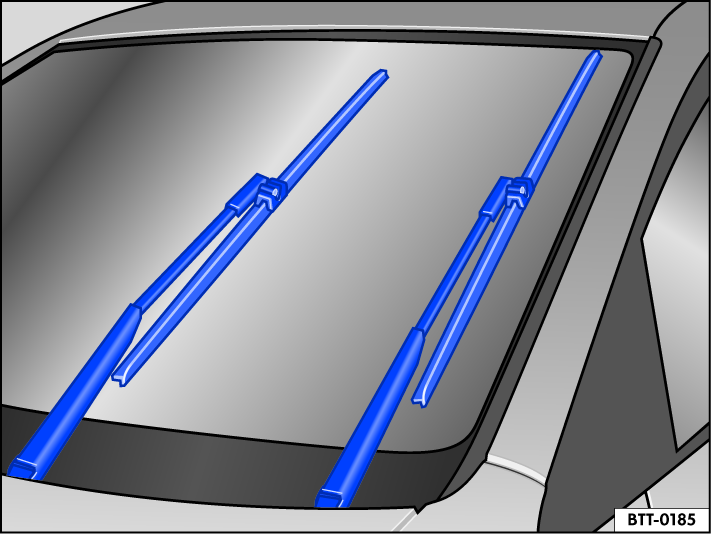

Fig. 168 Windshield wipers in service position (general example).

Activate the service position using the windshield wiper lever

1. Close the hood, driver and front passenger door.

2. Switch the ignition off and on again.

3. Briefly press the windshield wiper lever towards “one-tap wiping” .

Lifting the windshield wiper arms

1. Move the windshield wiper arms into the service position before lifting .

2. Only hold and lift wiper arms in the area where they attach to the wiper blade.

Placing the windshield wiper arms back

1. Carefully place the wiper arms back in position before driving, and only hold the wiper arms in the area where they attach to the wiper blade.

2. When the ignition is switched on, press the windshield wiper lever briefly towards “one-tap wiping”.

   The wiper arms move back to the original position.

NOTICE

Improper lifting and placing of wiper arms can damage the engine hood, windshield and wiper arms.

• Lift the wiper arms only in the service position.

• Always place the wiper arms against the windshield before continued driving.

Cleaning and changing wiper blades

Wiper blades with a graphite coating are installed at the factory. The graphite coating allows the wiper blade to glide easily over the window. A damaged graphite coating creates an increased noise level when wiping the window.

Check the condition of the wiper blades regularly. If wiper blades are rubbing, replace them if they are damaged or clean them if they are dirty .

Damaged wiper blades should be replaced immediately. Wiper blades can be obtained from suitably qualified professionals. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.

Cleaning the wiper blades

Windshield wiper: Move the windshield wiper arms into the service position before lifting .

1. Lift the wiper arms, making sure to only hold the wiper arms in the area where they attach to the wiper blade.

2. Clean the wiper blades carefully with a damp sponge .

3. Place the wiper arms carefully on the windshield.

Changing the windshield wiper blades

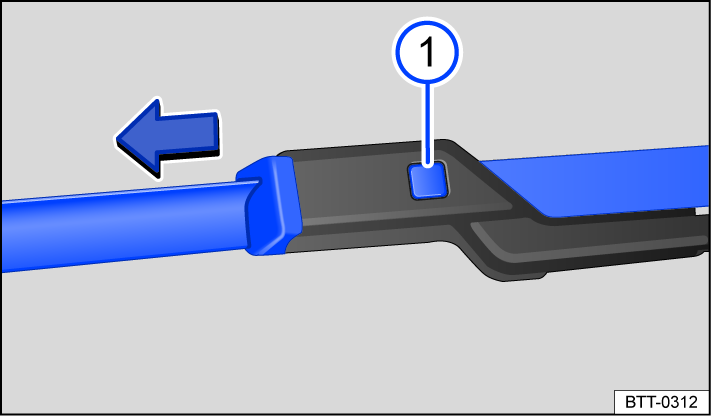

Fig. 169 Changing the windshield wiper blades.

1. Unlock button of the wiper blade.

1. Move the windshield wiper arms into the service position before lifting .

2. Lift the wiper arms, making sure to only hold the wiper arms in the area where they attach to the wiper blade.

3. Press and hold the release button and remove the wiper blade at the same time in the direction of the arrow   .

4. Insert a new wiper blade of the same length and type on the wiper arm until it engages.

5. Place the wiper arms carefully on the windshield.

Changing the rear window wiper blade

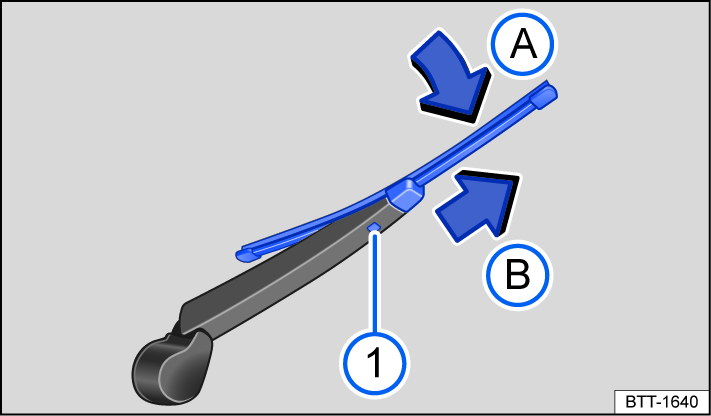

Fig. 170 Changing the rear window wiper blade.

1. Unlock button of the wiper blade.

1. To lift a windshield wiper arm, hold it only in the area where it attaches to the wiper blade.

2. Lift the wiper arm and fold it out.

3. Press and hold the release button   .

4. Tilt the wiper blade toward the wiper arm    while removing it in the direction of the arrow . You may need to use more force to do this.

5. Slide a new wiper blade with the same length and design onto the wiper arm in the opposite direction to the arrow until it engages   . For this to work, the wiper blade has to be folded out   .

6. Place the wiper arm carefully on the rear window.

WARNING

Worn or dirty wiper blades reduce visibility and increase the risk of accidents and serious injuries.

• Always replace wiper blades if they are damaged or worn and are no longer cleaning the windshield sufficiently.

NOTICE

Damaged or dirty wiper blades can scratch the window glass.

• Do not use any cleaning materials containing solvents, hard sponges, and other sharp-edged objects because they can damage the graphite coating on the wiper blades.

• Do not clean the windshield and windows with fuel, nail polish remover, paint thinner, or other similar fluids.

If there is wax residue on the windshield and rear window from car wash systems and other products, this can cause the windshield wipers to rub. Remove any wax residue with a special cleaner or cleaning towels.
