Luggage compartment floor
Luggage compartment floor - functions

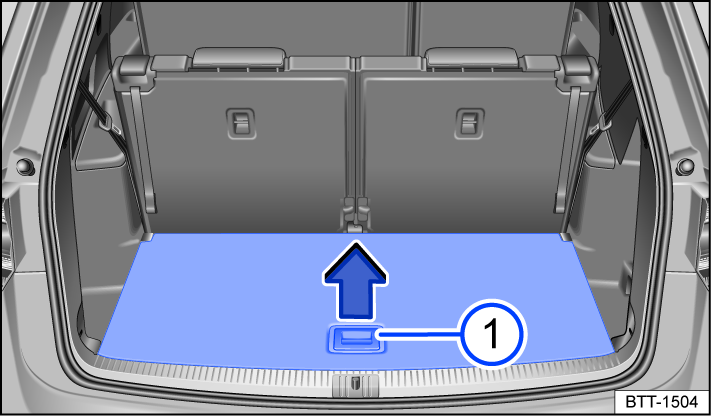

Fig. 158 In the luggage compartment: opening the luggage compartment floor.
Recessed grip in the luggage compartment floor.

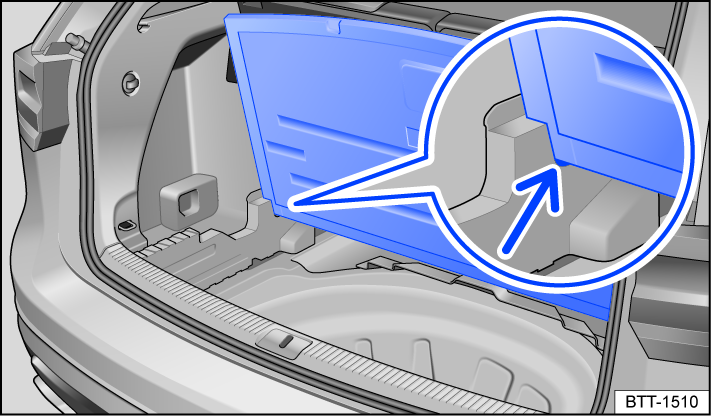

Fig. 159 In the luggage compartment: securing the luggage compartment floor in place.
Opening the luggage compartment floor
-
If necessary, detach the luggage net.
-
Grasp the handle in the luggage compartment floor
and lift up the floor panel in the direction of the arrow. -
To secure in place, guide the luggage compartment floor in the mounts (arrow) on the sides of the luggage compartment floor.
Closing the luggage compartment floor
-
Lift the secured luggage compartment floor and guide it downward.
-
Place the luggage compartment floor on the side supports .
NOTICE
Improper use may damage the luggage compartment floor or the luggage compartment trim.
-
When closing the luggage compartment floor, always carefully guide it downward, and do not drop it.
-
Always distribute loads as evenly as possible across the entire luggage compartment floor to avoid concentrating the load in a single place.
