Using the storage features
|

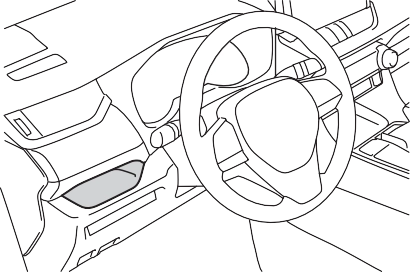

Glove box |
Pull up the lever to open the glove box.
|
Cup holders |
Lift the lid while pushing the but- ton to release the lock.
Front
Rear
|
Bottle holders |
Front
|
Auxiliary box |
Rear
|
|
|
Items unsuitable for the bottle holders
Do not place anything other than a bottle in the bottle holders. Other items may be thrown out of the holders in the event of an accident or sudden braking and cause injury. |
WARNING|

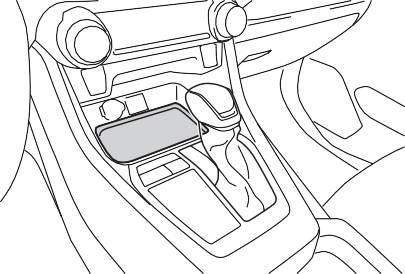

Open tray |
|
|
Front passenger’s side
Front of console
Vehicles with wireless charger:
P.427
|
|
|

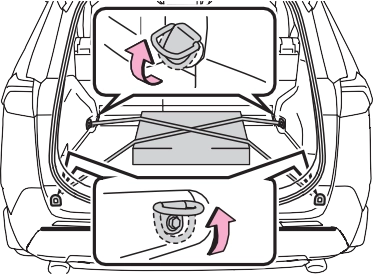

Cargo hooks |
Raise the hook to use.
The cargo hooks are provided for securing loose items.
|
|
|
|
|
When cargo hooks are not in use
To avoid injury, always return the hooks to their stowed positions when not in use. |
WARNING|
Deck under tray |
Pull the tab and open the deck board.
The AC charging cable, etc., can be stored.

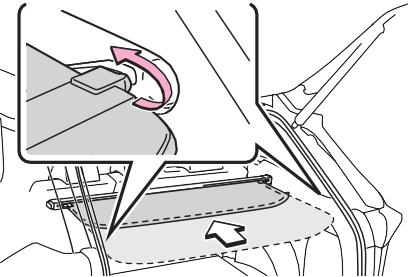

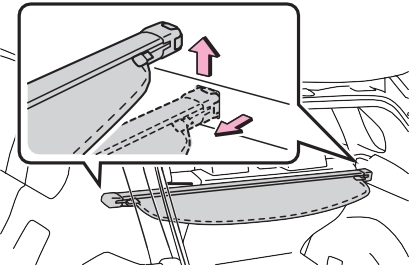

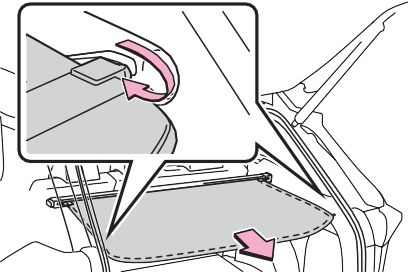

Pull out the luggage cover and hook it onto the anchors.|
|
|
|
|
|
|
|
|
Do not allow children to climb on the luggage cover. Climbing on the luggage cover could result in damage to the luggage cover, possibly causing death or serious injury to the child.
|
WARNING|
|
|
To prevent damage to the lug- gage cover
Do not place anything on top of the luggage cover. When rolling up the luggage cover, objects may be caught in the cover, dam- aging the cover and generating noise. |
