Adjusting the steering wheel and mirrors

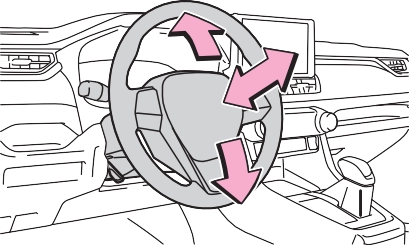

Steering wheel
|
Adjustment procedure |
|
Sounding the horn |
After adjustment, pull the lever up to secure the steering wheel.
|
|
|
|
|
Caution while driving
Do not adjust the steering wheel while driving. Doing so may cause the driver to mishandle the vehicle and cause an accident, resulting in death or serious injury. |
WARNING*: If equipped

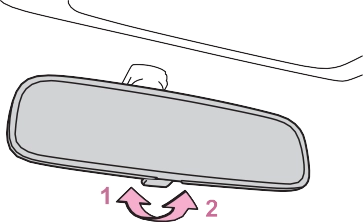

Adjust the height of the rear view mirror by moving it up and down.
|
|
|
Anti-glare function (vehi- cles with auto anti-glare inside rear view mirror) |
Responding to the level of brightness of the headlights of vehicles behind, the reflected light is automatically reduced.

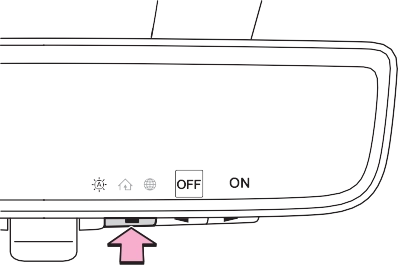

Changing automatic anti-glare function mode on/off
When the automatic anti-glare func-
tion is in ON mode, the indicator illuminates.
The function will set to ON mode each time the power switch is turned to ON.
Pressing the button turns the func- tion to OFF mode. (The indicator
also turns off.)
To ensure that the sensors operate properly, do not touch or cover
*: If equipped
|
|
|
Observe the following precau- tions. Failure to do so may result in death or serious injury. Before using the Digital Rear- view Mirror
Make sure to adjust the mirror before driving. (P.236)
Change to optical mirror mode and adjust the position of the Digital Rear-view Mirror so that the area behind your vehicle can be viewed properly.
|
WARNING|
Changing modes |
Displays icons, adjusting gauge, etc. (P.236)
Operate to change between digital mirror mode and optical mirror mode.
Press to display the icon display area and select the item you want to adjust.
Press to change the setting of the item you want to adjust.
Indicates that the camera is operat- ing normally.
will illuminate in this mode.
Turns off the display of the Digital Rear-view Mirror allows it to be used as an optical mirror.
The power switch is turned to ON.
When the power switch is changed from ON to OFF or ACC, the image will disappear after several seconds.
driving, make sure the back door is closed.
If it is difficult to see the displayed image or flickering bothers you, change to optical mirror mode.
This is not a malfunction.
If the symbol shown in the illustra- tion is displayed when using the Digital Rear-view Mirror in digital mirror mode, the system may be malfunctioning. The symbol will dis- appear in a few seconds. Operate the lever, change to optical mirror mode and have the vehicle inspected by your Toyota dealer.
|
Adjusting the mirror |
Change to optical mirror mode, adjusting the height of the rear view mirror by moving it up and down.
Settings of the display in the dig- ital mirror mode, on/off opera- tion of the automatic anti-glare function, etc. can be changed.

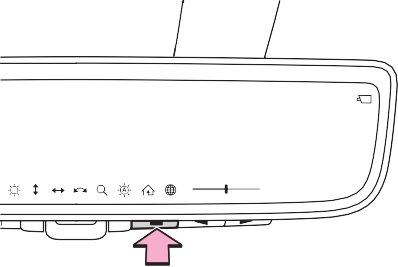

1 Press the menu button.
The icons will be displayed.
|
|
The icons will disappear if a button is not operated for approximately 5 seconds or more.
|
Icons |
Settings |
|
|
Select to adjust the bright- ness of the display. |
|
|
Select to adjust the area displayed up/down. |
|
|
Select to adjust the area displayed to the left/right. |
|
Select to adjust the angle of the displayed image. |
|
|
|
Select to zoom in/out the displayed image. |
|
Icons |
Settings |
|
|
Select to enable/disable the automatic anti-glare func- tion.* Responding to the bright- ness of the headlights of vehicles behind, the reflected light is automati- cally adjusted. The automatic anti-glare function is enabled each time the power switch is changed to ON. |
|
|
Select to display HomeLink® Training Tuto- rial to assist customers to train their Garage Door Opener System. (P.437) |
|
|
Select to change the lan- guage of the Homelink® Training Tutorial. |
*: This is a function for the optical mirror mode, however, the setting can also be changed while using the digital mirror mode.
When using the digital mirror mode
P.236
When using the optical mirror mode
The icons will be displayed.
.The setting display will be dis- played.
|
|
The icons will disappear if a button is not operated for approximately 5 seconds or more.
To prevent the light sensors from malfunctioning, do not touch or cover them.
|
|
|
Observe the following precau- tions. Failure to do so may result in death or serious injury. While driving
Do not adjust the position of the Digital Rear-view Mirror or adjust the display settings while driving.
Stop the vehicle and operate the Digital Rear-view Mirror control switches. Failure to do so may cause a steering wheel operation error, resulting in an unexpected acci- dent. Always pay attention to the vehicle’s surroundings.
The size of the vehicles and other objects may look different when in digital mirror mode and optical mirror mode. When backing up, make sure to directly check the safety of the area around your vehicle, espe- cially behind the vehicle. Additionally, if a vehicle approaches from the rear in the dark, such as at night, the sur- rounding area may appear dim. |
WARNING|
|
|
To prevent causes of fire
If the driver continues using the Digital Rear-view Mirror while smoke or odor comes from the mirror, it may result in fire. Stop using the system immediately and contact your Toyota dealer. |
WARNING|
Cleaning the Digital Rear- view Mirror |
Clean the mirror surface gently using a soft dry cloth.
If the camera lens is dirty, the displayed image may not be clear. In this case, clean it with a soft cloth dampened with water or a swab.
The camera for the Digital Rear- view Mirror is located as shown.
There is a cooling fan in the Digital Rear-view Mirror. Cooling fan sounds may be heard when using the system.
If the symptom is not resolved by the solution, have the vehicle inspected by your Toyota dealer.
|
Symptom |
Likely cause |
Solution |
|
The image is difficult to see. |
The mirror surface is dirty. |
Clean the mirror surface gently, using a soft dry cloth. |
|
Sunlight or headlights are shin- ing directly into the Digital Rear- view Mirror. |
Change to optical mirror mode. (If the light is coming through the moon roof [if equipped] or panoramic moon roof [if equipped], close the sunshade or electronic sunshade.) |
|
|
The vehicle is in a dark area.
The vehicle is near a TV tower, broadcasting station, electric power plant, or other location where strong radio waves or electrical noise may be present.
The temperature around the camera is extremely high/low.
The ambient temperature is extremely low.
It is raining or humid.
Sunlight or headlights are shining directly into the cam- era lens.
The vehicle is under fluores- cent lights, sodium lights, mercury lights, etc.
Exhaust gas is obstructing the camera.
|
Change to optical mirror mode. (Change back to digital mirror mode when the conditions have improved.) |
|
|
Foreign matters such as water droplets or dust is on the cam- era lens. |
Wipe the camera lens with a damp soft cloth. |
|
Symptom |
Likely cause |
Solution |
|
The image is difficult to see. |
The luggage in the luggage compartment is reflected off the rear window glass and obstruct- ing the camera. |
Change to optical mirror mode.
Move the luggage to a position where it does not obstruct the cam- era or cover it with a black cloth to reduce the amount it is reflected off the rear window glass.
|
|
The rear window glass is fogged up. |
Change to optical mirror mode. After defogging the rear window using the rear window defogger (P.398), use the digital mirror mode again. |
|
|
The outside of the rear window glass is dirty. |
Use the rear window wiper to remove dirt. |
|
|
The inside of the rear window glass is dirty. |
Wipe the inside of rear window glass with a damp soft cloth. |
|
|
The image is out of align- ment. |
The back door is not fully closed. |
Fully close the back door. |
|
The camera or its surrounding area has received a strong impact. |
Change to optical mirror mode and have the vehi- cle inspected by your Toyota dealer. |
|
|
The display is dim and |
The system may be malfunc- tioning. |
Change to optical mirror mode and have the vehi- cle inspected by your Toyota dealer. |
|
|
is displayed.
goes off.|
Symptom |
Likely cause |
Solution |
|
|
The Digital Rear-view Mirror is extremely hot. (The display will gradually become more dim. If the tem- perature continues to increase, the Digital Rear-view Mirror will turn off.) |
Reducing the cabin tem- perature is recom- mended to reduce the temperature of the mirror. ( If does not disappear even though the mirror is cool, have the vehicle inspected by your Toyota dealer. |
|
The lever can- not be oper- ated properly. |
The lever may be malfunction- ing. |
Change to optical mirror mode and have the vehi- cle inspected by your Toyota dealer. (To change to optical mir- ror mode, press and hold the menu button for approximately 10 sec- onds.) |
is dis- played.
will disappear when the mirror becomes cool.)|
Adjustment procedure |

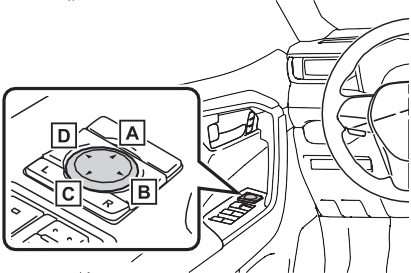

1 To select a mirror to adjust, press the switch.
The outside rear view mirrors can be cleared using the mirror defog- gers. Turn on the rear window defogger to turn on the outside rear view mirror defoggers.
(P.398)
2 To adjust the mirror, press
the switch.
|
|
Up Right Down Left
The power switch is in ACC or ON.
|
Folding the mirrors |
|
|
|
When a mirror is moving
To avoid personal injury and mir- ror malfunction, be careful not to get your hand caught by the mov- ing mirror. |
