Opening, closing and locking the doors

Side doors

Using the entry function

Carry the electronic key to enable this function.

1 Grip the driver’s door handle to unlock the door. Holding the driver’s door handle for approximately 2 seconds unlocks all the doors.

Grip the front passenger’s

seconds after the doors are locked.

*: The door unlock settings can be changed. (P.198)

Check that the door is securely locked.

Using the wireless remote control

Locks all the doors

Check that the door is securely locked.

Unlocks all the doors Pressing the button unlocks the driver’s door. Pressing the button again within 5 seconds unlocks the other doors.

Press and hold to open the side windows and moon roof (if equipped) or panoramic moon roof (if equipped).*

*: This setting must be customized at your Toyota dealer.

dle (some models) to unlock all the doors*.

Make sure to touch the sensor on the back of the handle.

The doors cannot be unlocked for 3

Switching the door unlock func- tion

It is possible to set which doors the entry function unlocks using the wireless remote control. Perform the switching operation in the vehicle or

within approximately 3.2 ft. (1 m) of the vehicle.

Turn the power switch to OFF.

When the indicator light on the key surface is not on, press and

hold , or for approximately 5 seconds while

pressing and holding .

The setting changes each time an operation is performed, as shown below. (When changing the setting continuously, release the buttons, wait for at least 5 seconds, and repeat step 2.)

Vehicles with alarm: To prevent unintended triggering of the alarm, unlock the doors using the wireless remote control and open and close a door once after the settings have been changed. (If a door is not opened within 60 seconds after

is pressed, the doors will be

locked again and the alarm will automatically be set.)

In a case that the alarm is triggered, immediately stop the alarm. (P.73)

Impact detection door lock release system

In the event that the vehicle is sub- ject to a strong impact, all the doors are unlocked. Depending on the force of the impact or the type of accident, however, the system may not operate.

Operation signals

Doors: A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)

Side windows and moon roof (if equipped) or panoramic moon roof (if equipped): A buzzer sounds to indicate that the side windows and moon roof or panoramic moon roof are operating.

Security feature

If a door is not opened within approximately 60 seconds after the vehicle is unlocked, the security fea- ture automatically locks the vehicle again. (However, depending on the location of the electronic key, the key may be detected as being in the vehicle. In this case, vehicle may be unlocked.)

When the door cannot be locked by the lock sensor on the upper part of the door han- dle

If the door will not lock even when the topside sensor area is touched, try touching both the topside and underside sensor areas at the same time.

When gloves are being worn, remove the gloves.

Door lock buzzer

If an attempt to lock the doors using the smart key system is made when a door other than the door you are locking is open, a buzzer sounds continuously for 5 seconds. Fully close all the doors, and lock the vehicle once more.

Setting the alarm (if equipped)

Locking the doors will set the alarm system. (P.73)

Conditions affecting the opera- tion of the smart key system or wireless remote control

P.218

If the smart key system or the wireless remote control does not operate properly

Use the mechanical key to lock and unlock the doors. (P.537)

Replace the key battery with a new one if it is depleted. (P.493)

If the 12-volt battery is dis- charged

The doors cannot be locked and unlocked using the smart key sys- tem or wireless remote control. Lock or unlock the doors using the mechanical key. (P.537)

Rear seat reminder function

In order to remind you not to for- get luggage, etc. in the rear seat, when the power switch is turned to OFF after any of the following con- ditions are met, a buzzer will sound and a message will be dis- played on the multi-information display for approximately 6 sec- onds.

The hybrid system is started within 10 minutes after opening and closing a rear door.

A rear door has been opened and closed after the hybrid system was started.

However, if a rear door is opened and then closed within approxi- mately 2 seconds, the rear seat reminder function may not operate.

The rear seat reminder function determines that luggage, etc. has been placed in a rear seat based on opening and closing of a rear door. Therefore, depending on the situation, the rear seat reminder function may not operate and you may still forget luggage, etc. in the rear seat, or it may operate unnec- essarily.

The rear seat reminder function can be enabled/disabled. (P.569)

Customization

Settings (e.g. unlocking function using a key) can be changed. (Customizable features: P.573)

WARNING

To prevent an accident

Observe the following precautions while driving the vehicle.

Failure to do so may result in a door opening and an occupant could be thrown out of the vehicle, resulting in death or serious injury.

Ensure that all doors are prop- erly closed and locked.

Do not pull the inside handle of the doors while driving.

Be especially careful for the front doors, as the doors may be opened even if the inside lock buttons are in locked posi- tion.

Unlocking and locking the doors from the inside

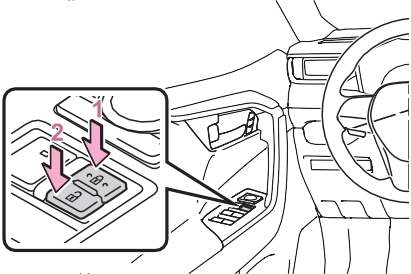

Using the door lock switches

Locks all the doors

Unlocks all the doors

Using the inside lock but- tons

Locks the door

Unlocks the door

The front doors can be opened by pulling the inside handle even if the lock buttons are in the lock position.

Locking the front doors from the outside without a key

Move the inside lock button to the lock position.

Close the door.

The door cannot be locked if the power switch is in ACC or ON, or the electronic key is left inside the

vehicle.

Depending on the position of the electronic key, the key may not be detected correctly and the door may be locked.

Open door warning buzzer

If the vehicle speed reaches 3 mph (5 km/h), a buzzer sounds to indi- cate that the door(s) or the hood is not fully closed.

The open door(s) or hood is dis- played on the multi-information dis- play.

When all the doors are locked with the entry function or wire- less remote control

The doors cannot be unlocked with the door lock switch.

The door lock switches can be reset by unlocking all the doors with the entry function or wireless remote control.

Unlock

Lock

These locks can be set to prevent children from opening the rear doors. Push down on each rear door switch to lock both rear doors.

Automatic door locking and unlocking systems

For instructions on customizing, refer to P.569.

Function	Operation
	All doors are
	automatically
Speed linked	locked when
door locking	vehicle speed is
function	approximately
	12mph (20 km/h)
	or higher.
	All doors are
Shift position linked door lock- ing function	automatically locked when shifting the shift lever to position
	other than P.
Shift position linked door unlocking func- tion	All doors are automatically unlocked when shifting the shift lever to P.
	All doors are
	automatically
Driver’s door linked door unlocking func- tion	unlocked when driver’s door is opened within approximately 45 seconds after
	turning the power
	switch off.

WARNING

Observe the following precau- tions.

Failure to do so may result in death or serious injury.

Before driving

Make sure that the back door is fully closed.

If the back door is not fully closed, it may open unexpect- edly while driving and hit near- by objects or luggage in the lug- gage compartment may be thrown out, causing an acci- dent.

Do not allow children to play in the luggage compartment.

If a child is accidentally locked in the luggage compartment, they could get heat exhaustion or other injuries.

Do not allow a child to open or close the back door.

Doing so may cause the back door to operate unexpectedly, or cause the child’s hands, head, or neck to be caught by the closing back door.

Vehicles without power back door: The back door may sud- denly shut if it is not opened fully. It is more difficult to open or close the back door on an incline than on a level surface, so beware of the back door unexpectedly opening or closing by itself. Make sure that the back door is fully open and secure before using the luggage compartment.

Vehicles with power back door: The back door may suddenly shut if it is not opened fully, while on a steep incline. Make sure that the back door is secured before using the lug- gage compartment.

When closing the back door, take extra care to prevent your fingers, etc. from being caught.

Vehicles without power back door: When closing the back door, make sure to press it lightly on its outer surface. If the back door handle is used to fully close the back door, it may result in hands or arms being caught.

Vehicles without power back door: Do not pull on the back door damper stay (P.206) to close the back door, and do not hang on the back door damper stay.

Doing so may cause hands to be caught or the back door damper stay to break, causing an accident.

Vehicles with power back door: Do not pull on the back door spindle (P.214) to close the back door, and do not hang on the back door spindle.

Doing so may cause hands to be caught or the back door spin- dle to break, causing an acci- dent.

Vehicles without power back door: If a bicycle carrier or simi- lar heavy object is attached to the back door, it may suddenly shut again after being opened, causing someone’s hands, head or neck to be caught and injured. When installing an accessory part to the back door, using a genuine Toyota part is recommended.

Unlocking and locking the back door from the out- side

Using the entry function

Unlocks all the doors

The doors cannot be unlocked for 3 seconds after the doors are locked.

Locks all the doors

Check that the door is securely locked.

Using the wireless remote control

Operation signals

P.199

Security feature

P.199

Using the door lock switches

Open

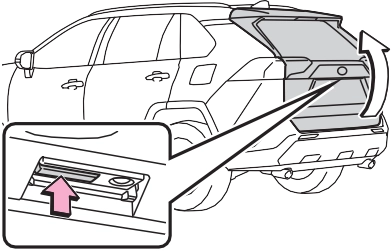

Raise the back door while pressing up the back door opener switch.

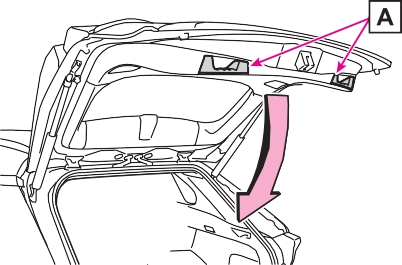

Lower the back door using the

back door handle , and make sure to push the back door down from the outside to close it.

Be careful not to pull the back door sideways when closing the back door with the handle.

Luggage compartment light

The luggage compartment light turns on when the back door is opened with the luggage compart- ment light switch on.

When the power switch is turned to OFF, the light will go off automati- cally after 20 minutes.

Off

If the back door opener is inop- erative

The back door can be unlocked from the inside.

Remove the cover.

To prevent damage, cover the tip of the screwdriver with a rag.

Loosen the screw.

Turn the cover.

Move the lever.

When installing, reverse the steps listed.

Open door warning buzzer

P.202

Opening/closing the back door (vehicles with power back door)

Using the wireless remote control

The power back door automatically opens/closes.

Pressing the switch while the power back door is opening/closing stops the operation. When the switch is pressed and held again during the halted operation, the back door will perform the reverse operation.

Using the power back door switch on the instrument panel

The power back door automatically opens/closes.

Unlock the back door before oper- ating.

Using the back door opener switch

When the back door is locked: While carrying the electronic key on your person, press and hold the back door opener switch.

The power back door automatically opens.

Pressing the switch while the power back door is opening/closing stops the operation.

Using the power back door switch on the back door

The power back door automatically closes.

Pressing the switch while the power back door is operating will stop the operation.

When the switch is pressed again during the halted operation, the back door will perform the reverse operation.

Using the back door han- dles

The back door closing assist (P.210) will be activated, and the power back door will fully close automatically.

Using the kick sensor (vehi- cles with Hands Free Power Back Door)

operating the Hands Free Power Back Door, make sure that the power switch is in OFF, the Hands Free Power Back Door operation is enabled (P.177) and you are carrying an electronic key.

While carrying an electronic key, stand within the smart key system operation range, approximately 11.8 to 19.7 in. (30 to 50 cm) from the rear bumper.

Kick sensor

Hands Free Power Back Door operation detection area

Smart key system operation detection area (P.217)

Perform a kick operation by moving your foot to within approximately 3.9 in. (10 cm) of the rear bumper and then pulling it back.

Perform the entire kick operation within 1 second.

The back door will not start operat- ing while a foot is detected under the rear bumper.

Operate the Hands Free Power

Back Door without contacting the rear bumper with your foot.

If another electronic key is in the cabin or luggage compartment, it may take slightly longer than nor- mal for the operation to occur.

Hands Free Power Back Door operation detection area

When the kick sensor detects that your foot is pulled back, a buzzer will sound and the back door will automatically fully open/close.

If a foot is moved under the rear bumper while the back door is opening/closing, the back door will stop moving.

If a foot is moved under the rear bumper again during the halted operation, the back door will per- form the reverse operation.

Luggage compartment light

The luggage compartment light turns on when the back door is opened with the luggage compart- ment light switch on.

When the power switch is turned to OFF, the light will go off automati- cally after 20 minutes.

Off

Back door closer

In the event that the back door is left slightly open, the back door closer will automatically close it to the fully closed position.

Whatever the state of the power switch, the back door closer oper- ates.

Power back door operating con- ditions

The power back door can automati- cally open and close under the fol- lowing conditions:

When the power back door sys- tem is enabled. (P.177)

When the power switch is in ON, in addition to the above for the opening operations, the back door operates for any of the following conditions:

Parking brake is engaged

The brake pedal is depressed

The shift lever is in P.

Operation of the power back door

A buzzer sounds and the emer- gency flashers flash twice to indi- cate that the back door is opening/closing.

When the power back door sys- tem is disabled, the power back door does not operate but it can be opened and closed by hand.

When the power back door auto- matically opens, if an abnormality due to people or objects is detected, operation will stop.

Jam protection function

Sensors are equipped on both sides of the power back door. If anything obstructs the power back door while it is closing, the back door will auto- matically operate in the opposite direction or stop.

Fall-down protection function

While the power back door is open- ing automatically, applying exces- sive force to it will stop the opening operation to prevent the power back door from suddenly shutting.

Back door closing assist

If the back door is lowered manually when the back door is stopped at an open position, the back door will fully close automatically.

Back door reserve lock function

This function is a function which reserves locking of all doors, before- hand, when the power back door is open.

When the following procedure is performed, all the doors except the power back door are locked and then power back door will also be locked at the same time it is closed.

Close all doors, except the back door.

During the power back door clos- ing operation, lock the doors using the smart key system from the side doors (P.198) or the wireless remote control. (P.198)

Operation signals will indicate that all the doors have been closed and locked (P.199).

If the electronic key is placed

inside the vehicle after starting a close operation via the door reserve lock function, the elec- tronic key may become locked inside the vehicle.

If the power back door does not fully close due to the operation of the jam protection function, etc., while the back door is automati- cally closing after a door reserve lock operation is performed, the door reserve lock function is can- celed and all the doors will unlock.

Before leaving the vehicle, make sure that all the doors are closed and locked.

Hands Free Power Back Door operating conditions (vehicles with Hands Free Power Back Door)

The Hands Free Power Back Door will open/close automatically when the following conditions are met:

The Hands Free Power Back Door operation is enabled (P.177)

The power switch is in OFF.

The electronic key is within the operational range. (P.217)

A foot is put near the lower center part of the rear bumper and moved away from the rear bumper.

The power back door may also be operated by putting a hand, an elbow, a knee, etc. near the lower center part of the rear bumper and moving it away from the rear bumper. Make sure to put it close enough to the center part of the rear bumper.

Situations in which the Hands Free Power Back Door may not operate properly (vehicles with Hands Free Power Back Door)

In the following situations, the Hands Free Power Back Door may not operate properly:

When a foot remains under the rear bumper

If the rear bumper is strongly hit with a foot or is touched for a while

If the rear bumper has been touched for a while, wait for a short time before attempting to operate the Hands Free Power Back Door again.

When operated while a person is too close to the rear bumper

When an external radio wave source interferes with the commu- nication between the electronic key and the vehicle (P.218)

When charging from an external power source or connecting the AC charging cable

When the vehicle is parked near an electrical noise source which affects the sensitivity of the Hands Free Power Back Door, such as a pay parking spot, gas station, electrically heated road, or fluo- rescent light

When the vehicle is near a TV tower, electric power plant, radio station, large display, airport or other facility that generates strong radio waves or electrical noise

When a large amount of water is applied to the rear bumper, such as when the vehicle is being washed or in heavy rain

When mud, snow, ice, etc. is attached to the rear bumper

When the vehicle has been parked for a while near objects that may move and contact the rear bumper, such as plants

When an accessory is installed to the rear bumper

If an accessory has been installed, turn the Hands Free Power Back Door operation setting off.

Preventing unintentional opera- tion of the Hands Free Power Back Door (vehicles with Hands Free Power Back Door)

When an electronic key is in the operation range, the Hands Free Power Back Door may operate unin- tentionally, so be careful in the fol- lowing situations.

When a large amount of water is applied to the rear bumper, such as when the vehicle is being washed or in heavy rain

When dirt is wiped off the rear bumper

When a small animal or small object, such as a ball, moves under the rear bumper

When an object is moved from under the rear bumper

If someone is swinging their legs while sitting on the rear bumper

If the legs or another part of some- one’s body contacts the rear bumper while passing by the vehi- cle

When the vehicle is near a TV tower, electric power plant, radio station, large display, airport or other facility that generates strong radio waves or electrical noise

When the vehicle is parked in a place where objects such as plants are near the rear bumper

If luggage, etc. is set near the rear bumper

If accessories or a vehicle cover is installed/removed near the rear bumper

When the vehicle is being towed To prevent unintentional operation,

turn the Hands Free Power Back Door operation setting off. (P.177)

When reconnecting the 12-volt battery

To enable the power back door to operate properly, close the back door manually.

If the back door opener is inop- erative

The back door can be unlocked from the inside.

Remove the cover.

To prevent damage, cover the tip of the screwdriver with a rag.

Loosen the screw.

Turn the cover.

Move the lever.

When installing, reverse the steps listed.

Customization

Settings (e.g. power back door opening angle) can be changed. (Customizable features: P.575)

NOTICE

Back door spindles

The back door is equipped with spindles that hold the back door in place.

Observe the following precau- tions.

Failure to do so may cause dam- age to the back door spindle, resulting in malfunction.

Do not attach any foreign objects, such as stickers, plastic sheets, or adhesives to the spindle rod.

Do not attach any accessories other than genuine Toyota parts to the back door.

Do not place your hand on the spindle or apply lateral forces to it.

To prevent back door closer malfunction

Do not apply excessive force to the back door while the back door closer is operating. Applying excessive force may cause the back door closer to malfunction.

To prevent damage to the power back door

Make sure that there is no ice between the back door and frame that would prevent move- ment of the back door. Operat- ing the power back door when excessive load is present on the back door may cause a mal- function.

that position.

from the screen of the multi- information display and display- ing the “PBD” screen. (P.177)

The changed power back door set- tings are not reset by turning the power switch to OFF. In order to restore the original settings, they need to be changed back on the

screen of the multi-information display.

Stop the back door in the desirable position. (P.207)

Press and hold the power back door switch on the back door for approximately 2 sec- onds.

When the settings are completed, the buzzer sounds 4 times.

When opening the back door the next time, the back door will stop at

Canceling the adjusted open position of the back door

Press and hold the power back door switch on the back door for approxi- mately 7 seconds.

After the buzzer sounds 4 times, it sounds twice more. When the power back door does the opening operation the next time, the door will open to the initial settings position.

Customization

The opening position can be set with the multi-information display. (P.177)

Priority for the stop position is given to the last position set by either the power back door switch on the back door or multi-information display.

Antenna location

Antennas outside the cabin (front)

Antennas outside the cabin (rear) (if equipped)

Antenna outside the luggage compartment

Antennas inside the cabin

Effective range (areas within which the electronic key is detected)

When locking or unlocking the doors

The system can be operated when the electronic key is within about 2.3 ft. (0.7 m) of the front door handles, rear door handles (if equipped) and back door opener switch. (Only the doors detecting the key can be operated.)

When starting the hybrid system or changing power switch modes

The system can be operated when the electronic key is inside the vehi- cle.

If an alarm sounds or a warning message is displayed

An alarm sounds and warning mes- sage displays shown on the multi- information display are used to pro- tect against unexpected accidents or theft of the vehicle resulting from erroneous operation. When a warn- ing message is displayed, take appropriate measures based on the displayed message.

When only an alarm sounds, cir- cumstances and correction proce- dures are as follows.

When an exterior alarm sounds once for 5 seconds

When an interior alarm pings con- tinuously

Battery-saving function

The battery-saving function will be activated in order to prevent the electronic key battery and the 12- volt battery from being discharged while the vehicle is not in operation for a long time.

In the following situations, the smart key system may take some time to unlock the doors.

The electronic key has been left in an area of approximately 11.5 ft. (3.5 m) of the outside of the vehi- cle for 2 minutes or longer.

The smart key system has not been used for 5 days or longer.

If the smart key system has not been used for 14 days or longer, the doors cannot be unlocked at any doors except the driver’s door. In this case, take hold of the driver’s door handle, or use the wireless remote control or the

mechanical key, to unlock the doors.

Turning an electronic key to battery-saving mode

When battery-saving mode is set, battery depletion is minimized by stopping the electronic key from receiving radio waves.

Press twice while pressing and holding .

Confirm that the electronic key indi-

cator flashes 4 times.

While the battery-saving mode is set, the smart key system cannot be used. To cancel the function, press any of the electronic key buttons.

Electronic keys that will not be used for long periods of time can be set to the battery-saving mode in advance.

Conditions affecting operation

The smart key system uses weak radio waves. In the following situa- tions, the communication between the electronic key and the vehicle may be affected, preventing the smart key system, wireless remote control and immobilizer system from operating properly.

When the electronic key battery is depleted

Near a TV tower, electric power plant, gas station, radio station, large display, airport or other facil- ity that generates strong radio waves or electrical noise

When the electronic key is in con- tact with, or is covered by the fol-

lowing metallic objects

Cards to which aluminum foil is attached

Cigarette boxes that have alumi- num foil inside

Metallic wallets or bags

Coins

Hand warmers made of metal

Media such as CDs and DVDs

When other wireless key (that emits radio waves) is being used nearby

When carrying the electronic key together with the following devices that emit radio waves

Portable radio, cellular phone, cordless phone or other wireless communication devices

Another vehicle’s electronic key or a wireless key that emits radio waves

Personal computers or personal digital assistants (PDAs)

Digital audio players

Portable game systems

If window tint with a metallic con- tent or metallic objects are attached to the rear window

When the electronic key is placed near a battery charger or elec- tronic devices

When the vehicle is parked in a pay parking spot where radio waves are emitted.

If the doors cannot be locked/unlocked using the smart key system, lock/unlock the doors by performing any of the following:

Bring the electronic key close to either front door handle and oper- ate the entry function.

Operate the wireless remote con- trol. If the doors cannot be locked/unlocked using the above methods, use the mechanical key. (P.196)

If the hybrid system cannot be started using the smart key system, refer to P.538.

Note for the entry function

Even when the electronic key is within the effective range (detec- tion areas), the system may not operate properly in the following cases:

The electronic key is too close to the window or outside door han- dle, near the ground, or in a high place when the doors are locked or unlocked.

The electronic key is on the instru- ment panel, luggage cover or floor, or in the door pockets or glove box when the hybrid system is started or power switch modes are changed.

Do not leave the electronic key on top of the instrument panel or near the door pockets when exiting the vehicle. Depending on the radio wave reception conditions, it may be detected by the antenna out- side the cabin and the door will become lockable from the outside, possibly trapping the electronic key inside the vehicle.

As long as the electronic key is within the effective range, the doors may be locked or unlocked by anyone. However, only the doors detecting the electronic key can be used to lock or unlock the vehicle. (For vehicles equipped with sensors on the rear door han- dles, it is possible to lock (but not unlock) all the doors using a door handle that is not being detected by the electronic key.)

Even if the electronic key is not inside the vehicle, it may be possi- ble to start the hybrid system if the electronic key is near the window.

The doors may unlock if a large amount of water splashes on the door handle, such as in the rain or in a car wash when the electronic key is within the effective range. (The doors will automatically be locked after approximately 60 sec- onds if the doors are not opened and closed.)

If the wireless remote control is used to lock the doors when the electronic key is near the vehicle, there is a possibility that the door may not be unlocked by the entry function. (Use the wireless remote control to unlock the doors.)

Touching the door lock sensor while wearing gloves may delay or prevent lock operation. Remove the gloves and touch the lock sen- sor again.

When the lock operation is per- formed using the lock sensor, rec- ognition signals will be shown up to two consecutive times. After this, no recognition signals will be given.

If the door handle becomes wet while the electronic key is within the effective range, the door may lock and unlock repeatedly. In that case, follow the following correc- tion procedures to wash the vehi- cle:

Place the electronic key in a loca- tion 6 ft. (2 m) or more away from the vehicle. (Take care to ensure that the key is not stolen.)

Set the electronic key to battery- saving mode to disable the smart key system. (P.218)

If the electronic key is inside the vehicle and a door handle becomes wet during a car wash, a message may be shown on the multi-information display and a buzzer will sound outside the vehi- cle. To turn off the alarm, lock all the doors.

The lock sensor may not work properly if it comes into contact with ice, snow, mud, etc. Clean the lock sensor and attempt to operate it again, or use the lock sensor on the lower part of the door handle.

A sudden approach to the effec- tive range or door handle may pre- vent the doors from being unlocked. In this case, return the door handle to the original position

and check that the doors unlock before pulling the door handle again.

If there is another electronic key in the detection area, it may take slightly longer to unlock the doors after the door handle is gripped.

When the vehicle is not driven for extended periods

To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of the vehicle.

The smart key system can be deactivated in advance. (P.574)

Battery-saving mode can reduce the power consumption of elec- tronic keys. (P.218)

To operate the system properly

Make sure to carry the electronic key when operating the system. Do not get the electronic key too close to the vehicle when operating the system from the outside of the vehi- cle.

Depending on the position and hold- ing condition of the electronic key, the key may not be detected cor- rectly and the system may not oper- ate properly. (The alarm may go off accidentally, or the door lock pre- vention may not operate.)

If the smart key system does not operate properly

Locking and unlocking the doors: Use the mechanical key. (P.537)

Starting the hybrid system:

P.538

Customization

Settings (e.g. smart key system) can be changed.

(Customizable features: P.573)

If the smart key system has been deactivated in a customized setting, refer to the explanations for the fol- lowing operations.

Locking and unlocking the doors: Use the wireless remote control or

mechanical key. (P.198, 537)

Starting the hybrid system and changing power switch modes:

P.538
