USB power supply
The rated voltage of each USB terminal is 5 V. For details about a maximum rated power, refer to “How to use the USB power supply” P283. Before connecting a device, be sure to read the instruction manual of the device and check whether or not this specification of the output is supported by the device. If a device that requires power exceeding the maximum rating is connected, power supply or charging may not be possible. Even if charging could be completed, the time required for charging may be longer than when the genuine charger for that device is used.
Depending on the device, charging
USB power supply 283
When a device that communicates with a PC is connected, power supply or charging may not be possible.
When connect a device for charging, disconnect the device promptly after charging is completed.
& How to use the USB power supply

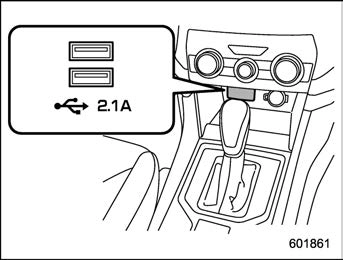

Front seat USB power supply (An audio device can be connected and used)

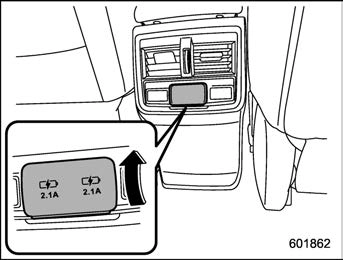

Console USB power supply (power supply function only) (if equipped)
When the ignition switch is in the “ACC” or “ON” position and a USB electronic device is connected to the USB terminal, 5 V DC power can be supplied to the device. Use the USB terminal to use or charge an electronic device.
When using the terminal, open the USB power supply cover. After use, close the USB power supply cover.
|
Number of USB terminal |
Maximum rated power |
|
|
DC 5 V/2.1 A* |
*: The available electricity of the two USB terminals is a maximum of 4.2 A.
