Specifications
These specifications are subject to change without notice.
in (mm)
|
Item |
||
|
Overall length |
182.1 (4,625) |
|
|
Overall width |
71.5 (1,815) |
|
|
Overall height |
68.1 (1,730)*2 67.5 (1,715)*3 |
|
|
Wheel base |
105.1 (2,670) |
|
|
Tread |
Front |
61.6 (1,565) |
|
Rear |
61.8 (1,570) |
|
|
Ground clearance*1 |
8.7 (220) |
*1: Measured with vehicle empty
*2: Models with roof rails
*3: Models without roof rails
& Engine
|
Engine model |
FB25 (2.5 L, DOHC, non-turbo) |
|
Engine type |
Horizontally opposed, liquid cooled 4 cylinder, 4-stroke direct injection gasoline engine |
|
Displacement cu-in (cc) |
152 (2,498) |
|
Bore 6 Stroke in (mm) |
3.70 6 3.54 (94.0 6 90.0) |
|
Compression ratio |
12.0 : 1 |
|
Firing order |
1 – 3 – 2 – 4 |
|
Fuel requirement |
Fuel tank capacity |
|
Unleaded gasoline with 87 AKI (90 RON) or higher |
16.6 gal (63 liters, 13.9 Imp gal) |
For more details, refer to “Fuel” P293.
For the checking, adding and replacing procedure or other details, refer to “Engine oil” P452.
! Approved engine oil
Always use the SUBARU approved engine oil. For further details, please contact your SUBARU dealer. If the approved engine oil is unavailable, use the alternative engine oil described on the next page.
If the SUBARU approved oil is unavailable, the following alternative oil can be used.
|
Oil |
grade |
SAE viscosity No. and applicable temperature |
Engine oil capacity |
|
|
0W-20 synthetic oil is the required oil for optimum engine performance and protection. Conventional oil may be used if synthetic oil is unavailable. |
– Adding the oil from low level to full level: 1.1 US qt (1.0 liter, 0.9 Imp qt) – Changing the oil and oil filter: 4.4 US qt (4.2 liters, 3.7 Imp qt) |
|||
|
or |
*: If 0W-20 synthetic oil is not available, 5W-30 conventional oil may be used if replenishment is needed but should be changed to 0W-20 synthetic oil at the next oil change. |
|||
|
API (American Petroleum Insti- tute) classification SN with the words “RESOURCE CONSER- VING” |
ILSAC (International Lubricant Specification Advisory Commit- tee) GF-5, which can be identi- fied with the ILSAC certification mark (Starburst mark) |
|
& Front differential and rear differential gear oil
|
Oil |
Front differential gear oil |
Rear differential gear oil |
|
Oil grade |
SUBARU Extra MT*3
API classification GL-5 (75W-90)
|
|
|

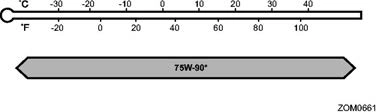

SAE viscosity No. and applicable temperature |
|
|
|
Oil capacity*1 |
1.4 US qt (1.3 liters, 1.1 lmp qt) |
0.8 US qt (0.8 liters, 0.7 Imp qt) |
|
Remarks*2 |
“Front differential gear oil and rear differential gear oil” P459 |
*1: The indicated oil quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other factors. After refilling the gearbox with oil, the oil level should be checked.
*2: For more details about maintenance and service, refer to the indicated section.
*3: The vehicle is filled at the factory with this type of oil.
& Fluids
|
Fluid |
Fluid type*1 |
Fluid capacity*2 |
Remarks*3 |
|
Continuously variable transmission fluid |
Consult your SUBARU dealer. |
12.7 US qt (12.0 liters, 10.6 lmp qt) |
“Continuously variable transmission fluid” P458 |
|
Brake fluid |
FMVSS No. 116, DOT 3 or DOT 4 brake fluid |
– |
“Brake fluid” P459 |
*1: Use one of the indicated types of fluid.
*2: The indicated fluid quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other factors.
*3: For more details about maintenance and service, refer to the indicated section.
|
Coolant capacity |
Coolant type |
|
9.0 US qt (8.5 liters, 7.5 lmp qt) |
SUBARU Super Coolant |
The indicated coolant quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other factors. For more details about maintenance and service, refer to “Cooling system” P454.
|
Battery type |
Q85 |
|
Alternator |
12 V-150 A |
|
Spark plugs |
DILKAR7Q8 (NGK) |
|
Tire size |
225/60R17 99H |
225/55R18 98H |
|
|
Wheel size |
17 6 7 J |
18 6 7 J |
|
|
Pressure |
Front |
33 psi (230 kPa, 2.3 kgf/cm2) |
35 psi (240 kPa, 2.4 kgf/cm2) |
|
Rear |
32 psi (220 kPa, 2.2 kgf/cm2) |
33 psi (230 kPa, 2.3 kgf/cm2) |
|
|
Wheel nut tightening torque |
89 lbf·ft (120 N·m, 12 kgf·m)*1 |
*1: This torque is equivalent to applying approximately 88 to 110 lbf (40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wheel nut tightening procedure, refer to “Changing a flat tire” P417.
|
U.S.-spec. models and Canada-spec. models |
Other models |
|
|
Temporary spare tire size |
T145/80 D17 |
185/65 R17 |
|
Temporary spare tire inflation pressure (recommended cold tire inflation pressure) |
60 psi (420 kPa, 4.2 kgf/cm2) |
42 psi (290 kPa, 2.9 kgf/cm2) |
in (mm)
|
Pedal clearance |
2.68 (68)* |
|
Pedal free play |
0.016 - 0.07 (0.4 - 1.8) |
*: Minimum value when pedal is operated with a force of 110 lbf (490 N, 50 kgf)
If you need information on the usage limit value of brake discs and the method for measuring them, we recommend that you consult your SUBARU dealer.
in (mm)
|
Brake pad wear limit |
0.06 (1.5) |
