Trailer hitch (dealer option)
The maximum gross trailer weight and maximum gross tongue weight are indi- cated in the following table.
|
Maximum gross trai- ler weight |
Maximum gross ton- gue weight |
|
1,500 lbs (680 kg) |
150 lbs (68 kg) |
When towing a trailer, refer to “Trailer towing” P403.
Connecting a trailer
Ball mount
Hitch pin
Safety pin
Hitch receiver tube

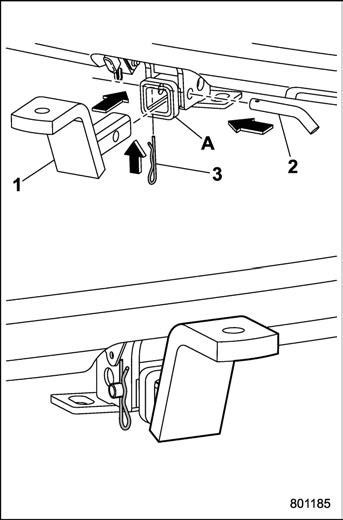

Insert the ball mount into the hitch
receiver tube.
Insert the hitch pin into the hole located on the hitch receiver tube so that the pin passes through the ball mount.

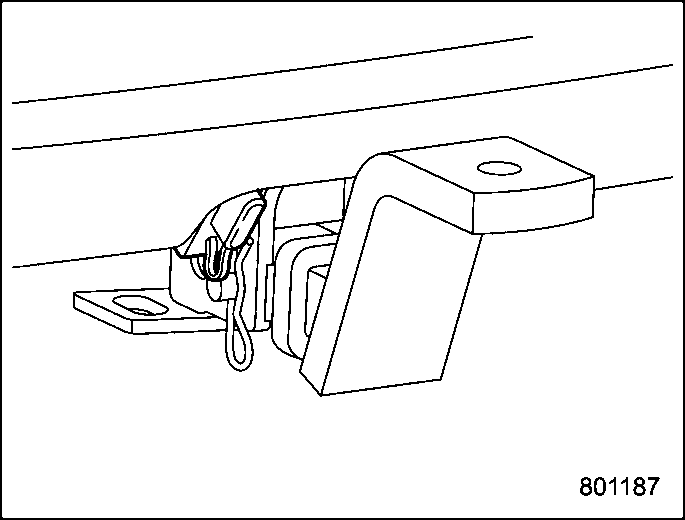

Insert the safety pin through the pro- vided hole on the hitch pin securely.
Check the ball mount assembly by pulling on it to make sure it does not come off the hitch receiver.

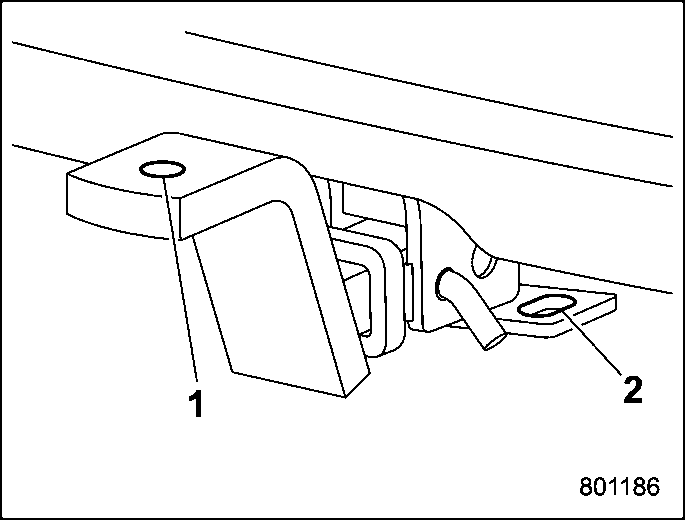

Hitch ball installation point
Hooks for safety chains
Use only a hitch ball that is appropriate for the ball mount and your trailer. The hitch ball must be securely installed on the ball mount.
Connect your trailer to the hitch ball.
Connect the trailer and the hitch with safety chains that will hold the trailer’s
maximum gross weight. The chains should cross under the trailer tongue to prevent the tongue from dropping onto the ground in case it should disconnect from the hitch ball. Allow sufficient slack in the chains taking tight turn situations into account; however, be careful not to let them drag on the ground.
Hitch harness connector
Connect the hitch electrical wire har- ness’s black four-pin electrical wire con- nector to the towing trailer’s wire harness.
Confirm proper function of the hitch electrical wire harness by individually activating the brake, stop and turn signal lights on the trailer.
If not towing a trailer
Remove the ball mount from the hitch receiver tube.
Place the dust cap over the four-pin connector of the hitch electrical wire harness to protect against possible da- mage.
Occasionally lubricate terminals of the four-pin connector using terminal grease.
