LANESENSE — IF EQUIPPED
LANESENSE OPERATION
The LaneSense system is operational at speeds above 37 mph (60 km/h) and below 112 mph (180 km/h). It uses a forward looking camera to detect lane markings and measure vehicle position within the lane boundaries.
When both lane markings are detected and the driver unintentionally drifts out of the lane while no turn signal has been applied OR the driver departs the lane on the opposite side of the applied turn signal (if the left turn signal is applied and the vehicle departs to the right), the LaneSense system provides a haptic warning in the form of torque applied to the steering wheel to prompt the driver to remain within the lane
boundaries. The LaneSense system will also provide a visual warning through the instrument cluster display to prompt the driver to remain within the lane boundaries.
The driver may manually override the haptic warning by applying torque into the steering wheel at any time.
When only a single lane marking is detected and the driver unintentionally drifts across that lane marking (no turn signal applied), the LaneSense system provides a visual warning through the instrument cluster display to prompt the driver to remain within the lane.
When only a single lane marking is detected, a haptic (torque) warning will not be provided.
When operating conditions have been met, the LaneSense system will monitor if the driver’s hands are on the steering wheel and provides an audible and visual warning to the driver when the driver’s hands are not detected on the steering wheel. The system will cancel if the driver does not return their hands to the wheel.
TURNING LANESENSE ON OR OFF
The LaneSense button is located on the switch panel below the Uconnect display.
If your vehicle is equipped with a 12–inch Uconnect Display screen, the LaneSense button is located above the display.
To turn the LaneSense system on, push the LaneSense button (LED turns off). A “LaneSense On” message is shown in the instrument cluster display.
To turn the LaneSense system off, push the LaneSense button again (LED turns on).
The LaneSense system will retain the last system state (on or off) from the last ignition cycle when the ignition is placed in the ON/RUN position.
LANESENSE WARNING MESSAGE
The LaneSense system will indicate the current lane drift condition through the instrument cluster display.

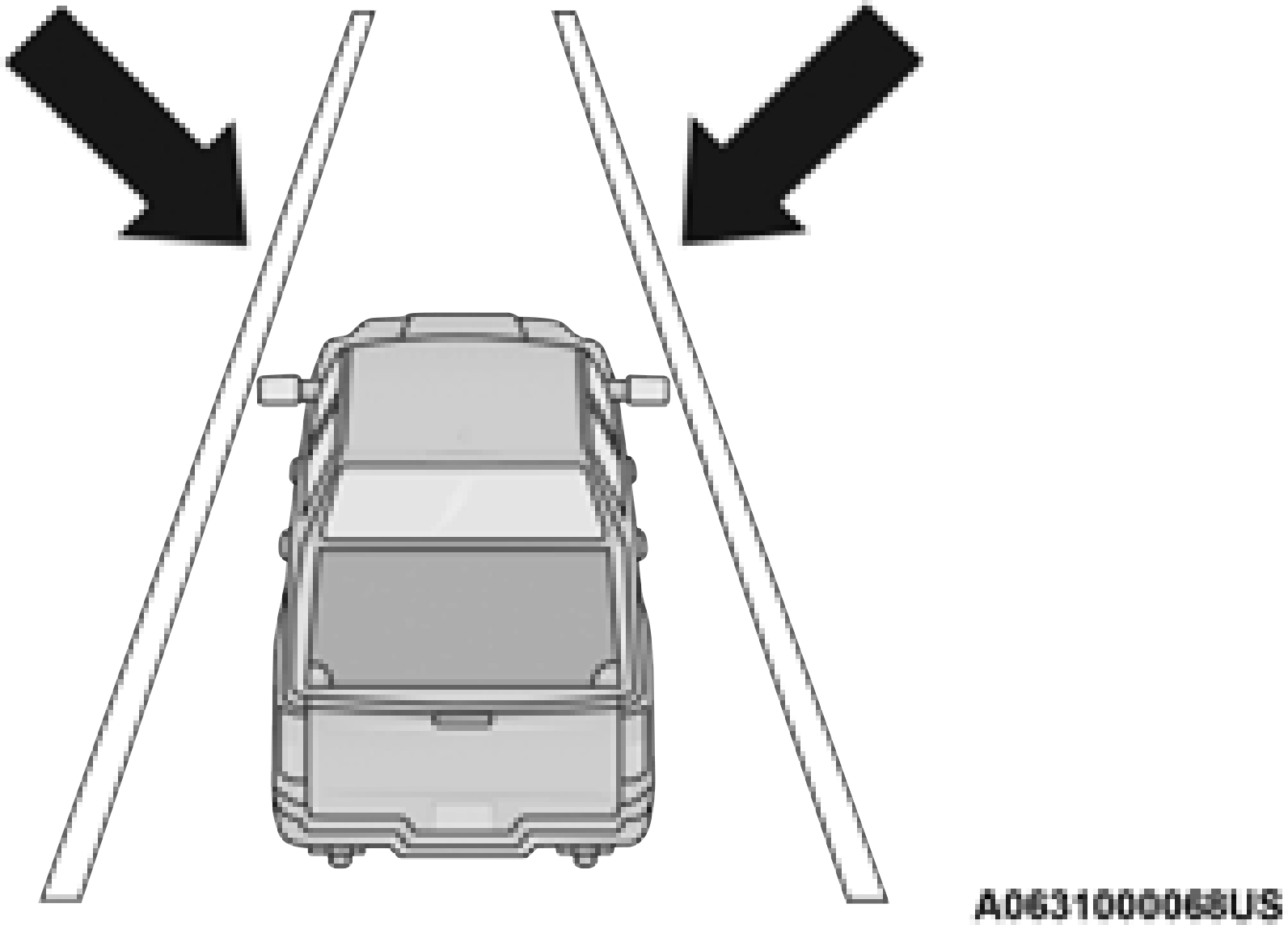

When the LaneSense system is on, the lane lines are gray when both of the lane boundaries have not been detected and the LaneSense
telltale
is solid white.

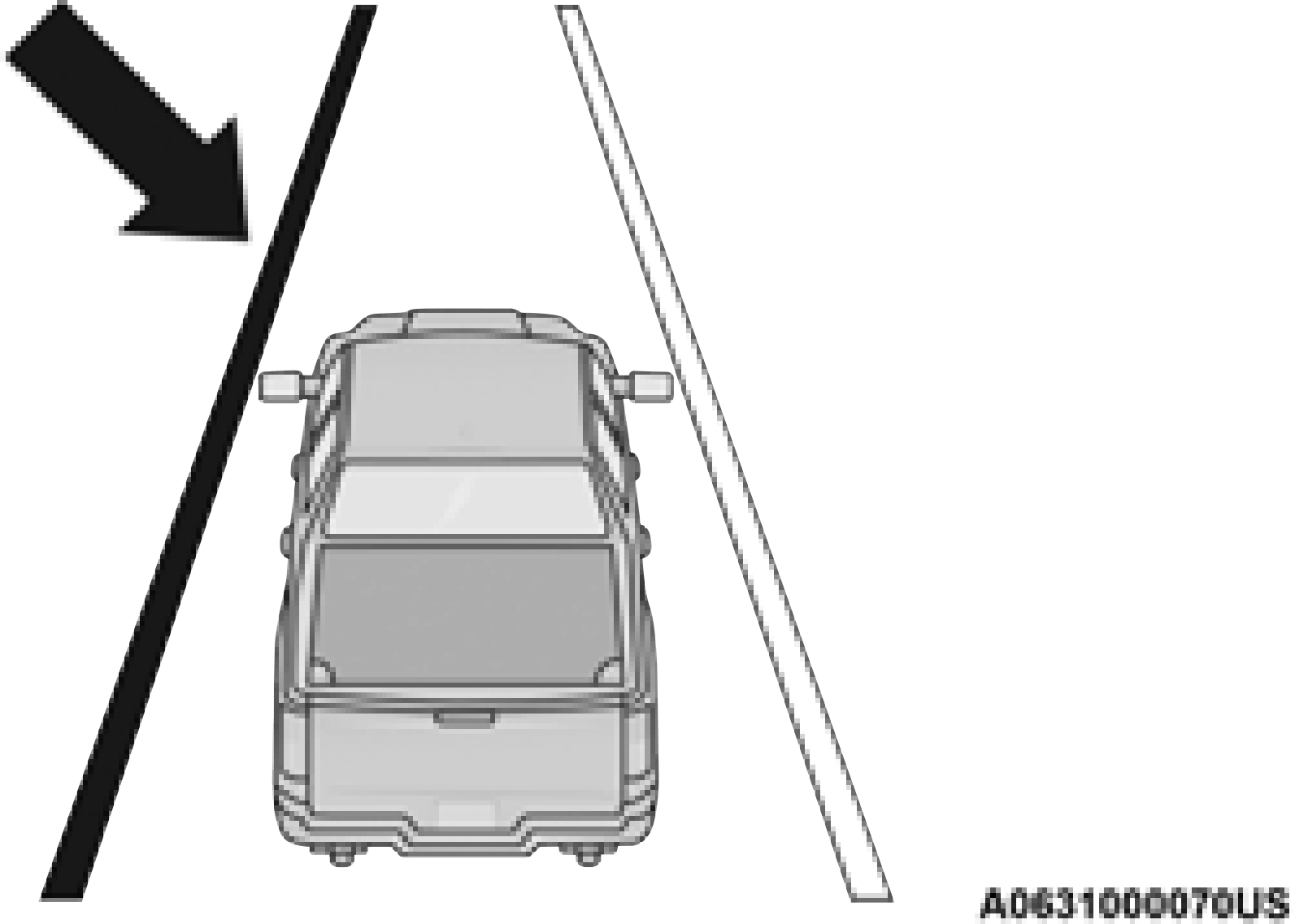

Left Lane Departure — Only Left Lane Detected
Sense Telltale
is solid white when only the left lane marking has been detected and the system is ready to provide visual warnings in the instrument cluster display if an uninten- tional lane departure occurs on the left side.

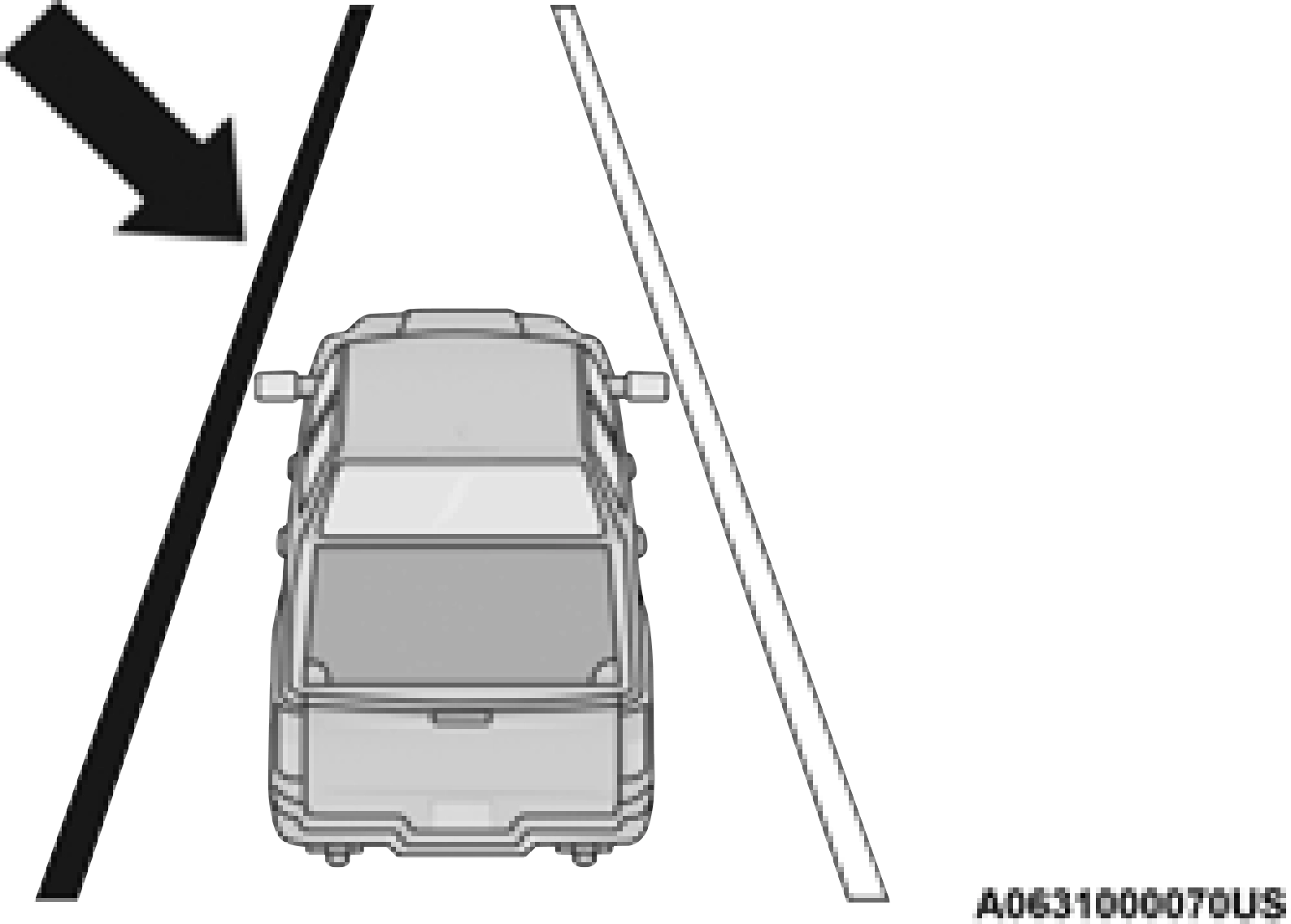

lane line flashing yellow (on/off). The Lane-
Sense telltale
changes from solid white to flashing yellow.
NOTE:
The LaneSense system operates with similar behavior for a right lane departure when only the right lane marking has been detected.

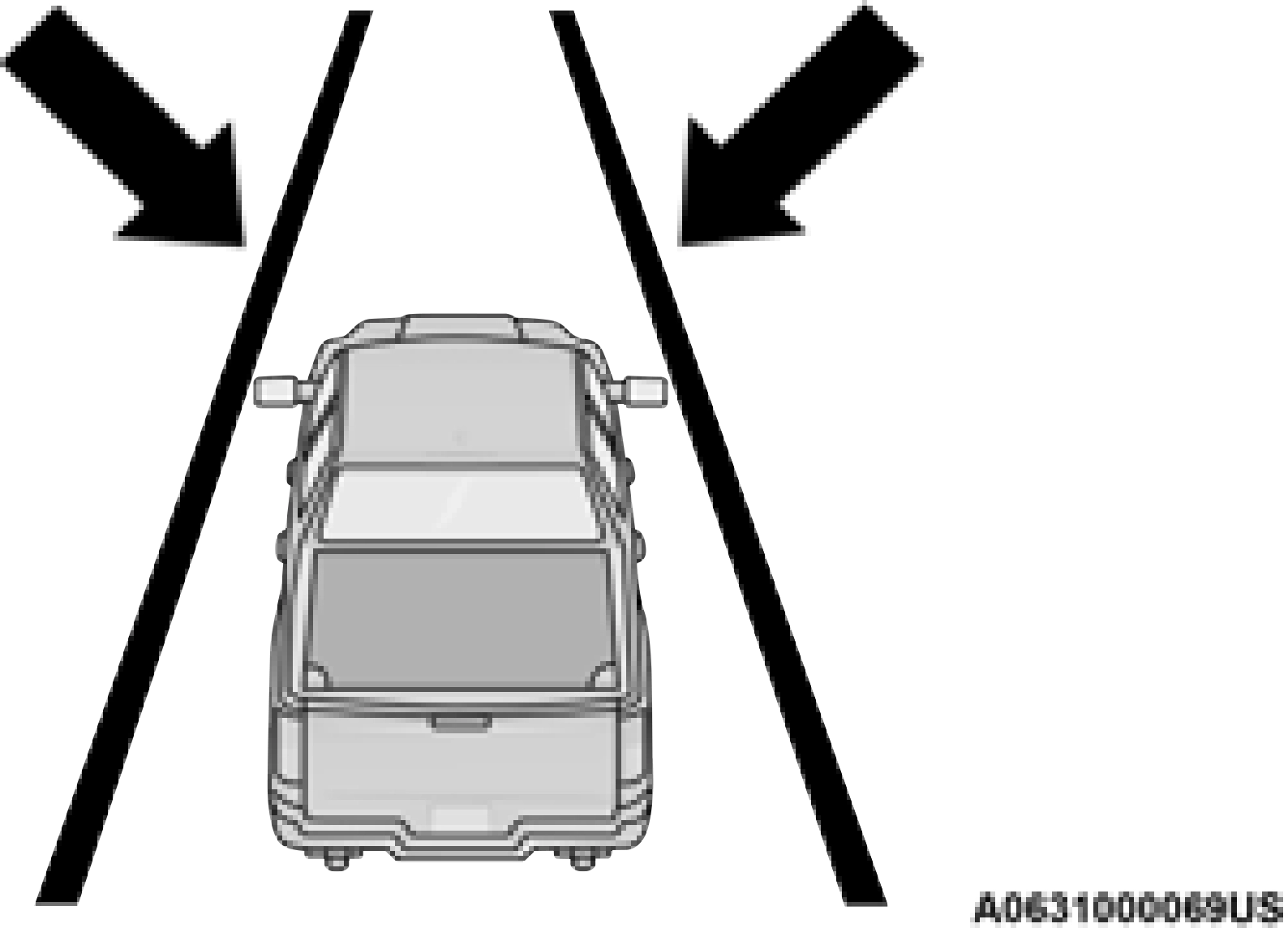

tional lane departure occurs. The lane lines turn from gray to white and the LaneSense telltale
is solid green.
changesfrom solid green to solid yellow. At this time
torque is applied to the steering wheel in the opposite direction of the lane boundary.
For example: If approaching the left side of the lane the steering wheel will turn to the right.
(on/off). The LaneSense telltale changes from solid yellow to flashing yellow. At this time torque is applied to the steering wheel in the opposite direction of the lane boundary.
For example: If approaching the left side of the lane the steering wheel will turn to the right.
NOTE:
The LaneSense system operates with similar behavior for a right lane departure.
CHANGING LANESENSE STATUS
The LaneSense system has settings to adjust the intensity of the torque warning and the warning zone sensitivity (Early/Medium/Late) that you can configure through the Uconnect system page 258.
