POWER SUNROOF — IF EQUIPPED
SINGLE PANE POWER SUNROOF — IF EQUIPPED

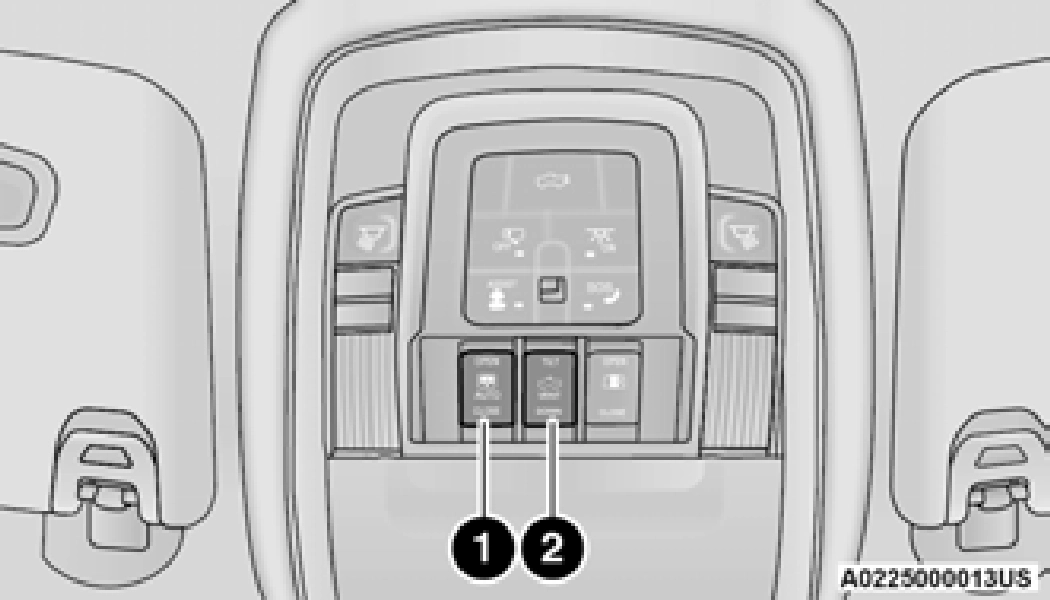

The power sunroof switches are located on the overhead console between the courtesy/ reading lights.
1 — Opening/Closing Sunroof 2 — Venting Sunroof
Opening Sunroof
Push the switch rearward and release it within one-half second and the sunroof will open automatically from any position. The sunroof will open fully and stop automatically.
Push the switch forward and release it within one-half second and the sunroof will close automatically from any position. The sunroof will close fully and stop automatically.
During Express Open or Express Close operation, any other movement of the sunroof switch will stop the sunroof.
To open the sunroof, push and hold the switch rearward to full open.
To close the sunroof, push and hold the switch in the forward position.
Any release of the switch during open or close operation will stop the sunroof movement. The sunroof will remain in a partially opened position until the switch is operated and held again.
If the sunshade is in the closed position when Express or Manual Open operation is initiated, the sunshade will automatically open with the sunroof.
To vent open the sunroof, push and release “tilt” on the vent switch. To close the sunroof from the vent position, push and release “down” on the vent switch.
This feature will detect an obstruction in the closing of the sunroof during the Express Close operation. If an obstruction in the path of the sunroof is detected, the sunroof will automatically retract. Remove the obstruction if this occurs.
If three consecutive sunroof close attempts result in Pinch Protect reversals, Pinch Protect will disable and the sunroof must be closed in Manual Mode.
The sunshade can be opened manually. However, the sunshade will open automatically as the sunroof opens.
The sunshade cannot be closed if the sunroof is open.
The power sunroof switch will remain active for up to approximately 10 minutes after the ignition switch is placed in the OFF position.
Opening either front door will cancel this feature.
Ignition Off time is programmable through the Uconnect system page 258.
Use only a non-abrasive cleaner and a soft cloth to clean the glass panel. Periodically check for and clear out any debris that may have collected in the tracks.
