RAMBOX — IF EQUIPPED
The RamBox system is an integrated pickup box storage and cargo management system consisting of up to three features:
page 89
LOCKING AND UNLOCKING RAMBOX

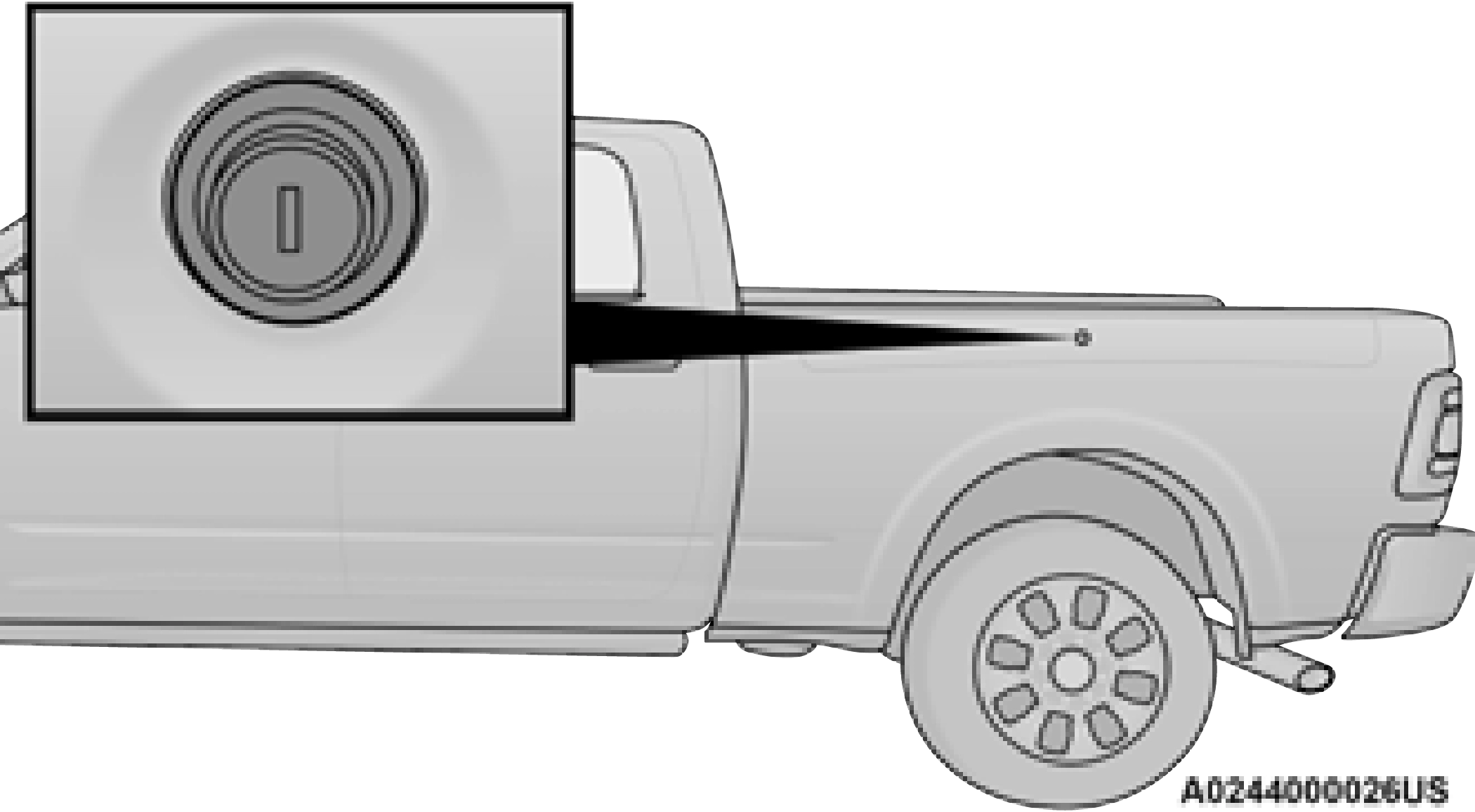

Push and release the lock or unlock button on the key fob to lock and unlock all doors, the tailgate and the RamBox page 16. The RamBox storage bins can be locked using the vehicle key. To lock and unlock the storage bin,
insert the key into the keyhole on the push button and turn clockwise to lock or counterclockwise to unlock. Always return the key to the upright (vertical) position before removing the key from the push button.
RAMBOX CARGO STORAGE BINS

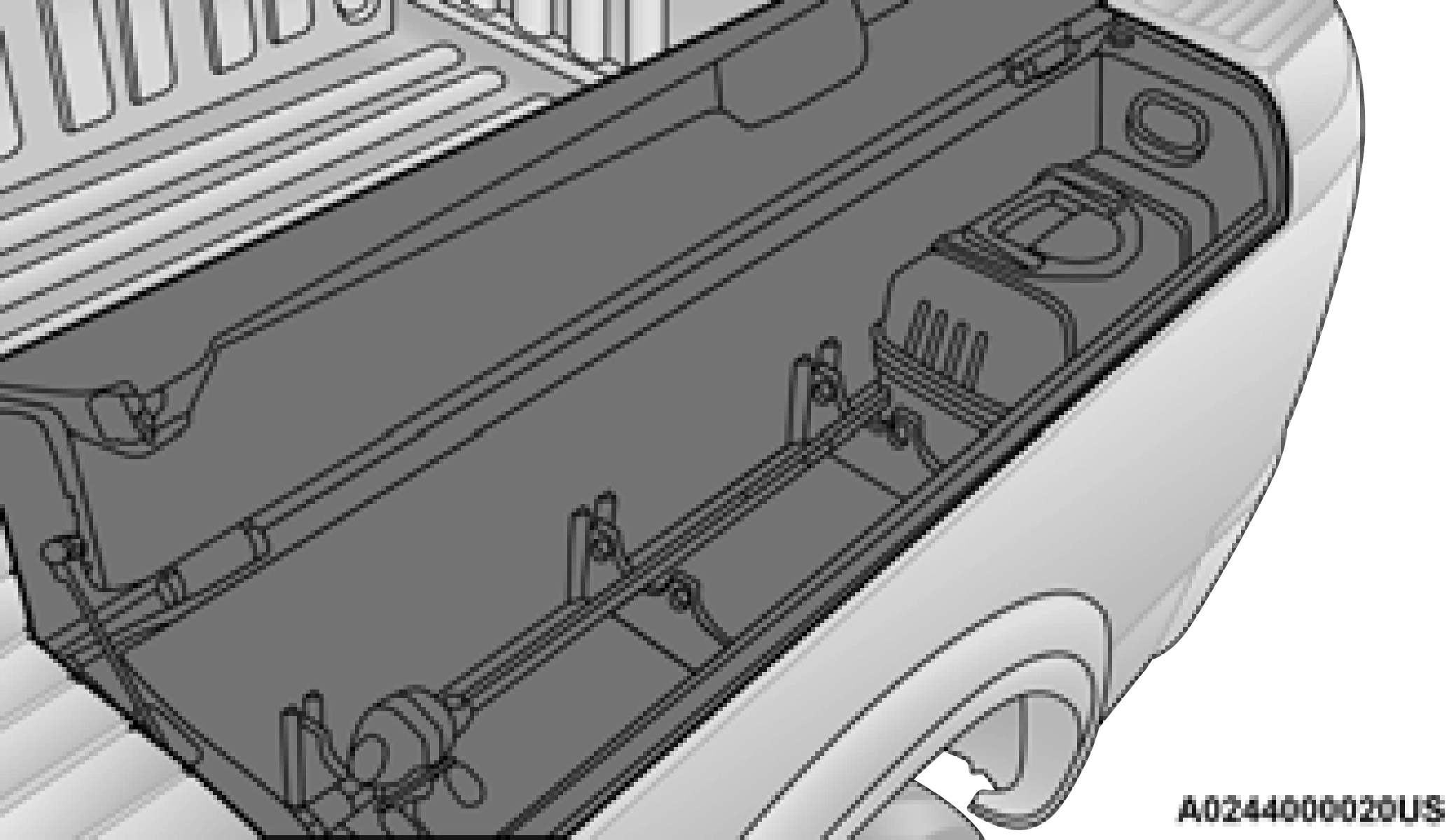

Cargo storage bins are located on both sides of the pickup box. The cargo storage bins provide watertight, lockable, illuminated storage for up to 300 lb (136 kg) of evenly distributed cargo.
To open a storage bin with the RamBox unlocked, push and release the button located on the lid. The RamBox lid will open upward to allow hand access. Lift the lid to fully open.
RamBox will not open when the button is pushed if the RamBox is locked.
2
The interior of the RamBox will automatically illuminate when the lid is opened. In addition to the automatic illumination, there is a manual on/off switch located at the rear of each storage bin. Pushing the switch once will turn off the bin lights, pushing the switch again will turn the lights back on.
requiring power up to 400 Watts. Certain video game consoles exceed this power limit, as will most power tools.
NOTE:

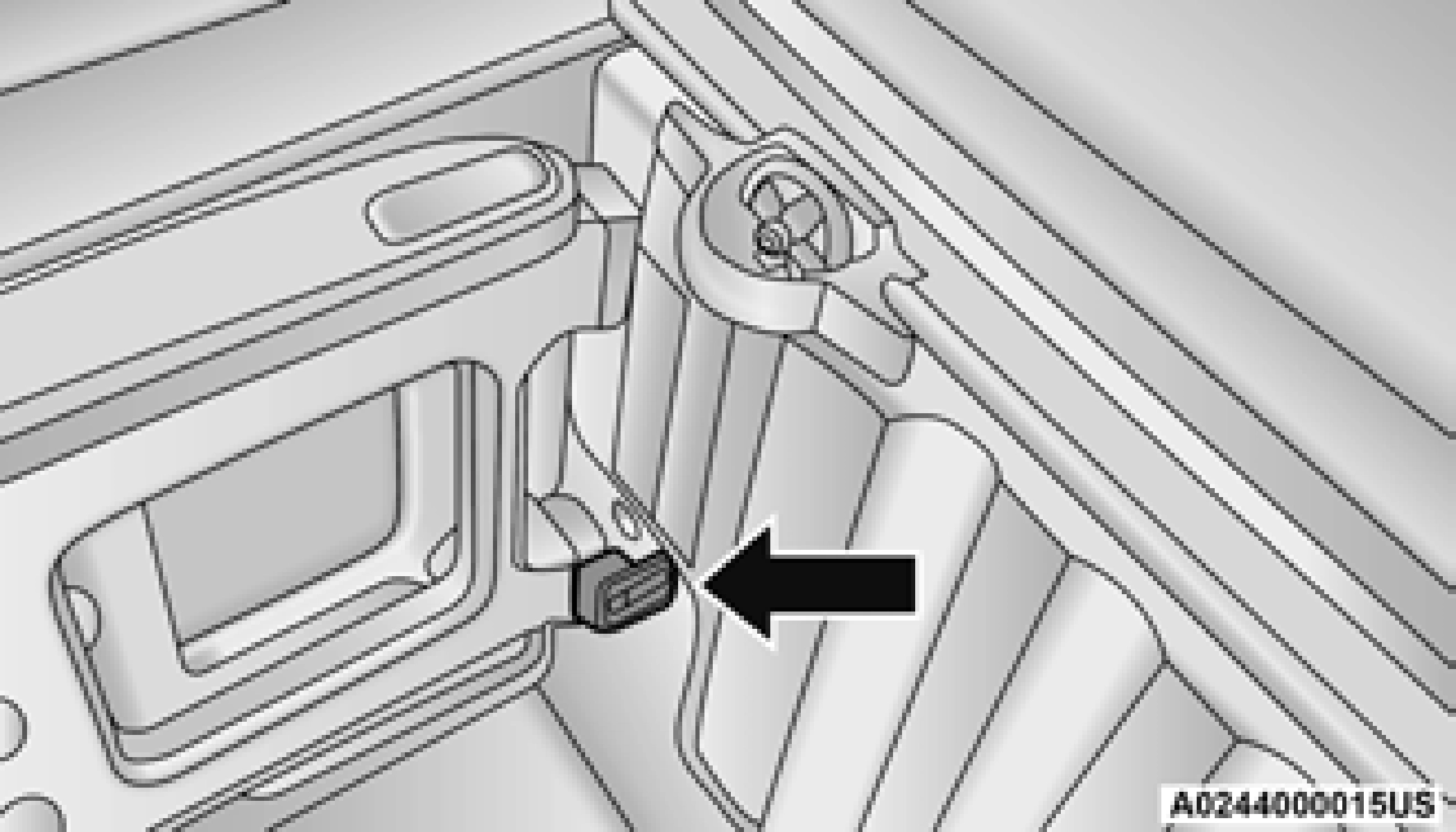

RamBox Light Switch
Cargo bins feature two removable drain plugs (to allow water to drain from bins). To remove plug, pull up on the edge. To install, push the plug downward into drain hole.
Provisions are provided in the bins for cargo dividers and shelf supports. These accessories (in addition to other RamBox accessories) are available from Mopar®.

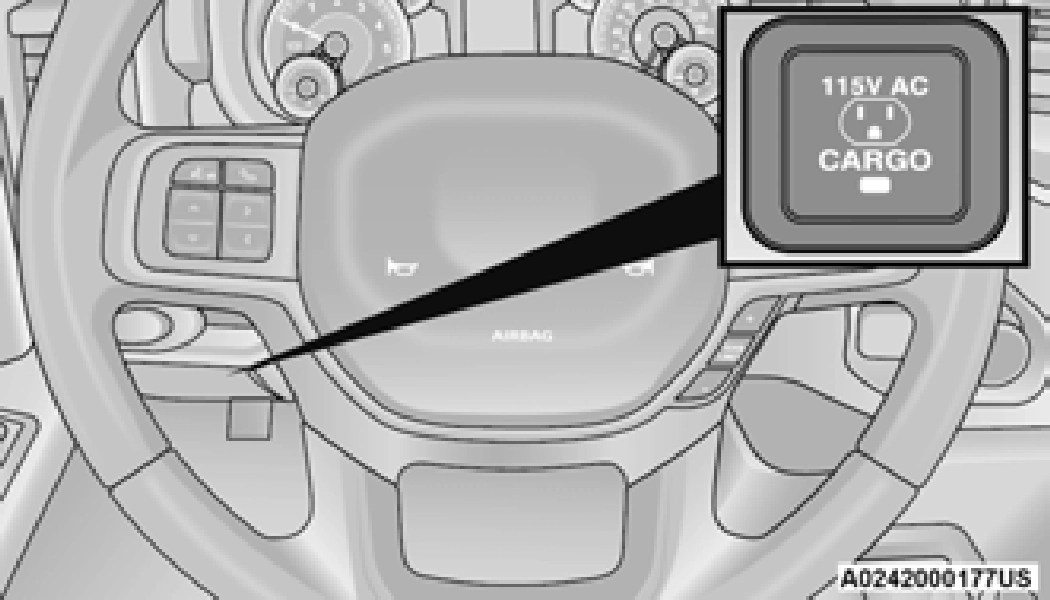

If equipped, a 115 Volt (400 Watts Maximum) inverter may be located inside the RamBox of your vehicle. The inverter can be turned on by the Instrument Panel Power Inverter switch located to the left of the steering wheel. The RamBox inverter can power cellular phones, electronics and other low power devices
The Instrument Panel Power Inverter switch is only found on vehicles equipped with an exterior power inverter; inside the RamBox or truck bed. The switch only controls on/off operation of the exterior power inverter; it does
not control on/off operation of the power outlets located inside the cabin of the vehicle.
RAMBOX SAFETY WARNING
Carefully follow these warnings to help prevent personal injury or damage to your vehicle:
As a security measure, an Emergency Release Lever is built into the storage bin cover latching mechanism.
In the event of an individual being locked inside the storage bin, the storage bin cover can be opened from inside of the bin by pulling on the glow-in-the-dark lever attached to the storage bin cover latching mechanism.
2
BED DIVIDER — IF EQUIPPED
The bed divider has two functional positions:
The divider position is intended for managing your cargo and assisting in keeping cargo from moving around the bed. There are 11 divider slots along the bed inner panels which allow for various positions to assist in managing your cargo.
(Continued)

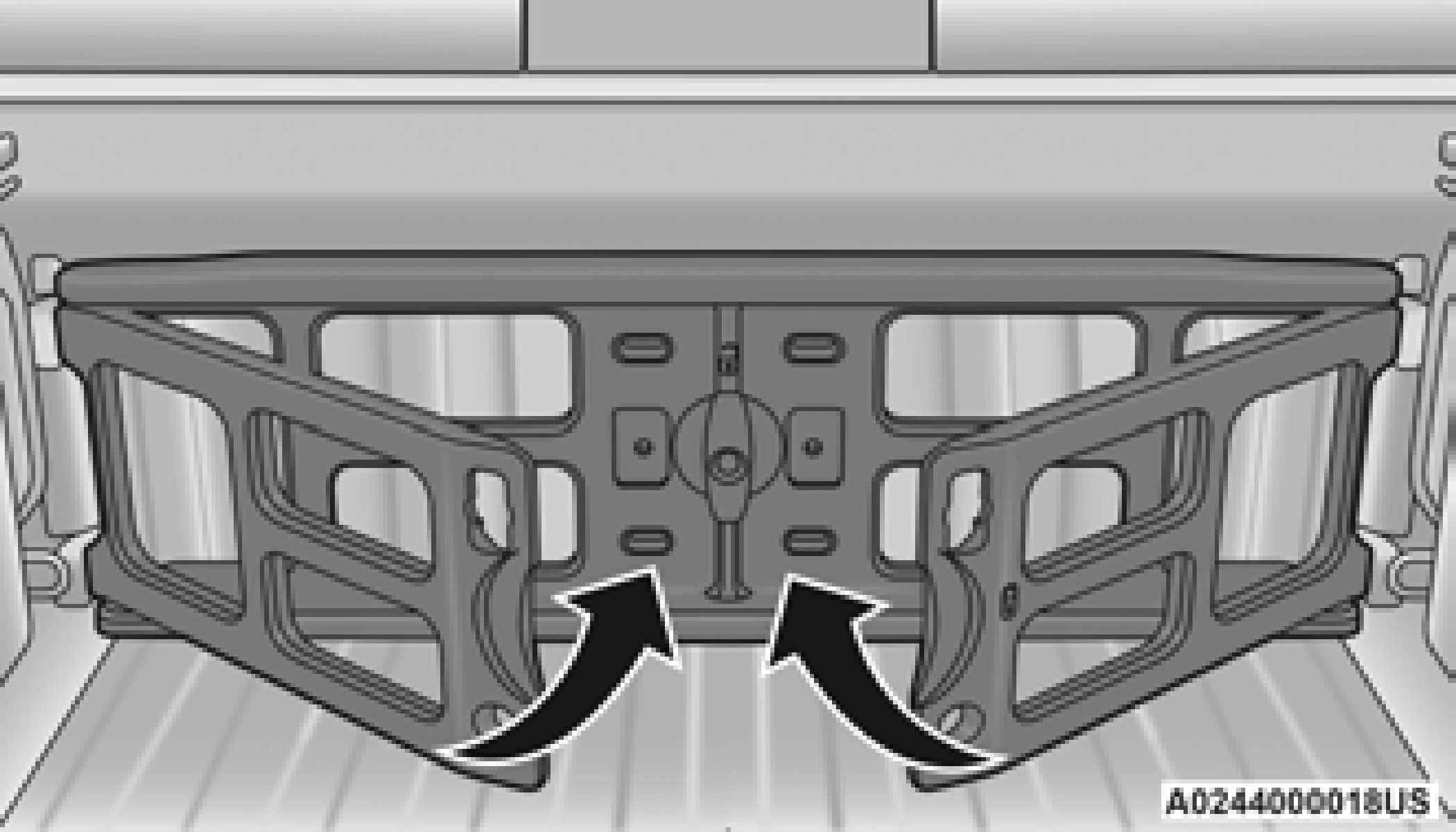

To install the bed divider into a divider position, perform the following:

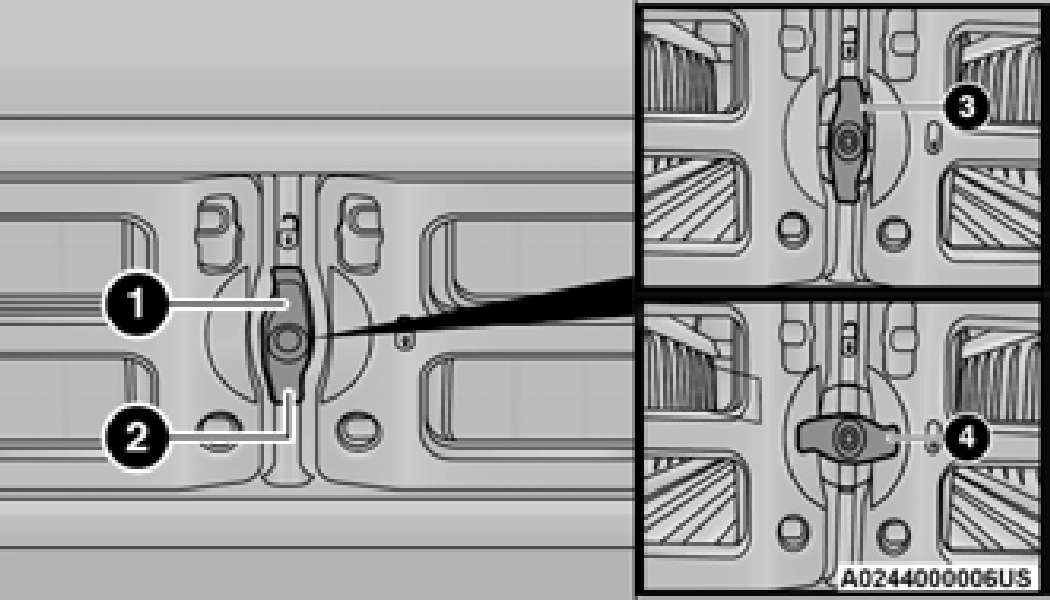

1 — Center Handle Lock 2 — Handle
3 — Unlocked Position 4 — Locked Position

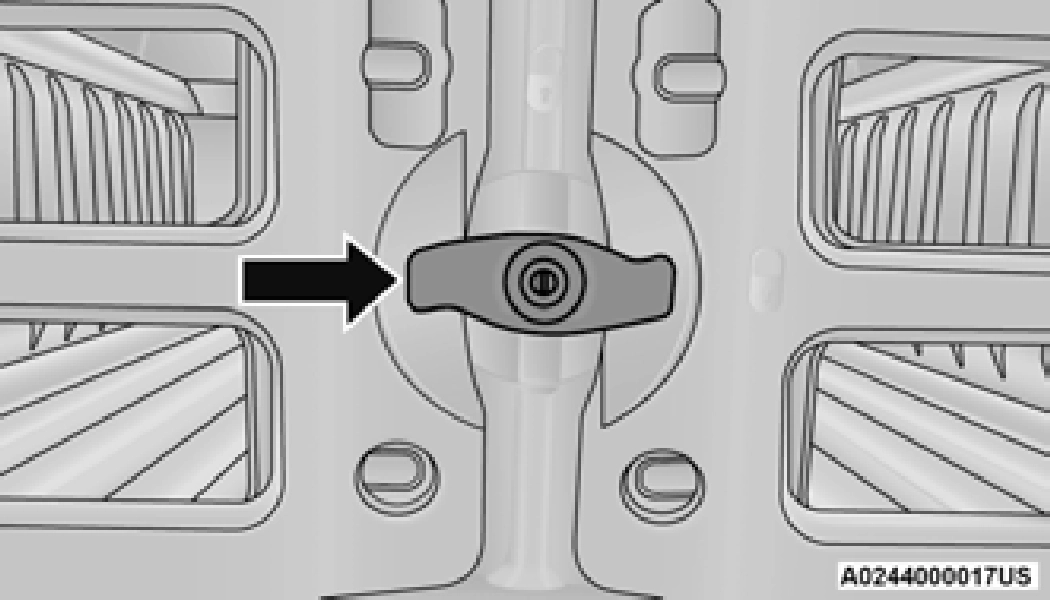

The storage position for the bed divider is at the front of the truck bed which maximizes the bed cargo area when not in use.
To install the bed divider into the storage position, perform the same steps as you would for the divider position, except position the divider fully forward in the bed against the front panel.

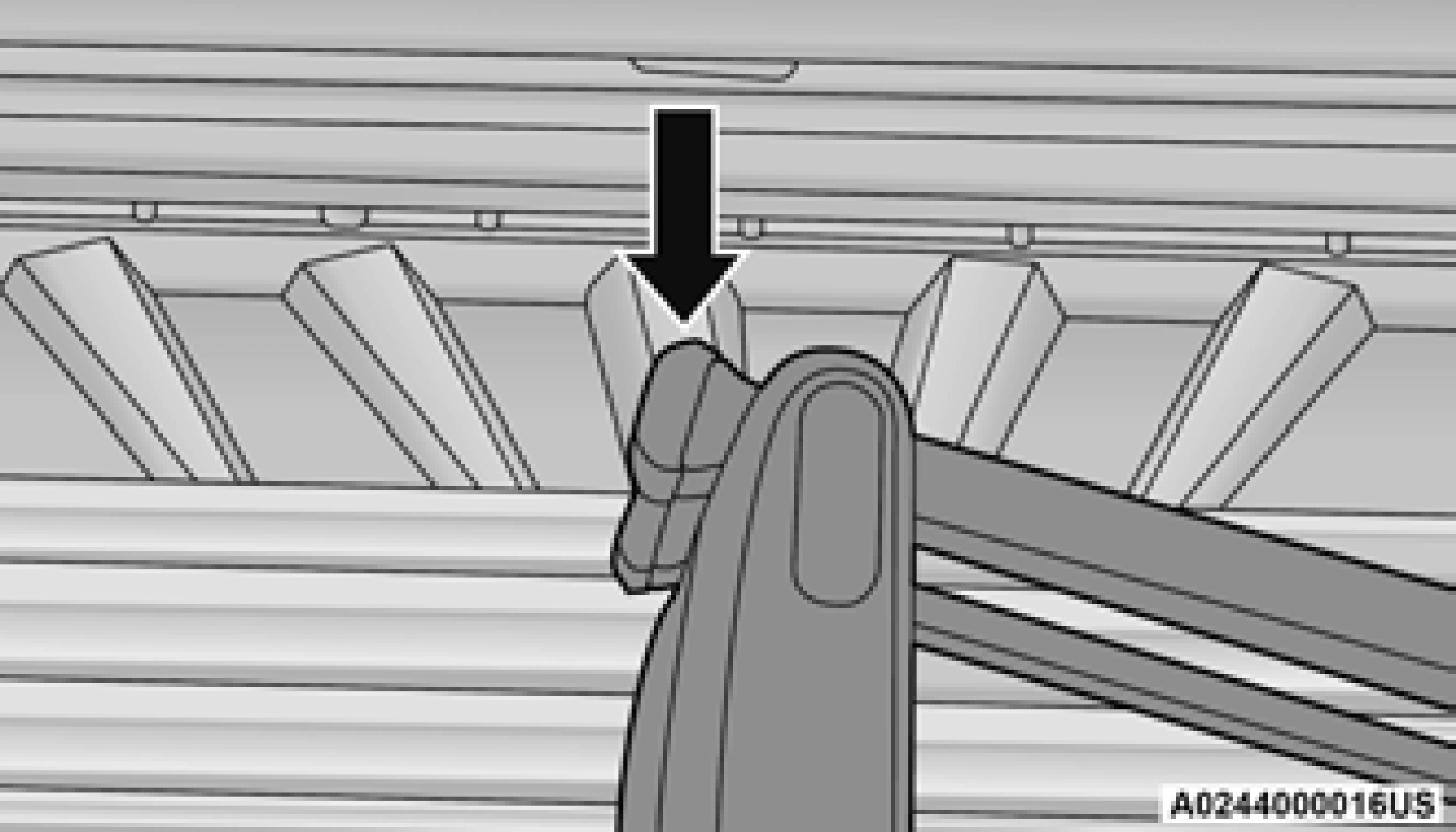

The outboard ends should be positioned in front of the cargo tie-down loops.
2
When a cap or pickup camper is installed on a vehicle, an alternate Center High Mounted Stop Lamp (CHMSL) must be provided.

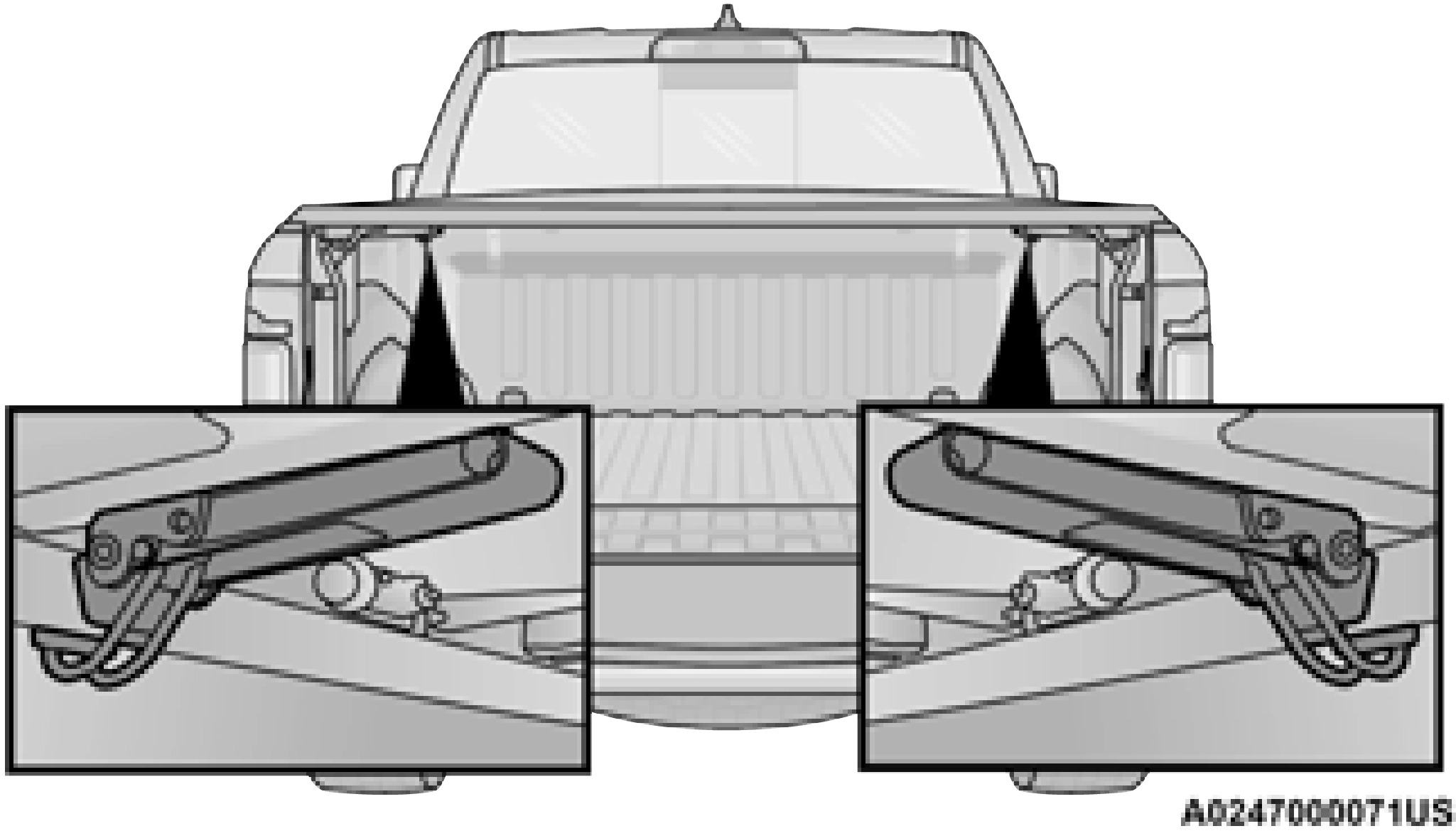

Location Of Rear Latches
Cargo Tie-Down Loop
