WHEEL AND TIRE TORQUE SPECIFICATIONS
Proper lug nut/bolt torque is very important to ensure that the wheel is properly mounted to the vehicle. Any time a wheel has been removed and reinstalled on the vehicle, the lug nuts/ bolts should be torqued using a properly calibrated torque wrench using a six sided (hex) deep wall socket.
TORQUE SPECIFICATIONS
|
Lug Nut/ Bolt Torque |
Lug Nut/ Bolt Type |
**Lug Nut/Bolt Size |
Lug Nut/ Bolt Socket Size |
|
130 Ft-Lb (176 N·m) |
Cone |
M14 x 1.50 |
22 mm |
|
140 Ft-Lb (190 N·m) |
Flanged |
**Use only authorized dealer recommended lug nuts/ bolts and clean or remove any dirt or oil before tightening.

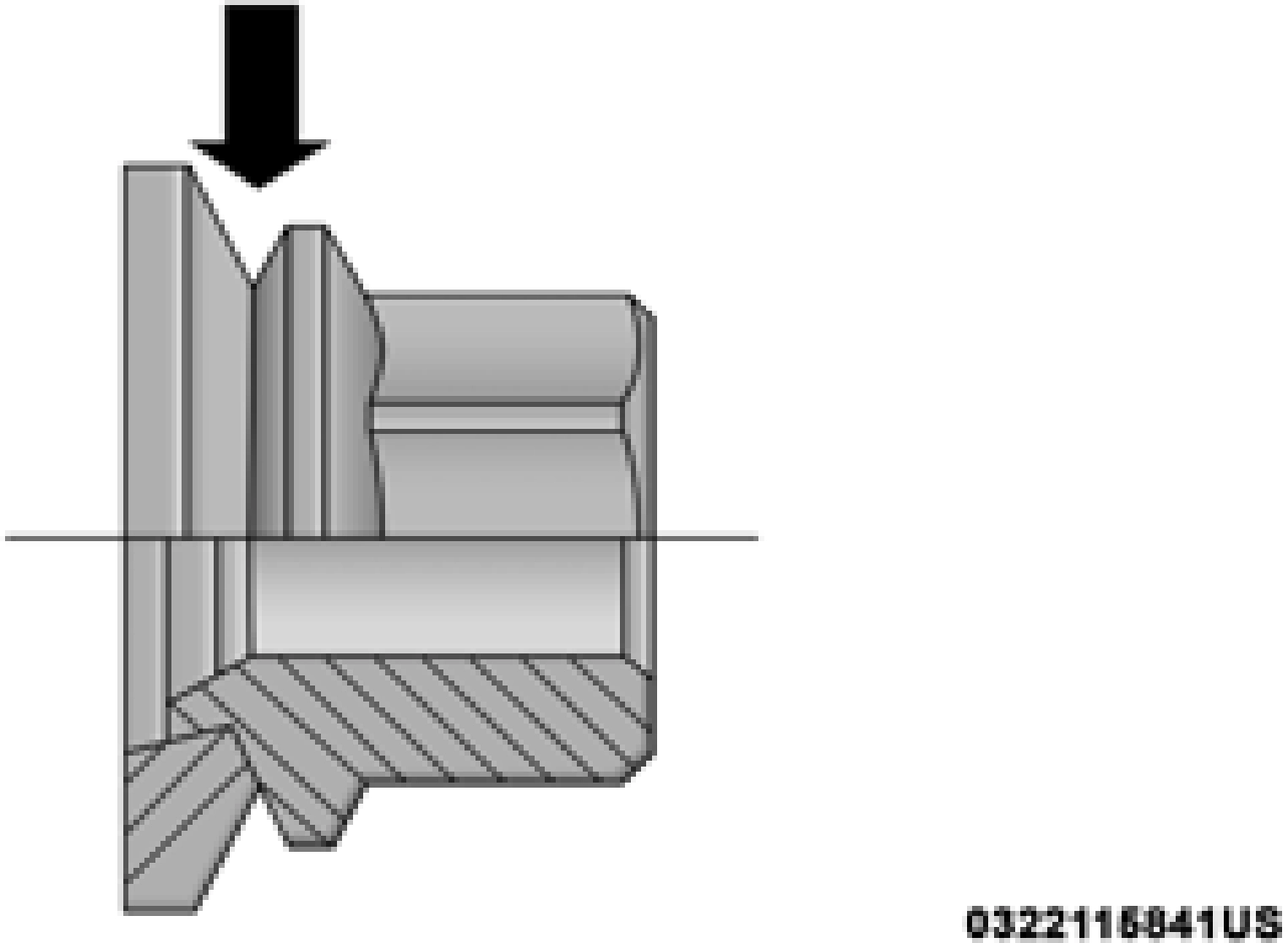

Dual wheels are flat mounted, center piloted. The lug nuts are a two-piece assembly. When the tires are being rotated or replaced, clean these lug nuts and add two drops of oil at the
interface between the lug nut/bolt and the washer. Do not oil wheel studs.

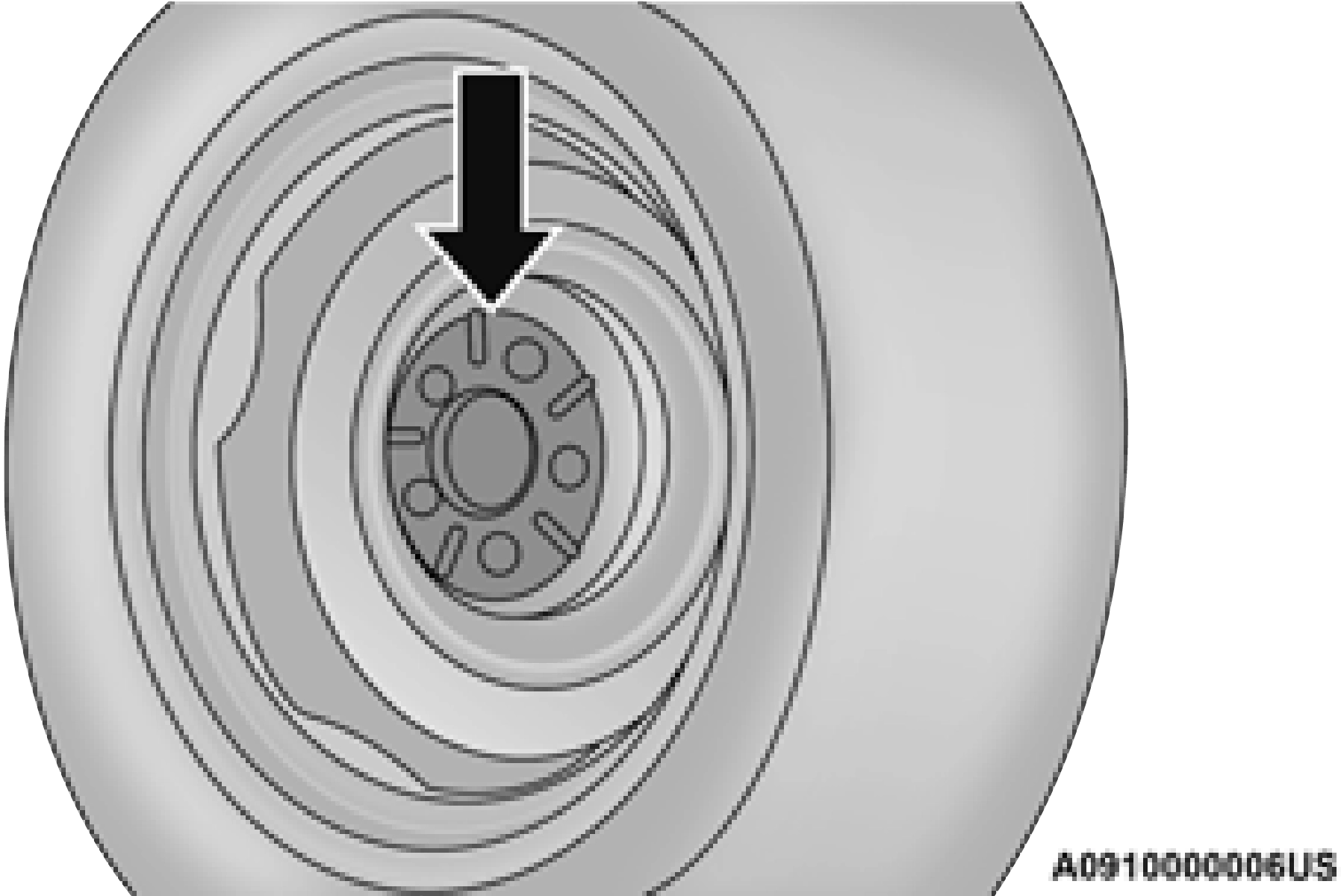

Inspect the wheel mounting surface prior to mounting the tire and remove any corrosion or loose particles.

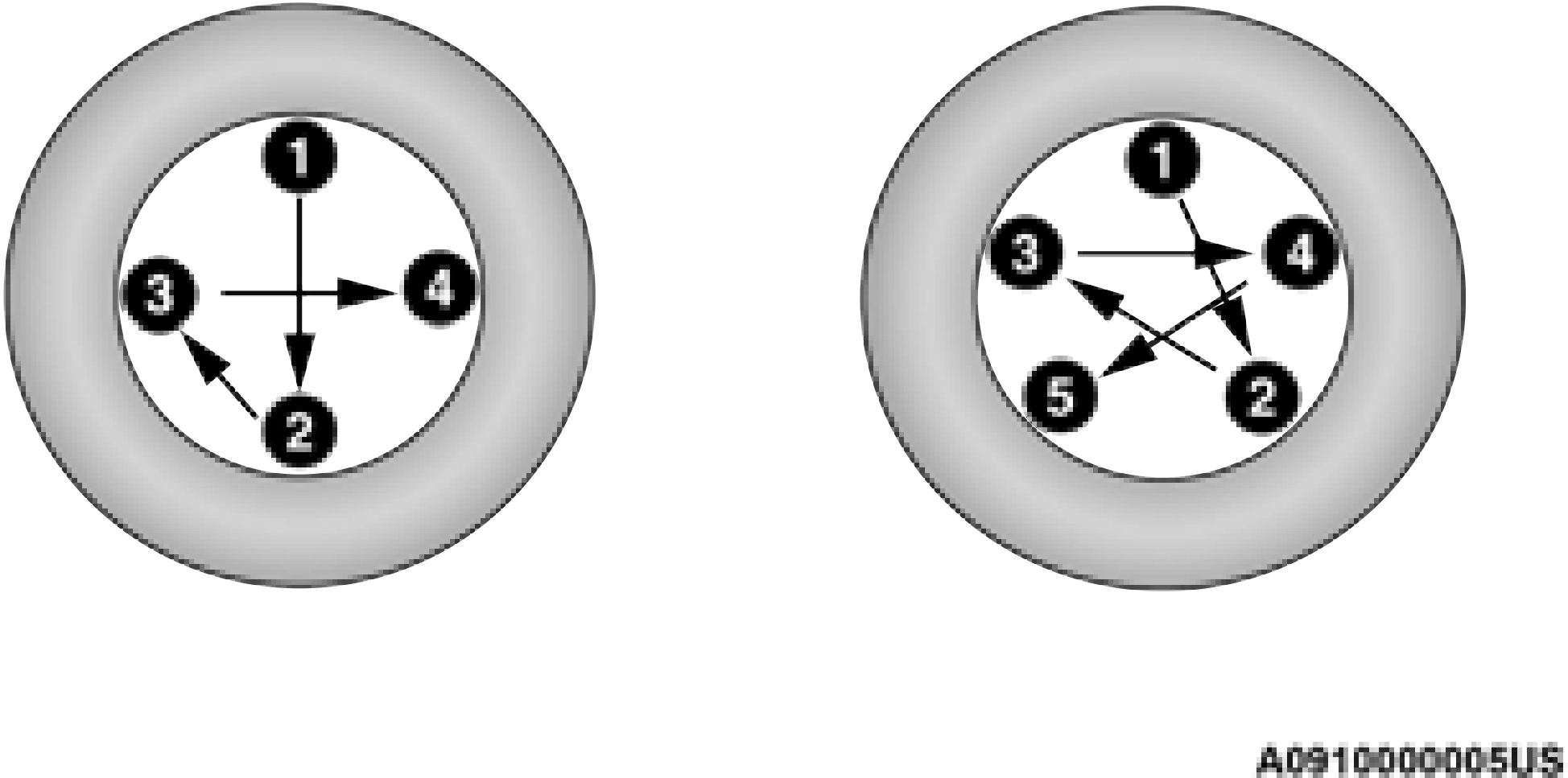

Tighten the lug nuts/bolts in a star pattern until each nut/bolt has been tightened twice. Ensure that the socket is fully engaged on the lug nut/ bolt (do not insert it halfway).
After 25 miles (40 km), check the lug nut/bolt torque to be sure that all the lug nuts/bolts are properly tightened.
