ENGINE COMPARTMENT

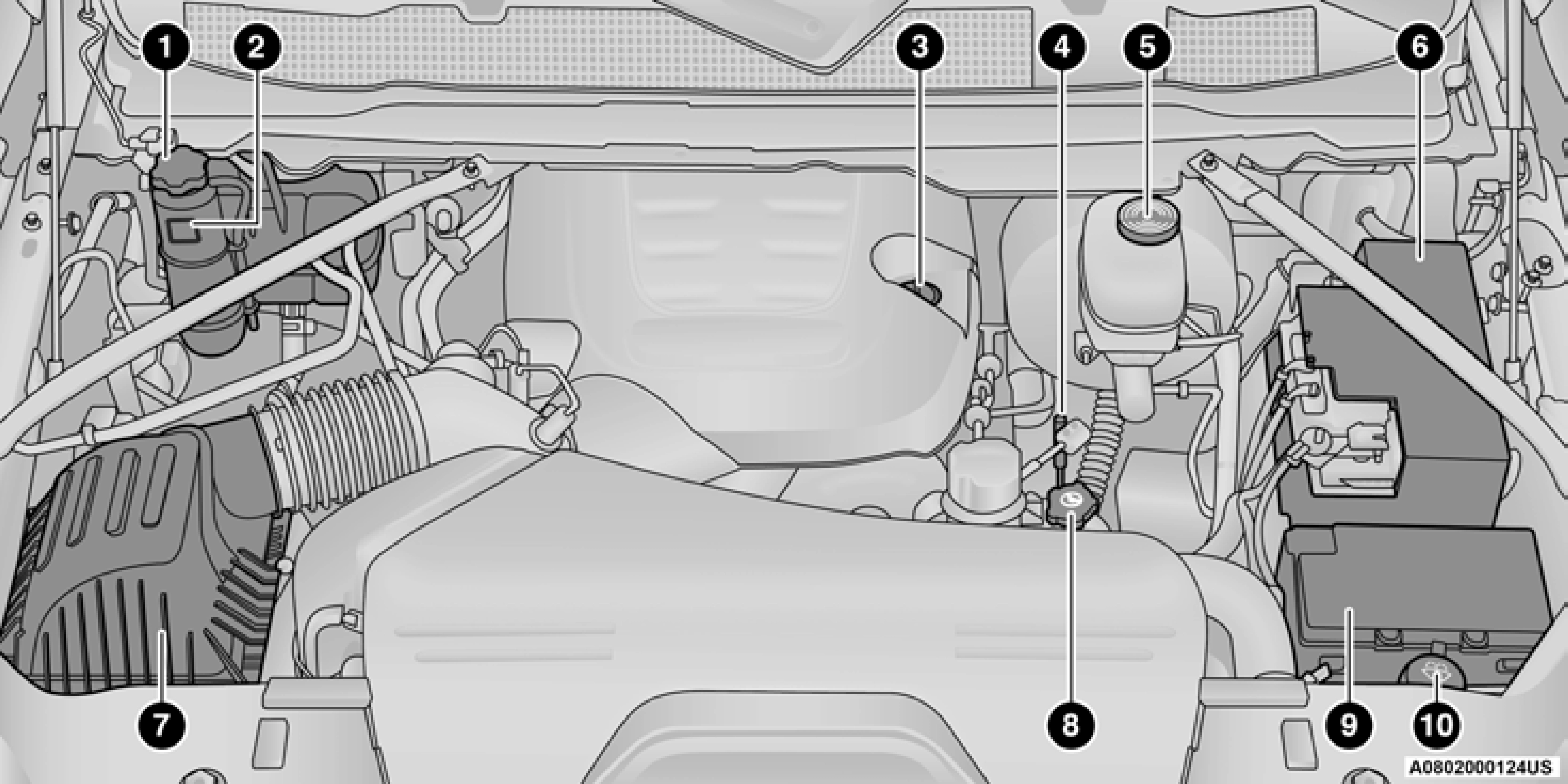

6.4L ENGINE

— Engine Coolant Pressure Cap 6 — Battery

— Engine Coolant Pressure Reservoir 7 — Engine Air Cleaner Filter

— Engine Oil Fill 8 — Power Steering Reservoir Cap

— Engine Oil Dipstick 9 — Power Distribution Center (Fuses)

— Brake Fluid Reservoir Cap 10 — Washer Fluid Reservoir Cap

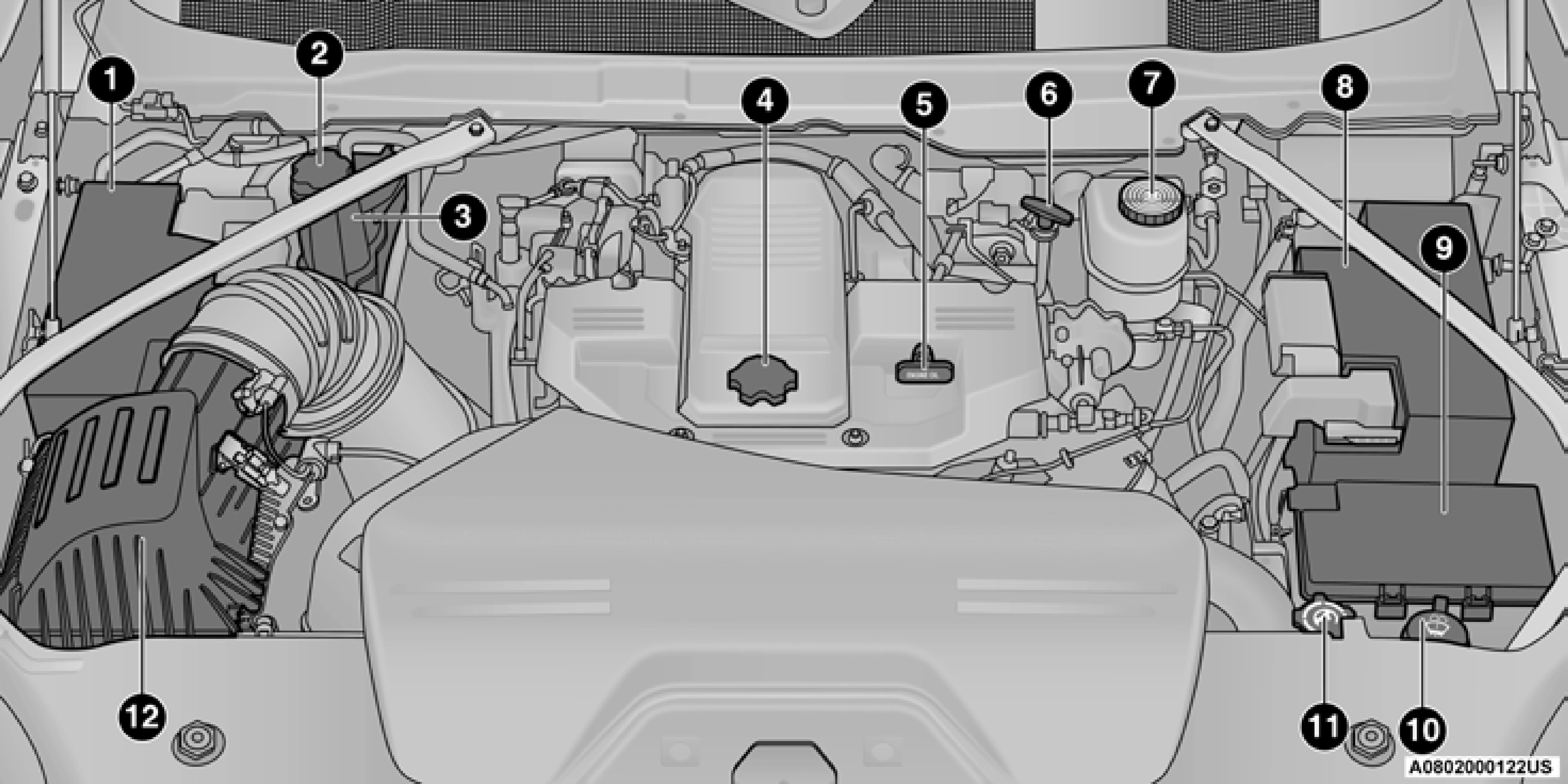

6.7L DIESEL ENGINE — SIX-SPEED 68RFE

8

— Battery 7 — Brake Fluid Reservoir Cap

— Engine Coolant Pressure Reservoir 8 — Battery

— Engine Coolant Reservoir Cap 9 — Engine Air Cleaner Filter

— Automatic Transmission Dipstick 10 — Power Steering Reservoir Cap

— Engine Oil Fill 11 — Washer Fluid Reservoir Cap

— Engine Oil Dipstick 12 — Power Distribution Center (Fuses)

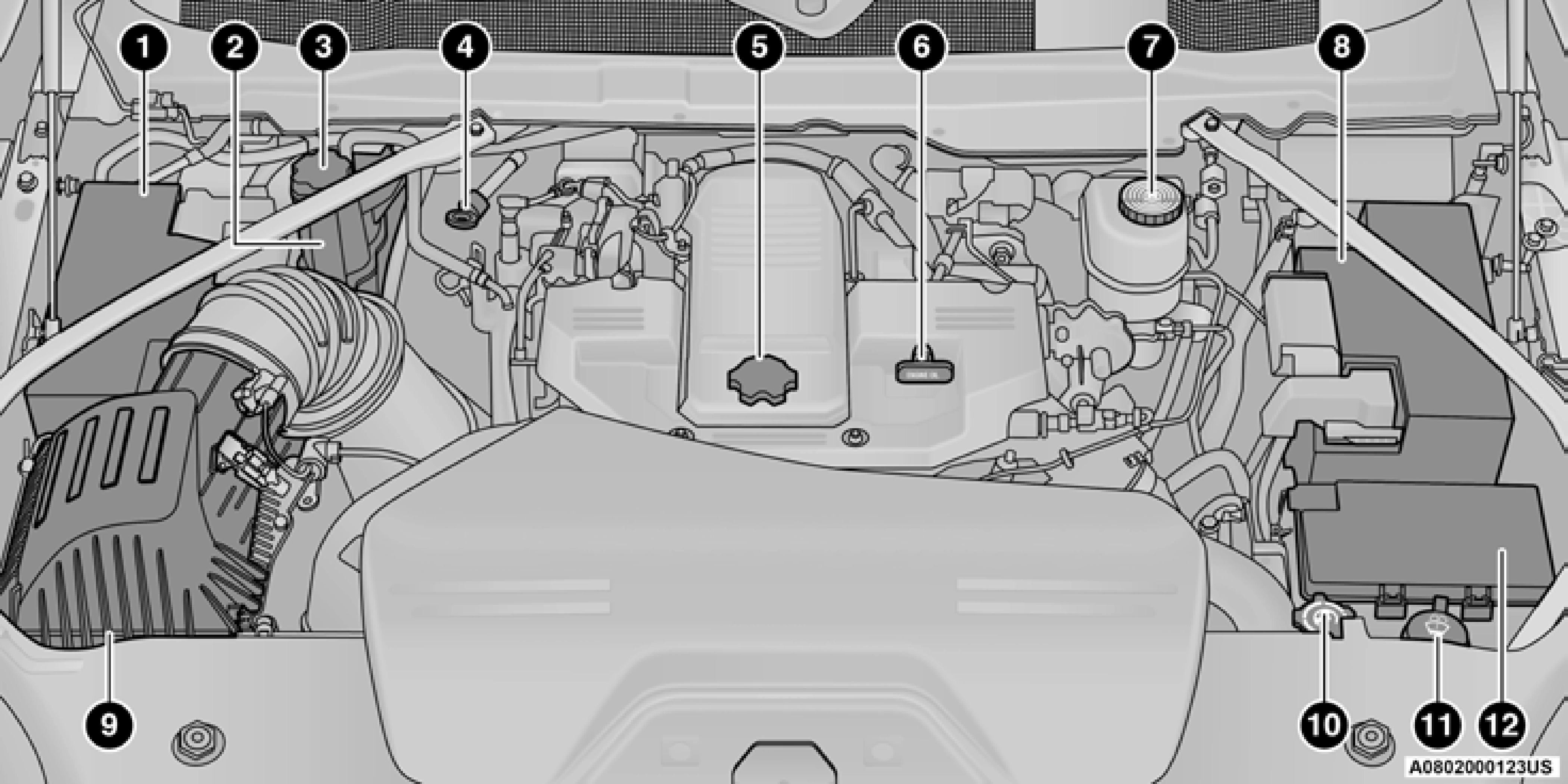

6.7L DIESEL ENGINE — SIX-SPEED AS69RC HD

— Battery 7 — Brake Fluid Reservoir Cap

— Engine Coolant Pressure Cap 8 — Battery

— Engine Coolant Pressure Reservoir 9 — Power Distribution Center (Fuses)

— Engine Oil Fill 10 — Washer Fluid Reservoir Cap

— Engine Oil Dipstick 11 — Power Steering Reservoir Cap

— Automatic Transmission Dipstick 12 — Engine Air Cleaner Filter

CHECKING OIL LEVEL

To ensure proper engine lubrication, the engine oil must be maintained at the correct level.

Check the oil level at regular intervals, such as

Overfilling or underfilling the crankcase will cause oil aeration or loss of oil pressure. This could damage your engine.

After the engine has warmed up, operate the defroster for a few minutes to reduce the possibility of smearing or freezing the fluid on the cold windshield. Windshield washer solution used with water as directed on the container,

every fuel stop. The best time to check the

aids cleaning action, reduces the freezing point

engine oil level is about five minutes after a fully warmed up engine is shut off.

Checking the oil while the vehicle is on level ground will improve the accuracy of the oil level readings.

There are four possible dipstick types:

Crosshatched zone.

Crosshatched zone marked SAFE.

Crosshatched zone marked with MIN at the low end of the range and MAX at the high end of the range.

Crosshatched zone marked with dimples at the MIN and the MAX ends of the range.

Always maintain the oil level within the cross- hatch markings on the dipstick.

Adding 1 quart (1 liter) of oil when the reading is at the low end of the dipstick range will raise the oil level to the high end of the range marking.

ADDING WASHER FLUID

The fluid reservoir is located under the hood and should be checked for fluid level at regular intervals. Fill the reservoir with windshield washer solvent only (not radiator antifreeze). When refilling the washer fluid reservoir, take some washer fluid and apply it to a cloth or towel and wipe the wiper blades clean. This will help blade performance.

To prevent freeze-up of your windshield washer system in cold weather, select a solution or mixture that meets or exceeds the temperature range of your climate. This rating information can be found on most washer fluid containers.

to avoid line clogging, and is not harmful to paint or trim.

MAINTENANCE-FREE BATTERY

Your vehicle is equipped with a

maintenance-free battery. You will never have to add water, and periodic maintenance is not required.

8

(Continued)

PRESSURE WASHING

Cleaning the engine compartment with a high pressure washer is not recommended.
