Ignition switch
The Wireless Ignition Node (WIN) operates similar to an ignition switch. It has four operating positions, three with detents and one that is spring-loaded. The detent positions are OFF, ACC, and ON/RUN. The START position is a spring-loaded momentary contact position. When released from the START position, the switch automatically returns to the ON/RUN position.

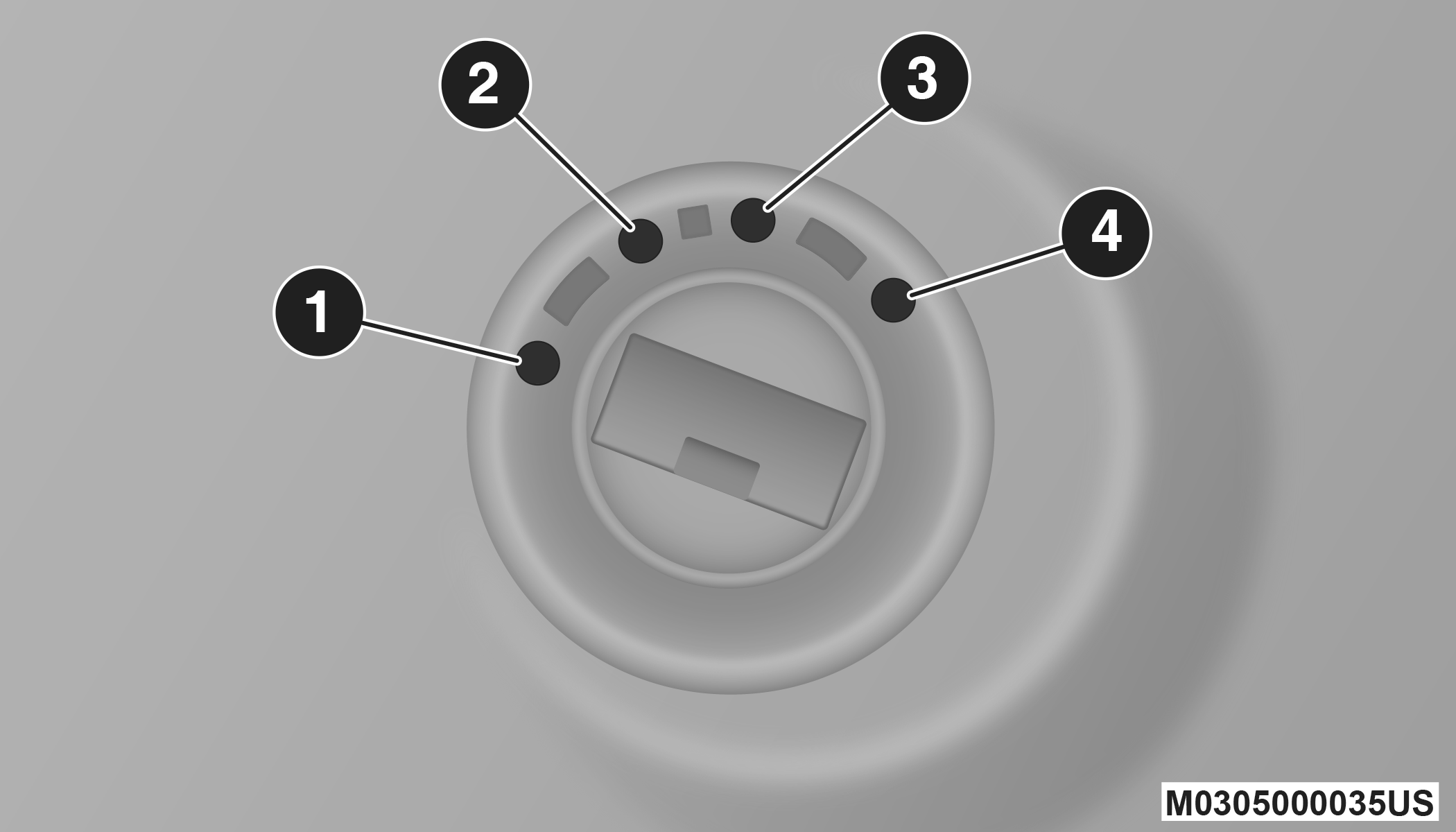

Wireless Ignition Switch
|
1 — OFF |
|
2 — ACC (Accessory) |
|
3 — ON/RUN |
|
4 — START |
