LANESENSE — IF EQUIPPED
The LaneSense system is operational at speeds above 37 mph (60 km/h) and below 112 mph (180 km/h). The LaneSense system uses a forward looking camera to detect lane markings and measure vehicle position within the lane boundaries.
When both lane markings are detected and the driver unintentionally drifts out of the lane (no turn signal applied), the LaneSense system provides a haptic warning in the form of torque applied to the steering wheel to prompt the driver to remain within the lane boundaries. If the driver continues to unintentionally drift out of the lane, the LaneSense system provides a visual warning through the instrument cluster display to prompt the driver to remain within the lane boundaries.
The driver may manually override the haptic warning by applying torque into the steering wheel at any time.
When only a single lane marking is detected and the driver unintentionally drifts across the lane marking (no turn signal applied), the LaneSense system provides visual warnings through the instrument cluster display to prompt the driver to remain within the lane. When only a single lane marking is detected, a haptic (torque) warning will not be provided.
When operating conditions have been met, the LaneSense system will monitor if the driver’s hands are on the steering wheel and provides an audible warning to the driver when the driver’s hands are not detected on the steering wheel. The system will cancel if the driver does not return their hands to the wheel.
TURNING LANESENSE ON OR OFF
The default status of LaneSense is off.
The LaneSense button is located on the center stack below the Uconnect display.
To turn the LaneSense system on, push the LaneSense button (LED turns off). A“LaneSense On” message is shown in the instrument
cluster display.
To turn the LaneSense system off, push the LaneSense button once (LED turns on).
The LaneSense system will retain the last system state, on or off, from the last ignition cycle when the ignition is changed to the ON/ RUN position.
The LaneSense system will indicate the current lane drift condition through the instrument cluster display.
Premium Instrument Cluster Display Screen — If Equipped
When the LaneSense system is on, the lane lines are gray when both of the lane boundaries have not been detected and the LaneSense telltale is solid white.

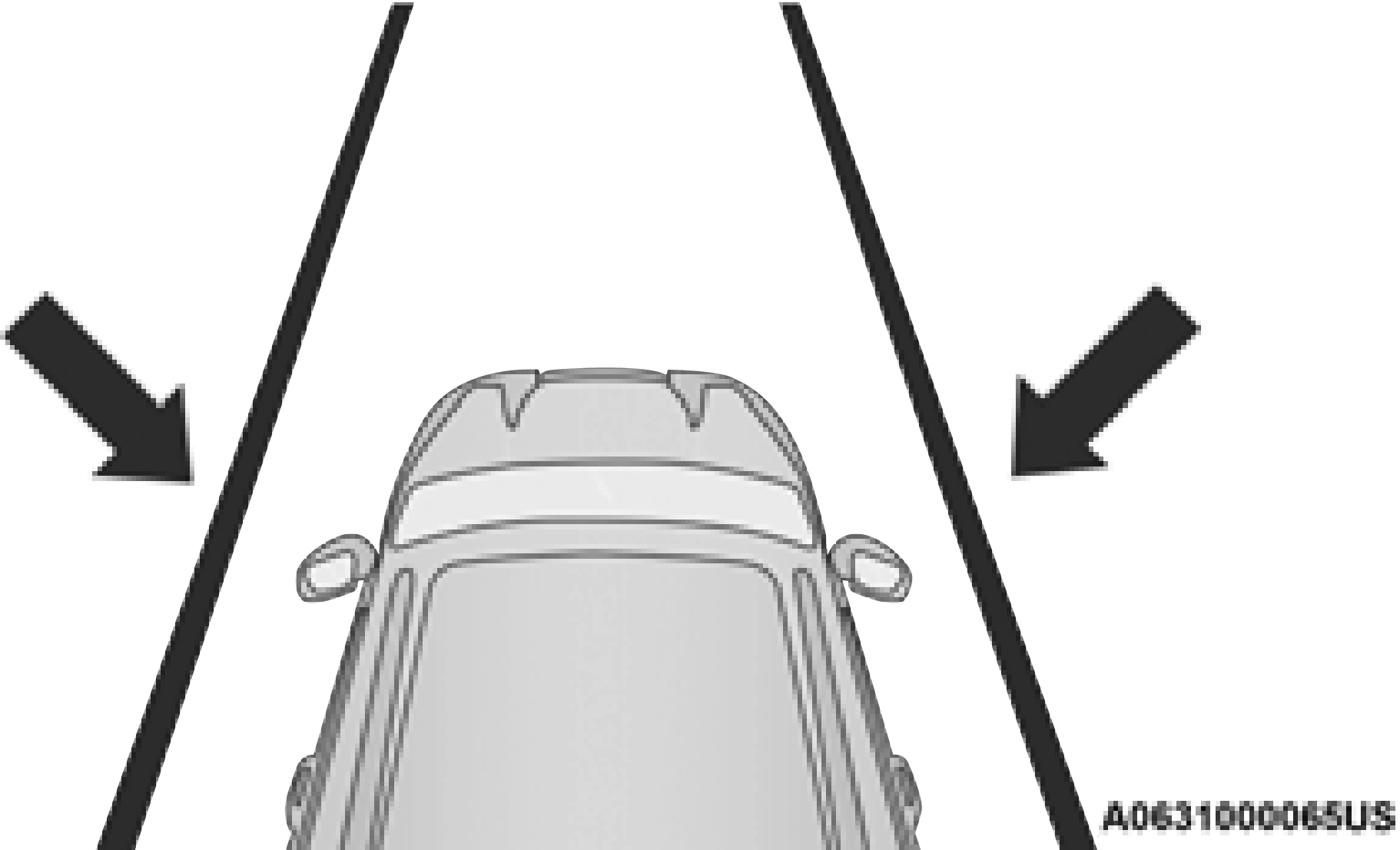

System On (Gray Lines/White Telltale)

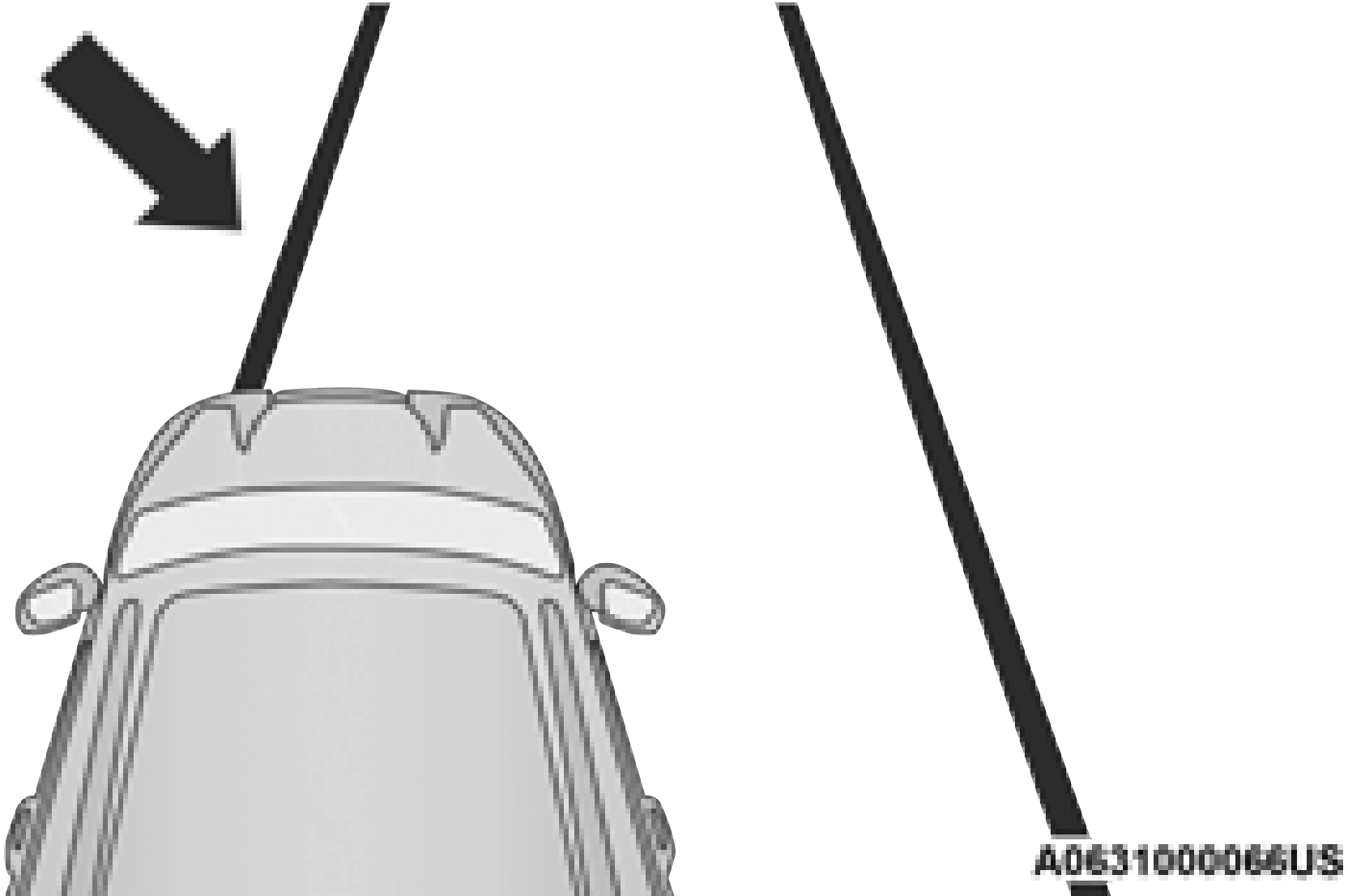

Lane Approached (Flashing Yellow Thick Line, Solid Yellow Thin Line/Flashing Yellow Telltale)
NOTE: 5
The LaneSense system operates with similar behavior for a right lane departure when only the right lane marking has been detected.

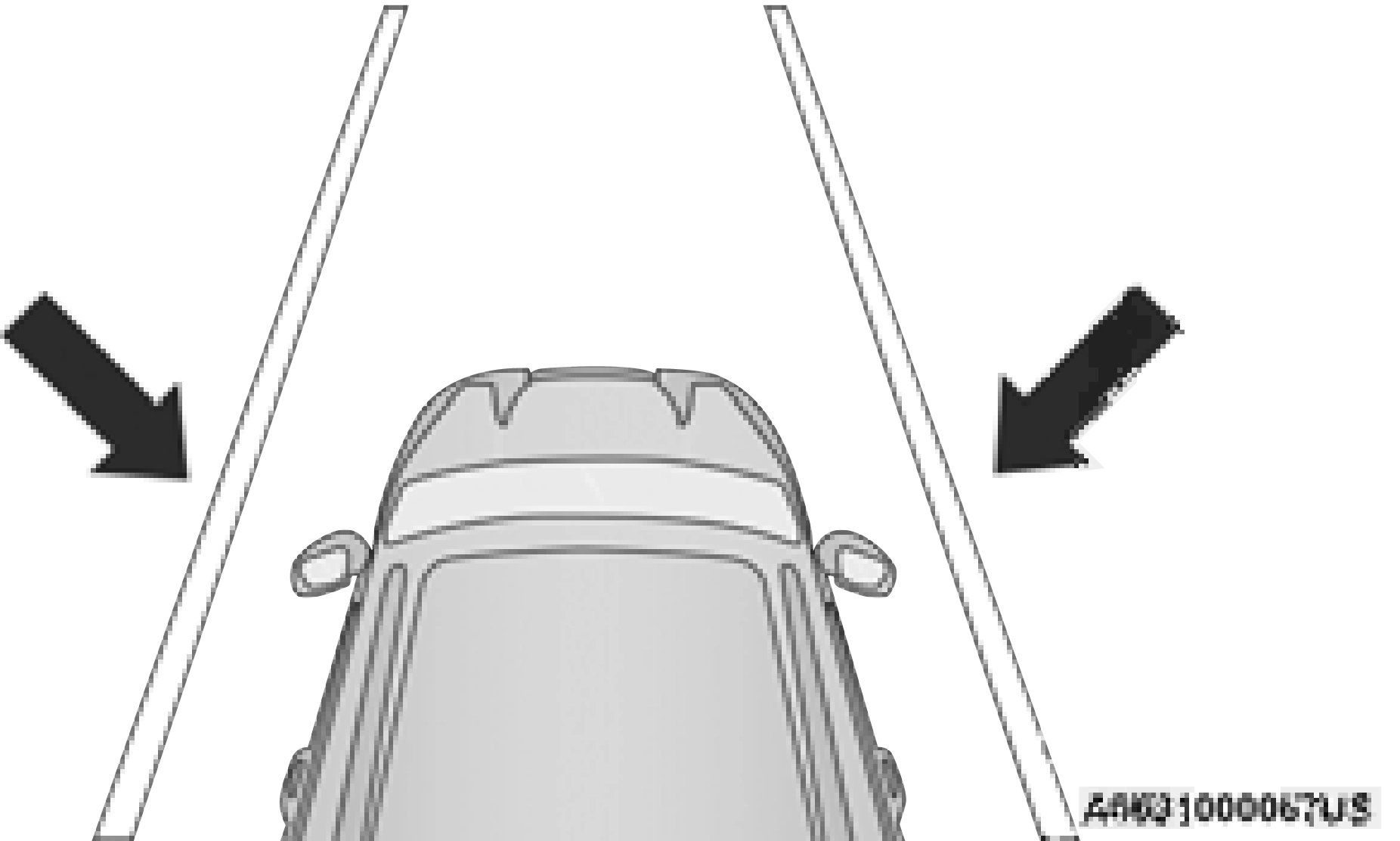

Lanes Sensed (White Lines/Green Telltale)
For example, if approaching the left side of the lane the steering wheel will turn to the right.
Lane Sensed (Solid Yellow Lines/Solid Yellow Telltale)
For example, if approaching the left side of the lane the steering wheel will turn to the right.
Lane Approached (Flashing Yellow Thick Line, Solid Yellow Thin Line/Flashing Yellow Telltale)
The LaneSense system operates with similar behavior for a right lane departure.
The LaneSense system settings can be configured through the Uconnect system screen.
Follow these steps to change the LaneSense settings:
When in the Safety & Driving Assistance screen, you can configure the intensity of the torque warning and the warning zone sensitivity (early/ late) through the personalization settings.
