HomeLink® is disabled when the Vehicle Security Alarm is active.
Be sure that your vehicle is parked outside of the garage before you begin programming.
For more efficient programming and accurate transmission of the Radio Frequency (RF) signal it is recommended that a new battery be placed
in the hand-held transmitter of the device that is being programmed to the HomeLink® system.
To erase the channels, place the ignition in the ON/RUN position, and push and hold the two
outside HomeLink® buttons (I and III) for up to 2
20 seconds or until the orange indicator
flashes. NOTE:
Erasing all channels should only be performed when programming HomeLink® for the first time. Do not erase channels when programming additional buttons.
If you have any problems, or require assis- tance, please call toll-free 1-800-355-3515 or, on the Internet at HomeLink.comfor infor- mation or assistance.
Programming A Rolling Code
For programming garage door openers that were manufactured after 1995. These garage door openers can be identified by the“LEARN” or“TRAIN” button located where the hanging antenna is attached to the garage door opener.
It is NOT the button that is normally used to open and close the door. The name and color of the button may vary by manufacturer.

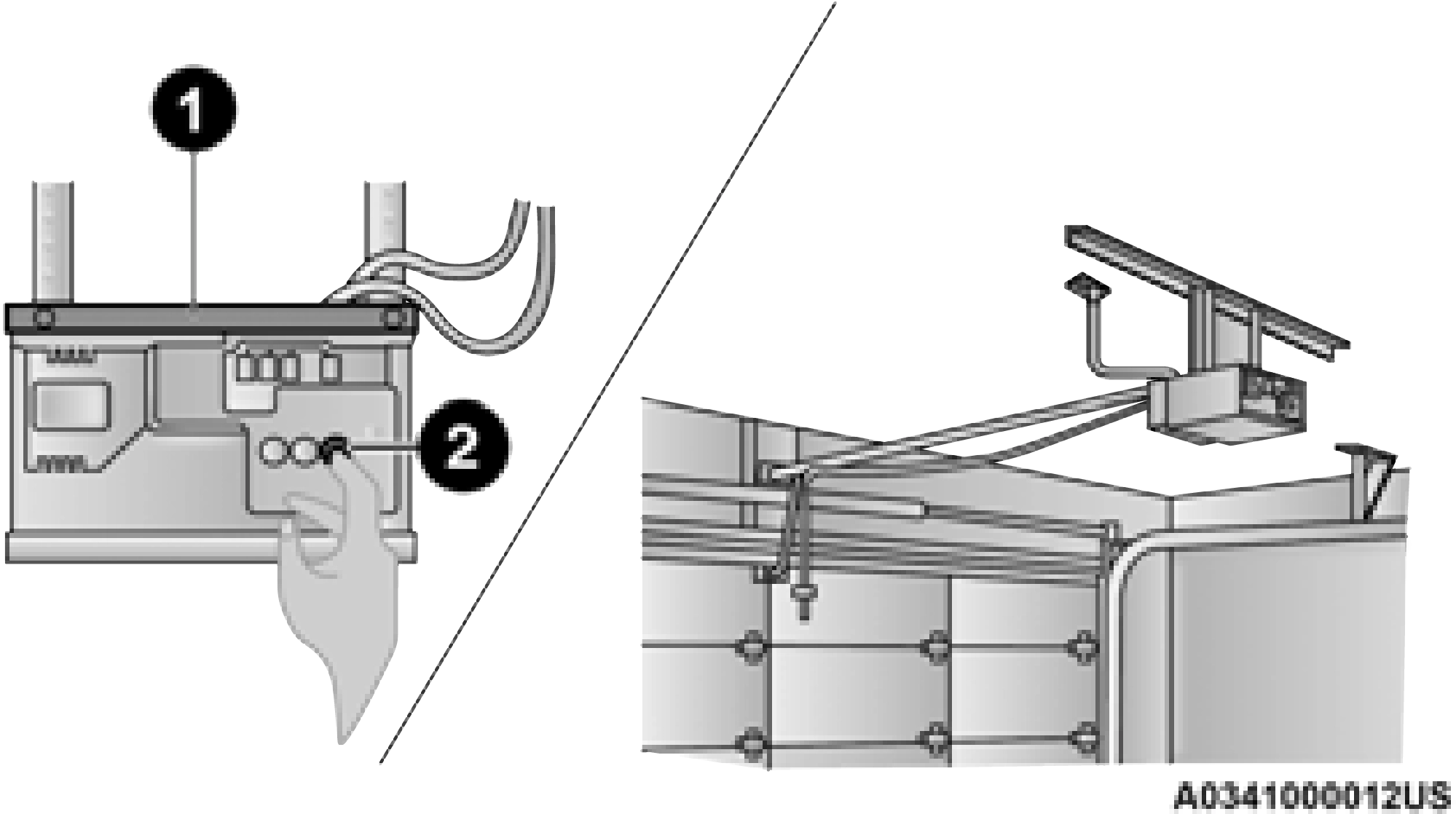

Training The Garage Door Opener
— Door Opener
— Training Button
Place the ignition in the ON/RUN position.
Place the hand-held transmitter 1 to 3 inches (3 to 8 cm) away from the
HomeLink® button you wish to program while keeping the HomeLink® indicator light in view.
Push and hold the HomeLink® button you want to program while you push and hold the hand-held transmitter button.
Continue to hold both buttons and observe the indicator light. The HomeLink® indicator will flash slowly and then rapidly after HomeLink® has received the frequency signal from the hand-held transmitter. Release both buttons after the indicator light changes from slow to rapid.
On the garage door opener motor (in the garage), locate the“LEARN” or“TRAINING” button. This can usually be found where the hanging antenna wire is attached to the garage door opener/device motor. Firmly push and release the“LEARN” or“TRAINING” button. On some garage door openers/devices there may be a light that blinks when the garage door opener/device is in the LEARN/TRAIN mode.
You have 30 seconds in which to initiate the next step after the LEARN button has been pushed.
Return to the vehicle and push the programmed HomeLink® button twice (holding the button for two seconds each time). If the garage door opener/device activates, programming is complete.
If the garage door opener/device does not acti- vate, push the button a third time (for two seconds) to complete the training.
To program the remaining two HomeLink® buttons, repeat each step for each remain- ing button. DO NOT erase the channels.
To reprogram a channel that has been previously trained, follow these steps:
Place the ignition in the ON/RUN position.
Push and hold the desired HomeLink® button until the indicator light begins to flash after 20 seconds. Do not release the button.
Without releasing the button proceed with“Programming A Rolling Code” step 2 and follow all remaining steps.
Programming A Non-Rolling Code For programming garage door openers manufactured before 1995.
Place the ignition in the ON/RUN position.
Place the hand-held transmitter 1 to 3 inches (3 to 8 cm) away from the
HomeLink® button you wish to program while keeping the HomeLink® indicator light in view.
Press and hold the HomeLink® button you want to program while you press and hold the hand-held transmitter button.
Continue to hold both buttons and observe the indicator light. The HomeLink® indicator will flash slowly and then rapidly after HomeLink® has received the frequency signal from the hand-held transmitter. Release both buttons after the indicator light changes from slow to rapid.
Press and hold the programmed HomeLink® button and observe the indicator light.
If the indicator light stays on constantly, programming is complete and the garage door/device should activate when the HomeLink® button is pressed.
To program the two remaining Home- Link® buttons, repeat each step for each remaining button. DO NOT erase the channels.
To reprogram a channel that has been previously trained, follow these steps:
Place the ignition in the ON/RUN position.
Press and hold the desired HomeLink® button until the indicator light begins to flash after 20 seconds. Do not release the button.
Without releasing the button, proceed with“Programming A Non-Rolling Code” step 2 and follow all remaining steps.
For programming transmitters in Canada/ United States that require the transmitter
signals to“time-out” after several seconds of 2
transmission.
Canadian radio frequency laws require transmitter signals to time-out (or quit) after several seconds of transmission – which may not be long enough for HomeLink® to pick up the signal during programming. Similar to this Canadian law, some U.S. gate operators are designed to time-out in the same manner.
It may be helpful to unplug the device during the cycling process to prevent possible overheating of the garage door or gate motor.
Place the ignition in the ON/RUN position.
Place the hand-held transmitter 1 to 3 inches (3 to 8 cm) away from the
HomeLink® button you wish to program while keeping the HomeLink® indicator light in view.
Continue to press and hold the HomeLink® button, while you press and release (cycle) your hand-held transmitter every two seconds until HomeLink® has successfully accepted the frequency signal. The indicator light will flash slowly and then rapidly when fully trained.
Watch for the HomeLink® indicator to change flash rates. When it changes, it is programmed. It may take up to 30 seconds or longer in rare cases. The garage door may open and close while you are programming.
Press and hold the programmed HomeLink® button and observe the indicator light.
If the indicator light stays on constantly, programming is complete and the garage door/device should activate when the Home- Link® button is pressed.
To program the two remaining HomeLink® buttons, repeat each step for each remaining button. DO NOT erase the channels.
If you unplugged the garage door opener/ device for programming, plug it back in at this time.
To reprogram a channel that has been previously trained, follow these steps:
Place the ignition in the ON/RUN position.
Press and hold the desired HomeLink® button until the indicator light begins to flash after 20 seconds. Do not release the button.
Without releasing the button, proceed with“Canadian/Gate Operator Programming” step 2 and follow all remaining steps.
USING HOMELINK®
To operate, push and release the programmed HomeLink® button. Activation will now occur for the programmed device (i.e. garage door opener, gate operator, security system, entry door lock, home/office lighting, etc.). The
hand-held transmitter of the device may also be used at any time.
SECURITY
It is advised to erase all channels before you sell or turn in your vehicle.
To do this, push and hold the two outside buttons for 20 seconds until the orange indicator flashes. Note that all channels will be erased. Individual channels cannot be erased.
The HomeLink® Universal Transceiver is disabled when the Vehicle Security Alarm is active.
If you are having trouble programming HomeLink®, here are some of the most common solutions:
Replace the battery in the garage door opener hand-held transmitter.
Push the LEARN button on the garage door opener to complete the training for a Rolling Code.
Did you unplug the device for programming and remember to plug it back in?
If you have any problems, or require assistance, please call toll-free 1-800-355-3515 or, on the Internet at HomeLink.com for information or assistance.
The following regulatory statement applies to all Radio Frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and with Innovation, Science and Economic Development Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d`Innovation, Science and Economic Development applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
l'appareil ne doit pas produire de brouillage, et
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compro- 2
mettre le fonctionnement.
La operación de este equipo está sujeta a las siguientes dos condiciones:
es posible que este equipo o dispositivo no cause interferencia perjudicial y
este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada.
Changes or modifications not expressly approved by the party responsible for compli- ance could void the user’s authority to operate the equipment.
