UCONNECT 4 WITH 7-INCH DISPLAY
Uconnect 4 With 7-inch Display
Uconnect 4 With 7-inch Display
Uconnect screen images are for illustration purposes only and may not reflect exact soft- ware for your vehicle.
Press the Radio button on the touchscreen to enter Radio Mode. The different tuner modes, AM, FM, and SXM, can be selected by pressing the corresponding buttons on the touchscreen in Radio Mode.
Press the Media button on the touchscreen to access media sources such as USB De- vice, AUX, and Bluetooth® as long as the re- quested media is present.
Refer to“Climate Controls” in“Getting To Know Your Vehicle” for further details.
Press the Apps button on the touchscreen to access Smartphone and Connected vehi- cle options.
Press the Controls button on the touch- screen to adjust the heated and vented seats or heated steering wheel (if equipped).

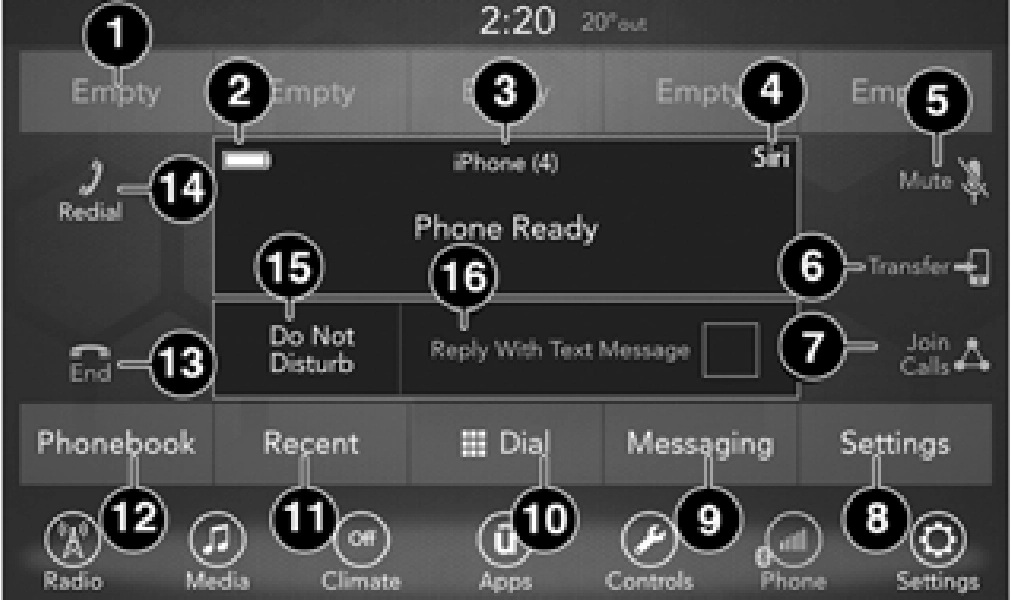

Press the Phone button on the touchscreen to access the Uconnect Phone feature.
Press the Settings button on the touch- screen to access the Uconnect Settings menu.

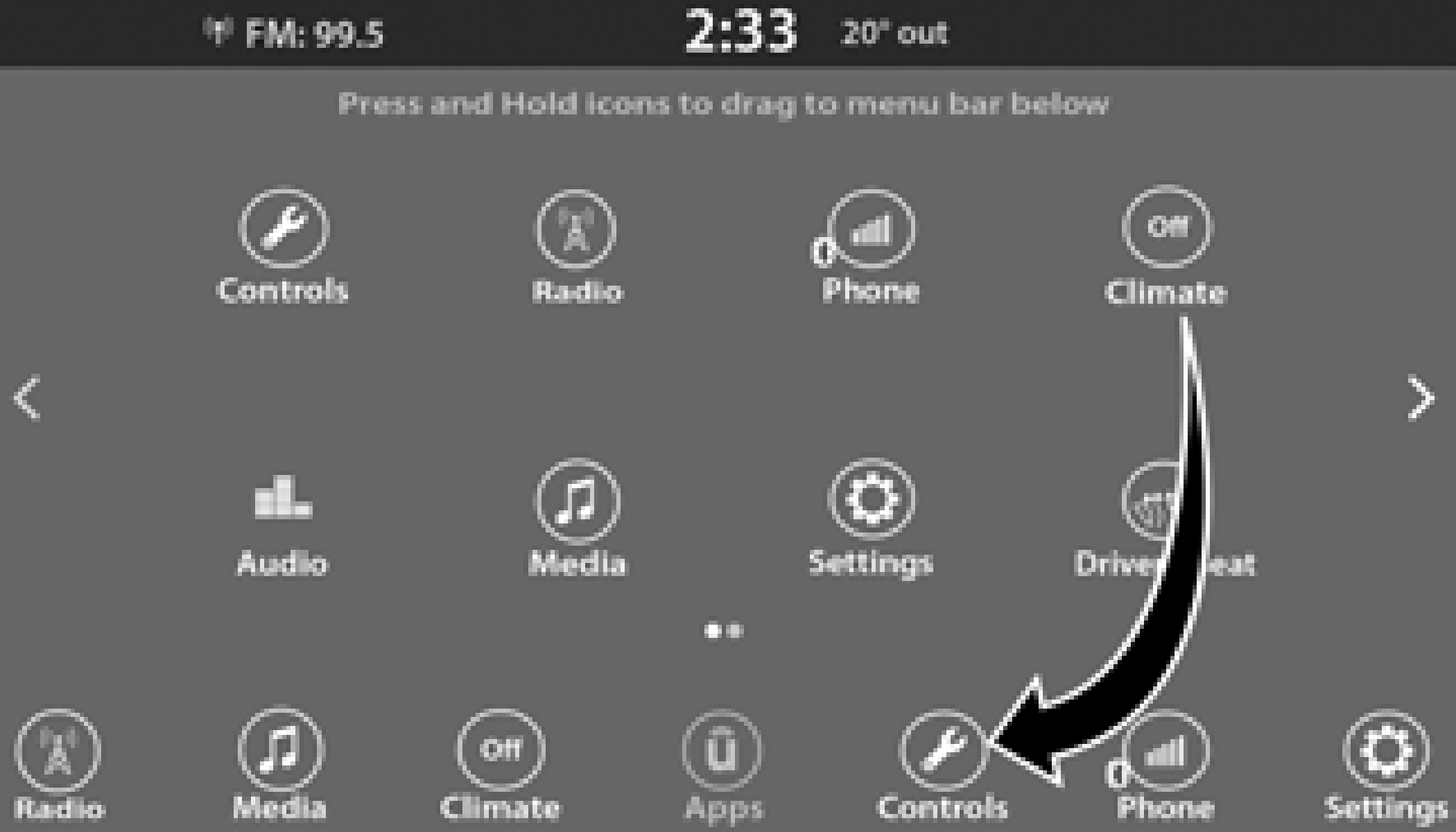

Drag & Drop Menu Bar
The Uconnect features and services in the main menu bar are easily changed for your convenience. Simply follow these steps:

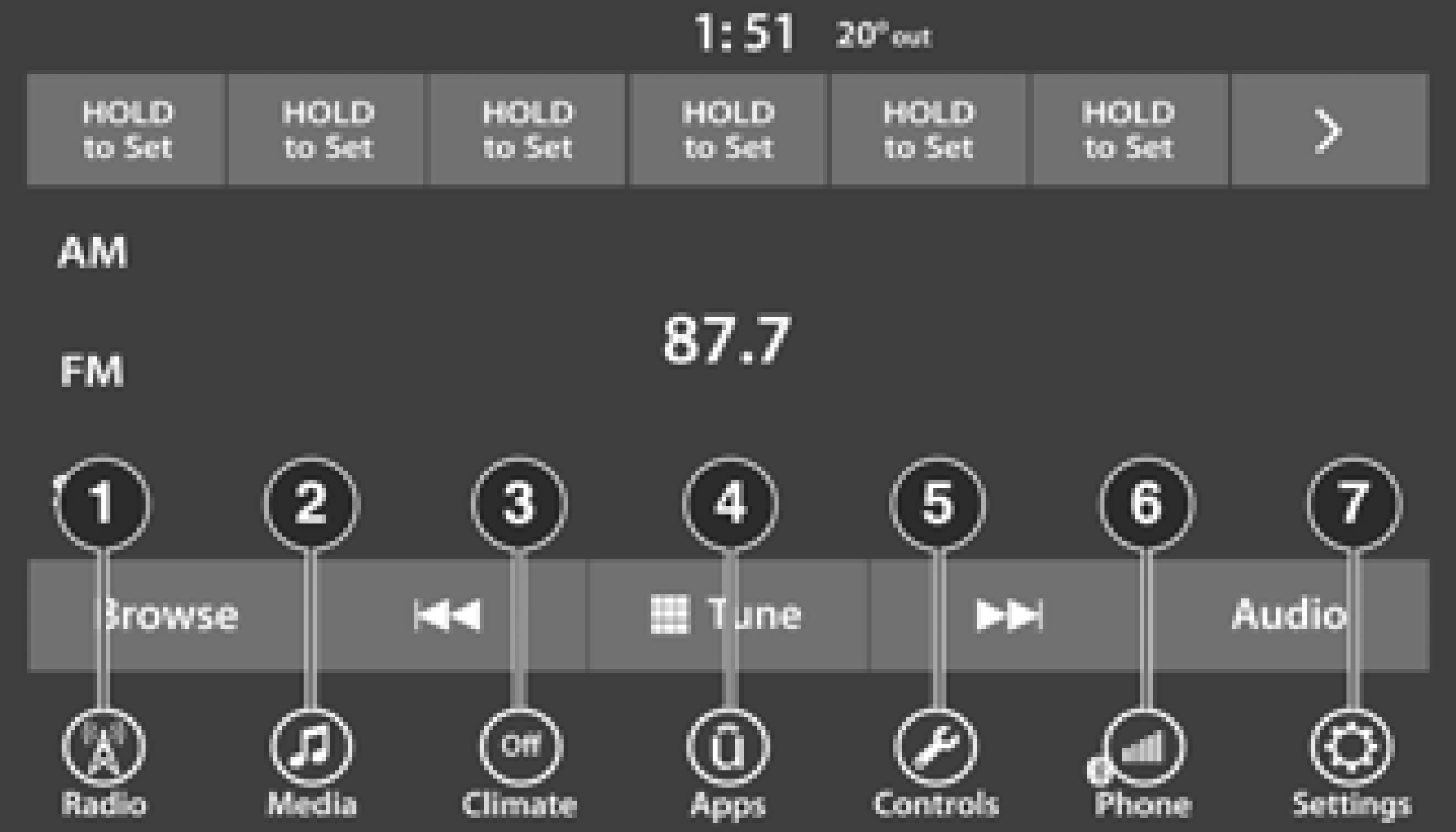

Uconnect 4 Main Menu
button to open the App screen.The new app shortcut, that was dragged down onto the main menu bar, will now be an active App/shortcut.
This feature is only available if the vehicle is in PARK.
RADIO MODE
The radio is equipped with the following modes:
Press the Radio button on the touchscreen, bottom left corner, to enter the Radio Mode. The different tuner modes, AM, FM, and SXM, can then be selected by pressing the corresponding buttons in the Radio mode.
Push the Volume/Power control knob to turn off the screen and mute the radio. Push the Volume/Power control knob a second time to turn the screen back on and unmute the radio.
The electronic volume control turns continuously (360 degrees) in either direction, without stopping. Turning the Volume/Power control knob clockwise increases the volume, and counterclockwise decreases it.
When the audio system is turned on, the sound will be set at the same volume level as last played.
Turn the rotary Tune/Scroll control knob clockwise to increase or counterclockwise to decrease the radio station frequency. Push the Enter/Browse button to choose a selection.
The X button on the touchscreen at the top right, provides a means to close the Direct Tune Screen. The Direct Tune Screen also auto closes if no activity occurs within a few seconds.
The Seek Up and Down functions are activated by pressing the double arrow buttons on the touchscreen to the right and left of the radio station display or by pressing the left Steering Wheel Audio Control up or down.
Press and release the Seek Up button on the touchscreen to tune the radio to the next listenable station or channel. During a Seek Up function, if the radio reaches the starting station after passing through the entire band two times, the radio will stop at the station where it began.
Press and hold the Seek Up button on the touchscreen to advance the radio through the available stations or channels at a faster rate. The radio stops at the next available station or channel when the button on the touchscreen is released.
Press and release the Seek Down button on the touchscreen to tune the radio to the next listenable station or channel. During a Seek Down function, if the radio reaches the starting station after passing through the entire band two times, the radio will stop at the station where it began.
Press and hold the Seek Down button on the touchscreen to advance the radio through the available stations or channel at a faster rate. The radio stops at the next available station or channel when the button on the touchscreen is released.
Press the Tune button on the touchscreen located at the bottom of the radio screen. The Direct Tune button on the touchscreen is available in AM, FM, and SXM radio modes and
can be used to direct tune the radio to a desired station or channel.
Press the available number button on the touchscreen to begin selecting a desired station. Once a number has been entered, any numbers that are no longer possible (stations that cannot be reached) will become deactivated/grayed out.
You can backspace an entry by pressing the bottom left on the touchscreen.
Once the last digit of a station has been entered, press the OK button, and the Direct Tune screen will close. The system will automatically tune to that station.
The selected Station or Channel number is displayed in the Direct Tune text box.
The Presets are available for all Radio Modes, and are activated by pressing any of the six Preset buttons on the touchscreen, located at the top of the screen.
When you are receiving a station that you wish to commit into memory, press and hold the desired numbered button on the touchscreen for more than two seconds or until you hear a confirmation beep.
The Radio stores up to 12 presets in each of the Radio modes. A set of six presets are visible at the top of the radio screen.
You can switch between the two radio presets by pressing the Arrow button located in the upper right of the radio touchscreen.
When in either AM or FM, the Browse Screen provides a means to edit the Presets List and is entered by pushing the ENTER/BROWSE button.
Once in the Browse Presets screen, you can scroll the preset list by rotation of the TUNE/ SCROLL knob, or by pressing the Up and Down arrow keys, located on the right of the screen.
A Preset can be selected by pressing any of the listed Presets or by pushing the ENTER/ BROWSE button on the TUNE/SCROLL knob to select the currently highlighted Preset.
When selected, the radio tunes to the station stored in the Preset and returns to the main radio screen.
A Preset can be deleted in the Presets Browse screen by pressing the Trash Can icon for the corresponding Preset.
You can return to the Main Radio Screen, by pressing the X button on the touchscreen when in the Browse Presets screen.
SiriusXM® Satellite Radio uses direct
satellite-to-receiver broadcasting technology to provide clear, coast-to-coast radio content.
SiriusXM® is a subscription based service.
All satellite radio-equipped vehicles come with a one-year trial to the SiriusXM® All Access package, providing over 160 channels of the best programming for all the places life takes you.
Go to siriusxm.com/getallaccess for more information
SiriusXM® services require subscriptions, sold separately after the 12-month trial included with the new vehicle purchase. If you decide to
continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call SiriusXM® at 866-635-2349 to cancel. See SiriusXM® Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change. Our satellite service is available only to those at least 18 and older in the 48 contiguous USA and D.C. Our SiriusXM® satellite service is also available in PR (with coverage limitations). Our Internet radio service is available throughout our satellite service area and in AK. © 2021 SiriusXM® Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM® Radio Inc. Service available in Canada; see www.siriusxm.ca.
This functionality is only available for radios equipped with a Satellite receiver. In order to receive satellite radio, the vehicle needs to be outside with a clear view to the sky.
If the screen shows Acquiring Signal, you might have to change the vehicle’s position in order to receive a signal. In most cases, the satellite radio does not receive a signal in underground parking garages or tunnels.
Radios equipped with a Satellite receiver, require a subscription to the SiriusXM® Service. When the Radio does not have the necessary subscription, the Radio is able to receive the Pre-View channel only.
To activate the SiriusXM® Satellite Radio subscription, US residents call:
1-800-643-2112
Canadian residents call:
1-877-438-9677
You will need to provide the SiriusXM® ID (RID) located at the bottom of the Channel 0 screen.
The Satellite Mode is activated by a press of the SXM button on the touchscreen.
When in Satellite mode:
Tuning is done by operating the Tune Knob or by Direct Tune, similar to other Radio Bands, see Presets, browse, Tune Knob, and Direct Tune.
In addition to the tuning Operation functions common to all Radio modes, the replay, Traffic/ Weather Jump, and fav button functions are available in SiriusXM® Mode.
Replay
The replay function provides a means to store and replay up to 22 minutes of music audio and 48 minutes of talk radio. Once the channel is switched, content in replay memory is lost.
Press the Replay button on the touchscreen. The play/pause, rewind/forward and live buttons will display at the top of the screen, along with the replay time.
You can exit by pressing the Replay button on the touchscreen, any time during the Replay mode.
Press the Pause/Play button on the touchscreen to pause the playing of live or rewound content at any time. Play can be resumed again by pressing of the Pause/Play button on the touchscreen.
Press the RW button on the touchscreen to rewind the content in steps of five seconds. Pressing the RW button on the touchscreen for more than two seconds rewinds the content. The Radio begins playing the content at the point at which the press is released.
Each press of the FW button on the touchscreen forwards the content in steps of five seconds. Forwarding of the content can only be done when the content is previously rewound, and therefore, can not be done for live content. A continuous press of the FW button on the touchscreen also forwards the content. The Radio begins playing the content at the point at which the press is released.
Press the Live button on the touchscreen to resume playing of Live content.
Favorites
Press the Fav button on the touchscreen to activate the favorites menu, which will time out in five seconds in absence of user interaction.
You can exit the Favorites Menu by a press of the X in the top right corner.
The favorites feature enables you to set a favorite artist, or song that is currently playing. The Radio then uses this information to alert you when either the favorite song, or favorite artist are being played at any time by any of the SiriusXM® Channels.
The maximum number of favorites that can be stored in the Radio is 50.
Fav. Artist: While the song is playing to set a Favorite Artist, press the Fav button on the touchscreen and then the Fav. Artist button on the touchscreen.
Fav. Song: While the song is playing to set a Favorite Song, press the Fav button on the touchscreen and then the Fav Song button on the touchscreen.
Browse In SXM
Press the Browse button on the touchscreen to edit Presets, Favorites, Game Zone, and Jump settings, along with providing the SiriusXM® Channel List.
This Screen contains many submenus. You can exit a sub menu to return to a parent menu by pressing the Back Arrow.
Press the All button at the left of the Browse Screen.
Press the Channel List, or Genre, to display all the SiriusXM® Channel Numbers. You can scroll the Channel list by pressing the Up and Down arrows, located on the right side of the screen. Scrolling can also be done by operating the TUNE/SCROLL knob.
Press the Genre button on the touchscreen to display a list of Genres. You can select any desired Genre by pressing the Genre list, the Radio tunes to a channel with the content in the selected Genre.
Press the Presets button located at the left of the Browse screen.
You can scroll the Presets list pressing the up and down arrows located at the right side of the screen. Scrolling can also be done by operating the TUNE/SCROLL knob as well.
A Preset can be selected by pressing any of the listed Presets, or by pushing the ENTER/ BROWSE button on the TUNE/SCROLL knob to select the currently highlighted Preset. When selected, the Radio tunes to the station stored in the Preset, and returns to the main Radio screen.
A Preset can be deleted in the Presets Browse screen by pressing the Trash Can Icon for the corresponding Preset.
Press the Favorites button located at the left of the Browse screen.
The Favorites menu provides a means to Edit the Favorites list and to configure the Alert Settings, along with providing a list of Channels currently airing any of the items in the Favorites list.
You can scroll the Favorites list by pressing the Up and Down arrows located at the right side of the screen. Scrolling can also be done by operating the TUNE/SCROLL knob as well.
Press the Remove Favorites tab at the top of the screen. Press the Delete All button on the touchscreen to delete all of the Favorites or press the Trash Can icon next to the Favorite to be deleted.
Press the Alert Setting tab at the top of the screen. The Alert Settings menu allows you to choose from a Visual alert or Audible and Visual alert when one of your favorites is airing on any of the SiriusXM® channels.
Press the Game Zone button, located at the left of the Browse screen. This feature provides you with the ability to select teams, edit the selection, and set alerts.
Press the On-Air tab at the top of the screen. The On-Air list provides a list of Channels currently airing any of the items in the Selections list, and pressing any of the items in the list tunes the radio to that channel.
Press the Select Teams button on the touchscreen to activate the League Scroll list. Press the chosen league and a scroll list of all teams within the league will appear, then you can select a team by pressing the corresponding box. A check mark appears for all teams that are chosen.
Press the Remove Selection tab at the top of the screen. Press the Delete All button on the touchscreen to delete all of the Selections or press the Trash Can Icon next to the Selection to be deleted.
Press the Alert Setting tab at the top of the screen. The Alert Settings menu allows you to choose from“Alert me to on-air games upon start” or“Alert upon score update” or both when one or more of your selections is airing on any of the SiriusXM® channels.
Press the Featured button, located on the left of the Browse screen. This feature provides a list of your featured favorite stations.
Press the Audio button on the Satellite Radio main menu or within the Settings main menu to activate the Audio settings screen for adjusting Balance & Fade, Equalizer, Speed Adjusted Volume, Loudness, AUX Volume Offset, Auto
Play, and Radio Off With Door.
You can return to the Radio screen by pressing the X located at the top right.

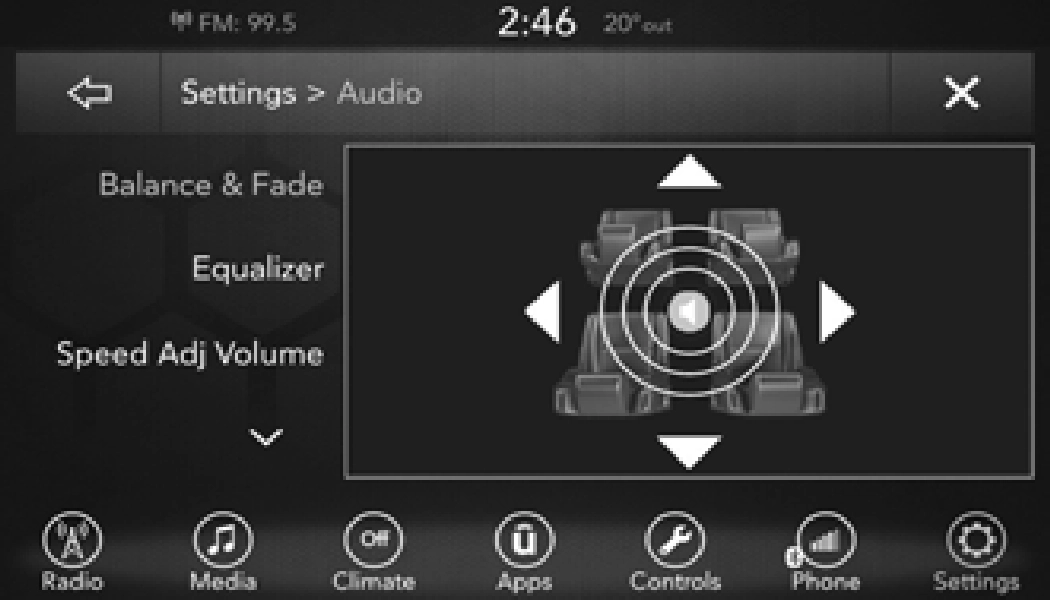

Balance & Fade
Press the Balance & Fade button on the touchscreen to balance audio between the front speakers or fade the audio between the rear and front speakers.
Press the Front, Rear, Left, or Right buttons or press and drag the red Speaker icon to adjust the Balance/Fade.
Equalizer
Press the Equalizer button on the touchscreen to activate the Equalizer screen.
Press the + or – buttons, or press and drag over the level bar for each of the equalizer bands. The level value, which spans between plus or minus nine, is displayed at the bottom of each of the bands.

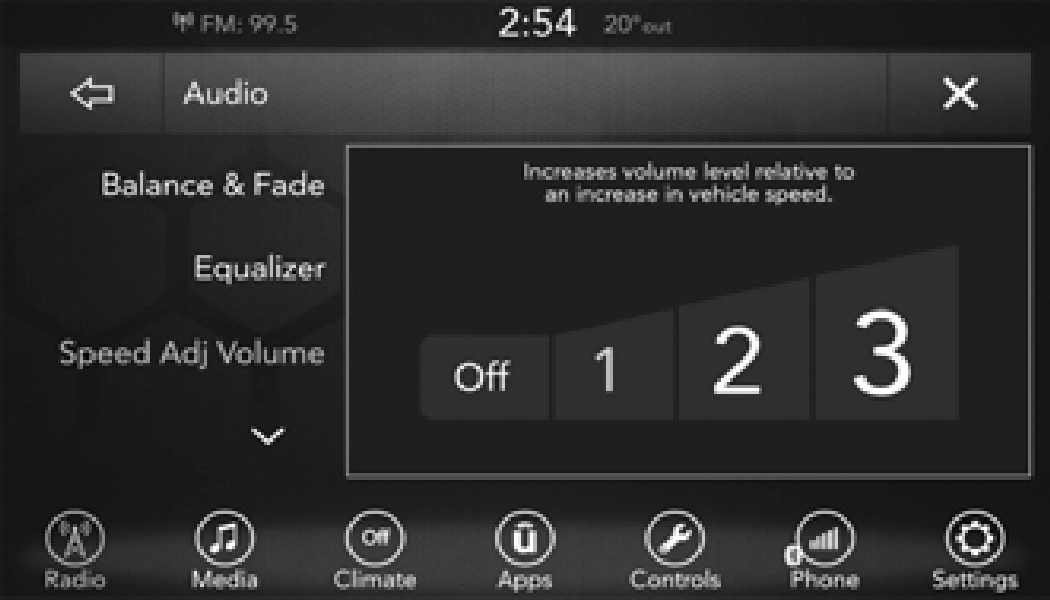

Speed Adjusted Volume
Press the Speed Adjusted Volume button on the touchscreen to activate the Speed Adjusted Volume screen.
The Speed Adjusted Volume is adjusted by selecting from Off, 1, 2, or 3. This alters the automatic adjustment of the audio volume with variation to vehicle speed. Volume increases automatically as speed increases to compensate for normal road noise.

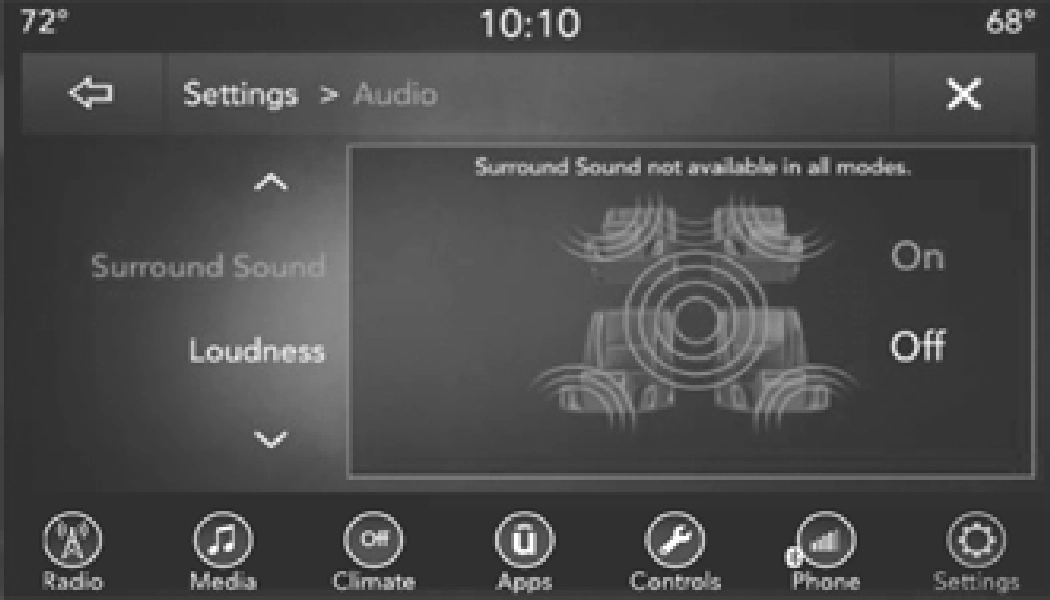

Press the On button on the touchscreen to activate Surround Sound. Press Off to deactivate this feature.
When Surround Sound is on, you can hear audio coming from every direction as in a movie theatre or home theatre system.
Surround Sound

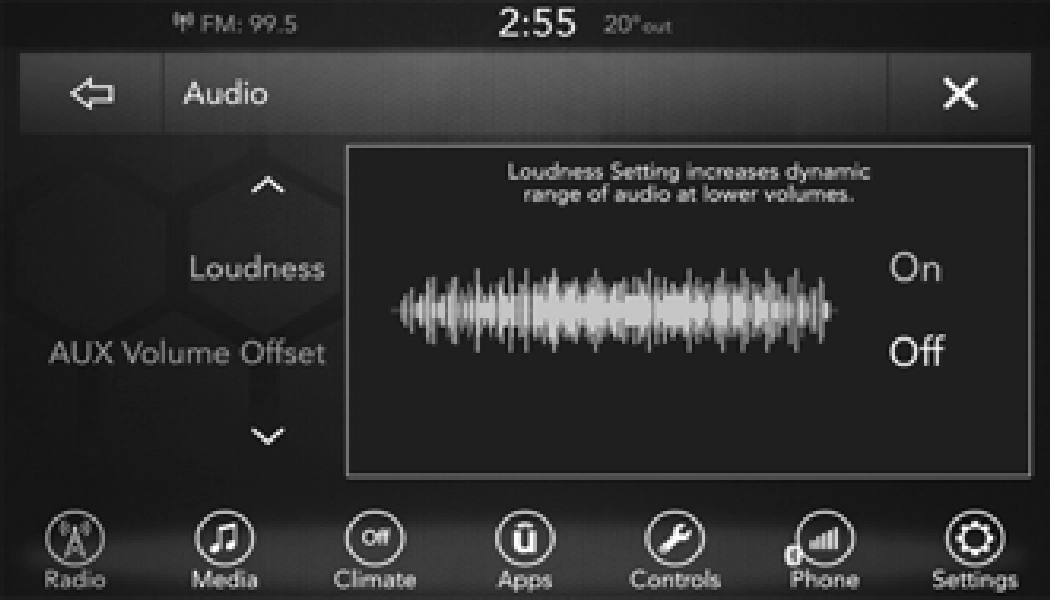

Loudness
Press the On button on the touchscreen to activate Loudness. Press Off to deactivate this feature.
When Loudness is on, the sound quality at lower volumes improves.

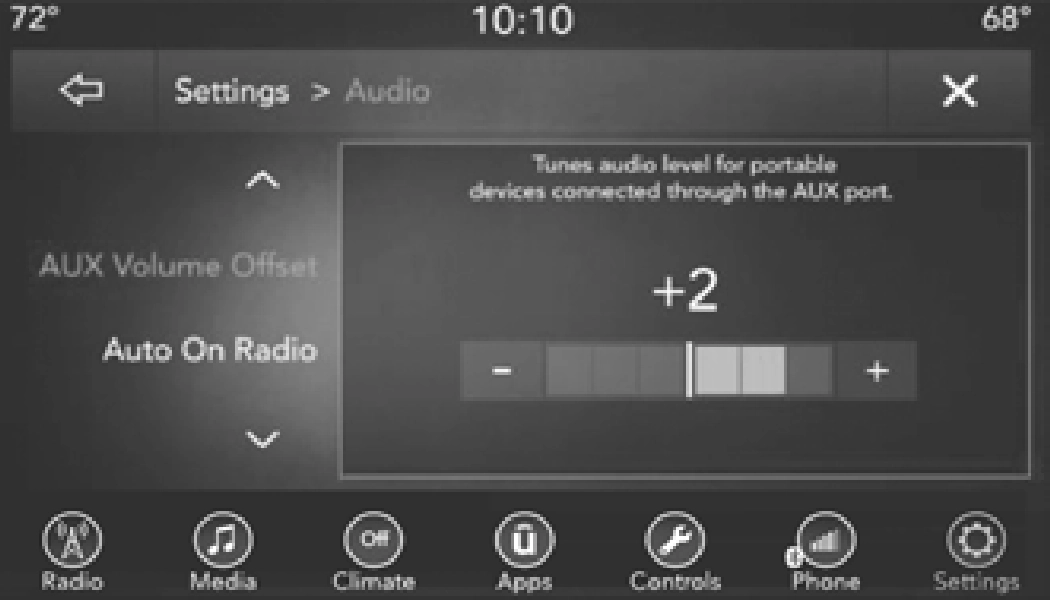

AUX Volume Offset
Press the AUX Volume Offset button on the touchscreen to activate the AUX Volume Offset screen.
The AUX Volume Offset is adjusted by pressing the + and – buttons. This alters the AUX input audio volume. The level value, which spans between plus or minus three, is displayed above the adjustment bar.
Auto Play
Radio Off With Door
MEDIA MODE
USB/iPod® Mode is entered by either inserting a USB device or iPod® and cable into the USB Port or by pressing the Select Source button on the left side of the display, and then selecting USB 1, or USB 2 (if equipped).
Press and release the Seek Up button on the

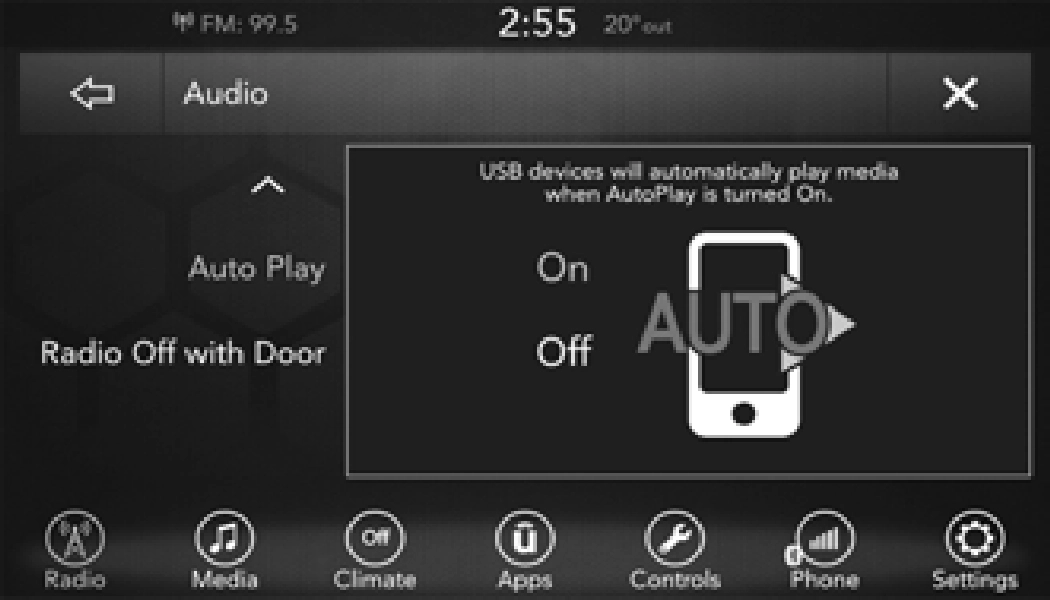

Press the Auto Play button on the touchscreen to activate the Auto Play screen.
The Auto Play feature has two settings On and Off. With Auto Play on, music will begin to play from a connected device immediately after it is connect to the radio.

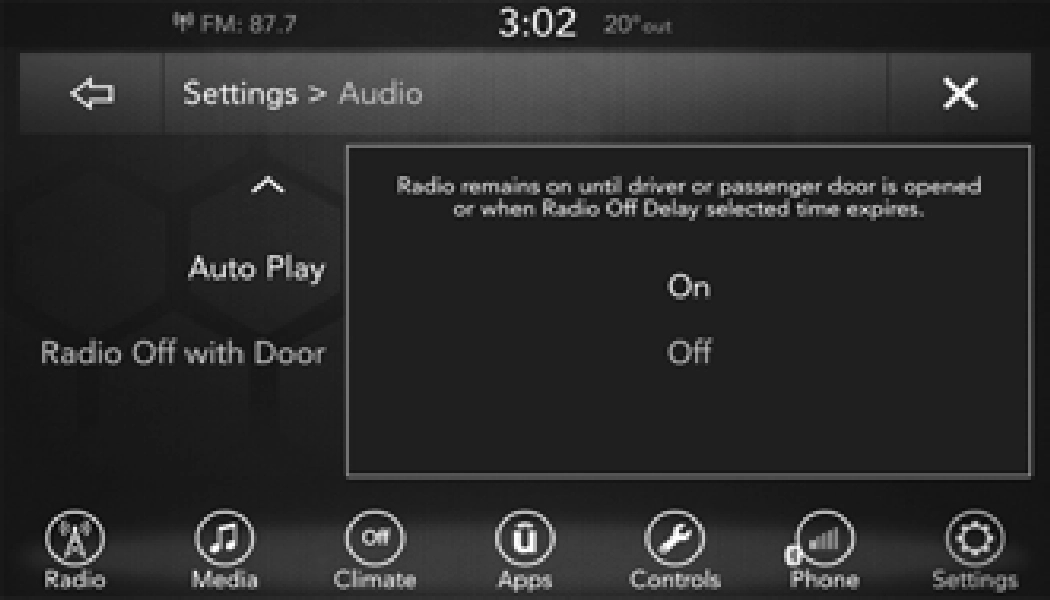

Press the Radio Off With Door button on the touchscreen to activate the Radio Off With Door screen.
The Radio Off With Door feature, when activated, keeps the radio on until the driver or passenger door is opened, or when the Radio Off Delay selected time has expired.
touchscreen for the next selection on the USB device/iPod®. Press and release the Seek Down button on the touchscreen to return to the beginning of the current selection or to return to the beginning of the previous selection if the USB device/iPod® is within the first three seconds of the current selection.
Press the Browse button on the touchscreen to display the browse window. The left side of the browse window displays a list of ways you can browse through the contents of the USB device/ iPod®. If supported by the device, you can browse by Folders, Artists, Playlists, Albums, Songs, etc. Press the desired button on the left side of the screen. The center of the browse window shows items and its sub-functions, which can be scrolled by pressing the Up and Down buttons to the right. The Tune/Scroll knob can also be used to scroll.
Press the Media button on the touchscreen to select the desired audio source: USB.
Press the Repeat button on the touchscreen to toggle the repeat functionality. The Repeat button on the touchscreen is highlighted when active. The Radio will continue to play the current track, repeatedly, as long as the repeat is active. Press the Repeat button on the touchscreen a second time to turn this feature off.
Press the Shuffle button on the touchscreen to play the selections on the USB/iPod® device in random order to provide an interesting change of pace. Press the Shuffle button on the touchscreen a second time to turn this feature off.
Press the Info button on the touchscreen to display the current track information. Press the Info button on the touchscreen a second time to cancel this feature.
Press the Tracks button on the touchscreen to display a pop-up with the Song List. The currently playing song is indicated by an arrow and lines above and below the song title. When in the Tracks List screen, you can rotate the Tune/Scroll knob to highlight a track (indicated by the line above and below the track name) and then push the Enter/Browse knob to start playing that track.
Pressing the Tracks button on the touchscreen while the pop-up is displayed will close the pop-up.
Refer to“Radio Mode” for adjusting the audio settings.
AUX (Auxiliary Mode) is entered by inserting an AUX device using a cable with a 3.5 mm audio jack into the AUX port or by pressing the AUX button on the left side of the display.
Gently insert the Auxiliary device cable into the AUX Port. If you insert an Auxiliary device with the ignition and the radio on, the unit will switch to AUX mode and begin to play when you insert the device cable.
The control of the auxiliary device (e.g., selecting playlists, play, fast forward, etc.)
cannot be provided by the radio; use the device 9
controls instead. Adjust the volume with the Volume/Mute rotary knob, or with the volume of the attached device.
The radio unit is acting as the amplifier for audio output from the Auxiliary device. Therefore, if the volume control on the Auxiliary device is set too low, there will be insufficient audio signal for the radio unit to play the music on the device.
Press the Media button on the touchscreen to select the desired audio source: AUX.
Refer to“Radio Mode” for adjusting the audio settings.
Bluetooth® Streaming Audio (BTSA) or Bluetooth® Mode is entered by pairing a Bluetooth® device, containing music, to the Uconnect System.

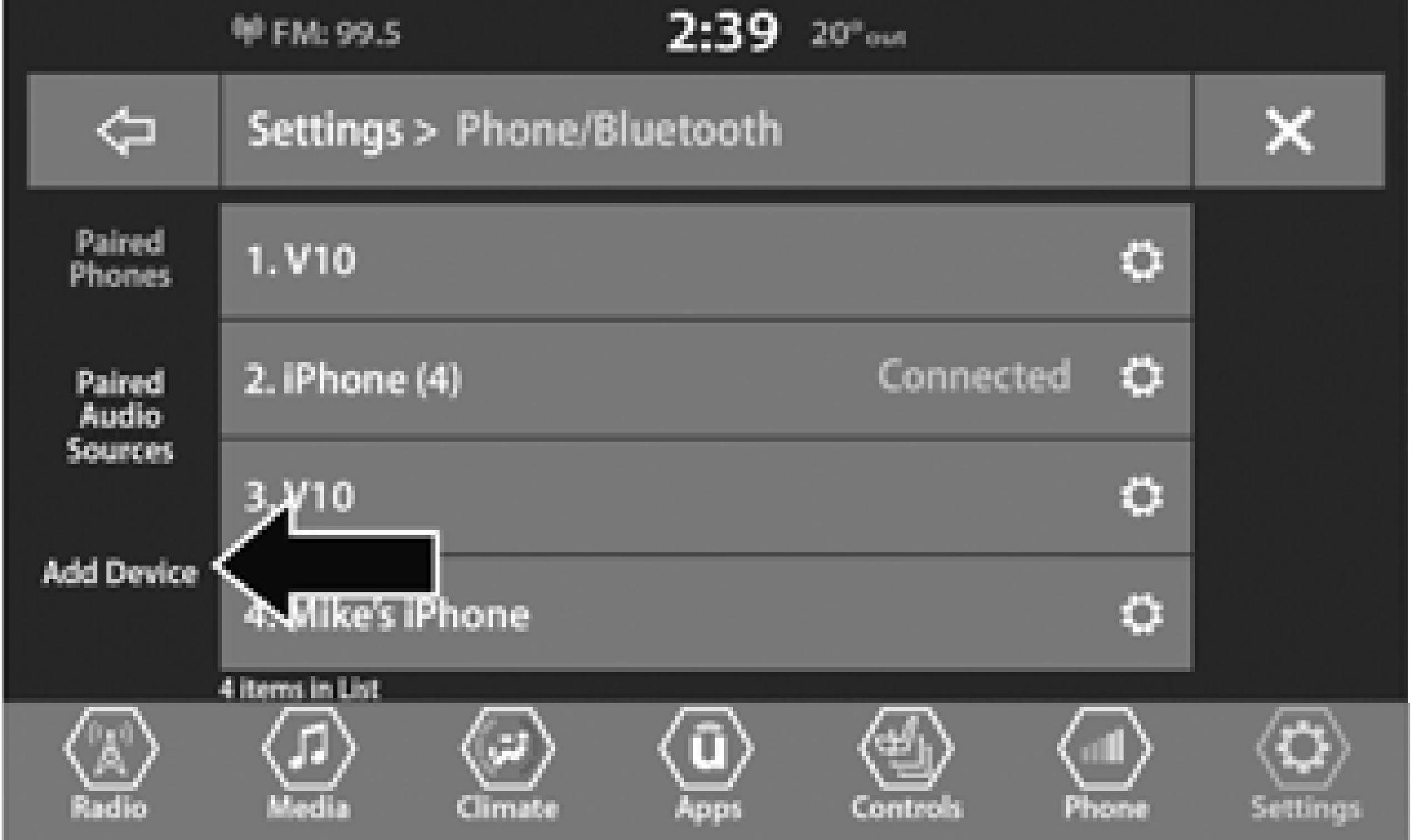

Before proceeding, the Bluetooth® device must be paired to the Uconnect Phone to communicate with the Uconnect System.
See the pairing procedure in the Uconnect Phone section for more details.

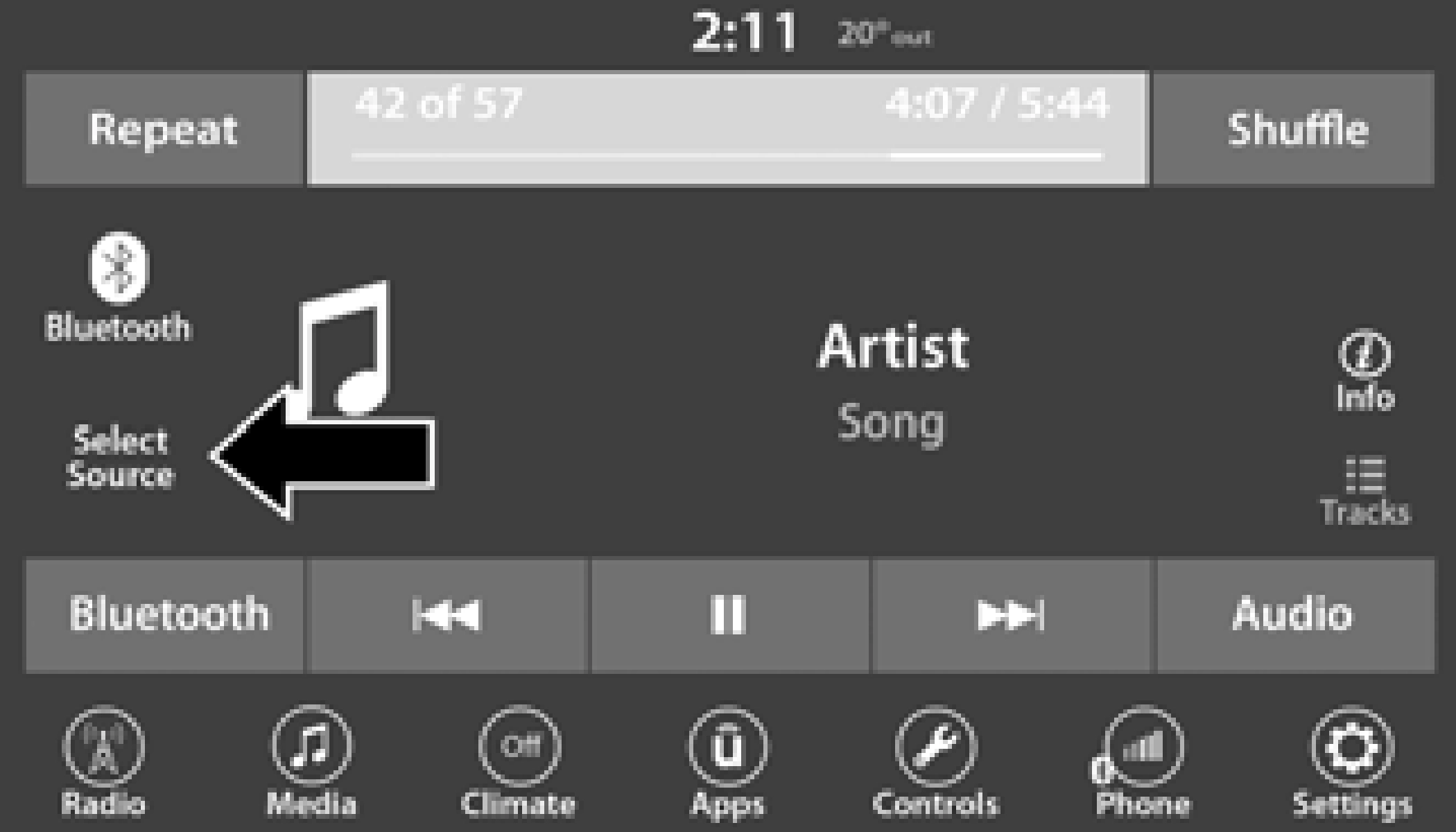

To access Bluetooth® mode, press the Select Source button on the left side of the display, and then select Bluetooth®.
Bluetooth® Mode
Press and release the Seek Up button on the touchscreen for the next selection on the Bluetooth® device. Press and release the Seek
Down button on the touchscreen to return to the beginning of the current selection, or return to the beginning of the previous selection if the Bluetooth® device is within the first second of the current selection.
Press the Media button on the touchscreen to select the desired audio source: Bluetooth®.
If the Bluetooth® device supports this feature, press the Tracks button on the touchscreen to display a pop-up with the Song List. The currently playing song is indicated by a red arrow and lines above and below the song title.
Pressing the Tracks button on the touchscreen while the pop-up is displayed will close the pop-up.
Refer to“Radio Mode” for adjusting the audio settings.
Feature availability depends on your carrier and mobile phone manufacturer. Some Android Auto™ features may or may not be available in every region and/or language.
Android Auto™ is a feature of your Uconnect system, and your Android™ 5.0 or higher powered smartphone with a data plan, that allows you to project your smartphone and a
number of its apps onto the touchscreen radio display. Android Auto™ automatically brings you useful information, and organizes it into simple cards that appear just when they are needed.
Android Auto™ can be used with Google's best-in-class speech technology, the steering
wheel controls, the knobs and buttons on your radio faceplate, and the radio display’s touchscreen to control many of your apps. To use Android Auto™, follow the following procedure:
1. Download the Android Auto™ app from the

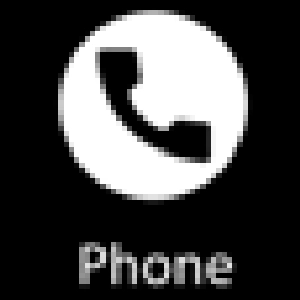

3. Once the device is connected and recognized, the“Phone” icon on the drag & drop menu bar changes to the Android Auto™ Icon.

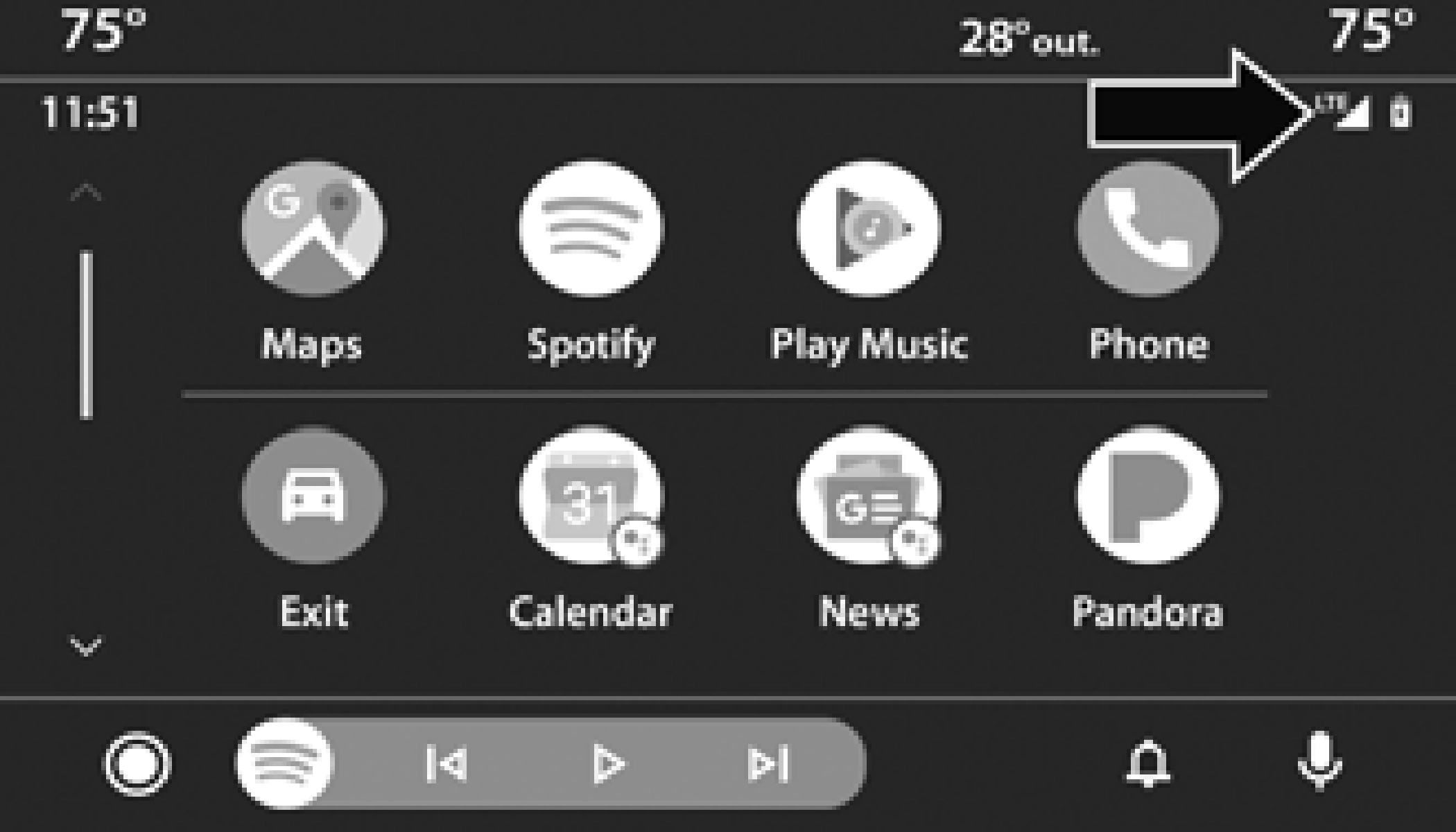

Once Android Auto™ is up and running on your Uconnect system, the following features can be utilized using your smartphone’s data plan:
Signal Strength
Google Play store on your Android™-powered smartphone.
2. Connect your Android™-powered smartphone to one of the media USB ports in your vehicle. If the Android Auto™ app was not downloaded, the first time you plug your device in, the app will begin to download.
Be sure to use the factory-provided USB cable that came with your phone, as aftermarket cables may not work.
cation
To use Android Auto™, make sure you are in an area with cellular coverage. Android Auto™ may use cellular data and your cellular coverage is shown in the upper right corner of the radio screen.
Requires compatible smartphone running Android™ 5.0 or higher and download app on Google Play. Android™, Android Auto™ and Google Play are trademarks of Google Inc.

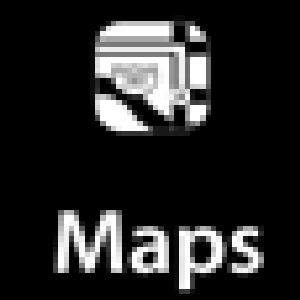

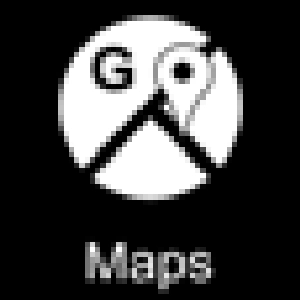

Android Auto™ Maps
Push and hold the VR button on the steering wheel or tap the microphone icon to ask Google to take you to a
desired destination by voice. You can 9
also touch the Navigation icon in Android Auto™
to access Google Maps™.
If the VR button is not held, and is only pushed, the built-in Uconnect VR prompts you and any navigation command said launches the built-in Uconnect navigation system.
While using Android Auto™, Google Maps™ provides voice-guided:
For further information, refer to www.android.com/auto/ (US Residents) https:/
/www.android.com/intl/en_ca/auto (Canadian Residents).
For further information on the navigation function, please refer to https:// support.google.com/android or https:// support.google.com/androidauto/.

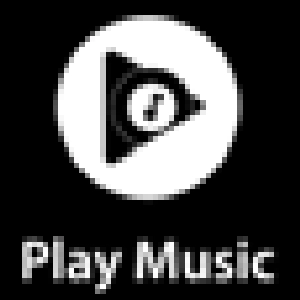

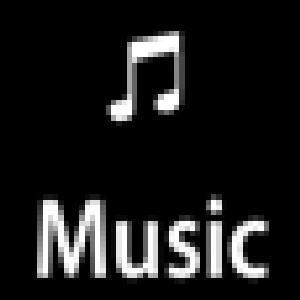

Android Auto™ Music
Android Auto™ allows you to access and stream your favorite music with apps like Google Play Music, iHeartRadio, and Spotify. Using your smartphone’s data
plan, you can stream endless music on the road.
Music apps, playlists, and stations must be set up on your smartphone prior to using Android Auto™, for them to work with Android Auto™.
To see the metadata for the music playing through Android Auto™, select the Uconnect System’s media screen.
For further information refer to https:// support.google.com/androidauto.
Android Auto™ Communication
With Android Auto™ connected, push and hold the VR button on the steering wheel to activate voice recognition specific to the Android
Auto™. This will allow you to send and reply to text messages, have incoming text messages read out loud, and place and receive hands-free calls.
Android Auto™ Apps
The Android Auto™ App will display all the compatible apps that are available to use with Android Auto™, every time it is launched. You must have the compatible app downloaded, and you must be signed in to the app for it to work with Android Auto™.
Refer to g.co/androidauto to see the latest list of available apps for Android Auto™.
Feature availability depends on your carrier and mobile phone manufacturer. Some Apple CarPlay® features may or may not be available in every region and/or language.
Uconnect works seamlessly with Apple CarPlay®, the smarter, more secure way to use your iPhone® in the car, and stay focused on the road. Use your Uconnect Touchscreen display, the vehicle's knobs and controls, and your voice with Siri to get access to Apple Music®, Maps, Messages, and more.
To use Apple CarPlay®, make sure you are using iPhone® 5 or later, have Siri enabled in Settings, ensure your iPhone® is unlocked for the very first connection only, and then use the following procedure:
Be sure to use the factory-provided Lightning cable that came with your phone, as after- market cables may not work.
Apple CarPlay®

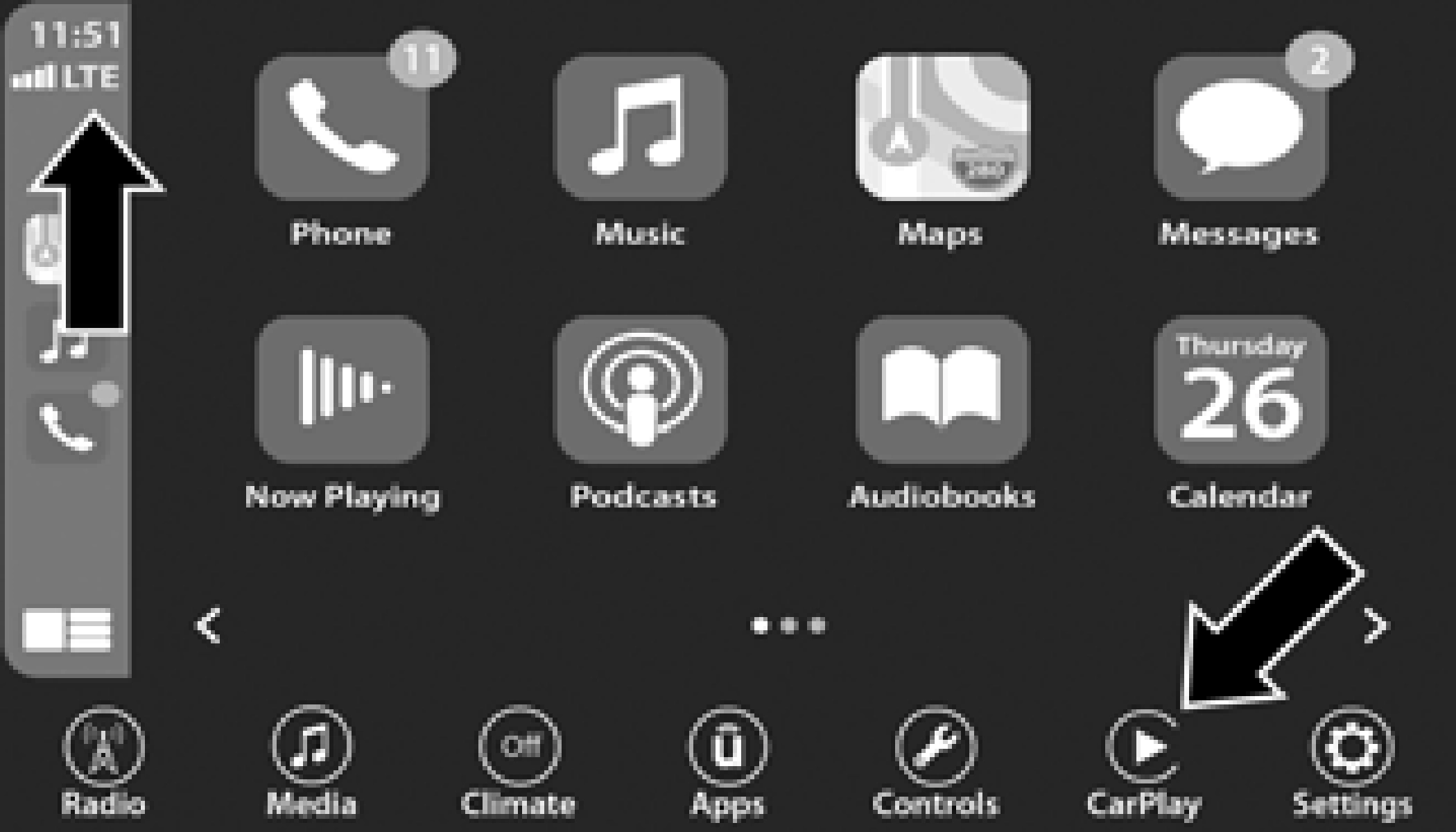

Once Apple CarPlay® is up and running on your Uconnect system, the following features can be utilized using your iPhone’s® data plan:
To use Apple CarPlay® make sure that cellular data is turned on, and that you are in an area with cellular coverage. Your data and cellular coverage is shown on the left side of the radio screen.
Requires compatible iPhone®. See dealer for phone compatibility. Data plan rates apply. Vehicle user interface is a product of Apple®. Apple CarPlay® is a trademark of Apple® Inc. iPhone® is a trademark of Apple® Inc., regis- tered in the US and other countries. Apple® terms of use and privacy statements apply.
Apple CarPlay® Phone
With Apple CarPlay®, push and hold the VR button on the steering wheel to activate a Siri voice recognition session. You can also press and hold
the Home button within Apple CarPlay® to start 9
talking to Siri. This allows you to make calls or
listen to voice mail as you normally would using Siri on your iPhone®.
Only temporarily pushing the VR button on the steering wheel launches a built-in VR session, not a Siri session, and it will not function with Apple CarPlay®.
Apple CarPlay® Music
Apple CarPlay® allows you to access all your artists, playlists, and music from iTunes®. Using your iPhone’s® data plan, you can also use select
third party audio apps including music, news, sports, podcasts and more.
Apple CarPlay® Messages
Just like Phone, Apple CarPlay® allows you to use Siri to send or reply to text messages. Siri can also read incoming text messages, but driver’s
will not be able to read messages, as everything is done via voice.
Apple CarPlay® Maps
To use your Apple® Maps for navigation on your Uconnect system, launch Apple CarPlay®, and push and hold the VR button on the steering
wheel to use Siri to set your desired destination.
Alternatively, choose a nearby destination by pressing Destinations and selecting a category, by launching Siri from the destinations page, or even by typing in a destination.
If the Voice Recognition (VR) button is not held, and is only pushed, the built-in Uconnect VR prompts you and any navigation command said launches the built-in Uconnect navigation system.
Apple CarPlay® Apps
To use a compatible app with Apple CarPlay®, you must have the compatible app downloaded, and you must be signed in to the app.
Refer to http://www.apple.com/ios/carplay/ (US Residents) or https://www.apple.com/ca/ ios/carplay/ (Canadian Residents) to see the latest list of available apps for Apple CarPlay®.
Android Auto™ And Apple CarPlay® Tips And Tricks
AutoPlay
AutoPlay is a feature of the Uconnect system that automatically begins playing music off of the connected device, as soon as it is connected. This feature can be turned on or off in the Uconnect Settings, within the Audio Settings category. Its default setting is on.
AutoPlay® is not supported by Android Auto™.
After connecting to Android Auto™ for the first time and undergoing the setup procedure, the smartphone will automatically pair to the Uconnect system via Bluetooth® without any setup required every time it is within range, if Bluetooth® is turned on.
Android Auto™ features cannot be used with Bluetooth®, a USB connection is required for its use. Android Auto™ uses both Bluetooth® and
USB connections to function, and the connected device will be unavailable to other devices when connected using Android Auto™.
It is possible to have multiple devices connected to the Uconnect system. For example, if using Android Auto™/Apple CarPlay®, the connected device will be the one that will be used to place hands-free phone calls or send hands-free text messages. However, another device can also be paired to the Uconnect system, via Bluetooth®, as an audio source, so the passenger can stream music.
PHONE MODE
Uconnect 4 With 7-inch Display Radio Phone Menu
12 — Browse Phone Book Entries 13 — End Call
14 — Call/Redial/Hold 15 — Do Not Disturb
16 — Reply With Text Message
* — Conference Call feature only available on Global System Mobile (GSM) mobile devices
** — Text messaging feature not available on all mobile phones [requires Bluetooth® Message Ac- cess Profile (MAP) profile]
Uconnect Phone is a voice-activated,
hands-free, in-vehicle communications system. Uconnect Phone allows you to dial a phone number with your mobile phone.
Uconnect Phone supports the following features:
incoming SMS messages. 9
Examples of Voice Commands are provided throughout this manual. For quick use, go to the Voice Command Quick Reference Section.
Your phone must be capable of SMS messaging via Bluetooth® for messaging features to work properly.
Your mobile phone’s audio is transmitted through your vehicle’s audio system; the system automatically mutes your radio when using the Uconnect Phone.
For Uconnect customer support:
877-855-8400
800-465-2001
or (French) call:
800-387-9983
Uconnect Phone allows you to transfer calls between the system and your mobile phone as you enter or exit your vehicle and enables you to mute the system's microphone for private conversation.
The Uconnect Phone is driven through your Bluetooth®“Hands-Free Profile” mobile phone. Uconnect features Bluetooth® technology — the global standard that enables different electronic devices to connect to each other without wires or a docking station, so Uconnect Phone works no matter where you stow your mobile phone (be it your purse, pocket, or briefcase), as long as your phone is turned on and has been paired to the vehicle's Uconnect Phone. The Uconnect Phone allows up to 10 mobile phones or audio devices to be linked to the system. Only one linked (or paired) mobile phone and one audio device can be used with the system at a time.
The Uconnect Phone button on your steering wheel is used to get into the phone mode and make calls, show recent, incoming, outgoing calls, view phonebook etc.
The Uconnect Voice Command button on your steering wheel is only used for“barge in” and when you are already in a call and you want to send tones or make another call.
The button on your steering wheel is also used to access the Voice Commands for the Uconnect Voice Command features if your vehicle is equipped. Please see the Uconnect Voice Command section for direction on how to use the button.
The Uconnect Phone is fully integrated with the vehicle's audio system. The volume of the Uconnect Phone can be adjusted either from the radio volume control knob or from the steering wheel radio control.
Operation
Voice commands can be used to operate the Uconnect Phone and to navigate through the
Uconnect Phone menu structure. Voice commands are required after most Uconnect Phone prompts. There are two general methods for how Voice Command works:
You will be prompted for a specific command and then guided through the available options.
form voice command“Search for John Smith,” or you can break the compound command form into two voice commands:“Search Contact” and when asked“John Smith.” Please remember, the Uconnect Phone works best when you talk in a normal conversational tone, as if speaking to someone sitting a few feet/ meters away from you.
Natural Speech
Your Uconnect Phone Voice system uses a Natural Language Voice Recognition (VR) engine.
Natural speech allows the user to speak commands in phrases or complete sentences. The system filters out certain non-word utterances and sounds such as“ah” and“eh.” The system handles fill-in words such as“I would like to.”
The system handles multiple inputs in the same
phrase or sentence such as“make a phone 9
call” and“to Kelly Smith”. For multiple inputs in
the same phrase or sentence, the system identifies the topic or context and provides the associated follow-up prompt such as“Who do you want to call?” in the case where a phone call was requested but the specific name was not recognized.
The system utilizes continuous dialog; when the system requires more information from the user it will ask a question to which the user can respond without pushing the Voice Command button on your steering wheel.
Help Command
If you need assistance at any prompt, or if you want to know your options at any prompt, say“Help” following the beep.
To activate the Uconnect Phone from idle, simply push the Phone button (if active) on your steering wheel and say a command or say“Help.” All Uconnect Phone sessions begin with a push of the VR button or the Phone button (if active) on the radio control head.
Cancel Command
At any prompt, after the beep, you can say“Cancel” and you will be returned to the main menu.
You can also push the VR button or Phone button (if active) on your steering wheel when the system is listening for a command and be returned to the main or previous menu.
Pair (Link) Uconnect Phone To A Mobile Phone
To begin using your Uconnect Phone, you must pair your compatible Bluetooth®-enabled mobile phone. Mobile phone pairing is the process of establishing a wireless connection between a cellular phone and the Uconnect system.
To complete the pairing process, you need to reference your mobile phone Owner's Manual. Please visit UconnectPhone.com for complete mobile phone compatibility information.
If there are no phones currently connected with the system, a pop-up will appear asking if you would like to pair a mobile phone.
Pairing A Phone
If“No” is selected, and you still would like to pair a mobile phone, press the Phone Set- tings button from the Uconnect Phone main screen.
Some mobile phones will require you to enter the PIN.
system automatically when entering the vehicle. Only one mobile phone and/or one Bluetooth® audio device can be connected to the Uconnect system at a time. If“No” is selected, simply select“Uconnect” from the mobile phone/audio device Bluetooth® screen, and the Uconnect system will reconnect to the Bluetooth® device.
Software updates on your phone or the Uconnect system may interfere with the Blue- tooth® connection. If this happens, simply repeat the pairing process. However, first, make sure to delete the device from the list of phones on your Uconnect system. Next, be sure to remove Uconnect from the list of devices in your phone’s Bluetooth® settings.
Pair Additional Mobile Phones
For phones which are not made a favorite, the phone priority is determined by the order in which it was paired. The latest phone paired will have the higher priority.
You can also use the following VR commands to bring up the Paired Phone screen from any screen on the radio:
Pair A Bluetooth® Streaming Audio Device
If there is no device currently connected with the system, a pop-up will appear.
the highest priority. This device will take precedence over other paired devices within range.
For devices which are not made a favorite, the device priority is determined by the order in which it was paired. The latest device paired will have the higher priority.
You can also use a following VR command to bring up a list of paired audio devices:
Connecting To A Particular Mobile Phone Or Audio Device After Pairing
Uconnect Phone will automatically connect to the highest priority paired phone and/or Audio Device within range. If you need to choose a particular phone or Audio Device follow these steps:
Disconnecting A Phone Or Audio Device
Deleting A Phone Or Audio Device
Making A Phone Or Audio Device A Favorite
Phonebook Download (Automatic Phonebook Transfer From Mobile Phone) — If Equipped
If equipped and specifically supported by your phone, Uconnect Phone automatically downloads names (text names) and number entries from the mobile phone’s phonebook. Specific Bluetooth® Phones with Phonebook Access Profile may support this feature.
See Uconnect website, UconnectPhone.com, for supported phones.
can be used. Until then, if available, the previ- ously downloaded phonebook is available for use.
Managing Your Favorites
There are two ways you can add an entry to your Favorites.
Contacts from the Phone main screen, and then select the appropriate number. Press the down arrow symbol button next to the selected number to display the options pop-up. In the pop-up select Add to Favorites.
If the Favorites list is full, you will be asked to remove an existing favorite.
To Remove A Favorite
The following features can be accessed through the Uconnect Phone if the feature(s) are available and supported by Bluetooth® on your mobile service plan. For example, if your mobile service plan provides three-way calling, this feature can be accessed through the Uconnect Phone. Check with your mobile service provider for the features that you have.
Ways To Initiate A Phone Call
Listed below are all the ways you can initiate a phone call with Uconnect Phone.
to begin.
Call By Saying A Phonebook Name
Call Controls
The touchscreen allows you to control the following call features:
Touch-Tone Number Entry
If your vehicle has two or three buttons on the steering wheel (VR, Phone Send, and Phone End) press the VR button to send a touch-tone and say“Send 1234#” or you can say“Send Voicemail Password” if Voicemail password is stored in your mobile phonebook.
Recent Calls
You may browse a list of the most recent of each of the following call types:
These can be accessed by pressing the Recent Calls button on the Phone main screen.
You can also push the VR button on your steering wheel and say“Show my incoming calls” from any screen and the incoming calls will be displayed.
Incoming can also be replaced with“Outgoing,”“Recent”, or“Missed.”
Answer Or Ignore An Incoming Call — No Call Currently In Progress
When you receive a call on your mobile phone, the Uconnect Phone will interrupt the vehicle audio system. Push the Phone button on the steering wheel to accept the call. You can also press the Answer button on the touchscreen or press the caller ID box.
Answer Or Ignore An Incoming Call — Call Currently In Progress
If a call is currently in progress and you have another incoming call, you will hear the same network tones for call waiting that you normally hear when using your mobile phone. Press the Uconnect Phone button on the steering wheel, answer button on the touchscreen or caller ID
box to place the current call on hold and answer the incoming call.
The Uconnect Phone compatible phones in the market today do not support rejecting an incoming call when another call is in progress. Therefore, the user can only answer an incoming call or ignore it.
Do Not Disturb
With Do Not Disturb, you can disable notifications from incoming calls and texts, allowing you to keep your eyes on the road and hands on the wheel. For your convenience, there is a counter display to keep track of your missed calls and text messages while you were using Do Not Disturb.
Do Not Disturb can automatically reply with a text message, a call, or both when declining an incoming call and send it to voicemail.
Automatic reply messages can be: 9
Only the first 25 characters can be seen on the touchscreen while typing a custom message.
While in Do Not Disturb, Conference Call can be selected so you can still place a second call without being interrupted by incoming calls.
Place/Retrieve A Call From Hold
During an active call, press the Hold button on the Phone main screen.
Making A Second Call While Current Call Is In Progress
You can place a call on hold by pressing the Hold button on the Phone main screen, then dial a number from the dialpad, recent calls, SMS Inbox or from the phonebooks. To go back to the first call, refer to“Toggling Between Calls” in this section. To combine two calls, refer to“Join Calls” in this section.
Toggling Between Calls
If two calls are in progress (one active and one on hold), press the Swap button on the Phone main screen. Only one call can be placed on hold at a time.
You can also push the Phone button to toggle between the active and held phone call.
Join Calls
When two calls are in progress (one active and one on hold), press the Join Calls button on the Phone main screen to combine all calls into a Conference Call.
Call Termination
To end a call in progress, momentarily press the Phone End button on the touchscreen or the Phone End button on the steering wheel. Only the active call(s) will be terminated and if there is a call on hold, it will become the new active call.
Redial
Press the Redial button on the touchscreen, or push the VR button and after the“Listening” prompt and the following beep, say“Redial.”
The Uconnect Phone will call the last number that was dialed from your mobile phone.
Call Continuation
Call continuation is the progression of a phone call on the Uconnect Phone after the vehicle ignition has been switched to OFF.
The call will remain within the vehicle audio system until the phone becomes out of range for the Bluetooth® connection. It is recom- mended to press the Transfer button on the touchscreen when leaving the vehicle.
Browsing SMS
Using the steering wheel commands, you can view and manage the last 10 SMS messages received on the instrument panel. To use this function, the mobile phone must support the SMS exchange function through Bluetooth®.
Select the PHONE button on the instrument panel menu, and then select“SMS Reader” using the arrow keys on the steering wheel controls.
The“SMS Reader” submenu allows the last 10 SMS messages to be displayed.
Transfer Call To And From Mobile Phone The Uconnect Phone allows ongoing calls to be
transferred from your mobile phone to the Uconnect Phone without terminating the call. To transfer an ongoing call from your connected mobile phone to the Uconnect Phone or vice versa, press the Transfer button on the Phone main screen.
Connect Or Disconnect Link Between The Uconnect Phone And Mobile Phone
If you would like to connect or disconnect the Bluetooth® connection between a Uconnect Phone paired mobile phone and the Uconnect Phone, follow the instructions described in your mobile phone User's Manual.
Voice Command
For the best performance:
½-inch (1 cm) gap between the overhead console (if equipped) and the mirror.
Performance is maximized under:
Even though the system is designed for many languages and accents, the system may not always work for some.
It is recommended that you do not store names in your favorites phonebook while the vehicle is in motion.
Phonebook (Mobile and Favorites) name recognition rate is optimized when the entries are not similar. You can say“O” (letter“O”) for“0” (zero).
Even though international dialing for most number combinations is supported, some shortcut dialing number combinations may not be supported.
Far End Audio Performance Audio quality is maximized under:
Performance such as audio clarity, echo, and loudness to a large degree rely on the phone and network, and not the Uconnect Phone.
Echo at the far end can sometimes be reduced by lowering the in-vehicle audio volume.
Bluetooth® Communication Link Mobile phones have been found to lose
connection to the Uconnect Phone. When this happens, the connection can generally be
re-established by switching the mobile phone OFF/ON. Your mobile phone is recommended to remain in Bluetooth® ON mode.
Power-Up
After switching the ignition key from OFF to either the ON/RUN or ACC position, or after a language change, you must wait at least 15 seconds prior to using the system.
Download Manual
