BULB REPLACEMENT
All of the interior bulbs are glass wedge base or glass cartridge types. Aluminum base bulbs are not approved and should not be used for replacement.
6
|
Exterior Bulbs |
|
|
Bulb Name |
Bulb Number |
|
Low/High Beam Headlamp (Standard Halogen Bi Function Projector) |
9005SL+ |
|
Low/High Beam Headlamp – High Intensity Discharge (Premium HID Bi Function Projector) |
D3S (Serviced at an Authorized Dealer) |
|
Front Park/Turn Lamp |
LED (Serviced at an Authorized Dealer) |
|
Front Fog Lamp – If Equipped |
LED (Serviced at an Authorized Dealer) |
|
Front Side Marker |
LED (Serviced at an Authorized Dealer) |
|
Rear Tail Lamp |
LED (Serviced at an Authorized Dealer) |
|
Rear Stop/Turn Lamp |
LED (Serviced at an Authorized Dealer) |
|
Rear Side Marker |
LED (Serviced at an Authorized Dealer) |
|
Backup Lamp |
LED (Serviced at an Authorized Dealer) |
|
License |
LED (Serviced at an Authorized Dealer) |
Front Low/High Beam Headlamp — Models With Halogen Headlamps
1. Open the hood.

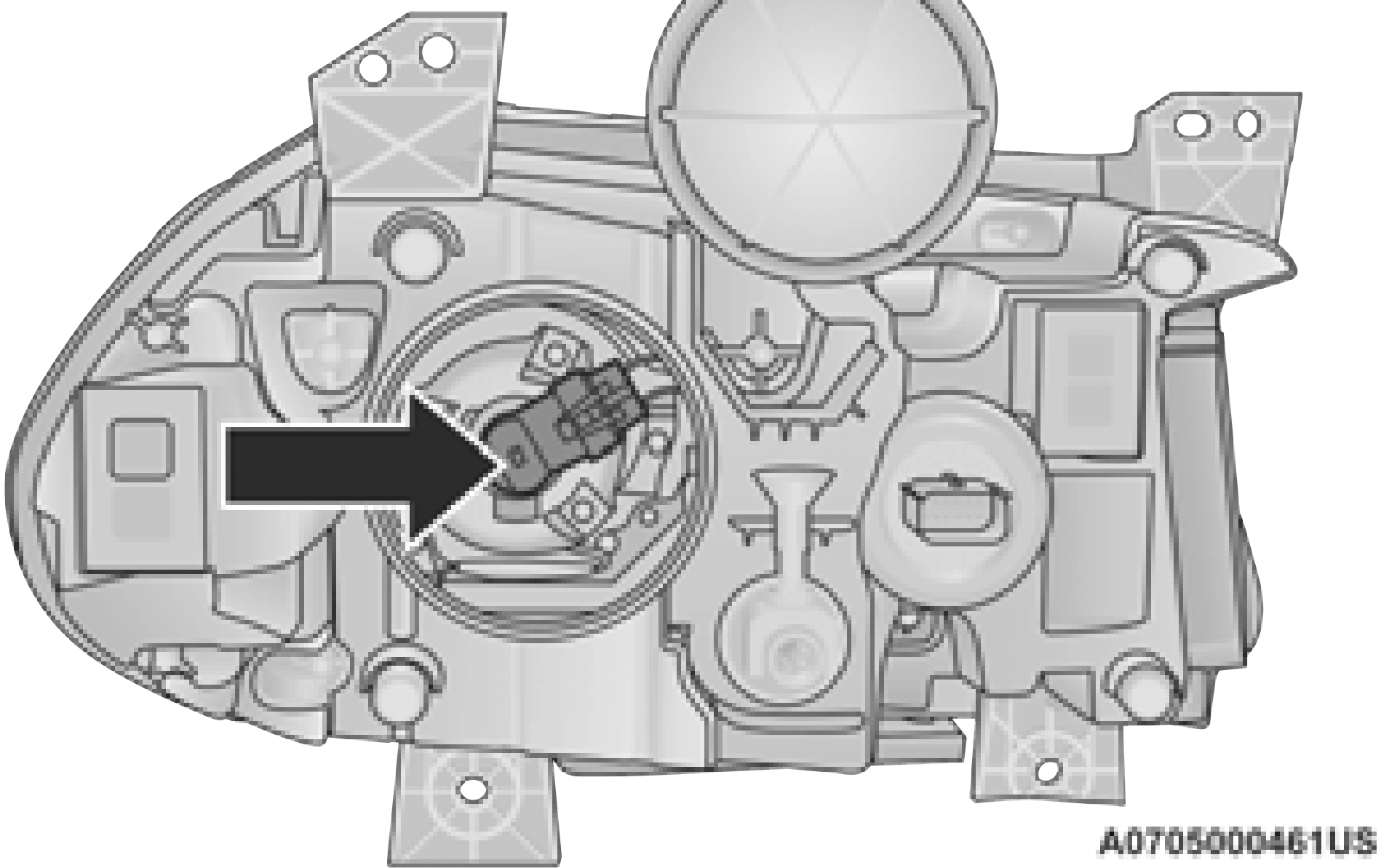

Headlamp Assembly
Front Low/High Beam Headlamp — Models With High Intensity Discharge (HID) Headlamps
The headlamps are a type of high voltage discharge tube. High voltage can remain in the circuit even with the headlamp switch off and the key removed. Because of this, you should not attempt to service a headlamp bulb yourself. If a headlamp bulb fails, take your vehicle to an authorized dealer for service.

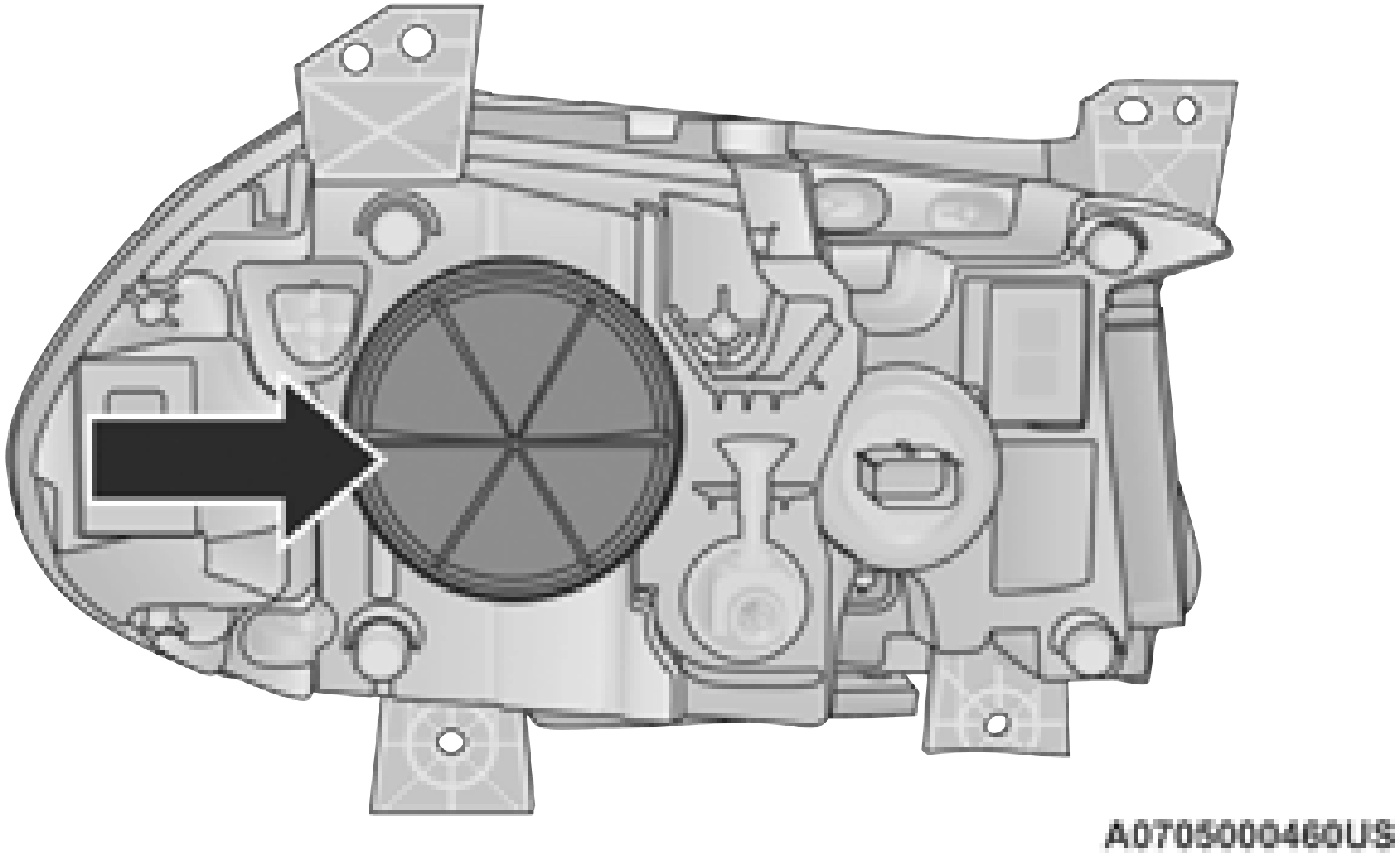

Headlamp Assembly Dust Cap Location
6
4. Disconnect the bulb from the socket
Removal of the air cleaner filter housing may be necessary prior to replacing bulbs in the head- lamp assembly on the driver side of the vehicle.
assembly and install the replacement bulb.
On vehicles equipped with HID headlamps, when the headlamps are turned on, there is a blue hue to the lights. This diminishes and becomes more white after approximately 10 seconds, as the system charges.
The Side Markers use LED lamps that are not serviceable separately. The Side Markers must be replaced as an assembly, see an authorized dealer.
The Front Fog Lamps use LED sources that are not serviceable separately. The Front Fog Lamp must be replaced as an assembly; see an authorized dealer.
The Front Park/Turn function is part of the headlamp assembly and use LED lamps that are not serviceable separately. The headlamps must be replaced as an assembly, see an authorized dealer.
The Backup Lamps use LED sources that are not serviceable separately. The Applique must be replaced as an assembly; see an authorized dealer.
The License Lamp uses an LED source that is not serviceable separately. The License Lamp must be replaced as an assembly; see an authorized dealer.
Center High Mounted Stop Lamp (CHMSL) The CHMSL Lamp uses LED sources that are not serviceable separately. The CHMSL Lamp
must be replaced as an assembly; see an
authorized dealer.
