FUSES
The fuses protect electrical systems against excessive current.
When a device does not work, you must check the fuse element inside the blade fuse for a break/melt.
Also, please be aware that when using power outlets for extended periods of time with the engine off may result in vehicle battery discharge.

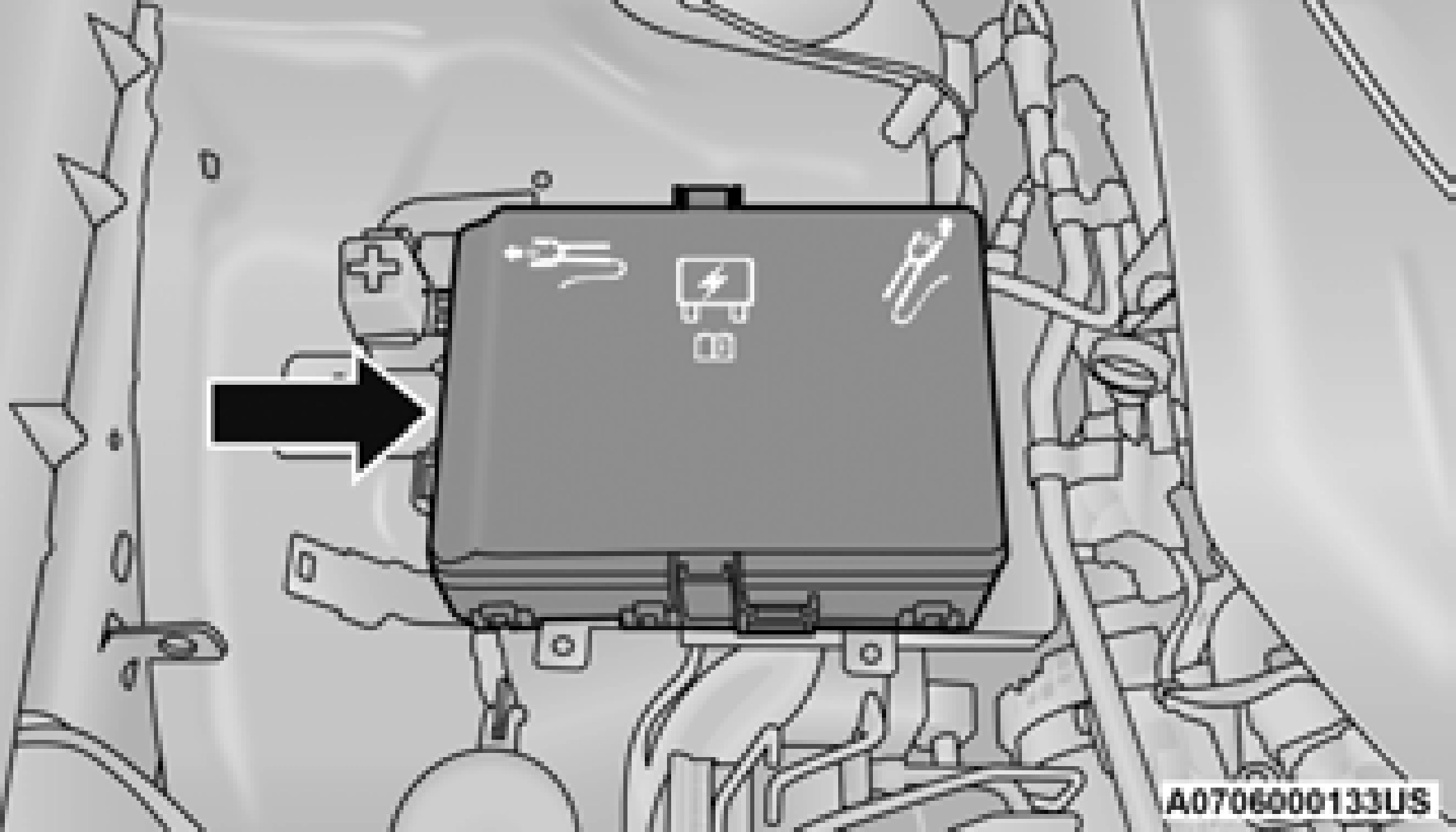

The Front Power Distribution Center is located in the engine compartment. This module contains fuses and relays. Fuse cavity location and descriptions are printed on the inside of the power distribution center cover.

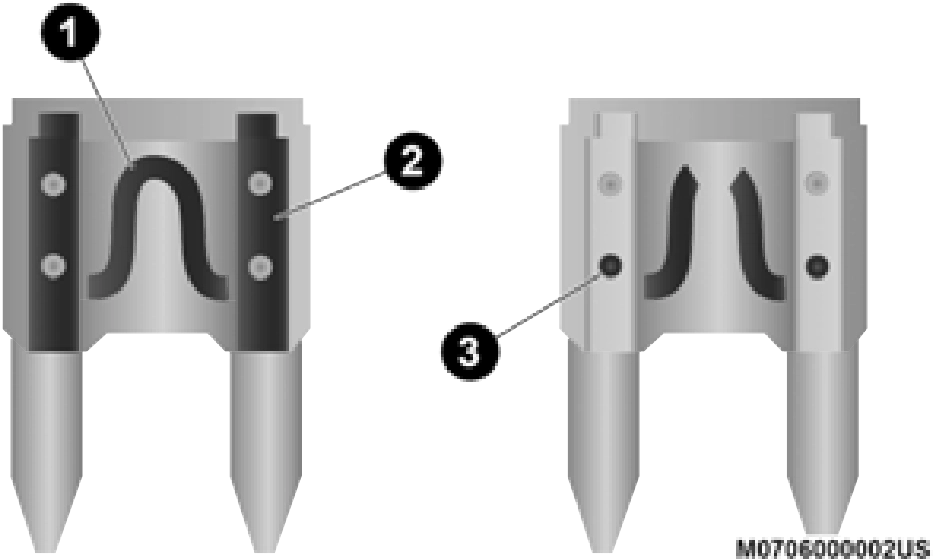

Blade Fuses 6
Front Power Distribution Center
|
Cavity |
Cartridge Fuse |
Mini-Fuse |
Description |
|
F1 |
– |
– |
Fuse – Spare |
|
F2 |
40 Amp Green |
– |
Radiator Fan #1 – (Non 6.2L Supercharged) |
|
F3 |
50 Amp Red |
– |
Electric Power Steering #1 – If Equipped |
|
F4 |
30 Amp Pink |
– |
Starter |
|
F5 |
40 Amp Green |
– |
Anti-Lock Brakes |
|
F6 |
30 Amp Pink |
– |
Anti-Lock Brakes |
|
F7 |
20 Amp Blue |
– |
Police Ignition Run / ACC #1 |
|
F8 |
50 Amp Red / 20 Amp Blue |
– |
Radiator Fan (6.2L Supercharged) / Police Ignition Run / ACC # 2 |
|
F9 |
– |
20 Amp Yellow |
All-Wheel Drive Module – If Equipped |
|
F10 |
– |
10 Amp Red |
Intrusion MOD (300) – If Equipped / Under Hood Lamp – Police |
|
F11 |
– |
20 Amp Yellow |
Horns |
|
F12 |
– |
10 Amp Red |
Air Conditioning Clutch |
|
F13 |
– |
– |
Fuse – Spare |
|
F14 |
– |
– |
Fuse – Spare |
|
F15 |
– |
20 Amp Yellow |
LH HID Headlamp – If Equipped |
|
F16 |
– |
20 Amp Yellow |
RH HID Headlamp – If Equipped |
|
Cavity |
Cartridge Fuse |
Mini-Fuse |
Description |
|
F36 |
– |
10 Amp Red |
Anti-Lock Brake Module / Steering Column Lock Module (300 if equipped) |
|
F37 |
– |
10 Amp Red |
Engine Controller |
|
F38 |
– |
10 Amp Red |
Airbag Module |
|
F39 |
– |
10 Amp Red |
AC Clutch/EPS – If Equipped/ Vacuum Pump – If Equipped |
|
F48 |
– |
10 Amp Red |
AWD Module / Front Axle Disconnect – If Equipped |
|
F49 |
– |
– |
Fuse – Spare |
|
F50 |
– |
– |
Fuse – Spare |
|
F51 |
– |
20 Amp Yellow |
Vacuum Pump – If Equipped |
|
F52 |
– |
5 Amp Tan |
Adaptive Cruise – If Equipped |
|
F53 |
– |
– |
Fuse – Spare |

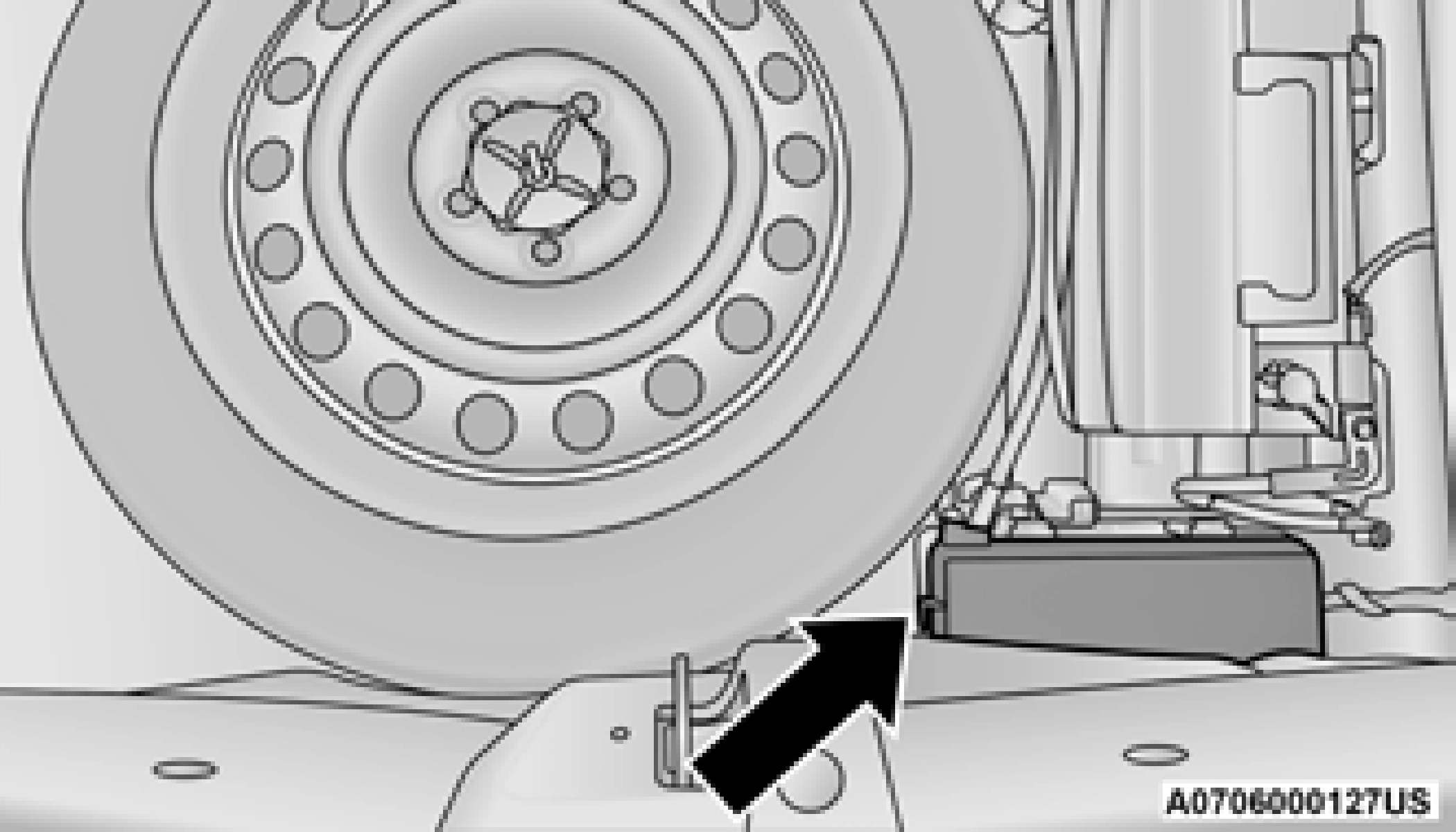

There is also a power distribution center located in the trunk under the spare tire access panel. This center contains fuses and relays. Fuse cavity location and descriptions are printed on the inside of the power distribution center cover.
Rear Power Distribution Center
|
Cavity |
Cartridge Fuse |
Mini-Fuse |
Description |
|
F2 |
60 Amp Yellow |
– |
Front PDC Feed #1 |
|
F3 |
– |
– |
Fuse – Spare |
|
F4 |
60 Amp Yellow |
– |
Front PDC Feed #2 |
|
F5 |
30 Amp Pink 20 Amp Blue – Police |
– |
Sunroof/Dome Lamp – Police |
|
F6 |
40 Amp Green |
– |
Exterior Lighting #1 |
|
F7 |
40 Amp Green |
– |
Exterior Lighting #2 |
|
Cavity |
Cartridge Fuse |
Mini-Fuse |
Description |
|
F8 |
30 Amp Pink |
– |
Interior Lighting |
|
F9 |
40 Amp Green |
– |
Power Locks |
|
F10 |
30 Amp Pink |
– |
Driver Door Control Module |
|
F11 |
30 Amp Pink |
– |
Passenger Door Control Module |
|
F12 |
– |
20 Amp Yellow |
Cigar Lighter/IP APO/RR USB (Selectable Fuse)– If Equipped |
|
F15 |
40 Amp Green |
– |
HVAC Blower |
|
F16 |
20 Amp Blue |
– |
Left Spot Lamp – Police |
|
F17 |
20 Amp Blue |
– |
Right Spot Lamp – Police |
|
F18 |
30 Amp Pink |
– |
VISM Mod (Police) |
|
F19 |
– |
– |
Fuse – Spare |
|
F20 |
– |
– |
Fuse – Spare |
|
F21 |
30 Amp Pink |
– |
Fuel Pump (Non 6.2L ADR) |
|
F22 |
– |
5 Amp Tan |
Cyber Gateway Mod |
|
F23 |
– |
10 Amp Red |
Fuel Door – If Equipped/Diagnostic Port |
|
F24 |
– |
10 Amp Red |
Integrated Center Stack |
|
F25 |
– |
10 Amp Red |
Tire Pressure Monitor |
|
F26 |
– |
15 Amp Blue |
Trans Mod (Charger Non- Police/ 300) |
|
F27 |
– |
25 Amp Clear |
Amplifier – If Equipped |
|
Cavity |
Cartridge Fuse |
Mini-Fuse |
Description |
|
F45 |
– |
15 Amp Blue |
Cluster / Rearview Mirror / Lane Departure |
|
F46 |
– |
– |
Fuse – Spare |
|
F47 |
– |
10 Amp Red |
Adaptive Front Lighting / Day Time Running Lamps – If Equipped |
|
F48 |
– |
20 Amp Yellow |
Active Suspension – (6.4L / 6.2L) |
|
F49 |
– |
– |
Fuse – Spare |
|
F50 |
– |
– |
Fuse – Spare |
|
F51 |
– |
20 Amp Yellow |
Front Heated / Vented Seats – If Equipped |
|
F52 |
– |
10 Amp Red |
Heated Cupholders/Rear Heated Seat Switches – If Equipped |
|
F53 |
– |
10 Amp Red |
HVAC Module/In Vehicle Temperature Sensor |
|
F54 |
– |
– |
Fuse – Spare |
|
F55 |
– |
– |
Fuse – Spare |
|
F56 |
– |
– |
Fuse – Spare |
|
F57 |
– |
– |
Fuse – Spare |
|
F58 |
– |
10 Amp Red |
Airbag Module |
|
F59 |
– |
20 Amp Yellow |
Adjustable Pedals – Police |
|
F60 |
– |
– |
Fuse – Spare |
|
F61 |
– |
– |
Fuse – Spare |
