Indicates the engine speed in revolutions per minute (RPM x 1000).

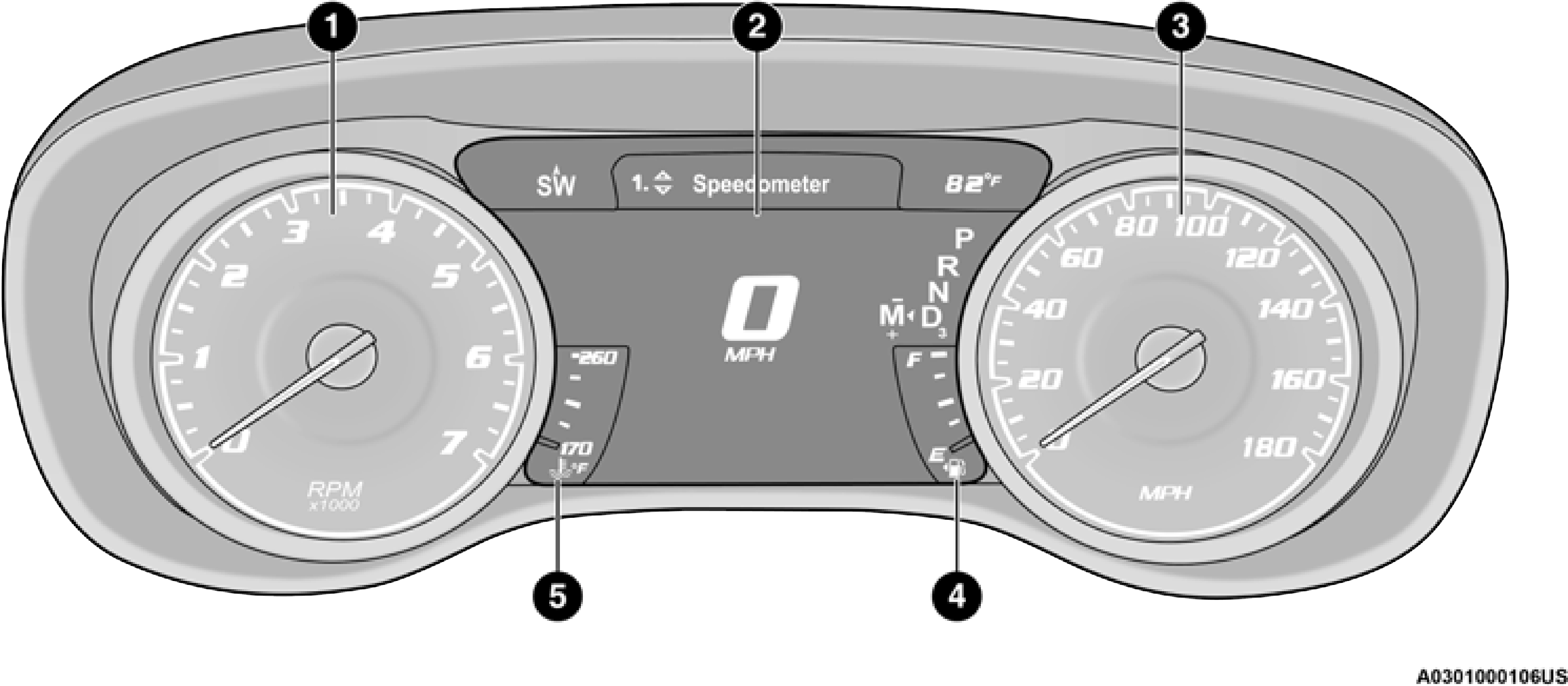

Instrument Cluster For 6.4L Engine
Instrument Cluster Display
When the appropriate conditions exist, this display shows the instrument cluster display messages. Refer to“Instrument Cluster Display” in this section for further information.
Speedometer
Indicates vehicle speed.
Fuel Gauge
The pointer shows the level of fuel in the fuel tank when the Keyless Push Button Ignition is in the ON/RUN position.
The fuel pump symbol points to the side of the vehicle where the fuel door is located.
Refer to“Refueling The Vehicle” in“Starting And Operating” for further information.
Temperature Gauge
The temperature gauge shows engine coolant temperature. Any reading within the normal range indicates that the engine cooling system is operating satis- factorily.
The gauge pointer will likely indicate a higher temperature when driving in hot weather, up mountain grades, or when towing a trailer. It should not be allowed to exceed the upper limits of the normal operating range.
The hard telltales will illuminate for a bulb check when the ignition is first cycled.
Tachometer
Indicates the engine speed in revolutions per minute (RPM x 1000).

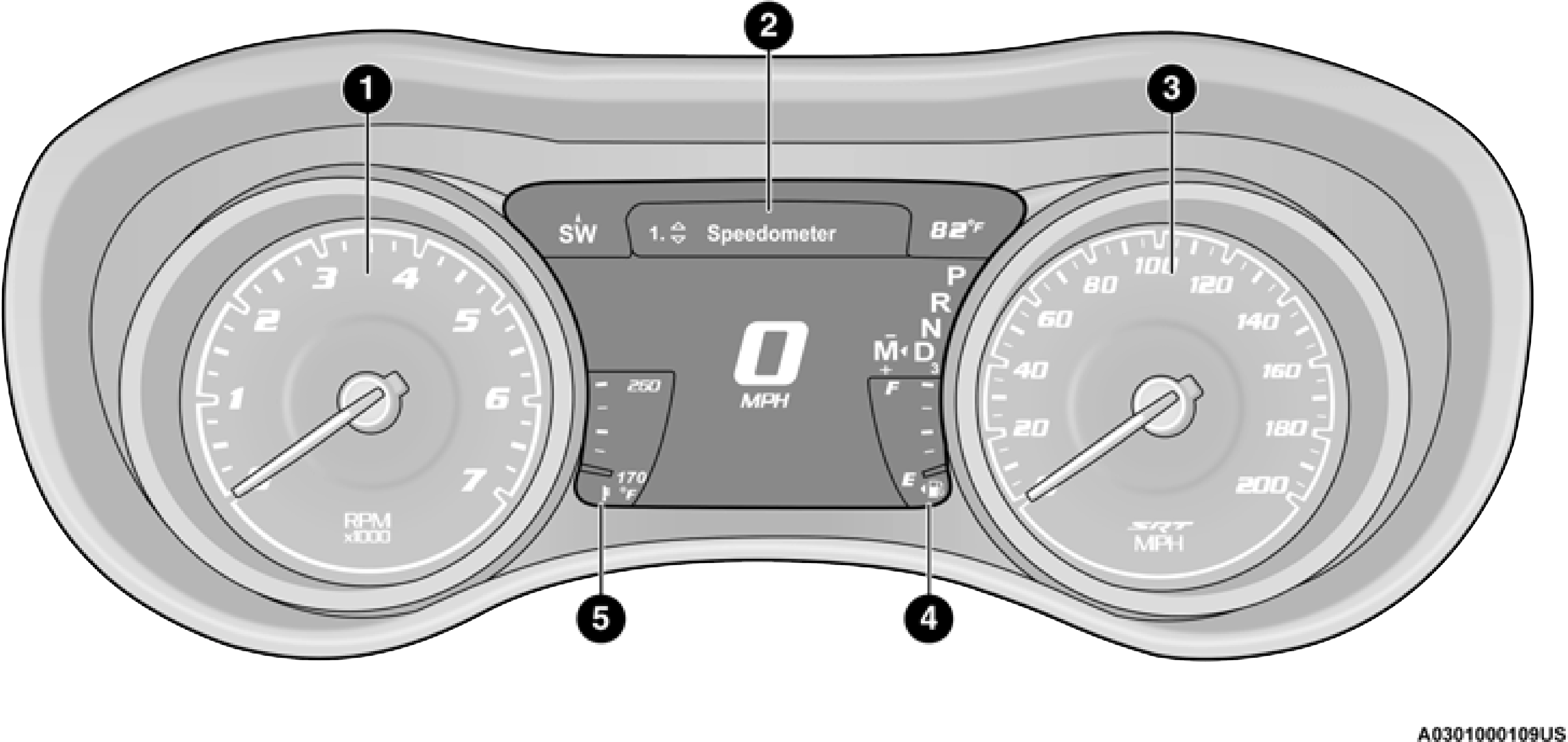

Instrument Cluster For SRT 6.2L Supercharged Engine
Instrument Cluster Display
When the appropriate conditions exist, this display shows the instrument cluster display messages. Refer to“Instrument
Cluster Display” in this section for further information.
Speedometer
Indicates vehicle speed.
Fuel Gauge
The pointer shows the level of fuel in the fuel tank when the Keyless Push Button Ignition is in the ON/RUN position.
The fuel pump symbol points to the side of the vehicle where the fuel door is located.
Refer to“Refueling The Vehicle” in“Starting And Operating” for further information.
Temperature Gauge
The temperature gauge shows engine coolant temperature. Any reading within the normal range indicates that the engine cooling system is operating satis- factorily.
The gauge pointer will likely indicate a higher temperature when driving in hot weather, up mountain grades, or when towing a trailer. It should not be allowed
Driving with a hot engine cooling system could damage your vehicle. If the temperature gauge reads greater than 230°F (110°C) pull over and stop the vehicle. Idle the vehicle with the air conditioner turned off until the pointer drops back into the normal range. If the pointer remains above 230°F (110°C), turn the engine off immediately and call an authorized dealer for service.
The fuel pump symbol points to the side of the vehicle where the fuel door is located.
The fuel pump symbol points to the side of the vehicle where the fuel door is located.
