2020 Toyota RAV4 Owners Manual - Using the storage features

Using the storage features

Pull up the lever to open the glove box.

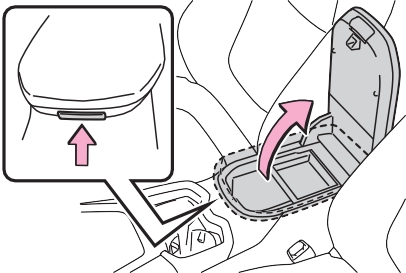

Lift the lid while pushing the but- ton to release the lock.

Console box tray (if equipped)

The tray can be removed and stored in the bottom of the console box.

Front

Rear

Front

Rear

Bottle holders

When storing a bottle, close the cap.

The bottle may not be stored depending on its size or shape.

Type B (if equipped)

Front passenger’s side

Front of console

Vehicles with wireless charger:

P.540

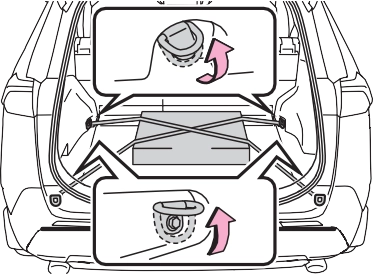

Raise the hook to use.

The cargo hooks are provided for securing loose items.

Flipping the deck board upside down

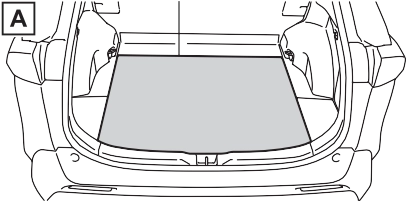

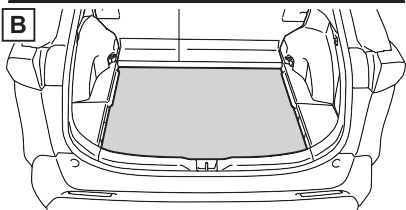

Original position Underside (resin side)

Changing the deck board

positions

Height of the deck board can be changed by setting the deck board under the floor.

Upper Lower

1 Pull up the tab to raise the deck board and move it toward you to remove.

1 Pull up the tab to raise the deck board and fold it for- ward.

the groove and move for- ward.

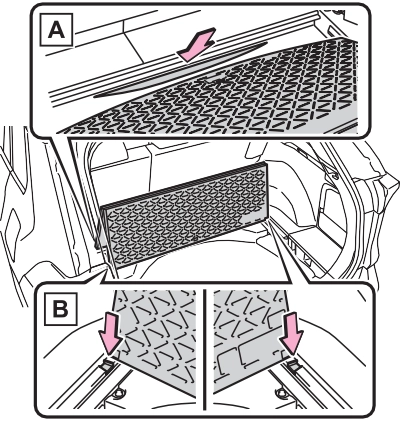

Setting the deck board upright

When taking out the tools, the deck board can be set upright.

When the back surface (resin sur- face) of the deck board is facing up, flip it back to the original position.

the edge into the holes.

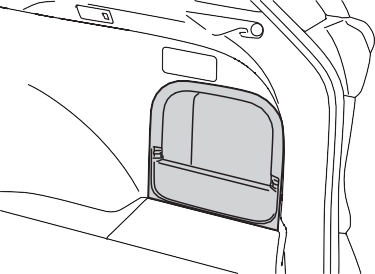

Type A

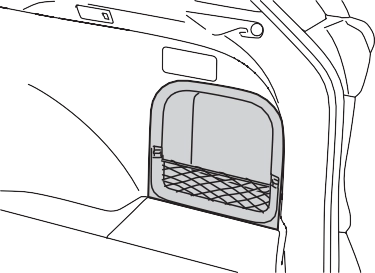

Type B

Removing the partition plate

Disengage the claws

Installing the luggage cover

Compress the both ends of the luggage cover and insert into the recess to install.

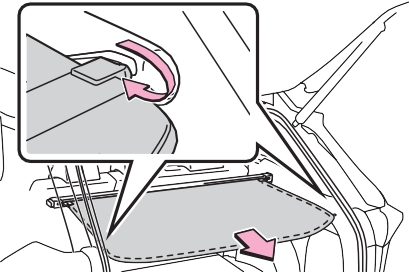

Pull out the luggage cover and hook it onto the anchors.

Removing the luggage cover

Release the cover from the left and right anchors and allow it to retract.

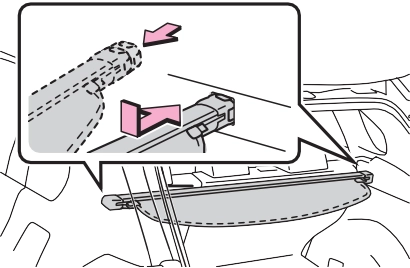

Compress the end of the lug- gage cover and lift the lug- gage cover up.

Stowing the luggage cover

1 Open the rear deck board and remove the side deck covers.

When the back surface (resin sur- face) of the deck board is facing up,

remove the deck board.
