Instrument cluster
Warning lights and indicators

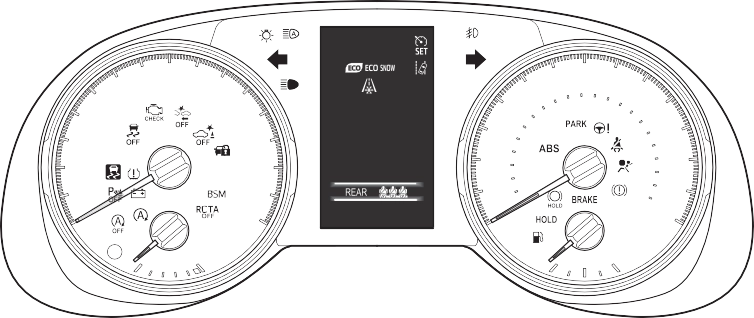

For the purpose of explanation, the following illustrations display all warning lights and indicators illuminated.
With 4.2-inch displayThe units used on the meters and some indicators may differ depending on the target region.
When analog speedometer is displayed
The units used on the meters and some indicators may differ depending on the target region.
The units used on the meters and some indicators may differ depending on the target region.
(U.S.A.)
(Canada) (Red)
Brake system warn- ing light*1 (P.628)
Brake system warn- ing light*1 (P.628)
(Yellow)
(U.S.A.)
(Canada)
(U.S.A.)
(Canada)
(Red/yellow)
(Flashes or illuminates)
(Orange)
Brake system warn- ing light*1 (P.628)
Charging system warning light*1 (P.628)
High coolant tempera- ture warning light*2 (P.629)
Low engine oil pres- sure warning light*2 (P.629)
Malfunction indicator lamp*1 (P.629)
Malfunction indicator lamp*1 (P.629)
SRS warning light*1 (P.629)
ABS warning light*1 (P.630)
ABS warning light*1 (P.630)
Electric power steer- ing system warning light*1 (P.630)
PCS warning light*1 (P.630)
LTA indicator (P.631)
Stop & Start cancel indicator*1 (if
(Flashes)
(Flashes)
(Flashes)
(U.S.A.)
(Flashes)
(Canada) (Flashes)
Intuitive parking assist OFF indicator*3 (if equipped) (P.631) PKSB OFF indica- tor*1 (if equipped) (P.632)
RCTA OFF indicator*1 (if equipped) (P.632)
Slip indicator light*1 (P.632)
Brake Override Sys- tem/Drive-Start Con- trol/PKSB (if equipped) warning light*2 (P.633)
Brake hold operated indicator*1 (P.633)
Parking brake indica- tor (P.634)
Parking brake indica- tor (P.634)
Tire pressure warning light*1 (if equipped) (P.634)
Low fuel level warn- ing light (P.634)
Driver’s and front pas- senger’s seat belt reminder light (P.635)
Rear passengers’ seat belt reminder light (if equipped) (P.635)
(Flashes)
equipped) (P.631)
*1: These lights turn on when the engine switch is turned to ON to
indicate that a system check is being performed. They will turn off after the engine is started, or after a few seconds. There may be a malfunction in a system if the light does not come on, or turn off. Have the vehicle inspected by your Toyota dealer.
*2: This light illuminates on the multi-information display with a message.
*3: Intuitive parking assist OFF indi- cator turns on when the engine switch is turned to ON while the Intuitive parking assist function is on. It will turn off after a few sec- onds.
Turn signal indicator (P.202)
Headlight indicator (P.209)
(U.S.A.)
Tail light indicator (P.209)
(Canada)
Headlight high beam indicator (P.211)
Automatic High Beam indicator (P.212)
Fog light indicator (if equipped) (P.437)
Smart key system indicator*1 (if equipped) (P.194)
Cruise control indica- tor (P.250)
Dynamic radar cruise control indicator (P.250)
Cruise control “SET”
indicator (P.250)
LTA indicator*2 (P.242)
Intuitive parking assist
OFF indicator*3, 4 (if equipped) (P.271)
PKSB OFF indicator*3, 5
(if equipped) (P.278)
(Flashes)
(U.S.A.)
(Canada)
Slip indicator light*5 (P.361)
VSC OFF indicator*3, 5 (P.362)
PCS warning light*3, 5
(P.231)
BSM outside rear view mirror indicators*5, 6 (if equipped) (P.261)
BSM indicator (if equipped) (P.261)
RCTA OFF indicator*3, 5 (if equipped) (P.261) Stop & Start indica-
tor*5 (if equipped) (P.345)
Stop & Start cancel indicator*3, 5 (if equipped) (P.346) Brake hold standby indicator*5 (P.206)
Brake hold operated indicator*5 (P.206)
Security indicator (P.70, 73)
Low outside tempera- ture indicator*7 (P.83, 87)
Eco Driving Indicator Light*5 (P.92)
Parking brake indica- tor (P.203)
Parking brake indica- tor (P.203)
Eco drive mode indi- cator (P.351)
Sport mode indicator (P.351)
Mud & sand mode indicator (if equipped) (P.354)
Rock & dirt mode indi- cator (if equipped) (P.354)
Snow mode indicator (if equipped) (P.357)
Downhill assist control system indicator*5 (if equipped) (P.358) “AIR BAG ON/OFF”
indicator*5, 8 (P.43)
*1: This light illuminates on the multi-information display with a message.
*2: Depending on the operating con- ditions of the system, the color and state (illuminated/blinking) of the indicator change.
*3: The light comes on when the system is turned off.
*4: Intuitive parking assist OFF indi- cator turns on when the engine switch is turned to ON while the Intuitive parking assist function is on. It will turn off after a few sec- onds.
*5: These lights turn on when the engine switch is turned to ON to indicate that a system check is being performed. They will turn off after the engine is started, or after a few seconds. There may be a malfunction in a system if the lights do not turn on, or turn off. Have the vehicle inspected by your Toyota dealer.
*6: This light illuminates on the out-
side rear view mirrors.
*7: When the outside temperature is approximately 37°F (3°C) or lower, the indicator will flash for approximately 10 seconds, then stay on.
*8: This light illuminates on the cen- ter panel.
In order to confirm operation, the BSM outside rear view mirror indica- tors illuminate in the following situa- tions:
enabled on the screen of the multi-information display.
enabled on the screen of the multi-information display while the engine switch is in ON.
If the system is functioning correctly, the BSM outside rear view mirror indicators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off, there may be a malfunction in the system. If this occurs, have the vehicle inspected by your Toyota dealer.
The units used on the meter and display may differ depending on the target region.
Displays the engine speed in revolutions per minute
Multi-information display
Presents the driver with a variety of driving-related data (P.89) Displays warning messages if a malfunction occurs (P.639)
Displays the vehicle speed
Displays the quantity of fuel remaining in the tank
Odometer:
Displays the total distance that the vehicle has been driven Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different distances independently.
Displays the selected shift position or selected shift range (P.199)
Displays the engine coolant temperature
nate whenThe engine switch is in ON.
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C).lower, the indicator
will flash for approximately 10 seconds, then stay on.
P.90
When the trip meter is dis- played, pressing and holding the switch will reset the trip meter.

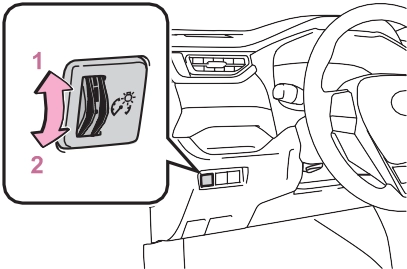

The brightness of the instrument panel lights can be adjusted by turning the dial.
levels when the tail lights are on and off can be adjusted individually.
However, when the surroundings are bright (daytime, etc.), turning on the tail lights will not change the instrument cluster brightness.
Vehicles with Audio
P.415
Vehicles with Audio Plus or Premium Audio
Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
The instrument cluster brightness
Analog speedometer
The units used on the meter and display may differ depending on the target region.
Displays the engine speed in revolutions per minute
Displays the vehicle speed
Displays the quantity of fuel remaining in the tank
Displays the engine coolant temperature
Odometer:
Displays the total distance that the vehicle has been driven Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset. Trip meters “A” and “B” can be used to record and display different distances independently.
Presents the driver with a variety of driving-related data (P.89)
Displays warning messages if a malfunction occurs (P.639)
Displays the selected shift position or selected shift range (P.199)
The units used on the meter and display may differ depending on the target region.
Displays the engine speed in revolutions per minute
Displays the vehicle speed
Displays the quantity of fuel remaining in the tank
Displays the engine coolant temperature
Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset. Trip meters “A” and “B” can be used to record and display different distances independently.
Presents the driver with a variety of driving-related data (P.89)
Displays warning messages if a malfunction occurs (P.639)
Displays the selected shift position or selected shift range (P.199)
for approximately 10 seconds,
The engine switch is in ON.
lower, the indicator will flash
then stay on.
P.90
Settings (e. g. meter display) can be
changed on the screen of the multi-information display. (P.94)
|
|
|
The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information display. At extremely low temperatures, the display monitor may respond slowly, and display changes may be delayed. For example, there is a lag between the driver’s shifting and the new gear number appearing on the display. This lag could cause the driver to downshift again, causing rapid and exces- sive engine braking and possibly an accident resulting in death or injury. |
WARNING|
|
When the trip meter is dis- played, pressing and holding the switch will reset the trip meter.
The brightness of the instrument panel lights can be adjusted by turning the dial.
The instrument cluster brightness levels when the tail lights are on and off can be adjusted individually.
However, when the surroundings are bright (daytime, etc.), turning on the tail lights will not change the instrument cluster brightness.
Vehicles with Audio
P.415
Vehicles with Audio Plus or Premium Audio
Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
(P.237)
A variety of information can be dis-
played by selecting a menu icon. Additionally, warning or sugges- tion/advice pop-up displays will be
displayed in some situations.
Driving support system infor- mation
Displays recognized signs while the RSA system (if equipped) is operat- ing. (P.247)
Displays an image when the follow- ing systems are operating and a
Displays recognized signs while the RSA system (if equipped) is operat- ing. (P.247)
Displays an image when the follow- ing systems are operating and a
menu icon other than
is selected:
menu icon other than
is selected:
A variety of information can be dis- played by selecting a menu icon. Additionally, warning or sugges-
tion/advice pop-up displays will be
displayed in some situations.
The engine switch is in ON.
Small spots or light spots may appear on the display. This phenom- enon is characteristic of liquid crys- tal displays, and there is no problem continuing to use the display.
Scroll the screen*/switch the display*/move the cursor
Press: Enter/Set
Press and hold: Reset/Dis- play customizable items
Return to the previous screen Call sending/receiving and
history display (if equipped) Linked with the hands-free system, sending or receiving call is displayed. For details regarding the hands-free sys- tem, refer to P.465 (vehicles with Audio) or “NAVIGATION AND MULTIMEDIA SYS- TEM OWNER’S MANUAL”
(vehicles with Audio Plus or Premium Audio).
*: On screens where the screen can be scrolled and the display can be switched, a scroll bar or a round icon that shows the num- ber of registered screens is dis- played.
|
|
|
Caution for use while driving
For safety, avoid operating the meter control switch while driving as much as possible, and do not look continuously at the multi- information display while driving. Stop the vehicle and operate the meter control switch. Failure to do so may cause a steering wheel operation error, resulting in an unexpected accident. |
WARNINGSome of the information may be displayed automatically depending on the situation.
Speedometer display
Displays the vehicle speed.
Displays the driving range with
remaining fuel. (P.92)
Distance to empty
Displays the driving range with remaining fuel. (P.92)
Displays the instantaneous current fuel Economy.
Displays the average fuel economy since the function was reset or the average fuel economy after starting or refueling.*1, 2,3
The average fuel economy selected
by “Fuel Economy” on the
screen is displayed. (P.94)
*1: Use the displayed fuel consump- tion as a reference only.
*2: Average fuel economy since the function was reset can be reset
by pressing and holding
.
*3: Average fuel economy after starting is reset each time the engine stops.
Eco Driving Indicator Distance to empty
Displays the driving range with remaining fuel. (P.92)
Eco Driving Indicator Light
During Eco-friendly acceleration operation (Eco driving), the Eco Driving Indicator Light will turn on. When the acceleration exceeds Zone of Eco driving, or when the vehicle is stopped, the light turns off.
Display
Suggests the Zone of Eco driving with current Eco driving ratio based on acceleration.
If the acceleration exceeds Zone of Eco driving, the right side of Eco Driving Indicator Zone Display will illuminate.
At this time, the Eco Driving Indica- tor Light will turn off.
Refuel immediately.
Eco Driving Indicator will not oper- ate in the following conditions:
Select to display the following navigation system-linked infor- mation.
Select to enable selection of an audio source or track on the dis-
changes according to the “Drive Info Type” setting (since the sys- tem was started or between resets). (P.94)
Use the displayed information as a reference only.
Following items will be displayed.
*: These items are reset each time the engine stops.
2 items that are selected using the “Drive Info Items” setting (average speed, distance and total time) can be displayed ver- tically.
The displayed information
*: To reset, display the and press and hold .
ired item
Displays the drive status of each wheel in 6 steps from 0 to 5.
Displays the size and direction of the G-force applied to the vehicle via changes to the position of the ball on the display.
This item is linked with the G-force display and the course of the past movement of the ball is displayed.
Press and hold
to reset the record.
When a tire is spinning, its icon on the display changes its color and blinks.
*: This item is displayed only when driving mode is set to sport mode.
select
.
each time
is pressed.
holding
. When the setting screen is displayed, select the setting or desired value (time,
etc.) with
.
press
of the meter control switches.
LTA (Lane Tracing Assist) (P.237)
Select to set up the following items.
Select to enable/disable the lane centering function.
Select to enable/disable steering wheel assistance.
Select to set the lane departure alert sensitivity.
Select to enable/disable the vehicle sway warning.
Select to set the vehicle sway warn- ing sensitivity.
Select to enable/disable the pre- collision system.
Select to change the pre-collision warning timing.
Select to enable/disable the BSM system.
Select to switch the brightness of the outside rear view mirror indica- tors. (P.261)
Select to change the alert timing for an approaching vehicle.
Select to enable/disable the Intui- tive parking assist.
Select to set the volume of the buzzer which sounds when the Intuitive parking assist is operated.
Select to enable/disable the RCTA system.
Select to change the RCTA buzzer volume.
RSA (Road Sign Assist) (if equipped) (P.247)
Select to set up the following items.
Select to enable/disable the RSA system.
Select to change each notification method used to warn the driver when the system recognizes excess speed, no overtaking and no-entry sign.
Select to change each notification level used to warn the driver when the system recognizes a speed limit sign.
Select to set up the following items.
Select to enable/disable the power back door system.
Select to enable/disable the kick sensor.
Select the open position when power back door is fully open.
Select to set the volume of the buzzer which sounds when the power back door system operates.
*: Vehicles with hands free power back door
Select to set the length of time the Stop & Start system will operate when the “A/C” switch of the air conditioning system is on.
(P.584)
Select to initialize the tire pressure warning system.
Select to register the ID codes of the tire pressure sensors to the tire pressure warning system.
Select to change the tire pressure warning system sensor ID code set. To enable this function, a second set of tire pressure warning system sensor ID codes must be registered by a Toyota dealer. For information regarding changing the registered ID code set, contact your Toyota dealer.
*: The country of production is writ- ten on the Certification Regula- tion label. (P.665)
Select to reset the scheduled main- tenance information (message indi- cating maintenance is required and distance until the next mainte- nance) after all maintenance is per- formed.
Settings
Select to change the language on the multi-information display.
Select to change the units of mea- sure displayed.
Select to change the speedometer display.
Select to activate/deactivate the Eco Driving Indicator Light.
Select to change the display on Fuel Economy (P.91).
Select to enable/disable
screen.
Select to enable/disable the AWD system display (P.94). (AWD models)
Select to change the drive informa- tion type display between trip and total. (P.93).
Select to set the items on the upper and lower side of the drive informa- tion screen. from three items, aver- age speed, distance and total time.
Select to enable/disable the follow- ing pop-up displays, which may appear in some situations.
A blank screen is displayed
Select to reset the meter display settings.
Displays suggestions to the driver in the following situations. To select a response to a dis- played suggestion, use the meter control switches.
If the headlight switch is in other
than
or , and the vehicle speed is 3 mph (5 km/h) or higher for a certain amount of time when the surroundings are
dark, a suggestion message will be displayed.
If the headlights are left on for a certain amount of time after the engine switch has been turned off, a suggestion message will be displayed.
When the headlight switch is in the AUTO position: The mes- sage asking if you wish to turn the headlights off is displayed. To turn the headlights off, select “Yes”.
If the driver’s door is opened after the engine switch is turned off, this suggestion message will not be dis- played.
The suggestion function can be turned on/off. (Customizable fea- tures: P.689)
If the “History” screen is displayed, select “Trip information”.
The image is an example only, and may vary slightly from actual condi- tions.
Audio or Audio Plus (vehicles without Data Communication Module)
If the “History” screen is displayed, select “Trip information”.
Fuel consumption in the past 15 minutes
Current fuel consumption
Resetting the consumption data
Average vehicle speed since the engine was started
Elapsed time since the engine was started
Cruising range (P.100)
Average fuel consumption for the past 15 minutes is divided by color into past averages and averages attained since the engine switch was last turned to ON. Use the displayed average fuel consumption as a refer- ence.
Audio or Audio Plus (vehicles without Data Communication Module)
If the “Trip Information” screen is displayed, select “History”.
sumption. (Instead of the date, “Trip 1” through “Trip 5” will be dis- played.)
Displays the daily average fuel con- sumption.
Resetting the history data
The average fuel consumption history is divided by color into past averages and the average fuel consumption since the last time updated. Use the displayed average fuel consumption as a reference.
mation” screen.
If the “Trip Information” screen is displayed, select “History”.
The image is an example only, and may vary slightly from actual condi- tions.
Latest fuel consumption
Previous fuel consumption record
Displays the daily average fuel con-
Update the average fuel consump- tion by selecting “Clip” to measure the current fuel consumption again.
The fuel consumption data can be deleted by selecting “Clear”.
Displays the estimated maximum distance that can be driven with the quantity of fuel remaining.
This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that dis- played.
Before driving 3
3-4. Adjusting the steering wheel and mirrors Steering wheel 142
Inside rear view mirror 143
Digital Rear-view Mirror145 Outside rear view mirrors
.................................. 154
3-5. Opening, closing the win- dows and moon roof Power windows 156
101
3
