Audio/visual remote controls

Steering switches

Some parts of the audio/visual system can be adjusted using the switches on the steering wheel.

Volume control switch “MODE” switch

switch

Volume control switch

Press: Volume up/down

Press and hold (0.8 sec. or more): Volume up/down con- tinuously

“MODE” switch

AM/FM/SXM*1

Press: Change audio modes

Press and hold (0.8 sec. or more): Mute/pause*2 (Press and hold again to resume)

USB*3, 4, iPod/iPhone*4, Blue- tooth® audio*3, 4, Android Auto*3, Toyota Apps*3, 4

Press: Change audio modes

Press and hold (0.8 sec. or more): Pause (Press and hold

again to resume the play mode.)

*1: This function is not made avail- able in some countries or areas.

*2: If cached radio is enabled, press- ing and holding the “MODE” switch pauses the broadcast. (Press and hold again to play back the cached radio program.)

*3: When an Apple CarPlay connec- tion is established, this function will be unavailable.

*4: When an Android Auto connec- tion is established, this function will be unavailable.

switch

AM/FM

Press: Preset channel up/down

Press and hold (0.8 sec. or more): Seek up/down

Press and hold (1.5 sec. or more): Seek up/down continu- ously while the switch is being pressed

Press and hold (1.5 sec. or more): Fast channel up/down

SXM*1

Press: Preset channel up/down

Press and hold (0.8 sec. or more): Seek for stations in the relevant program type/chan- nel category

Press and hold (1.5 sec. or more): Fast channel up/down

USB*2, 3, iPod/iPhone*3, Blue- tooth® audio*2, 3

Press: Track/file up/down

Press and hold (0.8 sec. or more): Fast forward/rewind

Android Auto*2

Press: Track up/down

*1: This function is not made avail- able in some countries or areas.

*2: When an Apple CarPlay connec- tion is established, this function will be unavailable.

*3: When an Android Auto connec- tion is established, this function will be unavailable.

443

Setup

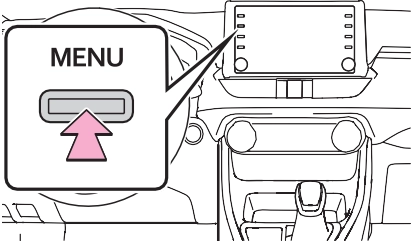

Press the “MENU” button.

Select “Setup”.

Select “Audio”.

Select the desired items to be set.

Select to set the common settings. (P.444)

Select to set the radio set- tings. (P.444)

Display the audio settings screen.

P.444

Select “Common”.

Select the desired items to be set.

Select to set the cover art display on/off.

Select to prioritize the display of information from the Gra- cenote database.

Select to change the screen size.* (P.423)

Select to display the image quality adjustment screen.* (P.424)

*: Only in USB video mode

Display the audio settings screen

P.444

Select “Radio”.

Select the desired number of preset radio stations dis- played on the screen.

445

Select “Manage Smart Favorites”.

Select the desired channel to be set.

Displays the registered preset channels.

Up to 20 channels can be regis- tered.

Select “Number of Radio Pre- sets”.

Select the button with the desired number to be dis- played.

Operating information

FM is about 25 miles (40 km). Once outside this range, you

may notice fading and drifting,

The use of a cellular phone inside or near the vehicle may cause a noise from the speakers of the audio/visual system which you are listening to. However, this does not indicate a malfunction.

For example, nearby buildings and terrain can interfere with FM reception. Power lines or phone wires can interfere with AM sig- nals. And of course, radio sig- nals have a limited range. The farther the vehicle is from a sta- tion, the weaker its signal will be. In addition, reception condi- tions change constantly as the vehicle moves.

Here are some common recep- tion problems that may not indi- cate a problem with the radio as described.

FM

Fading and drifting stations: Generally, the effective range of

which increase with the distance from the radio transmitter. They are often accompanied by dis- tortion.

Multi-path: FM signals are reflective, making it possible for 2 signals to reach the vehicle’s antenna at the same time. If this happens, the signals will cancel each other out, causing a momentary flutter or loss of reception.

Static and fluttering: These occur when signals are blocked by buildings, trees or other large objects. Increasing the bass level may reduce static and flut- tering.

Station swapping: If the FM sig- nal being listened to is inter- rupted or weakened, and there is another strong station nearby on the FM band, the radio may tune in the second station until the original signal can be picked up again.

AM

Fading: AM broadcasts are reflected by the upper atmo- sphere - especially at night. These reflected signals can interfere with those received directly from the radio station, causing the radio station to sound alternately strong and weak.

Station interference: When a reflected signal and a signal received directly from a radio station are very nearly the same frequency, they can interfere with each other, making it diffi- cult to hear the broadcast.

Static: AM is easily affected by external sources of electrical noise, such as high tension power lines, lightening or electri- cal motors. This results in static.

SiriusXM*

Cargo loaded on the roof lug- gage carrier, especially metal objects, may adversely affect the reception of SiriusXM Sat- ellite Radio.

Alternation or modifications carried out without appropri- ate authorization may invali- date the user’s right to operate the equipment.

*: This function is not made avail- able in some countries or areas.

Certification

Use of the Made for Apple badge means that an acces- sory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been cer- tified by the developer to meet Apple performance stan- dards. Apple is not responsi- ble for the operation of this device or its compliance with safety and regulatory stan- dards. Please note that the use of this accessory with an Apple product may affect wireless performance.

iPhone, iPod, iPod classic, iPod nano, iPod touch, and Lightning are trademarks of Apple Inc., registered in the

U.S. and other countries.

Compatible models

The following iPod touch® and iPhone® devices can be used with this system.

Made for

iPhone X

iPhone 8

iPhone 8 Plus

iPhone 7

iPhone 7 Plus

iPhone SE

iPhone 6s

iPhone 6s Plus

iPhone 6

iPhone 6 Plus

iPhone 5s

iPhone 5c

iPhone 5

iPod touch (6th generation)

iPod touch (5th generation)

This system only supports audio playback.

Depending on difference between models or software versions etc., some models might be incompati- ble with this system.

The definition of high-resolution is based on the standards of groups such as the CTA (Con- sumer Technology Association).

Supported formats and play- able media are as follows.

Supported formats

WAV, FLAC, ALAC, OGG Vorbis

Playable media

USB *: USB video only

*1: Only compatible with Windows Media Audio Standard

*2: Sound source of 48kHz or more is down-converted to 48kHz/24bit.

*1: Variable Bit Rate (VBR) compati- ble

*2: Only compatible with Windows Media Audio Standard

MP3 (MPEG Audio Layer 3), WMA (Windows Media Audio) and AAC (Advanced Audio Coding) are audio compres- sion standards.

This system can play MP3/WMA/AAC files on USB memory.

MP4, WMV and AVI files can use the following resolutions: 128x96, 160x120, 176x144 (QCIF), 320x240 (QVGA), 352x240 (SIF), 352x288 (CIF), 640x480 (VGA), 720x480 (NTSC), 720x576 (PAL)

When naming an MP3/WMA/AAC file, add an appropriate file extension (.mp3/.wma/.m4a).

This system plays back files with .mp3/.wma/.m4a file extensions as MP3/WMA/AAC files respec- tively. To prevent noise and playback errors, use the appropriate file extension.

MP3 files are compatible with the ID3 Tag Ver. 1.0, Ver. 1.1, Ver. 2.2 and Ver. 2.3 formats. This system cannot display

disc title, track title and artist name in other formats.

WMA/AAC files can contain a WMA/AAC tag that is used in the same way as an ID3 tag. WMA/AAC tags carry infor- mation such as track title and artist name.

The emphasis function is available only when playing MP3 files.

This system can play back AAC files encoded by iTunes.

The sound quality of MP3/WMA files generally improves with higher bit rates.

m3u playlists are not compati- ble with the audio player.

MP3i (MP3 interactive) and MP3PRO formats are not compatible with the audio player.

The player is compatible with VBR (Variable Bit Rate).

When playing back files recorded as VBR (Variable Bit Rate) files, the play time will not be correctly displayed if the fast forward or reverse operations are used.

It is not possible to check fold- ers that do not include MP3/WMA/AAC files.

MP3/WMA/AAC files in fold- ers up to 8 levels deep can be played. However, the start of playback may be delayed

when using USB memory containing numerous levels of folders. For this reason, we recommend creating USB memory with no more than 2 levels of folders.

The play order of the USB memory with the structure shown above is as follows:

The order changes depending on the personal computer and MP3/WMA/AAC encoding software you use.

ID3 tag

This is a method of embed-

ding track-related information in an MP3 file. This embed- ded information can include the track number, track title, the artist’s name, the album title, the music genre, the year of production, comments, cover art and other data. The contents can be freely edited using software with ID3 tag editing functions. Although the tags are restricted to a number of characters, the information can be viewed when the track is played back.

WMA tag

WMA files can contain a WMA tag that is used in the same way as an ID3 tag. WMA tags carry information such as track title and artist name.

MP3

MP3 is an audio compression standard determined by a working group (MPEG) of the ISO (International Standard Organization). MP3 com- presses audio data to about 1/10 the size of that on con- ventional discs.

WMA

WMA (Windows Media Audio) is an audio compression for- mat developed by Microsoft®. It compresses files into a size smaller than that of MP3 files. The decoding formats for

WMA files are Ver. 7, 8 and 9.

Windows Media is either a registered trademark or trade- mark of Microsoft Corpora- tion in the United States and/or other countries.

This product includes technol- ogy owned by Microsoft Cor- poration and cannot be used or distributed without a license from Microsoft Licens- ing, Inc.

AAC

AAC is short for Advanced Audio Coding and refers to an audio compression technol- ogy standard used with MPEG2 and MPEG4.

USB

iPod

Bluetooth® audio

If the malfunction is not rectified: Take your vehicle to your Toyota dealer.

For vehicles sold in Canada

Gracenote

Gracenote, the Gracenote logo and logotype, “Powered by Gracenote” and Gracenote MusicID are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.

Gracenote End User License Agreement

This application or device contains software from Gracenote, Inc. of Emeryville, California (“Gracenote”). The software from Gracenote (the “Gracenote Software”) enables this application to perform disc and/or file identification and obtain music-related information, including name, artist, track, and title information (“Gracenote Data”) from online servers or embedded databases (collectively, “Gracenote Servers”) and to perform other functions. You may use Gracenote Data only by means of the intended End-User functions of this application or device.

You agree that you will use Gracenote Data, the Gracenote Software, and Gracenote Servers for your own personal non-commercial use only. You agree not to assign, copy, transfer or transmit the Gracenote Software or any Gracenote Data to any third party. YOU AGREE NOT TO USE OR EXPLOIT GRACENOTE DATA, THE GRACENOTE SOFTWARE, OR GRACENOTE SERVERS, EXCEPT AS EXPRESSLY PERMITTED HEREIN.

You agree that your non-exclusive license to use the Gracenote Data, the Gracenote Software, and Gracenote Servers will terminate if you violate these restrictions. If your license terminates, you agree to cease any and all use of the Gracenote Data, the Gracenote Software, and Gracenote Servers. Gracenote reserves all rights in Gracenote Data, the Gracenote Software, and the Gracenote Servers, including all ownership rights. Under no circumstances will Gracenote become liable for any payment to you for any information that you provide. You agree that Gracenote, Inc. may enforce its rights under this Agreement against you directly in its own name.

The Gracenote service uses a unique identifier to track queries for statistical purposes. The purpose of a randomly assigned numeric identifier is to allow the Gracenote service to count queries without knowing anything about who you are. For more information, see the web page for the Gracenote Privacy Policy for the Gracenote service.

The Gracenote Software and each item of Gracenote Data are licensed to you “AS IS.” Gracenote makes no representations or warranties, express or implied, regarding the accuracy of any Gracenote Data from in the Gracenote Servers. Gracenote reserves the right to delete data from the Gracenote Servers or to change data categories for any cause that Gracenote deems sufficient. No warranty is made that the Gracenote Software or Gracenote Servers are error-free or that functioning of Gracenote Software or Gracenote Servers will be uninterrupted. Gracenote is not obligated to provide you with new enhanced or additional data types or categories that Gracenote may provide in the future and is free to discontinue its services at any time.

GRACENOTE DISCLAIMS ALL WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND NON-INFRINGEMENT. GRACENOTE DOES NOT WARRANT THE RESULTS THAT WILL BE OBTAINED BY YOUR USE OF THE GRACENOTE SOFTWARE OR ANY GRACENOTE SERVER. IN NO CASE WILL GRACENOTE BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES OR FOR ANY LOST PROFITS OR LOST REVENUES.

copyright O 2000 to present Gracenote

Total Traffic and Weather Network, a division of TTWN Media Networks, LLC (“TTWN“), owns or holds the rights to the traffic, news, sports, weather, stocks and other data (the “TTWN Data”) and network through which it is delivered, together the “TTN Service”. Use of the TTN Service is subject to the terms of these Device End User Terms.

THE TTWN SERVICE IS INFORMATIONAL ONLY. YOUR USE OF TTWN SERVICE IS AT YOUR SOLE RISK. TTWN DATA IS PROVIDED “AS IS”, “WHERE IS”, AND “WHERE AVAILABLE”. TTWN AND ITS SUPPLIERS AND LICENSORS EXPRESSLY DISCLAIM ALL WARRANTIES WITH RESPECT TO THE TTWN SERVICE (INCLUDING, WITHOUT LIMITATION, THAT THE TTWN DATA WILL BE ERROR- FREE, THAT THE TTWN SERVICE WILL OPERATE WITHOUT INTERRUPTION OR THAT THE TTWN DATA WILL BE ACCURATE), EXPRESS, IMPLIED OR STATUTORY, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT, FITNESS FOR A PARTICULAR PURPOSE, OR THOSE ARISING FROM A COURSE OF DEALING OR USAGE OF TRADE.

TTWN AND ITS SUPPLIERS AND LICENSORS WILL NOT BE LIABLE TO YOU UNDER ANY LEGAL THEORY, INCLUDING CONTRACT, TORT, NEGLIGENCE OR STRICT LIABILITY, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, PUNITIVE, CONSEQUENTIAL OR EXEMPLARY DAMAGES, INCLUDING BUT NOT LIMITED TO, DAMAGES FOR LOSS OF PROFITS, GOODWILL, USE, DATA OR OTHER INTANGIBLE LOSSES (EVEN IF TTWN, ITS SUPPLIERS OR LICENSORS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES), RESULTING FROM OR ARISING OUT OF YOUR USE OF, OR YOUR INABILITY TO USE, THE TTWN SERVICE, THIS AGREEMENT, OR ANY OTHER MATTER RELATING TO THE TTWN SERVICE.

SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF CERTAIN WARRANTIES OR THE LIMITATION OR EXCLUSTION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. ACOORDINGLY, SOME OF THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

Microphone

Steering switch

Voice command system

Press the talk switch to start the voice command system. To cancel voice command, press and hold the talk switch.

When an Apple Car- Play/Android Auto connec- tion is established

Press and hold the talk switch to start Siri/Google Assistant. To cancel Siri/Google Assis- tant, press the talk switch.

Press the talk switch to start

It is unnecessary to speak directly into the microphone when giving a command.

Voice commands may not be rec- ognized if:

Spoken too quickly.

Spoken at a low or high volume.

The roof or windows are open.

Passengers are talking while voice commands are spoken.

The fan speed of the air condition- ing system is set at high.

The air conditioning vents are turned towards the microphone.

In the following conditions, the system may not recognize the command properly and using voice commands may not be pos- sible:

The command is incorrect or unclear. Note that certain words, accents or speech patterns may be difficult for the system to recog- nize.

There is excessive background noise, such as wind noise.

Normally, it is necessary to wait for a beep before saying a com- mand. To enable the ability to talk over prompts and say commands before the beep, enable the voice prompt interrupt function. (P.418)

This system may not operate immediately after the engine

switch is in ACC or ON.

Press the talk switch.

Voice guidance for the voice command system can be skipped by pressing the talk switch.

If “Getting Started with Voice” screen is displayed, select “OK” or press the talk switch. (P.460)

After hearing a beep, say a supported command.

To display sample commands of the desired function, say the desired function or select the desired function button. To display more commands, select “More Commands”.

Selecting “Help” or saying “Help” prompts the voice com- mand system to offer exam- ples of commands and operation methods.

Registered POIs, registered names in the contacts list etc., can be said in the place of the “<>” next to the commands. (P.461)

For example: Say “Find a restau- rant”, “Call John Smith” etc.

If a desired outcome is not shown, or if no selections are available, perform one of the following to return to the pre- vious screen:

Say “Go back”.

Select .

To cancel voice recognition,

select , say “Cancel”, or press and hold the talk switch.

To perform the voice com- mand operation again, select “Start Over” or say “Start over”.

To suspend voice command operation, select “Pause” or say “Pause”. To resume the

voice command operation, select “Resume” or press the talk switch.

If the system does not respond or the confirmation screen does not disappear, press the talk switch and try again.

If a voice command cannot be rec- ognized 3 consecutive times, voice recognition will be canceled.

Voice recognition prompts can be changed on the voice settings screen. (P.418)

This function can be used to cancel voice guidance by turning the voice prompts off. When you press the talk switch while using this setting, a beep sounds, and then you can immediately say a command.

Some voice guidance can be can- celed by setting voice prompts to off. Use this setting when it is desirable to say a command immediately after pressing the talk switch and hearing a beep.

The “Tutorials” and “Voice Train- ing” functions can also be started on the voice settings screen. (P.418)

1 Press the talk switch.

2 Select the desired item to be set.

Select to display the voice command tutorials.

Select to train the voice com- mand system.

The user will be asked to say 10 sample phrases. This will help the voice command system adapt to the user’s accent.

Select to proceed to the voice command screen.

Command list

Recognizable voice commands and their actions are shown below.

Frequently used commands are listed in the following tables.

For devices that are not installed to the vehicle, com- mands relating to that device may not be displayed on the screen. Also, depending on other conditions, such as compatibility, some com- mands may not be displayed on the screen.

The functions available may vary according to the system installed.

Voice recognition language can be changed. (P.414)

When an Apple Car- Play/Android Auto connec- tion is established, some commands will become unavailable.

Common

Top menu

*: Vehicle must be parked

Phone

*: If the system does not recognize the name of a contact, create a voice tag. (P.483) The name of a contact can also be recognized by adding a voice tag.

While in a phone call

While incoming message notification is displayed*

*: Full screen message notification must be turned on within the phone settings (P.481)

Radio

*1: A station list must be built first using the radio screen (P.425)

*2: Requires a satellite radio sub- scription

Audio*

*: The audio device must be con- nected via a USB cable to use the

functionality in this section

Toyota Apps

*: When an application is opened and is in full screen mode, press- ing the talk switch will start the voice command system and com- mands for the currently displayed application will be available

Commands relating to operation of the audio/visual system can only be performed when the audio/visual system is turned on.
