Using the air conditioning system and defogger
*: If equipped
If “A/C” switch is not pressed, the system will blow ambient tempera- ture air or heated air.
Pressing the on/off switch turns off the fan.
When the fan is off, pressing the on/off switch or turning the fan speed control switch will turn on the
fan.
The airflow mode changes as fol- lows each time the switch is pressed.
Press the outside/recirculated air mode switch.
The mode switches between outside air mode and recircu- lated air mode each time the switch is operated.
When recirculated air mode is selected, the indicator illuminates on the outside/ recirculated air mode switch.
When the function is on, the indica- tor illuminates on the “A/C” switch.
Press the windshield defogger switch.
Set the outside/recirculated air mode switch to outside air mode if the recirculated air mode is used.
To defog the windshield and the side windows quickly, turn the air flow and temperature up.
To return to the previous mode, press the windshield defogger switch again when the windshield is defogged.
When the windshield defogger switch is on, the indicator illumi- nates on the windshield defogger switch.
Press the rear window defogger and outside rear view mirror defoggers switch.
When the rear window defogger and outside rear view mirror defog-
gers switch is on, the indicator illu- minates on the rear window defogger and outside rear view mir- ror defoggers switch.
The defoggers will automatically turn off after a while.
by the vehicle is still drawn into the vehicle after closing the windows, it is recommended that the air intake mode be set to outside air mode and the fan speed to any setting except off.
Setting to the recirculated air mode
Press the “MAX A/C” switch.
The air conditioning will automati- cally turn on.
At this time, the following will occur:
In Eco drive mode, the air condition- ing system is controlled to prioritize fuel efficiency by regulating the engine speed and compressor oper- ation to restrict the heating/cooling capacity.
To improve air conditioning perfor- mance, perform the following opera- tions:
Close all windows. If dust thrown up
temporarily is recommended in pre- venting dirty air from entering the vehicle interior and helping to cool the vehicle when the outside air temperature is high.
The dehumidification function may not operate even when the “A/C” switch is pressed.
It is recommended that the air conditioning system be set to out- side air mode prior to turning the vehicle off.
When the engine is stopped due to the Stop & Start system operations, the air conditioning cooling, heating
and dehumidification functions turn off and only ambient temperature air is blown, and there is a possibility that the blowing of ambient tem- perature air will stop. To prevent the air conditioning system from turning off, press the Stop & Start cancel switch to deactivate the system.
Press the windshield defogger switch to restart the engine and defog the windshield.
If the windshield continuously fogs up, press the Stop & Start cancel switch and refrain from using the Stop & Start system.
Press the Stop & Start cancel switch to restart the engine.
P.599
|
|
|
To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the engine is off. |
NOTICE|
|
If equipped
Front
Rear (if equipped)
|
|
|
To not interrupt the wind- shield defogger from operat- ing
Do not place anything on the instrument panel which may cover the air outlets. Otherwise, air flow may be obstructed, preventing the windshield defoggers from defog- ging. |
WARNINGAutomatic air conditioning system
Automatic mode switch
Left-hand side temperature control knob Right-hand side temperature control knob “SYNC” switch
“OFF” switch
Windshield defogger switch
Rear window defogger and outside rear view mirror defoggers switch
Eco air conditioning mode switch Fan speed decrease switch
Fan speed increase switch Airflow mode control switch
Outside/recirculated air mode switch S-FLOW mode switch
“A/C” switch
Turn driver’s side temperature
control dial clockwise to increases the temperature and turn the dial counterclockwise to
decreases the temperature.
The air conditioning system switches between individual and simultaneous modes each time the “SYNC” switch is pressed.
Simultaneous mode (the indicator on the “SYNC” switch is on):
The driver’s side temperature con- trol dial can be used to adjust the temperature for the driver’s and passenger’s side. At this time, operate the passenger’s side tem- perature control dial to enter indi- vidual mode.
Individual mode (the indicator on the “SYNC” switch is off):
The temperature for the driver’s and passenger’s side can be adjusted separately.
Pressing the “OFF” switch to turns off the fan.
The airflow mode changes as fol- lows each time the switch is pressed.
|
1 2 3 4
|
Press the outside/recirculated air mode switch.
The mode switches between out- side air mode and recirculated air mode each time the switch is oper- ated.
When recirculated air mode is selected, the indicator illuminates on the outside/ recirculated air mode switch.
When the function is on, the indica- tor illuminates on the “A/C” switch.
tized such as reducing fan speed, etc.
Press the eco air conditioning mode switch.
When the eco air conditioning mode is on, the indicator illumi- nates on the eco air conditioning mode switch.
Press the windshield defogger switch.
Set the outside/recirculated air mode switch to outside air mode if the recirculated air mode is used. (It may switch automatically.)
To defog the windshield and the side windows quickly, turn the air flow and temperature up.
To return to the previous mode, press the windshield defogger switch again when the windshield is defogged.
When the windshield defogger switch is on, the indicator illumi- nates on the windshield defogger switch.
Press the rear window defogger and outside rear view mirror
defoggers switch.
The defoggers will automatically turn off after 15 minutes.
When the rear window defogger and outside rear view mirror defog- gers switch is on, the indicator illu- minates on the rear window defogger and outside rear view mir- ror defoggers switch.
Close all windows. If dust thrown up by the vehicle is still drawn into the vehicle after closing the windows, it is recommended that the air intake mode be set to outside air mode and the fan speed to any setting except off.
operation controlled to restrict heating/cooling capacity
The dehumidification function may not operate even when “A/C” switch is pressed.
When the engine is stopped due to Stop & Start system operations, the automatic air conditioning cooling, heating and dehumidification func- tions turn off and the fan speed is decreased according to the outside temperature etc. or air blowing stops. To stop the air conditioning system from turning off, press the Stop & Start cancel switch and refrain from using the Stop & Start system.
Press the windshield defogger switch to restart the engine and defog the windshield.
If the windshield continuously fogs up, press the Stop & Start cancel switch and refrain from using the Stop & Start system.
Press the Stop & Start cancel switch to restart the engine.
P.599
Some functions can be customized. (Customizable features: P.697)
The dehumidification function begins to operate. Air outlets and fan speed are automatically adjusted according to the tempera- ture setting and humidity.
If the fan speed setting or air flow modes are operated, the automatic mode indicator goes off. However, automatic mode for functions other than that operated is maintained.
Fan speed is adjusted automati- cally according to the temperature setting and the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow immediately after the auto- matic mode switch is pressed.

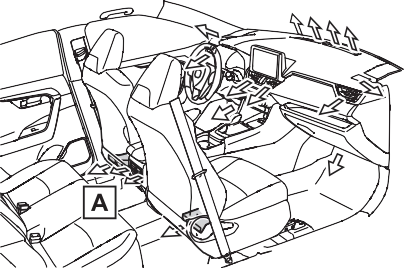

Front seat concentrated airflow mode operates in the following situations.
While operating, illumi- nates.
In front seat concentrated air- flow mode, directing airflow to the front seats only and to all seats can be switched via switch
operation. When the mode has been switched manually, auto- matic airflow control stops oper- ating.
Press on the air condition-
ing operation panel and switch the airflow.
Even if the function is manually switched to directing airflow to only the front seats, when a rear seat is occupied, it may automatically direct airflow to all seats.
Press the switch to turn the sys- tem on/off.
The indicator comes on when the system is on.
The windshield wiper de-icer will automatically turn off after a period of time.
|
|
|
To prevent burns
Do not touch the glass at lower part of the windshield or to the side of the front pillars when the windshield wiper deicer is on. |
WARNING|
|
If equipped

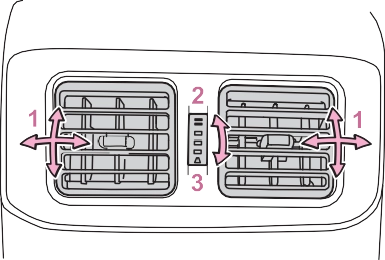

Front
*: If equipped (center air outlets only)
|
|
*: If equipped
|
|
|
To prevent minor burn inju- ries
Care should be taken if anyone in the following categories comes in contact with the steering wheel or seats when the heater is on: Babies, small children, the elderly, the sick and the physi- cally challenged
Persons with sensitive skin
Persons who are fatigued
Persons who have taken alco- hol or drugs that induce sleep (sleeping drugs, cold remedies, etc.)
|
WARNINGThe indicator light comes on when the heated steering wheel is oper- ating.
The engine switch is in ON.
Front
|
|
When the seat heater is on, the indicator illuminates on the seat heater switch.
When not in use, put the switch in the neutral position. The indi- cator will turn off.

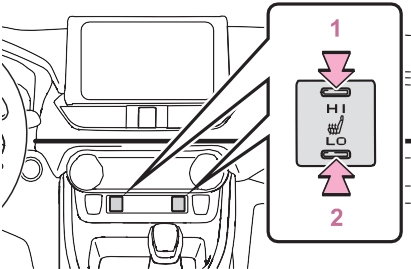

Rear
The indicator light comes on when the seat heater is operat- ing.
The engine switch is in ON.
Each time the switch is pressed, the operation condition changes as follows.

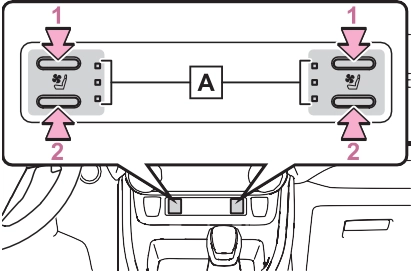

Hi (3 segments lit) Mid (2 seg- ments lit) Lo (1 segment lit) Off
|
|
The level indicators (yellow) light up during operation.
The level indicators (green) light up during operation.
The engine switch is in ON.
When a seat ventilator is set to Hi, the fan speed of the seat ventilator may increase according to the fan speed of the air conditioning sys- tem.
|
|
|
To prevent causes of over- heating and minor burn inju- ries
Observe the following precautions when using a seat heater: Do not cover the seat with a blanket or cushion when using the seat heater.
Do not use seat heater more than necessary.
|
WARNINGDownload Manual
