Other settings

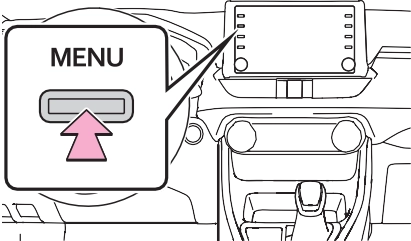

Press the “MENU” button.

Select “Setup”.

If the general settings screen is not displayed, select “Gen- eral”.

Select the desired items to be set.

“Clock”

Select to change the time zone and select “On” or “Off” for daylight sav- ing time, automatic adjustment of

the clock, etc. (P.415)

“Language”

Select to change the language. The language setting of Apple Car- Play/Android Auto can only be changed on the connected device.

“Customize Home Screen”

Select to change the display infor- mation/area on the home screen and the home screen layout. (P.384)

“Projection Settings”*1

Select to set automatic Apple Car- Play/Android Auto connection establishment on/off. (P.416)

“Beep”

Select to turn the beep sound on/off.

“Theme Setting”

Select to change the screen theme setting.

“Units of Measurement”

Select to change the unit of mea- sure for distance/fuel consumption.

“Keyboard Layout”

Select to change the keyboard lay- out.

“Delete Keyboard History”

Select to delete the keyboard his- tory.

“Memorize Keyboard History”

Select to set the memorize key- board history on/off.

“Animation”

Select to turn the animations on/off.

“Driver Setting”

Select to change the driver set- tings. (P.416)

“Delete Personal Data”

Select to delete personal data. (P.417)

“Software Update”

Select to update software versions. For details, contact your Toyota dealer.

“Software Update Setting”*2

Select to set software update set- ting. (P.417)

“Gracenote Database Update”

Select to update Gracenote® data- base versions. For details, contact your Toyota dealer.

“Software Information”

Select to display the software infor- mation. Notices related to third party software used in this product are enlisted. (This includes instruc- tions for obtaining such software, where applicable.)

“SW Sensitivity Level”

Select to change the capacitive touch screen button sensitivity to 1 (low), 2 (medium), or 3 (high).

*1: This function is not made avail- able in some countries or areas.

*2: Vehicles equipped with DCM

Display the general settings screen. (P.414)

Select “Clock”.

Select the desired items to be set.

Select to change the time zone. (P.415)

Select to set daylight saving time on/off.

Select to set automatic adjustment of the clock by GPS on/off.

When set to off, the clock can be manually adjusted. (P.415)

Select to set the 24 hour time format on/off.

When set to off, the clock is displayed in 12 hour time for- mat.

Select “Time Zone”.

Select the desired time zone.

When “Auto Adjust by GPS” is turned off, the clock can be manually adjusted.

1 Select “Auto Adjust by GPS” to set to off.

2 Adjust the clock manually.

Select “+” to set the time for- ward one hour and “-” to set the time back one hour.

Select “+” to set the time for- ward one minute and “-” to set the time back one minute.

Select to round to the nearest hour.

e.g.

1:00 to 1:29 1:00

1:30 to 1:59 2:00

*: This function is not made avail- able in some countries or areas.

Display the general settings screen. (P.414)

Select “Projection Settings”.

Select the desired items to be set.

Select to turn Apple CarPlay connection establishment on/off.

Select to turn Android Auto connection establishment on/off.

When the settings are changed with a device connected to the system via USB, disconnect the device and connect it again to enable the settings.

Display the general settings screen. (P.414)

Select “Driver Setting”.

Select “Enable This Feature”.

1 Select “Manually Select Linked Settings”.

1 Select the desired phone.

After a few seconds, loaded screen automatically switches to the home screen.

Registered or changed per- sonal settings will be deleted or returned to their default condi- tions.

Display the general settings screen. (P.414)

Select “Delete Personal Data”.

Select “Delete”.

Select “Yes” when the confir- mation screen appears.

Examples of settings that can be returned to their default conditions:

Audio settings

Phone settings

etc.

*: Vehicles equipped with DCM only. This function is not made available in some countries or areas.

check function is enabled, if a software update is available from the Cloud, a message will be displayed.

Display the general settings screen. (P.414)

Select “Software Update Set- ting”.

Select “Automatic Update Check” to enable/disable the automatic update check func- tion.

When software update information is displayed, contact your Toyota dealer.

Press the “MENU” button.

Select “Setup”.

Select “Voice”.

Select the desired items to be set.

Select to adjust the volume of voice guidance.*

Select to set the voice recog- nition prompts.

Select to train voice recogni-

tion.

The voice command system adapts the user accent.

Select to start the voice rec- ognition tutorial.

Select to set the voice prompt interrupt on/off.

Select to reset all setup items.

*: When an Apple CarPlay/Android Auto connection is established, voice command system (Siri/Google Assistant) and map application voice guidance vol- ume can be changed.

Press the “MENU” button.

Select “Setup”.

Select “Vehicle”.

Select the desired items to be set.

The security system can be set to on by entering a security code (4-digit number).

When set to on, the system will become inoperative once the electrical power source is dis- connected until the security code is entered.

Display the vehicle settings screen. (P.419)

Select “Valet Mode”.

Enter the 4-digit personal code and select “OK”.

Enter the same 4-digit per- sonal code again and select “OK”.

The system will request that you input the security code again to confirm that you remember it correctly.

When valet mode activates, the system stops and a secu- rity code (4-digit number) standby screen is displayed.

If the 4-digit personal code is for- gotten, please contact your Toyota dealer.

Select to set valet mode. (P.419)

1 Enter the 4-digit personal code and select “OK”.

If an incorrect security code (4- digit number) is entered 6 times, the system will not accept another security code (4-digit number) for 10 minutes.
