Uconnect 3/3 nav with 8.4-inch display
WARNING:
ALWAYS drive safely with your hands on the steering wheel. You have full responsibility and assume all risks related to the use of the Uconnect features and applications in this vehicle. Only use Uconnect when it is safe to do so. Failure to do so may result in an accident involving serious injury or death.

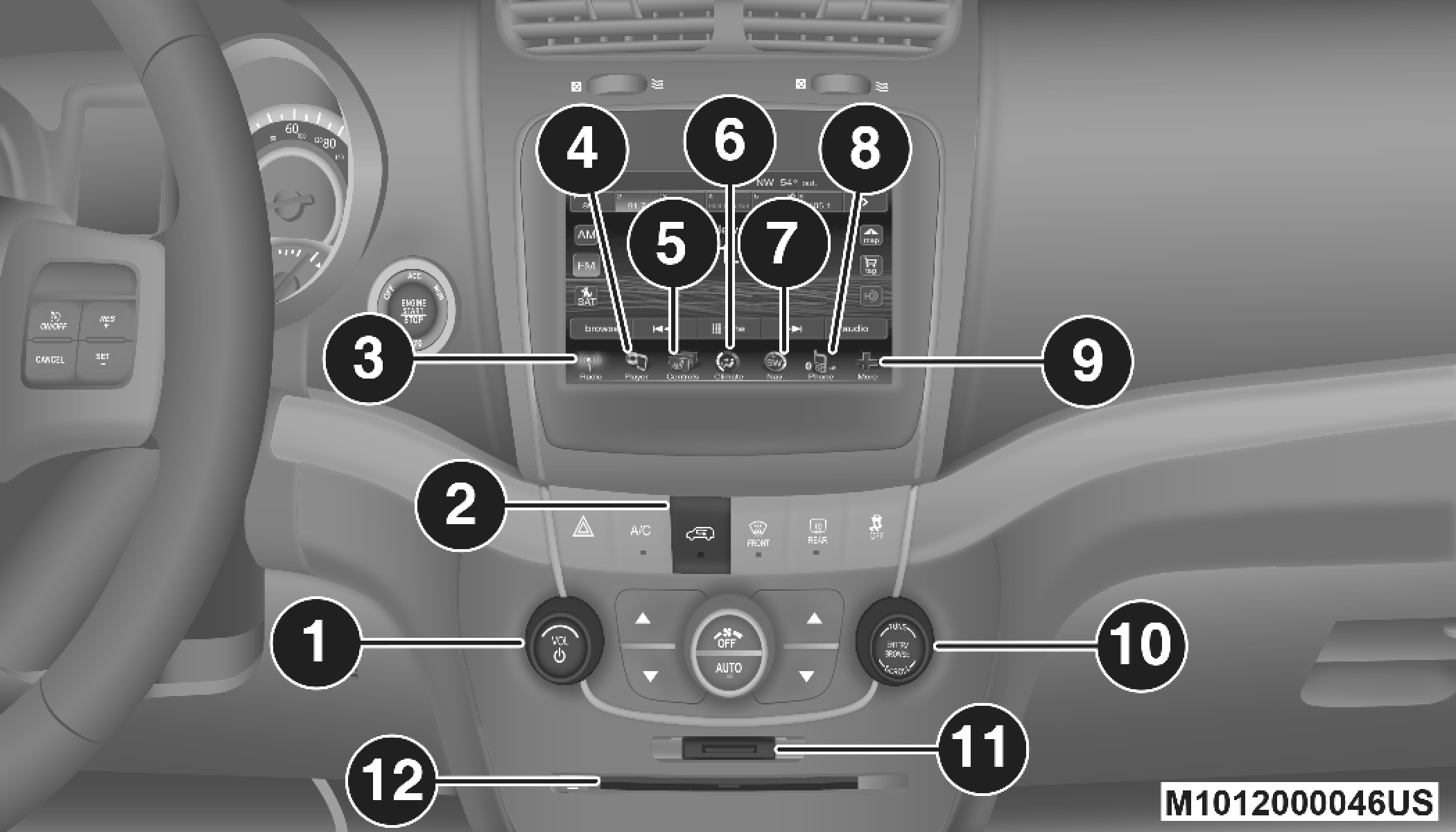

Uconnect 3/3 NAV with 8.4-inch Display System
1 — ON/OFF & VOLUME
Push the ON/OFF button to turn the system on or off. Rotate the rotary knob to adjust the Volume.
Note:
If the ignition is switched off with the radio in standby mode, the radio memorizes the standby mode when the ignition is turned on again. Push the ON/OFF VOLUME Control to turn the radio on. It is possible to eject the Disc and to display the time if the system is off. The navigation software is always working when the ignition is switched on, even if the radio is in standby mode.
2 — CLIMATE CONTROLS (Faceplate Controls)
Refer to “Climate Controls” in “Getting To Know Your Vehicle” further more information.
3 — RADIO
Press the Radio button on the touchscreen to enter the Radio Mode. The different tuner modes, AM, FM, and SAT, can be selected by pressing the corresponding buttons in the Radio Mode.
4 — PLAYER
Press the Player button on the touchscreen to access media sources such as: Disc, USB Device, and AUX as long as the requested media is present.

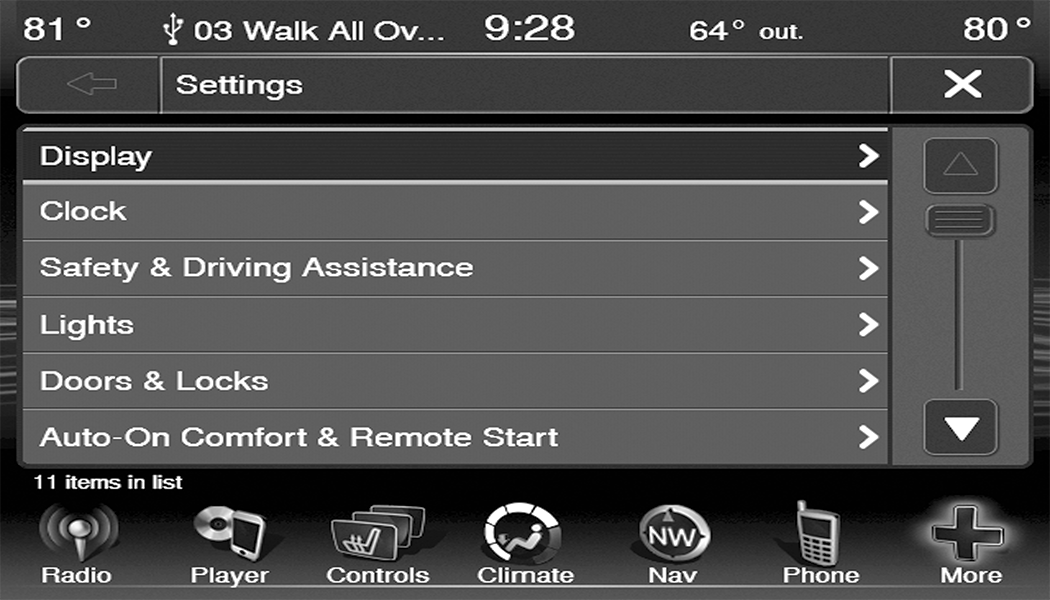

5 — CONTROLS
Press the Controls button on the touchscreen to access the Settings list. Controls such as Heated Seats, Heated Steering Wheel, Vented Seats, etc. can be selected or turned on/off by pressing the corresponding button.
6 — CLIMATE (Touchcreen Controls)
Refer to “Climate Controls” in “Getting To Know Your Vehicle” for more information.
7 — NAV (Uconnect 3 NAV Only)

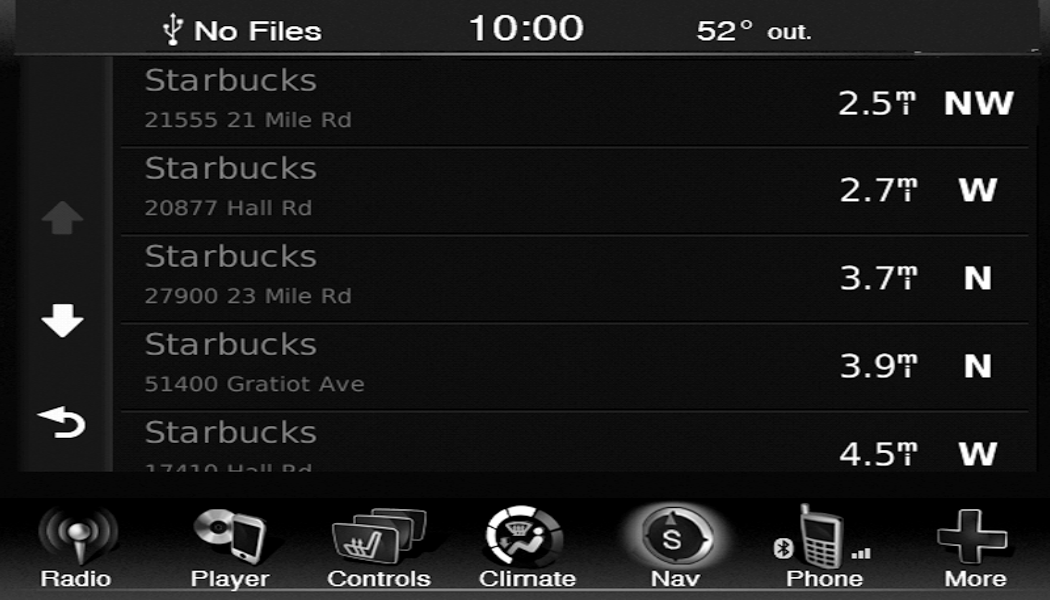

Press the Nav button on the touchscreen to access the Navigation feature.

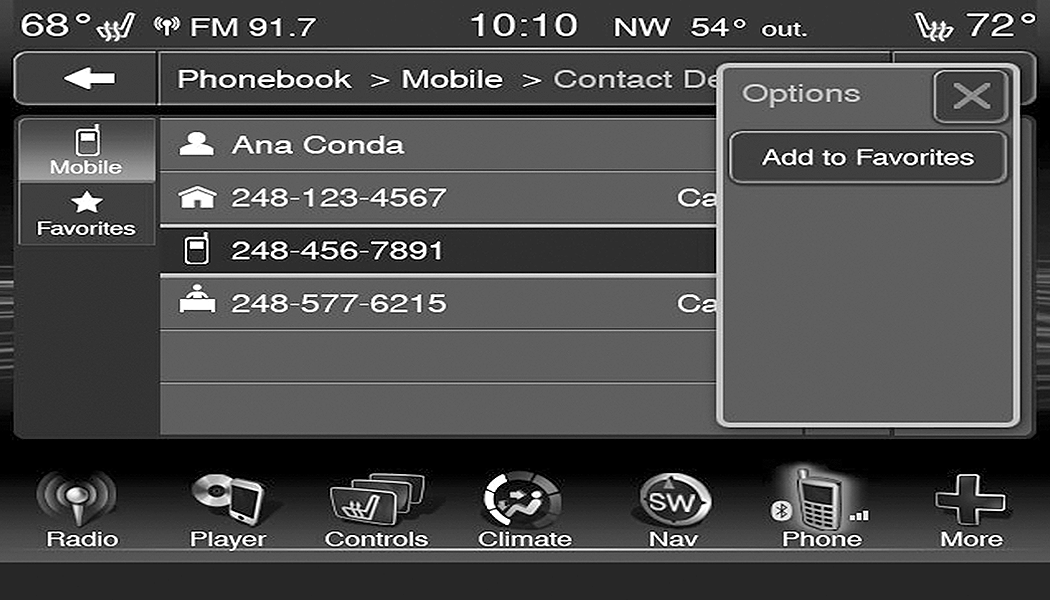

8 — PHONE — If Equipped

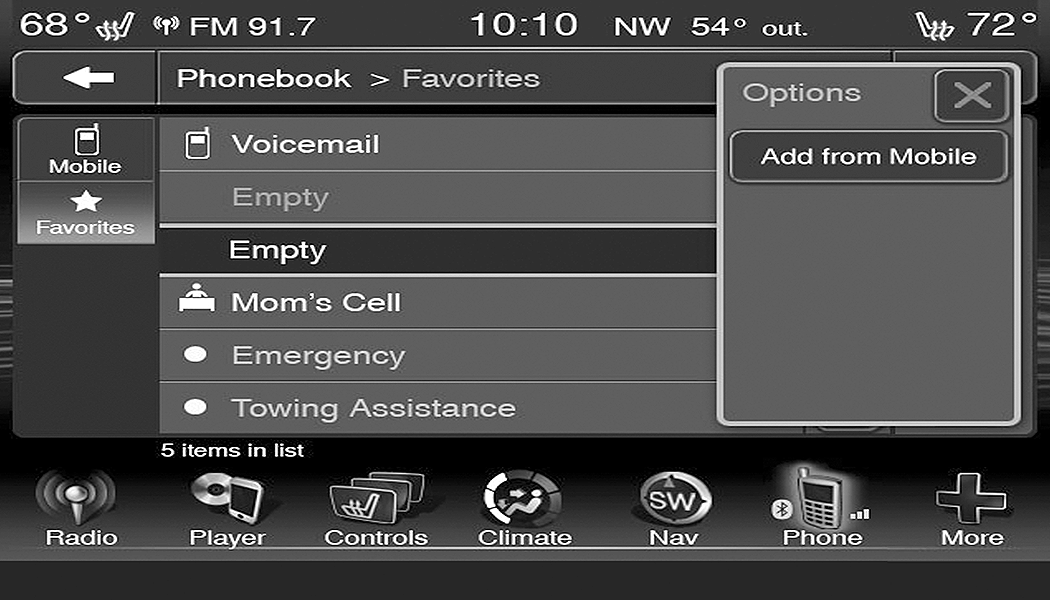

Press the Phone button on the touchscreen to access the Uconnect Phone feature. Refer to “Uconnect Phone” in this section for more information.
9 — MORE
Press the More button on the touchscreen to access additional options. Options available such as Settings and SiriusXM® Travel Link (if equipped) can be accessed by pressing the corresponding button in the More Menu.
10 — ENTER/BROWSE & TUNE/SCROLL
Push the ENTER/BROWSE button to accept a highlighted selection on the screen. Rotate the TUNE/SCROLL rotary knob to scroll through a list or tune a radio station.
11 — SD CARD SLOT
Insert an SD Card containing audio media files to play them through the vehicle’s sound system.
12 — DISC SLOT
When inserting a disc, ensure the label is facing up. Push the Eject button to eject the disc.
RADIO MODE
OVERVIEW
Radio Mode
The radio is equipped with the following modes:
-
FM
-
AM
-
SAT SiriusXM® Satellite Radio (if equipped)
Press the Radio button, bottom left corner, to enter the Radio Mode. The different tuner modes, AM, FM, and SAT, can be selected by pressing the corresponding buttons in the Radio mode.
COMMON RADIO FUNCTIONS
The following operations offer the same functionality across all Radio Modes, and further instructions are provided where differences exist.
ON/OFF & VOLUME CONTROL
Push the ON/OFF Volume Control knob to turn on the radio. Push the ON/OFF Volume Control knob a second time to turn off the radio.
The electronic Volume control turns continuously (360 degrees) in either direction, without stopping. Turning the ON/OFF Volume Control knob clockwise increases the Volume and counterclockwise decreases it.
When the audio system is turned on, the sound will be set at the same Volume level as last played.
TUNE/SCROLL CONTROL
Turn the rotary TUNE/SCROLL control knob clockwise to increase or counterclockwise to decrease the radio station frequency. Push the ENTER/BROWSE button to choose a selection.
SEEK AND DIRECT TUNE FUNCTIONS
The Seek Up and Down functions are activated by pressing the Double Arrow buttons to the right and left of the radio station display, or by pushing the left Steering Wheel Audio Control (if equipped) up or down.
SEEK UP
Press and release the Seek Up
button on the touchscreen to tune the radio to the next listenable station or channel.
During a Seek Up function, if the radio reaches the starting station after passing through the entire band two times, the radio will stop at the station where it began.
FAST SEEK UP
Press and hold the Seek Up button on the touchscreen to advance the radio through the available stations or channels at a faster rate. The radio stops at the next available station or channel when the button on the touchscreen is released.
SEEK DOWN
Press and release the Seek Down
button on the touchscreen to tune the radio to the next listenable station or channel.
During a Seek Down function, if the radio reaches the starting station after passing through the entire band two times, the radio will stop at the station where it began.
FAST SEEK DOWN
Press and hold the Seek Down button on the touchscreen to advance the radio through the available stations or channel at a faster rate. The radio stops at the next available station or channel when the button is released.
DIRECT TUNE
Press the Tune button located at the bottom of the radio screen. The Direct Tune screen is available in AM, FM, and SAT radio modes and can be used to direct tune the radio to a desired station or channel.
Direct Tune
Press the available number button on the touchscreen to begin selecting a desired station. Once a number has been entered, any numbers that are no longer possible (stations that cannot be reached) will become deactivated/grayed out.
Once the last digit of a station has been entered, the Direct Tune screen will close and the system will automatically tune to that station.
The selected Station or Channel number is displayed in the Direct Tune text box.
UNDO
You can backspace an entry by pressing the bottom left Undo button.
GO
When pressed, the GO button allows you to commit an entry, at which time the radio will tune to the entered station or channel and close the Direct Tune Screen.
SCREEN CLOSE
The X button at the top right closes the Direct Tune Screen. The Direct Tune Screen also automatically closes if no activity occurs within 10 seconds.
SETTING PRESETS
The Presets are available for all Radio Modes, and are activated by pressing any of the six Preset buttons, located at the top of the touchscreen.
When you are receiving a station that you wish to commit into memory, press and hold the desired numbered button for more than two seconds or until you hear a confirmation beep.
The Radio stores up to 12 presets in each of the Radio modes. A set of six presets are visible at the top of the radio touchscreen.
You can switch between the two radio presets by pressing the Arrow button located in the upper right of the radio screen.
BROWSE IN AM/FM
Browsing In AM And FM
When in either AM or FM, the Browse Screen provides a means to edit the Presets List and is entered by pressing the Browse button on the touchscreen.
SCROLLING PRESET LIST
Preset List
Once in the Browse Presets screen, you can scroll the Preset List by rotation of the Tune Knob, or by pressing the Up and Down arrow buttons on the touchscreen, located on the right of the touchscreen.
PRESET SELECTION FROM LIST
A Preset can be selected by pressing the listed “Presets”, or by pushing the ENTER/BROWSE button on the TUNE/SCROLL knob to select the currently highlighted Preset.
When selected, the radio tunes to the station stored in the Presets and returns to the main radio screen.
DELETING PRESETS
A Preset can be deleted in the Presets Browse screen by pressing the Trash Can icon for the corresponding Preset.
RETURN TO MAIN RADIO SCREEN
You can return to the Main Radio Screen, by pressing the X button on the touchscreen when in the Browse Presets screen.
SIRIUSXM® SATELLITE RADIO MODE — IF EQUIPPED
SiriusXM® Radio
SiriusXM® Satellite Radio uses direct satellite-to-receiver broadcasting technology to provide clear, coast-to-coast radio content. SiriusXM® is a subscription based service.
SiriusXM® Premier has over 160 channels. Get every channel available on your satellite radio, and enjoy all you want, all in one place. Hear commercial-free music plus sports, news, talk and entertainment.
Get all the premium programming, including Howard Stern, every NFL® game, Oprah Radio, every MLB® and NHL® game, every NASCAR® race, Martha Stewart and more. And get 20+ extra channels, including SiriusXM® Latino, offering 20 channels of commercial-free music, news, talk, comedy, sports and more dedicated to Spanish language programming.
SiriusXM® services require subscriptions, sold separately after the 12-month trial included with the new vehicle purchase. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call SiriusXM® at 866-635-2349 to cancel. See SiriusXM® Customer Agreement for complete terms for US residents at www.siriusxm.com, and for Canadian residents at www.siriusxm.ca. All fees and programming subject to change. Our satellite service is available only to those at least 18 and older in the 48 contiguous USA and D.C. Our Sirius satellite service is also available in PR (with coverage limitations). Our Internet radio service is available throughout our satellite service area and in AK and HI. © 2020 SiriusXM® Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM® Radio Inc.
This functionality is only available for radios equipped with a Satellite receiver. To receive satellite radio, the vehicle needs to be outside with a clear view to the sky.
If the screen shows Acquiring Signal, you might have to change the vehicle’s position to receive a signal. In most cases, the satellite radio does not receive a signal in underground parking garages or tunnels.
NO SUBSCRIPTION
Radios equipped with a Satellite receiver require a subscription to the SiriusXM® Service. When the Radio does not have the necessary subscription, the Radio is able to receive the Preview channel only.
ACQUIRING SIRIUSXM® SUBSCRIPTION
To activate the SiriusXM® Satellite Radio subscription, call 800-643-2112 (USA residents) or 888-534-7474 (Canadian Residents). You will need to provide the Sirius ID (ESN) located at the bottom of the Channel 0 screen.
The SiriusXM® Satellite Mode is activated by a press of the SAT button on the touchscreen.
When in SiriusXM® Satellite mode:
-
The SAT button is highlighted.
-
The SiriusXM® Presets are displayed at the top of the screen.
-
The Genre is displayed below the Presets Bar.
-
The SiriusXM® Channel Number is displayed in the center.
-
The Program Information is displayed at the bottom of the Channel Number.
-
The SiriusXM® function buttons are displayed below the Program Information.
Tuning is done by operating the Tune Knob or by Direct Tune, similar to other Radio Bands, see Presets, browse, Tune Knob, and Direct Tune.
In addition to the tuning Operation functions common to all Radio modes, the replay, Traffic/Weather Jump, and Fav button functions are available in SiriusXM® Mode.
REPLAY
The replay function provides a means to store and replay up to 22 minutes of music audio and 48 minutes of talk radio. Once the channel is switched, content in replay memory is lost.
Press the Replay button. The Play/Pause, Rewind/Forward and Live buttons will display at the top of the screen, along with the replay time.
You can exit by pressing the Replay button any time during the Replay mode.
Play/Pause
Press the Pause/Play buttons to pause playing of the content at any time that the content is playing live or rewound content. Play can be resumed again by pressing the Pause/Play button.
Rewind
Press the RW button to rewind the content in steps of five seconds. Pressing the RW button for more than two seconds rewinds the content. The Radio begins playing the content when the RW button is released.
Forward
Each press of the FW button forwards the content in steps of five seconds. Forwarding of the content can only be done when the content is previously rewound, and therefore, can not be done for live content. A continuous press of the FW button also forwards the content. The Radio begins playing the content when the FW button is released.
Live
Press the Live button to resume playing Live content.
FAVORITES
Press the Fav button to activate the favorites menu, which will time out in five seconds in absence of user interaction.
You can exit the Favorites Menu by a press of the “X” in the top right corner.
The favorites feature enables you to set a favorite artist, or song that is currently playing. The Radio then uses this information to alert you when either the favorite song, or favorite artist are being played at any time by any of the SiriusXM® Channels.
The maximum number of favorites that can be stored in the Radio is 50.
Fav. Artist
While the song is playing, to set a Favorite Artist, press the Fav button and then the Fav Artist button.
Fav. Song
While the song is playing, to set a Favorite Song, press the Fav button and then the Fav Song button.
TRAFFIC & WEATHER
Press the Traffic & Weather button to tune to a SiriusXM® Traffic & Weather channel. To set a Traffic & Weather alert for any one of the cities in the Browse list, see Browse in SAT.
When the Traffic & Weather button is pressed, the Jump Traffic & Weather channel is tuned.
If the Traffic & Weather alert City is not set, you are presented with a pop-up to allow you to select the favorite city using the Browse Screen.
BROWSE IN SAT
Press the Browse button to edit Presets, Favorites, Game Zone, and Jump settings, along with providing the SiriusXM® Channel List.
This Screen contains many submenus. You can exit a submenu to get back to a parent menu by a press of the Back Arrow.
ALL
Press the All button on the touchscreen at the left of the Browse Screen.
Channel List
Press the Channel List to display all the SiriusXM® Channel Numbers along with the corresponding Genre. You can scroll the Channel list by pressing the Up and Down Arrows, located on the right side of the screen. Scrolling can also be done by operating the Tune/Scroll Knob.
Genre
Press the Genre button to display a list of Genres. You can select any desired Genre by pressing the Genre list, at which point, the Radio tunes to a channel with the content in the selected Genre.
PRESETS
Press the Presets button located at the left of the Browse screen.
You can scroll the Presets list pressing the Up and Down Arrows, located at the right side of the screen. Scrolling can also be done by operating the TUNE/SCROLL knob.
Preset Selection
A Preset can be selected by pressing any of the listed Presets, or by pushing the ENTER/BROWSE button on the TUNE/SCROLL knob to select the currently highlighted Preset. When selected, the Radio tunes to the station stored in the Preset, and returns to the main Radio screen.
Deleting a Preset
A Preset can be deleted in the Presets Browse screen by pressing the Trash Can icon for the corresponding Preset.
FAVORITES
Press the Favorites button, located at the left of the Browse screen.
The Favorites menu provides a means to Edit the Favorites list and to configure the Alert Settings, along with providing a list of Channels currently airing any of the items in the Favorites list.
You can scroll the Favorites list pressing the Up and Down Arrows, located at the right side of the screen. Scrolling can also be done by operating the TUNE/SCROLL knob.
Remove Favorites
Press the Remove Favorites tab at the top of the screen. Press the Delete All button to delete all of the Favorites or press the Trash Can icon next to the Favorite to be deleted.
Alert Settings
Press the Alert Setting tab at the top of the screen. The Alert Settings menu allows you to choose from a Visual alert or Audible and Visual alert when one of your favorites is airing on any of the SiriusXM® channels.
GAME ZONE
Press the Game Zone button on the touchscreen, located at the left of the Browse screen. This feature provides you with the ability to select teams, edit the selection, and set alerts.
On Air
Press the On-Air tab at the top of the screen. The On-Air list provides a list of Channels currently airing any of the items in the Selections list, and pressing any of the items in the list tunes the radio to that channel.
Select Teams
Press the Select Teams button on the touchscreen to activate the League Scroll list. Press the chosen league and a scroll list of all teams within the league will appear, then you can select a team by pressing the corresponding box. A check mark appears for all teams that are chosen.
Remove Selection
Press the Remove Selection tab at the top of the screen. Press the Delete All button on the touchscreen to delete all of the Selections or press the Trash Can icon next to the Selection to be deleted.
Alert Settings
Press the Alert Setting tab at the top of the screen. The Alert Settings menu allows you to choose from “Alert me to on-air games upon start” or “Alert upon score update” or both when one or more of your selections is airing on any of the SiriusXM® channels.
TRAFFIC & WEATHER
Press the Traffic & Weather button to tune to a SiriusXM® Traffic & Weather channel.
Press the Up and Down Arrows to the right side of the list to view all the available cities. This operation can also be done with operation of the TUNE/SCROLL knob.
Press the check box next to the desired City. A check mark appears besides the selected City.
AUDIO
Press the Audio button to activate the Audio settings screen to adjust Balance/Fade, Equalizer and Speed Adjusted Volume.
You can return to the Radio screen by pressing the X button located at the top right.
BALANCE/FADE
Press the Balance/Fade button to Balance audio between the front speakers or fade the audio between the rear and front speakers.
Balance/Fade
Press the Front, Rear, Left, or Right button or press and drag the blue Speaker icon to adjust the Balance/Fade.
EQUALIZER
Press the Equalizer button to activate the Equalizer screen.
Equalizer
Press the + or – button, or by pressing and dragging over the level bar for each of the equalizer bands. The level value, which spans between ±9, is displayed at the bottom of each of the Bands.
SPEED ADJUSTED VOLUME
Speed Adjusted Volume
Press the Speed Adjusted Volume button to activate the Speed Adjusted Volume screen.
Press the Speed Adjusted Volume button to select between “OFF,” “1,” “2”, or “3.” This will decrease the radio volume relative to a decrease in vehicle speed.
MUSIC INFO CLEANUP
Music Info Cleanup
Press the On button to activate the Music Info Cleanup. Press “Off” to deactivate this feature.
When Music Info Cleanup is on, the radio uses the Gracenotes database to display standard normalized information for song title, artist, album, etc.
SURROUND SOUND — IF EQUIPPED
Surround Sound
Press the On button to activate Surround Sound. Press “Off” to deactivate this feature.
When Surround Sound is on, you can hear audio coming from every direction as in a movie theatre or home theatre system.
MEDIA MODE
DISC MODE
OVERVIEW
Disc Mode is entered by either inserting a Disc or by pressing the Player button located on the bottom of the display. Once in Player Mode, press the Source button and select Disc.
Media Mode
A “No Disc” message will be displayed on the screen in the Disc mode when a Disc is not present in the Radio.
INSERTING COMPACT DISC
Gently insert one Disc into the Disc player with the Disc label facing up. The Disc will automatically be pulled into the player and the Disc icon will illuminate on the radio display. If a Disc does not go into the slot more than 1 inch (2.5 cm), a disc may already be loaded and must be ejected before a new disc can be loaded.
If you insert a disc with the ignition ON/RUN and the radio On, the unit will switch to Disc Mode and begin to play when you insert the disc. The display will show the track number, and index time in minutes and seconds. Play will begin at the start of track One.
CAUTION:
-
This CD Player will accept 4-3/4 inch (12 cm) discs only. The use of other sized discs may damage the CD player mechanism.
-
Do not use adhesive labels. These labels can peel away and jam the player mechanism.
-
Uconnect 3/3 NAV is a single Disc player. Do not attempt to insert a second Disc if one is already loaded.
EJECT BUTTON — EJECTING A DISC
Press the EJECT button to eject the Disc.
If you push EJECT and do not remove the disk within 10 seconds, it will be reloaded. If the Disc is not removed, the radio will reinsert the Disc but will not play it.
A disc can be ejected with the radio Off and ignition in Accessories (ACC) mode.
SEEK UP/DOWN
Press and release the Right Arrow button for the next selection on the Disc. Press and release the Left Arrow button to return to the beginning of the current selection, or return to the beginning of the previous selection if the Disc is within the first second of the current selection.
FAST SEEK UP
Press and hold the Right Arrow button and the Disc player will begin to fast forward through the current track until the button is released.
FAST SEEK DOWN
Press and hold the Left Arrow button and the Disc player will begin to rewind through the current track until the button is released.
BROWSE
Press the Browse button to display the browse window. The left side of the browse window displays a list of ways you can browse through the contents of the Disc. If supported by the device, you can browse by Folders, Artists, Playlists, Albums, Songs, etc. Press the desired button on the left side of the screen. The center of the browse window shows items and it’s sub-functions, which can be scrolled by pressing the Up and Down buttons to the right. The TUNE/SCROLL knob can also be used to scroll.
SOURCE
Press the Source button on the touchscreen to select the desired audio source: Disc/USB/SD Card/AUX/Bluetooth®. This screen will time out after a few seconds and return to the main radio screen if no selection is made.
REPEAT
Press the Repeat button to toggle the repeat functionality. The Repeat button is highlighted when active. The radio will continue to play the current track, repeatedly, as long as the repeat is active.
SHUFFLE
Press the Shuffle button to play the selections on the compact disc in random order to provide an interesting change of pace. Press the Shuffle button a second time to turn this feature off.
INFO
Press the Info button to display the current track information. Press the Info button a second time to cancel this feature.
TRACKS
Press the Trks button to display a pop-up with the Song List. The currently playing song is indicated by an arrow and lines above and below the song title.
Tracks
Pressing the Trks button while the pop-up is displayed will close the pop-up.
AUDIO
Refer to “Audio” in “Radio Mode” for further information on adjusting the audio settings.
USB OPERATION
OVERVIEW
USB Mode is entered by inserting a USB device and cable into the USB Port or by pressing the Player button located on the bottom of the display. Once in Player Mode, press the Source button and select USB.
USB Operation
INSERTING USB DEVICE
Gently insert the USB device into the USB Port. If you insert a USB device into the USB port, with the ignition ON/RUN and the radio on, the unit will switch to USB mode and begin to play. The display will show the track number and index time in minutes and seconds. Play will begin at the start of track one.
SEEK UP/DOWN
Press and release the Right Arrow button on the touchscreen for the next selection on the USB device. Press and release the Left Arrow button on the touchscreen to return to the beginning of the current selection, or return to the beginning of the previous selection if the USB device is within the first second of the current selection.
FAST SEEK UP
Press and hold the Right Arrow button and the USB device will begin to fast forward through the current track until the button is released.
FAST SEEK DOWN
Press and hold the Left Arrow button on the touchscreen and the USB device will begin to rewind through the current track until the button on the touchscreen is released.
BROWSE
Press the Browse button to display the browse window. The left side of the browse window displays a list of ways you can browse through the contents of the USB device. If supported by the device, you can browse by Folders, Artists, Playlists, Albums, Songs, etc. Press the desired button on the left side of the screen. The center of the browse window shows items and its sub-functions, which can be scrolled by pressing the Up and Down buttons to the right. The TUNE/SCROLL knob can also be used to scroll.
ABC JUMP — IF EQUIPPED
Press the ABC Jump button tab at the top of the screen to search an alpha numeric keypad used to search by letter/number for a certain Folder, Artist, Song, Album, or Genre. Press one letter to select all contents that start with that letter. Press the 123 button to display all contents that start with numbers. Press the 123 button again to return to letters. Press the X button to exit the ABC Jump feature.
Note:
Many features of this system are speed dependent. For your own safety these features may be grayed out and not accessible while the vehicle is in motion. Pull over at a safe location to complete your task.
ABC Jump
SEARCH
Press the Search tab at the top of the screen to display the Keyboard. This allows you to enter a folder or file name to be searched.
Up Arrow
Press the Up Arrow button to toggle between Upper Case and Lower Case keys.
ABC, ÅØÜ and 1234!&#@
Press the ABC key to activate a keyboard with Alphabetic characters, or press the ÅØÜ to activate a keyboard with accented characters or press the 1234!&#@ key to activate a keyboard with Numeric plus Special characters.
FOLDERS — IF EQUIPPED
Press the Folders button on the left side of the screen to display the Folders scroll menu. The Folders list consists of folders and files sorted alphanumerically, followed by a list of files sorted similarly. You can browse the contents of a subfolder by pressing the Folder Name in the list. Press the Back Arrow button to return or back up to a previous folder level.
ARTIST
Press the Artist button on the left side of the screen to display the Artists list in which you can Scroll, Search, and Jump to operations.
PLAYLISTS — IF EQUIPPED
Press the Playlists button on the left side of the screen to display the current playlist information.
SONGS
Press the Songs button on the left side of the screen to display the Songs list in which the user can Scroll, Search and Jump to operations.
The currently playing song is displayed with a black background and lines both above and below the title.
ALBUMS
Press the Albums button on the left side of the screen to display the Albums list in which you can Scroll, Search, and Jump to operations.
GENRES
Press the Genres button to display the Genres list in which you can Scroll, Search, and Jump to operations.
SOURCE
Press the Source button on the touchscreen to select the desired audio source, Disc/USB/SD Card/AUX/ or Bluetooth®. This screen will time out after a few seconds and return to the main radio screen if no selection is made.
REPEAT
Press the Repeat button to toggle the repeat functionality. The Repeat button is highlighted when active. The Radio will continue to play the current track, repeatedly, as long as the repeat is active.
SHUFFLE
Press the Shuffle button to play the selections on the USB device in random order. Press the Shuffle button a second time to turn this feature off.
INFO
Press the Info button to display the current track information. Press the Info button a second time to cancel this feature.
TRACKS
Press the Trks button to display a pop-up with the Song List. The currently playing song is indicated by an arrow with lines above and below the song title. When in the Tracks List screen you can rotate the TUNE/SCROLL knob to highlight a track (indicated by the line above and below the track name) and then push the ENTER/BROWSE knob to start playing that track.
Tracks
Pressing the Trks button while the pop-up is displayed will close the pop-up.
AUDIO
Refer to “Audio” in “Radio Mode” for further information on adjusting the audio settings.
AUX MODE
OVERVIEW
AUX Mode is entered by inserting an AUX device using a cable with a 3.5 mm audio jack into the AUX port or by pressing the Player button located at the bottom of the display. Once in Player Mode, press the Source button and select AUX.
Aux Mode
Inserting Auxiliary Device
Gently insert the Auxiliary device cable into the AUX Port. If you insert an Auxiliary device with the ignition ON/RUN and the radio on, the unit will switch to AUX mode and begin to play when you insert the device cable.
Controlling The Auxiliary Device
The control of the auxiliary device (e.g., selecting playlists, play, fast forward, etc.) cannot be provided by the radio; use the device controls instead. Adjust the volume with the ON/OFF VOLUME rotary knob, or with the volume of the attached device.
Note:
The vehicle radio unit is acting as the amplifier for audio output from the Auxiliary device. Therefore if the volume control on the Auxiliary device is set too low, there will be insufficient audio signal for the radio unit to play the music on the device.
SOURCE
Press the Source button on the touchscreen to select the desired audio source, Disc/USB/SD Card/AUX/ or Bluetooth®. This screen will time out after a few seconds and return to the main radio screen if no selection is made.
AUDIO
Refer to “Audio” in “Radio Mode” for further information on adjusting the audio settings.
SD CARD MODE
OVERVIEW
SD Card Mode is entered by inserting a SD Card containing music into the SD Card slot above the Disc slot on the Instrument Panel or by pressing the Player button located at the bottom of the display. Once in Player Mode, press the Source button and select SD Card.
SD Card Mode
INSERTING SD CARD
Gently insert the SD Card into the SD Card slot. If you insert a SD Card with the ignition ON/RUN and the radio on, the unit will switch to SD Card mode and begin to play when you insert the card. The display will show the track number, and index time in minutes and seconds. Play will begin at the start of track one.
SEEK UP/DOWN
Press and release the Seek Up button for the next selection on the SD Card. Press and release the Seek Down button to return to the beginning of the current selection, or return to the beginning of the previous selection if the SD Card is within the first second of the current selection.
FAST SEEK UP
Press and hold the Right Arrow button and the SD Card will begin to fast forward through the current track until the button is released.
FAST SEEK DOWN
Press and hold the Left Arrow button and the SD Card begins to rewind through the current track until the button is released.
BROWSE
Press the Browse button to display the browse window. The left side of the browse window displays a list of ways you can browse through the contents of the SD Card. If equipped, you can browse by Folders, Artists, Playlists, Albums, Songs, etc. Press the desired button on the left side of the screen. The center of the browse window shows items and its sub-functions, which can be scrolled by pressing the Up and Down buttons to the right. The TUNE/SCROLL knob can also be used to scroll.
ABC JUMP — IF EQUIPPED
Press the ABC Jump button tab at the top of the screen to display a alpha numeric keypad used to search by letter/number for a certain Folder, Artist, Song, Album or Genre. Press one letter to select all contents that start with that letter. Press the 123 button to search all contents that start with numbers. Press the 123 button to return to letters. Press the X button to exit the ABC Jump feature.
Note:
Many features of this system are speed dependent. For your own safety these features may be grayed out and not accessible while the vehicle is in motion. Pull over at a safe location to complete your task.
ABC Jump
SEARCH
Press the Search tab at the top of the screen to display the Keyboard. This allows you to enter a folder or file name to be searched.
Up Arrow
Press the Up Arrow button to toggle between Upper Case and Lower Case keys.
ABC, ÅØÜ and 1234!&#@
Press the ABC key to activate a keyboard with Alphabetic characters, or press the ÅØÜ to activate a keyboard with accented characters or press the 1234!&#@ key to activate a keyboard with Numeric plus Special characters.
FOLDERS — IF EQUIPPED
Press the Folders button on the left side of the screen to display the Folders scroll menu. The Folders list consists of folders, and files sorted alphanumerical, followed by a list of files sorted similarly. You can browse the contents of a sub-folder by pressing the “Folder Name” in the list. Press the Back Arrow button to return or back up to a previous folder level.
ARTIST
Press the Artist button on the left side of the screen to display the Artists list in which you can Scroll, Search, and Jump to operations.
PLAYLISTS — IF EQUIPPED
Press the Playlists button on the left side of the screen to display the current playlist information.
SONGS
Press the Songs button on the left side of the screen to display the Songs list in which the user can Scroll, Search, and Jump to operations.
The currently playing song is displayed with a black background and blue lines both above and below the title.
ALBUMS
Press the Albums button on the left side of the screen to display the Albums list in which you can Scroll, Search, and Jump to operations.
GENRES
Press the Genres button to display the Genres list in which you can Scroll, Search, and Jump to operations.
SOURCE
Press the Source button on the touchscreen to select the desired audio source, Disc/USB/SD Card/AUX/ or Bluetooth®. This screen will time out after a few seconds and return to the main radio screen if no selection is made.
REPEAT
Press the Repeat button to toggle the repeat functionality. The Repeat button is highlighted when active. The Radio will continue to play the current track, repeatedly, as long as the repeat is active.
SHUFFLE
Press the Shuffle button to play the selections on the Auxiliary device in random order to provide an interesting change of pace. Press the Shuffle button a second time to turn this feature off.
INFO
Press the Info button to display the current track information. Press the Info button a second time to cancel this feature.
TRACKS
Press the Trks button to display a pop-up with the Song List. The currently playing song is indicated by an arrow with lines above and below the song title. When in the Tracks List screen you can rotate the TUNE/SCROLL knob to highlight a track (indicated by the line above and below the track name) and then push the ENTER/BROWSE knob to start playing that track.
Tracks
Pressing the Trks button while the pop-up is displayed will close the pop-up.
AUDIO
Refer to “Audio” in “Radio Mode” for further information on adjusting the audio settings.
BLUETOOTH® MODE
OVERVIEW
Bluetooth® Streaming Audio (BTSA) or Bluetooth® Mode is entered by pairing a Bluetooth® device, containing music, to the Uconnect system.
Before proceeding, the Bluetooth® device needs to be paired through Uconnect Phone in order to communicate with the Uconnect System.
Once the Bluetooth® device is paired to the Uconnect System, press the Player button located on the bottom of the display. Once in Player Mode, press the Source button and select “Bluetooth®.”
SEEK UP/DOWN
Press and release the Seek Up button on the touchscreen for the next selection on the Bluetooth® device. Press and release the Seek Down button on the touchscreen to return to the beginning of the current selection, or return to the beginning of the previous selection if the Bluetooth® device is within the first eight seconds of the current selection.
FAST SEEK UP
Press and hold the Seek Up button and the Bluetooth® device will begin to fast forward through the current track until the button is released.
FAST SEEK DOWN
Press and hold the Seek Down button and the Bluetooth® device will begin to rewind through the current track until the button is released.
SOURCE
Press the Source button on the touchscreen to select the desired audio source, Disc/USB/SD Card/AUX/ or Bluetooth®. This screen will time out after a few seconds and return to the main radio screen if no selection is made.
REPEAT
Press the Repeat button to toggle the repeat functionality. The Repeat button is highlighted when active. The Radio will continue to play the current track, repeatedly, as long as the repeat is active.
INFO
Press the Info button to display the current track information. Press the Info button a second time to cancel this feature.
AUDIO
Refer to “Audio” in “Radio Mode” for further information on adjusting the audio settings.
UCONNECT PHONE
Uconnect Phone is a voice-activated, hands-free, in-vehicle communications system. Uconnect Phone allows you to dial a phone number with your mobile phone.
Uconnect Phone supports the following features:
Voice Activated Features:
-
Hands-Free dialing via Voice (“Call John Smith Mobile” or, “Dial 248 555 1212”).
-
Hands-Free text-to-speech listening of your incoming SMS messages.
-
Hands-Free text messaging (“Send a message to John Smith Mobile”).
-
Redialing last dialed numbers (“Redial”).
-
Calling Back the last incoming call number (“Call Back”).
-
Viewing Call logs on screen (“Show Incoming Calls,” “Show Outgoing Calls,” “Show Missed Calls,” “Show Recent Calls”).
-
Searching Contacts phone number (“Search for John Smith Mobile”).
Screen Activated Features
-
Dialing via Keypad using touchscreen.
-
Viewing and Calling contacts from Phonebooks displayed on the touchscreen.
-
Setting Favorite Contact Phone numbers so they are easily accessible on the Main Phone screen.
-
Viewing and Calling contacts from Recent Call logs.
-
Reviewing your recent Incoming SMS.
-
Sending a text message via the touchscreen.
-
Listening to Music on your Bluetooth® Device via the touchscreen.
-
Pairing up to 10 phones/audio devices for easy access to connect to them quickly.
Note:
Your phone must be capable of SMS messaging via Bluetooth® for messaging features to work properly. Your mobile phone’s audio is transmitted through your vehicles audio system; the system will automatically mute your radio when using the Uconnect Phone. For Uconnect customer support, visit the following website:
-
US residents — visit UconnectPhone.com or call 1-877-855-8400.
-
Canadian residents — visit UconnectPhone.com or call 1-800-465-2001 (English) or 1-800-387-9983 (French).
Uconnect Phone allows you to transfer calls between the system and your mobile phone as you enter or exit your vehicle and enables you to mute the system's microphone for private conversation.
WARNING:
Any voice commanded system should be used only in safe driving conditions following all applicable laws, including laws regarding phone use. Your attention should be focused on safely operating the vehicle. Failure to do so may result in an accident causing serious injury or death.
The Uconnect Phone is driven through your Bluetooth® “Hands-Free Profile” mobile phone. Uconnect features Bluetooth® technology — the global standard that enables different electronic devices to connect to each other without wires or a docking station, so Uconnect Phone works no matter where you stow your mobile phone (be it your purse, pocket, or briefcase), as long as your phone is turned on and has been paired to the vehicle's Uconnect Phone.
The Uconnect Phone allows up to 10 mobile phones or audio devices to be linked to the system. Only one linked (or paired) mobile phone and one audio device can be used with the system at a time. The system is available in English, Spanish, or French languages.
Uconnect Phone Button
The Uconnect Phone button
is used to enter the phone mode and make calls, show recent incoming and outgoing calls, view phonebook along with other features. When you push the button you will hear a BEEP. The beep is your signal to give a command.
Uconnect Voice Command Button
The Voice Recognition button
is only used for “barge in” and when you are already in a call and you want to send Tones or make another call.
The Voice Recognition button is also used to access the Voice Commands for the Uconnect Voice Command features if your vehicle is equipped. Please see the Uconnect Voice Command section for direction on how to use the Voice Command button.
The Uconnect Phone is fully integrated with the vehicle’s audio system. The volume of the Uconnect Phone can be adjusted either from the radio volume control knob or from the steering wheel radio control (right switch), if so equipped.
OPERATION
Voice commands can be used to operate the Uconnect Phone and to navigate through the Uconnect Phone menu structure. Voice commands are required after most Uconnect Phone prompts. There are two general methods for how Voice Command works:
-
Say compound commands like “Call John Smith Mobile.”
-
Say the individual commands and allow the system to guide you to complete the task.
You will be prompted for a specific command and then guided through the available options.
-
Prior to giving a voice command, one must wait for the beep, which follows the “Listen” prompt or another prompt.
-
For certain operations, compound commands can be used. For example, instead of saying “Call” and then “John Smith” and then “mobile”, the following compound command can be said: “Call John Smith mobile.”
-
For each feature explanation in this section, only the compound command form of the voice command is given. You can also break the commands into parts and say each part of the command when you are asked for it. For example, you can use the compound command form voice command “Search for John Smith,” or you can break the compound command form into two voice commands: “Search Contact” and when asked “John Smith.” Please remember, the Uconnect Phone works best when you talk in a normal conversational tone, as if speaking to someone sitting a few feet/meters away from you.
NATURAL SPEECH
Your Uconnect Phone Voice system uses a Natural Language Voice Recognition (VR) engine.
Natural speech allows the user to speak commands in phrases or complete sentences. The system filters out certain non-word utterances and sounds such as “ah” and “eh.” The system handles fill-in words such as “I would like to.”
The system handles multiple inputs in the same phrase or sentence such as “make a phone call” and “to Kelly Smith.” For multiple inputs in the same phrase or sentence, the system identifies the topic or context and provides the associated follow-up prompt such as “Who do you want to call?” in the case where a phone call was requested but the specific name was not recognized.
The system utilizes continuous dialog; when the system requires more information from the user it will ask a question to which the user can respond without pushing the Voice Recognition button on your steering wheel.
HELP COMMAND
If you need assistance at any prompt, or if you want to know your options at any prompt, say “Help” following the beep.
To activate the Uconnect Phone from idle, simply push the Phone button (if active) on your steering wheel and say a command or say “Help.” All Uconnect Phone sessions begin with a push of the VR button or the Phone button (if active) on the radio control head.
CANCEL COMMAND
At any prompt, after the beep, you can say “Cancel” and you will be returned to the main menu.
You can also push the VR button or Phone button (if active) on your steering wheel when the system is listening for a command and be returned to the main or previous menu.
PAIR (LINK) UCONNECT PHONE TO A MOBILE PHONE
To begin using your Uconnect Phone, you must pair your compatible Bluetooth® enabled mobile phone.
Note:
-
You must have Bluetooth® enabled on your mobile phone to complete this procedure.
-
The vehicle must be in PARK.
To complete the pairing process, you will need to reference your mobile phone Owner's Manual. The Uconnect website may also provide detailed instructions for pairing.
-
Press the Phone button on the touchscreen to begin.
-

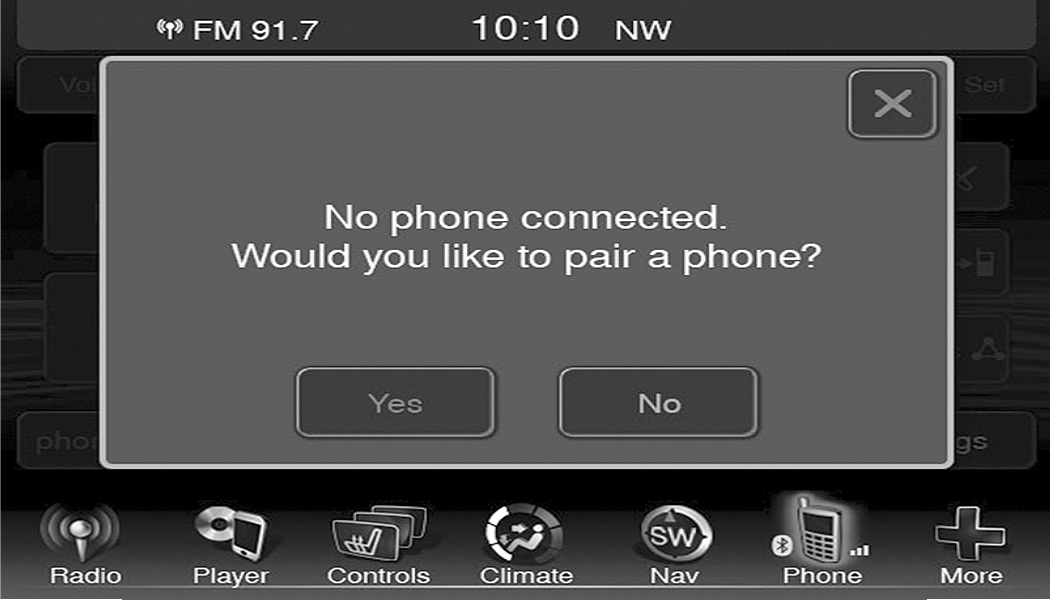

If there is no phone currently connected with the system, a pop-up will appear.
Mobile Phone Pairing
-
Select “Yes” to begin the pairing process. Then, search for available devices on your Bluetooth®-enabled mobile phone. When prompted on the phone, enter the name and PIN shown on the Uconnect screen.
-
If “No” is selected, press the Settings button from the Uconnect Phone main screen.
-
Press the Add Device button on the touchscreen.
-
Search for available devices on your Bluetooth®-enabled mobile phone. When prompted on the phone, enter the name and PIN shown on the Uconnect screen.
-
-

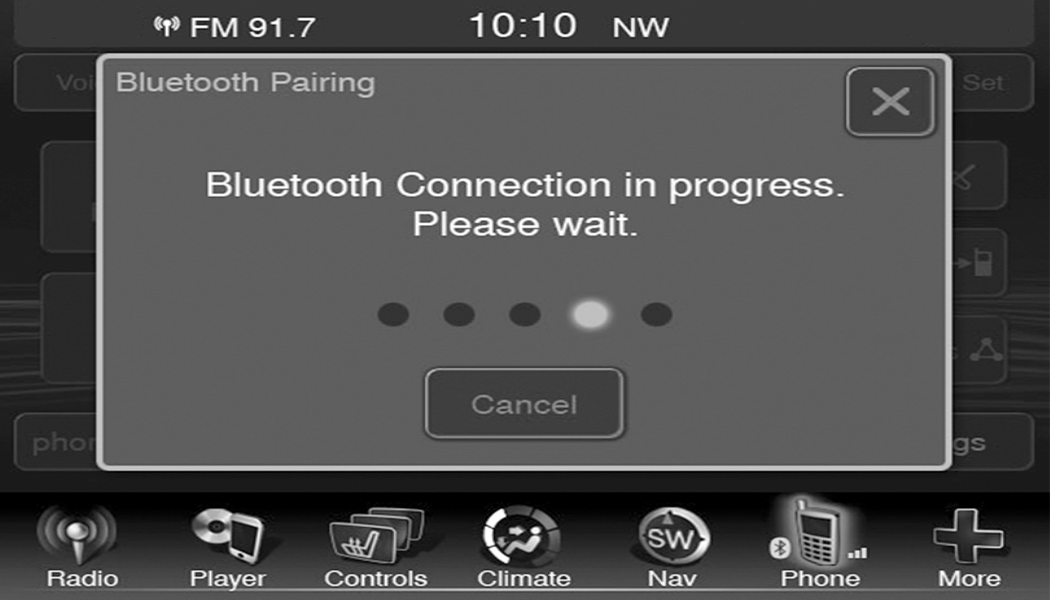

Uconnect Phone displays an in progress screen while the system is connecting.
Mobile Phone Pairing Progress
-
When the pairing process has successfully completed, the system prompts you to choose whether or not this is your favorite phone. Selecting “Yes” makes this phone the highest priority. This phone takes precedence over other paired phones within range.
Note:
Software updates on your phone or the Uconnect system may interfere with the Bluetooth® connection. If this happens, simply repeat the pairing process. However, first, make sure to delete the device from the list of phones on your Uconnect system. Next, be sure to remove Uconnect from the list of devices in your phone’s Bluetooth® settings.
PAIR ADDITIONAL MOBILE PHONES
-
Press the Settings button from the Phone main screen.
-
Press the Add Device button on the touchscreen.
-
Search for available devices on your Bluetooth®-enabled mobile phone. When prompted on the phone, enter the name and PIN shown on the Uconnect screen.
-
Uconnect Phone will display an in-process screen while the system is connecting.
-
When the pairing process has successfully been completed, the system will prompt you to choose whether or not this is your favorite phone. Selecting “Yes” will make this phone the highest priority. This phone will take precedence over other paired phones within range.
Note:
For phones which are not made a favorite, the phone priority is determined by the order in which it was paired. The latest phone paired will have the higher priority.
You can also use the following VR commands to bring up the Paired Phone screen from any screen on the radio:
-
“Show Paired Phones”
-
“Connect My Phone”
PAIR A BLUETOOTH® STREAMING AUDIO DEVICE
-
Press the Player button on the touchscreen to begin.
-
Change the Source to Bluetooth®.
-
Press the Bluetooth® button on the touchscreen to display the Paired Audio Devices screen.
-
Press the Add Device button on the touchscreen.
Note:
If there is no device currently connected with the system, a pop-up will appear.
-
Search for available devices on your Bluetooth®-enabled audio device. When prompted on the device, enter the PIN shown on the Uconnect screen.
-
Uconnect Phone will display an in-process screen while the system is connecting.
-
When the pairing process has successfully been completed, the system will prompt you to choose whether or not this is your favorite device. Selecting “Yes” will make this device the highest priority. This device will take precedence over other paired devices within range.
Note:
For devices which are not made a favorite, the device priority is determined by the order in which it was paired. The latest device paired will have the higher priority.
You can also use the following VR command to bring up a list of paired audio devices:
-
“Show Paired Phones”
-
“Connect My Phone”
CONNECTING TO A PARTICULAR MOBILE PHONE OR AUDIO DEVICE AFTER PAIRING
Uconnect Phone will automatically connect to the highest priority paired phone and/or Audio Device within range. If you need to choose a particular phone or Audio Device follow these steps:
-
Press the Settings button on the touchscreen.
-
Press the Paired Phones or Paired Audio Sources button on the touchscreen.
-
Press to select the particular Phone or the particular Audio Device.
-
Press the “X” to exit out of the Settings screen.
DISCONNECTING A PHONE OR AUDIO DEVICE
-
Press the Settings button on the touchscreen.
-
Press the Paired Phones or Paired Audio Devices button on the touchscreen.
-
Press the Settings icon button located to the right of the device name.
-
The options pop-up will be displayed.
-
Press the Disconnect Device button on the touchscreen.
-
Press the “X” to exit out of the Settings screen.
DELETING A PHONE OR AUDIO DEVICE
-
Press the Settings button on the touchscreen.
-
Press the Pair Phones or Paired Audio Devices button on the touchscreen.
-
Press the Settings icon button located to the right of the device name for a different Phone or Audio Device than the currently connected device.
-
The options pop-up will be displayed.
-
Press the Delete Device button on the touchscreen.
-
Press the “X” to exit out of the Settings screen.
MAKING A PHONE OR AUDIO DEVICE A FAVORITE
-
Press the Settings button on the touchscreen.
-
Press the Paired Phones or Paired Audio Devices button on the touchscreen.
-
Press the Settings icon button located to the right of the device name.
-
The options pop-up will be displayed.
-
Press the Make Favorite button on the touchscreen; you will see the chosen device move to the top of the list.
-
Press the “X” to exit out of the Settings screen.
PHONEBOOK DOWNLOAD (AUTOMATIC PHONEBOOK TRANSFER FROM MOBILE PHONE) — IF EQUIPPED
If equipped and specifically supported by your phone, Uconnect Phone automatically downloads names (text names) and number entries from the mobile phone’s phonebook. Specific Bluetooth® Phones with Phone Book Access Profile may support this feature. See Uconnect website, UconnectPhone.com, for supported phones.
-
To call a name from a downloaded mobile phone book, follow the procedure in the Voice Recognition Quick Reference section.
-
Automatic download and update of a phone book, if supported, begins as soon as the Bluetooth® wireless phone connection is made to the Uconnect Phone, for example, after you start the vehicle.
-
A maximum of 2,000 entries per phone will be downloaded and updated every time a phone is connected to the Uconnect Phone.
-
Depending on the maximum number of entries downloaded, there may be a short delay before the latest downloaded names can be used. Until then, if available, the previously downloaded phonebook is available for use.
-
Only the phonebook of the currently connected mobile phone is accessible.
-
This downloaded phonebook cannot be edited or deleted on the Uconnect Phone. These can only be edited on the mobile phone. The changes are transferred and updated to Uconnect Phone on the next phone connection.
MANAGING YOUR FAVORITE PHONEBOOK
There are three ways you can add an entry to your Favorite Phonebook.
-
During an active call of a number to make a favorite, press and hold a favorite button on the top of the phone main screen.
-
After loading the mobile phonebook, select Phonebook from the Phone main screen, then select the appropriate number. Press the “+” next to the selected number to display the options pop-up. In the pop-up, select “Add to Favorites.”
Phonebook Favorites
Note:
If the Favorites list is full, you will be asked to remove an existing favorite.
-
From the Phone main screen, select Phonebook. From the Phonebook screen, select the Favorites button on the touchscreen and then select the + button on the touchscreen located to the right of the phonebook record. Select an empty entry and press the “+” on that selected entry. When the Options pop-up appears, press “Add from Mobile.” You will then be asked which contact and number to choose from your mobile phonebook. When complete, the new favorite will be shown.
Add From Mobile
TO REMOVE A FAVORITE
-
To remove a Favorite, select Phonebook from the Phone main screen.
-
Next select Favorites on the left side of the screen and then press the + Options button on the touchscreen.
-
Press the “+” next to the Favorite you would like to remove.

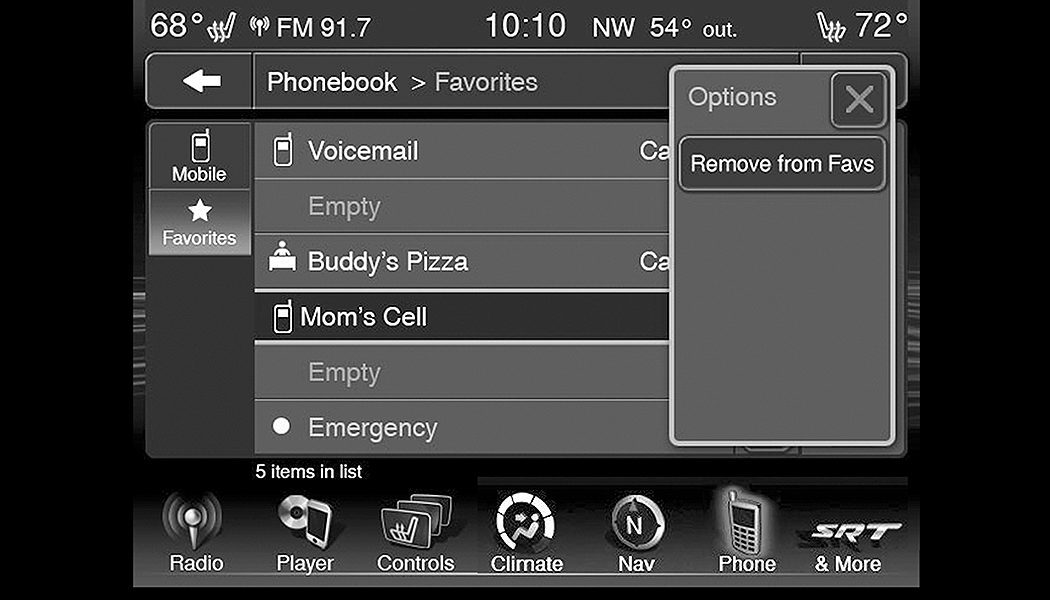

Remove From Favorites
-
The Options pop-up will display, press “Remove from Favs.”
EMERGENCY AND TOWING ASSISTANCE
The Emergency and Towing Assistance Favorite numbers can only be altered. These cannot be deleted and the names cannot be changed.
To change the Emergency or Towing Assistance numbers follow these steps.
-
Press the Phonebook button from the Phone main screen.
-
Press the Favorites button on the touchscreen. Scroll to the bottom of the list to locate the Emergency and Towing Assistance Favorites.
-
Press the + Options button on the touchscreen.
-
Press the + next to appropriate Favorite that is to be altered.

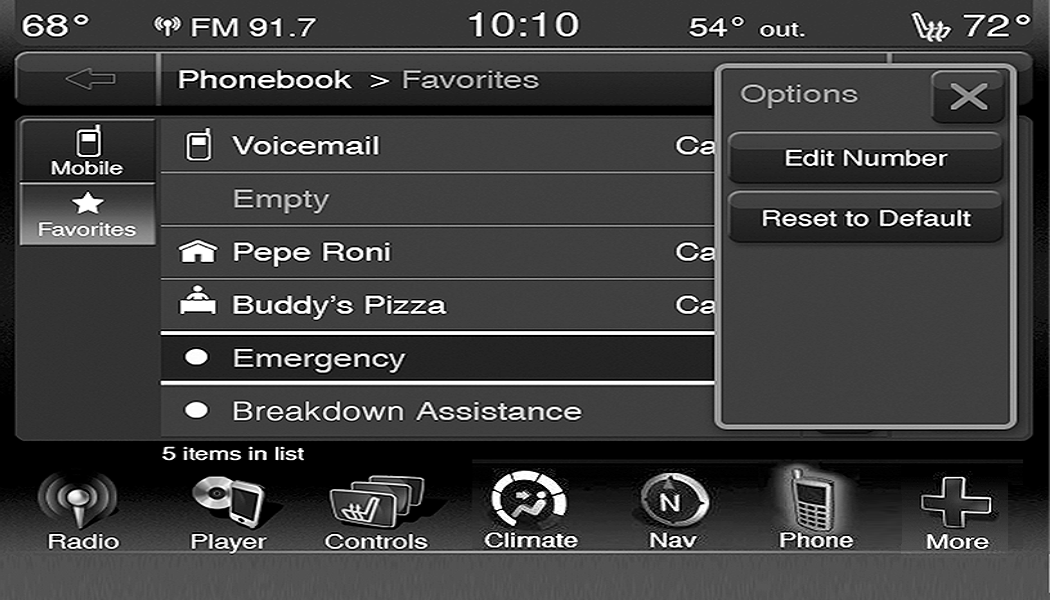

Emergency And Breakdown Assistance
-
The Options pop-up will appear and you can choose between editing the number or resetting the number to default.
PHONE CALL FEATURES
The following features can be accessed through the Uconnect Phone if the feature(s) are available and supported by Bluetooth® on your mobile service plan. For example, if your mobile service plan provides three-way calling, this feature can be accessed through the Uconnect Phone. Check with your mobile service provider for the features that you have.
WAYS TO INITIATE A PHONE CALL
Listed below are all the ways you can initiate a phone call with Uconnect Phone.
-
Redial
-
Dial by pressing in the number
-
Voice Commands (Dial by Saying a Name, Call by Saying a Phonebook Name, Redial or Call Back)
-
Favorites
-
Mobile Phonebook
-
Recent Call Log
-
SMS Message Viewer
DIAL BY SAYING A NUMBER
-
Push the Phone
button to begin. -
After the “Listening” prompt and the following beep, say “Dial 248-555-1212.”
-
The Uconnect Phone will dial the number 248-555-1212.
CALL BY SAYING A PHONEBOOK NAME
-
Push the VR button on your steering wheel to begin.
-
After the “Listening” prompt and the following beep, say “Call John Doe Mobile.”
-
The Uconnect Phone will dial the number associated with John Doe, or if there are multiple numbers it will ask which number you want to call for John Doe.
CALL CONTROLS
The touchscreen allows you to control the following call features:
-
Answer
-
End
-
Ignore
-
Hold/unhold
-
Mute/unmute
-
Transfer the call to/from the phone
-
Swap two active calls
-
Join two active calls together
TOUCH-TONE NUMBER ENTRY
-
Press the Phone button on the touchscreen.
-
Press the Dial button on the touchscreen.
-
The Touch-Tone screen will be displayed.
-
Use the numbered buttons on the touchscreen to enter the number and press “Call.”
To send a touch-tone using Voice Recognition (VR), push the Voice Command button on your steering wheel while in a call and say “Send 1234#” or you can say “Send Voicemail Password” if Voicemail password is stored in your mobile phonebook.
RECENT CALLS
You may browse up to 34 of the most recent of each of the following call types:
-
Incoming Calls
-
Outgoing Calls
-
Missed Calls
-
All Calls
These can be accessed by pressing the Recent Calls button on the touchscreen on the Phone main screen.
You can also push the Phone button and say “Show my incoming calls” from any screen and the Incoming calls will be displayed.
You can also push the Phone button and say “Show my recent calls” from any screen and the All Calls screen will be displayed.
Note:
Incoming can also be replaced with “Outgoing,” “Recent”, or “Missed.”
ANSWER OR IGNORE AN INCOMING CALL — NO CALL CURRENTLY IN PROGRESS
When you receive a call on your mobile phone, the Uconnect Phone will interrupt the vehicle audio system. Push the Phone button on the steering wheel to accept the call. You can also press the Answer button on the touchscreen, or press the caller ID box.
ANSWER OR IGNORE AN INCOMING CALL — CALL CURRENTLY IN PROGRESS
If a call is currently in progress and you have another incoming call, you will hear the same network tones for call waiting that you normally hear when using your mobile phone. Push the Phone button on the steering wheel, or press the Answer button on the touchscreen, or caller ID box, to place the current call on hold and answer the incoming call.
Note:
The Uconnect Phone-compatible phones in the market today do not support rejecting an incoming call when another call is in progress. Therefore, the user can only answer an incoming call or ignore it.
MAKING A SECOND CALL WHILE CURRENT CALL IS IN PROGRESS
You can place a call on hold by pressing the Hold button on the Phone main screen, then dial a number from the dialpad, recent calls, SMS Inbox or from the phonebooks. To go back to the first call, refer to “Toggling Between Calls” in this section. To combine two calls, refer to “Join Calls” in this section.
PLACE/RETRIEVE A CALL FROM HOLD
During an active call, press the Hold button on the Phone main screen.
TOGGLING BETWEEN CALLS
If two calls are in progress (one active and one on hold), press the Swap button on the Phone main screen. Only one call can be placed on hold at a time.
You can also push the Phone button to toggle between the active and held phone call.
JOIN CALLS
When two calls are in progress (one active and one on hold), press the Join Calls button on the Phone main screen to combine all calls into a Conference Call.
CALL TERMINATION
To end an in-progress call, momentarily push the Phone button or press the End button on the touchscreen. Only the active call(s) will be terminated and if there is a call on hold, it will become the new active call.
REDIAL
Press the Redial button on the touchscreen, or push the VR button and after the “Listening” prompt and the following beep, say “Redial.”
The Uconnect Phone will call the last number that was dialed from your mobile phone.
CALL CONTINUATION
Call continuation is the progression of a phone call on the Uconnect Phone after the vehicle ignition has been switched to Off.
Note:
The call will remain within the vehicle audio system until the phone becomes out of range for the Bluetooth® connection. It is recommended to press the Transfer button on the touchscreen when leaving the vehicle.
UCONNECT PHONE FEATURES
EMERGENCY ASSISTANCE
If you are in an emergency and the mobile phone is reachable:
-
Pick up the phone and manually dial the emergency number for your area.
If the phone is not reachable and the Uconnect Phone is operational, you may reach the emergency number as follows:
-
Push the Phone
button to begin. -
After the “Listening” prompt and the following beep, say “Dial Emergency” and the Uconnect Phone will instruct the paired mobile phone to call the emergency number. This feature is supported in the US, Canada, and Mexico.
Note:
-
The Emergency call may also be initiated by using the touchscreen.
-
The emergency number dialed is based on the country where the vehicle is purchased (911 for the US and Canada and 060 for Mexico). The number dialed may not be applicable with the available mobile service and area.
-
The Uconnect Phone does slightly lower your chances of successfully making a phone call as to that for the mobile phone directly.
WARNING:
Your phone must be turned on and connected to the Uconnect Phone to allow use of this vehicle feature in emergency situations, when the mobile phone has network coverage and stays connected to the Uconnect Phone.
ROADSIDE ASSISTANCE/TOWING ASSISTANCE
If you need roadside/towing assistance:
-
Push the Phone
button to begin. -
After the “Listening” prompt and the following beep, say “Roadside Assistance” or say “Towing Assistance.”
Note:
The roadside/towing assistance number dialed is based on the country where the vehicle is purchased (1-800-521-2779 for the U.S., 1-800-363-4869 for Canada, 55-14-3454 for Mexico City, and 1-800-712-3040 for outside Mexico City in Mexico). Please refer to the FCA US LLC 24-Hour “Roadside Assistance” coverage details in the Warranty Information Booklet.
WORKING WITH AUTOMATED SYSTEMS
This method is used in instances where one generally has to push numbers on the mobile phone keypad while navigating through an automated telephone system.
You can use your Uconnect Phone to access a voice mail system or an automated service, such as a paging service or automated customer service line. Some services require immediate response selection. In some instances, that may be too quick for use of the Uconnect Phone.
When calling a number with your Uconnect Phone that normally requires you to enter in a touch-tone sequence on your mobile phone keypad, you can utilize the touchscreen or push the Voice Command button and say the word “Send” then the sequence you wish to enter. For example, if required to enter your PIN followed with a pound, (3 7 4 6 #), you can push the Voice Command button and say, “Send 3 7 4 6 #.” Saying “Send” followed by a number, or sequence of numbers, is also to be used for navigating through an automated customer service center menu structure, and to leave a number on a pager.
You can also send stored mobile phonebook entries as tones for fast and easy access to voice mail and pager entries. For example, if you previously created a Phonebook entry with First and/or Last Name as “Voicemail Password”, then if you push the Voice Command button and say “Send Voicemail Password” the Uconnect Phone will then send the corresponding phone number associated with the phonebook entry, as tones over the phone.
Note:
-
The first number encountered for that contact will be sent. All other numbers entered for that contact will be ignored.
-
You may not hear all of the tones due to mobile phone network configurations. This is normal.
-
Some paging and voice mail systems have system time-out settings that are too short and may not allow the use of this feature.
-
Pauses, wait or other characters that are supported by some phones are not supported over Bluetooth®. These additional symbols will be ignored in the dialing a numbered sequence.
BARGE IN — OVERRIDING PROMPTS
The Voice Recognition button can be used when you wish to skip part of a prompt and issue your voice command immediately. For example, if a prompt is asking “There are two numbers with the name John. Say the full name” you could push the Voice Recognition button and say, “John Smith” to select that option without having to listen to the rest of the voice prompt.
VOICE RESPONSE LENGTH
It is possible for you to choose between Brief and Detailed Voice Response Length.
-
Press the Settings button on the touchscreen.
-
Press the Voice button on the touchscreen, then scroll down to Voice Response Length.
-
Select either “Brief” or “Detailed” by pressing the box next to the selection. A check mark will appear to indicate your selection.
PHONE AND NETWORK STATUS INDICATORS
Uconnect Phone will provide notification to inform you of your phone and network status when you are attempting to make a phone call using Uconnect Phone. The status is given for network signal strength and phone battery strength.
DIALING USING THE MOBILE PHONE KEYPAD
You can dial a phone number with your mobile phone keypad and still use the Uconnect Phone (while dialing via the mobile phone keypad, the user must exercise caution and take precautionary safety measures). By dialing a number with your connected Bluetooth® mobile phone, the audio will be played through your vehicle's audio system. The Uconnect Phone will work the same as if you dial the number using a voice command.
Note:
Certain brands of mobile phones do not send the dial ring to the Uconnect Phone to play it on the vehicle audio system, so you will not hear it. Under this situation, after successfully dialing a number the user may feel that the call did not go through even though the call is in progress. Once your call is answered, you will hear the audio.
MUTE/UN-MUTE (MUTE ON/OFF)
When you mute the Uconnect Phone, you will still be able to hear the conversation coming from the other party, but the other party will not be able to hear you. To mute the Uconnect Phone simply, press the Mute button on the Phone main screen.
ADVANCED PHONE CONNECTIVITY
TRANSFER CALL TO AND FROM MOBILE PHONE
The Uconnect Phone allows ongoing calls to be transferred from your mobile phone to the Uconnect Phone without terminating the call. To transfer an ongoing call from your connected mobile phone to the Uconnect Phone or vice versa, press the Transfer button on the Phone main screen.
CONNECT OR DISCONNECT LINK BETWEEN THE UCONNECT PHONE AND MOBILE PHONE
If you would like to connect or disconnect the Bluetooth® connection between a Uconnect Phone paired mobile phone and the Uconnect system, follow the instructions described in your mobile phone User's Manual.
THINGS YOU SHOULD KNOW ABOUT YOUR UCONNECT PHONE
VOICE COMMAND
For the best performance:
-
Adjust the rearview mirror to provide at least ½-inch (1 cm) gap between the overhead console (if equipped) and the mirror.
-
Always wait for the beep before speaking.
-
Speak normally, without pausing, just as you would speak to a person sitting a few feet/meters away from you.
-
Ensure that no one other than you is speaking during a voice command period.
Performance is maximized under:
-
Low-To-Medium Blower Setting
-
Low-To-Medium Vehicle Speed
-
Low Road Noise
-
Smooth Road Surface
-
Fully Closed Windows
-
Dry Weather Condition
WARNING:
-
ALWAYS drive safely with your hands on the steering wheel. You have full responsibility and assume all risks related to the use of the Uconnect features and applications in this vehicle. Only use Uconnect when it is safe to do so. Failure to do so may result in an accident involving serious injury or death.
-
ALWAYS follow the law! Failure to follow traffic laws may result in serious injury or death.
Even though the system is designed for many languages and accents, the system may not always work for some.
Note:
It is recommended that you do not store names in your favorites phonebook while the vehicle is in motion.
Phonebook (Mobile and Favorites) name recognition rate is optimized when the entries are not similar. You can say “O” (letter “O”) for “0” (zero).
Even though international dialing for most number combinations is supported, some shortcut dialing number combinations may not be supported.
FAR END AUDIO PERFORMANCE
Audio quality is maximized under:
-
Low-To-Medium Blower Setting
-
Low-To-Medium Vehicle Speed
-
Low Road Noise
-
Smooth Road Surface
-
Fully Closed Windows
-
Dry Weather Conditions
-
Operation From The Driver's Seat
Performance such as audio clarity, echo, and loudness to a large degree relies on the phone and network, and not the Uconnect Phone.
Echo at the far end can sometimes be reduced by lowering the in-vehicle audio volume.
In a convertible vehicle, system performance may be compromised with the convertible top down.
VOICE TEXT REPLY
Uconnect Phone can read or send new messages on your phone.
Your phone must support SMS over Bluetooth® to use this feature. If the Uconnect Phone determines your phone is not compatible with SMS messaging over Bluetooth®, the Messaging button will be grayed out and the feature will not be available for use.
Note:
Uconnect Phone SMS is only available when the vehicle is not moving.
Read Messages:
If you receive a new text message while your phone is connected to Uconnect Phone, an announcement will be made to notify you that you have a new text message.
Once a message is received and viewed or listened to, you will have the following options:
-
Send a Reply
-
Forward
-
Call
Send Messages Using Buttons On The Touchscreen:
You can send messages using Uconnect Phone. To send a new message:
-
Press the Phone button on the touchscreen.
-
Press the Messaging button on the touchscreen then “New Message.”
-
Press one of the 18 preset messages and the person you wish to send the message to.
-
If multiple numbers are available for the contact, select which number you would like to have the message sent.
-
Press “Send” or “Cancel.”
Send Messages Using Voice Commands:
-
Push the Phone
button. -
After the “Listening” prompt and the following beep, say “Send message to John Smith mobile.”
-
After the system prompts you for what message you want to send, say the message you wish to send or say “List.” There are 18 preset messages.
While the list of defined messages are being read, you can interrupt the system by pushing the Voice Command button and saying the message you want to send.
After the system confirms that you want to send your message to John Smith, your message will be sent.
List of Preset Messages:
-
Yes.
-
No.
-
Okay.
-
I can't talk right now.
-
Call me.
-
I'll call you later.
-
I'm on my way.
-
Thanks.
-
I'll be late.
-
I will be <number> minutes late.
-
See you in <number> minutes.
-
Stuck in traffic.
-
Start without me.
-
Where are you?
-
Are you there yet?
-
I need directions.
-
I'm lost.
-
See you later.
BLUETOOTH® COMMUNICATION LINK
Mobile phones have been found to lose connection to the Uconnect Phone. When this happens, the connection can generally be re-established by switching the mobile phone OFF/ON. Your mobile phone is recommended to remain in Bluetooth® On mode.
NAVIGATION MODE — IF EQUIPPED
SAFETY PRECAUTIONS AND IMPORTANT INFORMATION
WARNING:
-
ALWAYS drive safely with your hands on the steering wheel. You have full responsibility and assume all risks related to the use of the Uconnect features and applications in this vehicle. Only use Uconnect when it is safe to do so. Failure to do so may result in an accident involving serious injury or death.
-
ALWAYS follow the law! Failure to follow traffic laws may result in serious injury or death.
WARNING
Read this information carefully before starting to operate the navigation system and follow the instructions in this manual. Neither the FCA US LLC nor Garmin® shall be liable for problems or accidents resulting from failure to observe the instructions in this manual.
Failure to avoid the following potentially hazardous situations could result in an accident or collision resulting in death or serious injury.
-
Always drive safely. Only use the navigation features in this vehicle when it is safe to do so. You accept full responsibility for the use of the features in this vehicle.
-
When navigating, carefully compare information displayed on the navigation system to all available navigation sources, including road signs, road closures, road conditions, traffic congestion, weather conditions, and other factors that may affect safety while driving. For safety, always resolve any discrepancies before continuing navigation, and defer to posted road signs and road conditions.
-
The navigation system is designed to provide route suggestions. It is not a replacement for driver attentiveness and good judgment. Do not follow route suggestions if they suggest an unsafe or illegal maneuver or would place the vehicle in an unsafe situation.
-
Be careful of the ambient temperature. Using the navigation system at extreme temperatures can lead to malfunction or damage. Also note that the unit can be damaged by strong vibration, metal objects, or by water getting inside the unit.
CAUTION
The navigation system is designed to provide you with route suggestions. It does not reflect road closures or road conditions, weather conditions, or other factors that may affect safety or timing while driving.
Use the navigation system only as a navigational aid. Do not attempt to use the navigation system for any purpose requiring precise measurement of direction, distance, location, or topography.
The Global Positioning System (GPS) is operated by the United States government, which is solely responsible for its accuracy and maintenance. The government system is subject to changes that could affect the accuracy and performance of all GPS equipment, including the navigation system.
NOTICE
This navigation system can be used when the ignition key is turned to ON/RUN or ACC. To preserve the battery, however, it should be used with the engine running whenever possible. Using the navigation system for a long time with the engine switched off can cause the battery to run down.
MAP DATA INFORMATION
Garmin® uses a combination of governmental and private data sources. Virtually all data sources contain some inaccurate or incomplete data. In some countries, complete and accurate map information is either not available or is prohibitively expensive.
GETTING STARTED
To access the Navigation system, press the Nav button on bottom of the screen.
SETTING UP YOUR SYSTEM
When using your navigation system for the first time, complete the following tasks:
-
Acquire satellites.
-
Understand the main menu.
ACQUIRING SATELLITES
The
bars indicate satellite strength.
Go to an open area, away from tall buildings and trees.
Acquiring satellite signals can take a few minutes.
MAIN MENU
Navigation Main Menu
| 1 — Press To Find A Destination |
| 2 — Press To View The Map |
| 3 — Press To Stop A Route |
| 4 — Press To Detour A Route |
| 5 — Press To Open The Menu Of Tools |
| 6 — Press To Open The Menu Of Settings |
USING THE ON-SCREEN BUTTONS
-
Press and hold
to quickly return to the main menu. -
Press
and
to see more choices. -
Press and hold
and to scroll faster.
FINDING A POINT OF INTEREST
The detailed maps loaded in your navigation system contain points of interest, such as restaurants, hotels and auto services.
-
From the main menu, press Where To? > Points of Interest.
-
Select a category.
-
If necessary, select a subcategory.
-
Select a destination.
-
Press Go!
FINDING A LOCATION BY SPELLING THE NAME
-
From the main menu, press Where To? > Points of Interest > Spell Name.
-
Enter all or part of the name.
-
Press Done.
-
Select a destination.
-
Press Go!
USING THE ON-SCREEN KEYBOARD
-
Press a character on the keyboard to enter a letter or number.
-
Press “Space” to add a space.
-
Press
to delete a character. -
Press and hold
to erase the entire entry. -
Press
to select the keyboard language mode. -
Press
to enter special characters, such as punctuation marks.
ADDING POINTS TO THE ACTIVE ROUTE
-
While navigating a route, press
to return to the main menu. -
From the main menu, press Where To?
-
Select a category.
-
If necessary, select a subcategory.
-
Select a destination.
-
Press Go!
-
Press Add as a Via Point.
CHANGING THE DESTINATION OF THE ACTIVE ROUTE
Before you can change destinations you must be navigating a route.
-
Press
to return to the main menu. -
Press Where To?
-
Search for the location.
-
Press Go!
-
Press Set as a New Destination.
TAKING A DETOUR
While navigating a route, you can use detours to avoid obstacles ahead of you, such as construction zones.
Note:
If the route you are currently taking is the only reasonable option, the navigation system might not calculate a detour.
-
While navigating a route, press
. -
From the main menu, press Detour.
STOPPING THE ROUTE
-
While navigating a route, press
. -
From the main menu, press Stop.
FINDING LOCATIONS
The Where To? menu provides several different categories you can use to search for locations. To perform a simple search, see the “Getting Started” section.
FINDING AN ADDRESS
Note:
Depending on the version of the built-in map data on your navigation system, the button names and the order of steps could be different than the steps below.
-
From the main menu, press Where To? > Address.
-
If necessary, change the state, the country, or the province.
-
Press Spell City.
-
Enter the city/postal code.
Note:
If you are unsure of the city/postal code, press Search All.
-
Press Done.
-
If necessary, select the city/postal code.
Note:
Not all map data provides postal code searching.
-
Enter the number of the address.
-
Press Done.
-
Enter the street name.
-
Press Done.
-
If necessary, select the street.
-
If necessary, select the address.

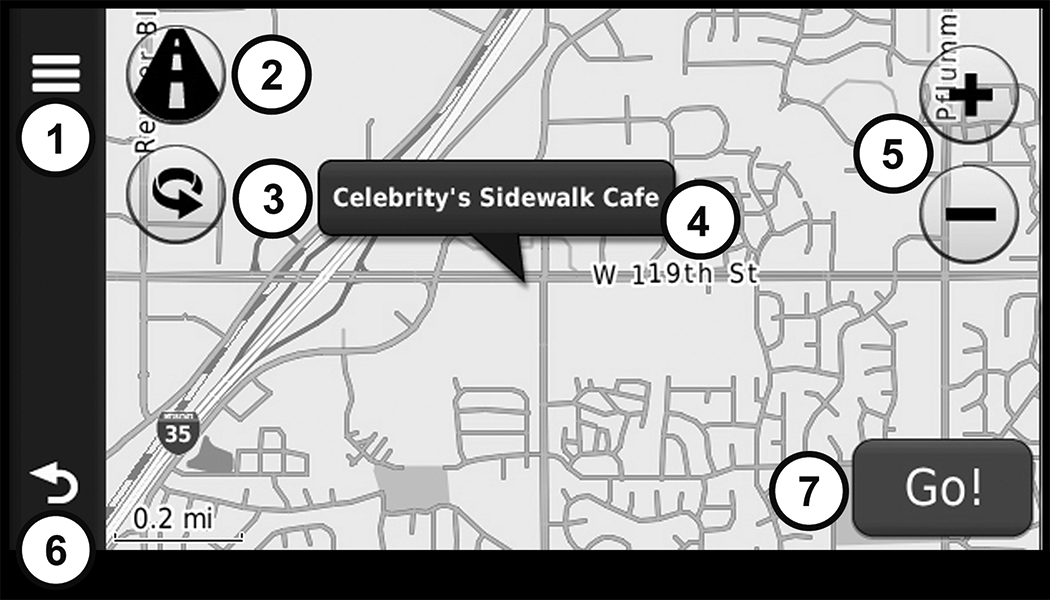

USING THE GO! PAGE
The Go! page opens when you select a location to navigate to.
Using Go!
-
Press to call the selected location when your device is connected to phone, or to save the location to your favorites.
-
Press to switch between 2D and 3D view.
-
Press to rotate the view.
-
Press to view more information for the location.
-
Press to zoom in and out.
-
Press to return to the previous page. Press and hold to return to the main menu.
-
Press to create a turn-by-turn route to this location.
SETTING A HOME LOCATION
You can set your home location for the location you return to most often.
-
From the main menu, press Where To? > Go Home.
-
Select Enter My Address, Use My Current Location or Recently Found.
GOING HOME
Before you can navigate to home you must set a home location.
-
From the main menu, press Where To? > Go Home.
RESETTING YOUR HOME LOCATION
-
From the main menu, press Where To? >
> Set Home Location. -
Select an option to change your address.
EDITING YOUR HOME LOCATION INFORMATION
-
From the main menu, press Where To? > Favorites > Home.
-
Press
> Edit. -
Enter your changes.
-
Press Done.
VIEWING A LIST OF RECENTLY FOUND LOCATIONS
Your navigation system stores the last 50 locations you have found.
-
From the main menu, press Where To? > Recently Found.
CLEARING THE LIST OF RECENTLY FOUND LOCATIONS
From the main menu, press Where To? > Recently Found > > Clear > Yes.
ABOUT FAVORITES
You can save locations in your Favorites so you can quickly find them and create routes to them. Your home location is also stored in Favorites.
SAVING YOUR CURRENT LOCATION TO FAVORITES
-
From the map, press the vehicle icon.
-
Press Save.
-
Enter a name.
-
Press Done.
The location is saved in Favorites.
SAVING LOCATIONS TO FAVORITES
-
Search for the location.
-
From the Go! page, press
> Save > OK.
FINDING FAVORITES
-
From the main menu, press Where To? > Favorites.
-
If necessary, select a category.
-
Select a saved location.
EDITING FAVORITES
-
From the main menu, press Where To? > Favorites.
-
Select a category.
-
Select a favorite.
-
Press the information box.
-
Press
> Edit. -
Select an option:
-
Name
-
Phone Number
-
Categories
-
Change Map Symbol
-
-
Edit the information.
-
Press Done.
PLANNING A TRIP
You can use Trip Planner to create and save a trip with multiple destinations.
-
From the main menu, press Where To? > Trip Planner.
-
Press
. -
Press Select Start Location.
-
Search for a location.
-
Press Select.
-
Press
to add an additional location. -
Press Select.
-
Repeat steps 4-6 to add additional locations to your trip.
-
Press Next.
-
Enter a name.
-
Press Done.
NAVIGATING TO A SAVED TRIP
-
From the main menu, press Where To? > Trip Planner.
-
Select a saved trip.
-
Press Go!
EDITING A SAVED TRIP
-
From the main menu, press Where To? > Trip Planner.
-
Select a saved trip.
-
Press
-
Select an option:
-
Press Rename Trip to edit the trip name.
-
Press Edit Destinations to add or delete locations.
-
Press Delete Trip to delete the entire trip.
-
Press Optimize Order to arrange your trip locations in the most efficient order.
-
USING THE MAP BUTTONS
-
From the main menu, press Where To? > Browse Map.
-
Press anywhere on the map.
-
Press
and
to zoom in and out. -
Press
to switch between 2D and 3D views. -
Press
to rotate the view.
-
BROWSING THE MAP BY PRESSING THE TOUCHSCREEN
-
Press an area on the map to select a location.
An information box appears next to the location.
-
Press and drag the map to view different parts of the map.
-
Press the map twice to zoom in and center on a location.
FINDING A LOCATION USING THE MAP
-
From the main menu, press Where To? > Browse Map.
-
Press a location.
An information box appears next to the location.
-
Press the information box.
-
Select an option:
-
Press
> Save.
-
-
Press Go!
SETTING A SIMULATED LOCATION
You can use the GPS simulator to select another location, near which you can search for and save points of interest. This may be helpful when planning trips.
-
From the main menu, press Tools > Settings > System > GPS Simulator > On.
-
From the main menu, press Where To? > Browse Map.
-
Press an area on the map.
-
Press
> Set Location.
ENTERING COORDINATES
If you know the geographic coordinates of your destination, you can use your navigation system to navigate to the destination using the latitude and longitude coordinates.
-
From the main menu, press Where To? > Coordinates.
-
Press a field to enter the latitude and longitude data.
-
Press View on Map.
-
Press Go!
CHANGING THE MAP COORDINATE FORMAT
-
From the Home Screen, press Where To? > Coordinates >
> Format. -
Select a format.
SPEAKING COMMANDS
ABOUT VOICE COMMANDS
Note:
The voice command feature is not available for all languages or regions.
The voice commands allow you to use your navigation system by speaking the words you see on the screen or by speaking certain commands.
ACTIVATING VOICE COMMAND
-
Press the Voice Recognition button.
-
The navigation system enters voice command.
ABOUT ICONS AND TONES
-
The navigation system sounds two tones when it enters and exits voice recognition mode.
-
A
red icon appears in the upper-right corner of the screen when the navigation system is not ready for your command. -
Wait until the
icon is green to speak your command.
TIPS FOR USING VOICE COMMANDS
-
Speak in a normal voice directed at the navigation system.
-
Speak commands as they appear on the screen.
-
Respond to voice prompts from the navigation system as needed.
-
Speak “Exit” to exit voice command.

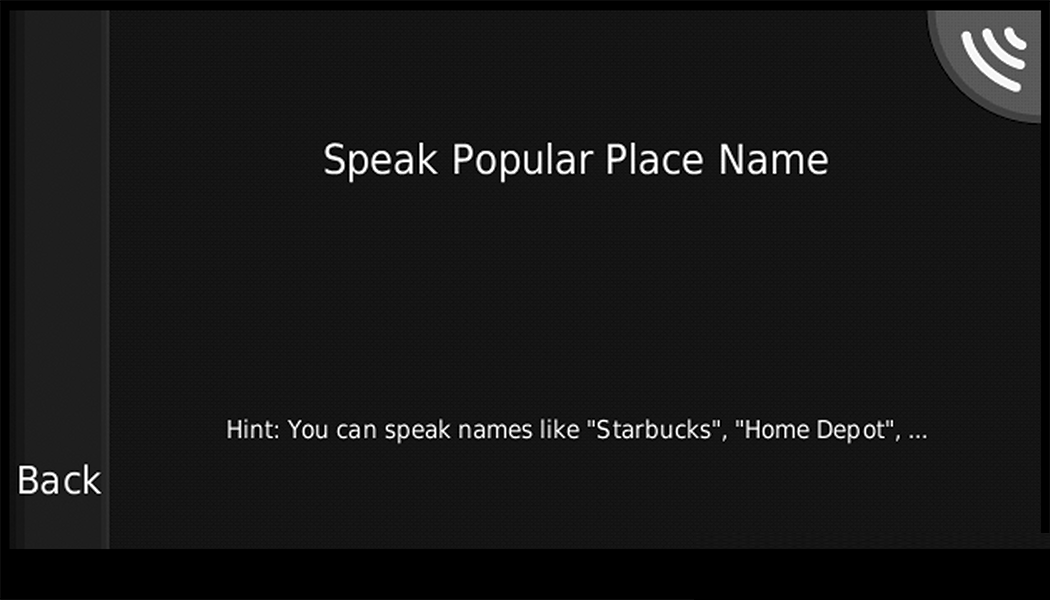

NAVIGATING TO A POPULAR LOCATION USING VOICE COMMANDS
You can speak the names of very popular, well-known locations.
-
Press the voice command button.
-
Speak “Find by Name.”
-
Listen for the voice prompt and speak the name of the location.
A list of locations appears.
Navigating To A Popular Place With Voice Commands
-
Speak the line number.
“Line 1”
-
Speak an option:
-
Speak “Go!” to navigate to the location.
-
Speak “Call” to call the location when connected to a compatible mobile phone.
-
SPEAKING AN ADDRESS
-
Speak “Voice Command.”
-
Speak “Find Address.”
-
Follow the on-screen prompts.
ABOUT THE MAP PAGES
VIEWING THE MAP WHILE NAVIGATING
NOTICE
In no event shall Garmin® be liable for any incidental, special, indirect, or consequential damages, including, without limitation, damages for any traffic fines or citations, whether resulting from the use, misuse, or inability to use the product or from defects in the product. Some states do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you.
Your route is marked with a magenta line. A checkered flag marks your destination.
As you travel, your navigation system guides you to your destination with voice prompts, arrows on the map, and directions at the top of the map. If you depart from the original route, your navigation system recalculates the route and provides new directions.
A speed limit icon displaying the current speed limit may appear as you travel on major roadways.

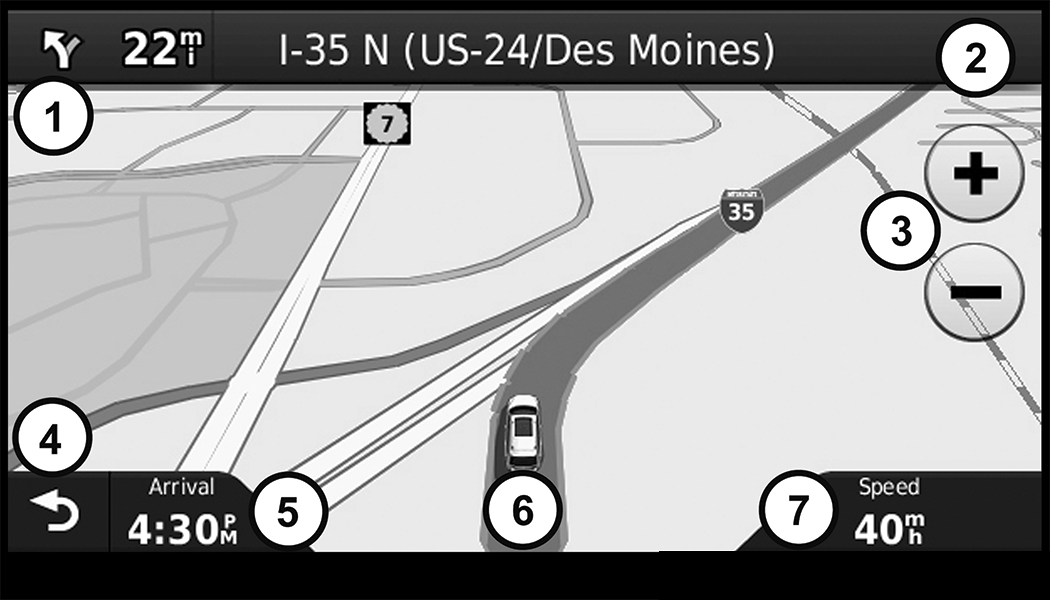

USING THE NAVIGATION MAP
Navigation Map
-

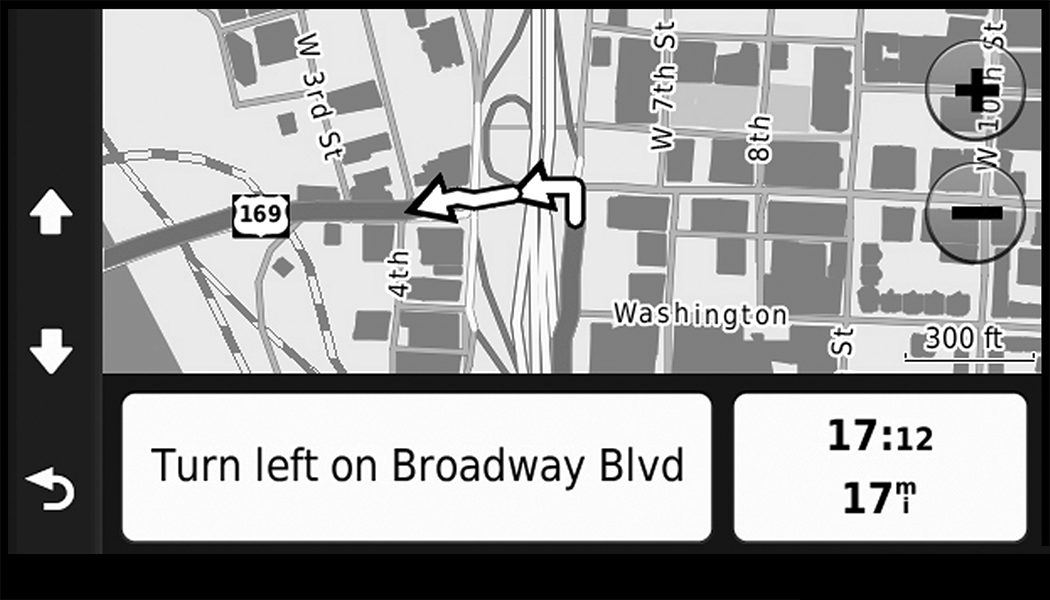

Press to view the next turn.

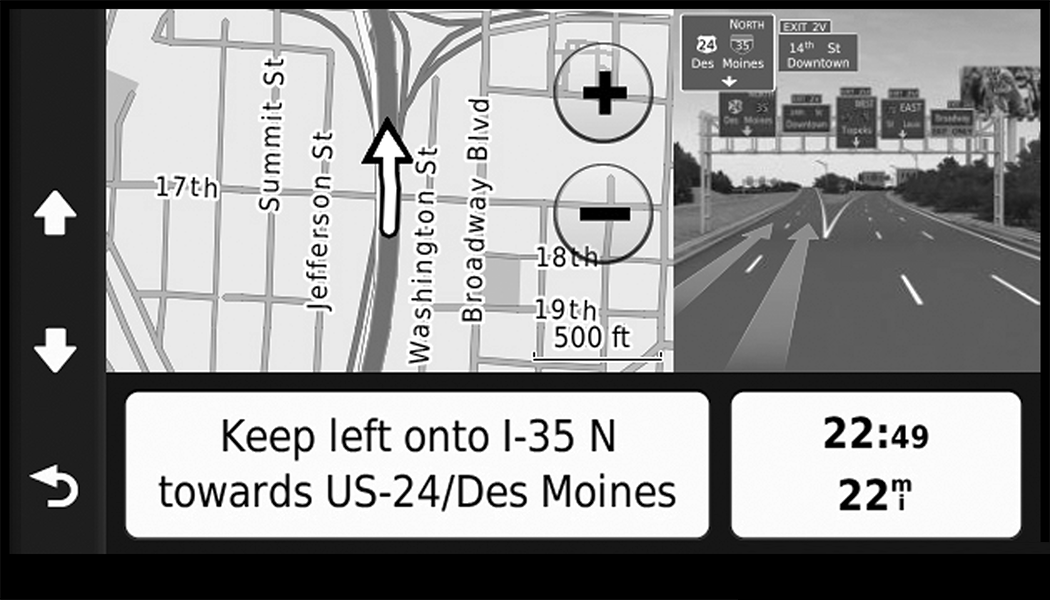

The turn indicator also tells you which lane you should be in to prepare for your next maneuver, when available.
-

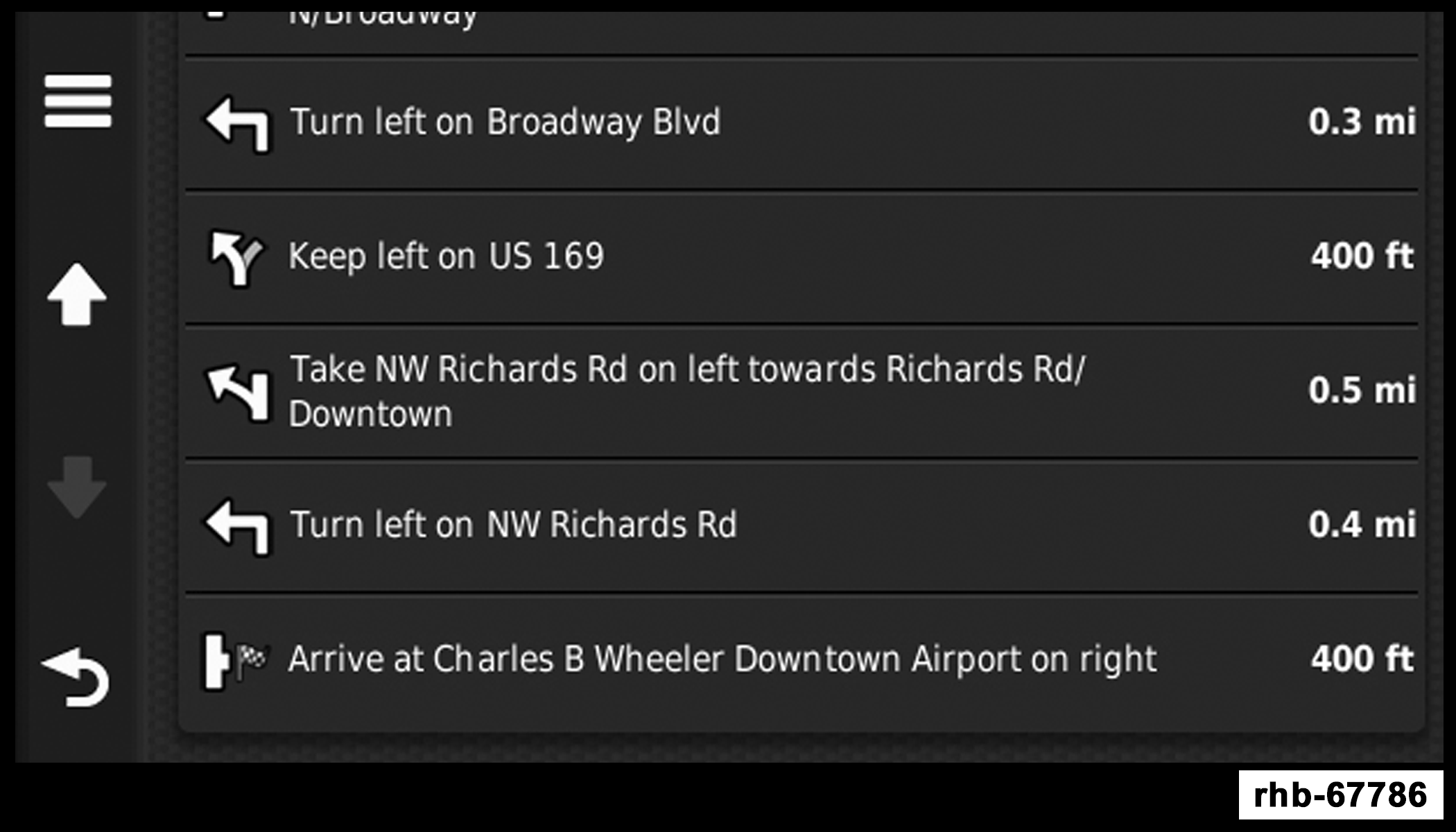

Press to view the turn list.
-
Press to zoom in and zoom out.
-
Press to return to the main menu.
-
Press to display a different data field.
-
Press to view information for the location.
-
Press to view trip information.
ABOUT MYTRENDS
When the myTrends feature is enabled, your estimated time of arrival and traffic information for your frequent destinations, like your workplace, automatically appear in the navigation bar at the top of the map.
When myTrends information appears in the navigation bar, you can press the navigation bar to view route options for the suggested destination.
ENABLING MYTRENDS
From the main menu press Settings > Navigation > myTrends > Enabled.

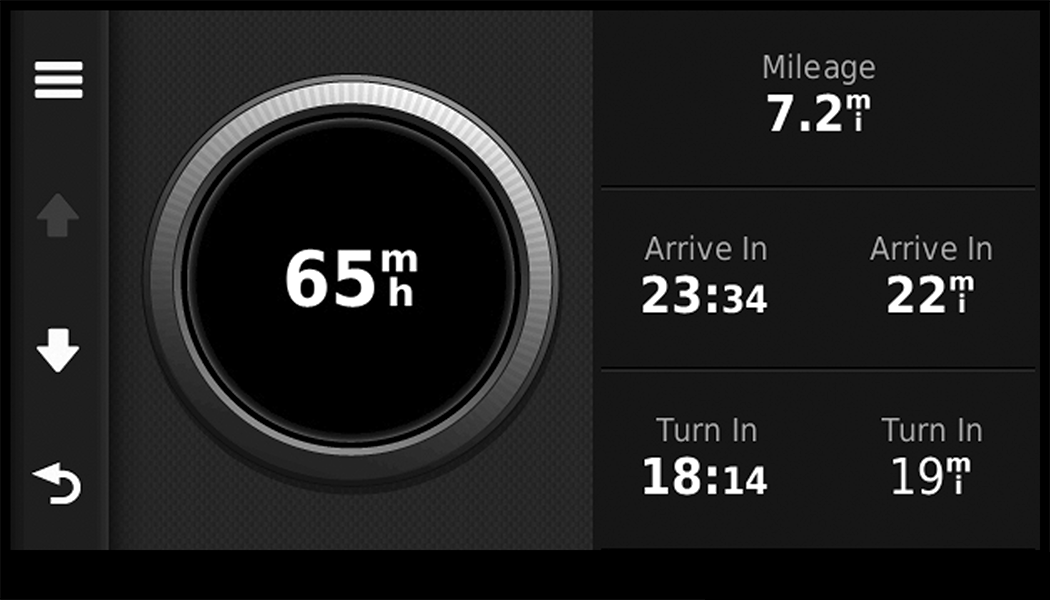

VIEWING TRIP INFORMATION
The trip information page displays your present speed and provides statistics about your trip.
Note:
If you make frequent stops, leave the navigation system turned on so it can accurately measure elapsed time during the trip.
From the map, press the Speed field.
Trip Information
RESETTING TRIP INFORMATION
-
From the map, press the Speed field.
-
Press
. -
Select an option:
-
Press Reset Trip Mileage to reset the information on the trip computer.
-
Press Reset Max. Speed to reset the maximum speed.
-
VIEWING THE TURN LIST
When you are navigating a route, you can view all of the turns for your entire route and the distance between turns.
-
From the map, press the text bar on the top of the map.
Upcoming Turn List
-
Select an option:
-
Select a turn on the list to view the next turn.
-
Press
> Map to view the entire route on the map.
-
VIEWING THE NEXT TURN
Before you can view the next turn you must be navigating a route.
The next turn shows the turn on the map and the distance and time left before you reach the turn.
Press the turn indicator in the top left corner of the map.
Next Turn
VIEWING THE JUNCTION VIEW
Before you can view the junction view, you must be navigating a route.
The junction view displays a view of some upcoming junctions and in which lane you should be driving.
Junction View
USING THE TOOLS
VIEWING CURRENT LOCATION INFORMATION
Use the Where Am I? page to view information about your current location. This feature is helpful if you need to tell emergency personnel your location.
-
From the main menu, press Tools > Where Am I?
FINDING NEARBY SERVICES
-
From the main menu, press Tools > Where Am I?
-
Press Hospitals, Police Stations or Fuel to view the nearest locations in that category.
USING HELP
From the main menu, press Tools > Help to view information about using your navigation system.
SEARCHING HELP TOPICS — IF EQUIPPED
From the main menu, press Tools > Help.
USING THE WORLD CLOCK
-
From the main menu, press Tools > World Clock.
-
Press a city name.
-
Enter a new city name.
-
Press Done.
-
If necessary, select a city.
VIEWING THE WORLD MAP
-
From the main menu, press Tools > World Clock >
. -
Nighttime hours appear in the shaded area.
USING THE CALCULATOR
From the main menu press Tools > Calculator.
USING THE UNIT CONVERTER
-
From the main menu, press Tools > Unit Converter.
-
Press the box with a unit of measurement listed.
-
Select a unit of measurement.
-
Press Save.
Two units of measurement are listed.
-
Press a unit of measurement to change.
-
Select a unit of measurement.
-
Press Done.
-
Repeat steps 5 and 6, if necessary.
-
Enter a value.
-
Press Done.
SETTING CURRENCY CONVERSION RATES MANUALLY
You can update the currency conversion rates manually so that you are always using the most current rates.
-
From the main menu press Tools > Unit Converter.
-
Press the box with a currency listed.
-
Select Currency.
-
Press Save.
-
Press a currency box.
-
Select the currency you want to update.
-
Repeat steps 3-6 to select a currency to convert to, if necessary.
-
Press a box under a currency.
-
Enter a new value for the currency.
-
Press Done.
-
Repeat steps 8 and 9, if necessary.
TRAFFIC
NOTICE
Garmin® is not responsible for the accuracy or timeliness of the traffic information. Your navigation system may receive traffic content via Satellite Radio service in North America or via FM broadcast in other regions.
ABOUT THE TRAFFIC ICON
When you are receiving traffic information, a traffic icon appears on the map. The traffic icon changes color to indicate the severity of traffic conditions.
|
Color |
Description |
Meaning |
|
Green |
Low severity |
Traffic is flowing freely. |
|
Yellow |
Medium severity |
Traffic is moving but there is a delay. There is moderate traffic congestion. |
|
Red |
High severity |
Traffic is not moving or moving very slowly. There is a severe delay. |
|
Gray |
No data |
Traffic information is not available. |
TRAFFIC ON YOUR ROUTE
When calculating your route, the navigation system examines the current traffic and automatically optimizes the route for the shortest time. If a severe traffic delay occurs on your route while you are navigating, the navigation system automatically recalculates the route.
You might still be routed through traffic if no better alternative routes exist.
MANUALLY AVOIDING TRAFFIC ON YOUR ROUTE
-
From the map press the
. -
Press Traffic On Route.
-
If necessary, press the arrows to view other traffic delays on your route.
-
Press Avoid.
VIEWING THE TRAFFIC MAP
The traffic map shows color-coded traffic flow and delays on nearby roads.
-
From the map press
. -
Press Traffic Map to view the traffic incidents on a map.
SEARCHING FOR TRAFFIC DELAYS
-
From the map page press
. -
Press Traffic Search to view a list of roads with traffic delays.
-
Press an item in the list to view delays on the road.
-
If there is more than one delay, press the arrows to view additional delays.
CUSTOMIZING THE NAVIGATION SYSTEM
-
From the main menu, press “Settings.”
Customizing The Navigation System
-
Press a setting category.
-
Press the setting to change it.
SYSTEM SETTINGS
From the main menu press Settings > System.
-
GPS Simulator — stops the navigation system from receiving a GPS signal, and saves battery power.
-
About — displays the software version number, the unit ID number and information on several other software features.
Note:
You need this information when you update the system software or purchase additional map data.
RESTORING THE SYSTEM SETTINGS
From the main menu, press Settings > System >
> Restore.
CHANGING THE MAP SETTINGS
From the main menu press Settings > Map.
-
Map Detail — sets the level of detail on the map. More detail may result in slower map drawing.
-
Map View — sets the perspective on the Map page.
-
Map Theme — changes the color of the map data.
-
Map Data Layout — changes the amount of data visible on the map.
-
Vehicle — changes the icon to represent your position on the map.
-
Trip Log
-
Show on Map — displays the path of your travels on the map.
-
Clear Trip Log
-
CHANGING THE MAP PERSPECTIVE
-
From the main menu press Settings > Map > Map View.
-
Select an option:
-
Press Track Up to display the map in two dimensions (2-D), with your direction of travel at the top.
-
Press North Up to display the map in 2-D with North at the top.
-
Press 3D to display the map in three dimensions.
-
ROUTE PREFERENCES
From the main menu, press Settings > Navigation > Route Preference.
The route calculation is based on road speeds and vehicle acceleration data for a given route.
-
Faster Time — Calculates routes that are faster to drive but can be longer in distance.
-
Shorter Distance — Calculates routes that are shorter in distance but can take more time to drive.
-
Prompted — Select the faster time and shorter distance for your route.
AVOIDING ROAD FEATURES
-
From the main menu press Settings > Navigation > Avoidances.
-
Select the road features to avoid on your routes.
-
Press “Save.”
ABOUT TRAFFICTRENDS
When the trafficTrends feature is enabled, your navigation system uses historic traffic information to calculate more-efficient routes. Different routes may be calculated based on traffic trends for the day of the week or based on the time of day.
Enabling trafficTrends
-
From the main menu press Settings > Navigation > trafficTrends.
-
Select Enabled.
RESTORING THE ORIGINAL NAVIGATION SETTINGS
From the main menu press Settings > Navigation > > Restore.
LANGUAGE SETTINGS
From the main menu press Settings > Language.
-
Voice Personality — sets the language for voice prompts.
-
Keyboard — sets the language for your keyboard.
-
Keyboard Layout — sets the keyboard layout.
RESTORING THE ORIGINAL LANGUAGE SETTINGS
-
From the main menu press Settings > Language >
> Restore.
RESTORING ORIGINAL TRAFFIC SETTINGS
From the main menu, press Settings > Traffic > > Restore.
RESTORING ALL ORIGINAL SETTINGS
From the main menu, press Settings > > Restore > Yes.
APPENDIX
ABOUT GPS SATELLITE SIGNALS
The navigation system must acquire satellite signals in order to navigate.
When the navigation system has acquired satellite signals, the signal strength bars on the main menu are full . When it loses satellite signals, the bars are clear
.
For more information about GPS, go to www.garmin.com/aboutGPS.
UPDATING THE SOFTWARE
To update the navigation system software, you must have a USB mass storage device and an Internet connection.
-
Go to auto-update.garmin.com.
-
Find your model and select Software Updates > Download.
-
Read and accept the terms of the Software License Agreement.
-
Follow the instructions on the Web site to complete the installation of the software update.
UPDATING THE MAP DATA
To update the navigation system map, you must have a USB mass storage device and an Internet connection, or visit your local dealer for assistance. A map update can be purchased once a year.
-
Go to auto-update.garmin.com.
-
Select your vehicle from the drop-down lists.
-
Select Order Map Updates for your unit.
-
Follow the Web site instructions to update your map.
CAUTION
Garmin® and FCA US LLC are not responsible for the accuracy of, or the consequences of using, a safety camera database.
Safety camera information is available in some locations. Go to http://www.garmin.com for availability. For these locations, the navigation system includes the locations of hundreds of safety cameras. Your navigation system alerts you when you are approaching a safety camera and can warn you if you are driving too fast. The data is updated at least weekly, so you always have access to the most up-to-date information.
You can purchase a new region or extend an existing subscription at any time. Each region that you purchase has an expiration date.
CUSTOM POINTS OF INTEREST (POIS)
Note:
Custom POI files must be named “poi.gpi”. and located on the USB storage device in a folder named “POI” within a folder named “Garmin®” (Garmin®/POI/).
You can manually load custom POI databases, available from various companies on the Internet. Some custom POI databases contain alert information for points such as safety cameras and school zones. The navigation system can notify you when you approach one of these points. You are responsible for ensuring that your use of safety camera information is lawful in your area.
CAUTION
Garmin® and FCA US LLC are not responsible for the consequences of using custom POI databases, or for the accuracy of custom POI databases.
After downloading your POI database, use the Garmin® POI Loader to install the POIs onto a USB mass storage device. Use the USB mass storage device to load the POIs. The POI Loader is available at garmin.com/products/poiloader. Refer to the POI Loader Help file for more information; click Help to open the Help file. The file name can only be POI.gpi. No other file name or extension should be used.
Note:
Each time you load custom POIs to the navigation system, any other custom POIs already saved in the system will be overwritten.
Finding Custom POIs
You can view a list of the custom POIs loaded in your navigation system.
-
Press Where To? > Extras > Custom POIs.
Deleting Custom POIs
-
Press Tools > My Data > Delete Custom POI(s).
-
Press Yes to confirm.
Note:
All custom POIs will be deleted from your navigation system.
Saving Trip Logs
Trip logs are recorded while you navigate a route.
SIRIUSXM® TRAVEL LINK (US MARKET ONLY)
Now, in addition to delivering over 130 channels of the best sports, entertainment, talk and commercial-free music, SiriusXM® now offers premium infotainment services that work in conjunction with compatible navigation systems.
To access SiriusXM® Travel Link, press the MENU button then press the Travel Link button.
SiriusXM® Travel Link brings a wealth of useful information into your vehicle and right to your fingertips:
FUEL PRICES
-
Check detailed price information for fuel stations near your current location.
-
Sort the list of closest fuel stations by price, distance or alphabetically.
-
Route to selected fuel station.
-
Store a favorite fuel station for quick access to pricing.
MOVIE LISTINGS
-
Check which movies are playing at theaters near your current location.
-
Sort the list of theaters by distance or alphabetically.
-
Show movie titles, start times, ratings, run length, and summaries.
-
Store a favorite theater for quick access to schedules.
SKI INFO
-
View ski and snowboarding conditions at ski resorts.
-
Store a favorite location for quick access to snow conditions.
SPORTS SCORES
-
View scores and upcoming events for all major sports.
-
Store your favorite teams for quick access to the scores and schedules.
Note:
SiriusXM® Travel Link data services subscription is separate from your SiriusXM® Satellite Radio (audio) subscription.
CAUTION:
Neither SiriusXM nor FCA US LLC is responsible for any errors in accuracies in the SiriusXM data services or its use in vehicles.
SiriusXM® services require subscriptions, sold separately after the 12-month trial included with the new vehicle purchase. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call SiriusXM at 866-635-2349 to cancel.
See SiriusXM® Customer Agreement for complete terms for U.S. residents at www.siriusxm.com, and Canadian residents at www.siriusxm.ca. All fees and programming subject to change. Our satellite service is available only to those at least 18 and older in the 48 contiguous USA and D.C. Our Sirius satellite service is also available in PR (with coverage limitations). Our Internet radio service is available throughout our satellite service area and in AK and HI. © 2020 Sirius XM Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM® Radio Inc.
WEATHER
-
View detailed current conditions at your current location.
-
Check extended 12-hour and 5-day forecasts.
-
Store a favorite location for quick access to weather conditions and forecasts.
END-USER LICENSE AGREEMENT
Software License Agreement
BY USING THE NAVIGATION SYSTEM, YOU AGREE TO BE BOUND BY THE TERMS AND CONDITIONS OF THE FOLLOWING SOFTWARE LICENSE AGREEMENT. PLEASE READ THIS AGREEMENT CAREFULLY.
Garmin® Ltd. and its subsidiaries (“Garmin®”) grant you a limited license to use the software embedded in this device (the “Software”) in binary executable form in the normal operation of the product. Title, ownership rights, and intellectual property rights in and to the Software remain in Garmin® and/or its third-party providers.
You acknowledge that the Software is the property of Garmin® and/or its third-party providers and is protected under the United States of America copyright laws and international copyright treaties. You further acknowledge that the structure, organization, and code of the Software, for which source code is not provided, are valuable trade secrets of Garmin® and/or its third-party providers and that the Software in source code form remains a valuable trade secret of Garmin® and/or its third-party providers. You agree not to decompile, disassemble, modify, reverse assemble, reverse engineer, or reduce to human readable form the Software or any part thereof or create any derivative works based on the Software. You agree not to export or re-export the Software to any country in violation of the export control laws of the United States of America or the export control laws of any other applicable country.
The Garmin® device you have purchased (“Device”), or the download that you are making (the “Download”), may contain an application, content, or both. If a Device, the software embedded in it (the “Software”), or if a Download, the application, including its embedded software (collectively, the “Application”) is owned by Garmin® Ltd. or its subsidiaries (collectively, “Garmin®”). The map data that may be embedded in your Device, the Application or downloaded separately (the “Map Data”) is either owned by Garmin®, or by HERE North America LLC and/or its affiliates (“HERE”) or another third party and is licensed to Garmin®. Garmin® also owns, or licenses from third party providers, information, traffic data, text, images, graphics, photographs, audio, video, images and other applications and data that may be embedded in the Device or Application, or downloaded separately (“Other Content”). The Map Data and Other Content are collectively the “Content”. The Software, Application and Content (collectively, the “Garmin® Products”) are protected under copyright laws and international copyright treaties. The Garmin® Products are licensed, not sold. The structure, organization and code of the Software and Application are valuable trade secrets of Garmin® and/or its third-party providers. The Garmin® Products are each provided under this License Agreement and are subject to the following terms and conditions which are agreed to by End User (“you” or “your”), on the one hand, and Garmin® and its licensors and affiliated companies of Garmin® and its licensor, on the other hand. Garmin’s® licensors, including the licensors, service providers, channel partners, suppliers and affiliated companies of Garmin® and its licensors, are each a direct and intended third party beneficiary of this Agreement and may enforce their rights directly against you in the event of your breach of this Agreement.
IMPORTANT: CAREFULLY READ THIS ENTIRE LICENSE AGREEMENT BEFORE PURCHASING OR USING YOUR DEVICE OR DOWNLOADED APPLICATION OR CONTENT. PURCHASING, INSTALLING, COPYING, OR OTHERWISE USING YOUR DEVICE OR DOWNLOADED APPLICATION OR CONTENT INDICATES YOUR ACKNOWLEDGMENT THAT YOU HAVE READ THIS LICENSE AGREEMENT AND AGREE TO ITS TERMS AND CONDITIONS. IF YOU DO NOT AGREE TO THESE TERMS AND CONDITIONS FOR YOUR PRODUCT, RETURN THE COMPLETE DEVICE WITHIN 7 DAYS OF THE DATE YOU ACQUIRED IT (IF PURCHASED NEW) FOR A FULL REFUND TO THE DEALER FROM WHICH YOU PURCHASED THIS DEVICE. IF YOU DO NOT AGREE TO THESE TERMS AND CONDITIONS FOR YOUR DOWNLOAD, DO NOT PURCHASE, INSTALL OR USE THE DOWNLOAD.
License Terms and Conditions Garmin® (“we” or “us”) provides you with the storage media containing the Software and the Content embedded therein, including any “online” or electronic documentation and printed materials in the case of a Device, or in the case of a Download, the Application and the embedded or accompanying Content, including any “online” or electronic documentation and printed materials. Garmin® grants you a limited, non-exclusive license to use the applicable Garmin® Product in accordance with the terms of this Agreement. You agree to use the applicable Garmin® Product for solely personal use, or if applicable, for use in your business’ internal operations, and not for service bureau, time-sharing, resale or other similar purposes. Accordingly, but subject to the restrictions set forth in the following paragraphs, you may copy the applicable Garmin® Product only as necessary for your use to (i) view it, and (ii) save it, provided that you do not remove any copyright notices that appear and do not modify the Garmin® Product in any way. Your use of the Application must not violate any usage rules of the Application Vendor or any other third party service provider you use to enable the Application. You agree not to otherwise reproduce, archive, copy, modify, decompile, disassemble, reverse engineer or create derivative works of any portion of the Garmin® Products, and may not transfer or distribute it in any form, for any purpose, except to the extent permitted by mandatory laws. Garmin® also reserves the right to discontinue offering any Content supplied by any third party supplier if such supplier ceases to supply such content or Garmin’s® contract with such supplier terminates for any reason.
Restrictions Except where you have been specifically licensed to do so by Garmin®, and without limiting the preceding paragraphs, you may not use the Garmin® Products with any products, systems, or applications installed or otherwise connected to or in communication with vehicles, and which are capable of dispatch, fleet management or similar applications where the Content is used by a central control center in dispatching a fleet of vehicles. In addition, you are prohibited from renting or leasing the Garmin® Products to any other person or third party. Only those rental car companies that are specifically authorized by Garmin® in writing to rent Garmin® products containing the Content to their rental customers are permitted to rent out such products.
You agree to be fully responsible for your own conduct and content while using the Software and for any consequences thereof. You agree to use the Software only for purposes that are legal, proper and in accordance with this Agreement and any applicable policies or guidelines. By way of example, and not as a limitation, you agree that when using the Software, You will not:
-
upload, post, email or transmit or otherwise make available content that infringes any patent, trademark, copyright, trade secret or other proprietary right of any party, unless you are the owner of the rights or have the permission of the owner to post such Content;
-
use the Software or other content for any illegal or unauthorized purpose; or
-
transmit any viruses, worms, defects, Trojan horses, or any items of a destructive nature.
In the event that you are located outside of the United States, you agree to comply with any laws, rules or regulations in your locale or in the location of your web server regarding online conduct and acceptable content, including laws regulating the export of data to the United States or your country of residence.
Data Transfer Certain services in connection with the Application may result in a transfer of data from your device. In that case, additional charges for data transfer may arise, depending on your device data plan. Please contact your data provider for details about any additional charges.
No Warranty The Garmin® Products are provided to you “as is,” and you agree to use them at your own risk. Garmin® and its licensors including the licensors, service providers, channel partners and suppliers, and affiliated companies of Garmin® and its licensors, make no guarantees, representations or warranties of any kind, express or implied, arising by law or otherwise, including but not limited to, content, quality, accuracy, completeness, effectiveness, reliability, merchantability, fitness for a particular purpose, usefulness, use or results to be obtained from the Garmin® Products, or that the Content or server will be uninterrupted or error-free. The Garmin® Products are intended to be used only as supplementary travel aids and must not be used for any purpose requiring precise measurement of direction, distance, location or topography. GARMIN MAKES NO WARRANTY AS TO THE ACCURACY OR COMPLETENESS OF THE MAP DATA OR OTHER CONTENT.
Disclaimer of Warranty GARMIN AND ITS LICENSORS, INCLUDING THE LICENSORS, SERVICE PROVIDERS, CHANNEL PARTNERS, SUPPLIERS AND AFFILIATED COMPANIES OF GARMIN AND ITS LICENSORS, DISCLAIM ANY WARRANTIES, EXPRESS OR IMPLIED, OF QUALITY, PERFORMANCE, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON INFRINGEMENT OF THE GARMIN PRODUCTS. NO ORAL OR WRITTEN ADVICE OR INFORMATION PROVIDED BY GARMIN OR ITS SUPPLIERS AND LICENSORS SHALL CREATE A WARRANTY, AND YOU ARE NOT ENTITLED TO RELY ON ANY SUCH ADVICE OR INFORMATION. THIS DISCLAIMER OF WARRANTIES IS AN ESSENTIAL CONDITION OF THIS AGREEMENT. Some States, Territories and Countries do not allow certain warranty exclusions, so to that extent the above exclusion may not apply to you.
Disclaimer of Liability GARMIN AND ITS LICENSORS, INCLUDING THE LICENSORS, SERVICE PROVIDERS, CHANNEL PARTNERS, SUPPLIERS AND AFFILIATED COMPANIES OF GARMIN AND ITS LICENSORS, SHALL NOT BE LIABLE TO YOU: IN RESPECT OF ANY CLAIM, DEMAND OR ACTION, IRRESPECTIVE OF THE NATURE OF THE CAUSE OF THE CLAIM, DEMAND OR ACTION ALLEGING ANY LOSS, INJURY OR DAMAGES, DIRECT OR INDIRECT, WHICH MAY RESULT FROM THE USE OR POSSESSION OF THE GARMIN PRODUCTS; OR FOR ANY LOSS OF PROFIT, REVENUE, CONTRACTS OR SAVINGS, OR ANY OTHER DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF YOUR USE OF OR INABILITY TO USE THE GARMIN PRODUCTS, ANY DEFECT IN THE CONTENT OR INFORMATION, OR THE BREACH OF THESE TERMS OR CONDITIONS, WHETHER IN AN ACTION IN CONTRACT OR TORT OR BASED ON A WARRANTY AND WHETHER RESULTING FROM THE USE, MISUSE, OR INABILITY TO USE THE GARMIN PRODUCTS OR FROM DEFECTS OR ERRORS IN THE APPLICATION, EVEN IF GARMIN OR ITS LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. GARMIN’S AND ITS LICENSORS’ TOTAL AGGREGATE LIABILITY WITH RESPECT TO ITS OBLIGATIONS UNDER THIS LICENSE AGREEMENT OR OTHERWISE WITH RESPECT TO THE APPLICATION OR THE CONTENT SHALL NOT EXCEED $1.00. Some States, Territories and Countries do not allow certain liability exclusions or damages limitations, so to that extent the above may not apply to you. If you purchased your Application from a third party application vendor, THE SOLE AND MAXIMUM RESPONSIBILITY OF THE APPLICATION VENDOR IN THE EVENT OF A WARRANTY FAILURE IS A REFUND OF THE APPLICATION PURCHASE PRICE.
ANY CONTENT OR MATERIAL DOWNLOADED OR UPLOADED OR OTHERWISE OBTAINED THROUGH THE SOFTWARE IS DONE AT YOUR OWN DISCRETION AND RISK. YOU WILL BE SOLELY RESPONSIBLE FOR ANY DAMAGE TO YOUR ELECTRONIC COMMUNICATION DEVICE OR ANY LOSS OF DATA THAT MAY RESULT FROM THE DOWNLOAD OR UPLOAD OF ANY SUCH CONTENT OR MATERIAL OR THE USE OF THE SOFTWARE.
Predictive Routing Your device may have a “predictive routing” feature called myTrends that identifies your driving routines. If it does have this feature, when your device predicts a route, it will display your estimated time to destination and relevant traffic information regarding the predicted route. Information related to your driving routines would be accessible to any other person who uses your device. If you do not want your device to predict your routes or display information related to predicted routes, you may turn off myTrends by accessing your device’s Settings menu.
Collection of Information We may collect information relating to how often you use the Garmin® Product or the frequency with which certain applications and features of the Garmin® Product are used. This information would be collected anonymously, in a way that does not personally identify you. We may use this information to detect broad user trends and to otherwise enhance our products or applications. The use of location-based services on the Garmin® Product, which may include weather, movie times, traffic information, fuel prices, or information regarding local events, will cause the physical location of your device to be collected in order to provide you with such location-based services. This location data is collected anonymously in a form that does not personally identify you. If you provide your consent then Garmin® will collect and upload information such as your location, speed, and direction (known as “traffic probe data” or “floating car data”) in order to enhance the quality of the traffic data and other content provided by Garmin® or other Content providers. If you provide your consent, then Garmin® may also share this data with or sell this data to third parties. This data is shared and sold anonymously in a form that does not personally identify you. The collection and use of this location information are described in more detail in the privacy statement for the Garmin® Product.
Disclaimer of Endorsement; Change of Content Providers Reference to any products, services, processes, hypertext links to third parties or other Content by trade name, trademark, manufacturer, supplier or otherwise does not necessarily constitute or imply its endorsement, sponsorship or recommendation by Garmin® or its licensors. Product and service information are the sole responsibility of each individual vendor. The HERE name and logo, the HERE and HERE ON BOARD trademarks and logos, and other trademarks and trade names owned by HERE North America LLC may not be used in any commercial manner without the prior written consent of HERE. Content providers may be changed by Garmin® during the term of this Agreement, and your experience with the Content provided by a new provider may not duplicate your experience with the previous Content supplier.
Export Control You agree not to export from anywhere any part of the Content or any direct product thereof except in compliance with and with all licenses and approvals required under, applicable export laws, rules and regulations.
Legal Compliance You represent and warrant that (i) you are not located in a country that is subject to a U.S. Government embargo, or has been designated by the U.S. Government as a “terrorist supporting” country, and (ii) you are not listed on any U.S. Government list of prohibited or restricted parties.
Indemnity You agree to indemnify, defend and hold Garmin® and its licensors, including the respective licensors, service providers, channel partners, suppliers, assignees, subsidiaries, affiliated companies, and the respective officers, directors, employees, shareholders, agents and representatives of Garmin® and its licensors, free and harmless from and against any liability, loss, injury (including injuries resulting in death), demand, action, cost, expense, or claim of any kind or character, including but not limited to attorney’s fees, arising out of or in connection with any use or possession by you of the Garmin® Products.
Map Data Use of the Map Data is subject to certain restrictions and/or requirements imposed by third party suppliers and/or governmental or regulatory authorities as further set forth at legal.here.com/en-gb/terms
Term This Agreement is effective until such time as (i) if applicable, your subscription term is either terminated (by you or by Garmin®) or expires, or (ii) Garmin® terminates this Agreement for any reason, including, but not limited to, if Garmin® finds that you have violated any of the terms of this Agreement. In addition, this Agreement shall terminate immediately upon the termination of an agreement between Garmin® and any third party from whom Garmin® (a) obtains services or distribution necessary to support the Garmin® Products, or (b) licenses Content. You agree, upon termination, to destroy all copies of the Content. The Disclaimers of Warranty and Liability set out above shall continue in force even after any termination.
Entire Agreement These terms and conditions constitute the entire agreement between Garmin® and its licensors, including the licensors, service providers, channel partners, suppliers and affiliated companies of Garmin® and its licensors, and you pertaining to the subject matter hereof, and supersedes in their entirety any and all written or oral agreements previously existing between us with respect to such subject matter.
Governing Law
(a) For European Union HERE Data
The above terms and conditions shall be governed by the laws of the Netherlands, without giving effect to (i) its conflict of laws provisions, or (ii) the United Nations Convention for Contracts for the International Sale of Goods, which is explicitly excluded. You agree to submit to the jurisdiction of the Netherlands for any and all disputes, claims and actions arising from or in connection with the HERE Data provided to you hereunder.
(b) For North American HERE Data and other non-European Union HERE Data
The above terms and conditions shall be governed by the laws of Illinois, without giving effect to (i) its conflict of laws provisions, or (ii) the United Nations Convention for Contracts for the International Sale of Goods, which is explicitly excluded. You agree to submit to the jurisdiction of Illinois for any and all disputes, claims and actions arising from or in connection with the HERE Data provided to you hereunder.
(c) For disputes, claims and actions not related to the HERE Data
The above terms and conditions shall be governed by the laws of Kansas, without giving effect to (i) its conflict of laws provisions, or (ii) the United Nations Convention for Contracts for the International Sale of Goods, which is explicitly excluded. You agree to submit to the jurisdiction of Kansas for any and all disputes, claims and actions arising from or in connection with the Application or Content. Any translation of this Agreement from English is provided as a convenience only. If this Agreement is translated into a language other than English and there is a conflict of terms between the English version and the other language version, the English version will control.
Government End Users If End User is an agency, department, or other entity of the United States Government, or funded in whole or in part by the U.S. Government, then use, duplication, reproduction, release, modification, disclosure or transfer of the Application and accompanying documentation is subject to restrictions as set forth in DFARS 252.227-7014(a)(1) (JUN 1995) (DOD commercial computer software definition), DFARS 27.7202-1 (DOD policy on commercial computer software), FAR 52.227-19 (JUN 1987) (commercial computer software clause for civilian agencies), DFARS 252.227-7015 (NOV 1995) (DOD technical data – commercial items clause); FAR 52.227-14 Alternates I, II, and III (JUN 1987) (civilian agency technical data and noncommercial computer software clause); and/or FAR 12.211 and FAR 12.212 (commercial item acquisitions), as applicable. In case of conflict between any of the FAR and DFARS provisions listed herein and this License Agreement, the construction that provides greater limitations on the Government’s rights shall control. The contractor/manufacturer is Garmin® International, Inc., 1200 East 151st Street, Olathe, Kansas 66062, USA and HERE North America LLC, 425 West Randolph Street, Chicago, Illinois 60606 USA.
Garmin® is a trademark of Garmin® Ltd. or its subsidiaries, registered in the USA and other countries. These trademarks may not be used without the express permission of Garmin®.
HERE is a trademark in the U.S. and other countries. All other company names and trademarks mentioned or referenced in this documentation are the properties of their respective owners. All rights reserved.
Additional Terms and Privacy Policy for Location Platform Services If your Application is provided access to Location Platform Services, by accessing such Location Platform Services you agree to application of the Nokia Terms of Service at legal.here.com/en-gb/terms and the Nokia Privacy Policy at www.nokia.com/en_us/phones/all-phones
Traffic Service End User Agreement
The Traffic Service Provider holds the rights to the traffic incident data (the “Traffic Service Data”) and, if you receive RDS/TMC traffic, the RDS/TMC network through which it is delivered. You may not modify, copy, scan, or use any other method to reproduce, duplicate, republish, transmit, or distribute in any way any portion of Traffic Service Data. You agree to indemnify, defend, and hold harmless the Traffic Service Provider (and its affiliates) and Garmin® Ltd. (and its subsidiaries) (collectively, “Garmin®”) against any and all claims, damages, costs, or other expenses that arise directly or indirectly out of (a) your unauthorized use of the Traffic Service Data or the RDS/TMC network, (b) your violation of this Traffic Service End User Subscriber Agreement and/or (c) any unauthorized or unlawful activities by you in connection herewith.
The Traffic Service Data is informational only. You assume all risk of use. The Traffic Service Provider, Garmin®, and their suppliers make no representations about content, traffic and road conditions, route usability, or speed.
Garmin® and its Traffic Service Provider(s) make no warranty of fitness or compatibility of the Traffic Service Data with the Garmin® software application you have chosen to download to your device and no warranty that the Traffic Service Data will operate properly as integrated and interfaced with your device. In addition, Garmin® and its Traffic Service Provider(s) make no warranty with regard to the reliability, accuracy, exhaustiveness and completeness of the Traffic Service Data, which may contain inaccuracies and/or errors from time to time. To the maximum extent permitted by applicable law, any and all warranties of any kind whatsoever with regard to the Traffic Service Data are hereby expressly waived and excluded, including, but not limited to, those of merchantability, fitness for a particular purpose, accuracy or completeness of the Traffic Service Data, and/or a lack of viruses.
Garmin® and its Traffic Service Provider(s) disclaim all liability for any loss, injury, or damage resulting from use of or inability to use the Traffic Service Data as a result of weather difficulties, the destruction of transmitters and/or other broadcasting infrastructures, a natural disaster, and/or a lack of reliability, completeness or accuracy of the Traffic Service Data. In no event shall Garmin® or its Traffic Service Provider(s) be liable to you or any other party for any compensatory, indirect, incidental, special, or consequential damages (including, without limitation, indirect, direct, special, punitive, or exemplary damages for loss of business, loss of profits, business interruption, or loss of business information) arising out of the use of or inability to use the Traffic Service Data, even if Garmin® has been advised of the possibility of such damages.
Garmin® is a trademark of Garmin® Ltd. or its subsidiaries, registered in the USA and other countries. This trademark may not be used without the express permission of Garmin®. All other company names and trademarks mentioned or referenced in this documentation are the properties of their respective owners. All rights reserved.
MORE MODE
“MORE” MAIN MENU
The More Main Menu consists of the following options:
- Settings
- SiriusXM® Travel Link (if equipped)
Refer to the “Navigation Mode” in this section for more information.
SETTINGS MAIN MENU
Radio Settings Main Menu
Press the Settings button to display the list of available settings.
Refer to “Uconnect Settings” in this section for further information.
ACCESSIBILITY
Accessibility is a feature of the DVD system that announces a function prior to performing the action. The first time a button is pressed the system will identify the button, and will enact the function of the button the second time it is pressed. For further information, refer to “Uconnect Settings” in “Multimedia.”
Download Manual
