Instrument cluster

Instrument Cluster

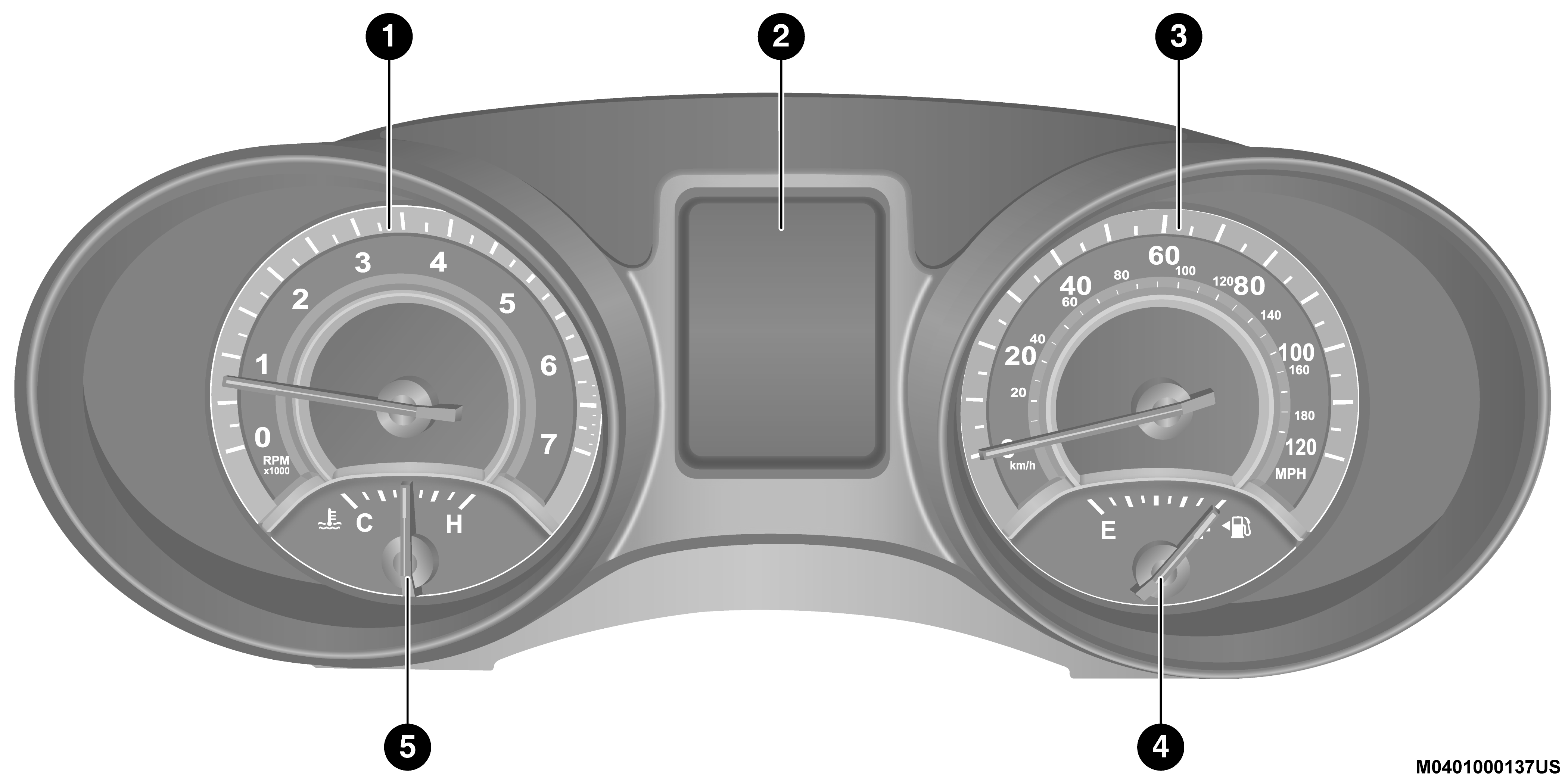

INSTRUMENT CLUSTER DESCRIPTIONS

1. Tachometer

   • Indicates the engine speed in revolutions per minute (RPM x 1000).

2. Instrument Cluster Display

   • When the appropriate conditions exist, this display shows the instrument cluster display messages. Refer to “Instrument Cluster Display” in this chapter for further information.

3. Speedometer

   • Indicates vehicle speed.

4. Fuel Gauge

   • The pointer shows the level of fuel in the fuel tank when the Keyless Push Button Ignition is in the ON/RUN position.

   • The fuel pump symbol points to the side of the vehicle where the fuel door is located.

5. Temperature Gauge

   • The temperature gauge shows engine coolant temperature. Any reading within the normal range indicates that the engine cooling system is operating satisfactorily.

   • The gauge pointer will likely indicate a higher temperature when driving in hot weather, up mountain grades, or when towing a trailer. It should not be allowed to exceed the upper limits of the normal operating range.

     WARNING:

     A hot engine cooling system is dangerous. You or others could be badly burned by steam or boiling coolant. You may want to call an authorized dealer for service if your vehicle overheats. If you decide to look under the hood yourself, see “Servicing And Maintenance.” Follow the warnings under the Cooling System Pressure Cap paragraph.

     CAUTION:

     Driving with a hot engine cooling system could damage your vehicle. If the temperature gauge reads “H,” pull over and stop the vehicle. Idle the vehicle with the air conditioner turned off until the pointer drops back into the normal range. If the pointer remains on the “H,” turn the engine off immediately and call an authorized dealer for service.

Note:

The hard telltales will illuminate for a bulb check when the ignition is first cycled.
