Fuses
WARNING:
-
When replacing a blown fuse, always use an appropriate replacement fuse with the same amp rating as the original fuse. Never replace a fuse with another fuse of higher amp rating. Never replace a blown fuse with metal wires or any other material. Do not place a fuse inside a circuit breaker cavity or vice versa. Failure to use proper fuses may result in serious personal injury, fire and/or property damage.
-
Before replacing a fuse, make sure that the ignition is off and that all the other services are switched off and/or disengaged.
-
If the replaced fuse blows again, contact an authorized dealer.
-
If a general protection fuse for safety systems (air bag system, braking system), power unit systems (engine system, transmission system) or steering system blows, contact an authorized dealer.
INTERIOR FUSES
The interior fuse panel is located on the passenger side under the instrument panel.

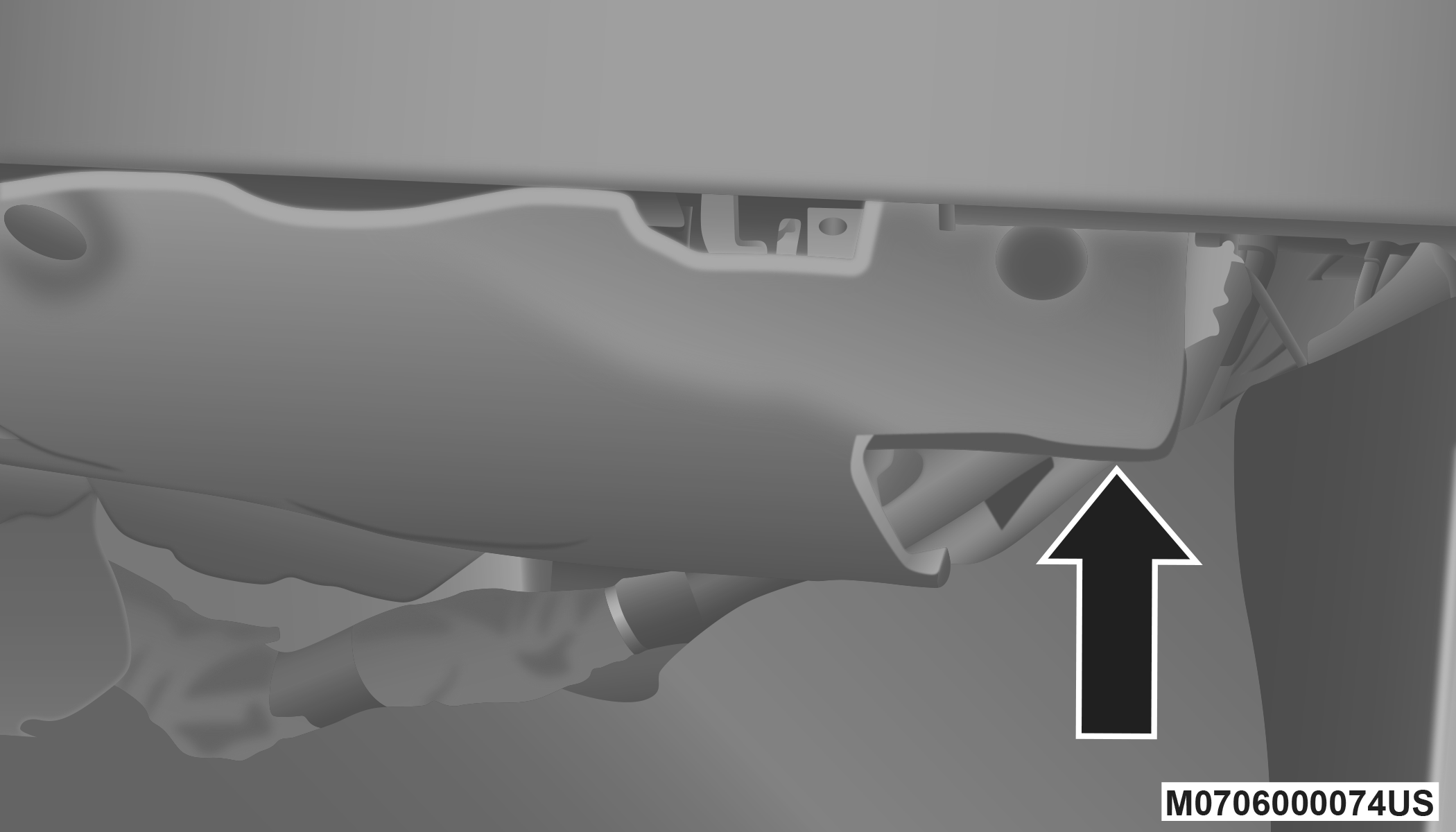

Interior Fuse Panel Location
To remove fuse cover press on tabs shown.

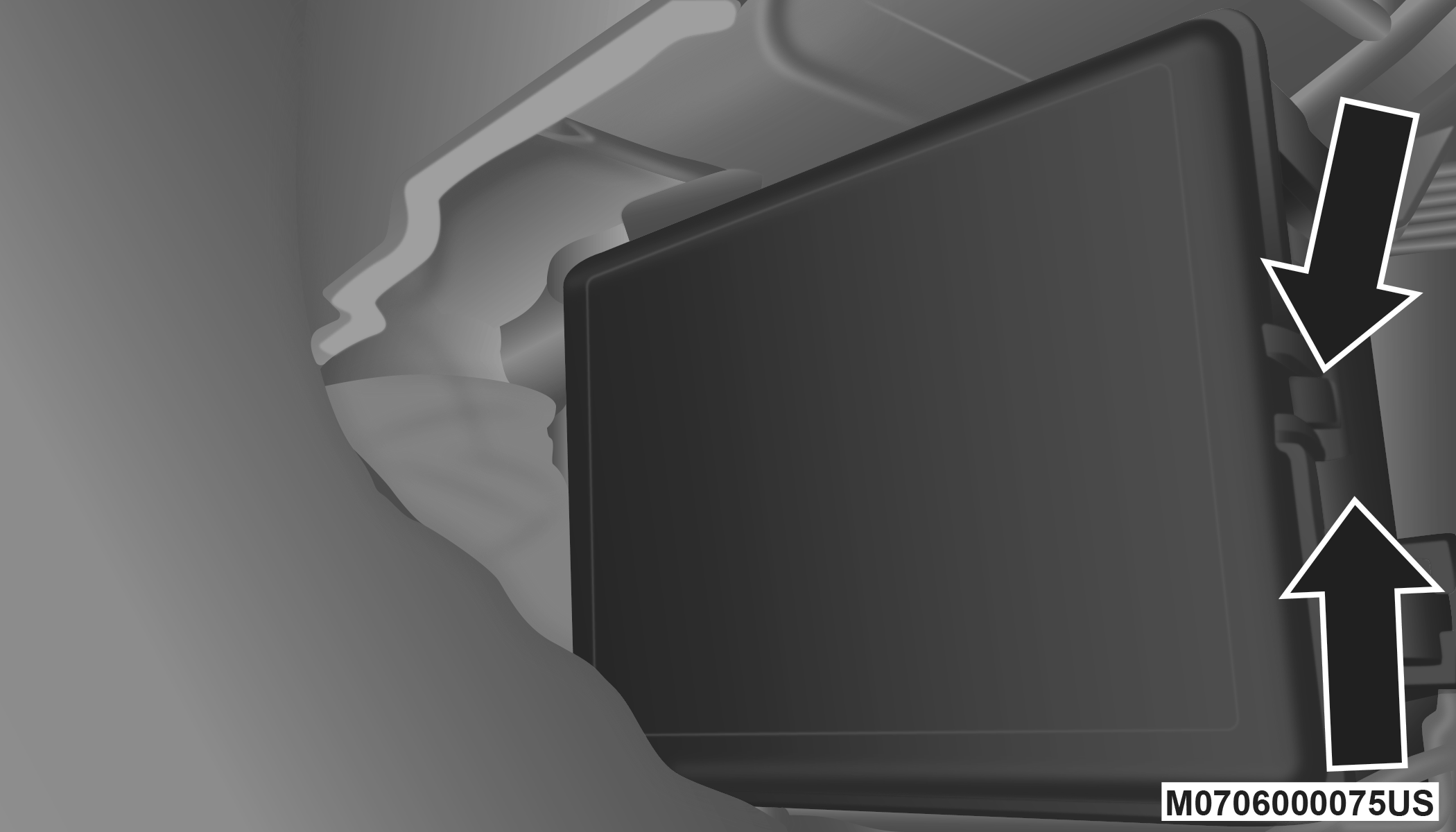

Interior Fuse Panel Tabs
|
Cavity |
Cartridge Fuse |
Mini-Fuse |
Description |
|
F100 |
30 Amp Pink |
– |
110 Volt AC Inverter – If Equipped |
|
F101 |
– |
10 Amp Red |
Interior Lights |
|
F102 |
– |
20 Amp Yellow |
Cigar Lighter in Instrument Panel/Left Rear Power Outlet |
|
F103 |
– |
20 Amp Yellow |
Power Outlet in Console Bin/Power Outlet in Rear of Console |
|
F105 |
– |
20 Amp Yellow |
Heated Seats – If Equipped |
|
F106 |
– |
20 Amp Yellow |
Rear Power Outlet |
|
F107 |
– |
10 Amp Red |
Rear Camera – If Equipped |
|
F108 |
– |
15 Amp Blue |
Instrument Panel |
|
F109 |
– |
10 Amp Red |
Climate Control/HVAC |
|
F110 |
– |
10 Amp Red |
Occupant Restraint Controller |
|
F112 |
– |
10 Amp Red |
Spare |
|
F114 |
– |
20 Amp Yellow |
Rear HVAC Blower/Motor |
|
F115 |
– |
20 Amp Yellow |
Rear Wiper Motor |
|
F116 |
30 Amp Pink |
– |
Rear Defroster (EBL) |
|
F117 |
– |
10 Amp Red |
Heated Mirrors |
|
F118 |
– |
10 Amp Red |
Occupant Restraint Controller |
|
F119 |
– |
10 Amp Red |
Steering Column Control Module |
|
F120 |
– |
10 Amp Red |
All Wheel Drive – If Equipped |
|
F121 |
– |
15 Amp Blue |
Wireless Ignition Node |
|
F122 |
– |
25 Amp Clear |
Driver Door Module |
|
F123 |
– |
25 Amp Clear |
Passenger Door Module |
|
F124 |
– |
10 Amp Red |
Mirrors |
|
F125 |
– |
10 Amp Red |
Steering Column Control Module |
|
F126 |
– |
25 Amp Clear |
Audio Amplifier |
|
F127 |
– |
20 Amp Yellow |
Trailer Tow – If Equipped |
|
F128 |
– |
15 Amp Blue |
Radio |
|
F129 |
– |
15 Amp Blue |
Video/DVD – If Equipped |
|
F130 |
– |
15 Amp Blue |
Climate Control/Instrument Panel |
|
F131 |
– |
10 Amp Red |
Passenger Assistance/Hands Free System – If Equipped |
|
F132 |
– |
10 Amp Red |
Tire Pressure Module |
|
F133 |
– |
10 Amp Red |
Cyber Security Gateway |
UNDERHOOD FUSES (POWER DISTRIBUTION CENTER)
The power distribution center is located in the engine compartment.

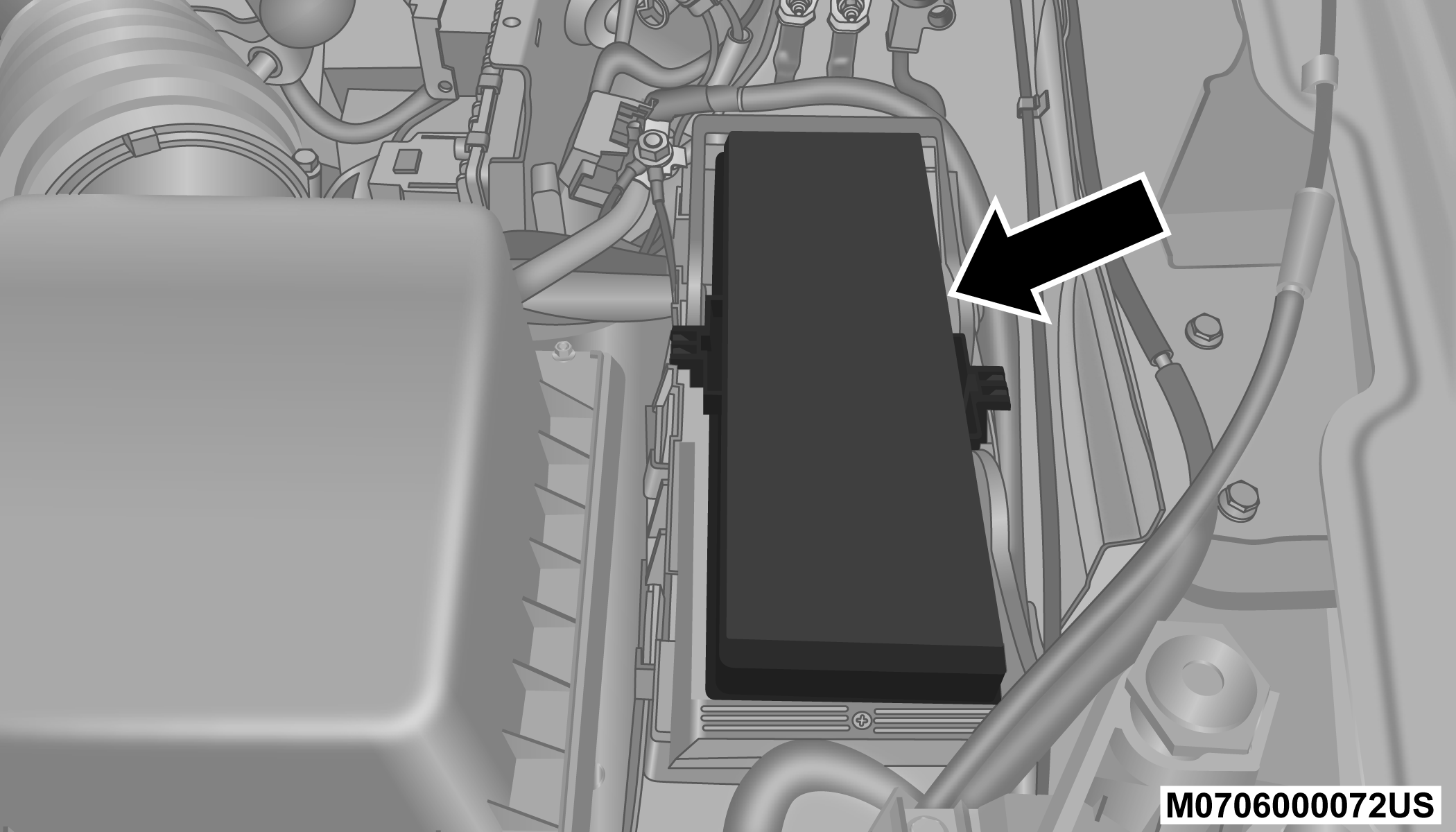

Power Distribution Center
|
Cavity |
Cartridge Fuse |
Mini-Fuse |
Description |
|
F101 |
60 Amp Yellow |
– |
Interior Power Distribution Center Rail |
|
F102 |
60 Amp Yellow |
– |
Interior Power Distribution Center Rail |
|
F103 |
60 Amp Yellow |
– |
Interior Power Distribution Center Rail |
|
F105 |
60 Amp Yellow |
– |
Interior Power Distribution Center Rail Ignition Run Relay |
|
F106 |
60 Amp Yellow |
– |
Interior Power Distribution Center Rail Run/Accessory Relays |
|
F139 |
40 Amp Green |
– |
Climate Control System Blower |
|
F140 |
30 Amp Pink |
– |
Power Locks |
|
F141 |
40 Amp Green |
– |
Anti-Lock Brake System |
|
F142 |
40 Amp Green |
– |
Glow Plugs – If Equipped |
|
F143 |
40 Amp Green |
– |
Exterior Lights 1 |
|
F144 |
40 Amp Green |
– |
Exterior Lights 2 |
|
F145 |
30 Amp Pink |
– |
To Body Computer – Lamp |
|
F146 |
30 Amp Pink |
– |
Spare |
|
F147 |
30 Amp Pink |
– |
Spare |
|
F148 |
40 Amp Green |
– |
Radiator Fan Motor |
|
F149 |
30 Amp Pink |
– |
Starter Solenoid |
|
F150 |
– |
25 Amp Clear |
Powertrain Control Modules |
|
F151 |
30 Amp Pink |
– |
Headlamp Washer Motor – If Equipped |
|
F152 |
– |
25 Amp Clear |
Diesel Fuel Heater – If Equipped |
|
F153 |
– |
20 Amp Yellow |
Fuel Pump |
|
F156 |
– |
10 Amp Red |
Brake/Electronic Stability Control Module |
|
F157 |
– |
10 Amp Red |
Power Transfer Unit Module – If Equipped |
|
F158 |
– |
10 Amp Red |
Active Hood Module – If Equipped |
|
F159 |
– |
10 Amp Red |
Spare |
|
F160 |
– |
20 Amp Yellow |
Interior Lights |
|
F161 |
– |
20 Amp Yellow |
Horn |
|
F162 |
40 Amp Red/20 Amp Lt. Blue |
– |
Cabin Heater #1/Vacuum Pump – If Equipped |
|
F163 |
50 Amp Red |
– |
Cabin Heater #2 – If Equipped |
|
F164 |
– |
25 Amp Clear |
Powertrain Auto Shutdown |
|
F165 |
– |
20 Amp Yellow |
Powertrain Shutdown |
|
F166 |
– |
20 Amp Yellow |
Spare |
|
F167 |
– |
30 Amp Green |
Powertrain Shutdown |
|
F168 |
– |
10 Amp Red |
Air Conditioner Clutch |
|
F169 |
40 Amp Green |
– |
Emissions – Partial Zero Emissions Vehicle Motor |
|
F170 |
– |
15 Amp Blue |
Emissions – Partial Zero Emissions Vehicle Actuators |
|
F172 |
– |
20 Amp Yellow |
Spare |
|
F173 |
– |
25 Amp Clear |
Anti Lock Brake Valves |
|
F174 |
– |
20 Amp Yellow |
Siren – If Equipped |
|
F175 |
– |
30 Amp Green |
Spare |
|
F176 |
– |
10 Amp Red |
Powertrain Control Modules |
|
F177 |
– |
20 Amp Yellow |
All Wheel Drive Module – If Equipped |
|
F178 |
– |
25 Amp Clear |
Sunroof – If Equipped |
|
F179 |
– |
10 Amp Red |
Battery Sensor |
|
F181 |
100 Amp Blue |
– |
Electrohydraulic Power Steering (EHPS) – If Equipped |
|
F182 |
50 Amp Red |
– |
Cabin Heater #3 – If Equipped |
|
F184 |
30 Amp Pink |
– |
Front Wiper Motor |
