2015 Volkswagen GTI Owners Manual - Exterior views



Exterior views

Side view

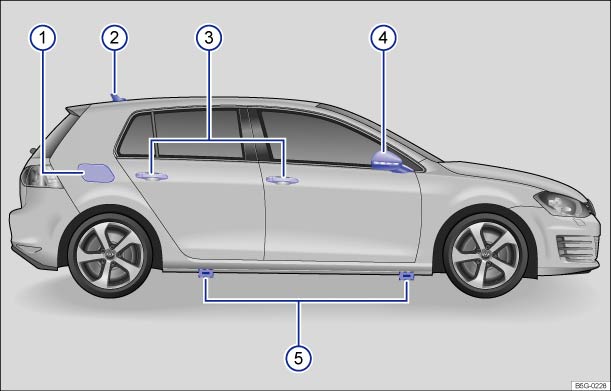

Fig. 1 Vehicle side overview.

Key to  :

  1. Fuel filler flap  
  2. Roof antenna  
  3.  Outside door handles  
  4. Outside mirror  

    • Additional turn signal light  
  5. Lift points for the jack  

Front view

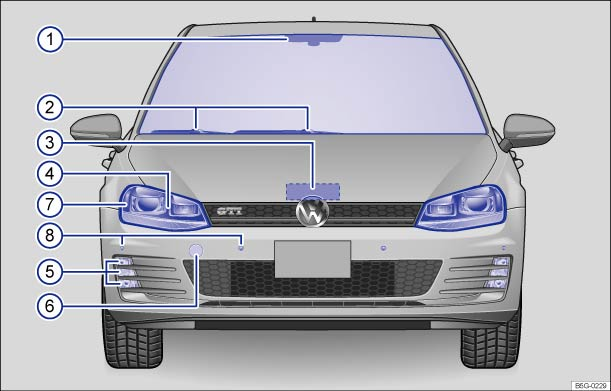

Fig. 2 Vehicle front overview.

Key to  :

  1. Inside mirror with sensor on mirror base for:

    • Rain sensor (if equipped)  
    • Low-light sensor (if equipped)  
    • Light Assist (if equipped)  
  2. Windshield wipers  
  3. Engine hood release  
  4. Headlights (on left and right)  
  5. Fog lights/static cornering lights (on left and right)  
  6. Threaded hole for the front towing eye (behind cover)  
  7. Side marker lights (on left and right)  
  8. Park Distance Control (PDC) sensors (if equipped)  

Rear view

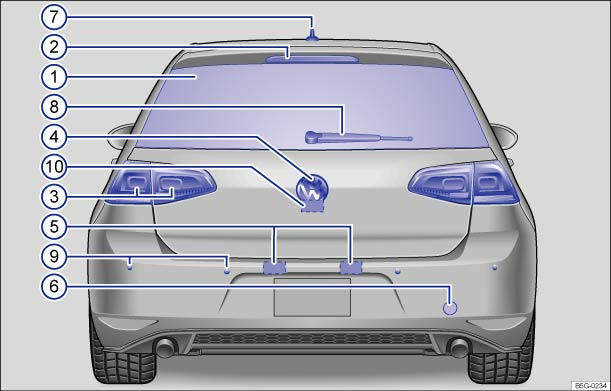

Fig. 3 Vehicle rear overview.

Key to  :

  1. Rear window

    • Rear window defroster  
  2. High-mounted brake light  
  3. Taillights (on left and right)  
  4. Volkswagen emblem for opening the rear hatch  
  5. License plate lights
  6. Threaded hole for the rear towing eye (behind cover)  
  7. Roof antenna  
  8. Rear windshield wiper  
  9. Park Distance Control (PDC) sensors (if equipped)  
  10. Area for Rear Assist camera (if equipped)  
