SYMBOL GLOSSARY
Some car components have colored labels with symbols indicating precautions to be observed when using this component. It is important to follow all warnings when operating your vehicle. See below for the definition of each symbol page 104.
|
Red Warning Lights |
|
|
|
Seat Belt Reminder Warning Light page 126 |
|
|
Air Bag Warning Light page 126 |
|
|
Brake Warning Light page 126 |
|
|
Hood Open Warning Light page 127 |
|
|
Vehicle Security Warning Light — If Equipped page 127 |
|
|
Engine Coolant Temperature Warning Light page 128 |
1
|
Yellow Warning Lights |
|
|
|
Adaptive Cruise Control (ACC) Fault Warning Light — If Equipped page 129 |
|
|
Air Suspension Fault Warning Light — If Equipped page 129 |
|
|
Engine Check/Malfunction Indicator Warning Light (MIL) page 130 |
|
|

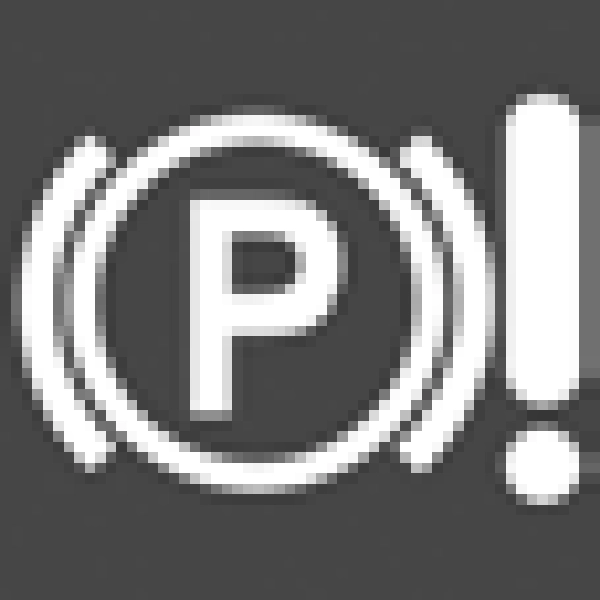

Electronic Park Brake Warning Light page 130 |
|
|
Electronic Stability Control (ESC) Active Warning Light — If Equipped page 130 |
1
|
Green Indicator Lights |
|
|
|
Adaptive Cruise Control (ACC) Set With Target Light — If Equipped page 135 |
|
|
Adaptive Cruise Control (ACC) Set With No Target Detected Indicator Light — If Equipped page 135 |
|
|
ECO Mode Indicator Light page 135 |
|
|
Park/Headlight On Indicator Light page 135 |
|
|
LaneSense Indicator Light — If Equipped page 137 |
|
|

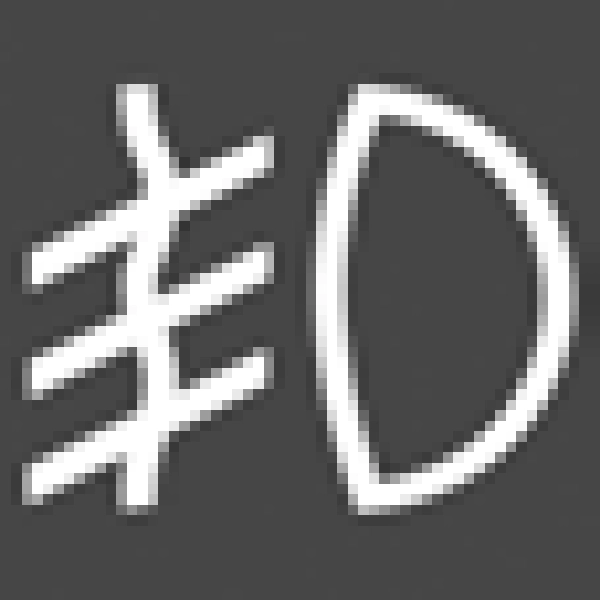

Front Fog Indicator Light — If Equipped page 136 |
|
White Indicator Lights |
|
|
|
Adaptive Cruise Control (ACC) Ready Light — If Equipped page 136 |
|
|
Cruise Control Ready Indicator page 136 |
|
|
Speed Control SET Indicator Light — If Equipped With Base/Midline Instrument Cluster Display page 136 |

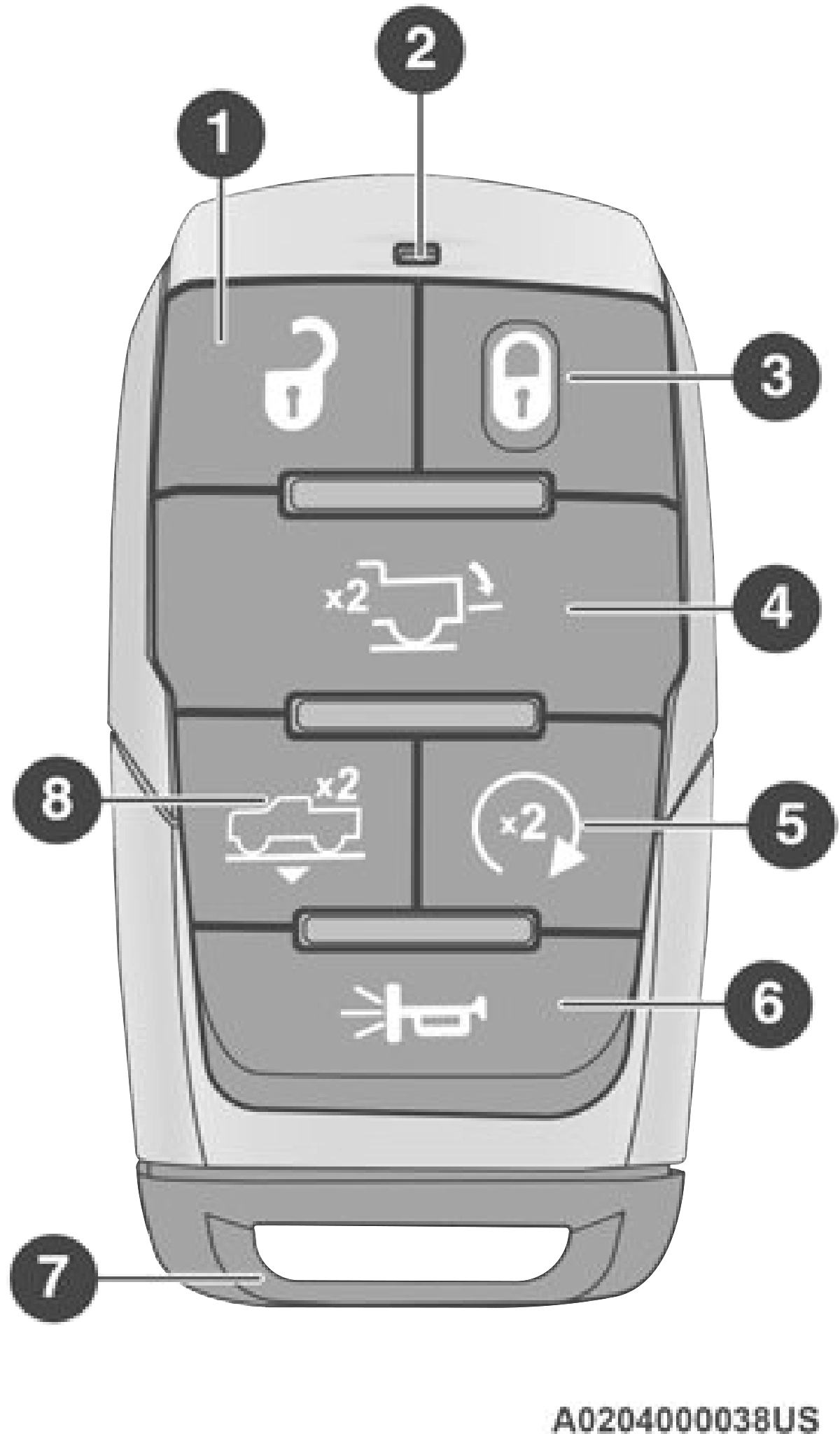

KEY FOB
