DRIVER MEMORY SETTINGS — IF EQUIPPED

This feature allows the driver to save up to two different memory profiles for easy recall through a memory switch. Each memory profile saves desired position settings for the following features:

Driver’s seat

Easy Entry/Exit seat operation (on/off) (if equipped)

Adjustable pedals (if equipped)

Side mirrors NOTE:

Your vehicle is equipped with two key fobs, each can be linked to either memory position 1 or 2.

(Continued)

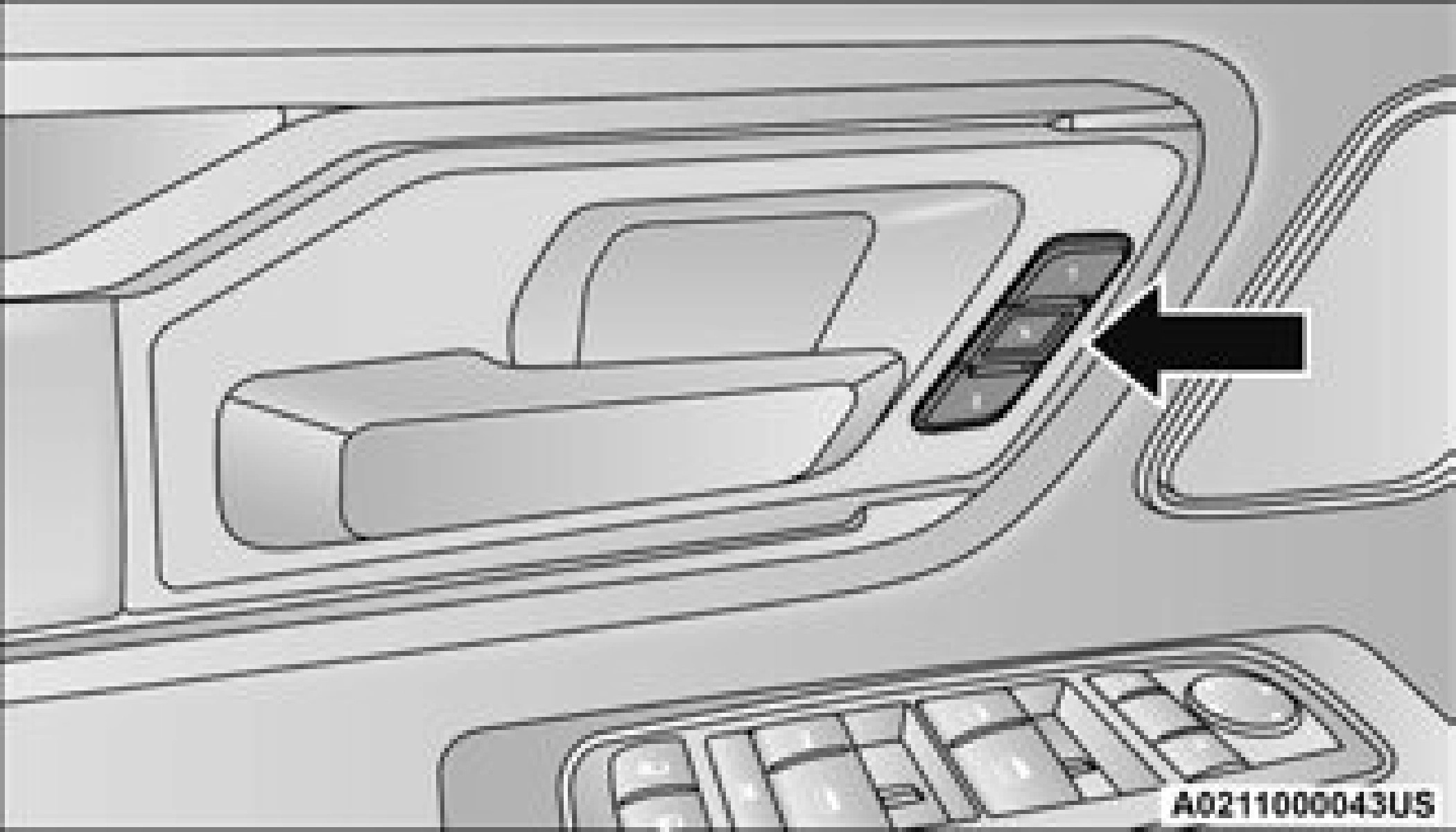

The driver memory settings switch is located on the driver door, next to the door handle, and consists of three buttons:

The set (S) button, which is used to activate the memory save function.

The (1) and (2) buttons which are used to recall either of two pre-programmed memory profiles.

PROGRAMMING THE MEMORY FEATURE

To create a new memory profile, perform the following:

Saving a new memory profile will erase the selected profile from memory.

Place the vehicle’s ignition in the ON/RUN position (do not start the engine).

Adjust all memory profile settings to desired preferences (i.e., driver’s seat, outside mirrors, adjustable pedals (if equipped), and radio station presets).

Push the set (S) button on the memory switch, and then push the desired memory button (1 or 2) within five seconds. The instrument cluster display will display which memory position has been set.

Memory profiles can be set without the vehicle in PARK, but the vehicle must be in PARK to recall a memory profile.

LINKING AND UNLINKING THE KEY FOB TO MEMORY

Your key fob can be programmed to recall one of two saved memory profiles by pushing the unlock button on the key fob.

Before programming your key fob you must select the “Personal Settings Linked to Key Fob” feature through the Uconnect system page 237.

To program your key fob, perform the following:

Place the vehicle’s ignition in the OFF position.

Select a desired memory profile 1 or 2.

Once the profile has been recalled, push and release the set (S) button on the memory switch.

Push and release button (1) or (2) accordingly. “Memory Profile Set” (1 or 2) will display in the instrument cluster.

Push and release the lock button on the key fob within 10 seconds.

Your key fob can be unlinked to your memory settings by pushing the set (S) button, followed by pushing the unlock button on the key fob within 10 seconds.

MEMORY POSITION RECALL

If a recall is attempted when the vehicle is not in PARK, a message will display in the instrument cluster display.

To recall the memory settings for driver one or two, push the desired memory button number (1 or 2) or the unlock button on the key fob linked to the desired memory position.

A recall can be canceled by pushing any of the memory buttons (S, 1, or 2) during a recall.

When a recall is canceled, the driver seat will stop moving. A delay of one second will occur before another recall can be selected.
