PREMIUM INSTRUMENT CLUSTER — GASOLINE
3

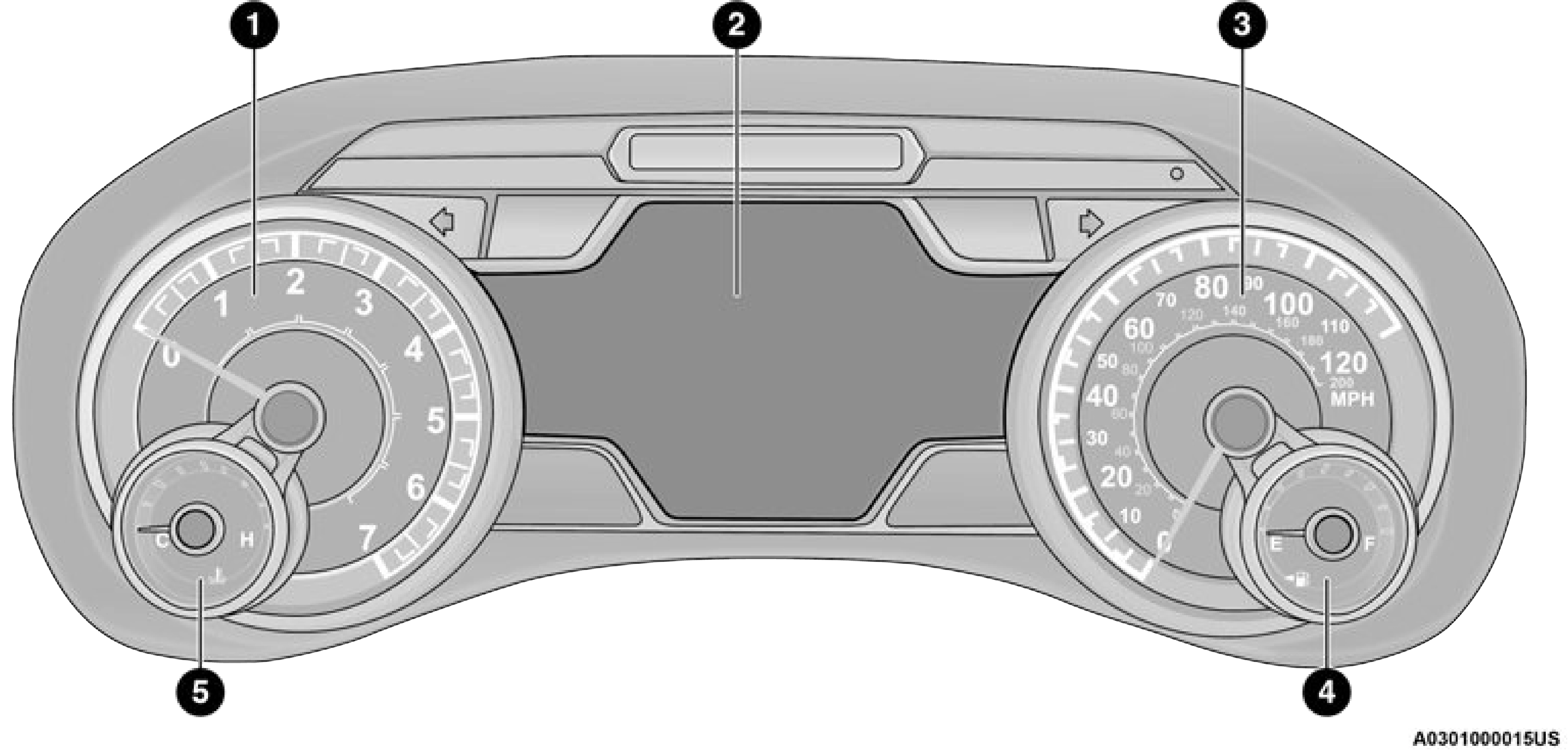

PREMIUM INSTRUMENT CLUSTER DESCRIPTIONS — GASOLINE
Tachometer
Indicates the engine speed in revolutions per minute (RPM x 1000).
Instrument Cluster Display
When the appropriate conditions exist, this display shows the instrument cluster display messages page 114.

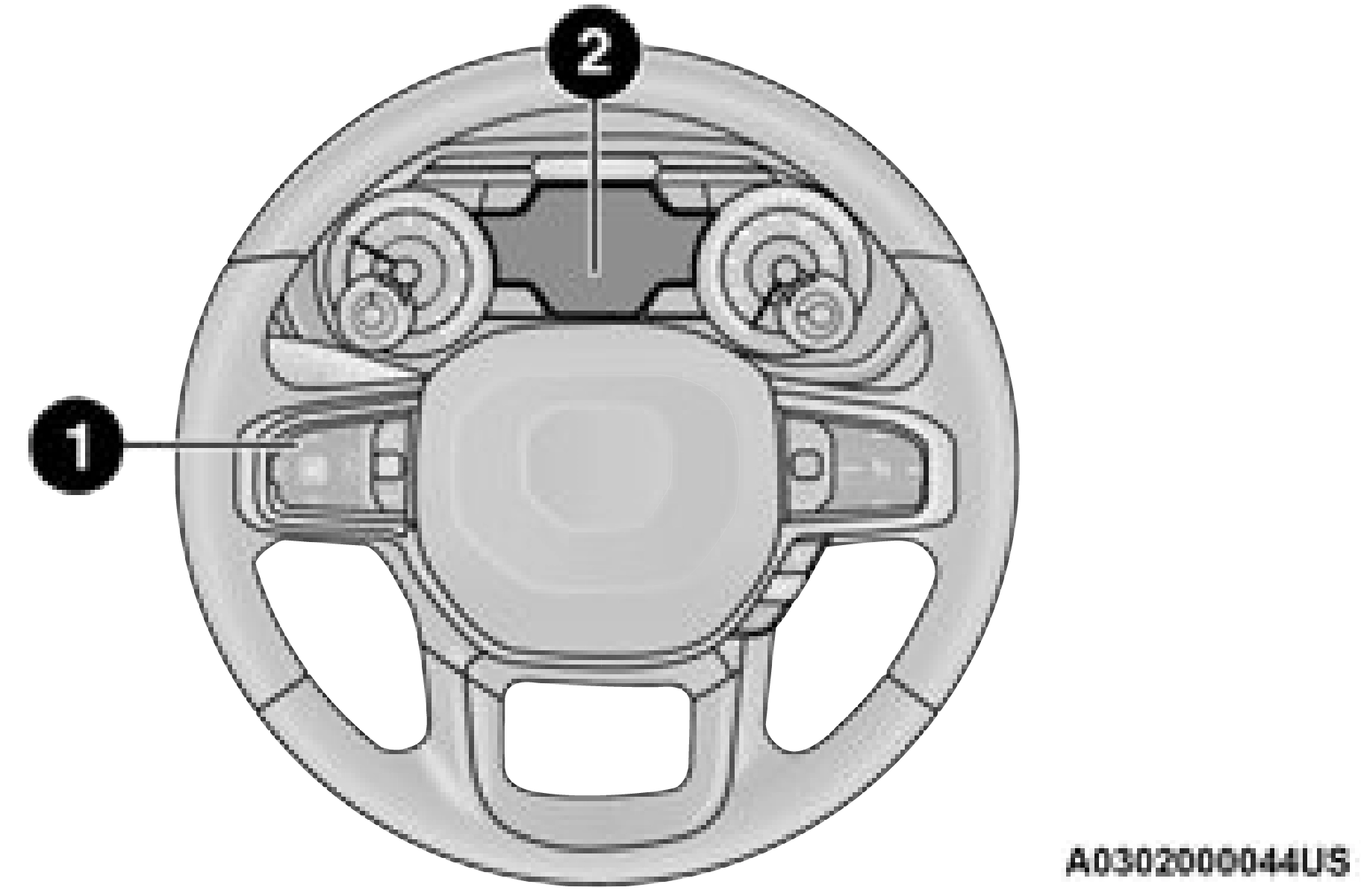

1 – Instrument Cluster Display Controls 2 – Instrument Cluster Display Screen
Speedometer
Indicates vehicle speed.
Fuel Gauge
The pointer shows the level of fuel in the fuel tank when the ignition is in the ON/ RUN position.
The fuel pump symbol points to the side of the vehicle where the fuel door is located.Temperature Gauge
The pointer shows engine coolant temperature. The pointer positioned within the normal range indicates that the engine cooling system is operating satisfactorily.
The pointer will likely indicate a higher temperature when driving in hot weather, up mountain grades, or when towing a trailer. It should not be allowed to exceed the upper limits of the normal operating range.
The display always show one of the main menu item after ignition on.
