Wheel and Tire Torque Specifications
Proper lug nut/bolt torque is very important to ensure that the wheel is properly mounted to the vehicle. Any time a wheel has been removed and reinstalled on the vehicle, the lug nuts/bolts should be torqued using a properly calibrated torque wrench using a six-sided (hex) deep wall socket.
TORQUE SPECIFICATIONS
|
Wheel Bolt Torque |
**Wheel Bolt Size |
Wheel Bolt Socket Size |
|
89 Ft-Lb (120 N·m) |
M12 x 1.25 |
17 mm |
**Use only authorized dealer recommended lug nuts/bolts and clean or remove any dirt or oil before tightening.

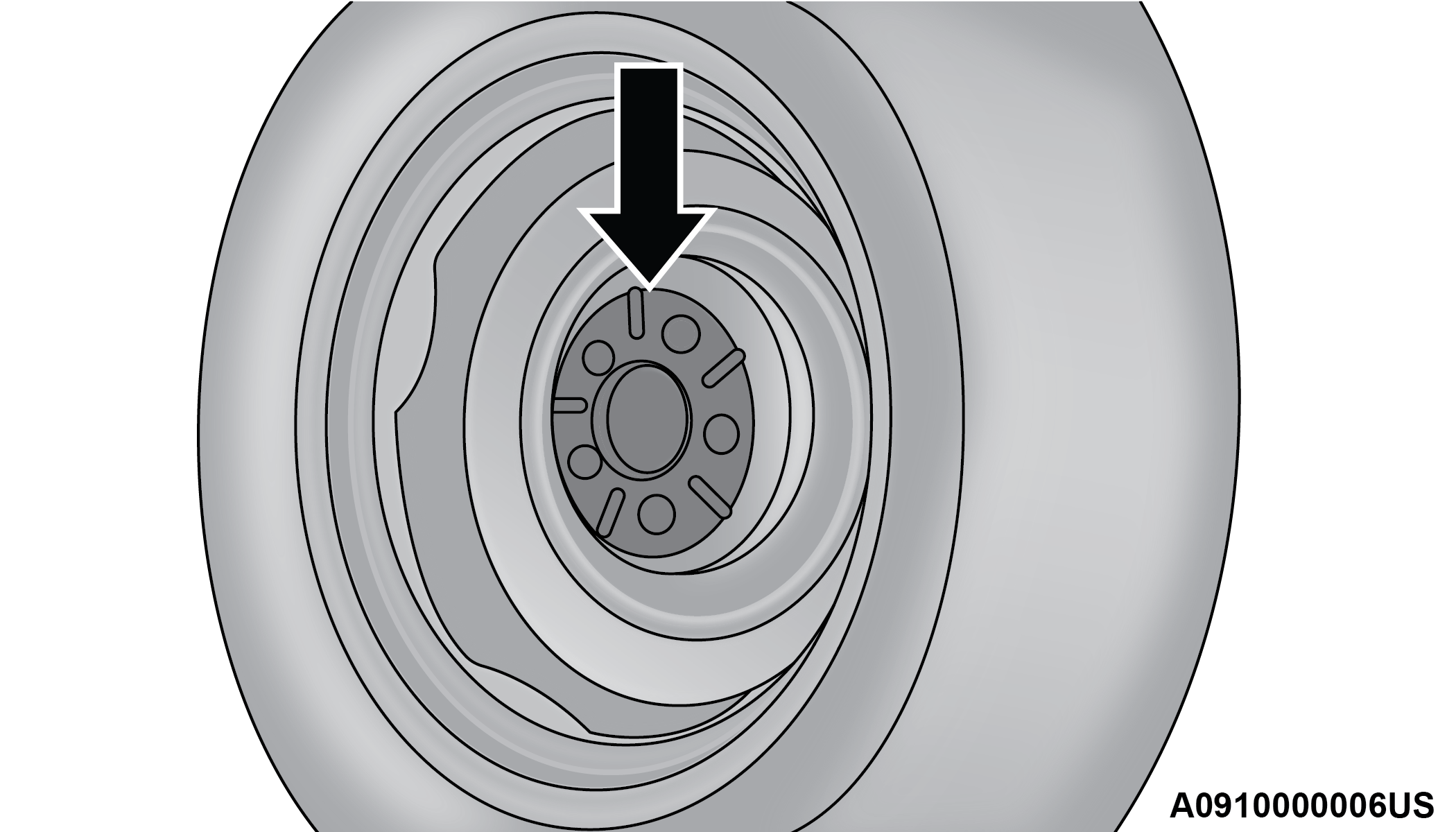

Inspect the wheel mounting surface prior to mounting the tire and remove any corrosion or loose particles.
Wheel Mounting Surface

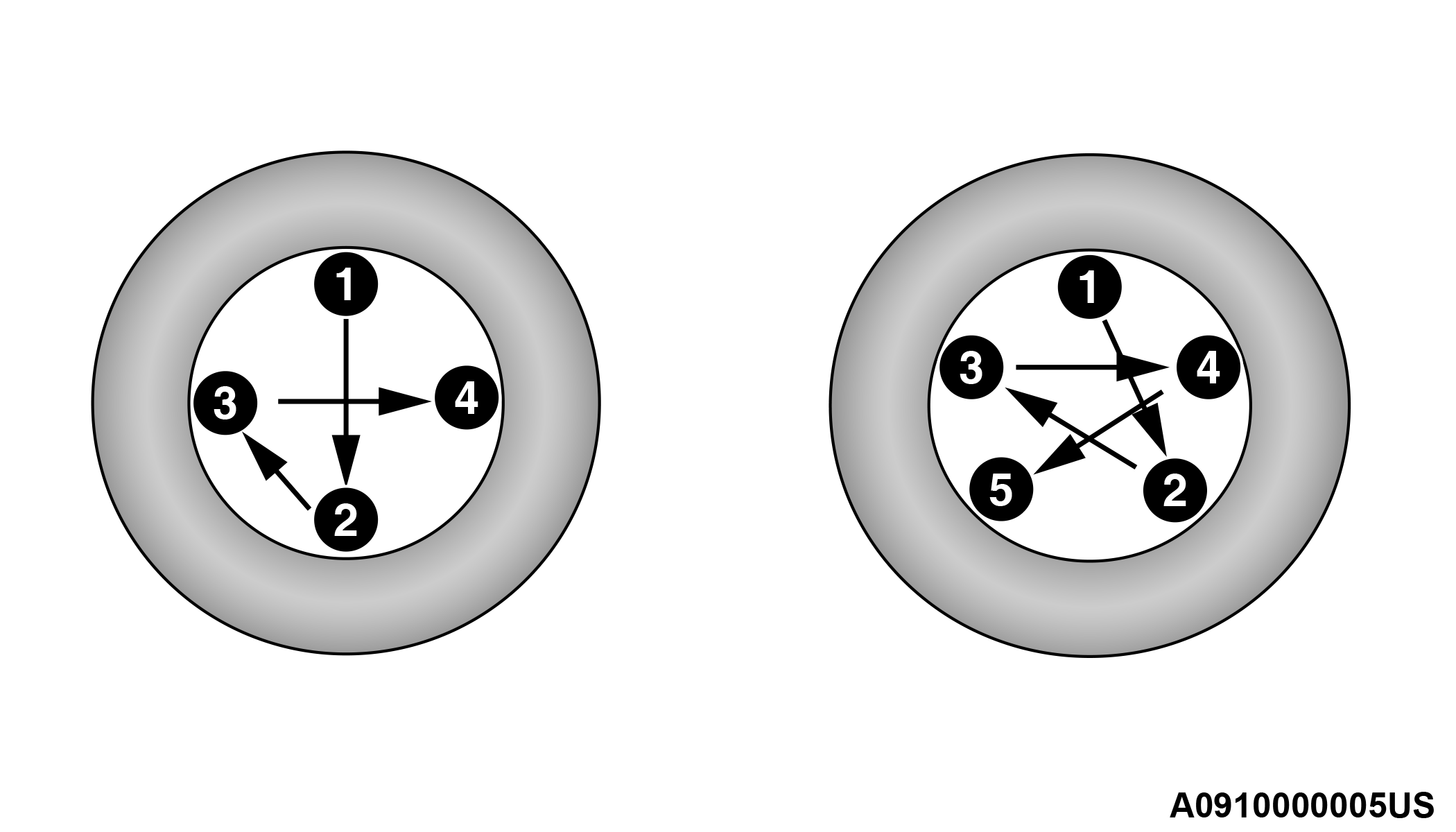

Tighten the wheel bolts in a star pattern until each bolt has been tightened twice. Ensure that the socket is fully engaged on the lug nut/bolt.
Torque Patterns
After 25 miles (40 km), check the wheel bolt torque to be sure that all the lug nuts/bolts are properly tightened.
WARNING:
To avoid the risk of forcing the vehicle off the jack, do not fully tighten the wheel bolts until the vehicle has been lowered. Failure to follow this warning may result in serious injury.
