Refueling the Vehicle
The Capless Fuel system uses a flapper placed at the filler pipe of the fuel tank; it opens and closes automatically upon insertion/extraction of the fuel nozzle.
The Capless Fuel system is designed so that it prevents the filling of an incorrect type of fuel.
Opening The Door
For filling, proceed as follows:
-

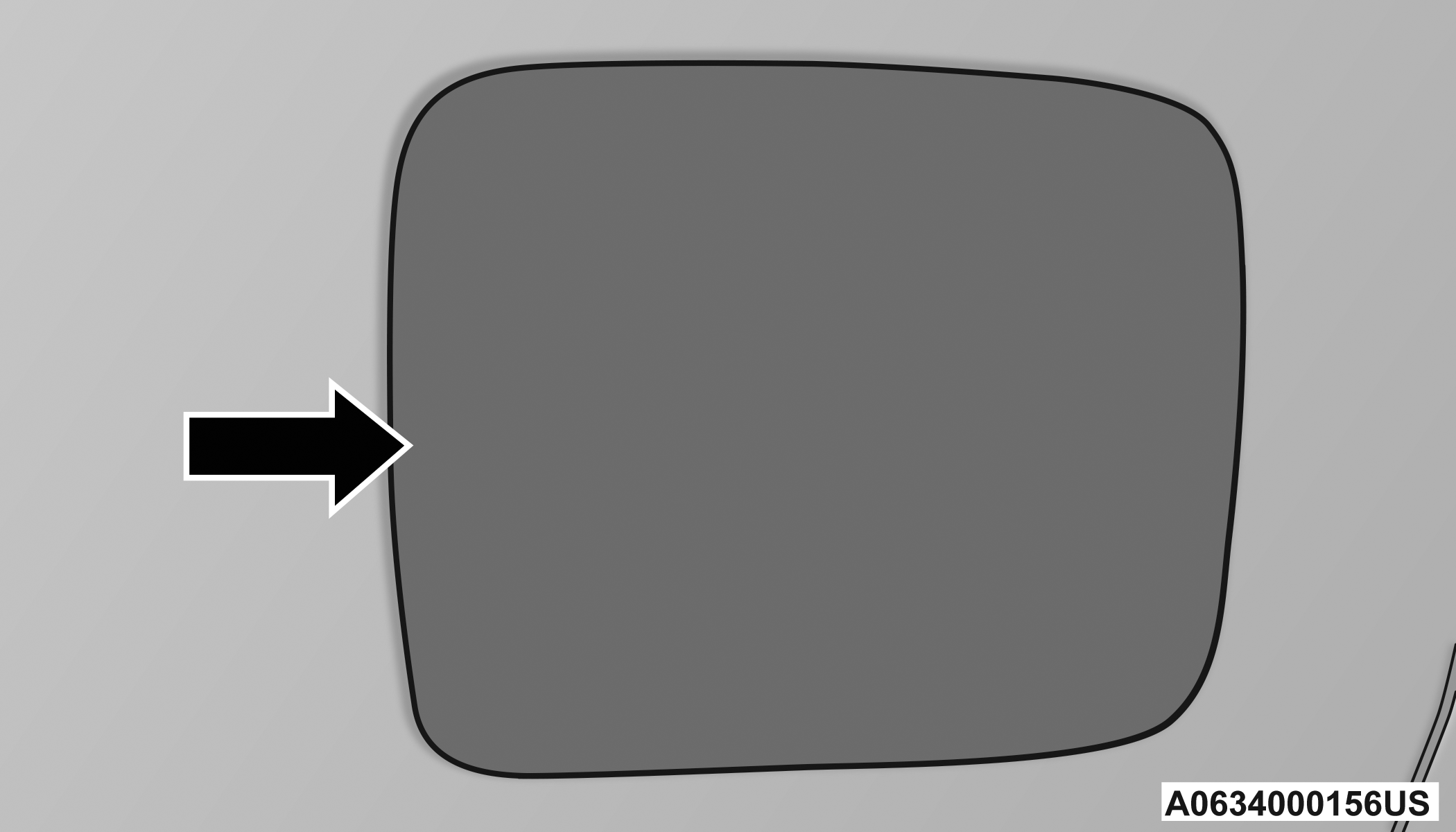

Open the door, by pushing and releasing on the indentation point indicated by the arrow.
Fuel Filler Door
-

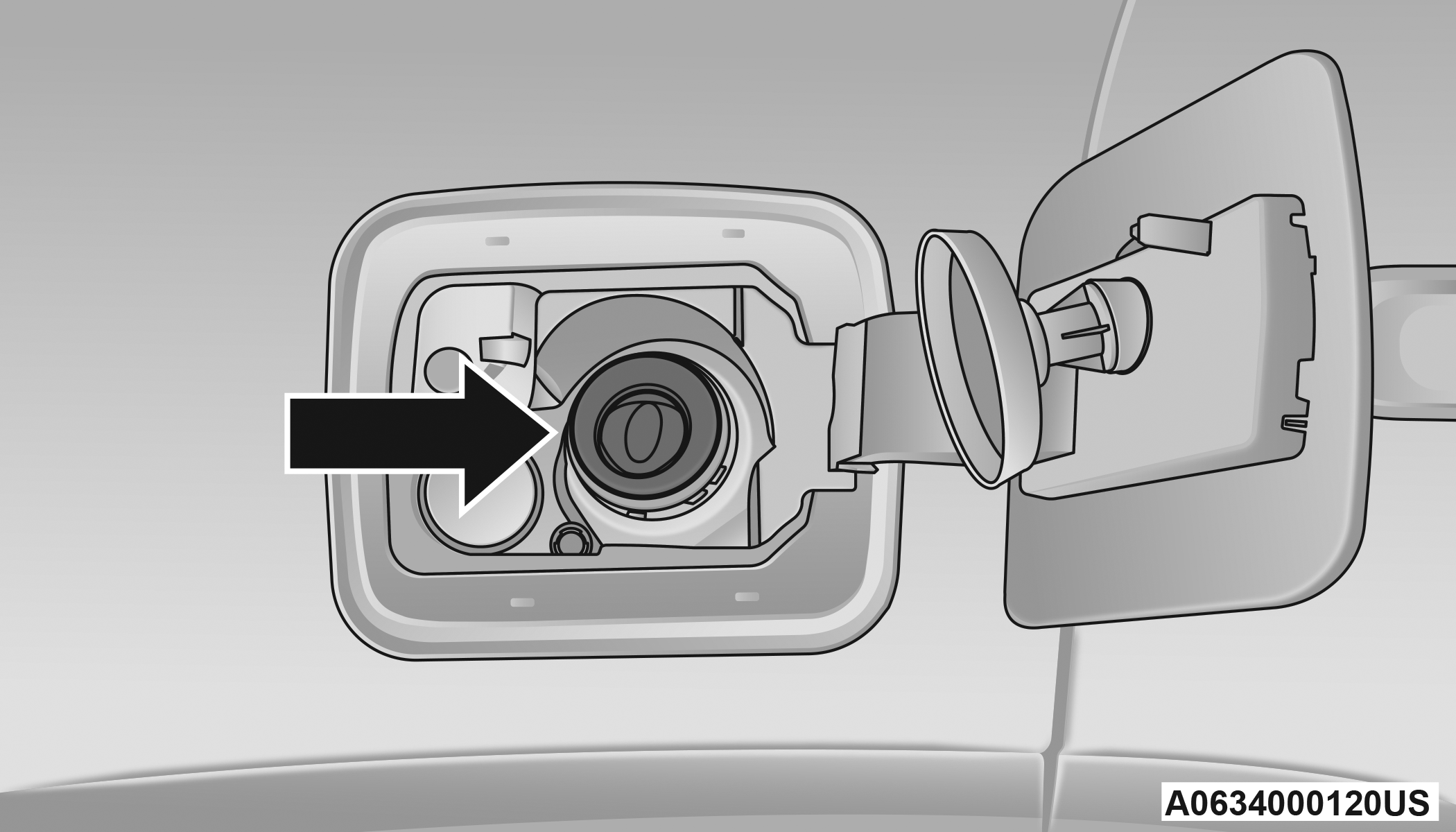

Insert the fuel nozzle fully into the filler pipe, the nozzle opens and holds both flapper doors while refueling.
Filler Pipe
-
Fill the vehicle with fuel, and when the fuel nozzle “clicks” or shuts off, the fuel tank is full.
-
Before removing the nozzle, wait at least 10 seconds to allow the fuel to flow inside of the tank.
-
Pull the nozzle from the filler pipe and then close the door.
WARNING:
Do not to affix objects/plugs to the end of the filler neck other than what is provided on the car.
The use of objects/plugs that are not compatible with the vehicle may cause pressure increases inside the tank, creating dangerous conditions.
Do not approach the neck of the tank with open flames or lit cigarettes; it is an extreme fire hazard. Also, avoid close contact with the filler pipe with your face; do not inhale harmful vapors.
Do not use your mobile phone in the vicinity of the pump fuel nozzle; it can be a possible risk of fire.
