Mirrors

The rearview mirror can be adjusted up, down, left, and right. The mirror should be adjusted to center on the view through the rear window. Headlight glare from vehicles behind you can be reduced by moving the lever under the mirror to the night position (toward the rear of the vehicle). The mirror should be adjusted while the lever under the mirror is set in the day position (toward the windshield).

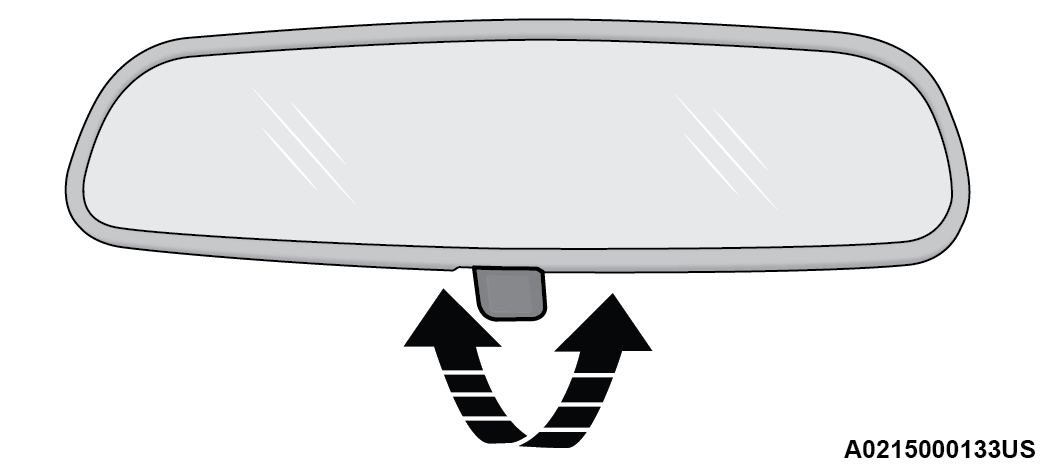

Mirror Adjustment

Note:

The mirror will automatically release in the event of heavy contact with a passenger.

AUTO DIMMING MIRROR — IF EQUIPPED

This mirror automatically adjusts for headlight glare from vehicles behind you. You can turn the feature on or off by pushing the button at the base of the mirror. A light to the left of the button will illuminate to indicate when the dimming feature is activated. The sensor to the right of the button does not illuminate.

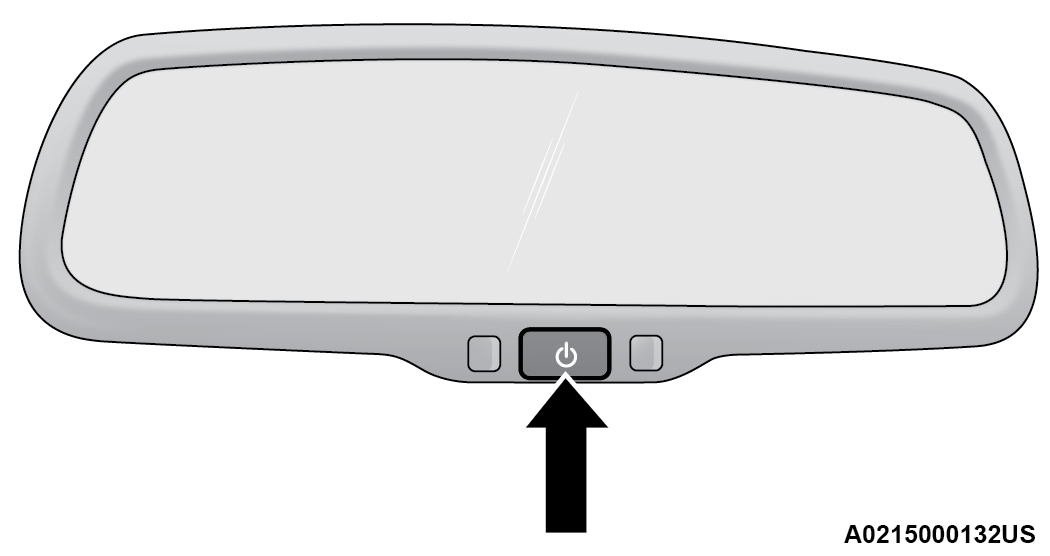

Dimming Mirror

Note:

This feature is disabled when the vehicle’s transmission has been placed in REVERSE.

ILLUMINATED VANITY MIRRORS — IF EQUIPPED

To access an illuminated vanity mirror, flip down one of the visors and lift the mirror cover.

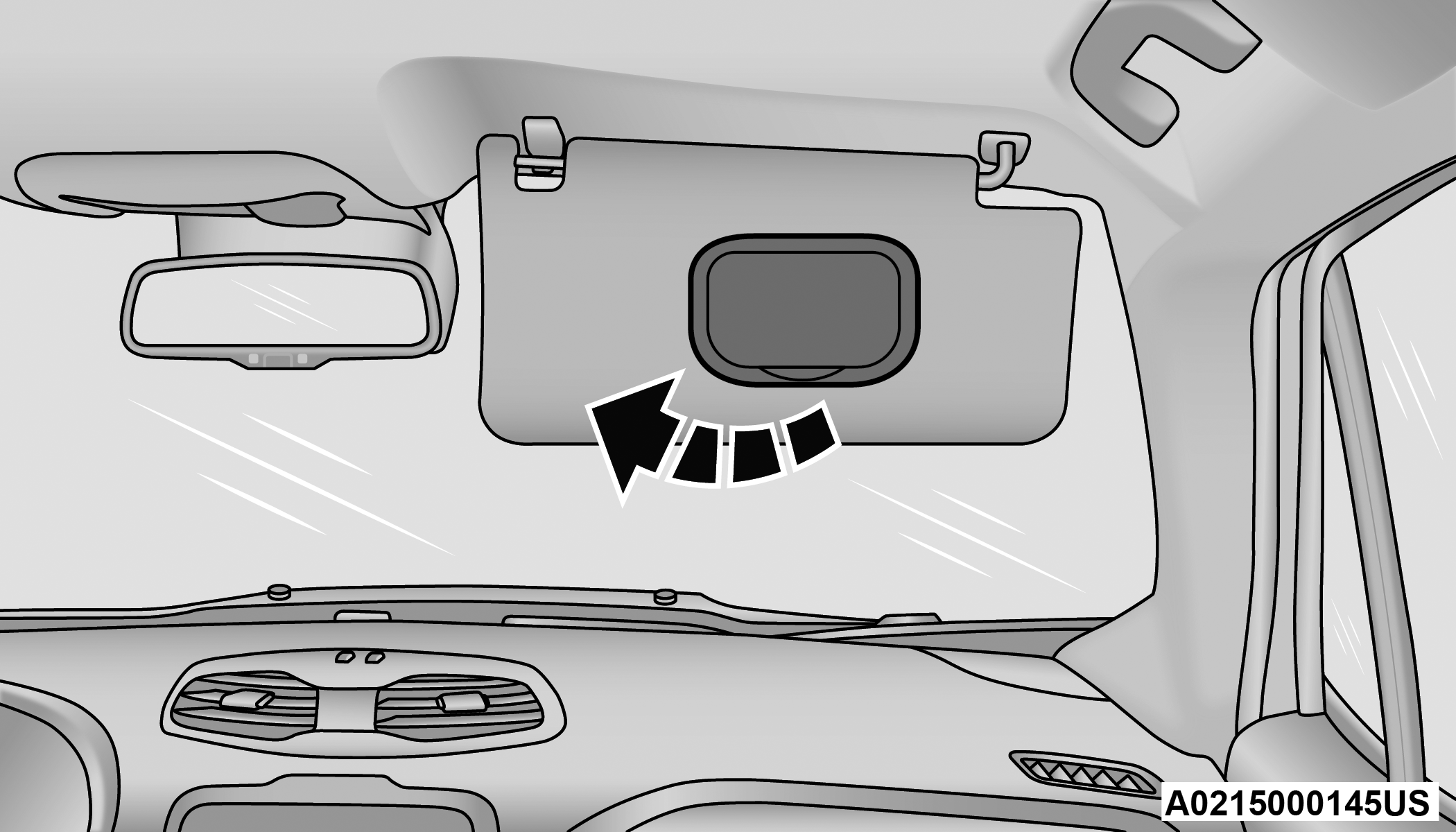

Lift Cover For Mirror

SUN VISOR SLIDE-ON-ROD FEATURE — IF EQUIPPED

To extend the sun visor, proceed as follows:

1. Place the sun visor against the door glass by detaching it from the hook and turning it toward the side window.

2. Slide the visor along the rod to provide coverage more to the rear.

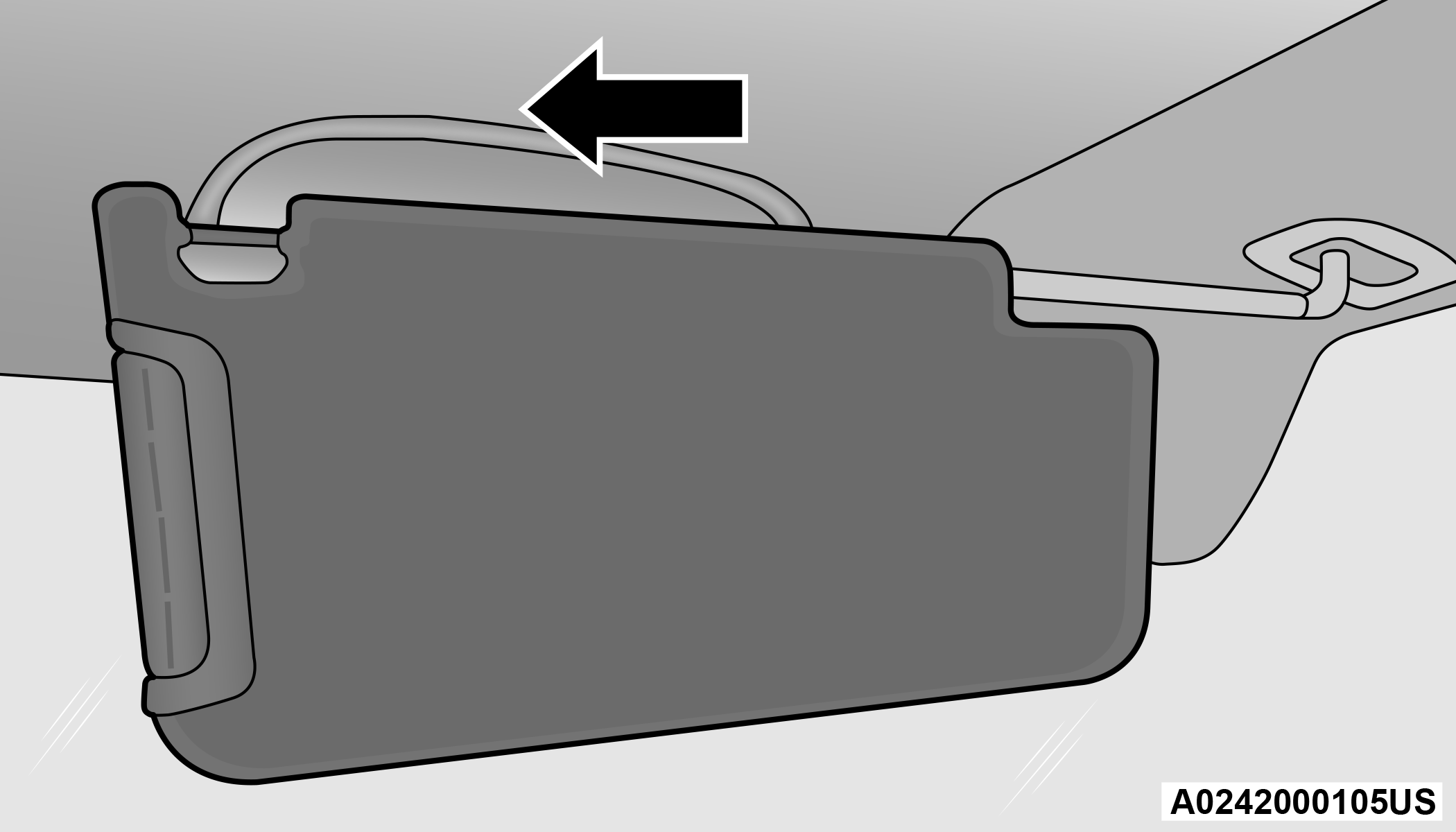

   Sliding Sun Visor

3. Slide out the sun visor extender for even more side coverage toward the rear.

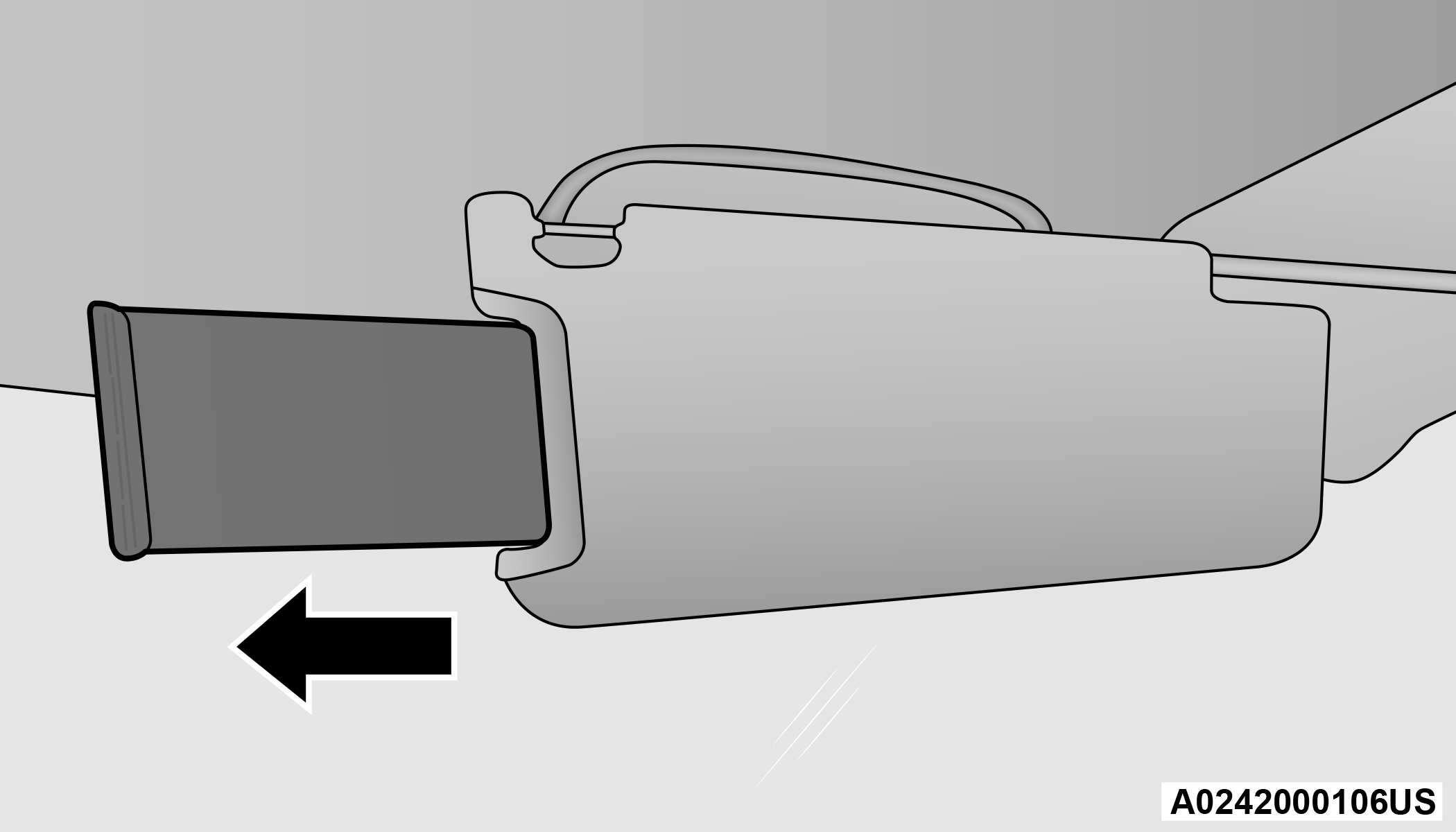

   Using The Extender

OUTSIDE MIRRORS

POWER ADJUSTMENT MIRRORS — IF EQUIPPED

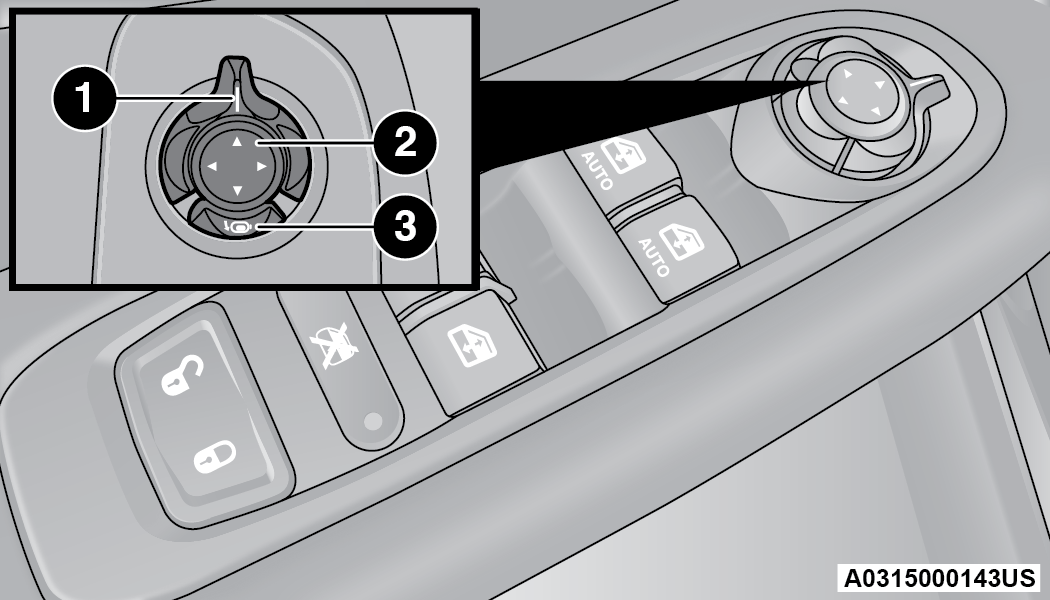

The power mirror switch is located on the driver’s door panel.

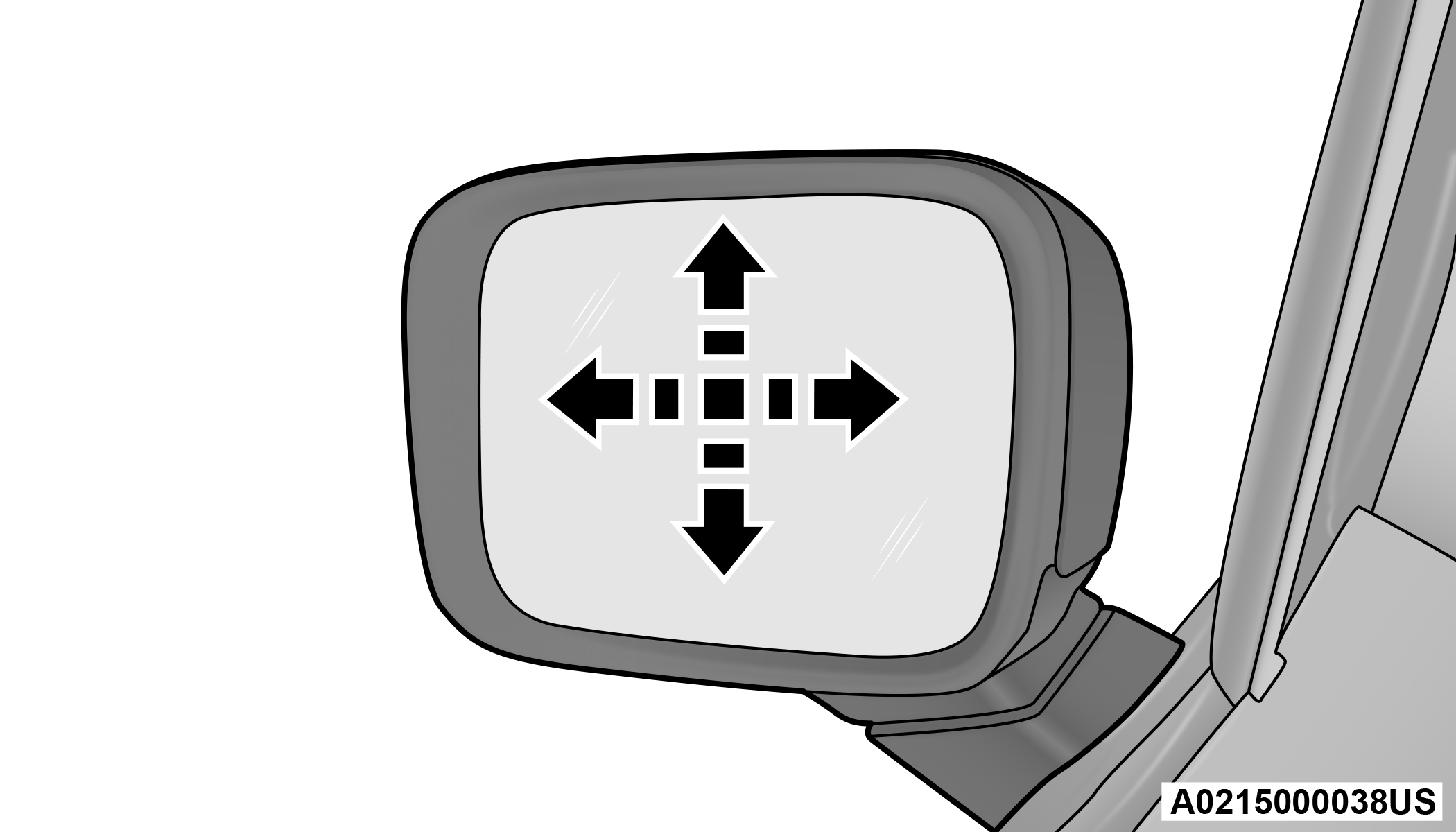

To adjust the mirror, rotate the mirror selection switch to the left or to the right and then push the mirror adjustment switch in the four directions indicated by arrows.

Note:
