Interior Lights
The courtesy lights are mounted between the sun visors above the rearview mirror. The light switches are used to turn the lights on or off.
Driver’s Courtesy Lights

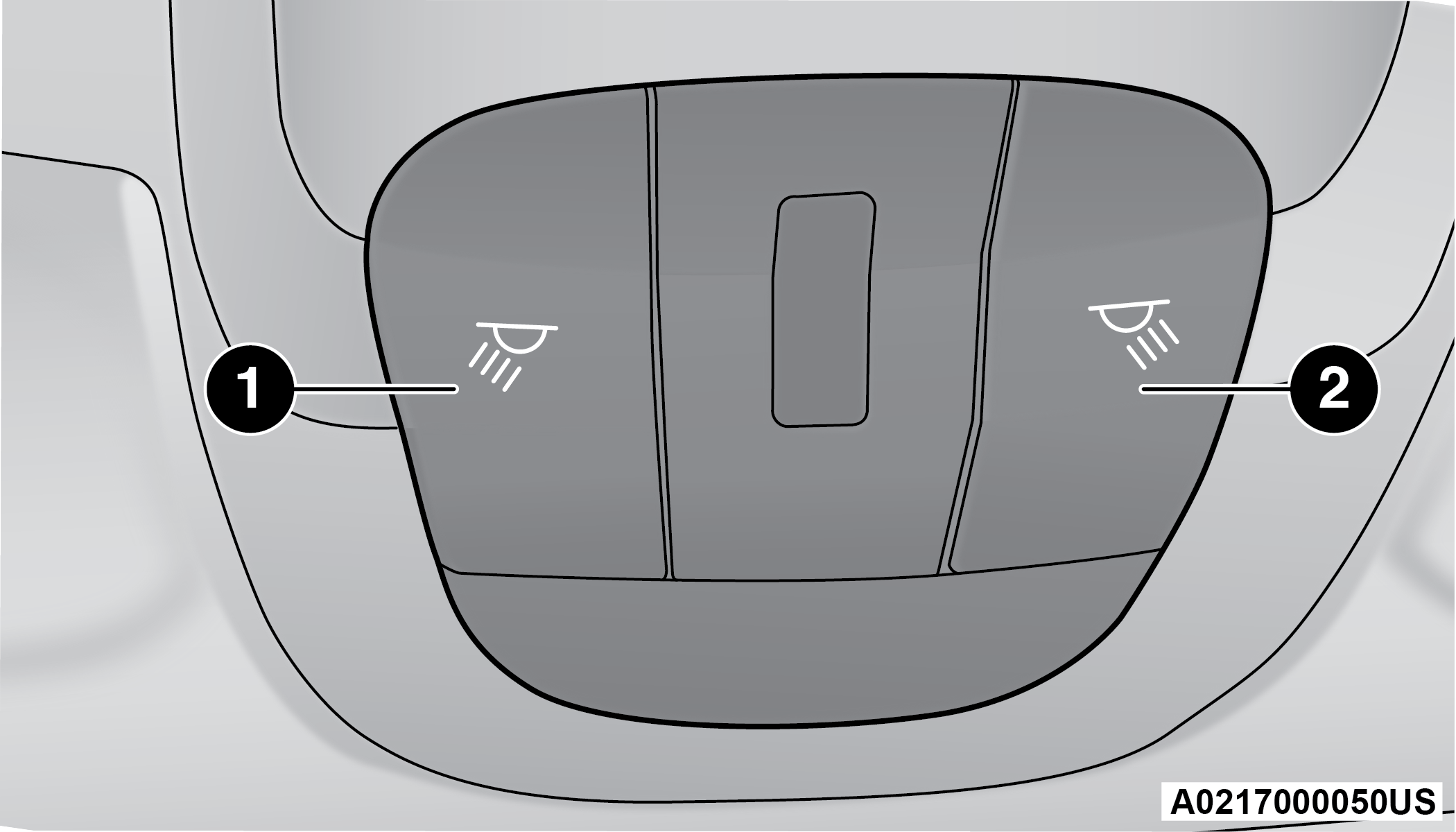

Courtesy Light Switches
|
1— Left Switch |
|
2— Right Switch |
To operate the courtesy lights, push either the driver or passenger light switch.
Note:
Before exiting the vehicle, make sure that the interior lights are turned off. This will prevent the battery from discharging once the doors are closed.
If a light is left on, it will automatically be turned off approximately 15 minutes after the ignition is in the OFF position.
DIMMER CONTROLS
Rotate the ambient dimmer control upward or downward to increase or decrease the brightness of the ambient light located in the overhead console, door handle lights, lower instrument panel lights, door map pocket lights, and cubby bin lights.
With the parking lights or headlights on, rotate the instrument panel dimmer control upward or downward to increase or decrease the brightness of the instrument panel. The instrument panel dimmer has two positions at the top of the thumb wheel. The first top detent position puts the interior lighting into daytime mode and the very top detent position illuminates all the interior lights. The bottom detent position of the instrument panel dimmer dims the internal backlights to their lowest dimmable setting and disables the interior lights.

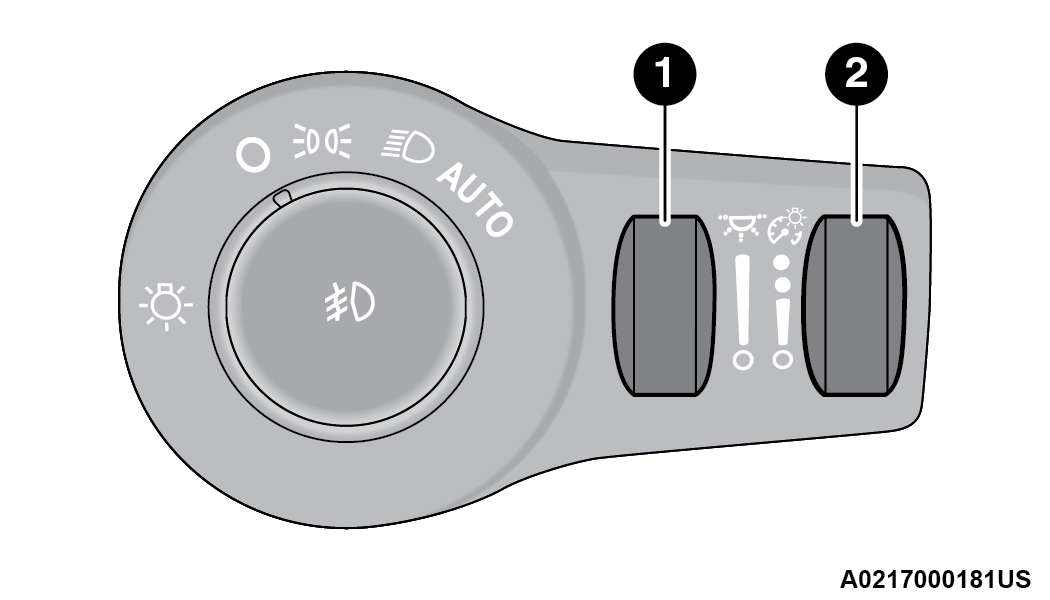

Dimmer Controls
| 1 - Ambient Light Dimmer Control Switch |
| 2 - Instrument Panel Dimmer Control Switch |
REAR LIGHTS
On vehicles equipped with a sunroof, there are two interior lights located above the grab handles of the rear doors. When the ignition is in the ON/RUN position, the lights come on when any door is opened.
Push the button on the light once to turn the light on manually, and push the button a second time to turn the light off.

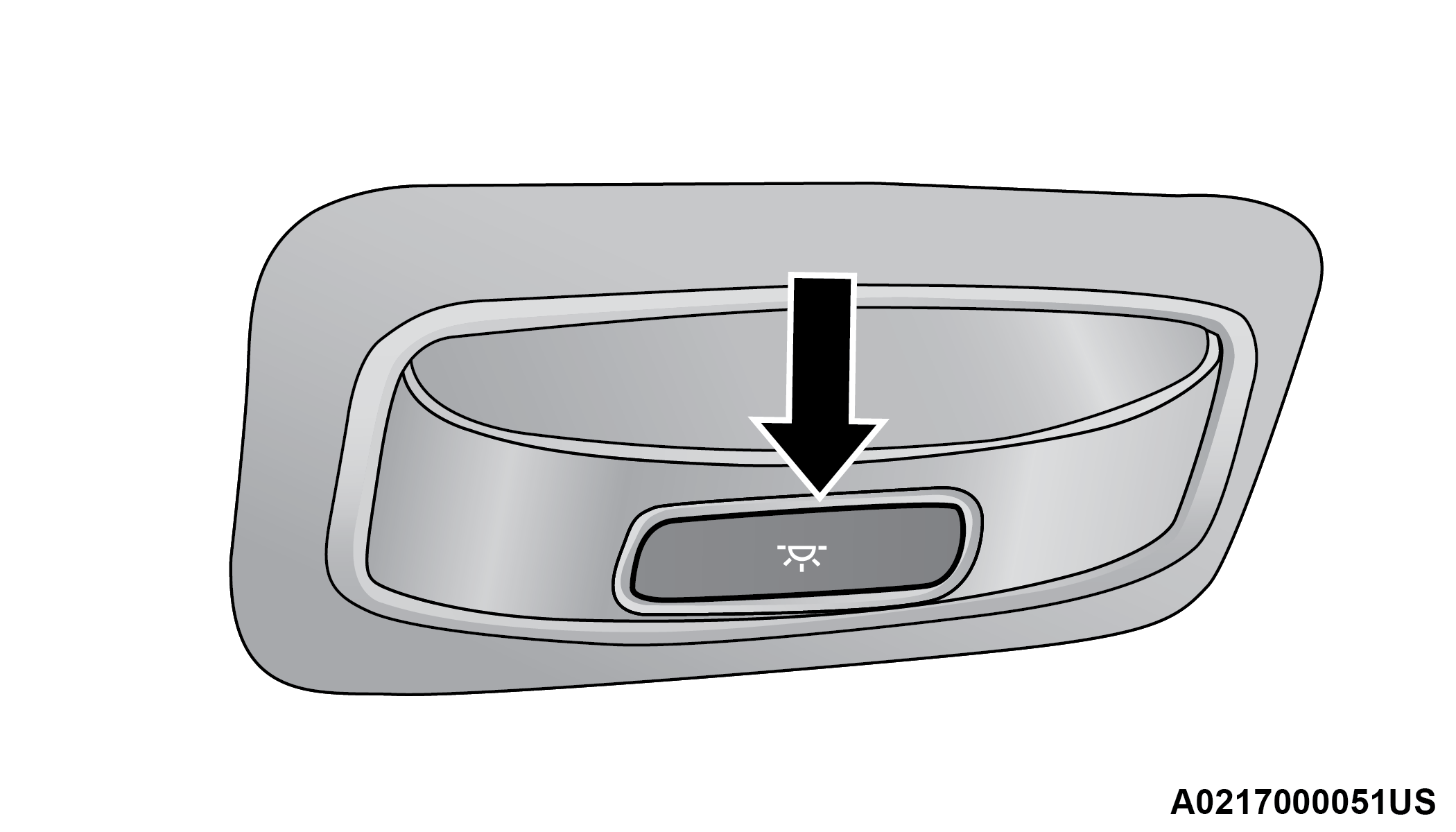

Rear Light Button (If Equipped With Sunroof)
On vehicles not equipped with a sunroof, a single dome light is located in the center of the roof.

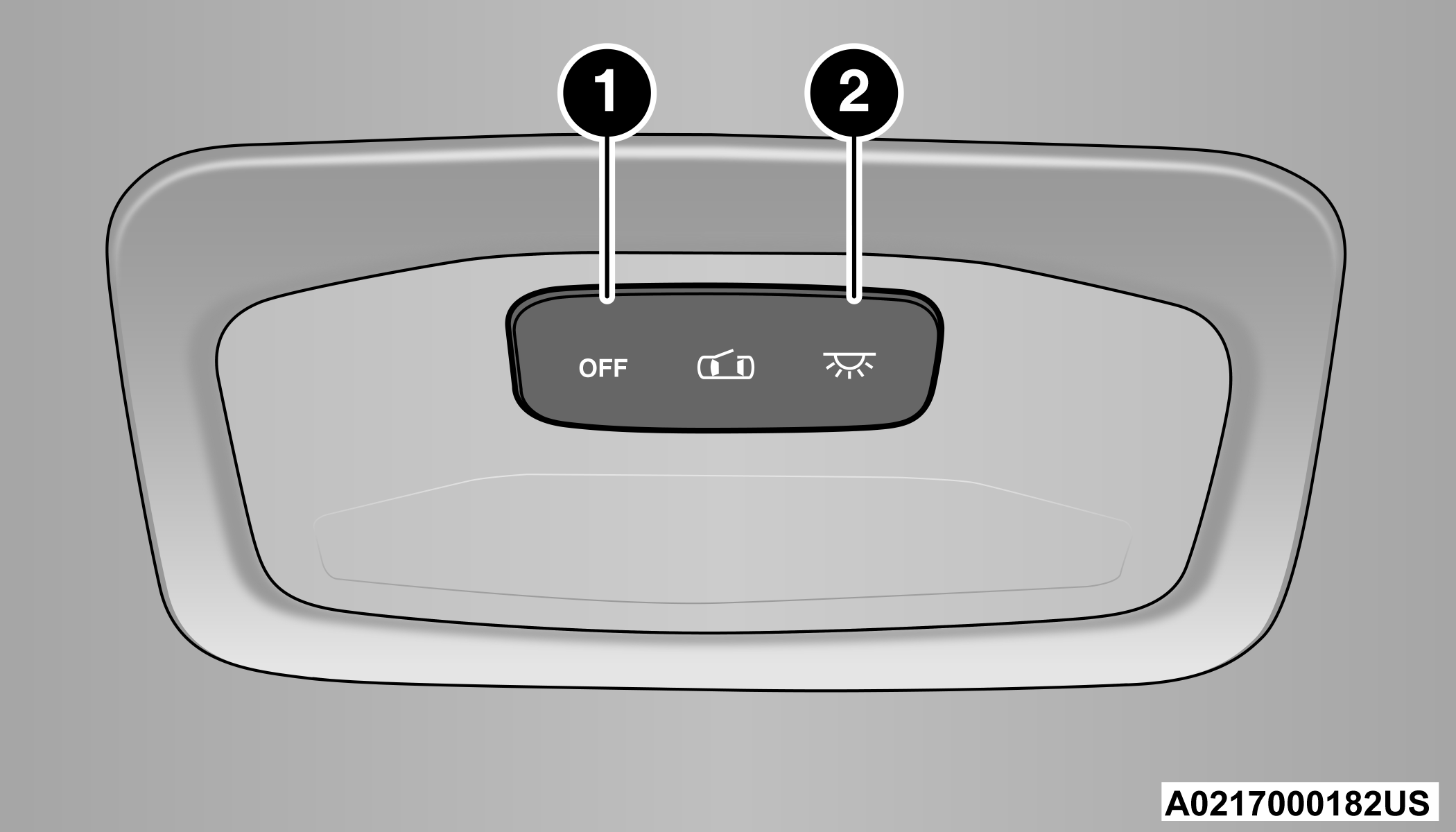

Rear Dome Light Buttons (Sunroof Not Equipped)
|
1 — Dome Defeat Button |
|
2 — Dome On Button |
To operate the rear dome light, proceed as follows:
Push the switch to the on/right position from its center position and the lights are always on.
Push the switch to the off/left position from its center position and the lights are always off.
Leave the switch in the center position, and the lights are turned on and off when the doors are opened or closed.
DOME LIGHT TIMING
The dome light will automatically illuminate when the doors are unlocked, the doors are opened or after the doors are closed.
Timing Entering The Vehicle
The dome lights illuminate in the following ways:
When the doors are unlocked, the dome light will illuminate for approximately 27 seconds.
When one of the doors is opened, the dome light will illuminate for approximately three minutes.
When the doors are closed, the dome light will automatically shut off after approximately 27 seconds.
The timing stops once the ignition is placed in the ON/RUN position.
The dome light will turn off under any of the following conditions:
The dome light is disabled when the ignition is placed in the ON/RUN position.
The dome lights will turn off automatically when the doors are locked.
The dome lights will automatically turn off after approximately 15 minutes of inactivity to preserve the battery.
Timing Exiting The Vehicle
The dome light will illuminate under the following conditions when the ignition is placed to the OFF position and the key fob is removed:
The dome light will illuminate for 27 seconds after the ignition is placed in the OFF position.
The opening of one of the doors (approximately three minutes).
After closing a door (approximately 27 seconds).
The dome light timing is disabled when the doors are locked.
