Exterior Lights
The headlight switch is located on the left side of the instrument panel. The headlight switch controls the operation of the headlights, side marker and parking lights, daytime running lights, fog lights and the dimming of the instrument cluster and interior lighting.

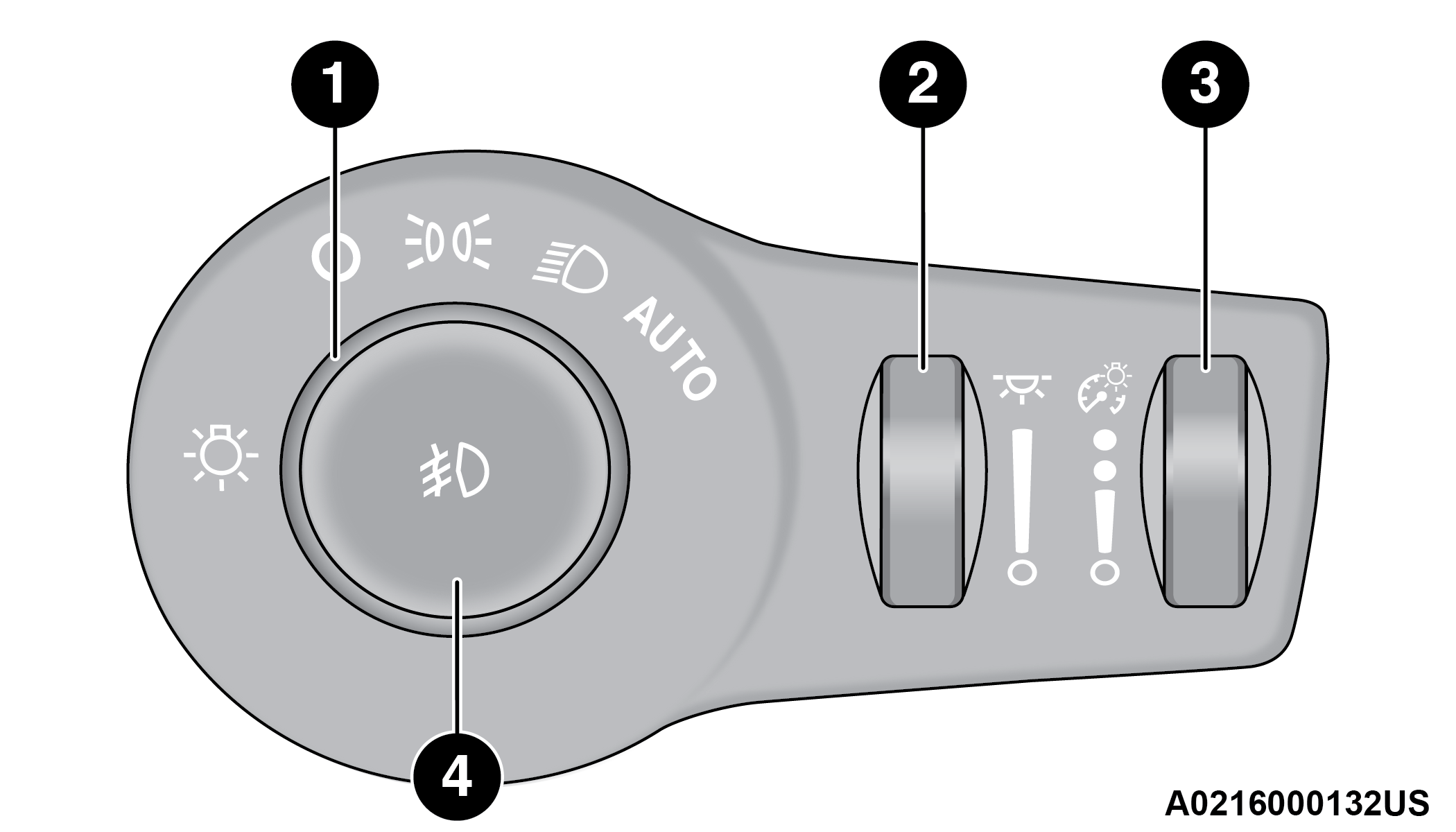

Headlight Switch
|
1 — Rotate Headlight Control |
|
2 — Ambient Lighting Control |
|
3 — Instrument Panel Dimmer Control |
|
4 — Front Fog Light Switch |
Turning on the headlights will illuminate the instrument cluster and the controls located on the instrument panel.
Note:
On vehicles sold in Canada, both the rear position lights and Daytime Running Lights (DRLs) will turn on when the headlight switch is rotated to the O (off) position.
DAYTIME RUNNING LIGHTS (DRLS) — IF EQUIPPED
The Daytime Running Lights (DRLs), if enabled through Uconnect Settings, will turn on when the instrument cluster is on and remain on unless the headlights are turned on or the instrument cluster is switched off.
Note:
For vehicles sold in Canada, the Daytime Running Lights will automatically deactivate when the front fog lights are turned on.
On some vehicles, the Daytime Running Lights may deactivate, or reduce intensity, on one side of the vehicle (when a turn signal is activated on that side), or on both sides of the vehicle (when the hazard warning lights are activated).
HIGH BEAMS
To activate the high beam headlights, push the multifunction lever forward (toward the front of the vehicle), and an indicator will illuminate in the instrument cluster display.
To deactivate the high beam headlights, pull the multifunction lever rearward (toward the rear of the vehicle).

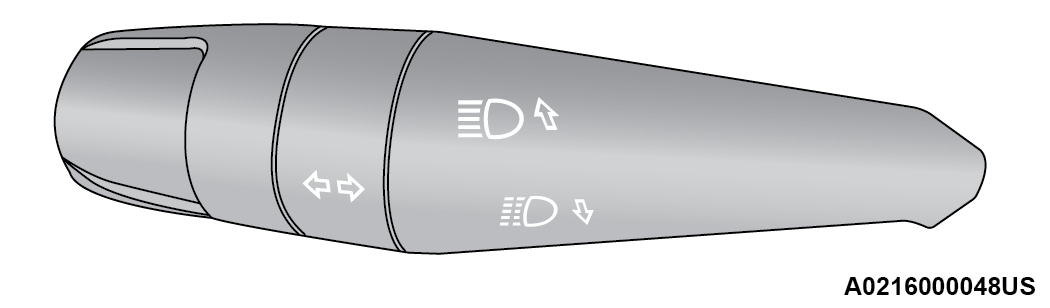

High Beam And Turn Signal Controls
Note:
The headlights must be on for the high beams to activate.
AUTOMATIC HIGH BEAM HEADLAMP CONTROL — IF EQUIPPED
The Automatic High Beam Headlamp Control system provides increased forward lighting at night by automatically controlling the high beams through the use of a camera mounted on the inside rearview mirror. This camera detects vehicle specific light and automatically switches from high beams to low beams until the approaching vehicle is out of view.
Note:
The multifunction lever must be in the high beam position in order to activate the Automatic High Beams.
The Automatic High Beam Headlamp Control can be turned on or off using the Uconnect system .
Broken, muddy, or obstructed headlights and taillights of vehicles in the field of view will cause headlights to remain on longer (closer to the vehicle). Also, dirt, film, and other obstructions on the windshield or camera lens will cause the system to function improperly.
When set to AUTO, the system automatically turns the headlights on or off based on ambient light levels.
FLASH-TO-PASS
You can signal another vehicle with your headlights by lightly pulling the multifunction lever toward you. This will cause the high beam headlights to turn on, and remain on, until the lever is released.
AUTOMATIC HEADLIGHTS — IF EQUIPPED
This system automatically turns the headlights on or off according to ambient light levels. To turn the system on, rotate the headlight switch clockwise to the last detent (AUTO position) for automatic headlight operation. To turn the automatic system off, move the headlight switch out of the AUTO position.
Note:
The ignition must be in the ON/RUN or START position before the headlights will come on in the automatic mode.
DUSK SENSOR
There is an infrared LED sensor that works with the rain sensor, located on the windshield. It detects changes in light intensity outside the vehicle, based on the sensitivity of light set by using the menu on the display or on the Uconnect system.
The higher the sensitivity, the lesser the amount of external light required for controlling the lighting.
To turn the dusk sensor on, rotate the headlight switch to the AUTO position. To turn it off, rotate the headlight switch to a position other than AUTO.
Note:
The dusk sensor can only be activated with the ignition in the ON/RUN position.
PARKING LIGHTS
Rotate the headlight switch to the first detent to turn on the parking lights. The parking light indicator in the instrument cluster display will illuminate.
HEADLIGHT TIME DELAY
This feature provides the safety of headlight illumination for up to 90 seconds when leaving your vehicle in an unlit area.
The time delay of the headlights is programmable between 0, 30, 60 and 90 seconds within Uconnect Settings .
Headlight Delay Activation
To activate the delay feature, place the ignition in the OFF position while the headlights are still on. The delay interval begins when the headlight switch is turned off from the low beam position.
If the headlight switch is in AUTO and the headlights were on before the ignition was turned off, the delay interval begins automatically.
Headlight Delay Deactivation
The feature is disabled by turning on the headlights, the parking lights or by placing the ignition in the RUN position.
If you shut off the lights before the ignition is turned on, they will turn off in the normal manner.
Note:
The lights must be turned off within two minutes of placing the ignition in the OFF position to activate this feature.
FRONT FOG LIGHTS — IF EQUIPPED
The front fog light switch is built into the headlight switch.

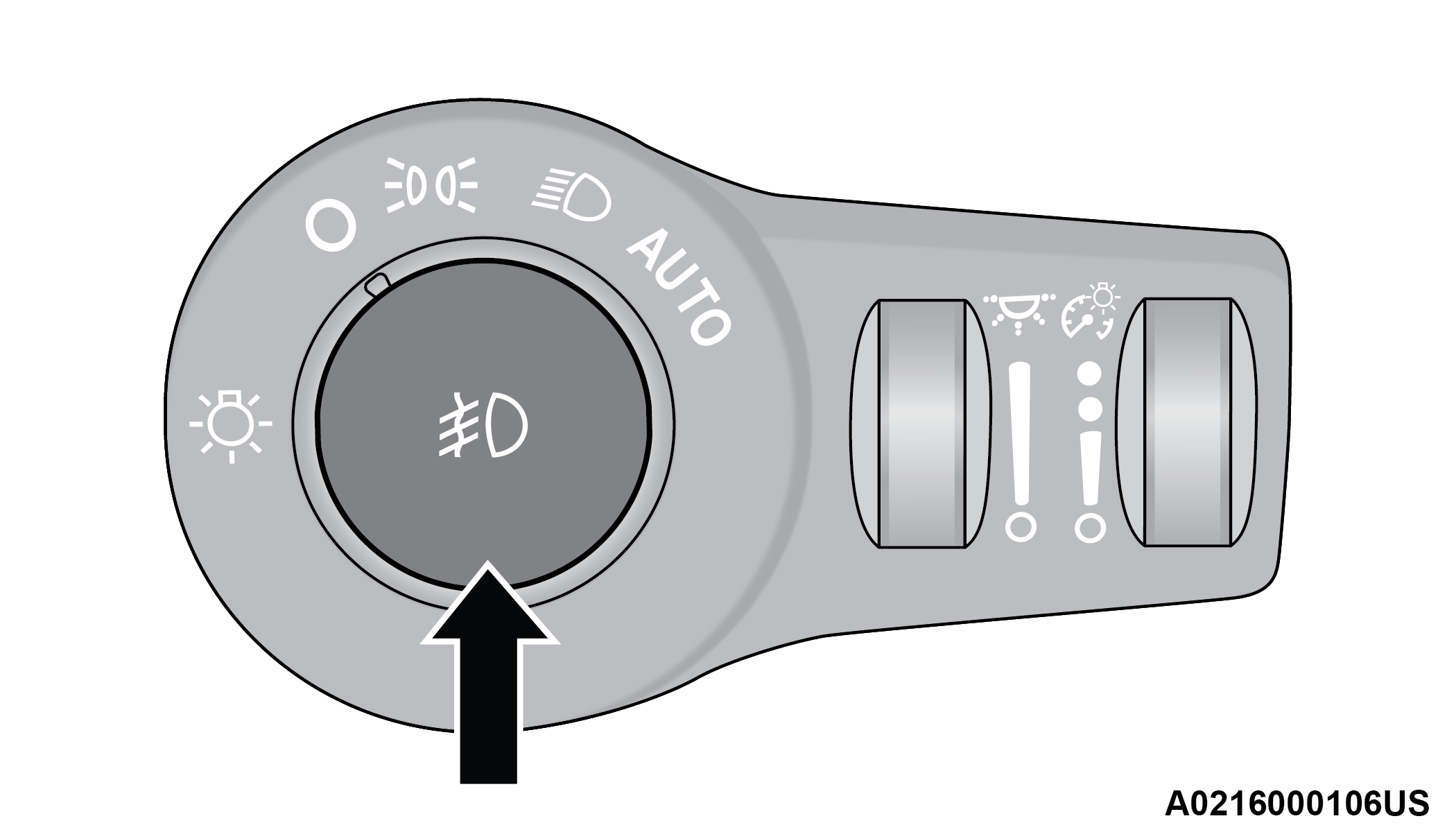

Fog Light Switch
To activate the front fog lights, turn on the parking lights or the low beam headlights and push the fog light button on the headlight switch. The front fog lights feature is latching, which means that every time that the button is pressed and the fog lights are activated, the vehicle memorizes the request and reactivates the front fog lights every time that the parking lights or low beams are active. To deactivate the feature, push the front fog button again. The front fog lights are deactivated each time the parking or low beam lights are deactivated or the ignition is placed in the OFF position.
An indicator light in the instrument cluster illuminates when the fog lights are turned on.
Note:
The fog lights will operate with the low beam headlights or parking lights on. Selecting the high beam headlights will turn off the fog lights.
Cornering Lights
The cornering lights are a feature to improve visibility at night while turning the vehicle. When activated, a light incorporated in the front fog light will illuminate on the side of the vehicle the steering wheel is rotated or the turn signal indicator is on. It can be activated through the Uconnect system .
TURN SIGNALS
Move the multifunction lever up or down to activate the turn signals. The arrows on each side of the instrument cluster display flash to show proper operation.
LANE CHANGE ASSIST
Lightly push the multifunction lever up or down, without moving beyond the detent, and the turn signal will flash five times then automatically turn off.
COURTESY LIGHTS
The courtesy lights feature allows you to activate the low beam, parking lights, and sidemarker lights for 25 seconds when the vehicle is unlocked (through the key fob or the Passive Entry door handles [if equipped]). The courtesy lights feature can be activated or deactivated through the Uconnect Settings. When a door is open with the feature active, the activation of the lights is extended for five seconds. The feature is disabled when the vehicle is locked or when the ignition is placed in the ON/RUN position.
