Fuse Locations
If any electrical devices are not working, turn the vehicle off and check to see if any applicable fuse is blown. Fuse locations are shown on the fuse box cover. Locate the fuse in question by the fuse number and box cover number.

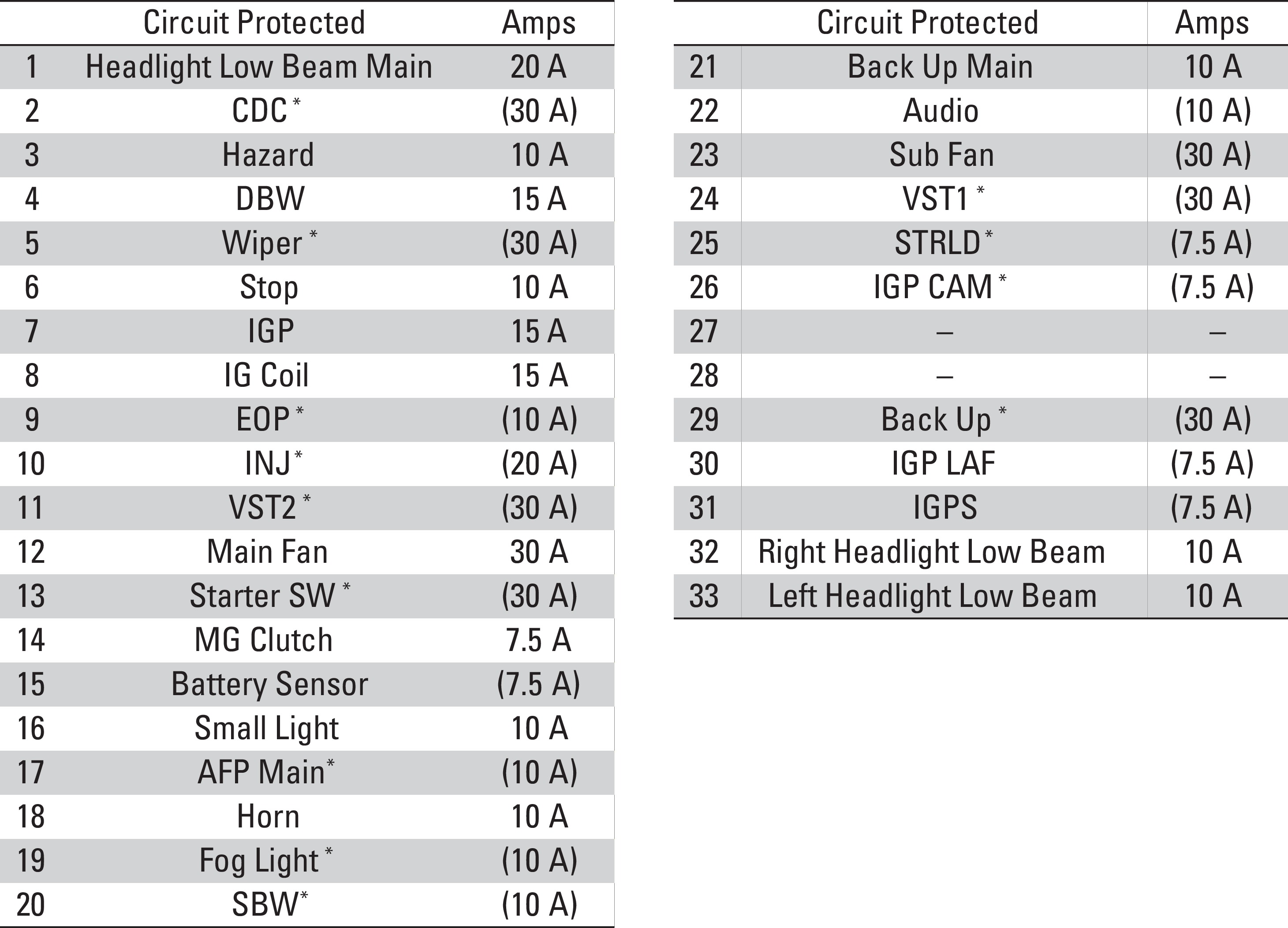

Engine Compartment Fuse Boxes

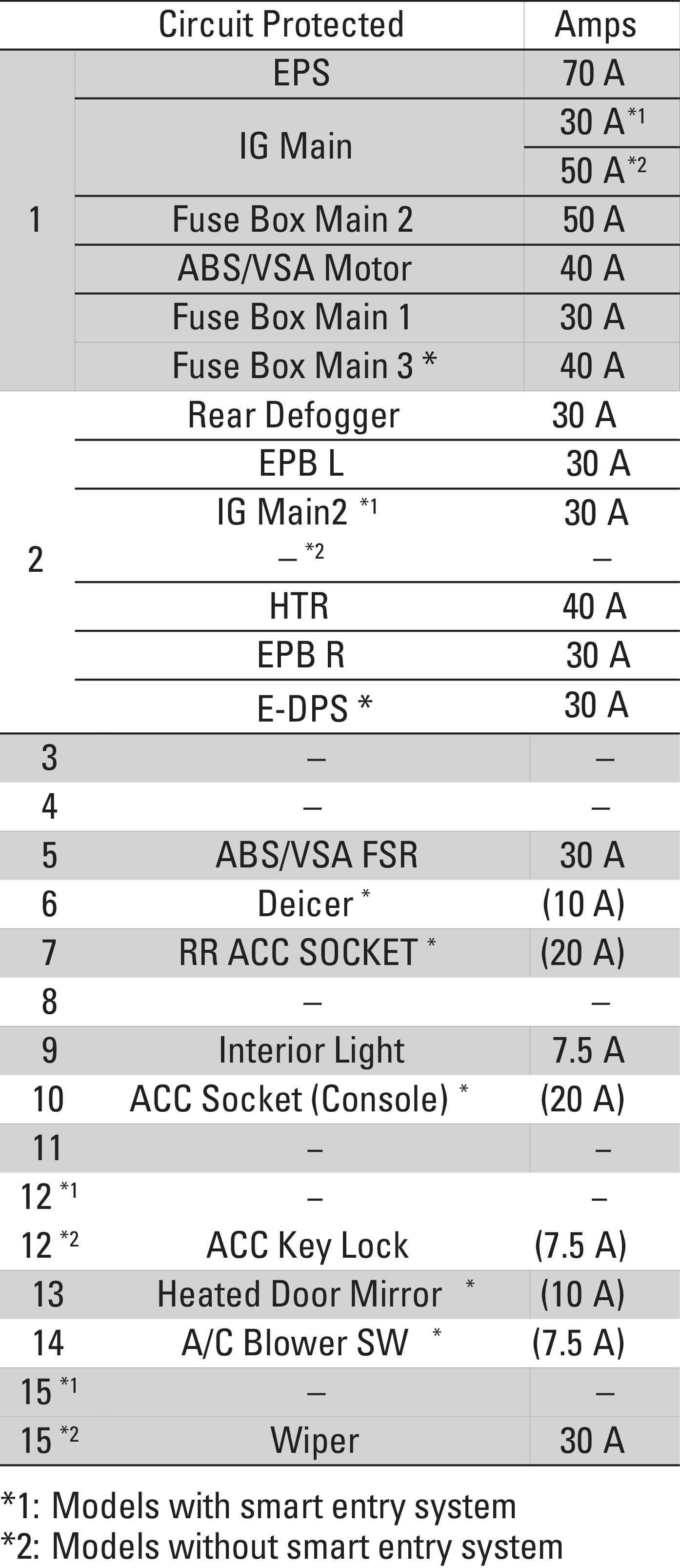

Fuse box A

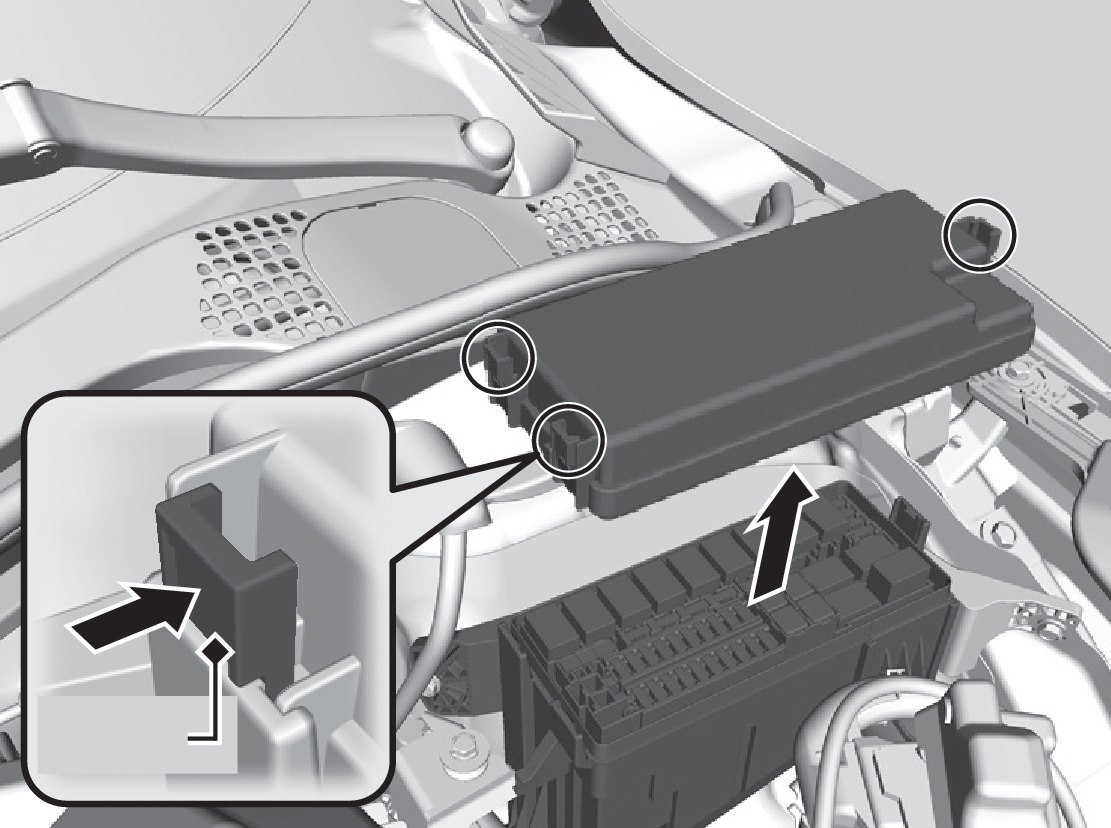

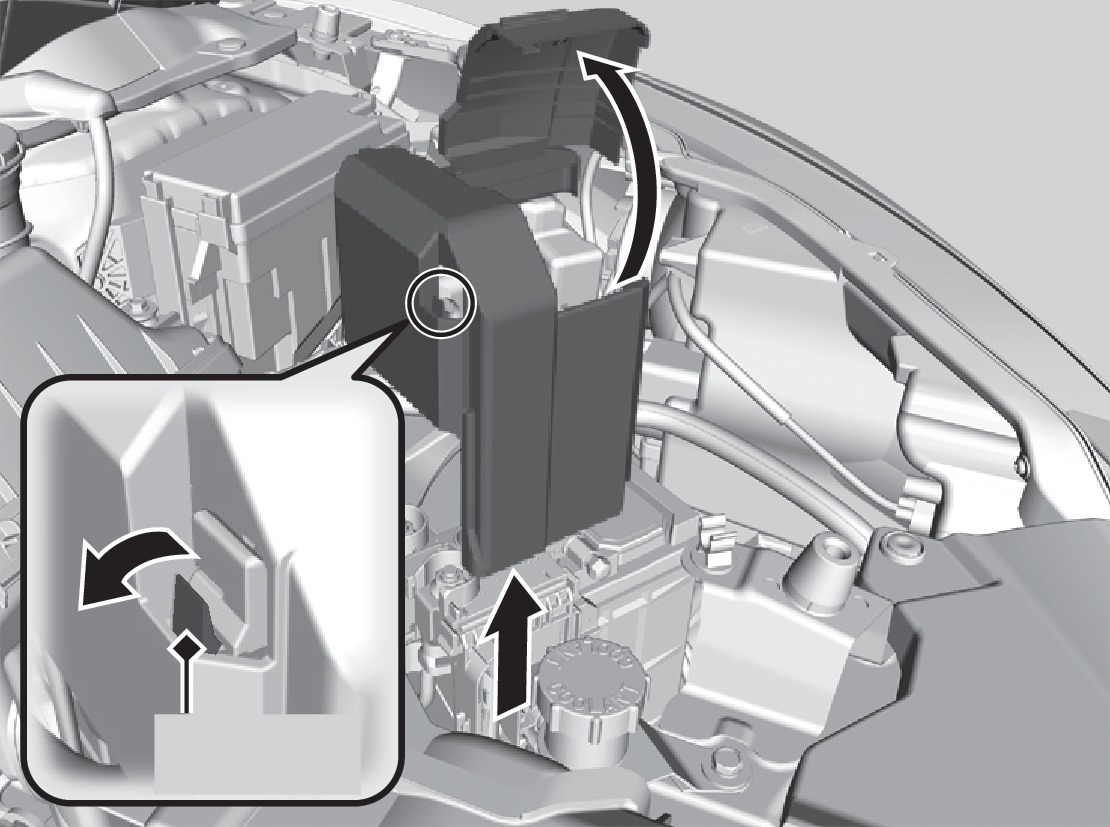

Located under the hood near the brake fluid reservoir. Push the tabs to open the box.
Tab

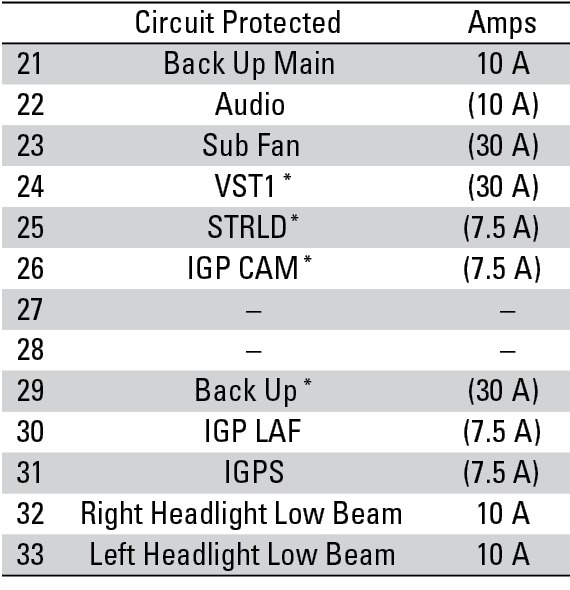

*if equipped
Fuse box B

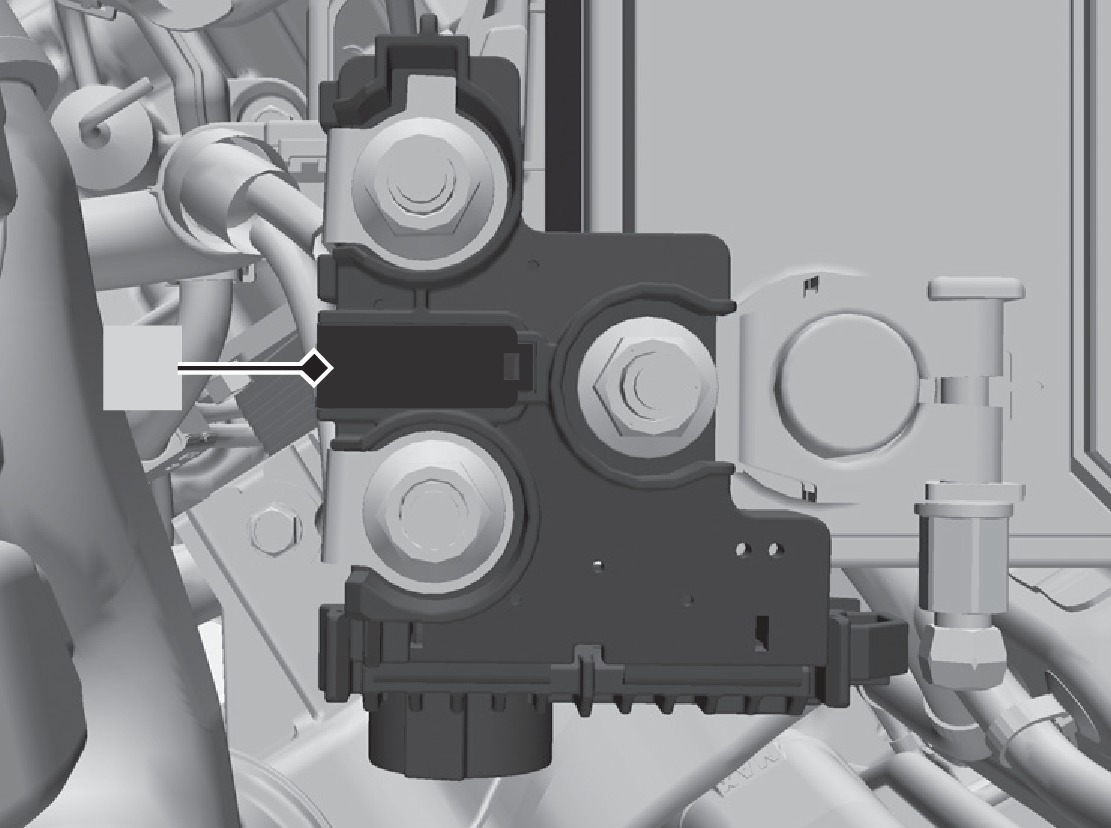

Pull up the cover on the + terminal, then remove it while pulling out the tab, as shown. Replacement of engine compartment fuse boxes should be done by a dealer.
Tab

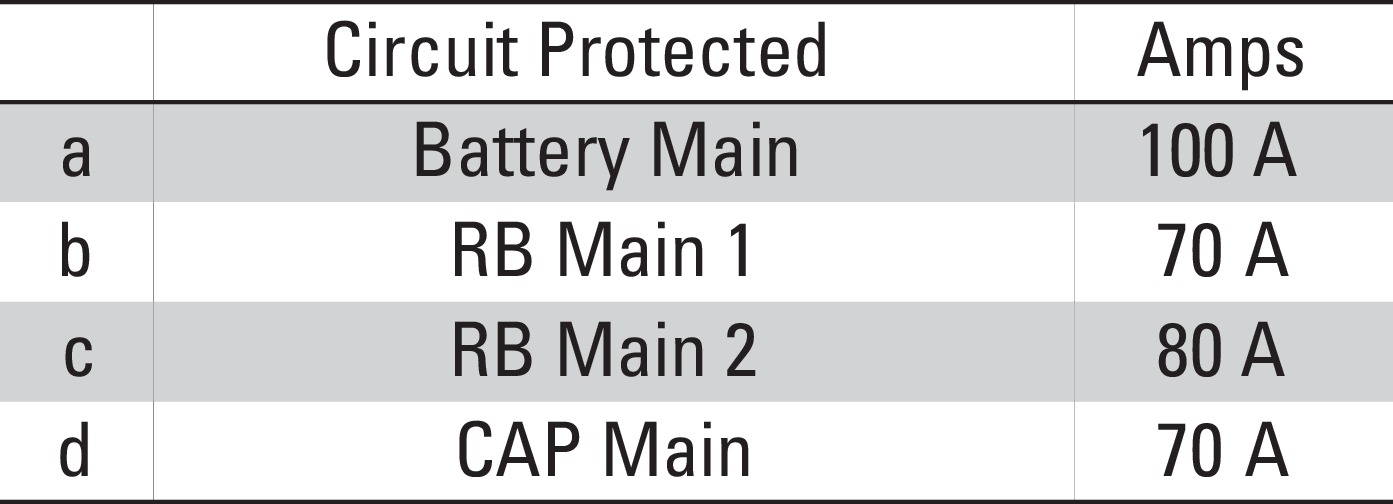

a
b
c
d
*if equipped
Interior Fuse Boxes

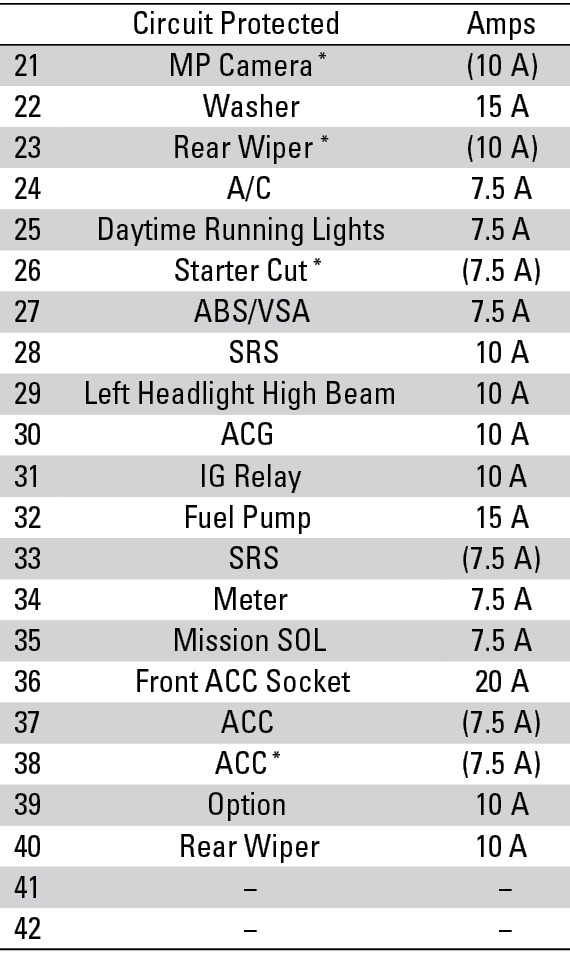

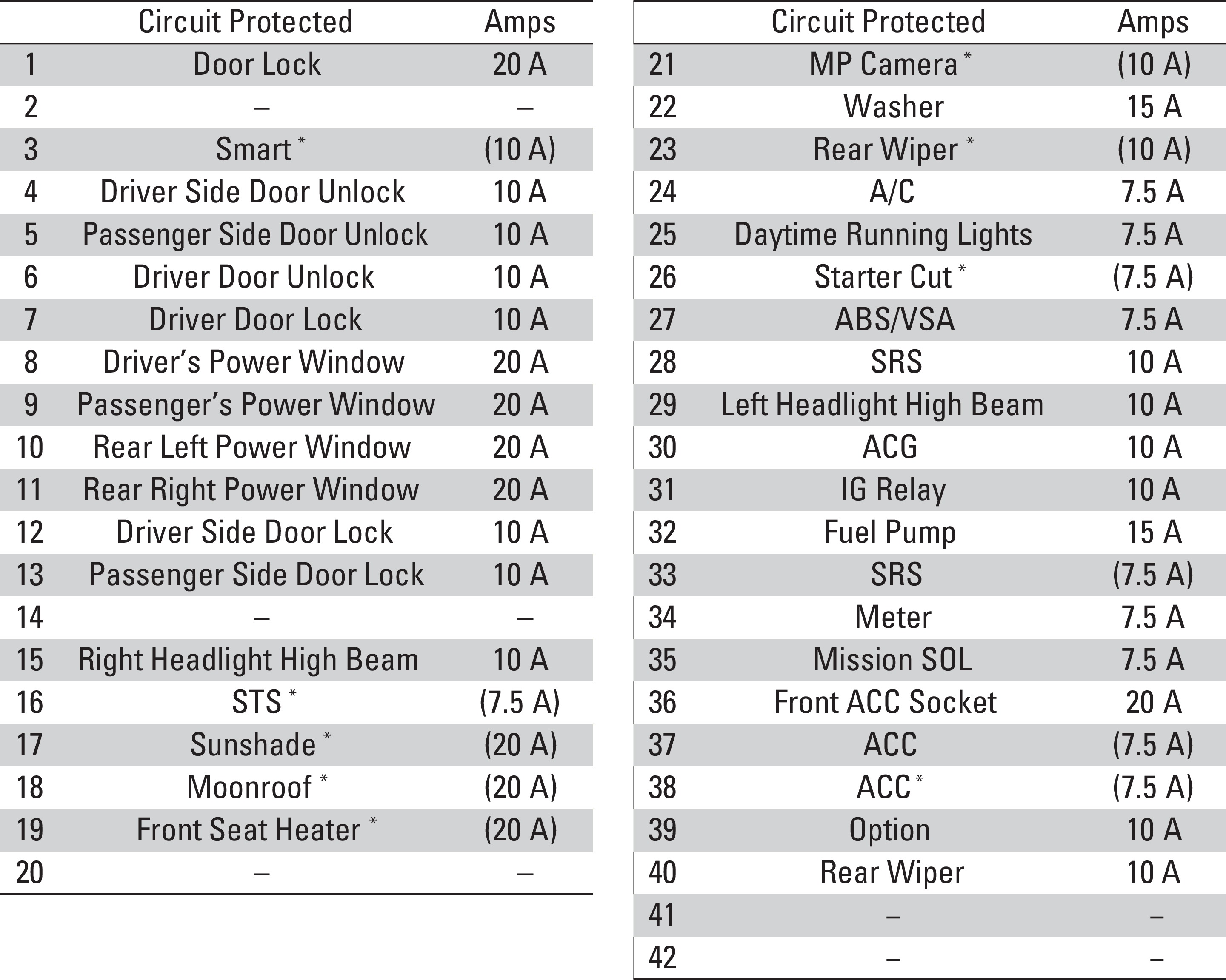

Fuse box A

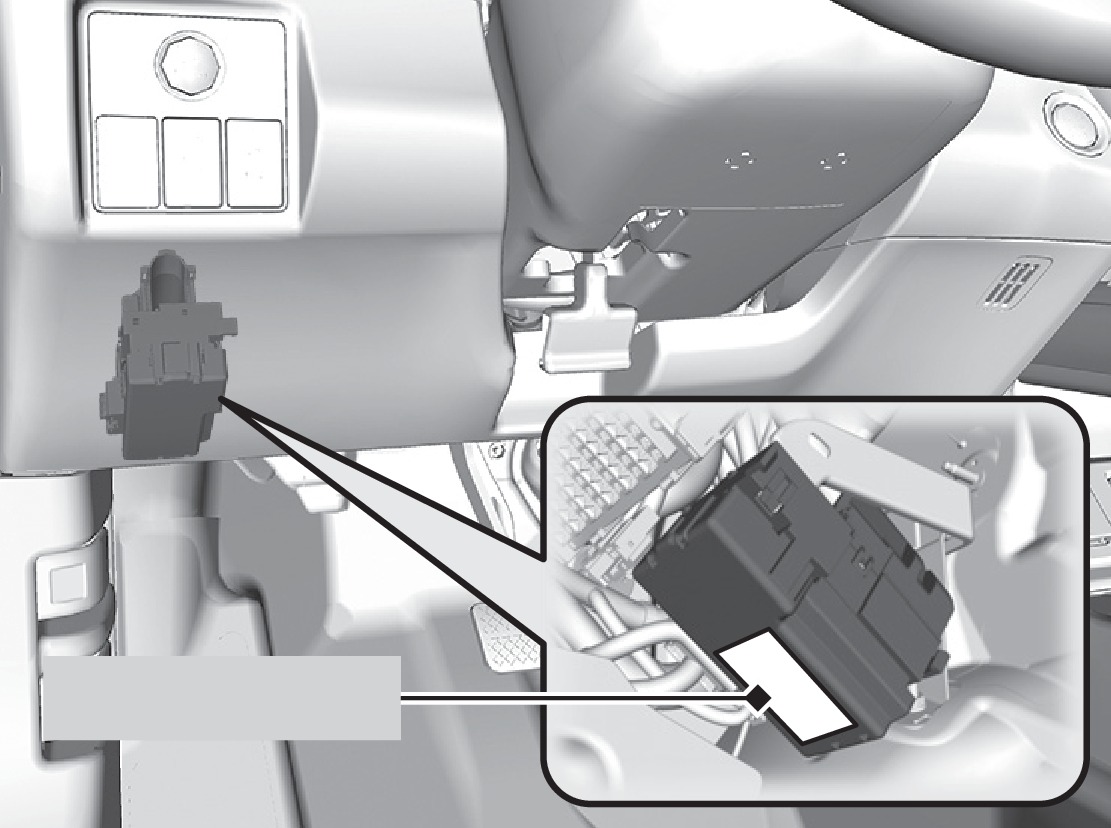

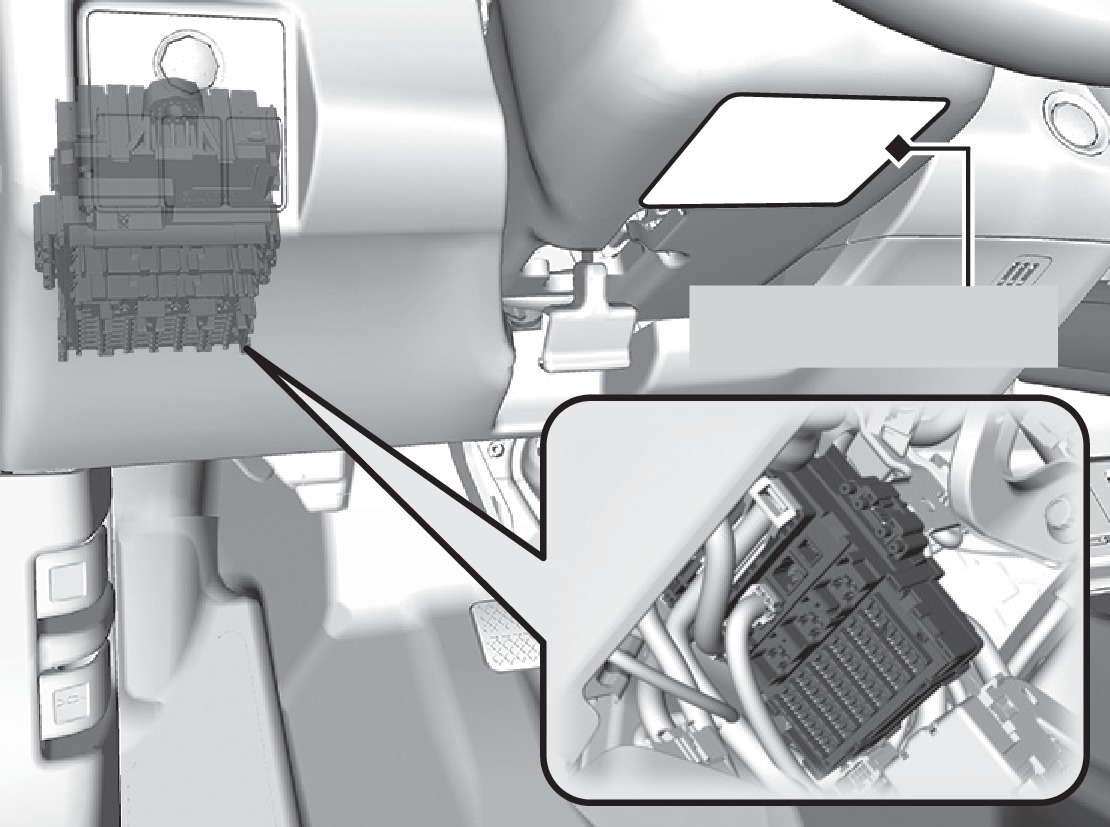

Located behind the dashboard next to the steering wheel.
Fuse label
*if equipped
Fuse box B

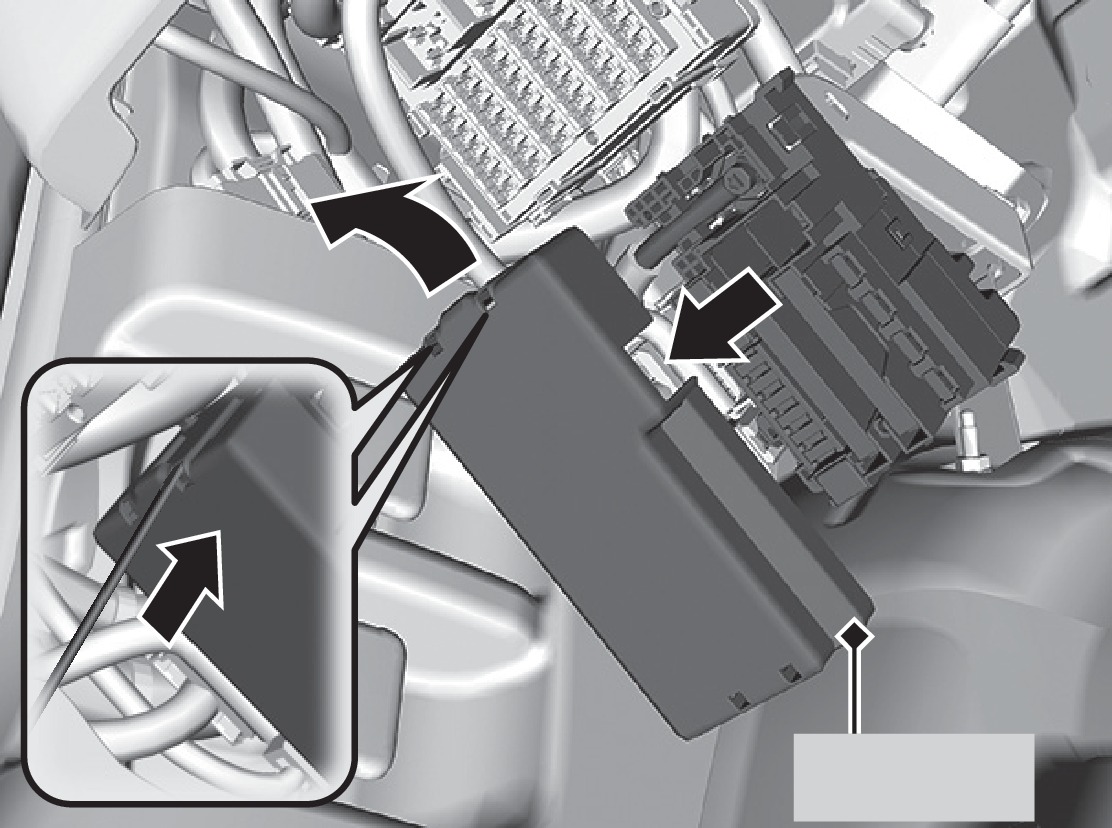

Located behind the dashboard next to the steering wheel. Remove the cover by putting a flat-tip screwdriver into the side slot, as shown.
Fuse label
Cover
*if equipped
Inspecting and Changing Fuses
- Turn the vehicle off, including all lights and accessories.
-

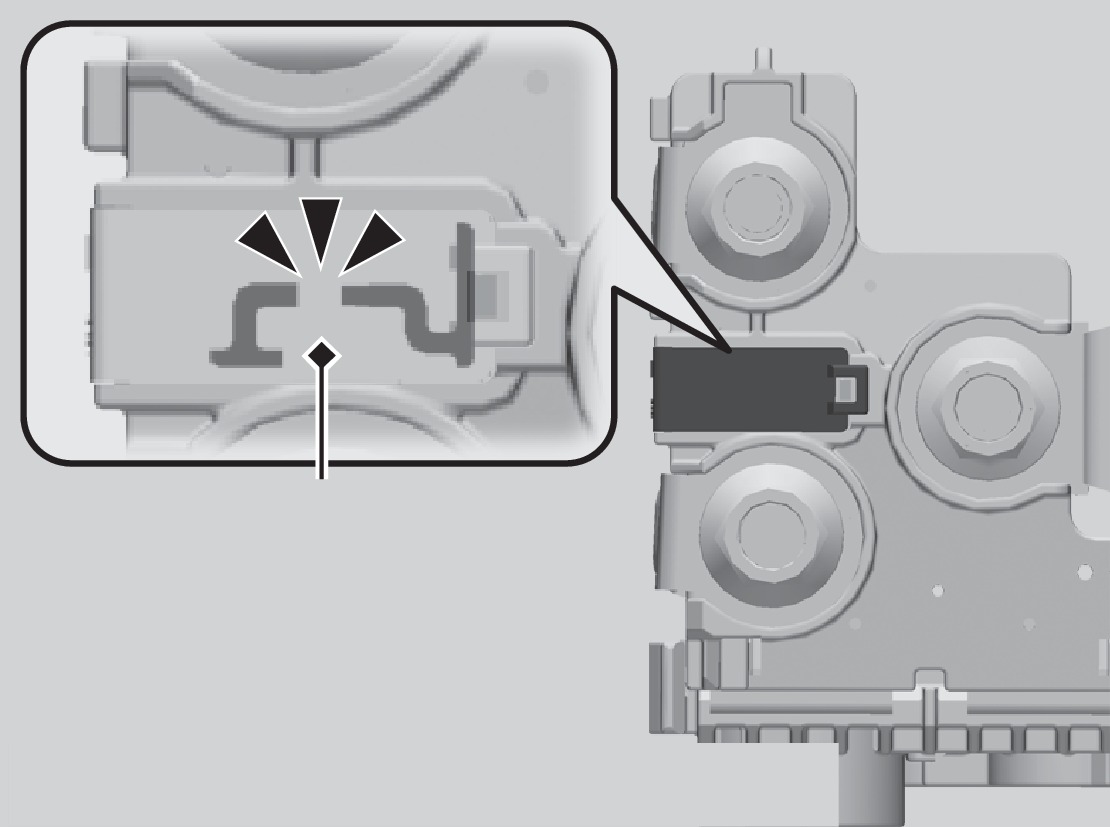

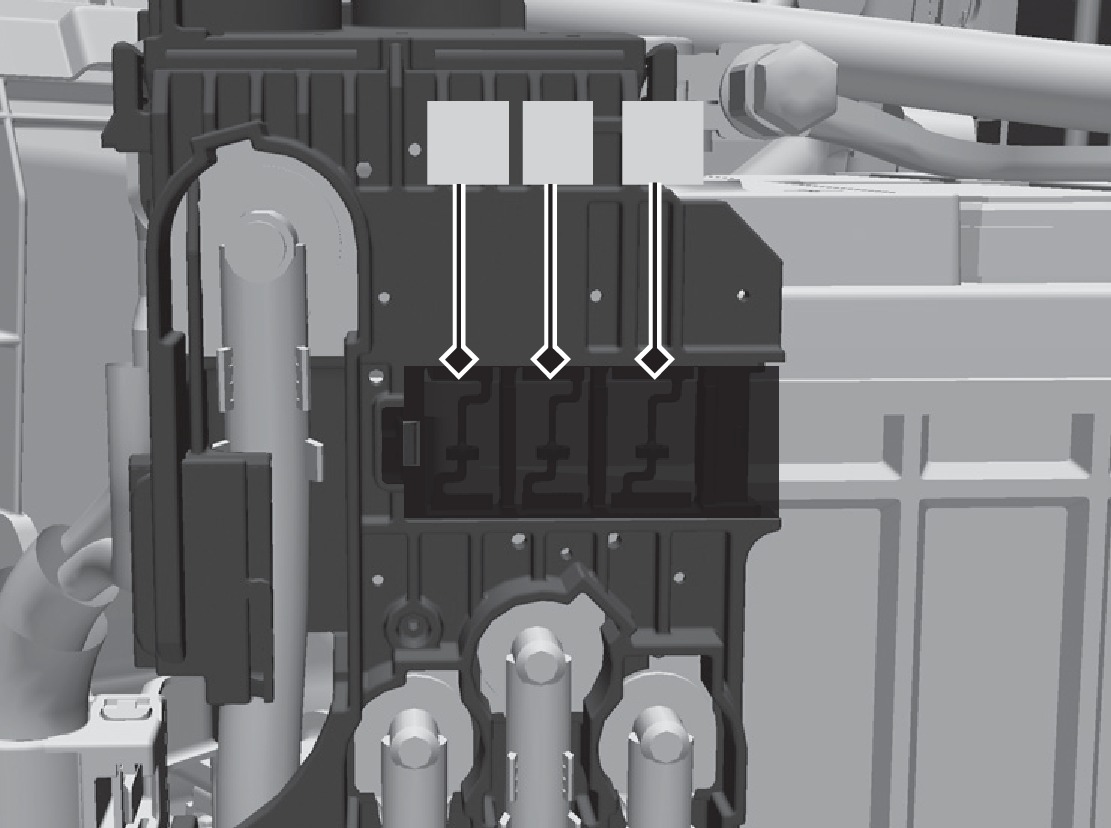

Check the fuses on the battery in the engine compartment. If the fuse is blown, have it replaced by a dealer.
Fuse box on battery
Blown fuse
- Remove the fuse box cover.
-
Inspect the small fuses in the engine compartment and the vehicle interior.

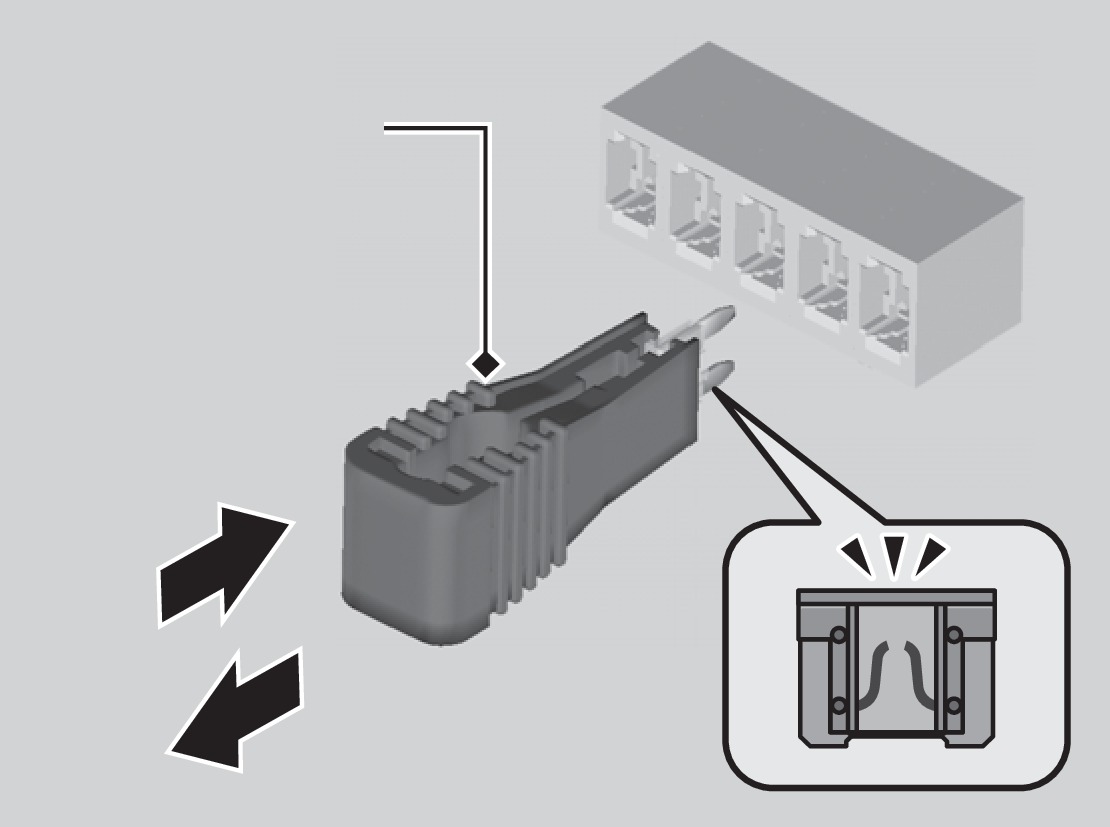

If there is a blown fuse, remove it with the fuse puller and replace it with a new one.
Fuse puller
-
Check the large fuse in the engine compartment.

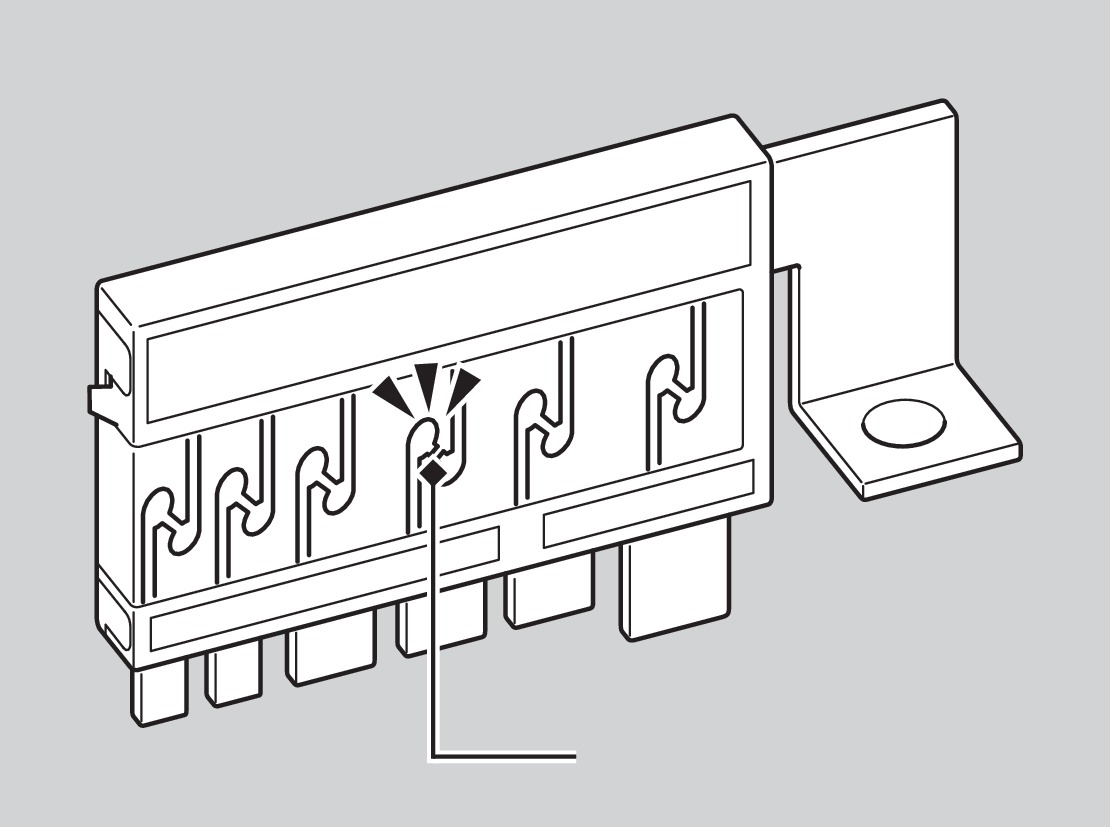

If the fuse is blown, use a Phillips-head screwdriver to remove the screw and replace the fuse with a new one. Reinstall the screw.
Combined fuse
Blown fuse
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system.
