2018 Honda HR-V Owners Manual - Basic Audio

USB port

1. Open one of the USB covers under the front console.
2. Insert a USB flash drive or other audio device, such as an iPod or iPhone®, into the USB port.

iPod and iPhone are trademarks of Apple, Inc.

Applicable laws may prohibit the operation of handheld electronic devices while operating a vehicle.

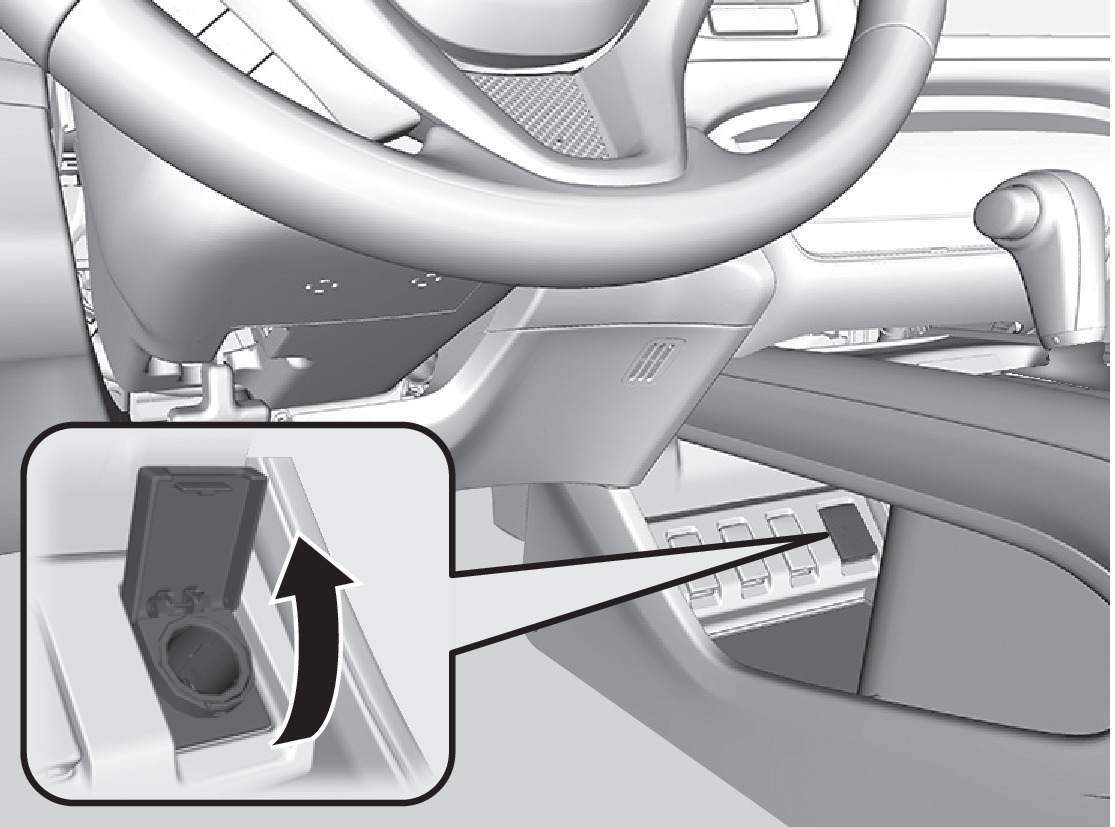

Open the socket cover under the front console to use power when the vehicle is on.

Additional power sockets* are located on the back of the center console and the right side of the cargo area.

HDMI port

1. Open the HDMI cover under the front console.
2. Insert an HDMI cable to the HDMI port.

Additional cables and connectors sold separately.

*if equipped

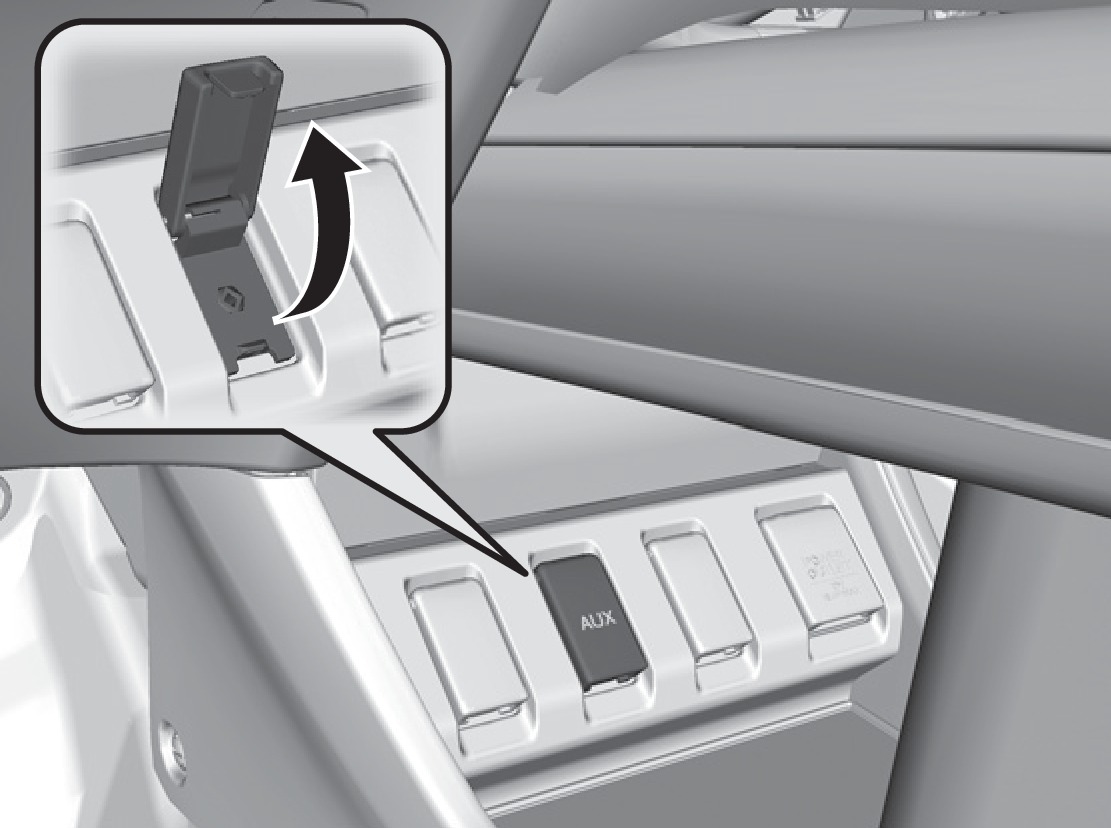

Connect standard audio devices with a 1/8-inch (3.5 mm) stereo miniplug.

1. Open the AUX cover under the front console.
2. Insert the miniplug attached to the audio device into the jack. The audio system switches to AUX mode. Use the device to control the audio.

You can operate certain functions of the audio system using the steering wheel controls.

Menu button

SOURCE button: Cycle through available audio modes.

/ buttons: Change presets, tracks, albums, or folders.

+/- buttons: Adjust audio volume.

MENU button*: From the audio screen, press and hold to choose options for the current audio mode (models with Display Audio). Use the +/- buttons and the SOURCE button to scroll and enter selections.

FM / AM / XM Radio

Press or for the next or previous station. Press and hold or for the next or previous strong station.

CD/iPod/USB/Bluetooth Audio

Press or for the next or previous track. Press and hold or for the next or previous folder (CD/USB).

Pandora

Press for the next song. Press and hold or for the next or previous station.

*if equipped

Adjust various sound settings.

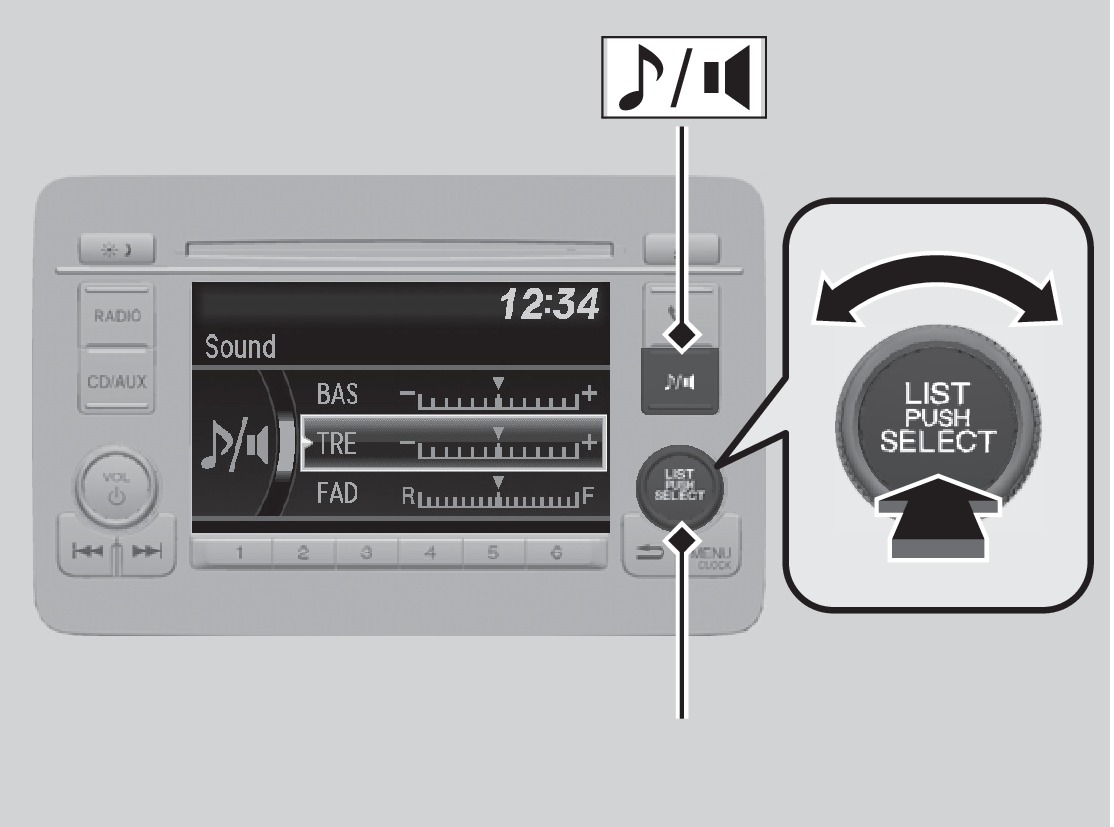

Models with color audio system

Sound button

Selector knob

Use the selector knob to make and enter selections.

1. Press the Sound button.
2. Select a sound mode to change, and adjust it using the selector knob.
3. Press the Back button to exit the menu.

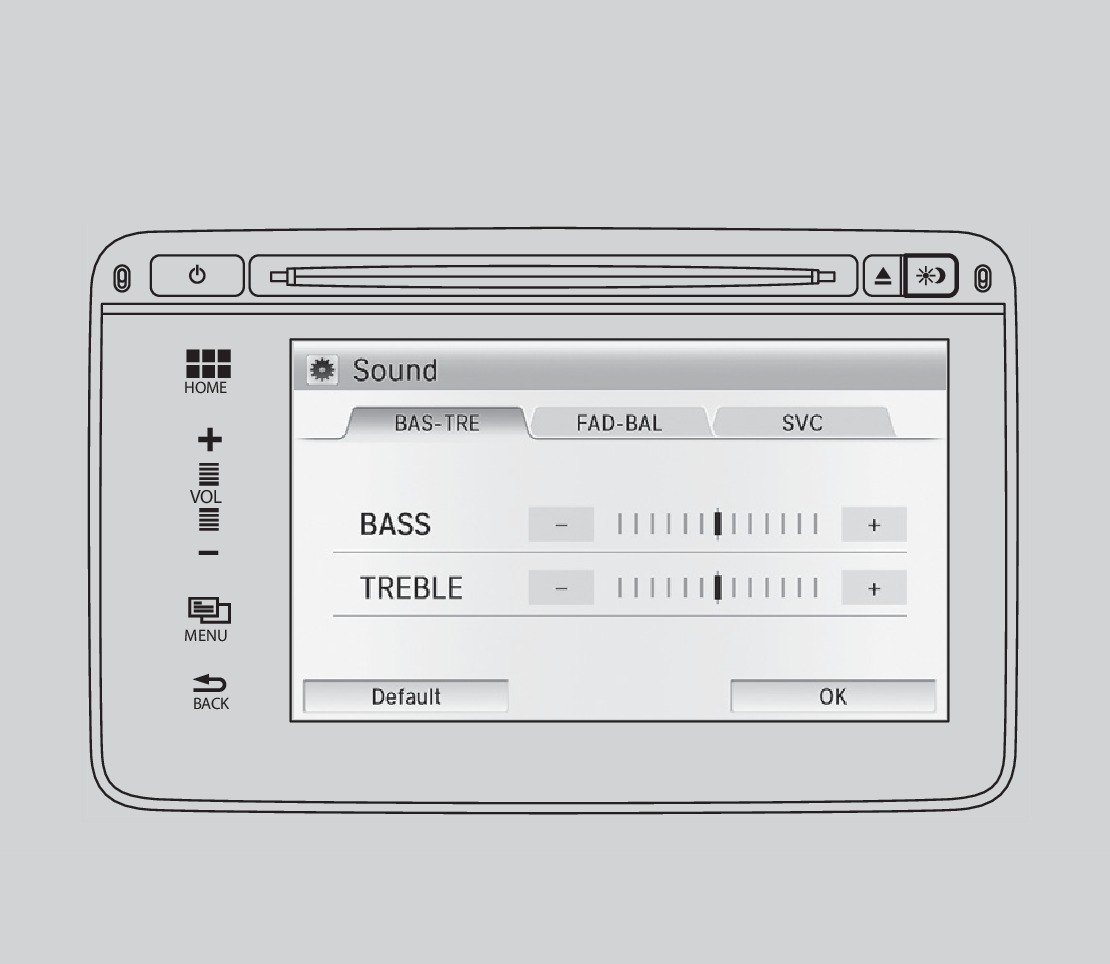

Models with Display Audio

Make selections using the touchscreen.

1. From the HOME screen, select Settings.
2. Select Audio.
3. Select Sound.
4. Select the tabs to change the sound mode and adjust the setting.
5. Select OK when complete.

*if equipped
