Changing Wiper
Blades
If the wiper blades leave streaks across the windshield, try cleaning them first with a paper towel or soft cloth and wiper fluid. If the wiper blade rubber has deteriorated, you should change the wiper blades.
Changing the Front Wiper Blade Rubber
-

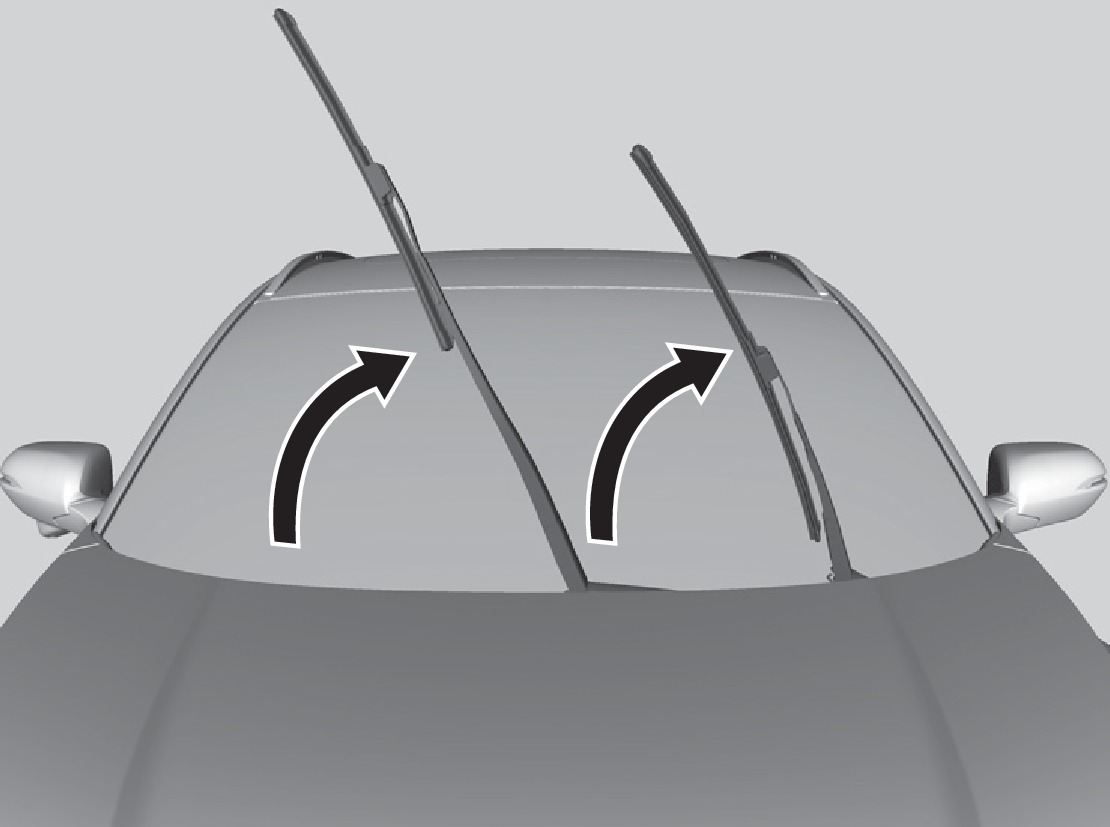

Lift the driver side wiper arm first, then the passenger side.
-

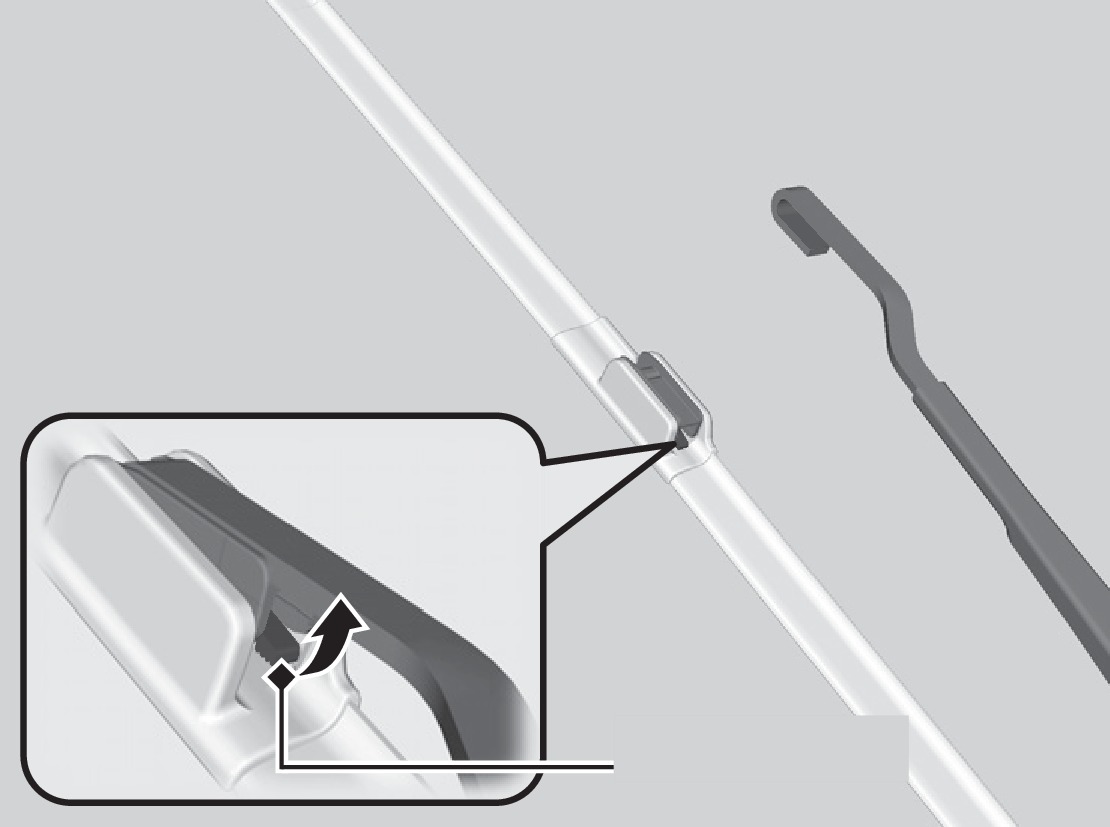

Press and hold the tab, then slide the blade holder off the wiper arm.
Lock tab
-

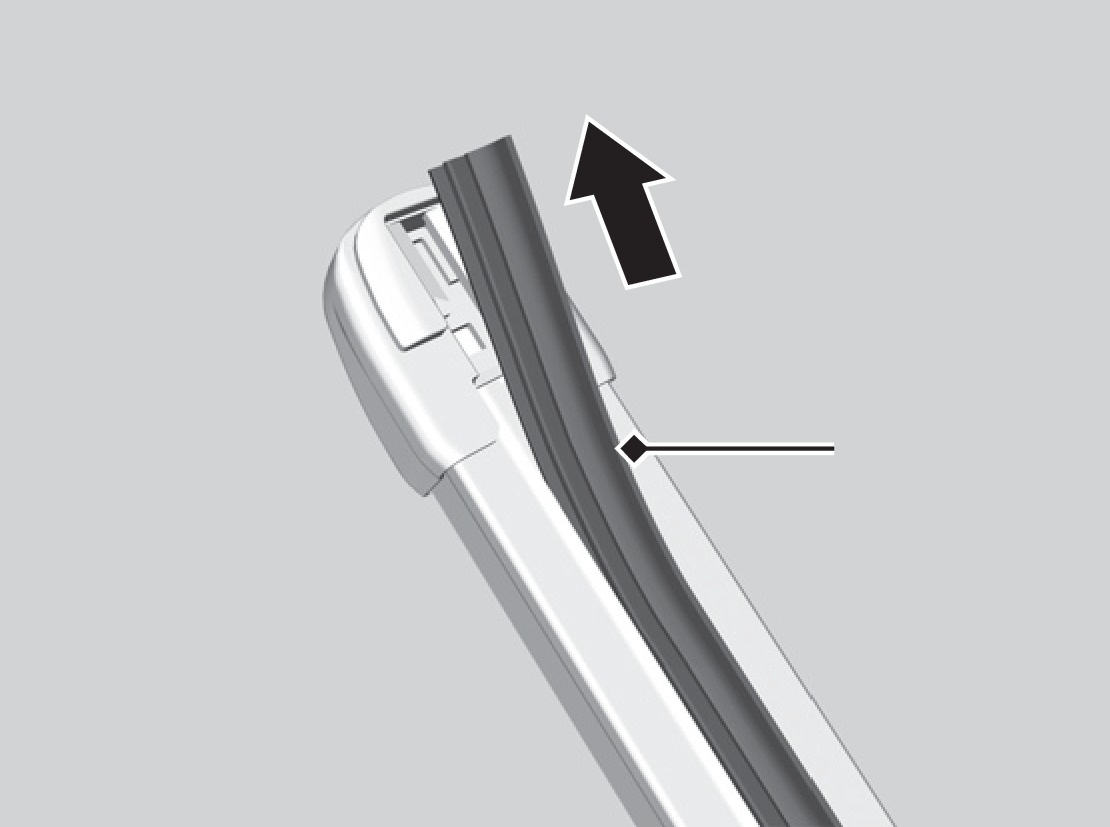

Slide the wiper blade out from its holder by pulling the tabbed end out.
Blade
-

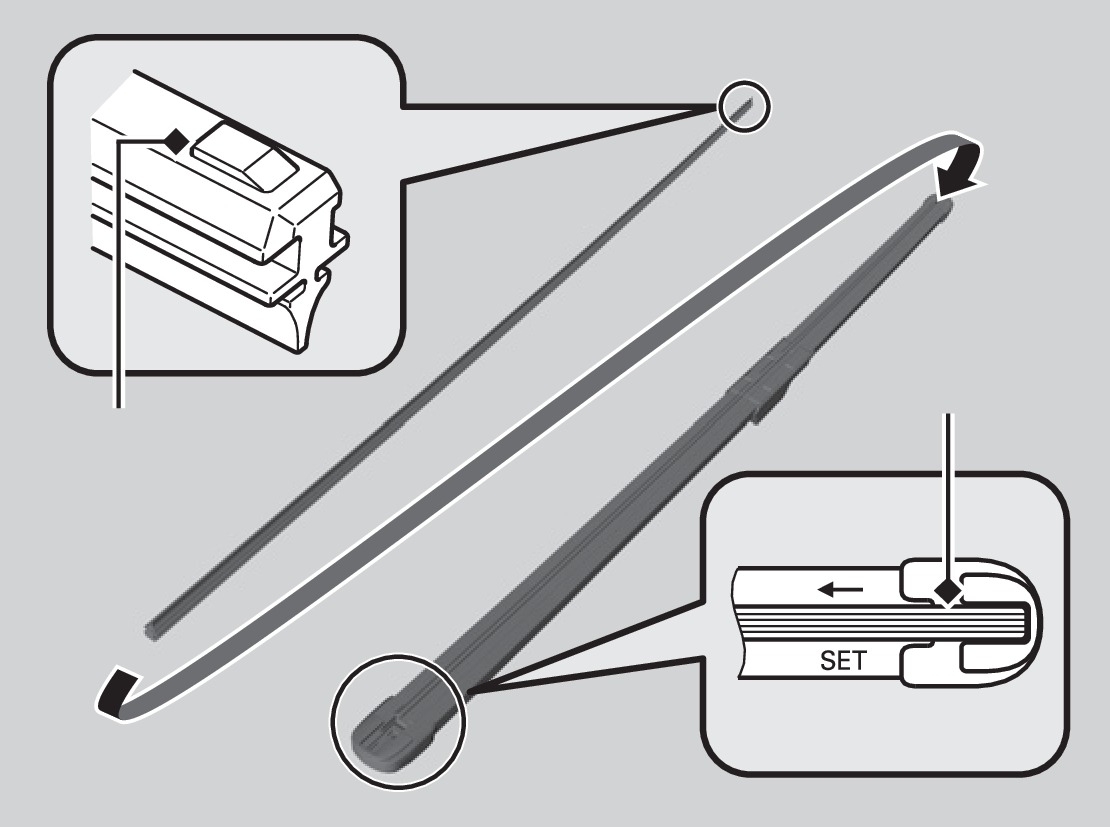

Slide the new wiper blade onto the holder from the bottom end. The tab on the blade should fit in the indent of the top of the wiper blade.
Tab
Blade
-
Slide the wiper blade onto the wiper arm securely.
-
Lower the passenger side wiper arm first, then the driver side.
Avoid dropping the wiper arm, as it may damage the windshield.
Changing the Rear Wiper Blade Rubber
-

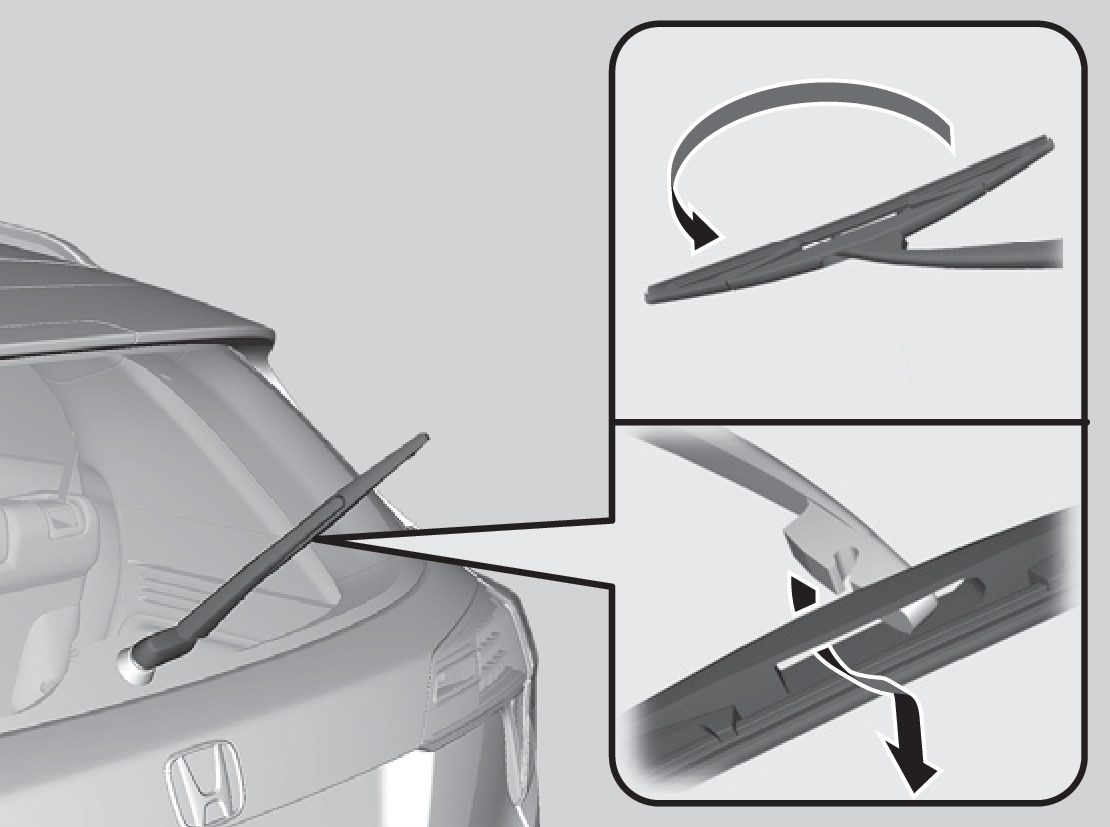

Lift the wiper arm off the window.
-
Pivot up the bottom end of the wiper blade until it comes off from the wiper arm.
-

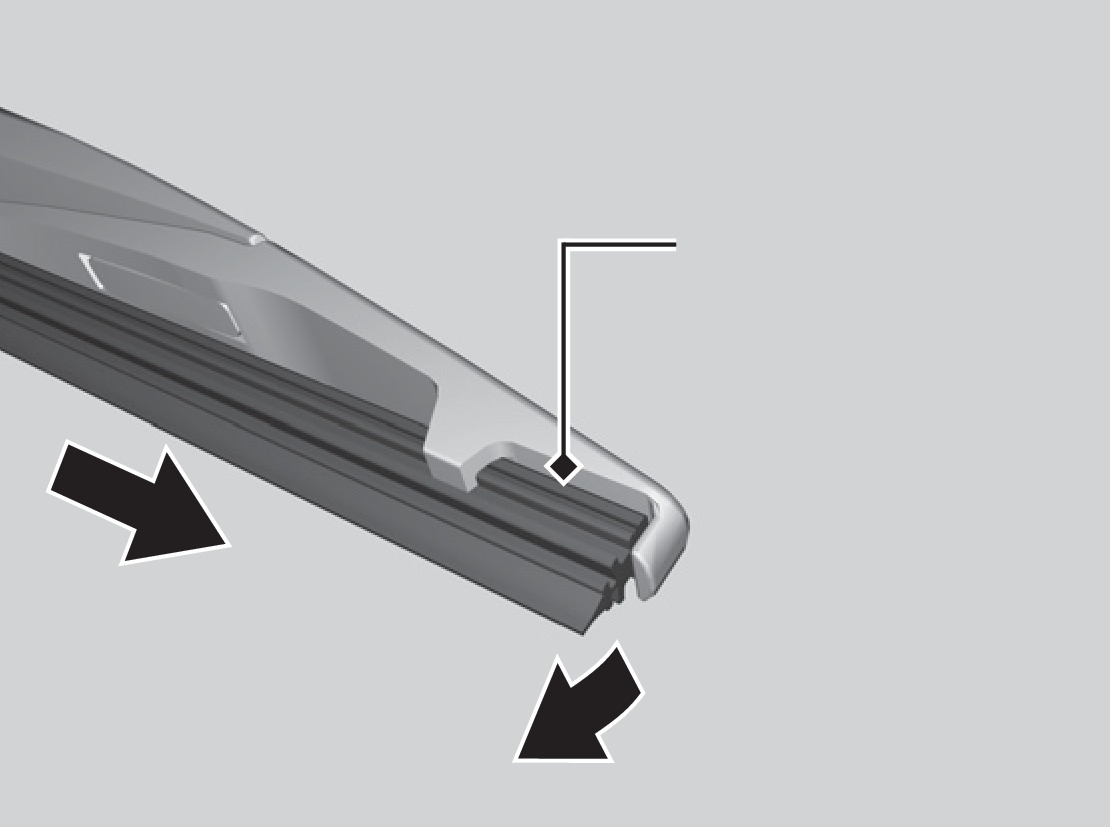

Slide the wiper blade out from the end with the indent.
Lock tab
-

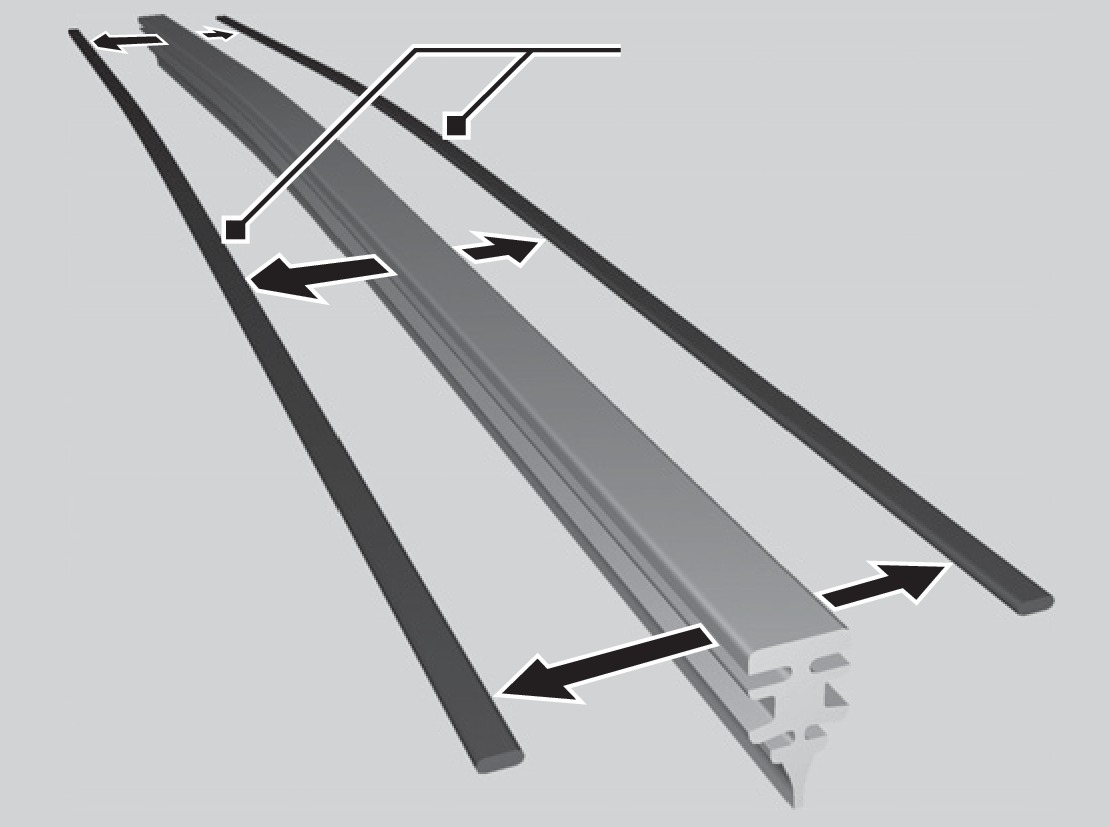

Remove the retainers from the rubber blade that has been removed, and mount to a new rubber blade.
Retainers
-

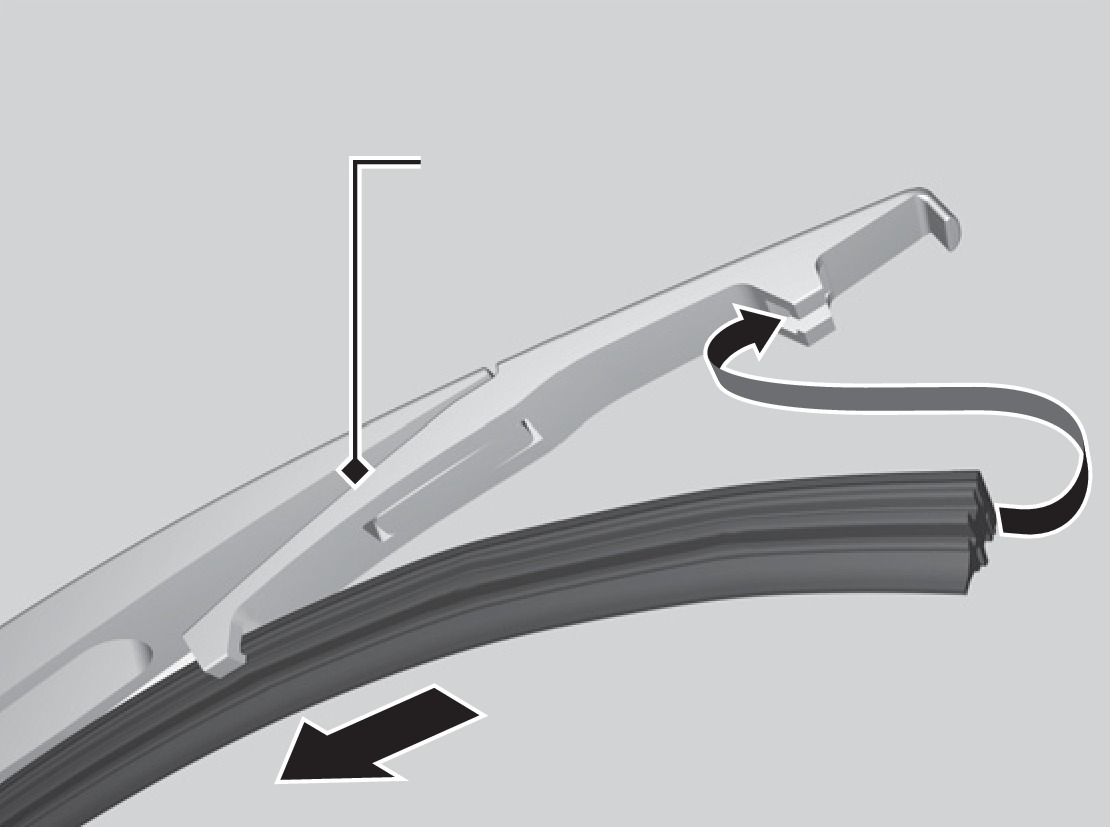

Slide the new wiper blade onto the holder. Make sure it is engaged correctly, then install the wiper blade assembly onto the wiper arm.
Holder
