Basic Navigation
Operation
A real-time navigation system uses GPS and a map database to show your current location and help guide you to a desired destination. You can operate the system using voice commands or the touchscreen.
To reduce the potential for driver distraction, certain manual functions may be inoperable or grayed out while the vehicle is moving. Voice commands are always available.

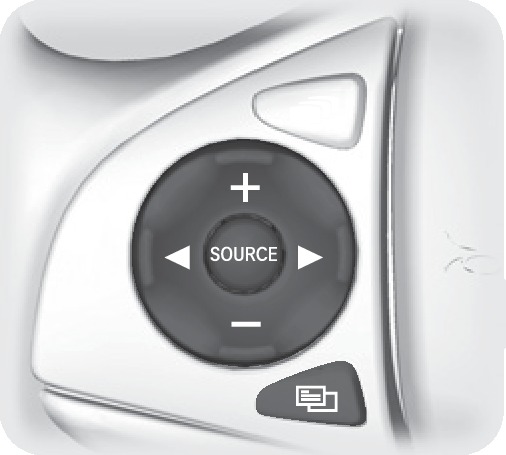

Steering Wheel Controls
Use the steering wheel controls to control the system.
Hang-Up/Back button: Press to cancel a command or operation.
Talk button: Press to say voice commands.
+ / - buttons: Adjust the volume.
SOURCE button: Press to enter a selection after pressing and holding the MENU button.
Menu button: From the map screen, press and hold to display Go Home and other options.
Using the navigation system while driving can take your attention away from the road, causing a crash in which you could be seriously injured or killed.
Operate system controls only when the conditions permit you to safely do so.
*if equipped

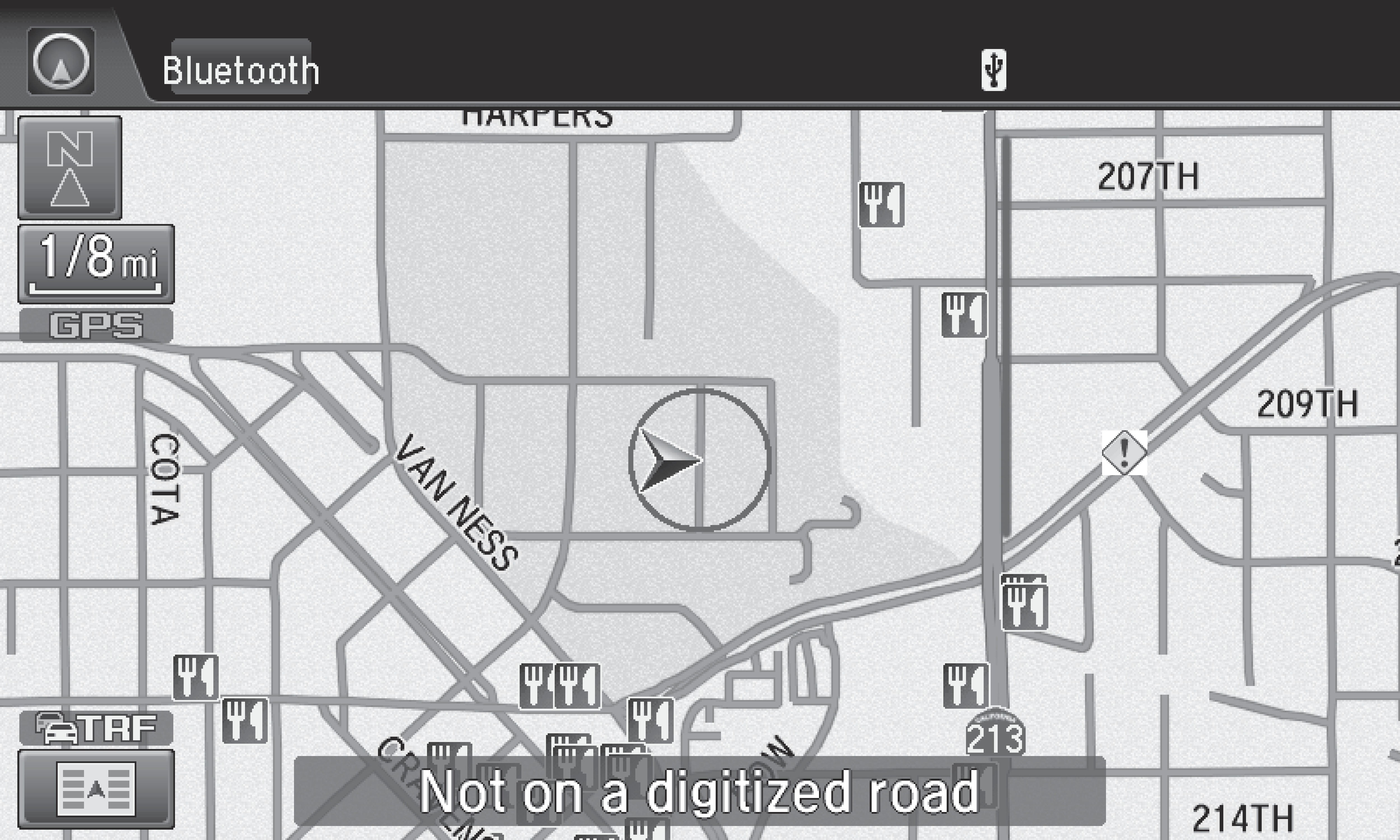

Navigation Display and Controls
Use the touchscreen to enter information and make selections.
Current map scale
Map orientation
Current vehicle position
Landmark icon
Traffic flow
Traffic incident icon
Current street
Map menu
Traffic status
GPS signal strength

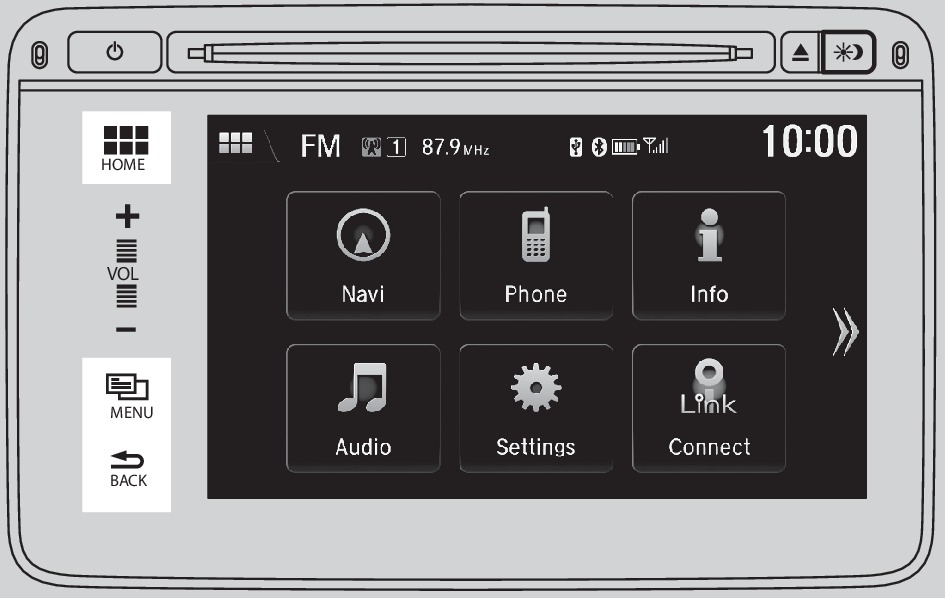

HOME(screen shown)
Navi: Display the map screen.
Info: Select items such as trip computer, traffic incidents, and more.
Settings: Select Navi from the Settings screen for map and navigation options.
BACK: Go back to the previous display.
MENU: From the map screen, select various destination options.

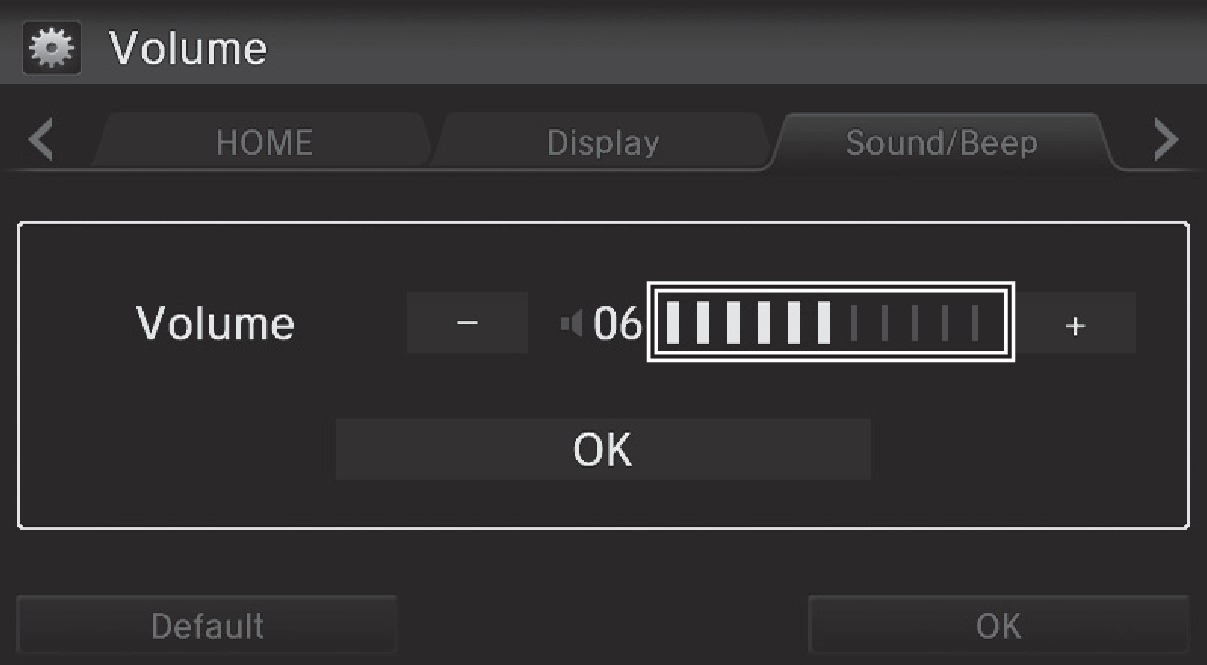

Voice Prompt Volume
Adjust volume for navigation and voice command confirmation. This does not affect audio or Bluetooth HandsFreeLink volume, which is controlled by the volume bar.
- From the Home Screen, select Settings.
- Select System.
- Select Volume.
- Adjust the level, or select off.

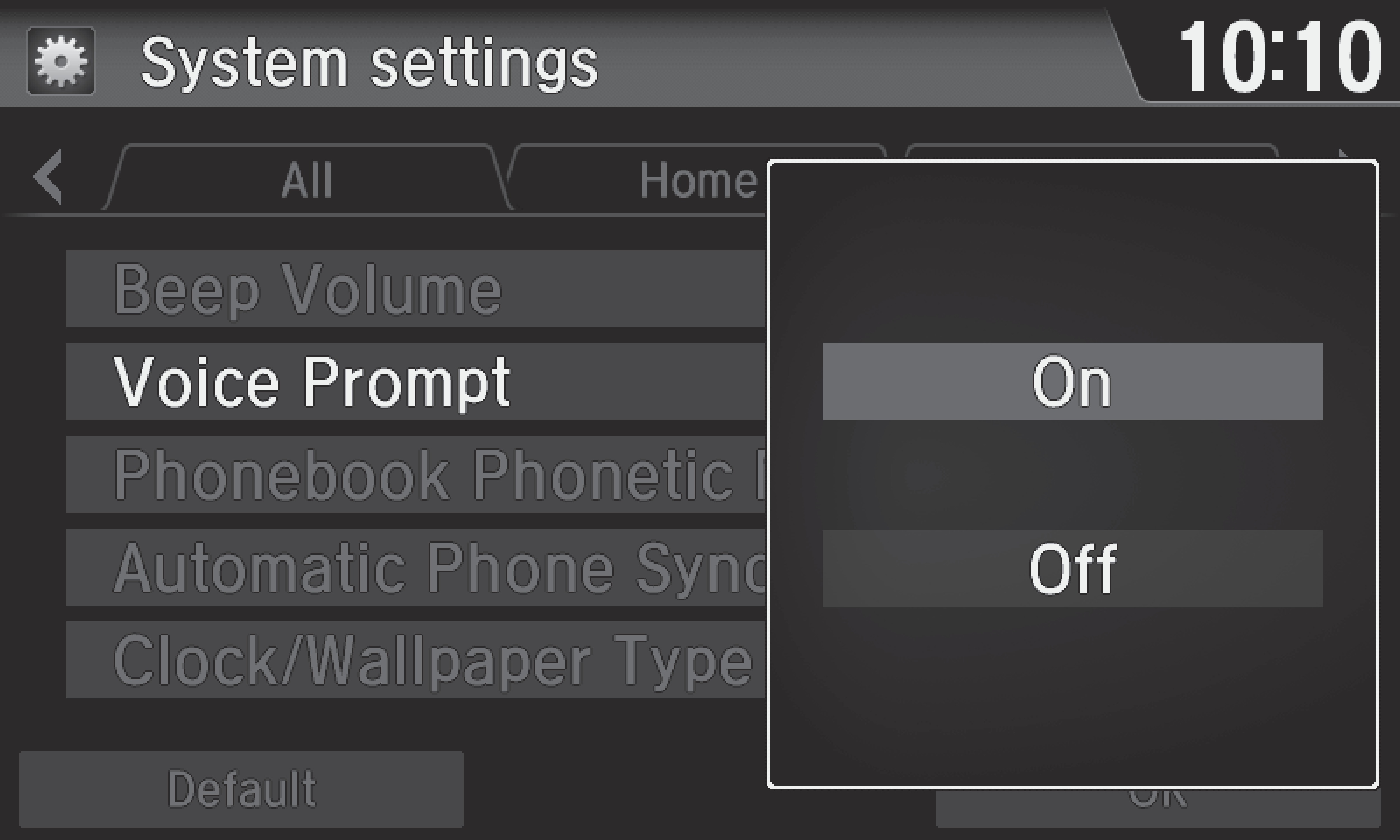

Voice Prompt
Turn the voice feedback feature on or off.
- From the Home screen, select Settings.
- Select System.
- Select Voice Prompt.
- Select On or Off.
Talk Button Tips
When using the Talk button, wait until you hear a beep before speaking. The system recognizes only the commands in the Voice Command Index, page 140.
- To bypass the system prompts, simply press the Talk button again to say your command.
- When the Talk button is pressed, all available voice commands are highlighted in yellow.
- Speak in a clear, natural voice.
- Reduce all background noise.
- Adjust the dashboard vents away from the microphone on the audio system.
- Close the windows and moonroof.
