UCONNECT SETTINGS
The Uconnect system uses a combination of buttons on the touchscreen and buttons on the faceplate located on the center of the instrument panel. These buttons allow you to access and change the Customer Programmable Features. Many features can vary by vehicle.
Buttons on the faceplate are located below and/or beside the Uconnect system in the center of the instrument panel. In addition, there is a Scroll/Enter control knob located on the right side. Turn the control knob to scroll through menus and change settings. Push the center of the control knob one or more times to select or change a setting.
Your Uconnect system may also have Screen Off and Mute buttons on the faceplate.
Push the Screen Off button on the faceplate to turn off the Uconnect screen. Push the button again or tap the screen to turn the screen on.
Press the Back Arrow button to exit out of a Menu or certain option on the Uconnect system.
CUSTOMER PROGRAMMABLE FEATURES

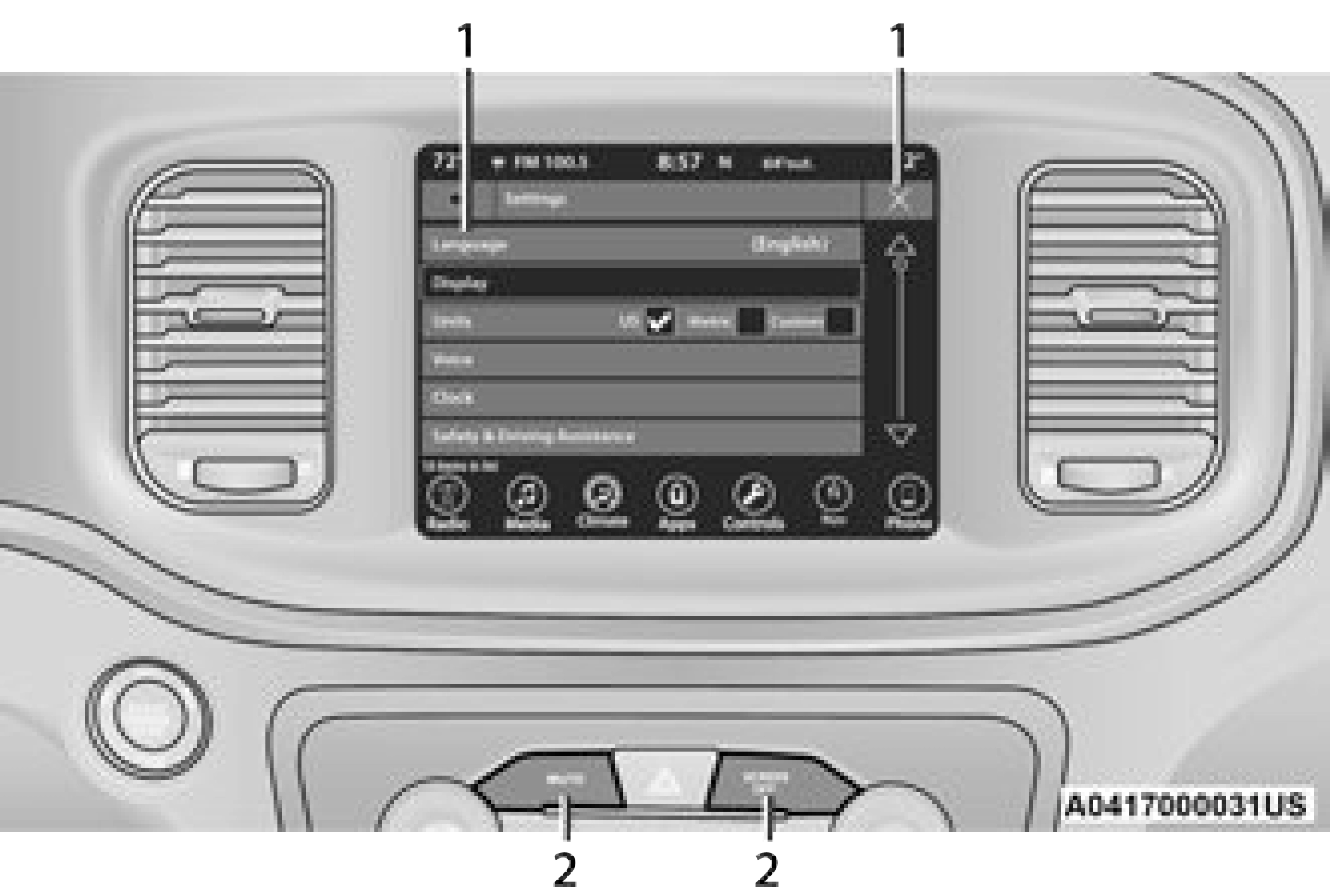

Uconnect 4C/4C NAV Buttons On Faceplate And Buttons On Touchscreen
- Uconnect Buttons On The Touchscreen
- Uconnect Buttons On The Faceplate
For the Uconnect 4 With 7-inch Display and the Uconnect 4/4C/4C NAV With 8.4-inch Display
Press the
Apps button, then press the Settings button on the touchscreen to display the menu setting screen. In this mode the Uconnect system allows you to access programmable features.
NOTE:
- All settings should be changed with the ignition in the ON/RUN position.
- Only one area of the touchscreen may be selected at a time.
When making a selection, press one button on the touchscreen to enter the desired menu. Once in the desired mode, press and release the preferred setting option until a check mark appears next to the setting, showing that setting has been selected. Once the setting is complete, either press the Back Arrow button on the touchscreen to return to the previous menu, or press the X button on the touchscreen to close out of the settings screen. Pressing the Up or Down Arrow button on the right side of the screen will allow you to toggle up or down through the available settings.
NOTE:
Availability of settings, setting names, and menu options can vary depending on vehicle features, equipped Uconnect system, and the currently installed software.
Language
When the Language button is pressed on the touchscreen, the system displays the different language options. Once an option is selected, the system will display in the chosen language.
|
Setting Name |
Description |
|
Language |
This setting will change the language of the Uconnect system and Instrument Cluster Display. The available languages are English, Français, and Español. |
Display
When the Display button is pressed on the touchscreen, the system will display the options related to the theme (if equipped), brightness, and color of the touchscreen. The available settings are:
|
Setting Name |
Description |
|
Display Mode |
This setting will allow you to set the brightness manually or have the system set it automatically. The “Auto” setting has the system automatically adjust the display brightness. The “Manual” setting will allow the user to adjust the brightness of the display. |
|
Display Brightness With Headlights ON |
This setting will allow you to set the brightness when the headlights are on. To access this setting, Display Mode must be set to “Manual”. The “+” setting will increase the brightness; the “-” will decrease the brightness. |
Units
When the Units button is pressed on the touchscreen, the system displays the different measurement options. The selected unit of measurement will display in the instrument cluster display and Navigation system (if equipped). The available settings are:
|
Setting Name |
Description |
|
US |
This setting will change the unit of measurement on the display to US. |
|
Metric |
This setting will change the unit of measurement on the display to Metric. |
|
Custom |
This setting changes the “Speed” (MPH or km/h), “Distance” (mi or km), “Fuel Consumption” (MPG [US], MPG [UK], L/100 km, or km/L), “Pressure” (psi, kPa, or bar), and “Temperature” (°C or °F) units of measurement independently. |
Voice
When the Voice button is pressed on the touchscreen, the system displays the options related to the vehicle’s Voice Recognition feature.
|
Setting Name |
Description |
|
Voice Response Length |
This setting will change the response length for the Voice Recognition system. The “Brief” setting provides a shortened audio description from the system. The “Detailed” setting provides the full audio description from the system. |
|
Show Command List |
This setting will allow you to turn the Command List on or off. The “Always” setting will always show the Command List. The “With Help” setting will show the Command List and provide a brief description of what the command does. The “Never” setting will turn the Command List off. |
Clock
When the Clock button is pressed on the touchscreen, the system displays the different options related to the vehicle’s internal clock.
|
Setting Name |
Description |
|
Sync Time With GPS — If Equipped |
This setting will sync the time to the GPS receiver in the system. The system will control the time via the GPS location. |
|
Time Format |
Time FormatThis setting will allow you set the time format (AM/PM). Sync Time With GPS must be off for this setting to be available. The “12 hrs” setting will set the time to a 12-hour format. The “24 hrs” setting will set the time to a 24-hour format. |
|
Setting Name |
Description |
|
Set Time Hours |
This setting will allow you to set the hours. Sync Time With GPS must be off for this setting to be available. The “+” setting will increase the hours. The “-” setting will decrease the hours. |
|
Set Time Minutes |
This setting will allow you to set the minutes. Sync Time With GPS must be off for this setting to be available. The “+” setting will increase the minutes. The “-” setting will decrease the minutes. |
|
Show Time in Status Bar |
This setting will place the time in the radio’s status bar. |
When the Camera button is pressed on the touchscreen, the system displays the options related to the vehicle’s camera features. 5
|
Setting Name |
Description |
|
ParkView Backup Camera Delay |
This setting will add a delay to the ParkView Backup Camera when shifting out of REVERSE. |
|
Active ParkView Backup Camera Guidelines |
This setting will turn the Active Backup Camera Guidelines on or off. |
When the Safety/Assistance button is selected on the touchscreen, the system displays the options related to the vehicle’s safety settings. These options will differ depending on the features equipped on the vehicle. The settings may display in list form or within subfolders on the screen. To access a subfolder, select the desired folder; the available options related to that feature will then display on the screen.
|
Setting Name |
Description |
|
Forward Collision Warning Sensitivity |
This setting will change the distance at which the Forward Collision Warning (FCW) alert sounds. The “Medium” setting will have the FCW system signal when an object is in view, and the possibility of a collision is detected. The “Near” setting will have the FCW system signal when the object is closer to the vehicle. The “Far” setting will have the FCW system signal when an object is at a far distance from the vehicle. |
|
Forward Collision Warning |
This setting will turn the Forward Collision Warning system on or off. The “Off” setting will deactivate the FCW system. The “Warning Only” setting will provide only an audible chime when a collision is detected. The “Warning + Active Braking” setting will provide an audible chime and apply brake pressure when a collision is detected. |
|
Forward Collision Warning Active Braking |
This setting will activate Forward Collision Warning Active Braking. The available options are “On” and “Off”. |
|
ParkSense |
This setting will change the type of ParkSense alert when a close object is detected and provide both an audible chime and a visual display. |
|
Rear ParkSense Volume |
This setting adjusts the volume of the Rear ParkSense system. The available settings are “Low”, “Medium”, and “High”. |
5
When the Mirrors & Wipers button is pressed on the touchscreen, the system displays the options related to the vehicle’s mirrors and wipers.
|
Setting Name |
Description |
|
Tilt Side Mirrors in Reverse |
This Setting will tilt the mirrors when the vehicle is placed in REVERSE. Setting options are “On” and “Off”. |
|
Setting Name |
Description |
|
Rain Sensing Auto Wipers |
This setting will turn the Rain Sensing Auto Wipers on or off. |
|
Headlights with Wipers |
This setting will turn the headlights on when the wipers are activated. Setting options are “On” and “Off”. |
When the Lights button is pressed on the touchscreen, the system displays the options related to the vehicle’s exterior and interior lights. NOTE:
When the “Daytime Running Lights” feature is selected, the daytime running lights can be turned On or Off. This feature is only allowed by law in the country of the vehicle purchased.
|
Setting Name |
Description |
|
Headlight Off Delay |
This setting will allow you to set the amount of time it takes for the headlights to shut off after the vehicle is turned off. The available settings are “0 sec”, “30 sec”, “60 sec”, and “90 sec”. |
|
Headlight Illumination On Approach |
This setting will allow you to set the amount of time it takes for the headlights to shut off after the vehicle is unlocked. The available settings are “0 sec”, “30 sec”, “60 sec”, and “90 sec”. |
|
Headlights with Wipers |
This setting will turn the headlights on when the wipers are activated. |
|
Daytime Running Lights |
This setting will allow you to turn the Daytime Running Lights on or off. |
|
Flash Lights With Lock |
This setting will allow you to turn on or off the flashing of the lights when the Lock button is pushed on the key fob. Available settings are “On” and “Off”. |
|
Auto Dim High Beams |
This setting will allow you to turn the Auto Dim High Beams on or off. |
When the Doors & Locks button is pressed on the touchscreen, the system displays the options related to locking and unlocking the vehicle’s doors.
5
When Seats & Comfort button is pressed on the touchscreen, the system displays the option related to the vehicle’s comfort systems when remote start has been activated or the vehicle has been started.
|
Setting Name |
Description |
|
Auto-On Driver Heated/Ventilated Seat & Steering Wheel With Vehicle Start |
This setting will activate the vehicle’s comfort system and heated seats (if equipped) or heated steering wheel (if equipped) when the vehicle is remote started or ignition is started. The “Off” setting will not activate the comfort systems. The “Remote Start” setting will only activate the comfort systems when using Remote Start. The “All Start” setting will activate the comfort systems whenever the vehicle is started. |
When the Key Off Options button is pressed on the touchscreen, the system displays the options related to vehicle shut off. These settings will only activate when the ignition is set to OFF.
|
Setting Name |
Description |
|
Easy Exit Seat |
This setting adjusts the seats to make exiting the vehicle easier. |
|
Key Off Power Delay |
This setting will keep certain electrical features running after the engine is turned off. When any door is opened, the electronics will deactivate. The available settings are “0 sec”, “45 sec”, “5 min”, and “10 min”. |
|
Headlight Off Delay |
This setting will allow you to set the amount of time the headlights remain on after the vehicle has been turned off. The “+” will increase the amount of time. The “-” will decrease the amount of time. |
When the Audio button is pressed on the touchscreen, the system displays options related to the vehicle’s sound system. These settings can change the audio location within the vehicle, adjust the bass or treble levels, and auto-play settings from an audio device or smartphone.
When the Phone/Bluetooth® button is pressed on the touchscreen, the system displays the options related to Bluetooth® connectivity from an external audio device or smartphone. The list of paired audio devices or smartphones can be accessed from this menu.
|
Setting Name |
Description |
|
Phone Pop-Ups Displayed In Cluster |
This setting will activate phone message pop-ups in the Instrument Cluster Display. |
|
Do Not Disturb |
This setting will open the Do Not Disturb settings menu. The following settings are “Auto Reply” (both, text, call), “Auto Reply Message” (custom, default), and “Custom Auto Reply Message” (create message). |
|
Paired Phones And Audio Devices |
This setting will show the list of paired phones and audio devices. |
|
Projection Manager — If Equipped |
This setting will activate your smartphone to project on the vehicle’s touchscreen. |
A subscription to SiriusXM® Satellite Radio is required for these settings to be functional.
When the SiriusXM® Setup button is pressed on the touchscreen, the system displays options related to SiriusXM® Satellite Radio. These settings can be used to skip specific radio channels and restart favorite songs from the beginning.
|
Setting Name |
Description |
|
Tune Start |
This setting will play the current song from the beginning when you tune to a music channel using one of the 12 presets. |
|
Setting Name |
Description |
|
Channel Skip |
This setting allows you to set channels that you wish to skip. A channel list will display of the skipped channels. |
|
Subscription Information |
This menu provides SiriusXM® subscription information. SiriusXM® Travel Link is a separate subscription. |
When the Reset/Restore Settings button is pressed on the touchscreen, the system displays the options related to resetting the Uconnect system back to its default settings. These settings can clear personal data and reset selected settings from other menus.
When the System Information button is pressed on the touchscreen, the system displays the radio system information.
|
Setting Name |
Description |
|
Software Licenses |
This will display the software licensing information screen. |
