2021 Dodge Charger Owners Manual - PERFORMANCE PAGES



Owner’s Manuals 2021 PERFORMANCE PAGES

PERFORMANCE PAGES

Performance Pages is an application that provides a display for performance indicators, as received from the instrument cluster, that will help you gain familiarity with the capabilities of your vehicle in real-time.

To access the Performance Pages, press the Apps button on the touchscreen then press the Performance Pages button on the touchscreen. Press the desired button on the touchscreen to access that specific Performance Page.

The Performance Pages include the following:

  • Home
  • Timers
  • Gauges
  • G-Force
  • Engine
  • Dyno

If a USB drive is installed in the media hub, press the Camera icon on the top right of the touchscreen when using Performance Pages. A screen shot of the page will be taken and saved onto the USB.

Screenshot Camera Button



The following describes each feature and its operation:

HOME

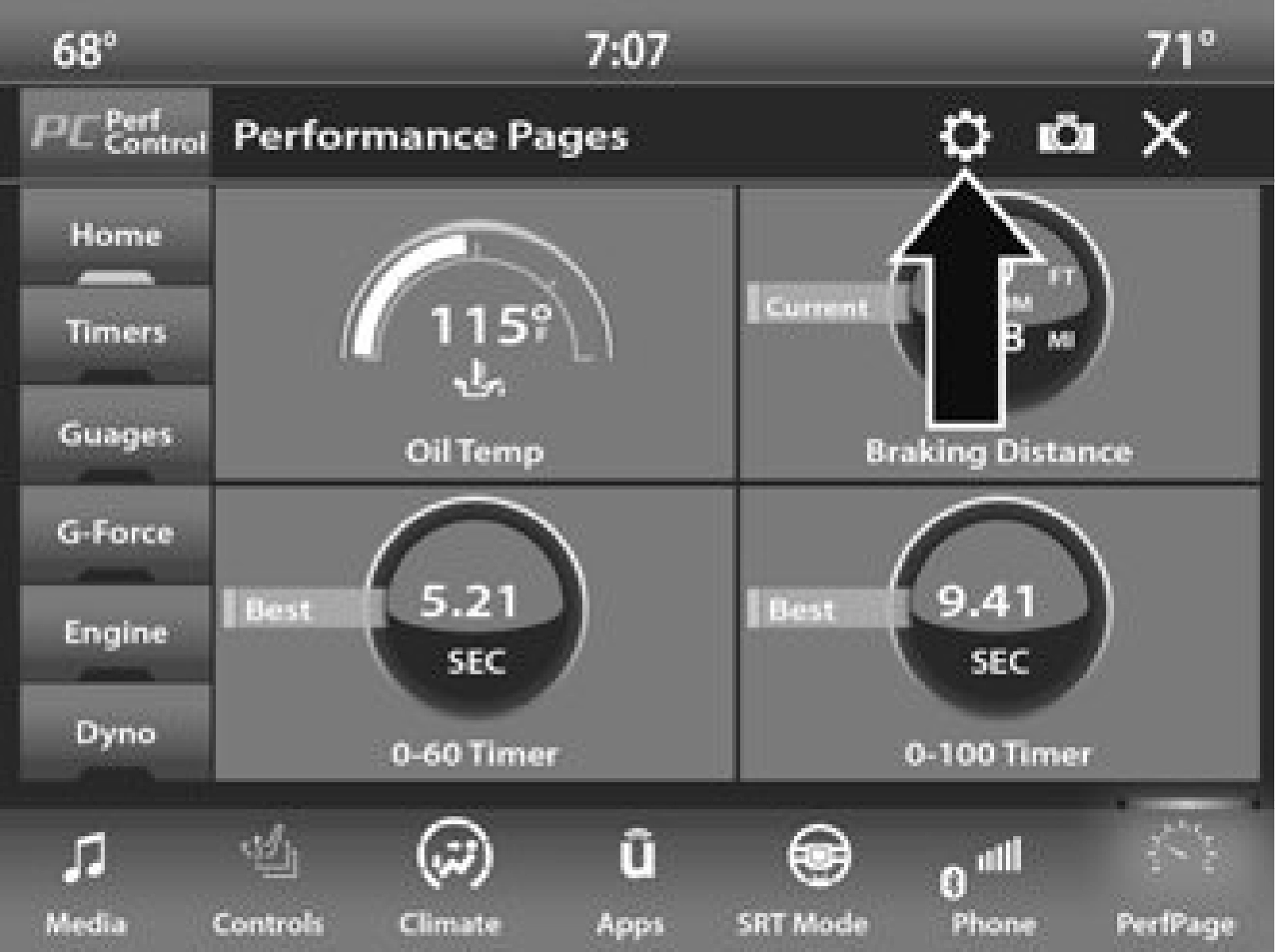

Performance Pages — Home



When Home is selected, a series of widgets (gauges) can be customized by the user. Follow these steps to change a widget. Either press directly on the widget you want to change, or:

  • Press the Settings button (gear icon) on the touchscreen to access the main menu for the widgets.
  • Select one of the following options from the menu:
    • Set Widget: Top Left
    • Set Widget: Top Right
    • Set Widget: Bottom Left
    • Set Widget: Bottom Right
  • After selecting a widget location, select the gauge to display:
    • Gauge: Oil Temp
    • Gauge: Oil Pressure
    • Gauge: Coolant Temp
    • Gauge: Battery Voltage
    • Gauge: Trans Temp — If Equipped with an Automatic Transmission
    • Gauge: Boost Pressure — If Equipped
    • Gauge: Air/Fuel Ratio — If Equipped
    • Gauge: I/C Coolant Temp — If Equipped
    • Gauge: Intake Air Temp
    • Gauge: Engine Torque
    • Gauge: Engine Power
    • Gauge: G-Force
    • Gauge: Steering Angle
    • Gauge: Current Gear
    • Gauge: Current Speed
    • Timer: 0–60 mph (0–100 km/h)
    • Timer: 0–100 mph (0–160 km/h)
    • Timer: 60 ft (20 m)
    • Timer: 330 ft (100 m)
    • Timer: 1/8 Mile (200 m)
    • Timer: 1000 ft (300 m)
    • Timer: 1/4 Mile (400 m)
    • Timer: Braking Distance
    • Timer: Reaction Time

Historical Data

The Historical Data feature allows you to view information about your vehicle such as the VIN, miles on the odometer, longitude and latitude coordinates, and more.

To activate the Historical Data feature on your touchscreen, follow these steps:

Select the Home page tab within Performance Pages. Then, press the settings icon (gear icon) in the upper right hand corner of the touchscreen.

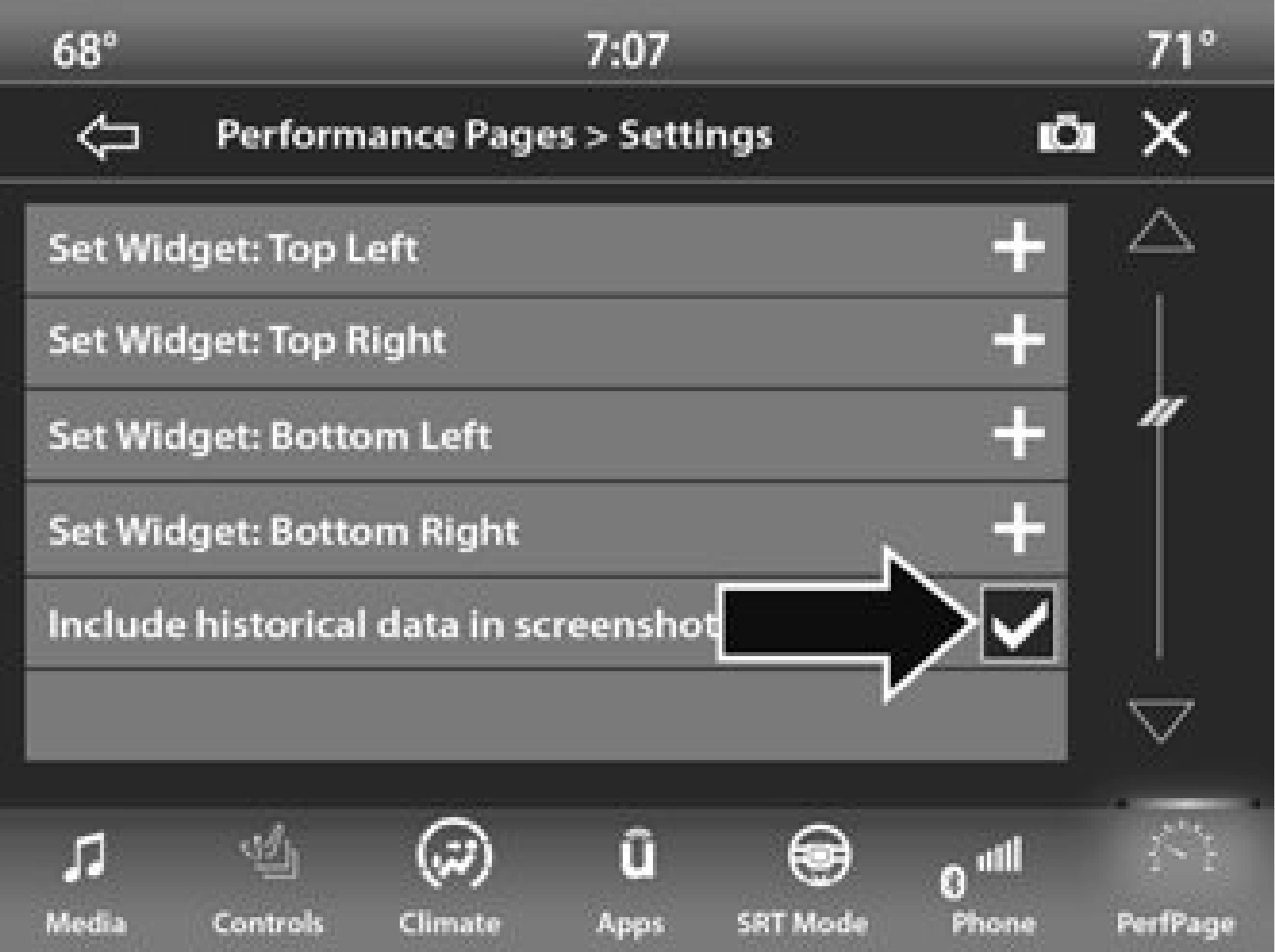

Home Page Settings



Towards the bottom of the screen, a checkbox will appear next to “Include historical data in screenshot.” Click the box to signify that this feature will be on.

Historical Data



Note

Once the checkbox is selected, the bottom bar of the screen will be replaced with the historical data from your vehicle present at the time the screenshot icon was pressed.

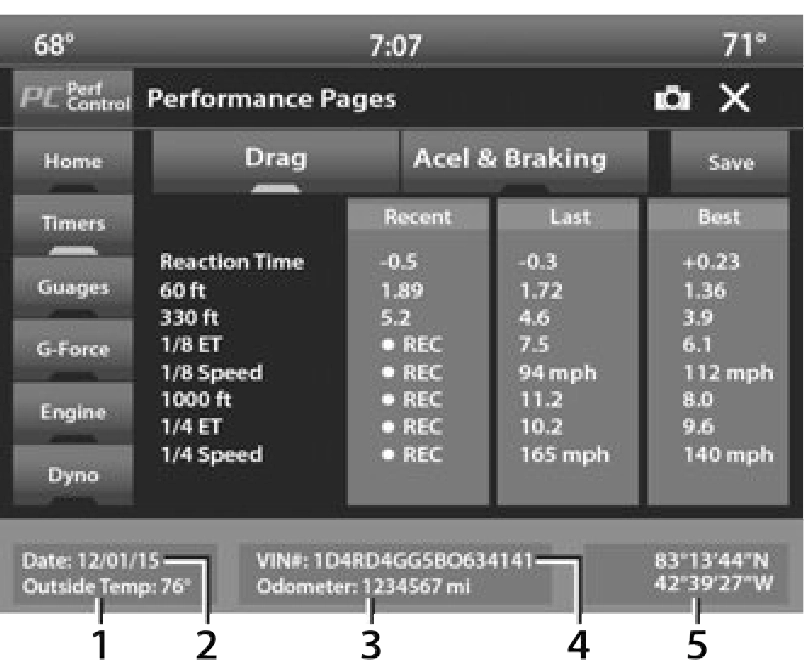

Historical Data


  • Outside Temperature
  • Date
  • Odometer
  • VIN
  • Longitude And Latitude Coordinates

To take a screenshot of the historical data, make sure a USB device is plugged into the vehicle. Next, click the Camera icon located in the top right corner of the touchscreen. The historical data image file will be saved to the USB drive.

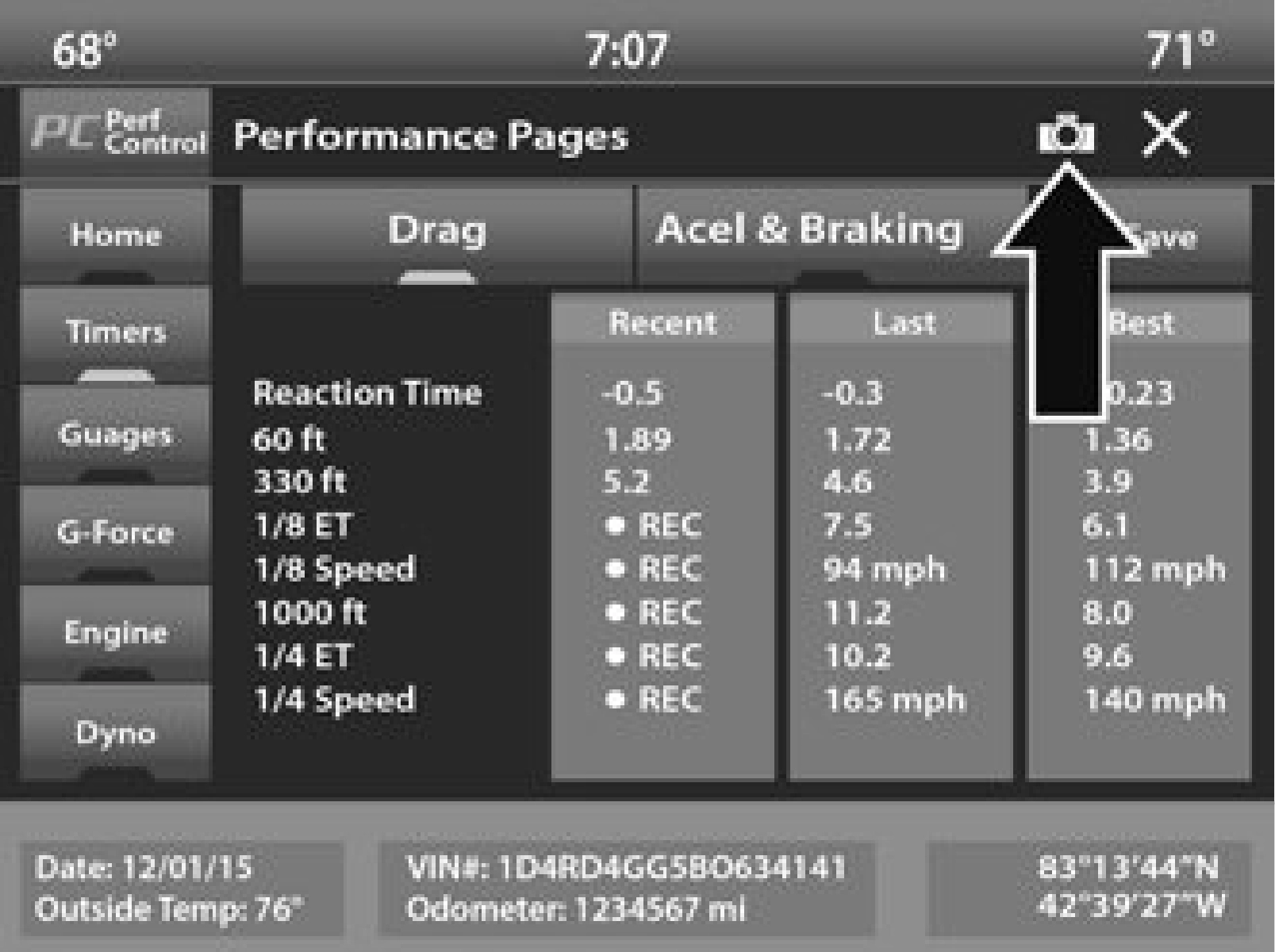

Historical Data Camera Icon



TIMERS

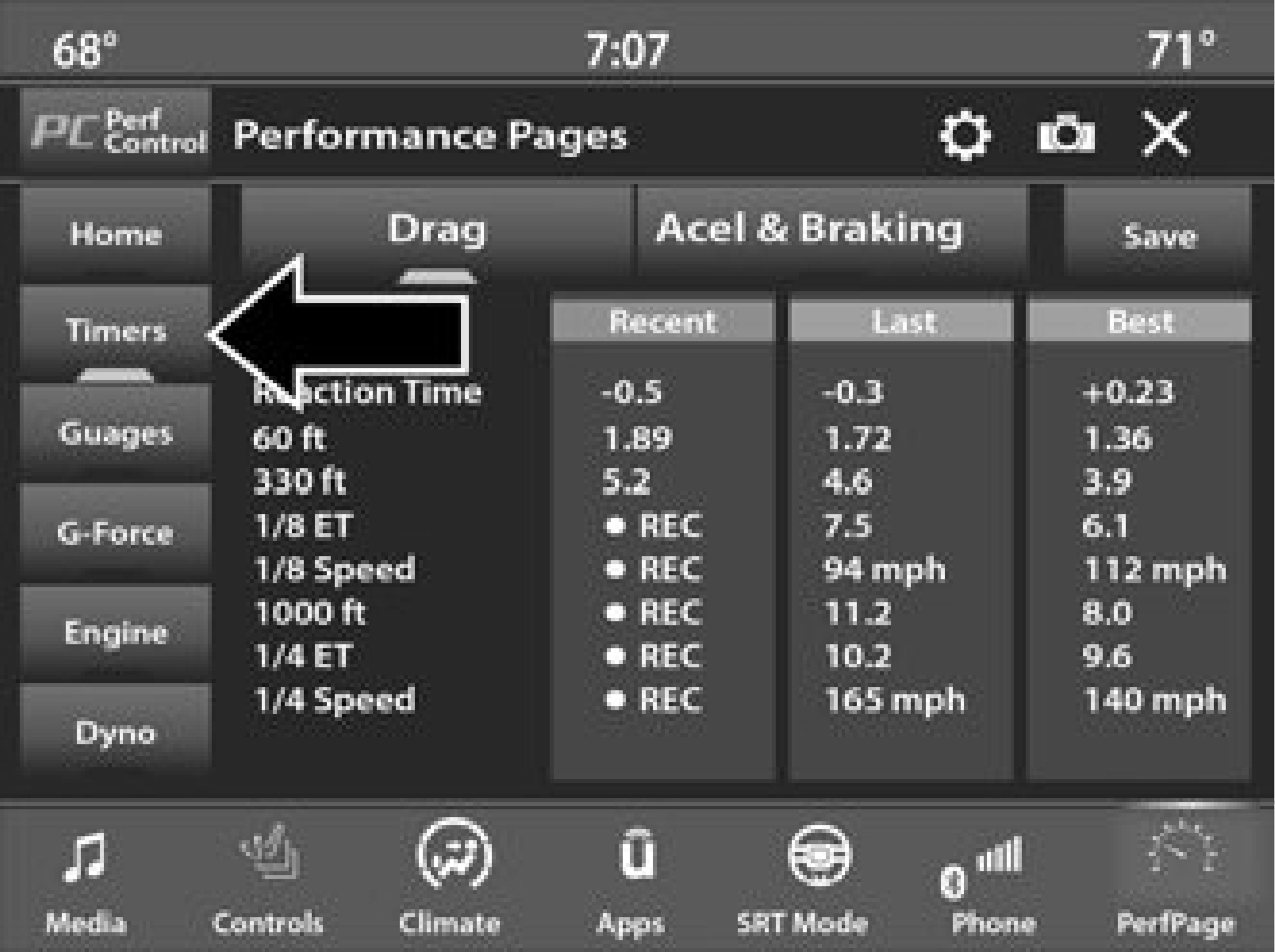

Performance Pages — Timers



When the Timers Page is selected, you will be able to select the Drag or Accel & Braking tabs. The following will be displayed:

  • Recent

    • The most recent successful run of perfor- mance timers. If a run does not complete within the timers limit, or is aborted, the values shown will revert to the most recent valid run.

  • Last

    • The last recorded successful run of performance timers.

  • Best

    • The best recorded run of performance timers, except for braking data.

  • Save

    • Pressing the Save button will let you save the visible page, Recent/Last/Best. Any saved run over 10 will overwrite the last saved run for Uconnect system storage. The operation of the Save feature is listed below:

    Pressing the Camera icon in the upper right corner of the screen at any time will save a screenshot of the screen currently being viewed to the connected USB device.

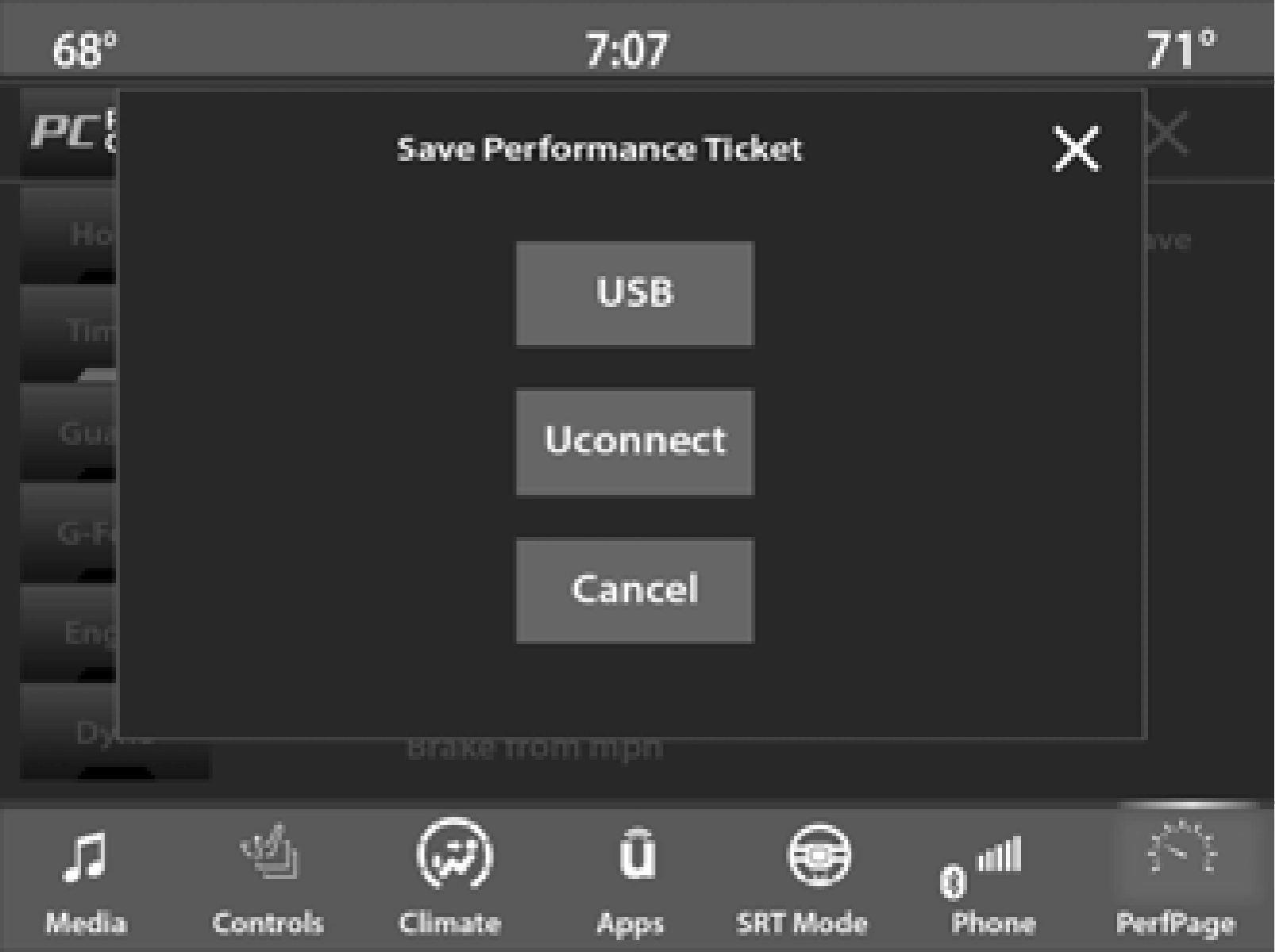

Performance Pages — Save



NOTE:

The Uconnect option will be grayed out or missing if the vehicle does not have a valid Uconnect account associated with it.

NOTE:

Drag timers (RT, 60 ft [20 m], 330 ft [100 m], 1/8 mile [200 m], 1000 ft [300 m], and 1/4 mile [400 m]).

NOTE

Accel & Braking timers (0-60 mph [0-100 km/h], 0-100 mph [0-160 km/h], Brake from mph [km/h], and Brake Distance ft [meters]).

  • 0-60 mph (0-100 km/h)

    • Displays the time it takes for the vehicle to go from 0 to 60 mph (0 to 100 km/h).

  • 0-100 mph (0-160 km/h)

    • Displays the time it takes for the vehicle to go from 0 to 100 mph (0 to 160 km/h).

  • 60 ft (20 m) ET

    • Displays the time it takes the vehicle to go 60 feet (20 m).

  • 330 ft (100 m) ET

    • Displays the time it takes the vehicle to go 330 feet (100 m).

  • ⅛ Mile (200 m) ET

    • Displays the time it takes for the vehicle to go ⅛ mile (200 m).

  • ⅛ Mile (200 m) mph

    • Displays the vehicle speed at the time ⅛ mile (200 m) was reached.

  • 1000 ft (300 m) ET

    • Displays the time it takes the vehicle to go 1000 ft (300 m).

  • ¼ Mile (400 m) ET

    • Displays the time it takes for the vehicle to go ¼ mile (400 m).

  • ¼ Mile (400 m) mph

    • Displays the speed the vehicle was at when

  • ¼ mile (400 m) was reached.

    • Brake Distance ft (meters)

    Displays the distance it takes the vehicle to make a complete stop.

NOTE:

The distance measurement will be aborted if the brake pedal is released or the parking brake is engaged, before the vehicle comes to a complete stop.

  • Brake from mph (km/h)

Displays the speed the vehicle is traveling when the brake pedal is pressed.

NOTE:

Brake Distance and Speed timers only display "ready" when vehicle is traveling at greater than 30 mph (48 km/h).

GAUGES

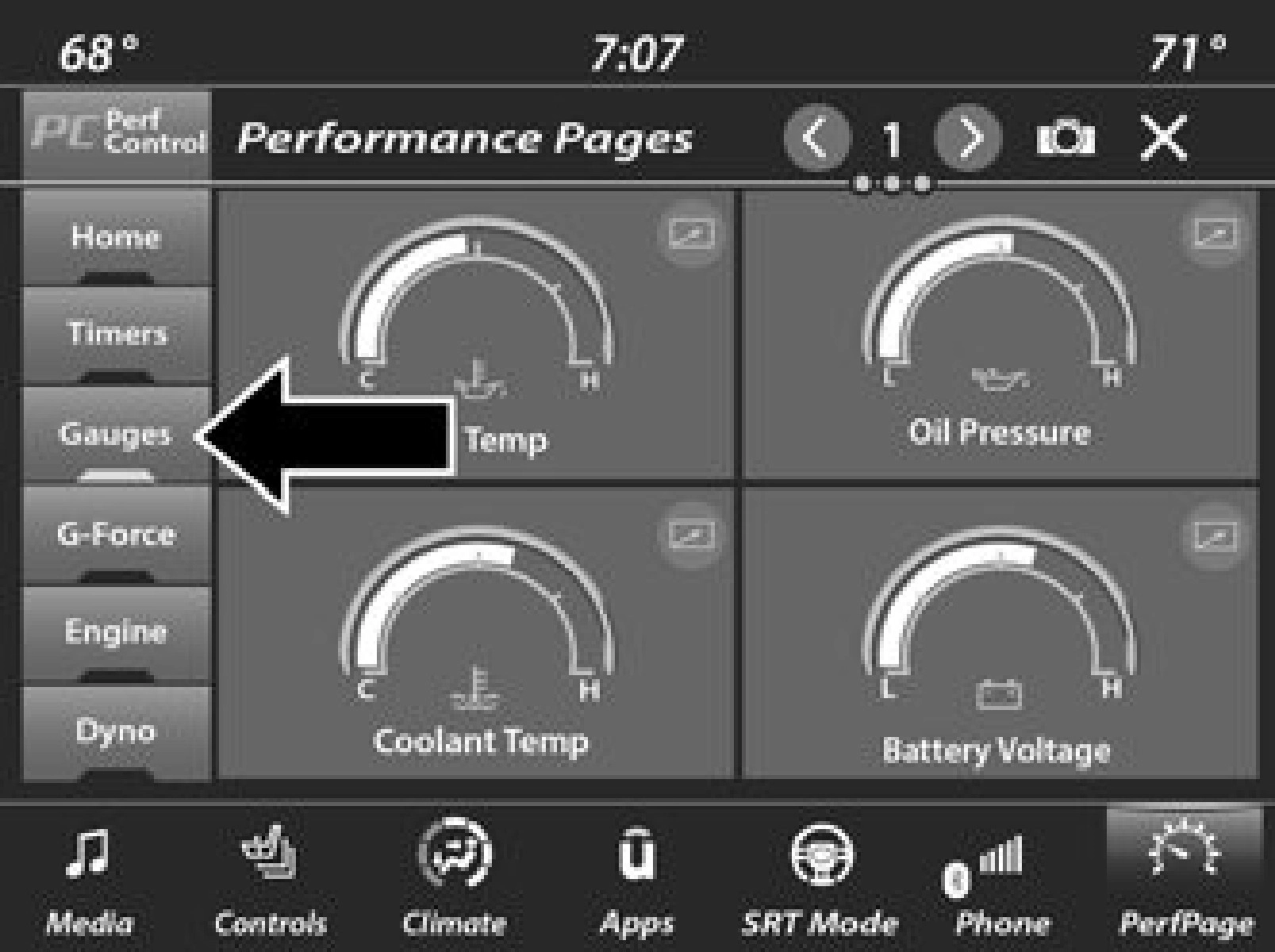

Performance Pages — Gauges



When selected, this screen displays the following values:

  • Oil Temperature

    • Shows the actual oil temperature.

  • Oil Pressure

    • Shows the actual oil pressure.

  • Coolant Temperature

    • Shows the actual coolant temperature.

  • Battery Voltage

    • Shows actual battery voltage.

  • Trans Oil Temp — If Equipped with an Automatic Transmission

    • Shows actual transmission oil temperature.

  • Boost Pressure — If Equipped

    • Shows actual boost pressure.

  • Air Fuel Ratio — If Equipped

    • Shows current air fuel ratio.

  • I/C Coolant Temp — If Equipped

    • Shows actual I/C Coolant temperature.

  • Intake Air Temp

    • Shows actual air intake temperature.

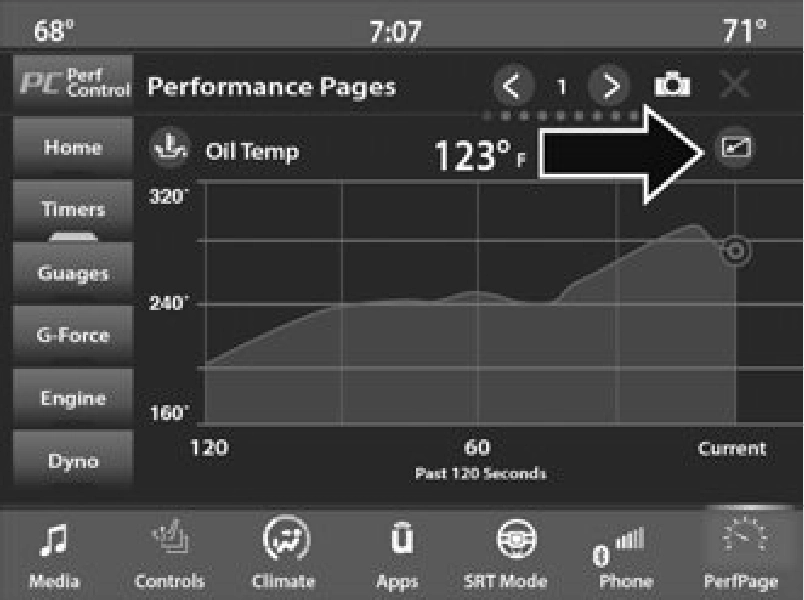

    If a gauge is selected, the Gauge Detail View page will appear on the screen. This page shows gauge values for the previous two minutes on the selected gauge.

    Pressing the Left or Right Arrow will cycle through the details for each of the gauges. Pressing the minimize button above the graph will return to the Gauge menu.



    G-FORCE

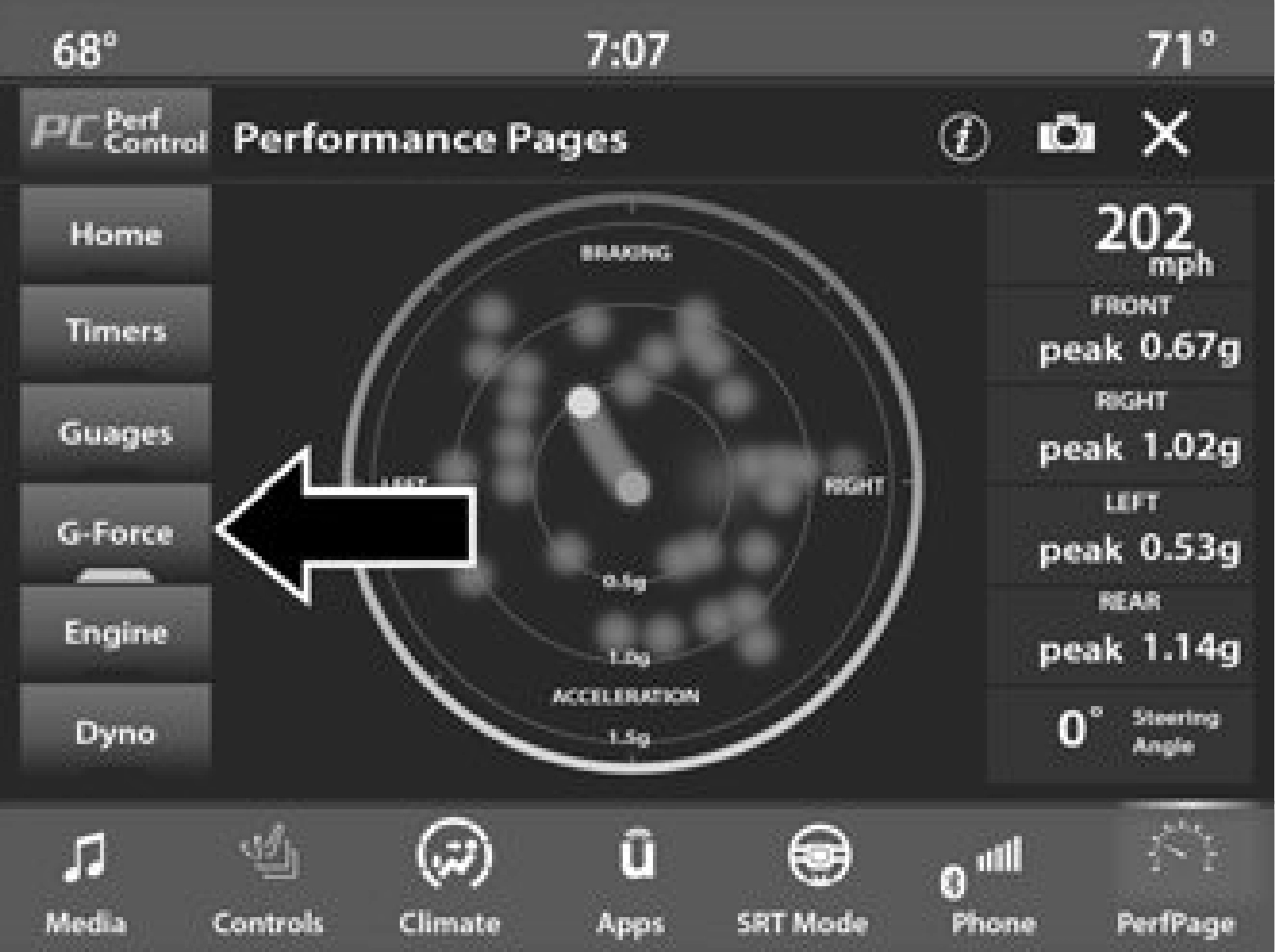

    G-Force
