MIRRORS

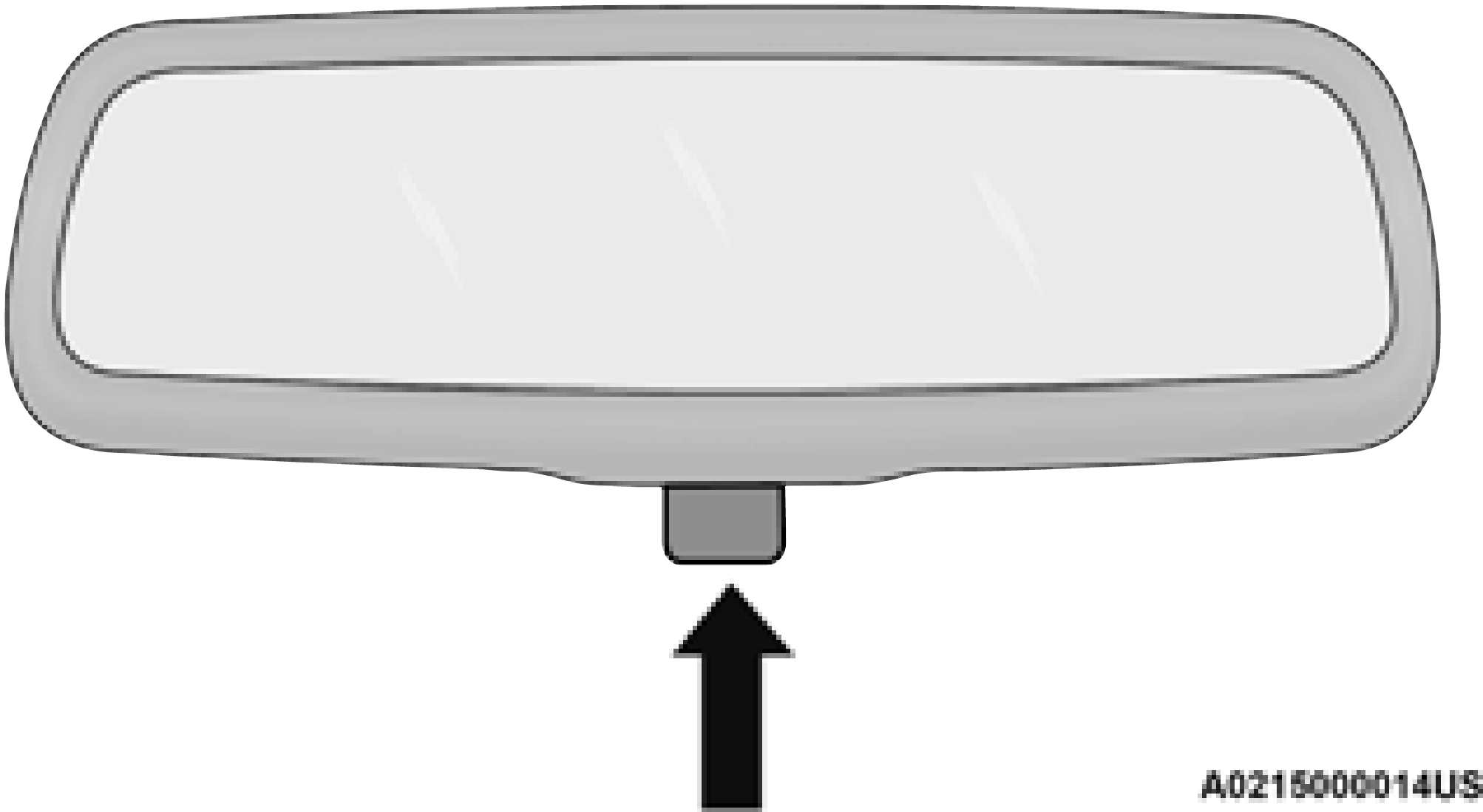

Manual Mirror— If Equipped
The rearview mirror can be adjusted up, down, left, and right. The mirror should be adjusted to center on the view through the rear window.
Headlight glare from vehicles behind you can be reduced by moving the small control under the mirror to the night position (toward the rear of the vehicle). The mirror should be adjusted while set in the day position (toward the windshield).
Adjusting Rearview Mirror

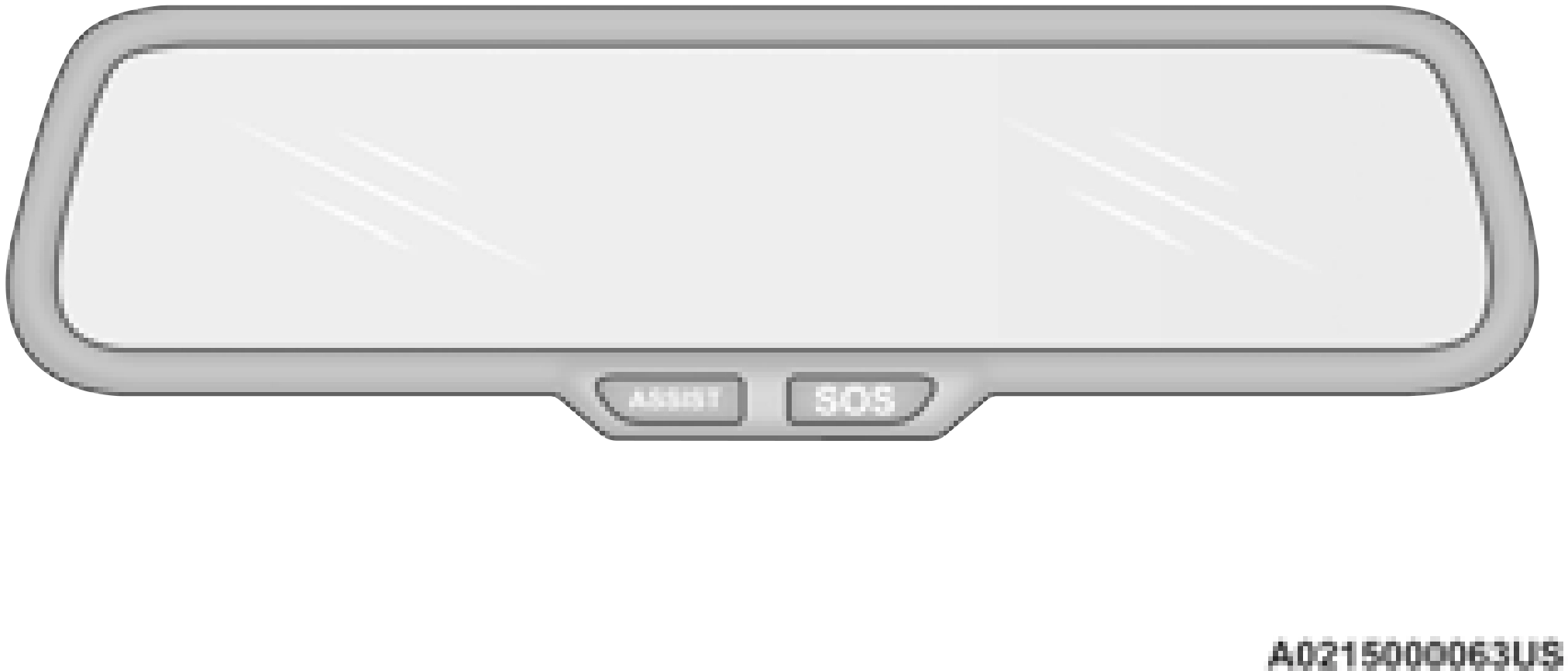

Automatic Dimming Mirror — If Equipped
The rearview mirror can be adjusted up, down, left, and right. The mirror should be adjusted to center on the view through the rear window.
This mirror automatically adjusts for headlight glare from vehicles behind you.
NOTE:
The Automatic Dimming Mirror feature is disabled when the vehicle is in REVERSE to improve the driver’s rear view.
The Automatic Dimming feature can be turned on or off through the Uconnect system
Automatic Dimming Mirror

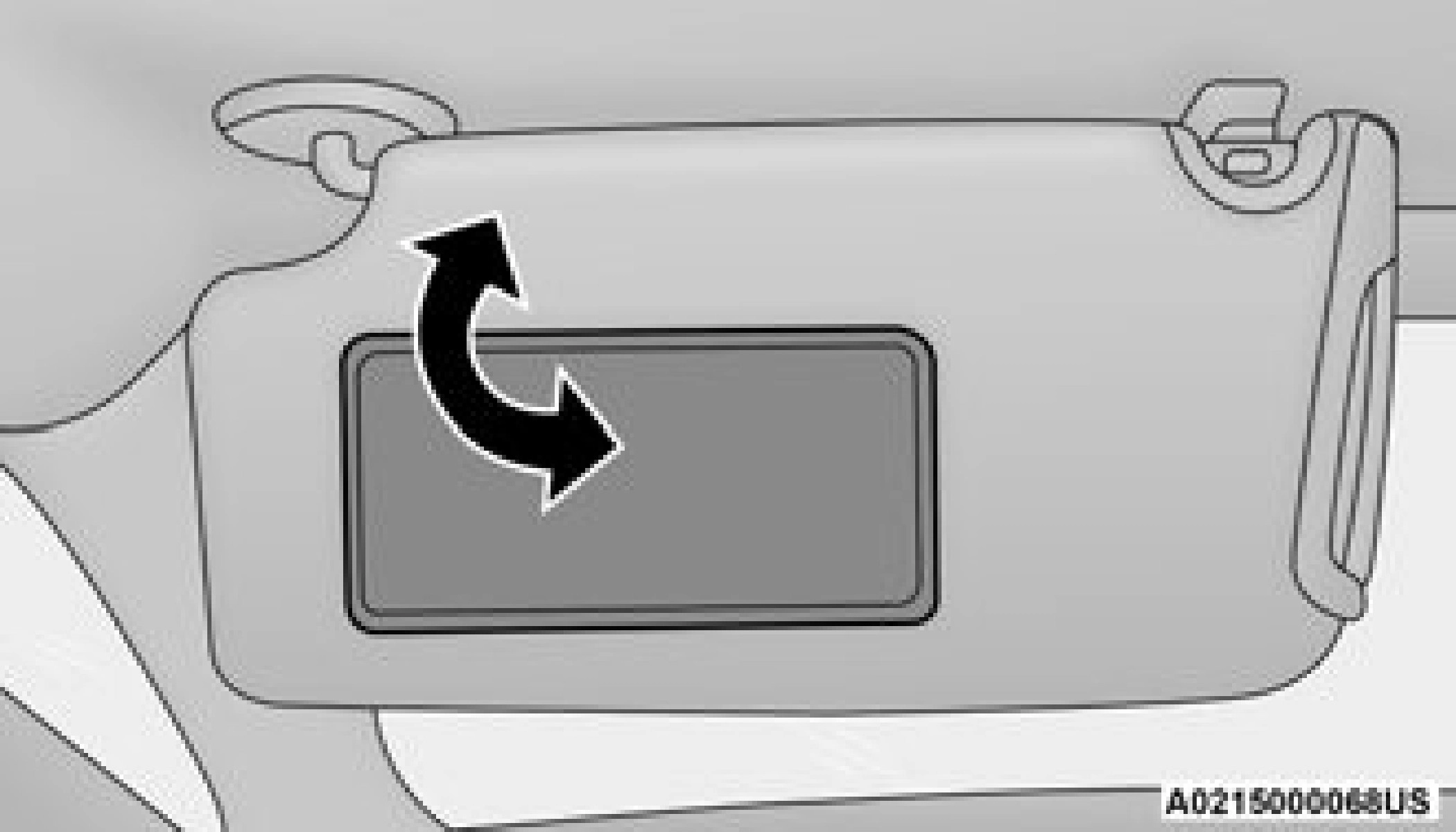

ILLUMINATED VANITY MIRRORS
To access an illuminated vanity mirror, flip down one of the visors and lift the cover.
Illuminated Vanity Mirror

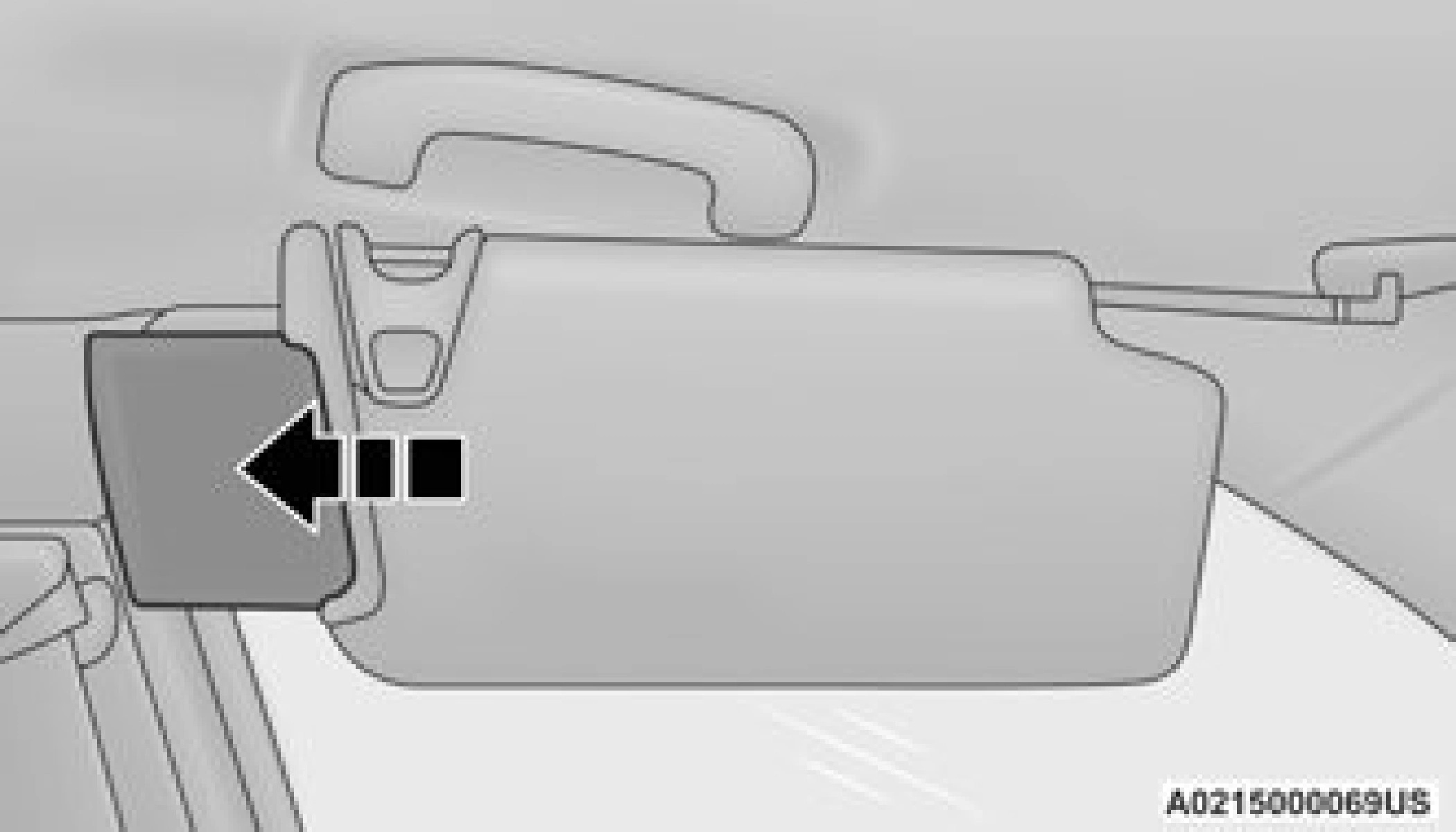

Sun Visor “Slide-On-Rod” Feature — If Equipped
The sun visor “Slide-On-Rod” feature allows for additional flexibility in positioning the sun visor to block out the sun.
- Fold down the sun visor.
- Unclip the visor from the corner clip.
- Pivot the sun visor toward the side window.
- Extend the sun visor for additional sun blockage.
The outside mirror(s) can be adjusted to the center of the adjacent lane of traffic to achieve the optimal view.
Slide-On-Rod Feature
The sun visor can also be extended while the sun visor is against the windshield for additional sun blockage through the front of the vehicle.

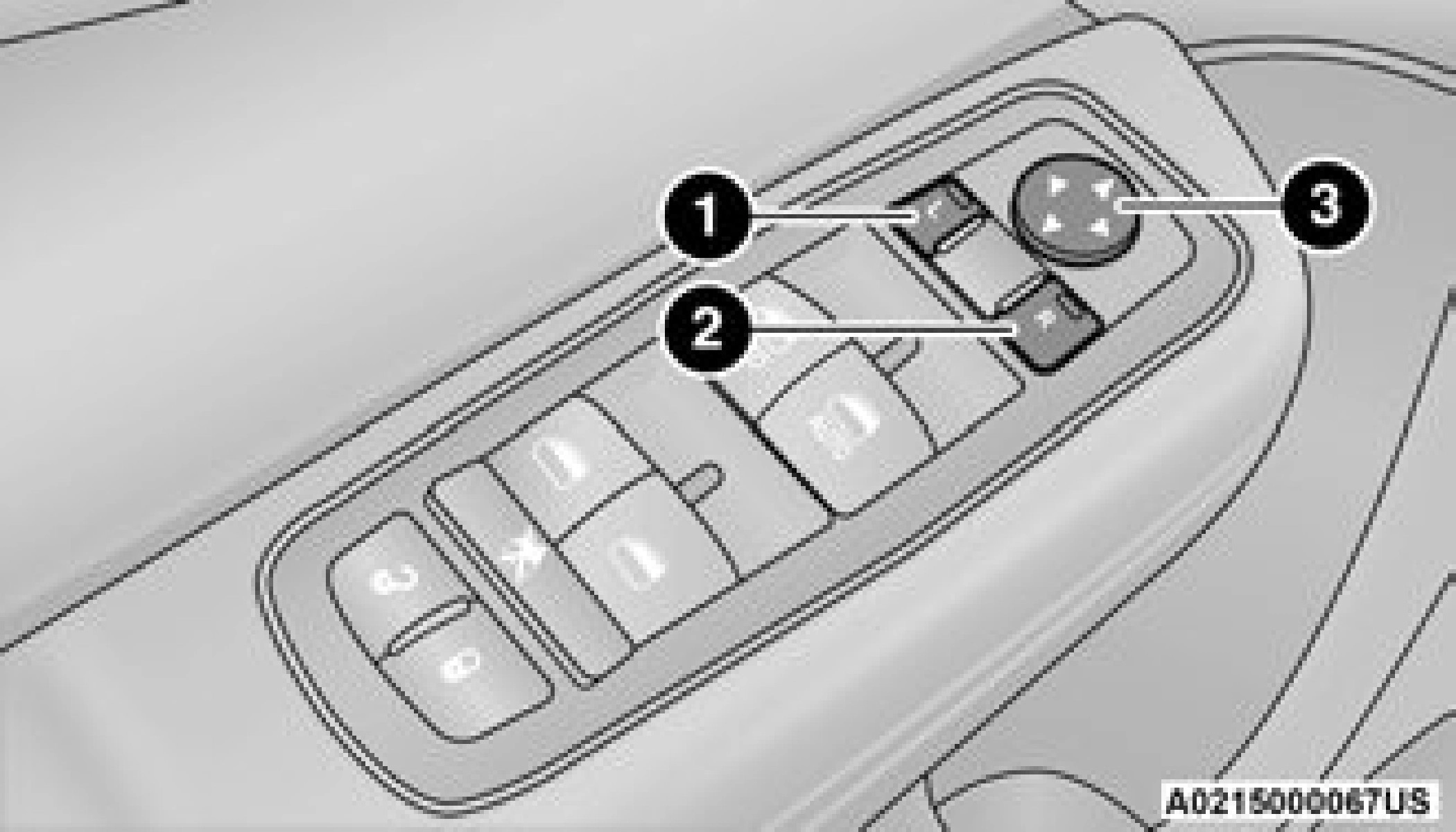

Power Mirror
The power mirror switch is located on the driver's side door trim panel.
The power mirror controls consist of mirror select buttons and a four-way mirror control switch. To adjust a mirror, push the mirror select button for the mirror that you want to adjust. Using the mirror control switch, push on any of the four arrows for the direction that you want the mirror to move.
Power Mirror Control
- Left Mirror Selection
- Right Mirror Selection
- Mirror Direction Control
Power mirror preselected positions can be controlled by the optional Driver Memory Settings feature
HEATED MIRRORS — IF EQUIPPED
These mirrors are heated to melt frost or ice. This feature will be activated whenever you turn on the rear window defroster (if equipped)
TILT SIDE MIRRORS IN REVERSE — IF EQUIPPED
This feature provides automatic outside mirror positioning which will assist with the driver’s ground visibility. The outside mirrors will move slightly downward from the present position when the vehicle is shifted into REVERSE. The outside mirrors will then return to the original position when the vehicle is shifted out of REVERSE. If the vehicle is equipped with memory settings, this feature will be linked to the programmable settings.
The Tilt Side Mirrors In Reverse feature can be turned on and off using the Uconnect system
